Easy 2x4 Base
How to make simple desk legs or base - use with easy desktop plans.
Specifications
| Project type | Desk, Desk Systems and Project Table Plans |
|---|---|
| Room | Teens |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

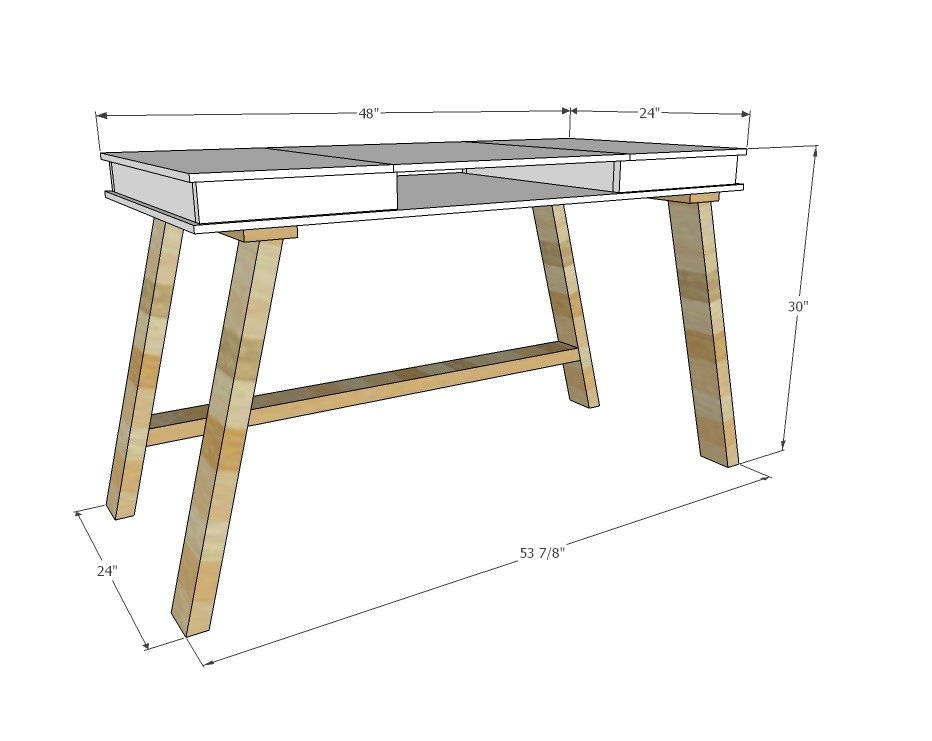

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
For Legs Only
1 - 1x4 @ 4 feet long
2 - 2x4 @ 8 feet long
Cut List
2 - 1x4 @ 24"
4 - 2x4 @ 26-3/4" (both ends cut at 15 degrees off square BEVEL, ends are parallel to each other, long point to short point measurement)
1 - 2x4 @ 47-1/2" (both ends cut at 15 degrees off square BEVEL, ends are NOT parallel to each other, long point to long point measurement)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
Step-by-step Instructions

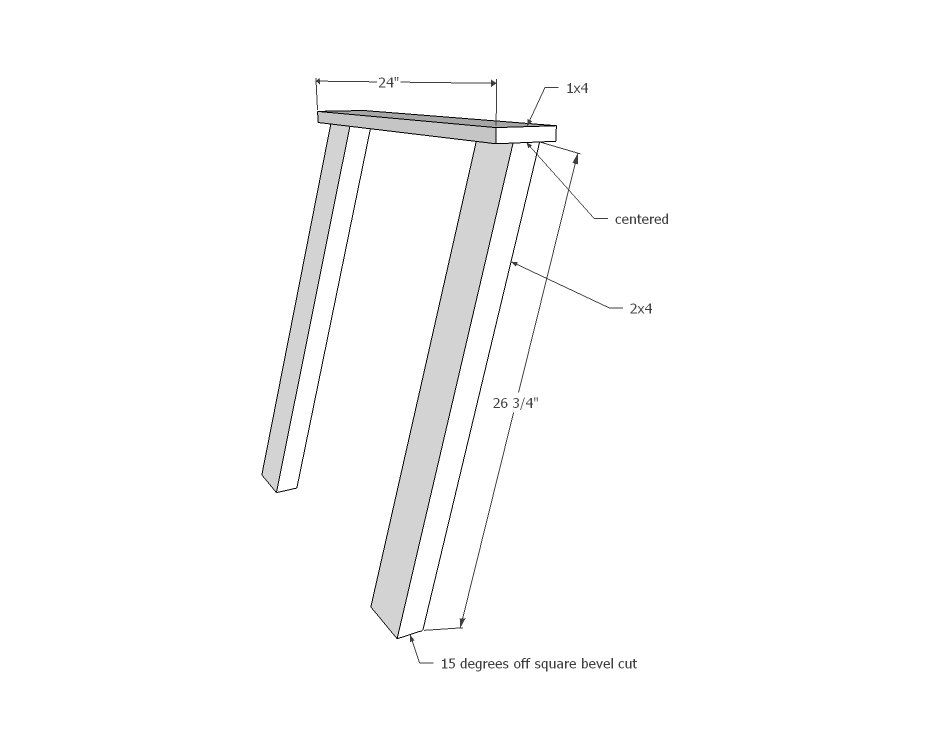

Step 1
Attach legs to the 1x4s, centered on the 1x4s. I recommend using 1-1/2" pocket holes and 2-1/2" pocket hole screws on the inside, but you could also countersink 2-1/2" screws from top. Use glue.

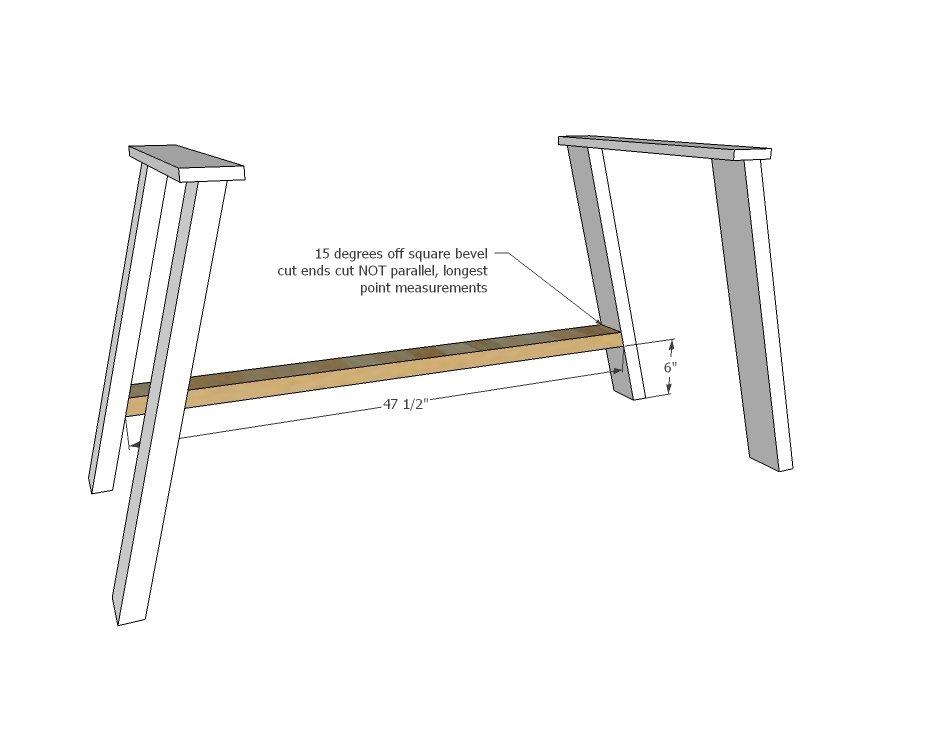

Step 2
Attach back support 6" up from bottom of legs - pocket holes on underside preferred but countersunk screws will work too. Use glue.

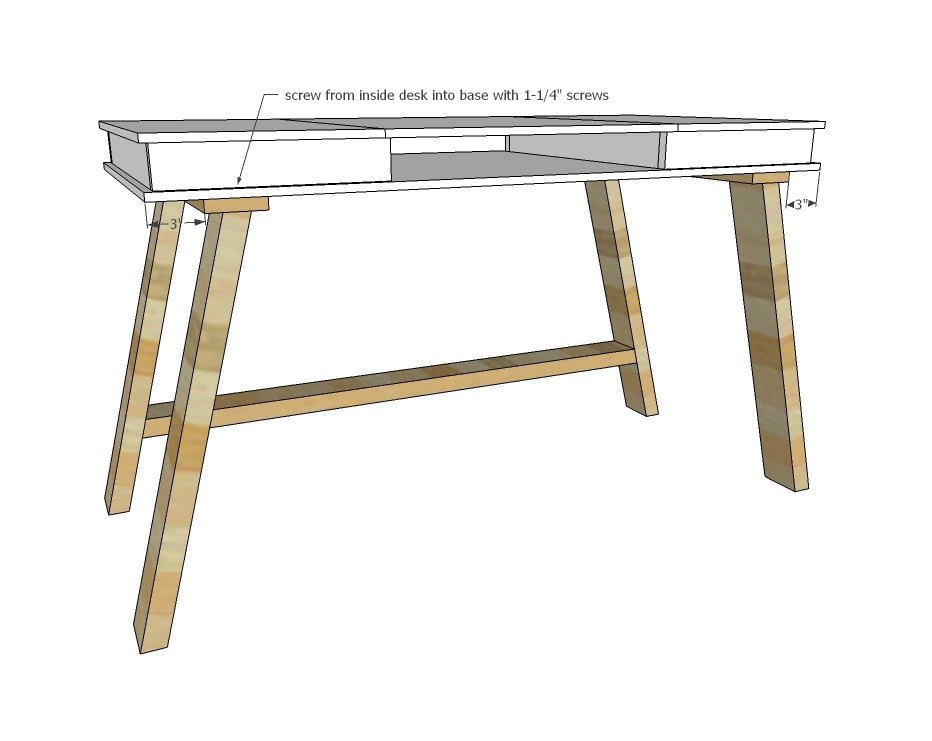

Step 3
Screw the desktop to the leg base - at least 4 screws per side.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
