Easy DIY Garage Workshop Workbench
Make a workbench for your garage with these easy, beginner friendly build plans! with step by step diagrams and cut list/shopping list by
Specifications
| Project type | Workshop and Garage Plans |
|---|---|
| Room | Garage and Workshop |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

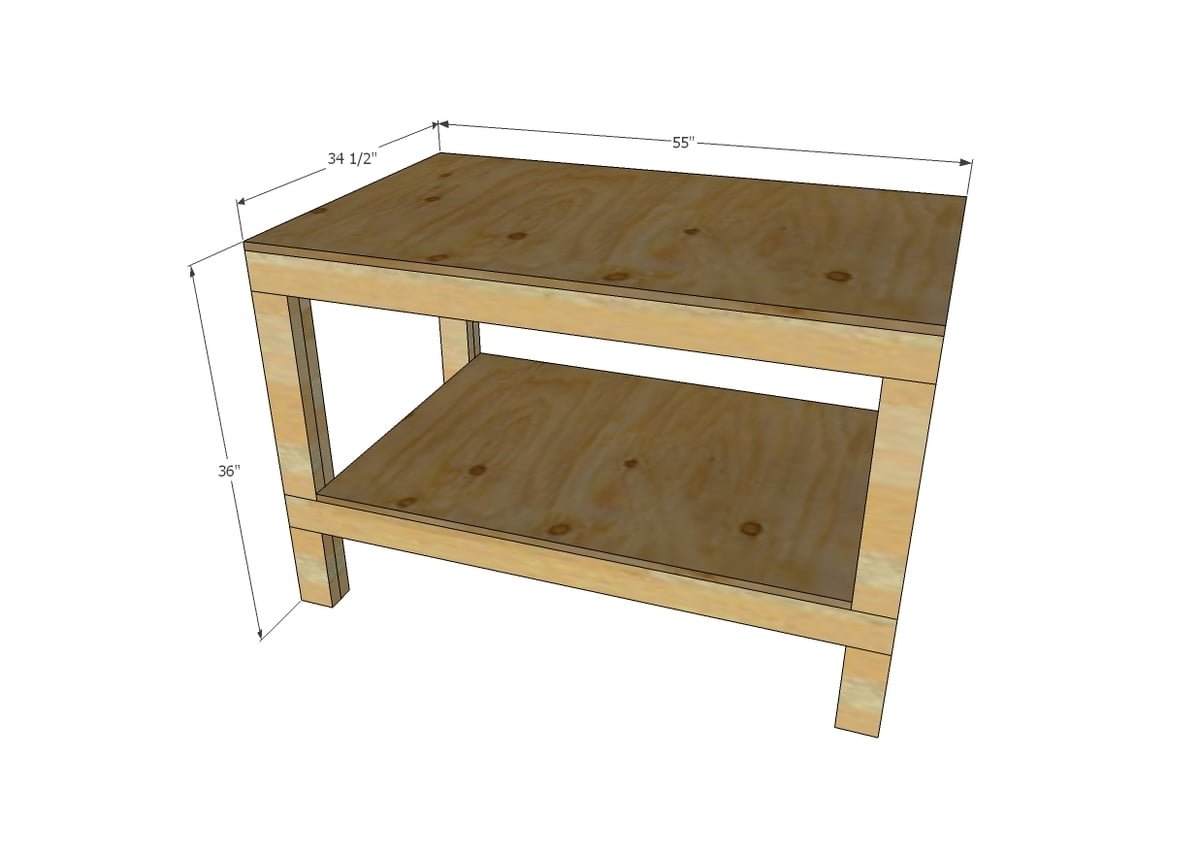

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 8 - 2x4 @ 8 feet long
- 1 - sheet of 3/4" thick plywood (AC grade most economical option)
- 2-1/2" self tapping wood screws
- 1-5/8" self tapping wood screws
Cut List
- 4 - 2x4 @ 55" - side aprons
- 4 - 2x4 @ 35-1/4" - legs
- 8 - 2x4 @ 31-1/2" - supports and end aprons
- 4 - 2x4 @ 19-3/4" - leg blocking
- 4 - 2x4 @ 8-1/2" - leg blocking
- 1 - 3/4" plywood @ 34-1/2" x 48" - bottom shelf
- 1 - 3/4" plywood @ 34-1/2" x 55" - top
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- compound miter saw
- nailer
Step-by-step Instructions

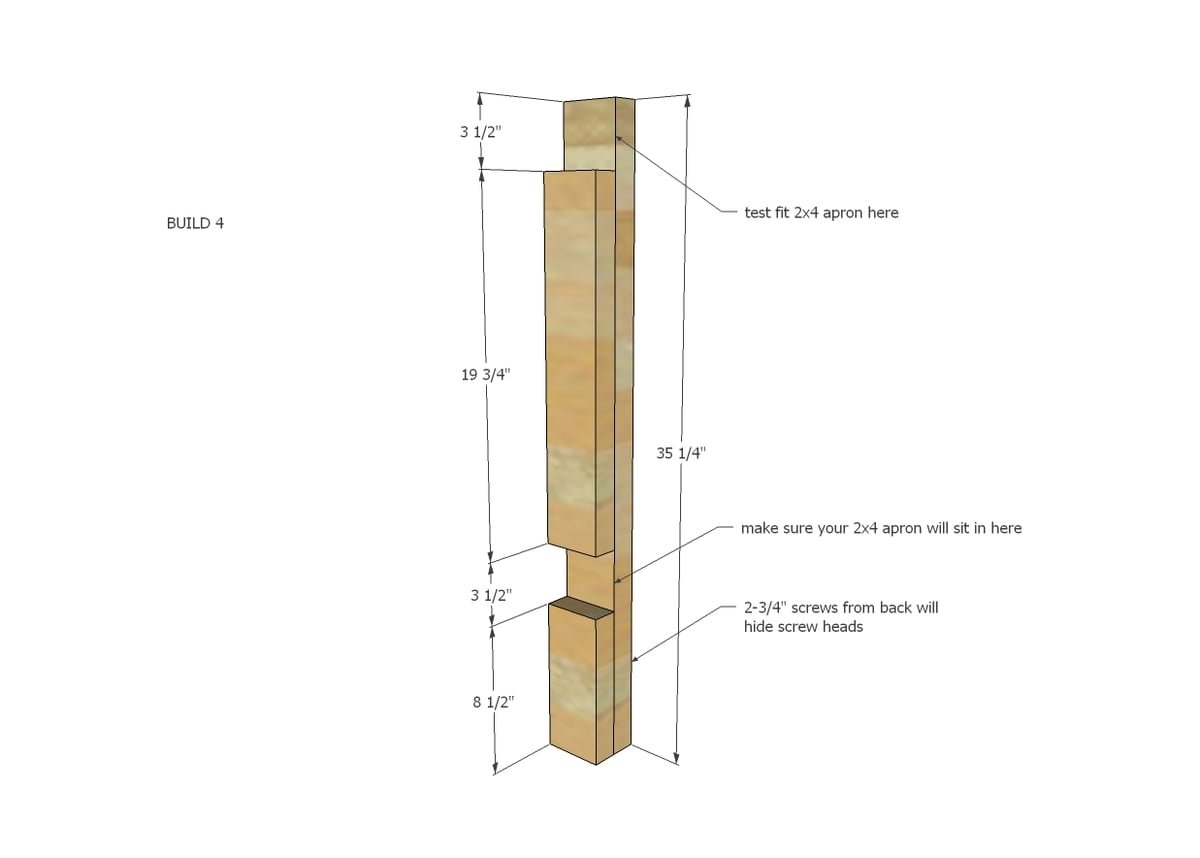

Step 1
Build four of the legs by attaching with glue and 2-3/4" screws the long leg pieces to the leg blocking. Make sure your 2x4s will fit in openings.

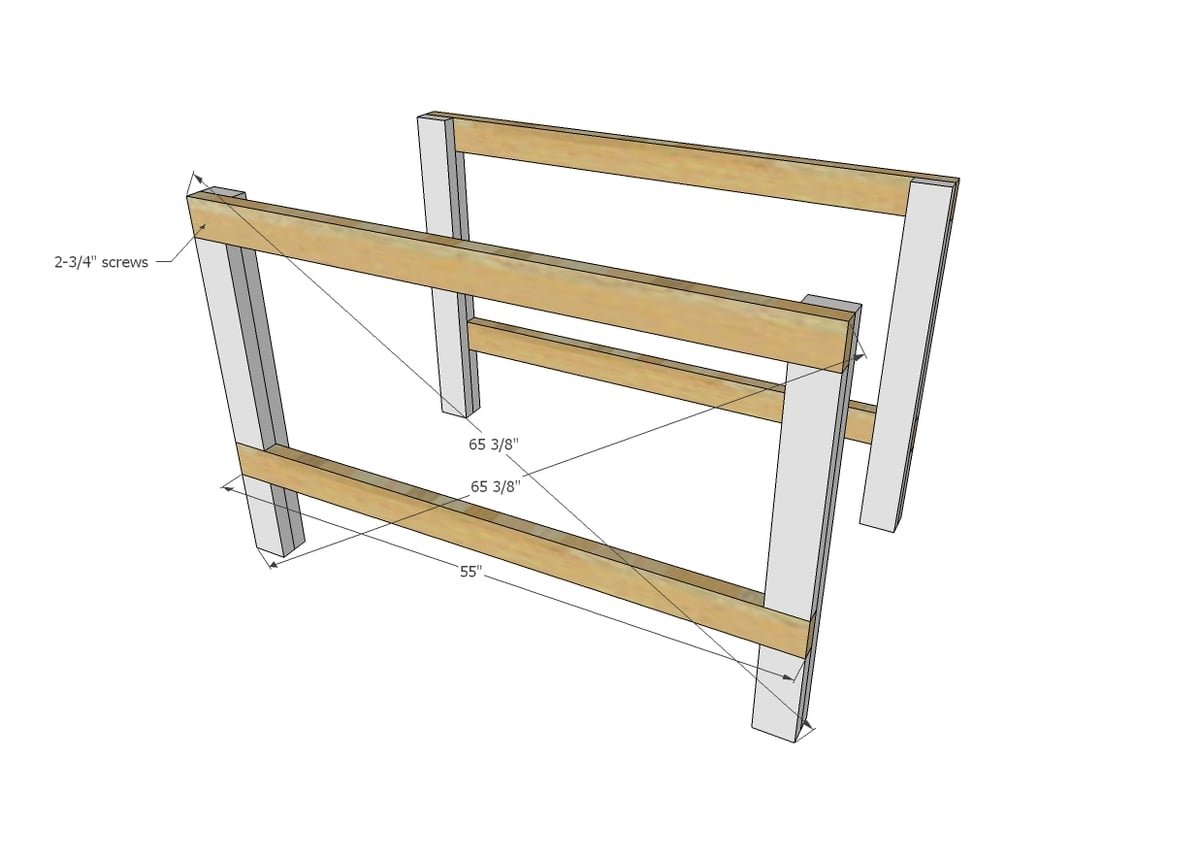

Step 2
Attach long aprons to leg sets, 2-3/4" screws and glue. Check to make sure the leg sets are square by taking diagonal measurements from opposite corners as shown in diagrams. If the diagonal do not match, push the two opposite corners on the longer diagonal to adjust, then check for square again.

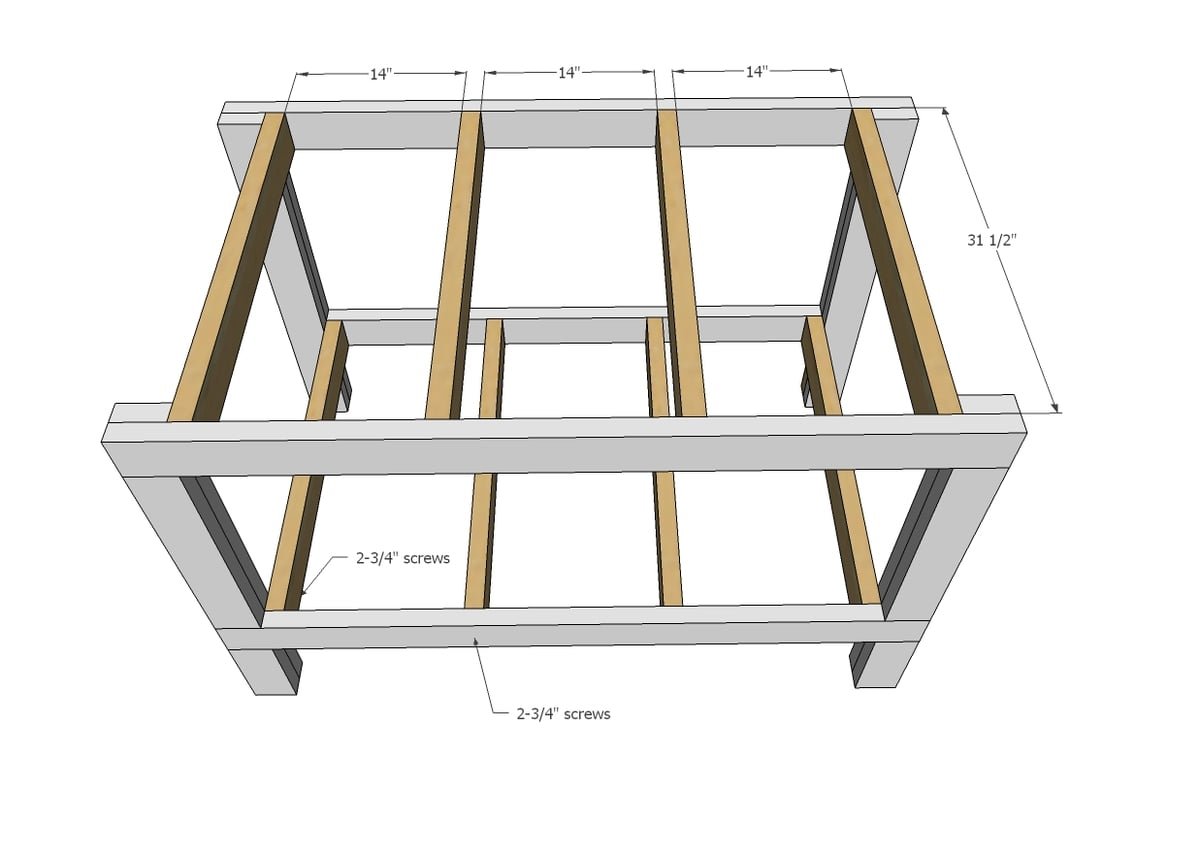

Step 3
Now attach the two leg sets together with the supports. Use 2-3/4" screws and glue.

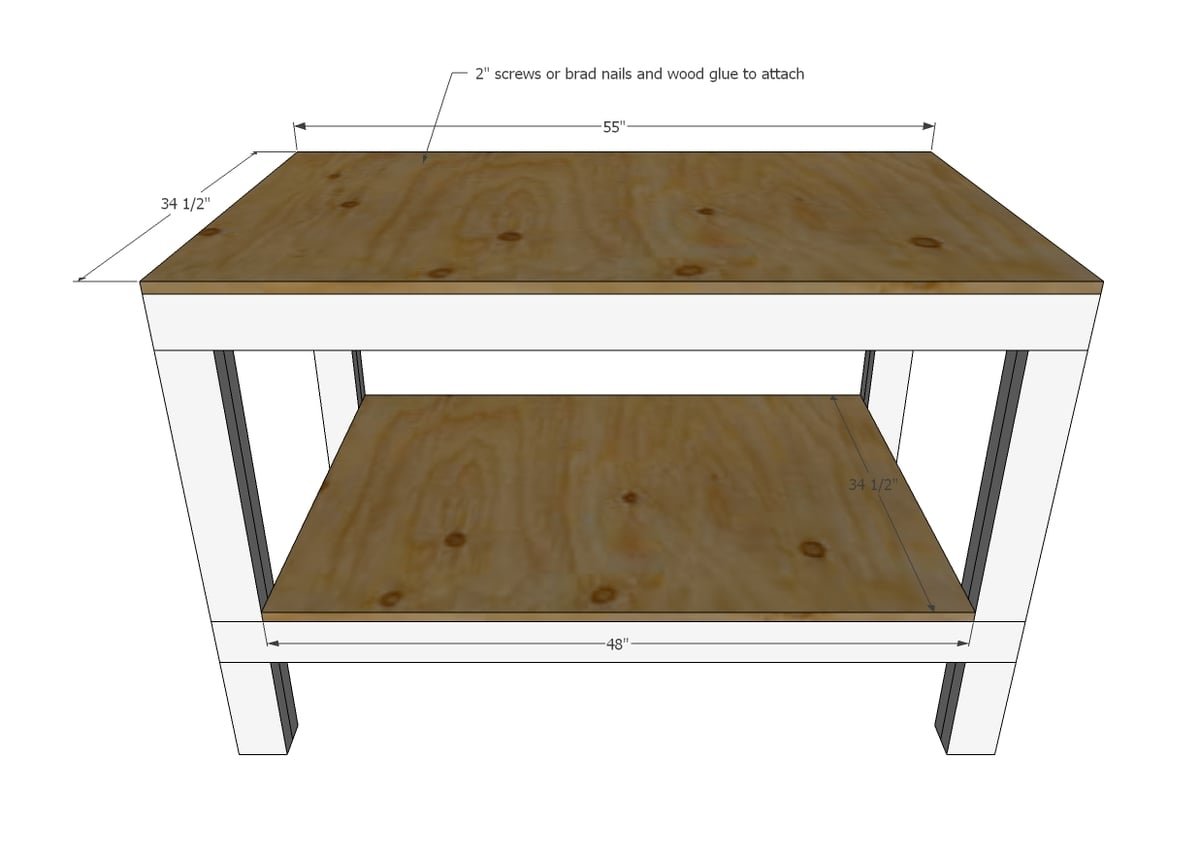

Step 4
Finally, attach plywood to tops of shelving with screws or brad nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
