Eco Modular Office Desktop made with PureBond Plywood
This free simple step by step Do It Yourself Project Plan shows you how to use PureBond Formaldehyde Free plywood to create a desktop system.
Specifications
| Project type | Desk, Desk Systems and Project Table Plans |
|---|---|
| Room | office |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |

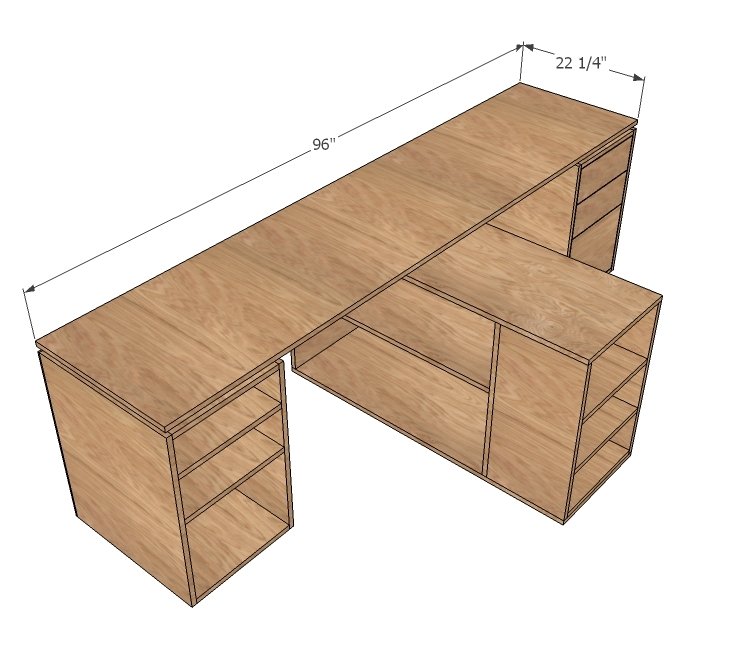

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - sheet of PureBond Formaldehyde Free Plywood cut into a strip 8 feet long and 22 1/4" wide 1 - 1x2 - 8 feet long in a matching wood veneer
1 - 1x2 - 10 feet long in a matching wood veneer 3/4" Edge Banding roll (25') in a matching veneer
Cut List
1 - 3/4" PureBond Plywood @ 22 1/4" x 96" (Desktop)
6 - 1x2 @ 17 1/2"
6 - 1x2 @ 15 1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions
Step 1

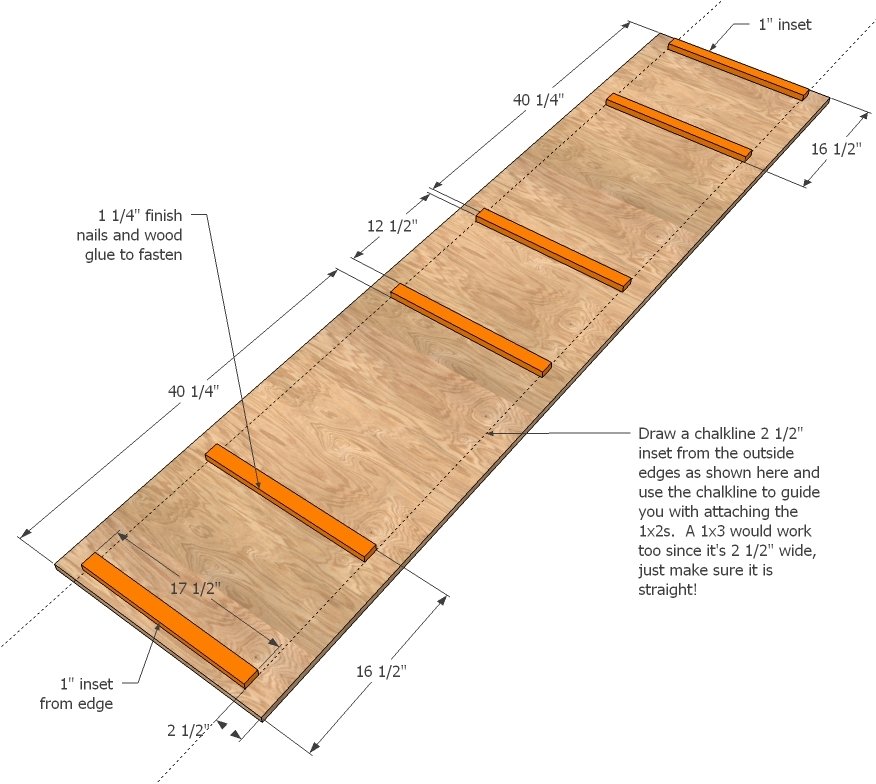

The most confusing part for me was trying to figure out where the spacers go. And trust me - you want the spacers. It gives the desktop a more finished look and creates a more profound height difference from the bookshelf desktop to the full desktop. So take a 1x3 or use a chalkline and draw lines as shown in diagram along edges. Use these lines to guide you. Measure and mark the placement of the first boards as shown above. Use 1 1/4" finish nails and wood glue to attach carefully.

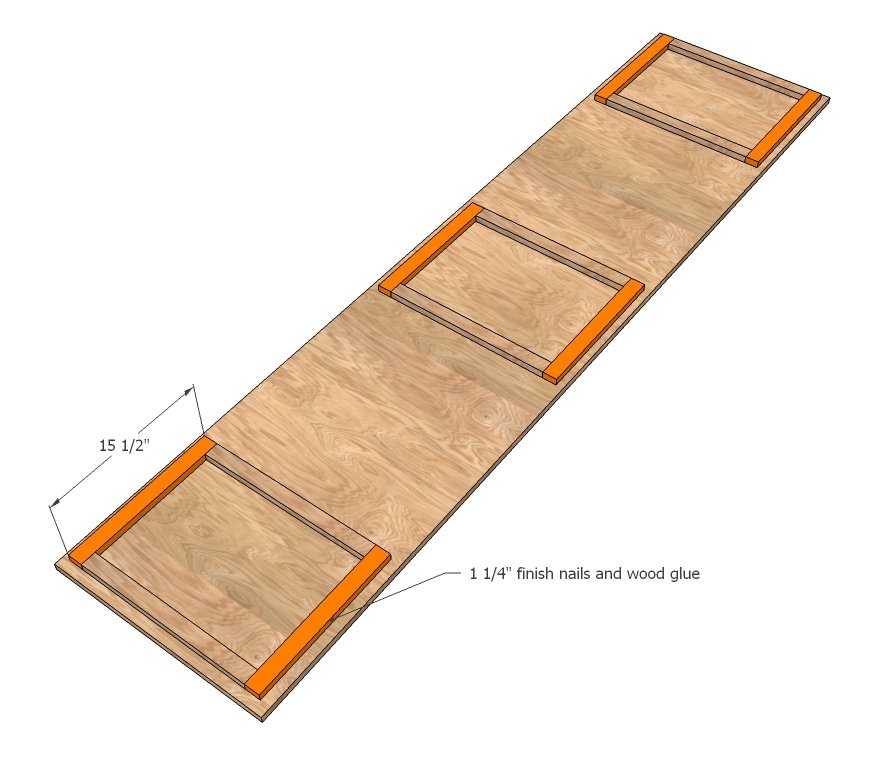

Now things get easy! Just finish the boxes as shown here.
Apply edge banding to the front and sides (or all four sides) with an iron and trim edges off, followed by a quick sanding to finish plywood edges.
Step 3

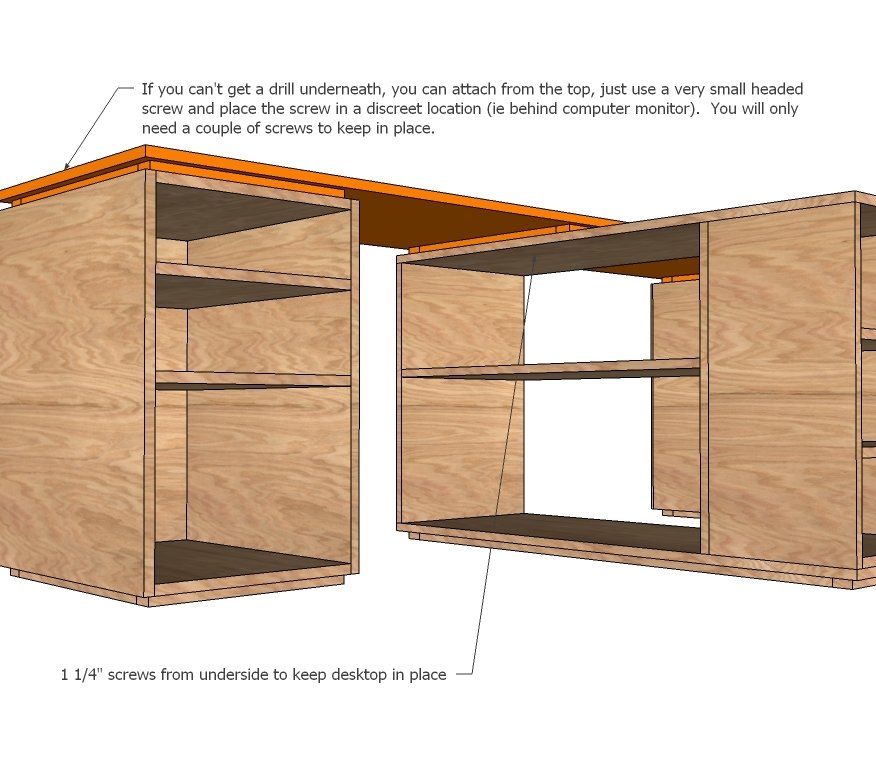

When placed correctly, the top of the desktop will line up with the outsides of your bases. Screw to enable easy assembly/disassembly through the 1x2 spacers.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
