Elegant DIY Twin Bed with Detailed Headboard ( + Cut List)

Build this elegant twin panel bed with a tall headboard and statement-making style—fit for a princess! include step-by-step diagrams, shopping list, and cut list.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List)

Specifications

Project typeHeadboard
RoomBedroom
StyleCottage Style Furniture Plans
DifficultyIntermediate
Estimated cost$100-$150

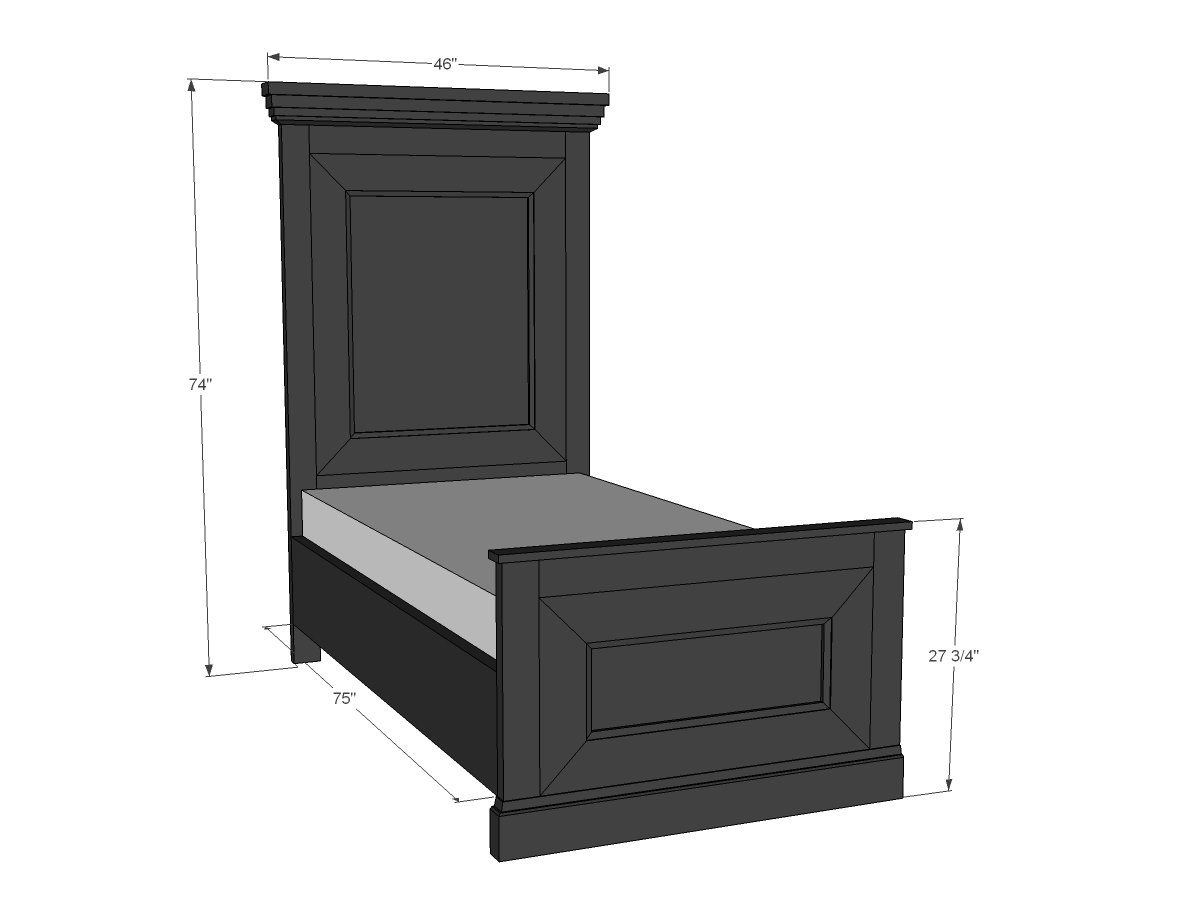

Dimensions

Use the size-specific shopping and cut lists below.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) dimension diagram 1

Shopping List

  • 5 - 2x4 @ 8 feet long
  • 2 - 1x4 @ 10 feet long
  • 1 - sheet 3/4" plywood or MDF
  • 1 - 1x3 @ 4 feet long
  • 2 - 1x boards for siderails, 75" long (recommend 1x12, 1x10 etc)
  • 5-1/4" base moulding
  • Crown moulding

Cut List

HEADBOARD CUT LIST

  • 2 - 2x4 @ 72-1/2"
  • 1 - 2x4 @ 35"
  • 2- 1x4 @ 35"
  • 1 - 3/4" plywood 48" x 35"
  • 1 - 2x4 @ 46"

Crown and moulding cut to fit

FOOTBOARD CUT LIST

  • 1 - 1x3 @ 43"
  • 2 - 1x4 @ 27"
  • 2 - 1x4 @ 35"
  • 1 - 3/4" plywood 35" x 25-1/4"
  • Mouldings (all 5-1/4" base moulding) cut to fit

SIDERAILS/CLEATS

  • 2 - 1x boards (shown at 1x12 size)
  • 2 - 2x4s @ 75"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

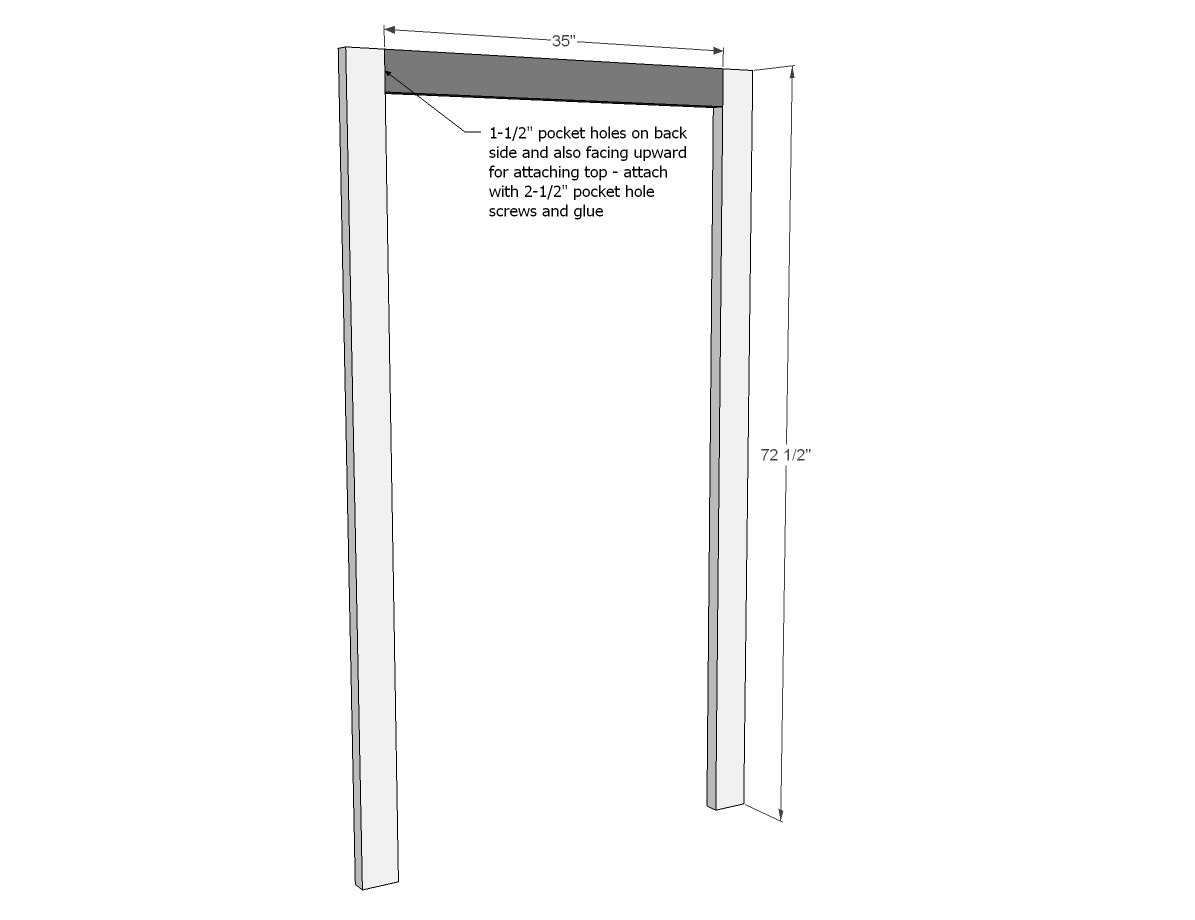

Step 1

Start by attaching top to two legs.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 1
2

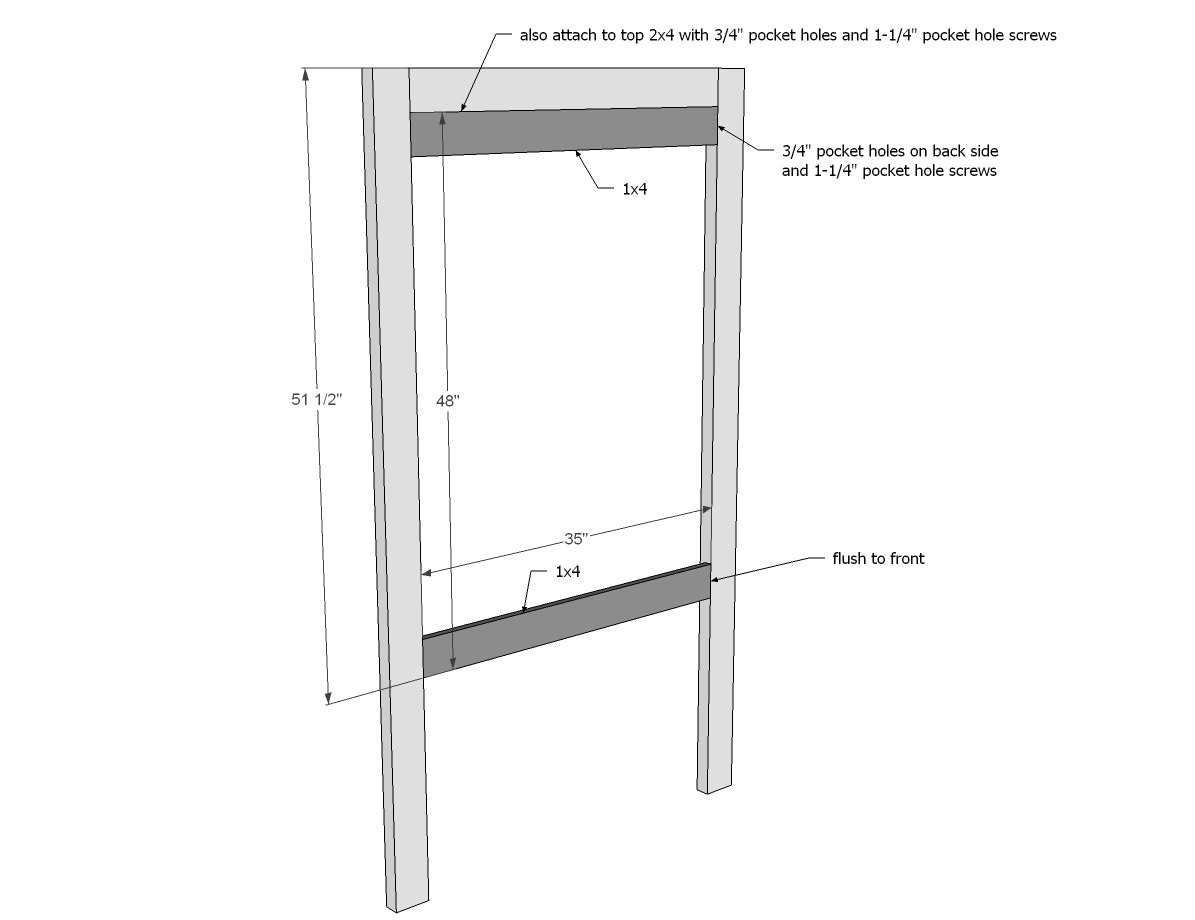

Step 2

Then attach the two 1x4 boards, flush to front.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 2
3

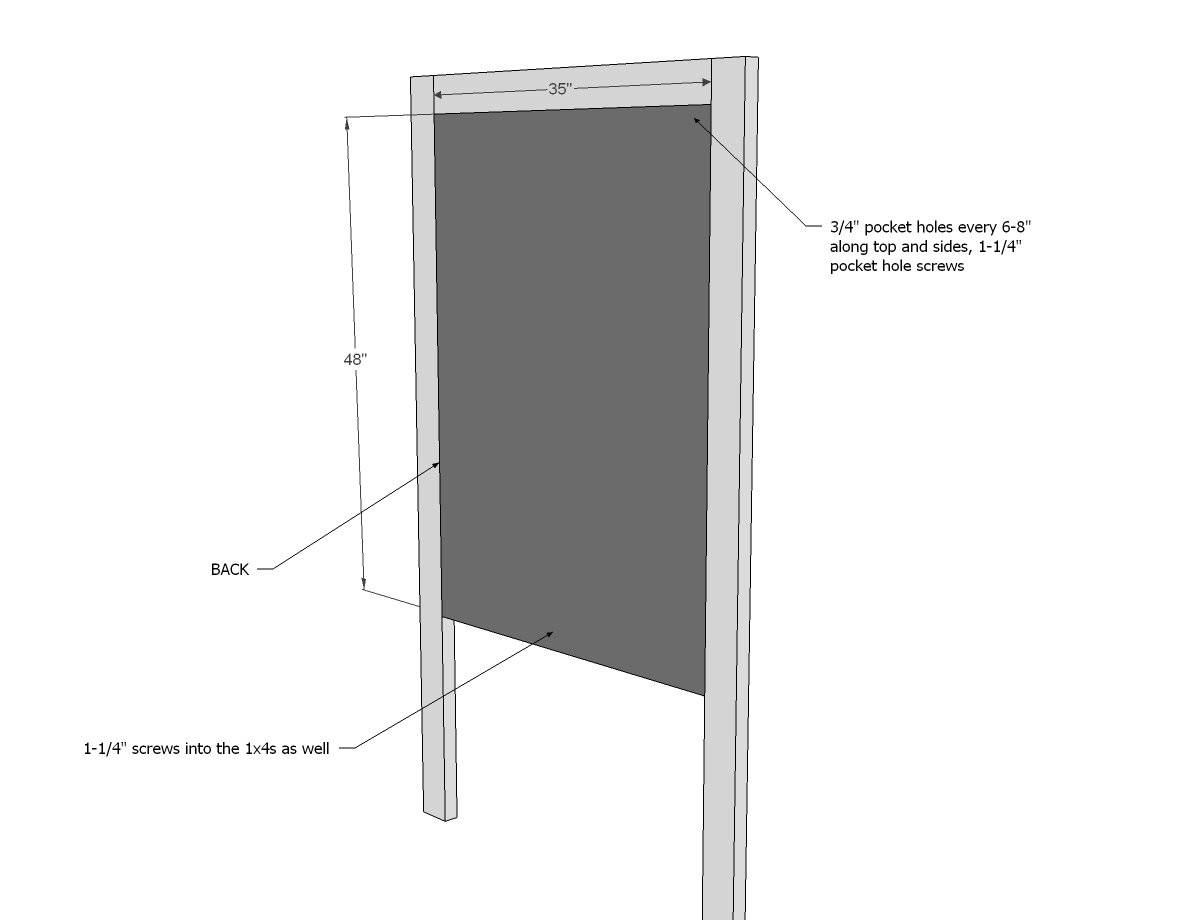

Step 3

Now attach panel to legs and top, and also screw to 1x4 boards.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 3
4

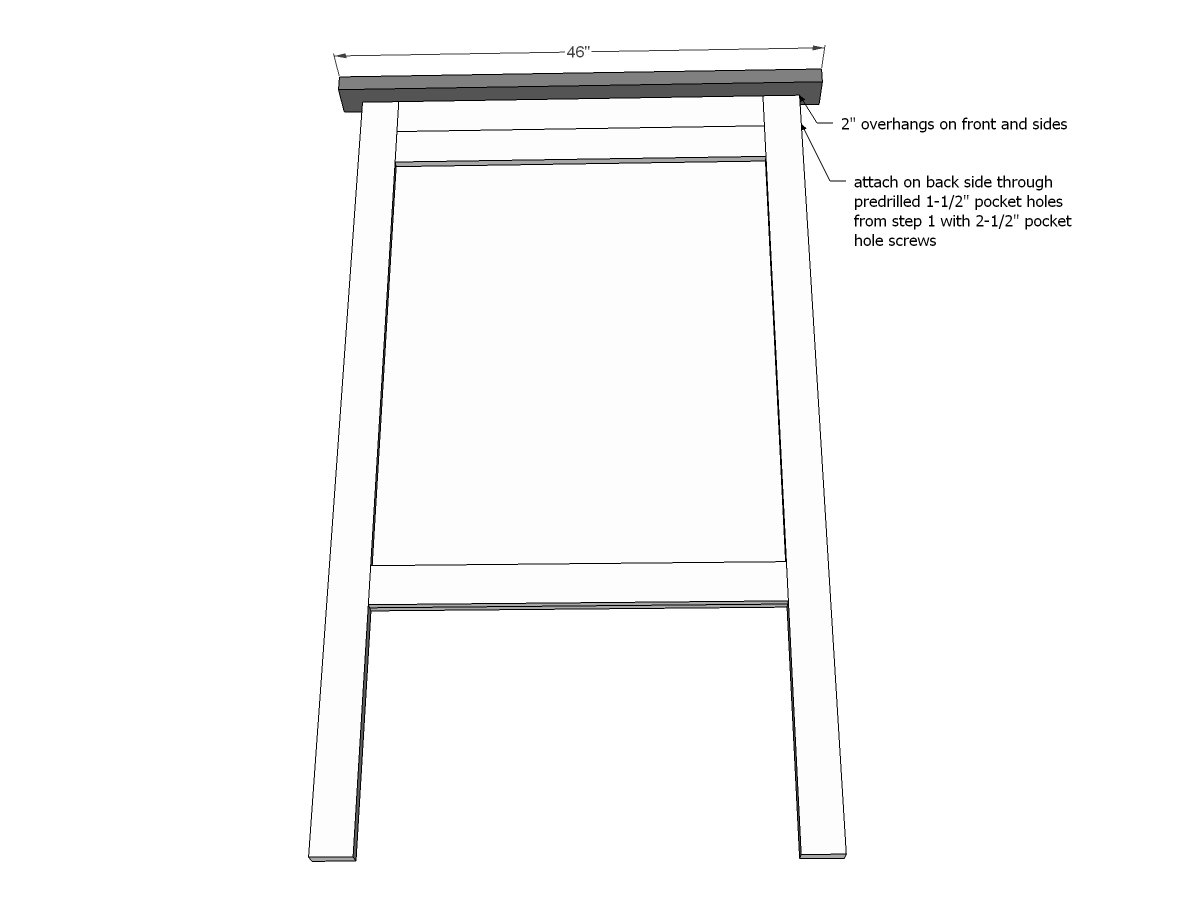

Step 4

Next, attach header to top of headboard.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 4
5

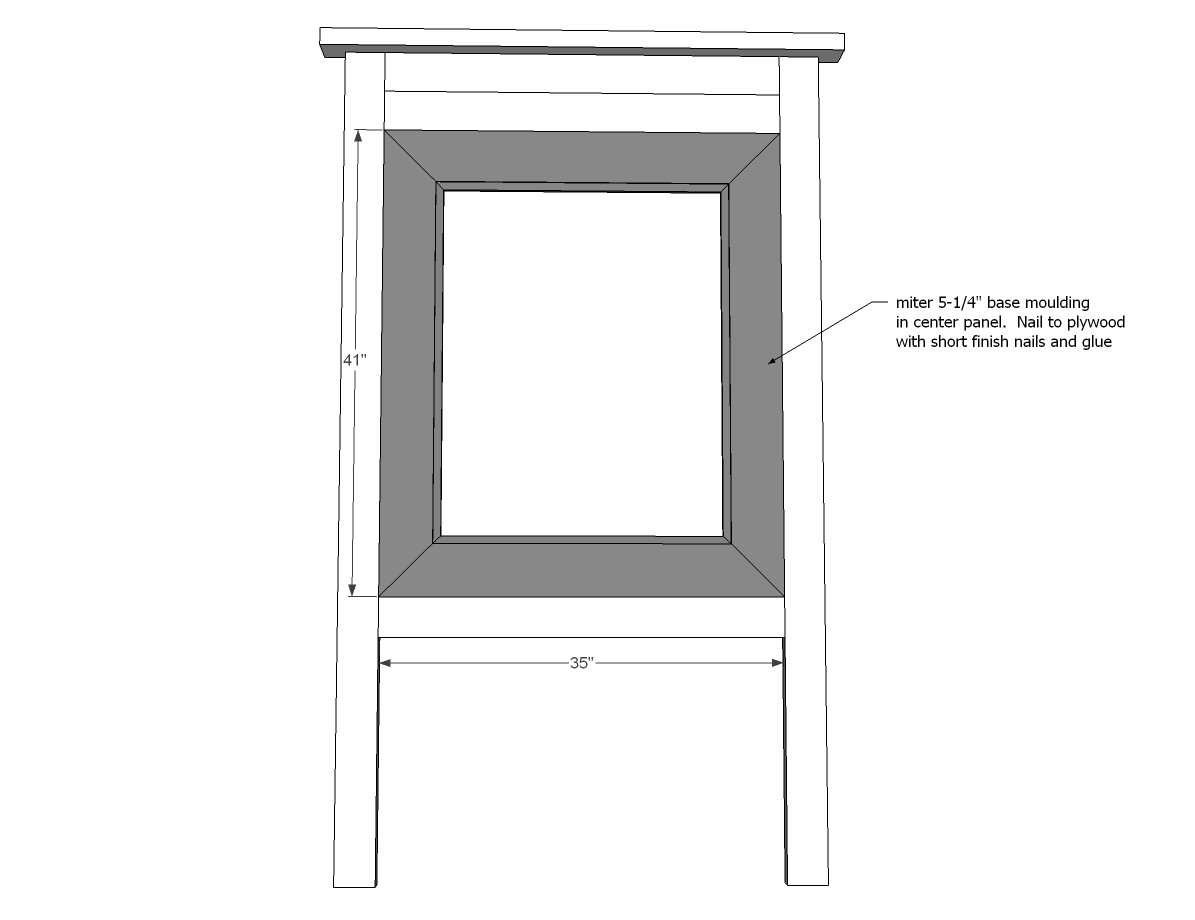

Step 5

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 5
6

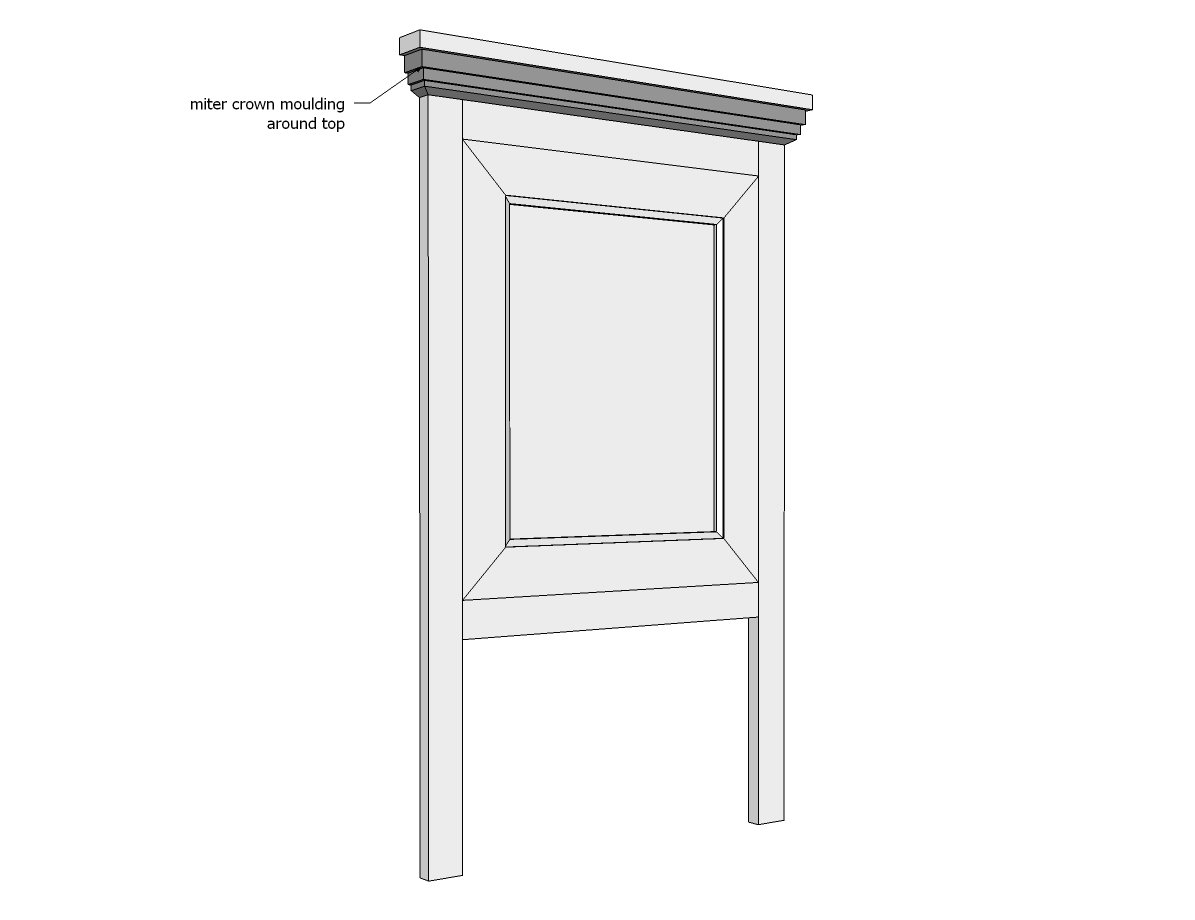

Step 6

Add crown moulding around top of headboard.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 6
7

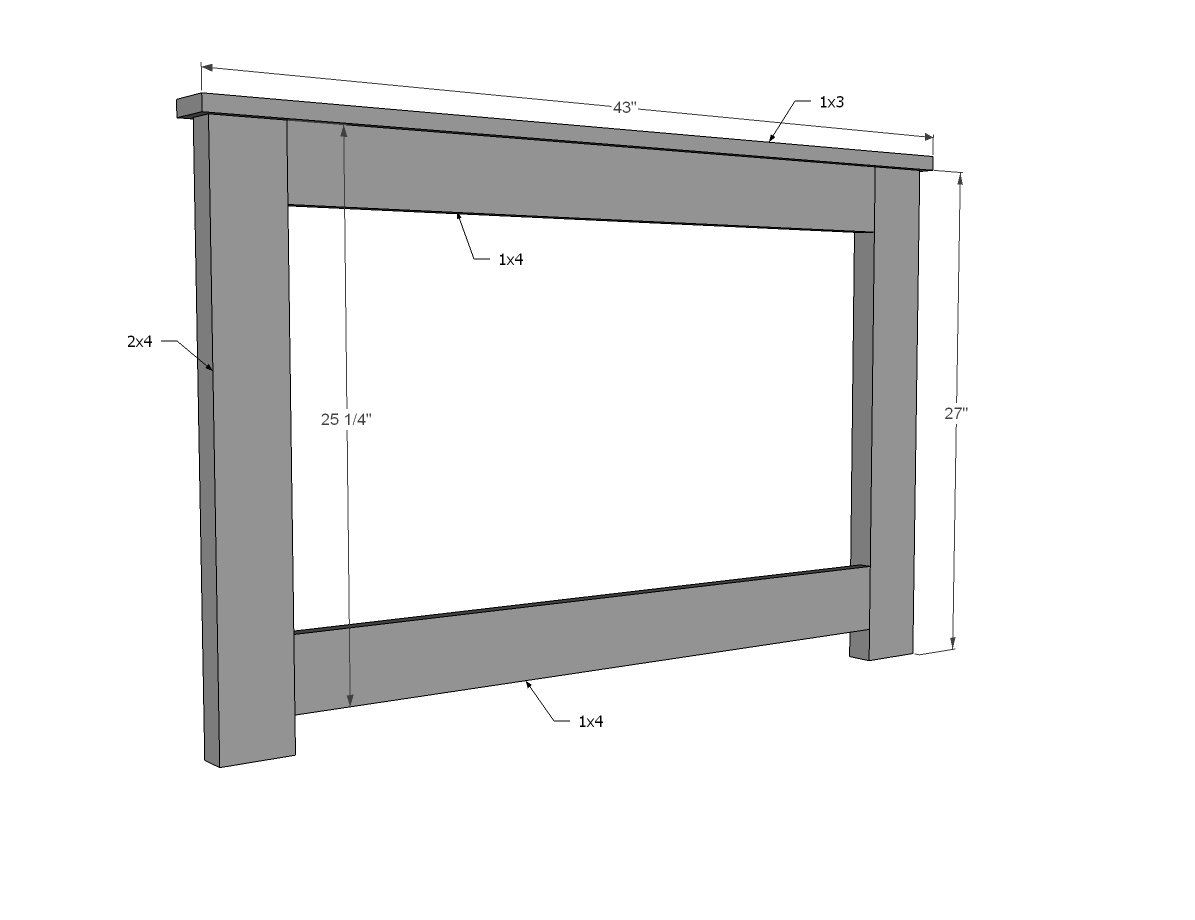

Step 7

Build frame for footboard as shown above, using 3/4" pocket holes and 1-1/4" pocket hole screws.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 7
8

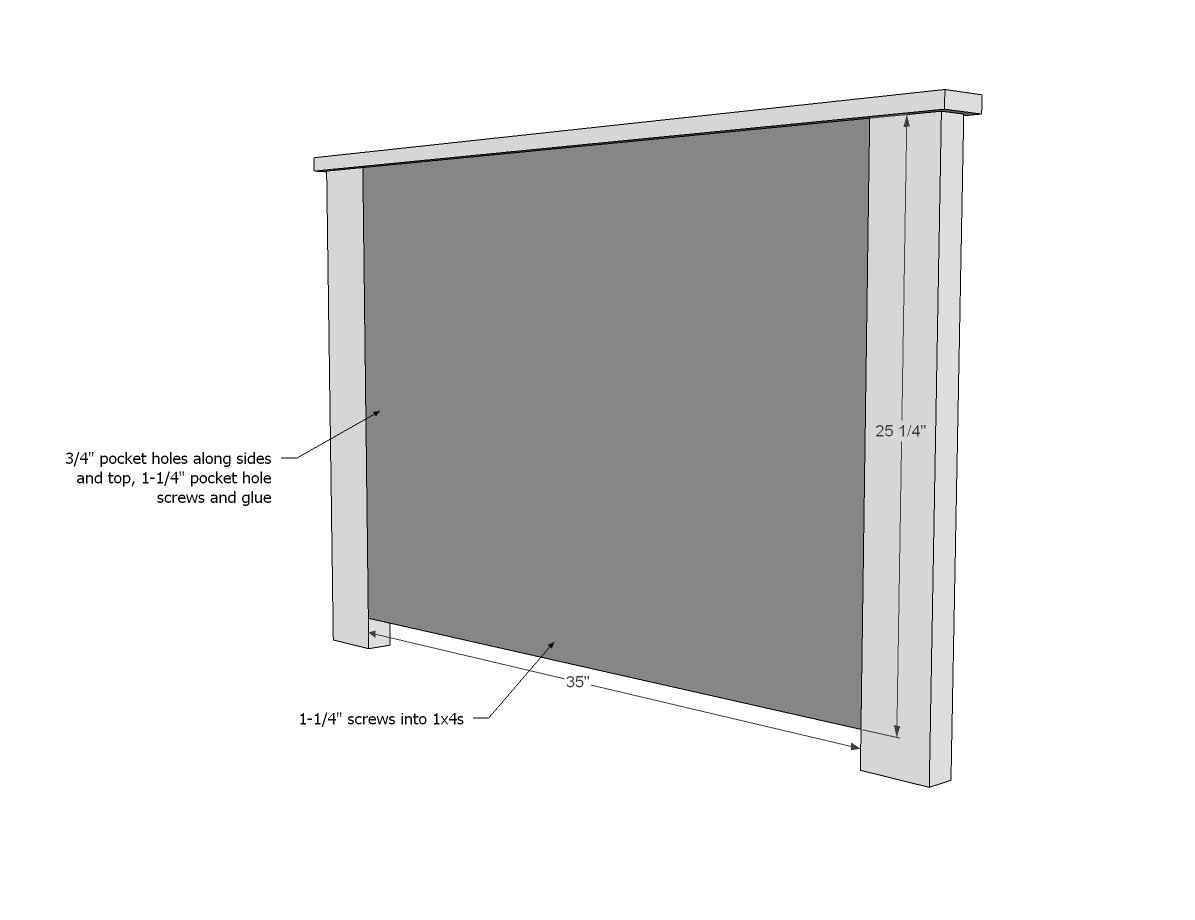

Step 8

Attach panel to back.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 8
9

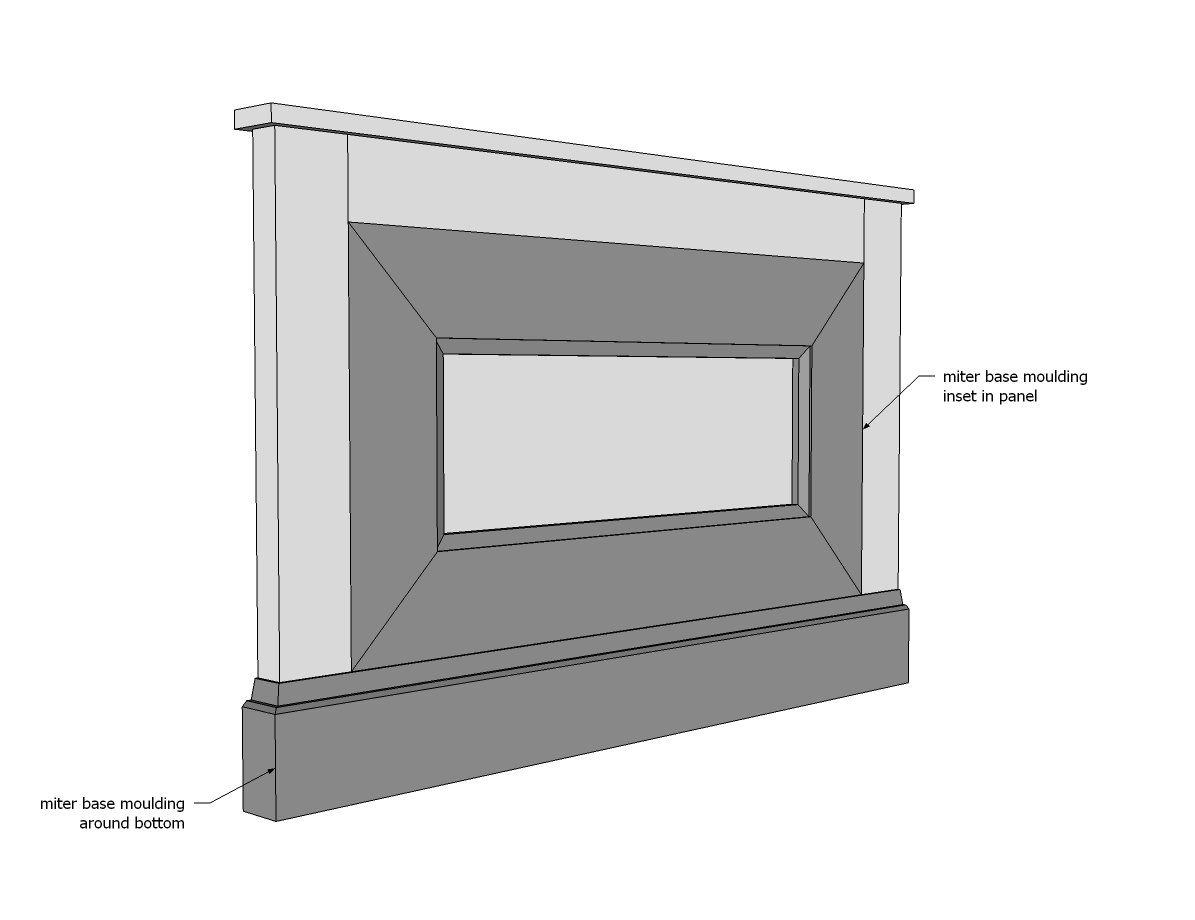

Step 9

Apply moulding to base and inside panel. Nail and glue moulding to panel.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 9
10

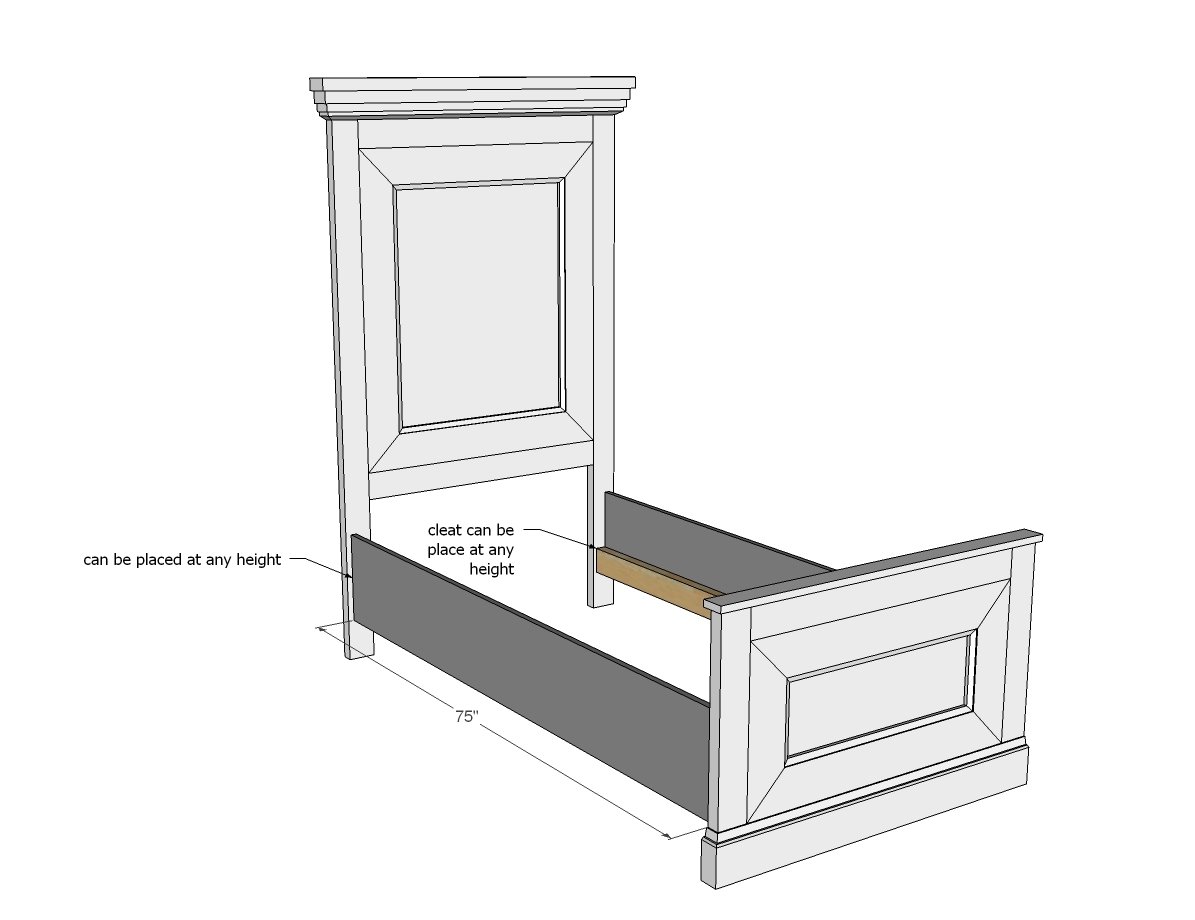

Step 10

Attach cleats to inside of bed rails. The bed can be used with a box spring or wood slats (1x or 2x boards cut to width of inside (39") can be screwed to the cleats. The cleats can be screwed to the siderails at different heights depending on your mattress/box spring size. IMPORTANT: Due to the size of this headboard, it is recommended that you attach to a stud in the wall behind headboard to prevent forward tipping.

Elegant DIY Twin Bed with Detailed Headboard ( + Cut List) — step 10
11

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
