Emmerson Parsons Table

Make a DIY Parsons Dining table with scrap or reclaimed wood! Free furniture

Emmerson Parsons Table

Specifications

Project typeDining Table Plans
Roomdining room
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

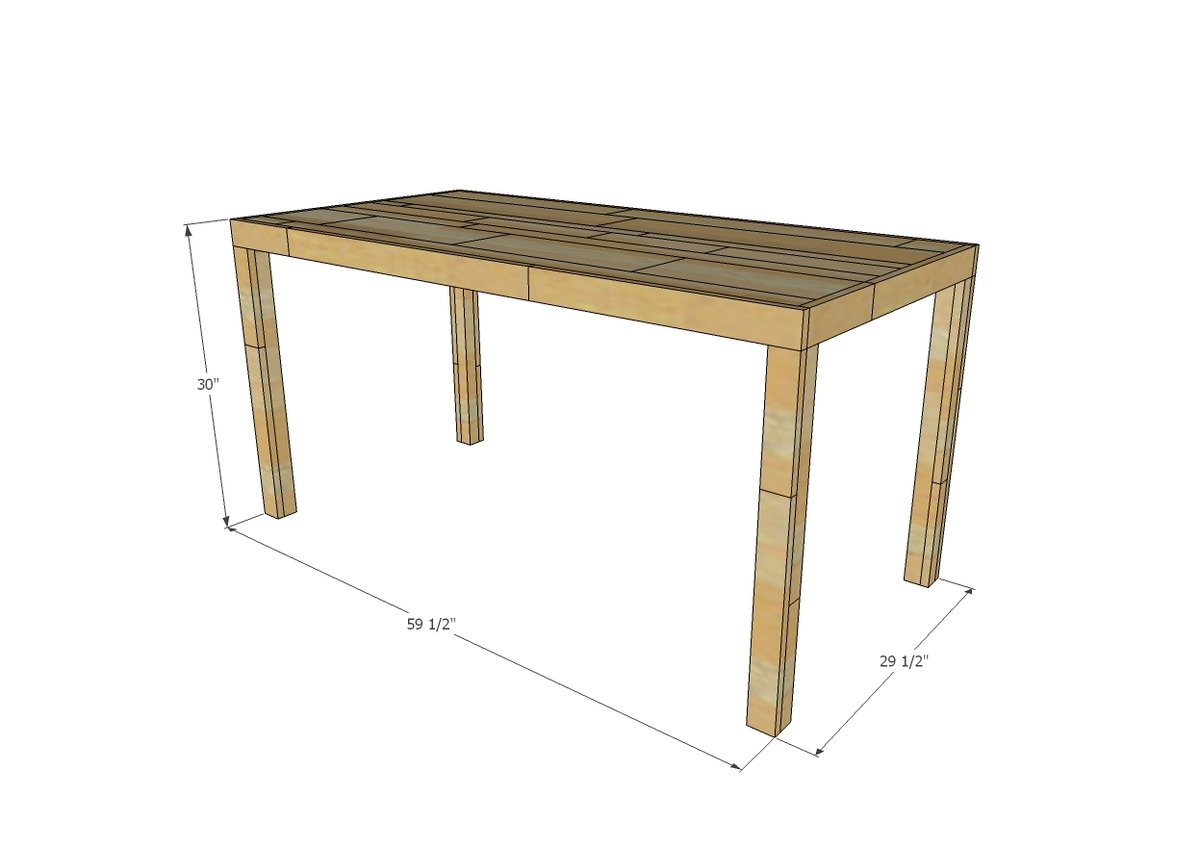

Emmerson Parsons Table dimension diagram 1

Shopping List

5 - 2x2 @ 8 feet long

At least 24 feet of 1x3 boards and 10 feet of 1x2 boards for covering legs and aprons

Scrap wood for tabletop in same thickness

Cut List

4 - 2x2 @ 29-1/4" - legs

5 - 2x2 @ 25" - end aprons and supports

2 - 2x2 @ 55" - side aprons

Tools

  • measuring tape
  • square
  • pencil
  • hearing protection
  • kreg-jig
  • table saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

Start the project by attach two of the 25" 2x2s to the legs to create two leg sets. Use 1-1/2" pocket holes and 2-1/2" pocket hole screws.

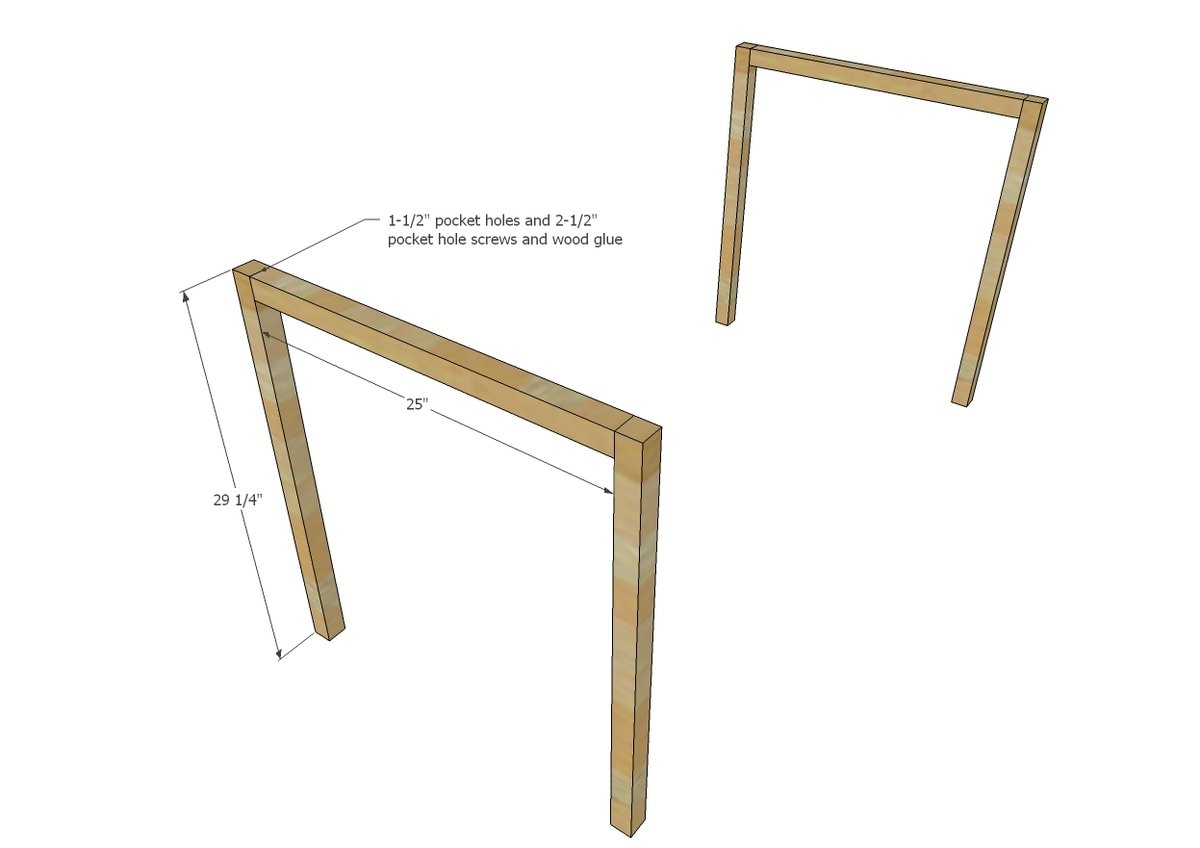

Emmerson Parsons Table — step 1
2

Step 2

Attach side aprons supports, alternating side that the pocket holes are located to prevent too many pocket holes into the legs at the same spot. Use glue.

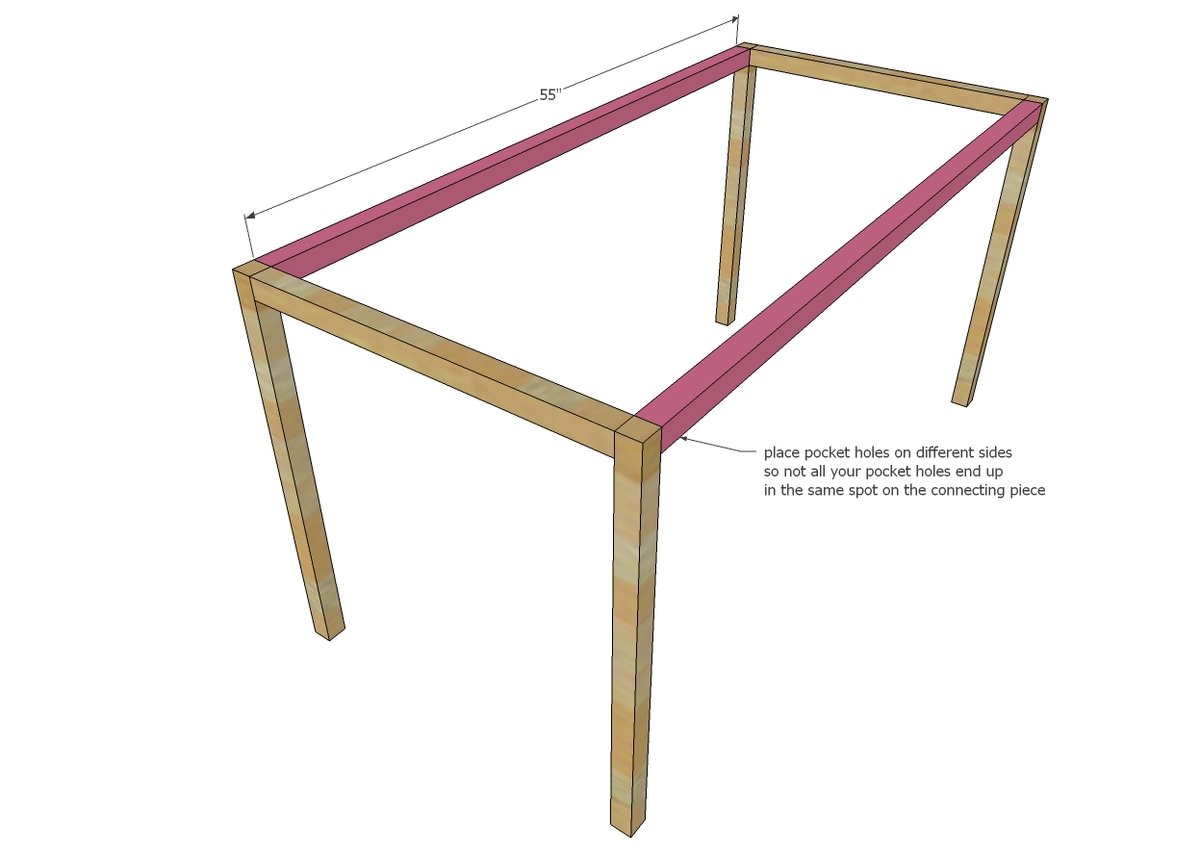

Emmerson Parsons Table — step 2
3

Step 3

Attach supports to side aprons with 1-1/2" pocket holes and 2-1/2" pocket hole screws. You should add additional supports if using shorter pieces of scrap wood.

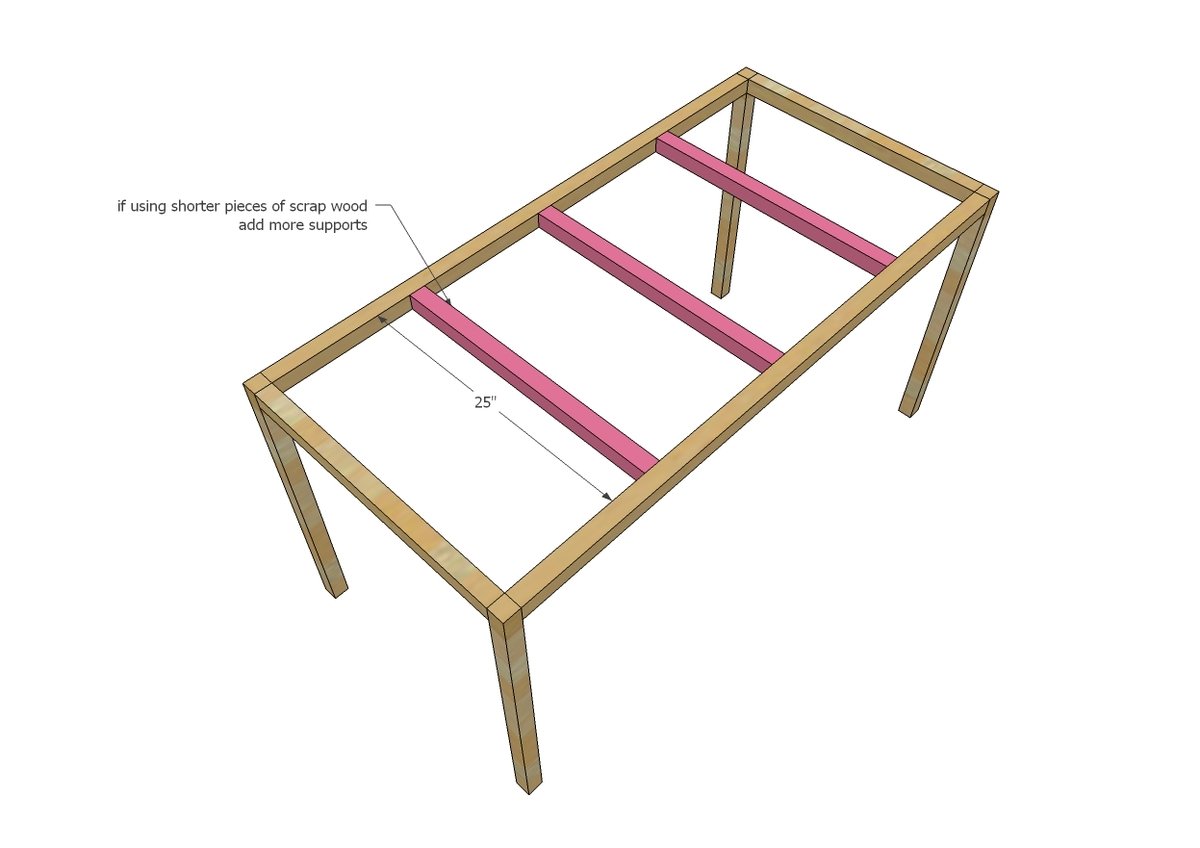

Emmerson Parsons Table — step 3
4

Step 4

Use glue and 1-1/4" finish nails to attach scrap wood to top of table. Make sure the scrap wood joints fall on top of a 2x2 support. You may need to trim edges with a circular saw or table saw to get everything to fit just right.

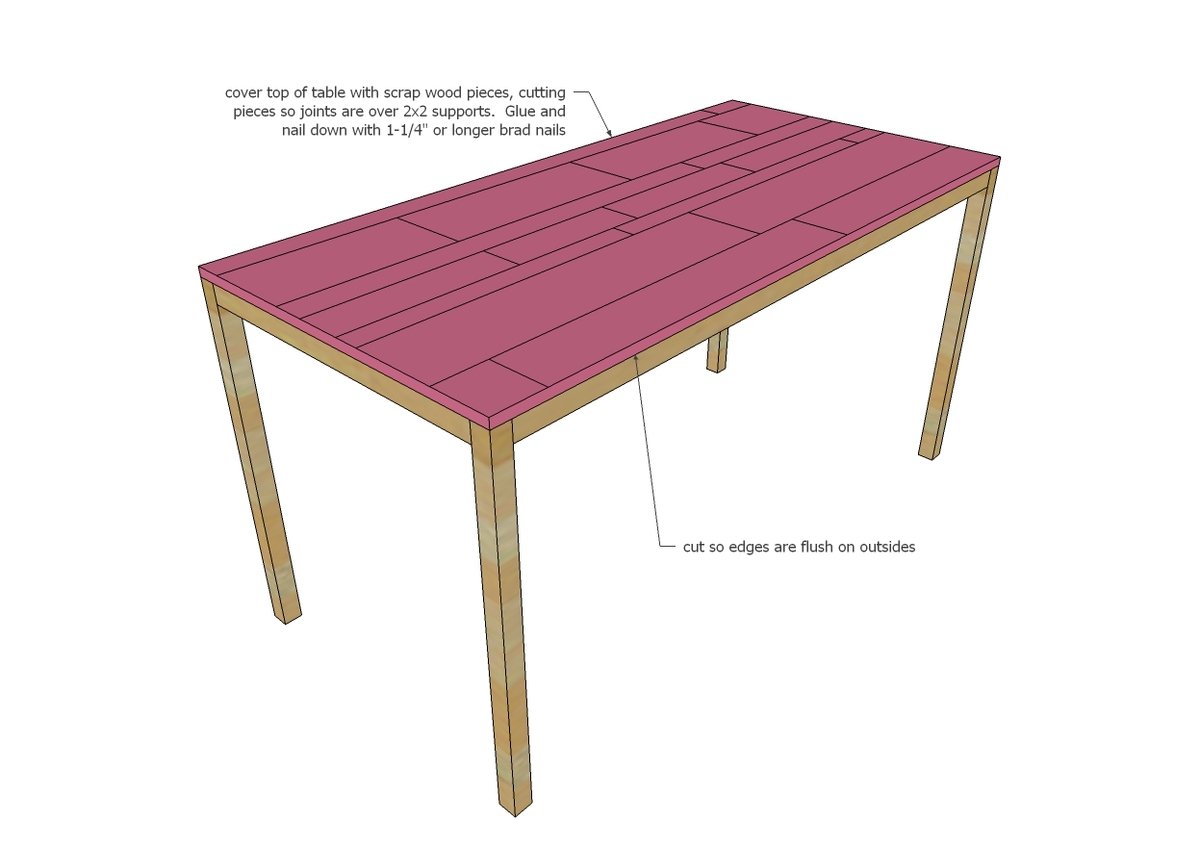

Emmerson Parsons Table — step 4
5

Step 5

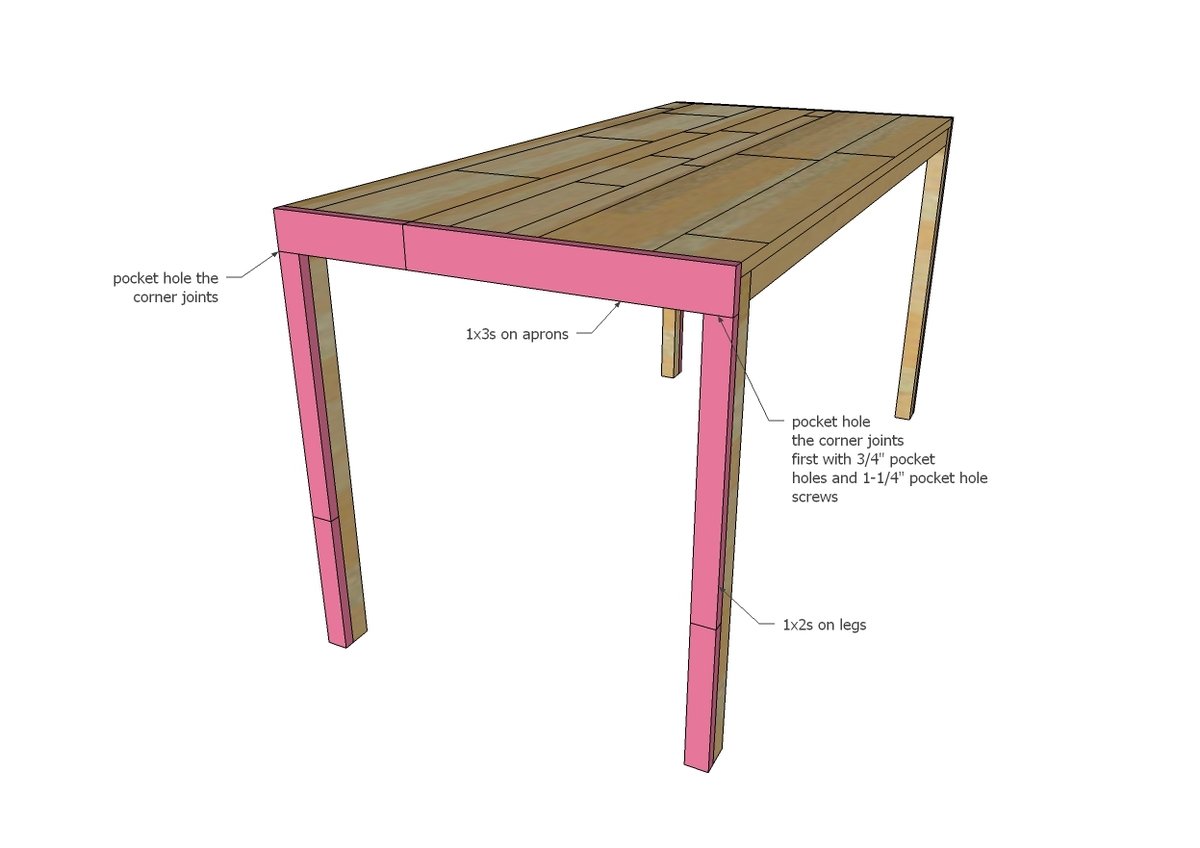

Emmerson Parsons Table — step 5
6

Step 6

For the side legs and aprons, you'll repeat the same steps a the end aprons. One note is the leg is actually 2-1/4" wide and a 1x3 is 2-1/2" wide so if you just use a 1x3 here, it will overhang the leg by 1/4". I found this to be barely noticeable, but if you want, you can rip the 1x3s that cover the legs down in width to 2-1/4" for a perfect fit. It is again very important to kreg jig the corners to adequately support the legs.

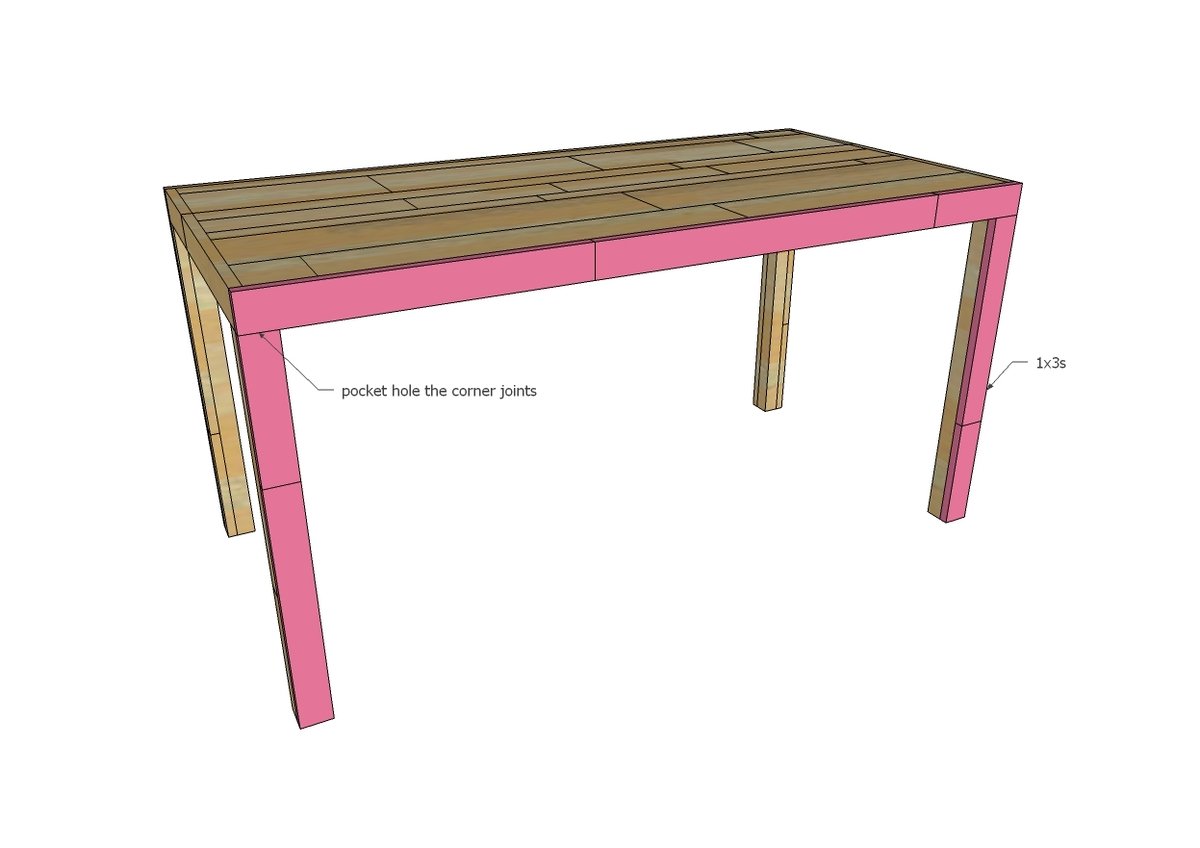

Emmerson Parsons Table — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
