Essential Kids Bed Frame
Very simple to build kids bed frame using 2x4 and 2x6 lumber. with diagrams and shopping and cut list from
Specifications
| Project type | Beds and Bed Frames |
|---|---|
| Room | Bedroom |
| Difficulty | Beginner Projects |

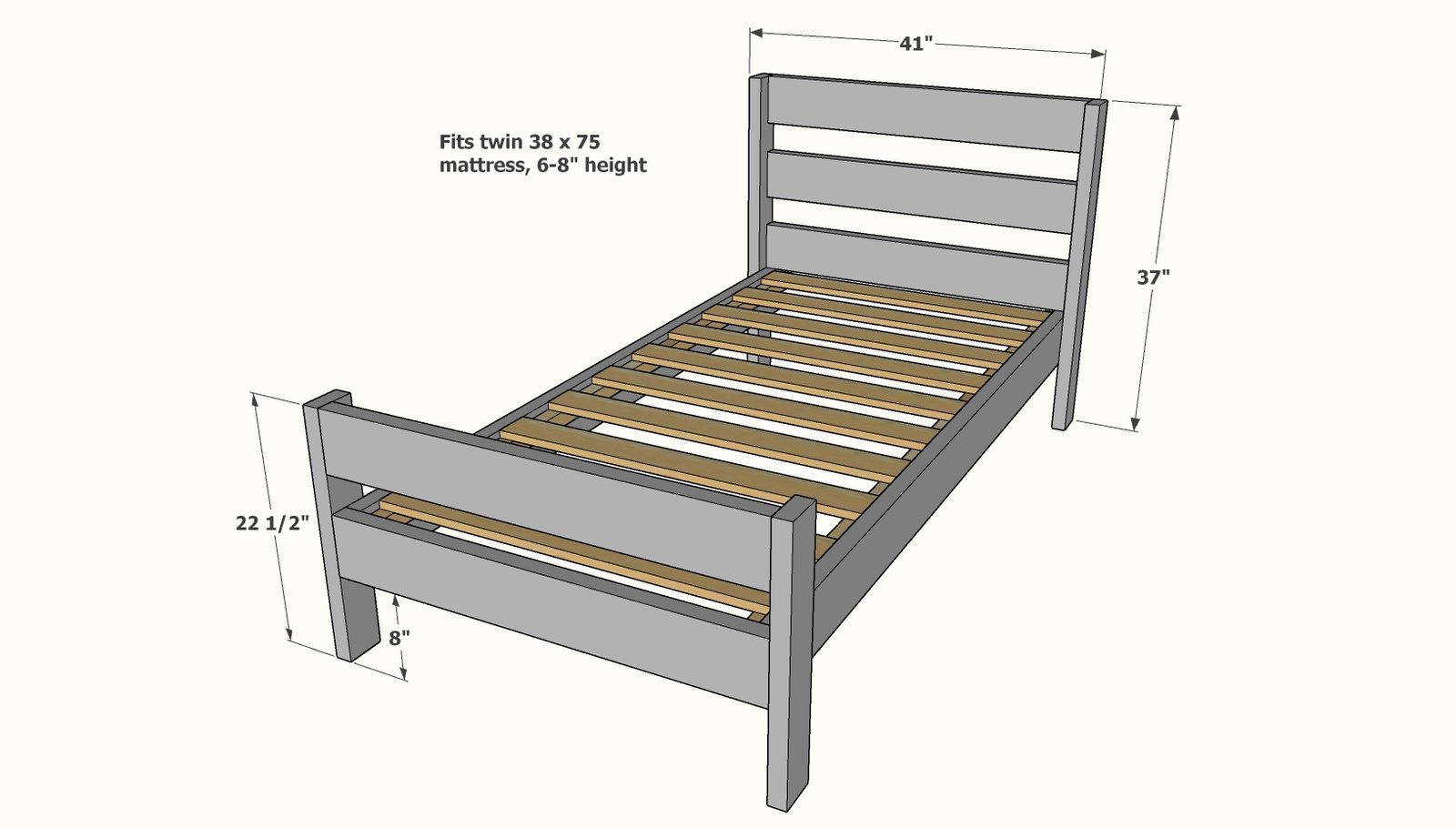

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - 2x4x10 (2 for full size bed
- 3 - 2x6x10 (4 for full size bed)
- 2 - 2x2x8
- 4 - 1x4x6 - for twin xl bed frame, add another 1x4x6 and four more short screws (5 - 1x4x10' for full size bed)
- 50 - 2-1/2" long self tapping star bit screws
- 32 - 1-5/8" long self tapping star bit screws
Cut List
2 - 2x4 @ 22-1/2" - footboard legs
2 - 2x4 @ 37" - headboard legs
5 - 2x6 @ 38" - headboard and footboard rails (54" for full size)
2 - 2x6 @ 76-1/2" - siderails (81-1/2" for twin xl bed frame)
2 - 2x2 @ 76-1/2" - cleats (81-1/2" for twin xl bed frame)
8 - 1x3 or 1x4 @ 35" - slats (for twin xl bed frame, cut two more slats)
For full size bed, a 2x4 down the center lengthwise is required to support the slats. A 5th "leg" from the 2x4 will support the center of the mattress.
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
- sander
Step-by-step Instructions

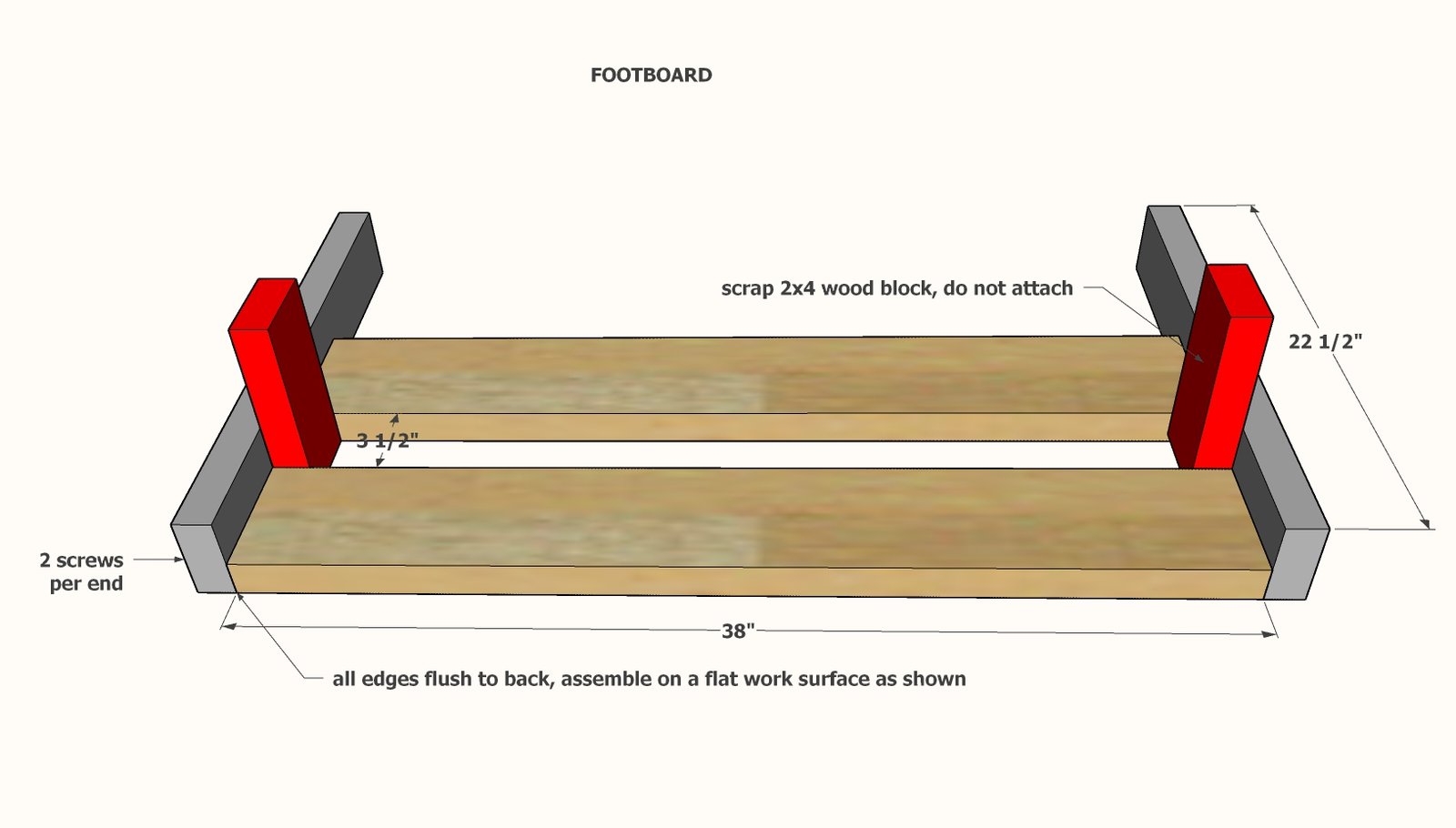

FOOTBOARD
To build the footboard, work from the top down and use scrap wood 2x4s to help get you spacing right. On a flat level surface, attach the two footboard legs to the top 2x6 rail, with two long screw per end. Back edges are flush. Use scrap 2x4 pieces to space the lower rail in the footboard. Attach with two screws per end.

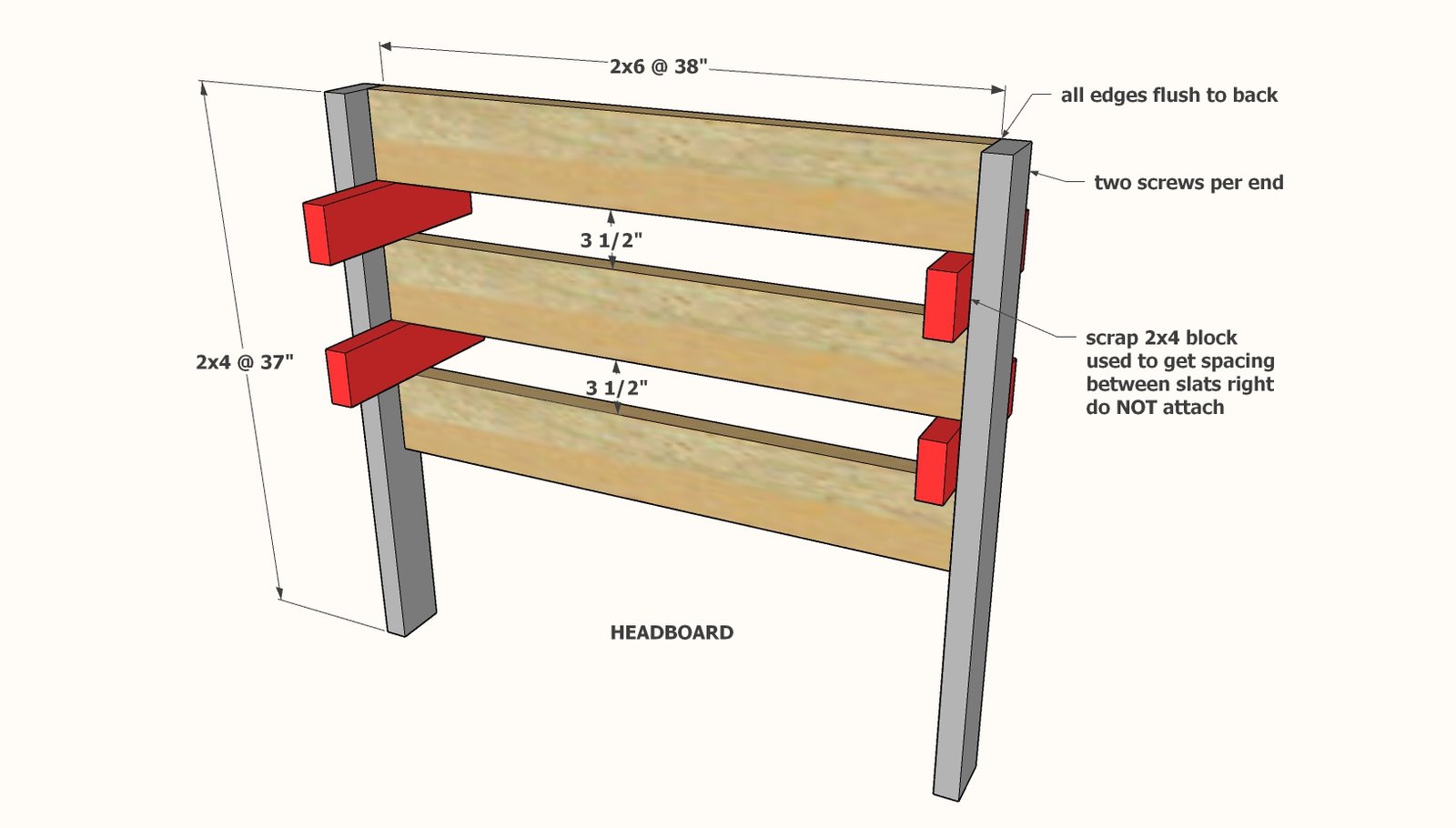

HEADBOARD
Repeat the same steps for the headboard, starting at the top and working down.

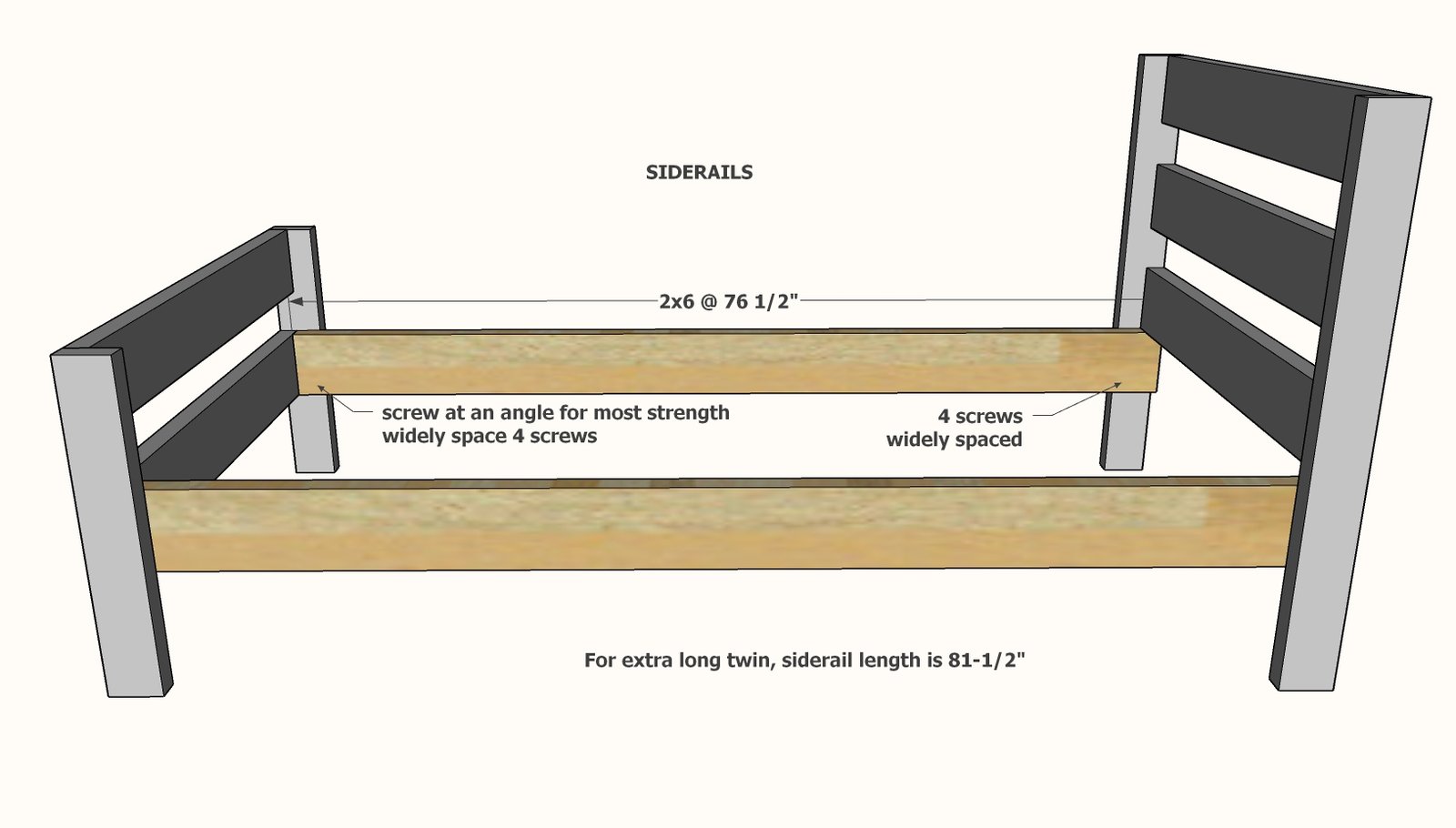

Step 3
PREFINISH the headboard, footboard, and two 2x6 siderails. The 2x2 cleats and 1x3 slats do not need to be prefinished. In the room, attach the siderails to the headboard legs and footboard legs with the longer screws. Make sure the headboard and footboard are level as you attach. Screws at slight angles are stronger. Space screws wide, but not to close to edges as this may split the wood (leave about 3/4" from edge). Twin xl bed frame option: Cut siderails to 81-1/2"

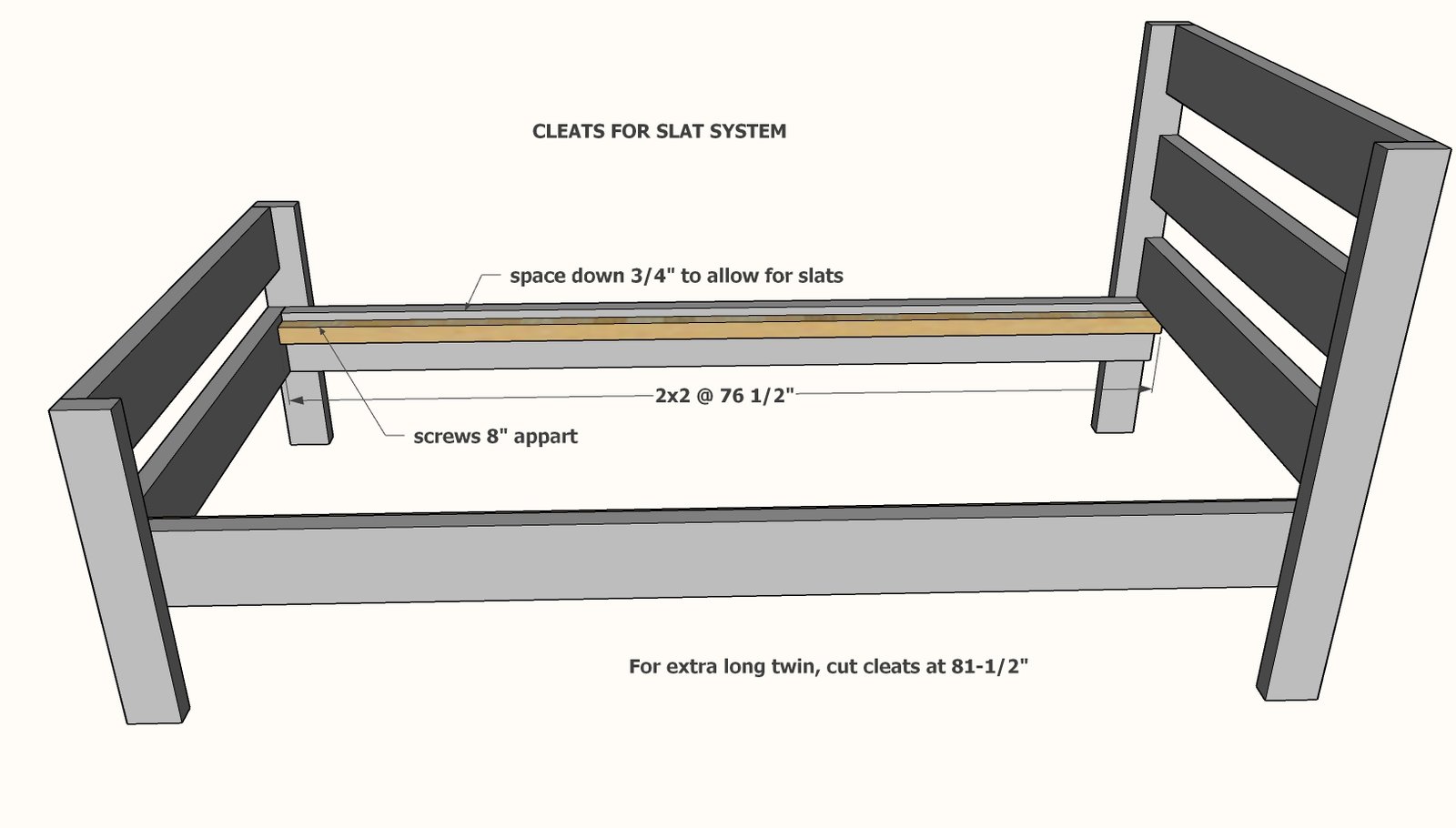

Attach the 2x2 cleat to the inside of the siderails with the longer screws.
Twin xl bed frame option: Cut cleats to 81-1/2"

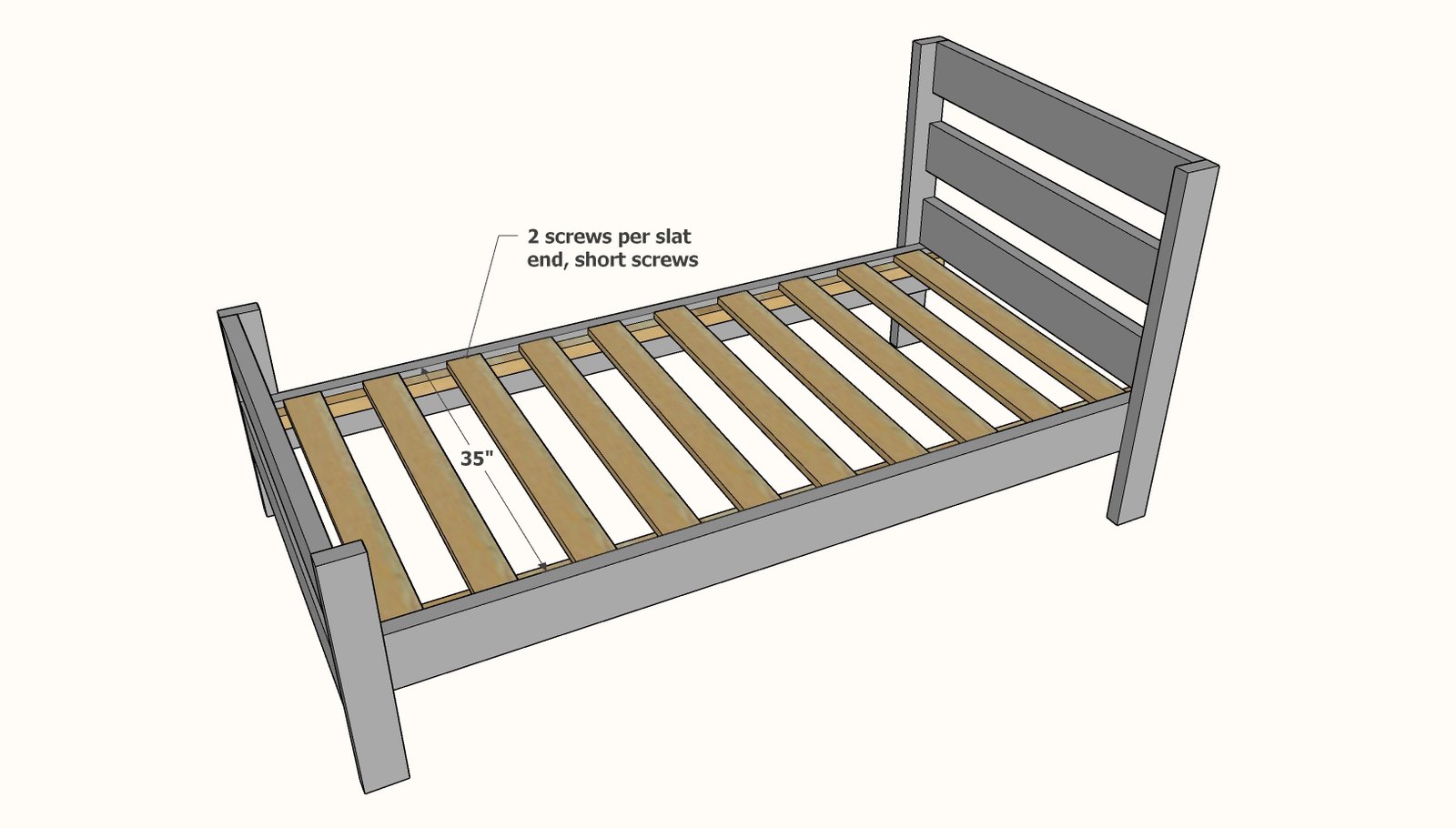

Step 5
Lay slats on cleats and screw down with the shorter screws. Two screws per slat.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
