Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen

to build your own kitchen. Sink base

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen

Specifications

Project typeKitchen Cabinet Plan, Accessories and Serving
Roomkitchen
StyleCottage Style Furniture Plans
DifficultyIntermediate

Dimensions

Use the size-specific shopping and cut lists below.

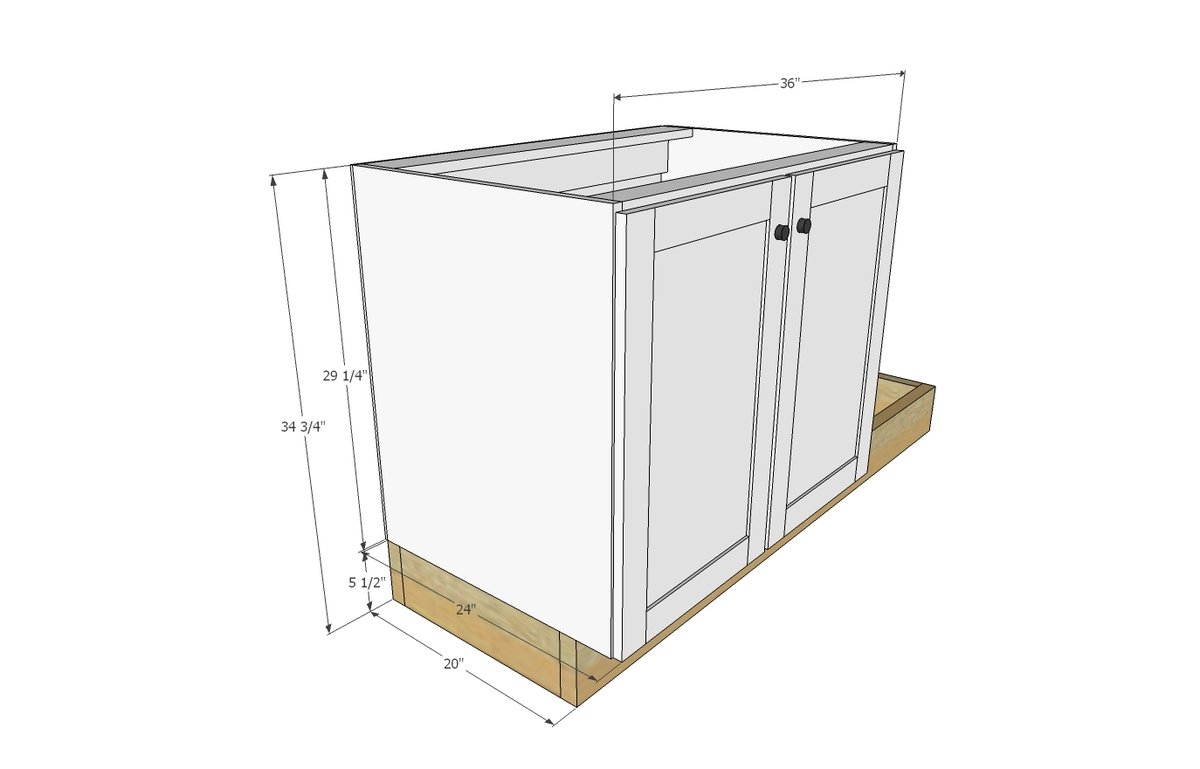

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen dimension diagram 1

Shopping List

3/4" cabinet grade or hardwood plywood, ripped into strips 23" wide by 8 feet long (very important rip width is EXACTLY the same), prefinished PureBond is the best option

1x4 boards or scrap wood plywood for supports

1x2s in matching wood species as doors if staining or paint grade 1x2s for paint

2x6s for toekick build up

1/4" plywood for backs of cabinets

Cut List

2 - 3/4" plywood @ 23" x 29-1/4" (sides)

1 - 3/4" plywood @ 23" x 34-1/2" (bottom)

3 - 1x4 or similar @ 34-1/2" (top and back supports)

1- 1x4 or similar @ 24-3/4" (front support)

1 - 1/4" plywood @ 29-1/4" x 36" (back)

2x6s for toekick base

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • table saw
  • nailer
  • sander
  • Iron

Step-by-step Instructions

1

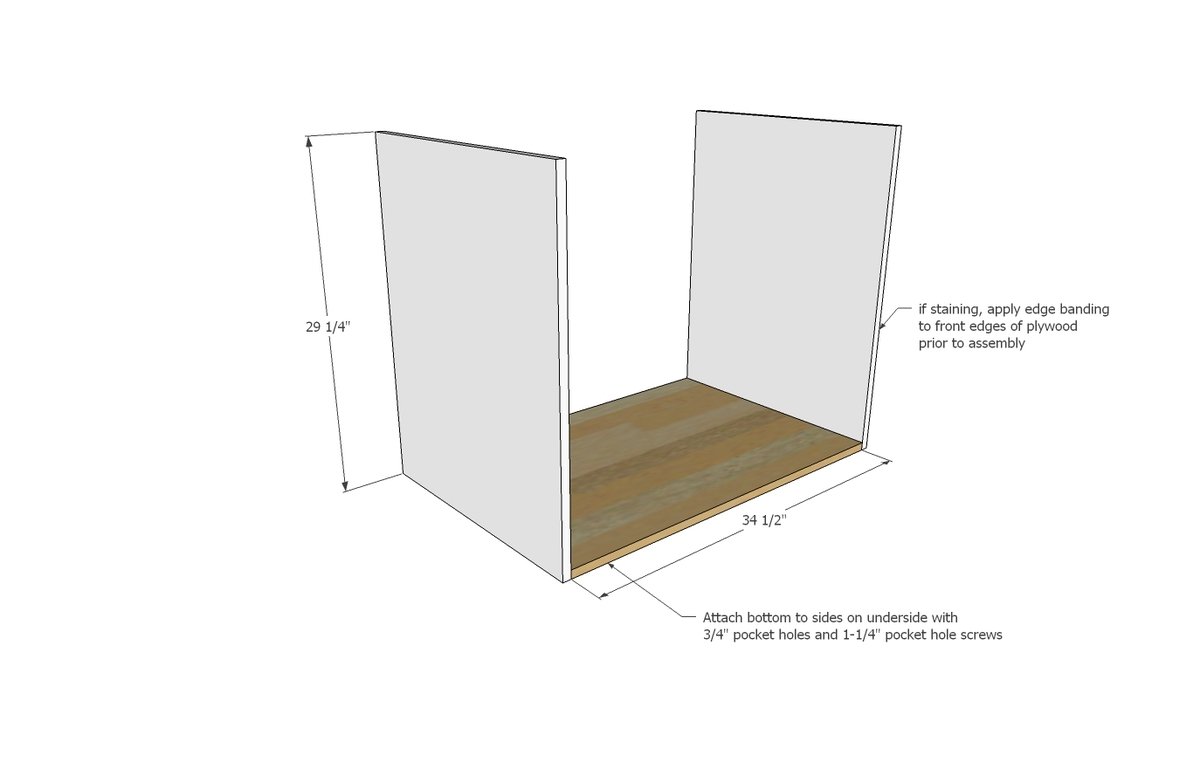

For a stained finish, apply edge banding to front exposed plywood edges of sides and bottom.

Drill 3/4" pocket holes along bottom end edges of bottom and attach to the sides with 1-1/4" pocket hole screws and wood glue.

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 1
2

Step 2

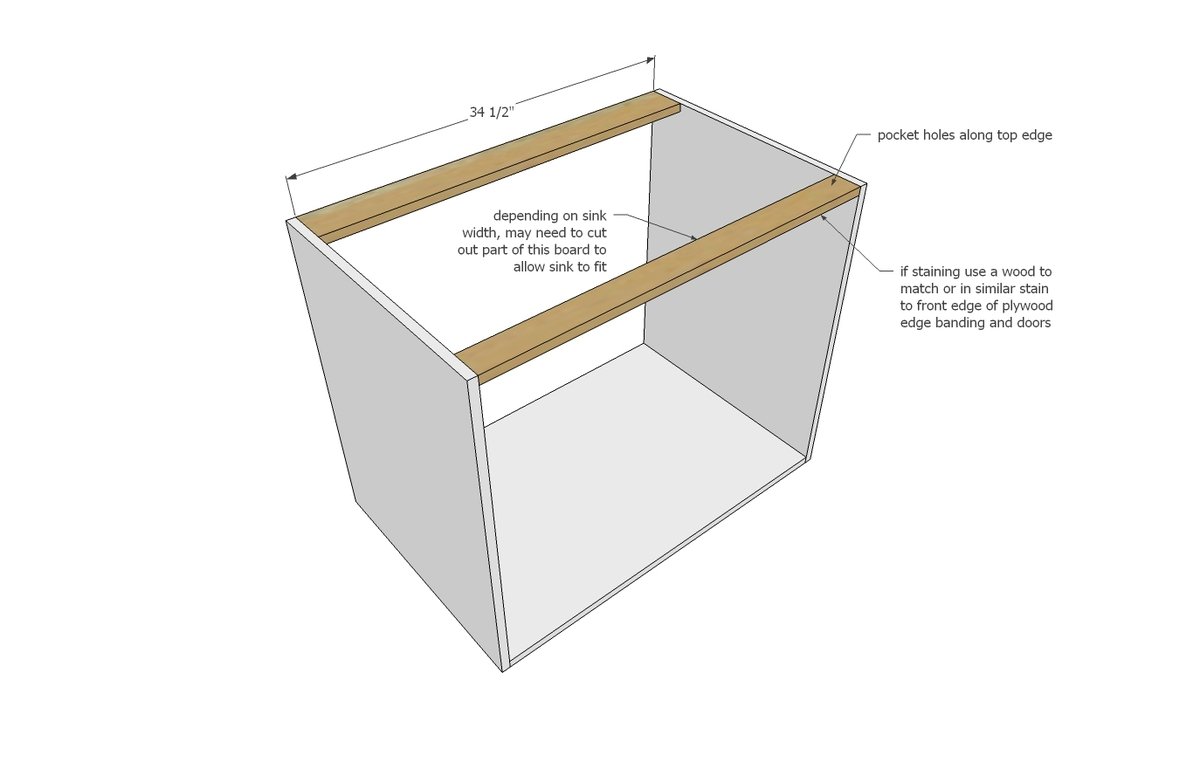

Attach top supports, placing pocket holes on top for strength and hiding.

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 2
3

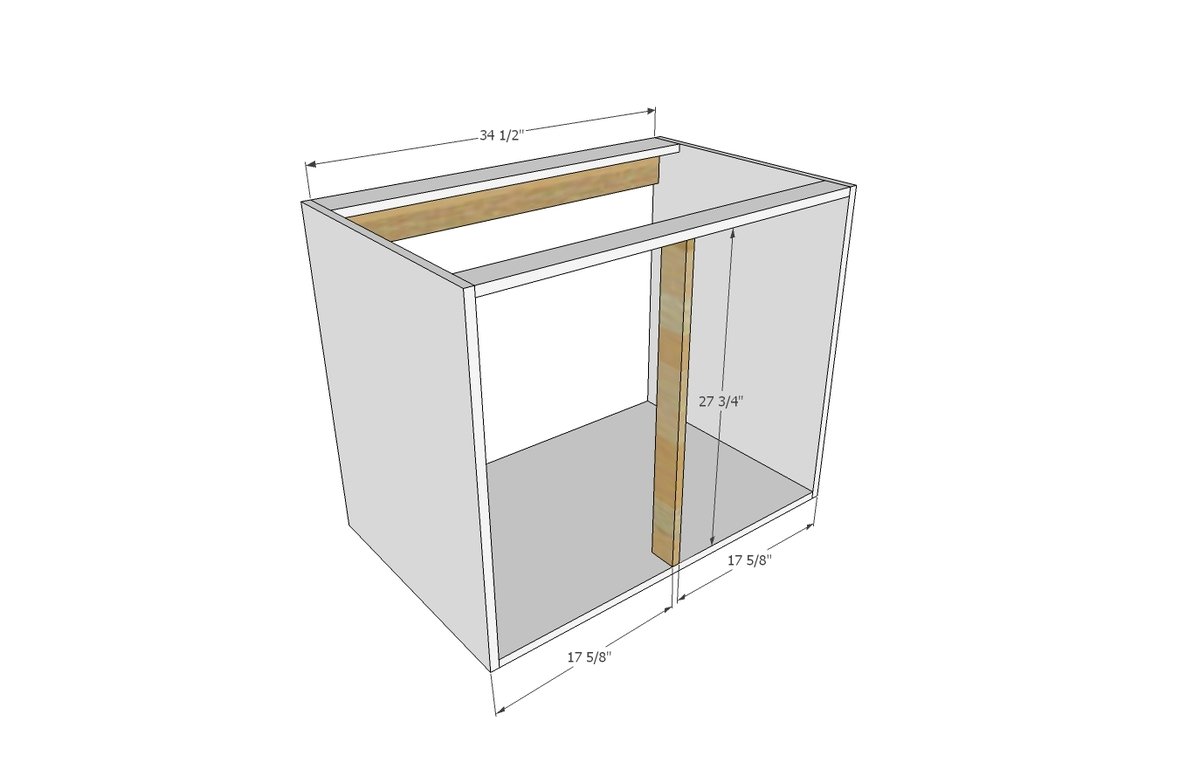

Attach back support for attaching to the wall, also attaching to the top support.

Then attach center support to front support and bottom.

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 3
4

Step 4

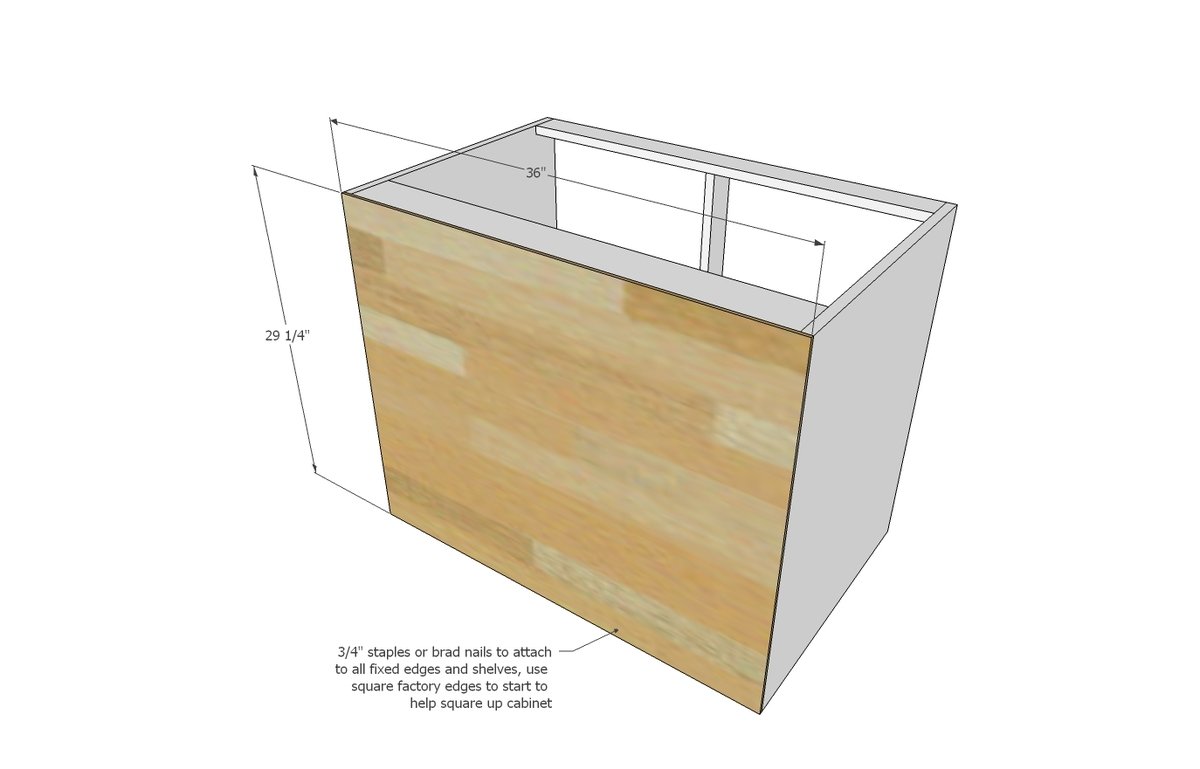

Attach back, starting with factory edges, using glue and 3/4" staples or nails to attach to back of cabinet.

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 4
5

Step 5

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 5
6

Step 6

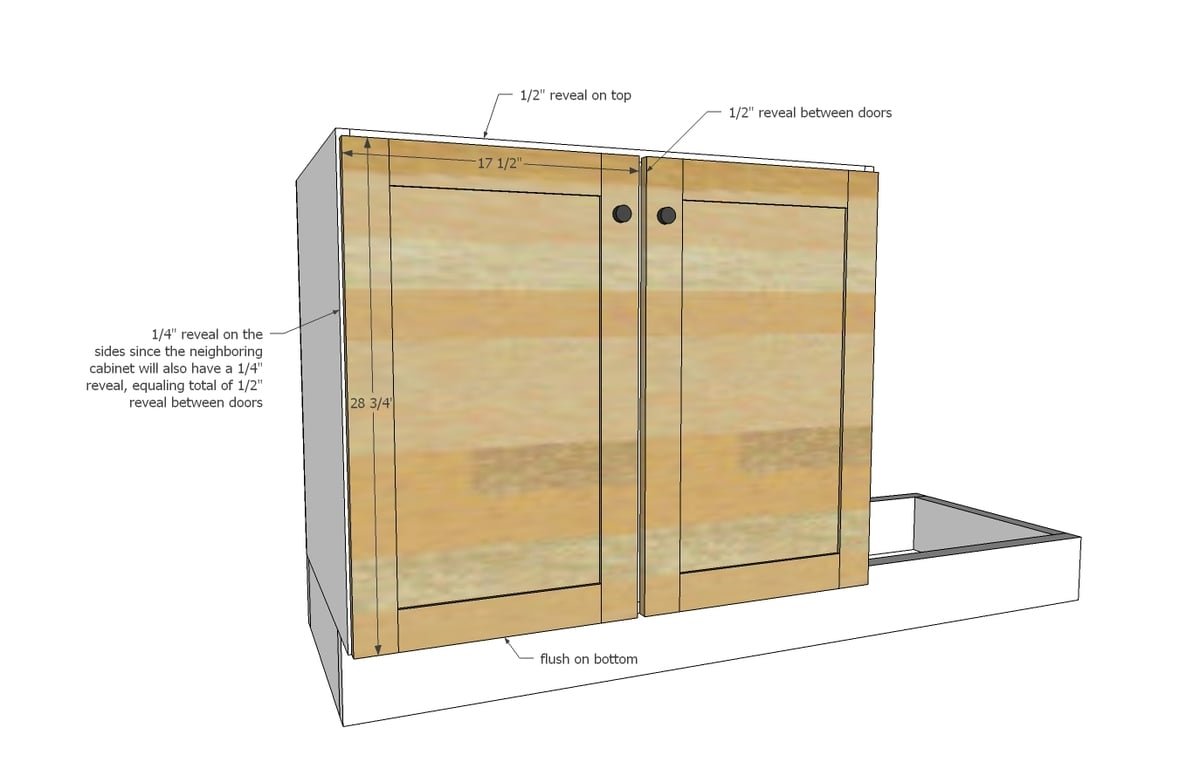

Door sizes are shown. Use Frameless cabinet 1/2" overlay euro style hinges to attach doors.

Euro Style Kitchen Sink Base Cabinet for our Tiny House Kitchen — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
