Fancy X Farmhouse Bench
to build a Fancy X Farmhouse Bench! Step by step instructions with diagrams from Build the matching Fancy X Farmhouse Table and browse our catalog of Farmhouse Furniture plans.
Specifications
| Project type | Bench |
|---|---|
| Room | dining room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

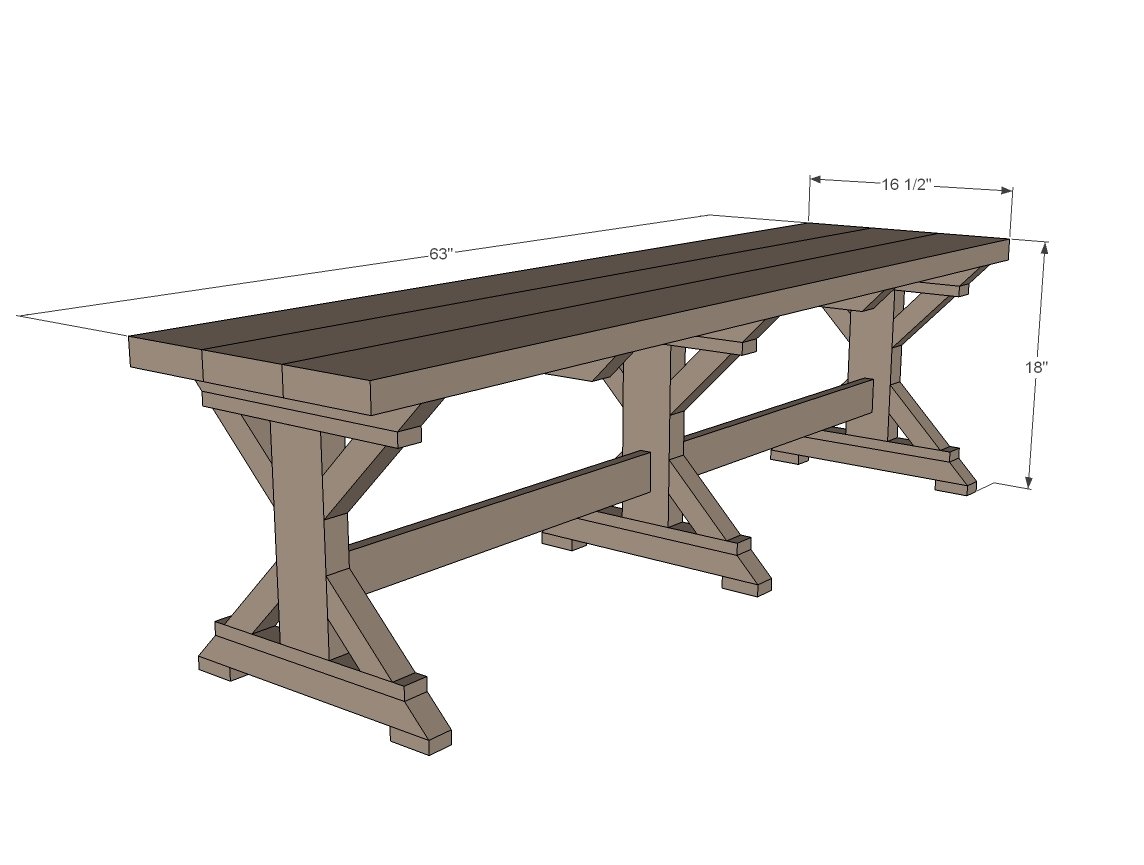

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
SHOPPING LIST FOR 63" LONG BENCH
3 – 2x6 @ 6 feet long
1 – 2x4 @ 3 feet long
3 – 2x2 @ 8 feet long
2 – 1x2 @ 8 feet long
1 – 1x3 @ 8 feet long
SHOPPING LIST FOR 96"LONG BENCH
3 – 2x6 @ 8 feet long
1 – 2x4 @ 3 feet long
3 – 2x2 @ 8 feet long
2 – 1x2 @ 8 feet long
1 – 1x3 @ 8 feet long
Cut List
LEGS FOR ALL BENCH LENGTHS
3 – 2x4 @ 11 ¼”
12 – 2x2 @ 6” (long point to long point, both ends cut at 45 degrees off square, NOT parallel)
6 – 1x2 @ 13 ½”
8 – 2x2 @ 16 ½” (long point to long point, both ends cut at 45 degrees off square, ends NOT parallel)
6 – 1x2 @ 2 ½”
TOP/STRETCHER FOR 63" LONG BENCH
2 – 1x3 @ 26 ¼”
3 – 2x6 @ 63”
TOP/STRETCHER FOR 96" LONG BENCH
2 – 1x3 @ 34 1/2” (this puts the bench legs to the outside of the table legs just slightly to allow the benches to slide in somewhat)
3 – 2x6 @ 96”
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
- countersink drill bit
Step-by-step Instructions

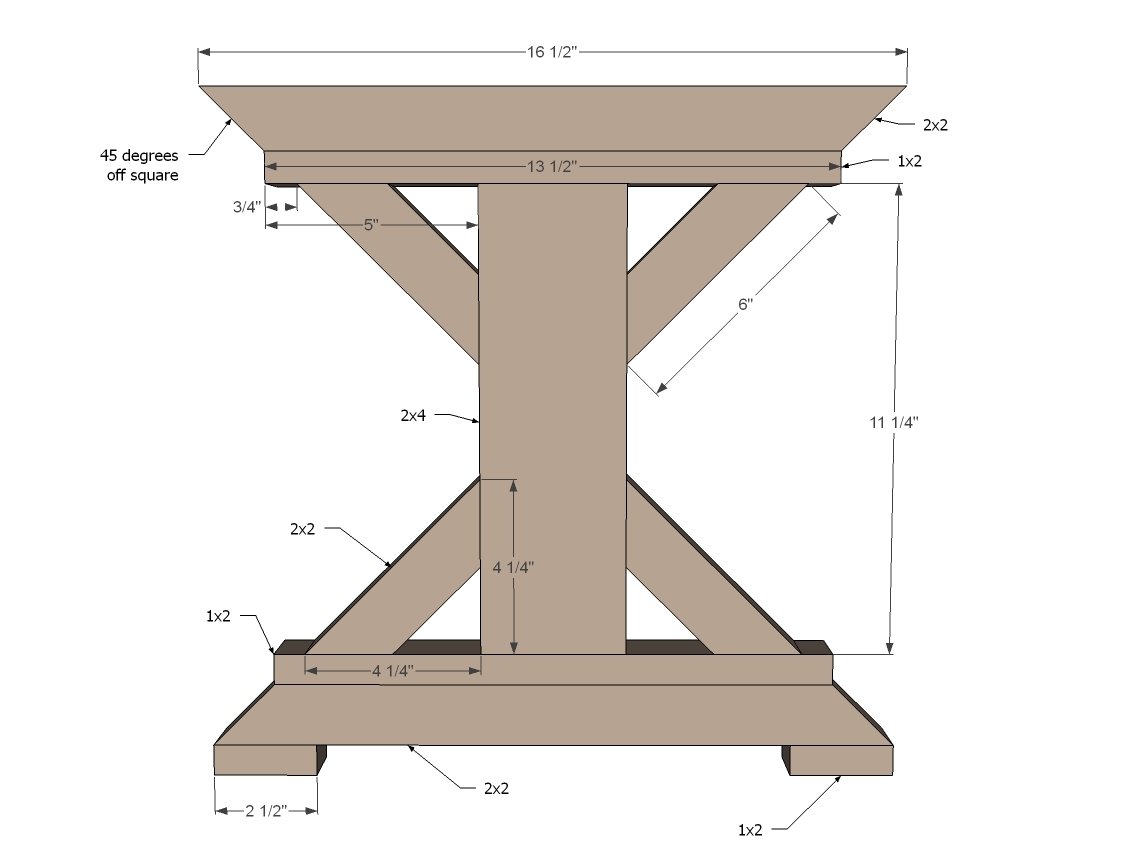

Step 1
Build legs first, starting at inside and working outward. Once you have one built, use it as a pattern for the other legs.

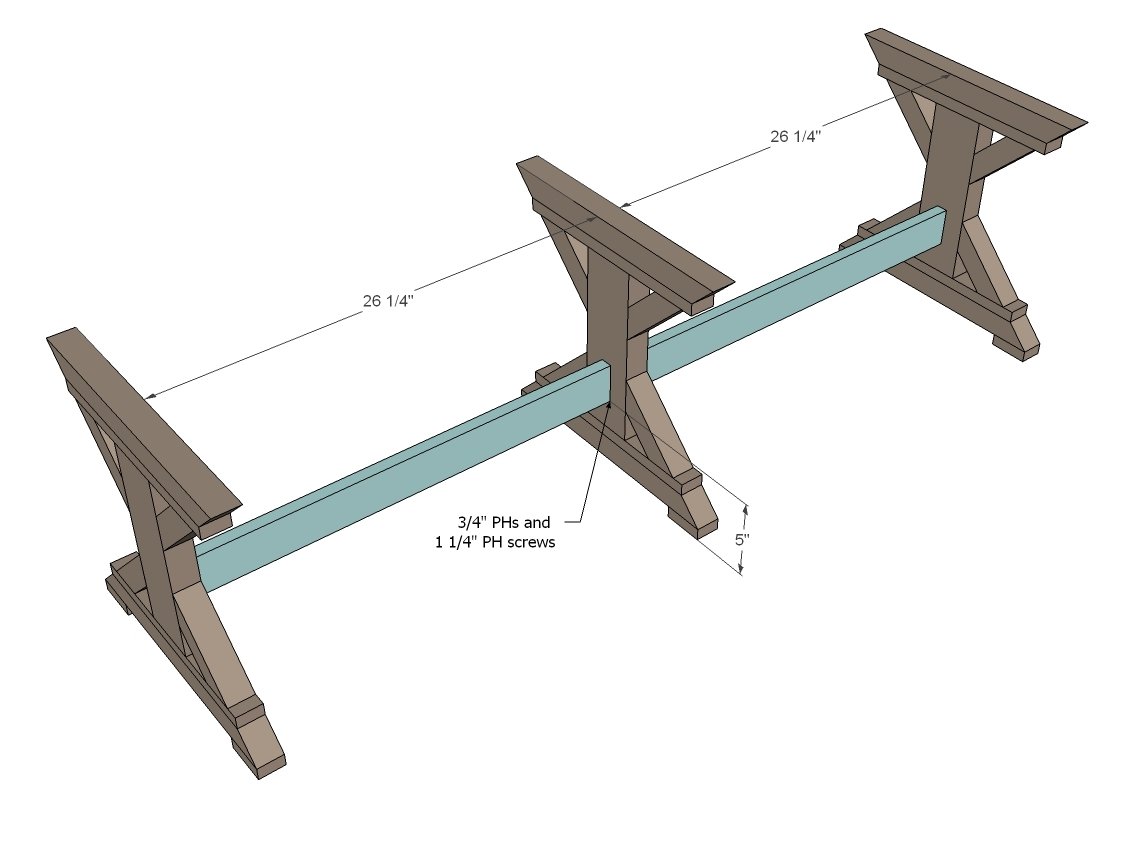

Step 2
Attach stretchers with 1 1/4" PH screws and wood glue.

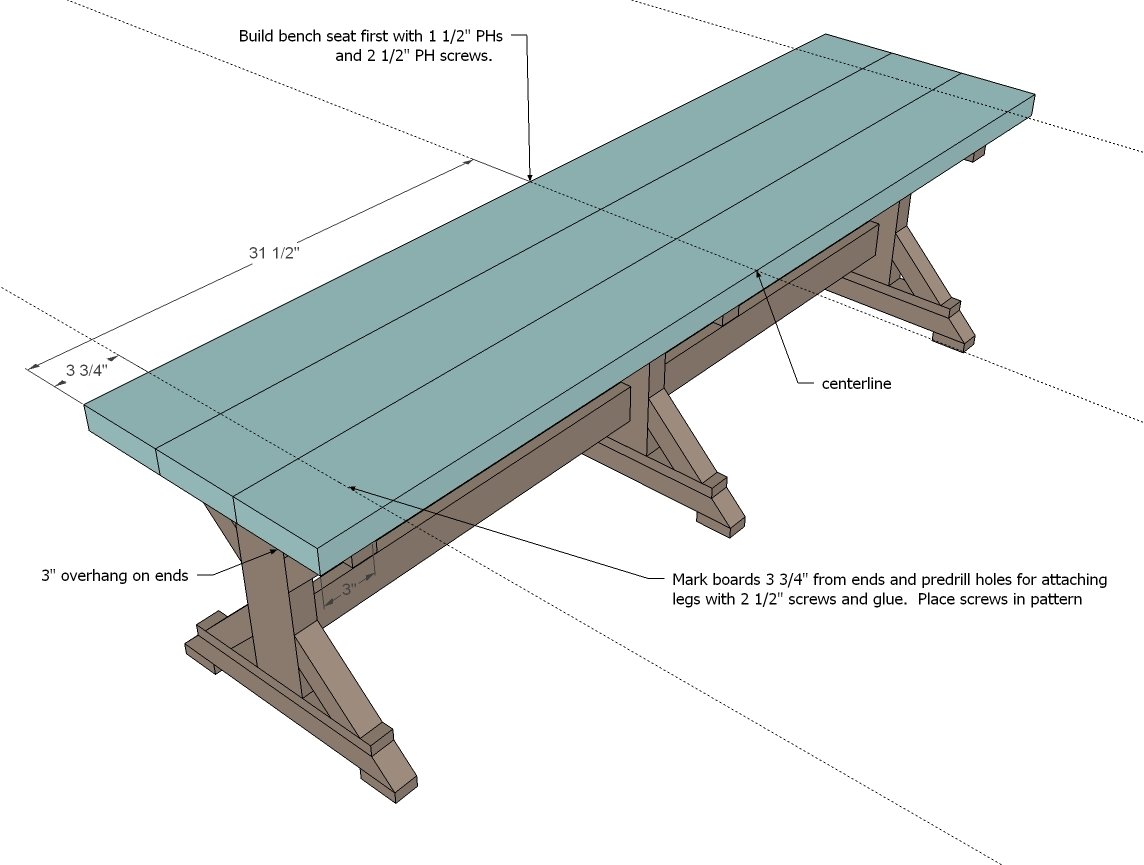

Step 3
Add seat boards as shown in diagram.

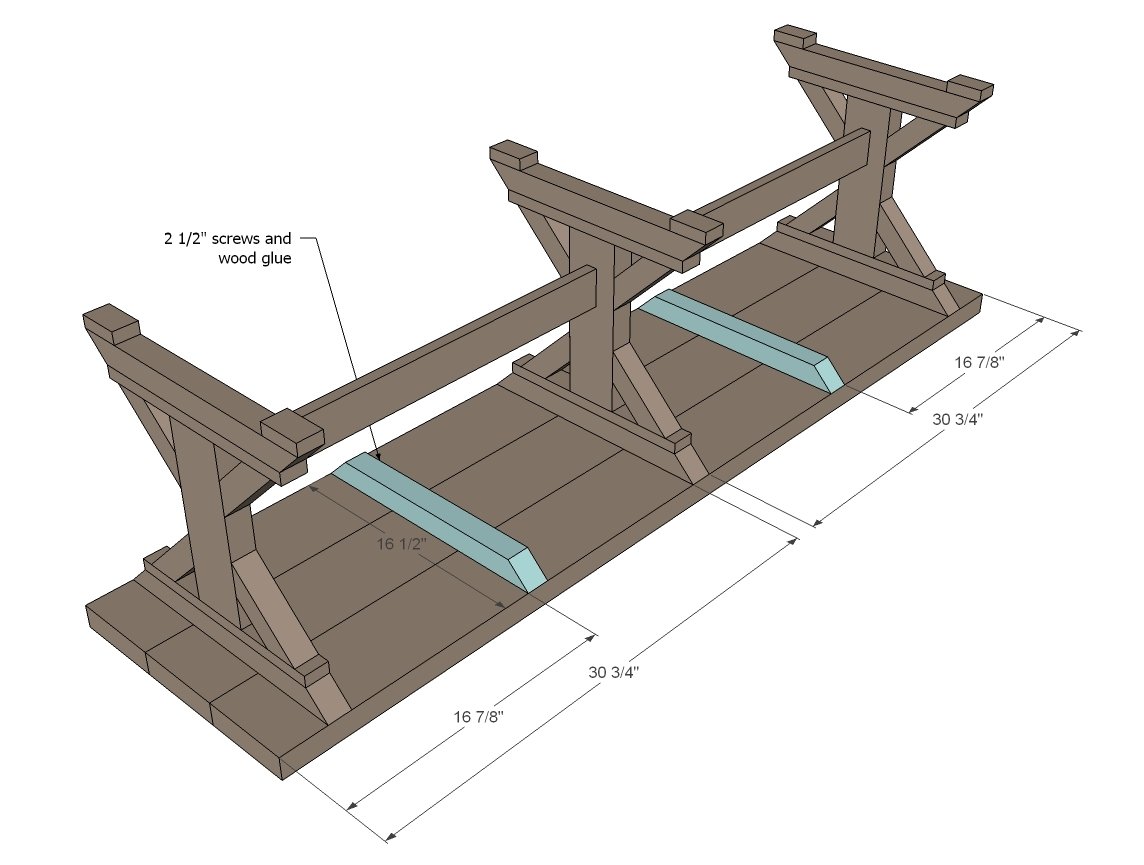

Add bottom decorative supports centered between legs. for an additional decorative touch.
For added support, you could also run cross braces from the center support to each leg - not essential for the shorter bench, but a possible consideration for the longer bench.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
