Farmhouse Modular Locker
Single Locker – Full Length Mudroom Cabinet – This single full-length locker is the perfect mudroom solution for compact spaces or individual storage needs. Designed for maximum functionality, it features a tall hanging space for coats and bags, upper and lower cubbies for baskets or shoes, and clean, timeless lines that fit seamlessly into any home style. Built from simple materials using easy techniques, this locker offers the look of custom cabinetry without the high cost. Use one as a standalone piece, or build multiples side-by-side for a complete mudroom system. Perfect for entryways, laundry rooms, or family drop zones — durable, beautiful, and 100% DIY-friendly.
Specifications
| Project type | Lockers |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |

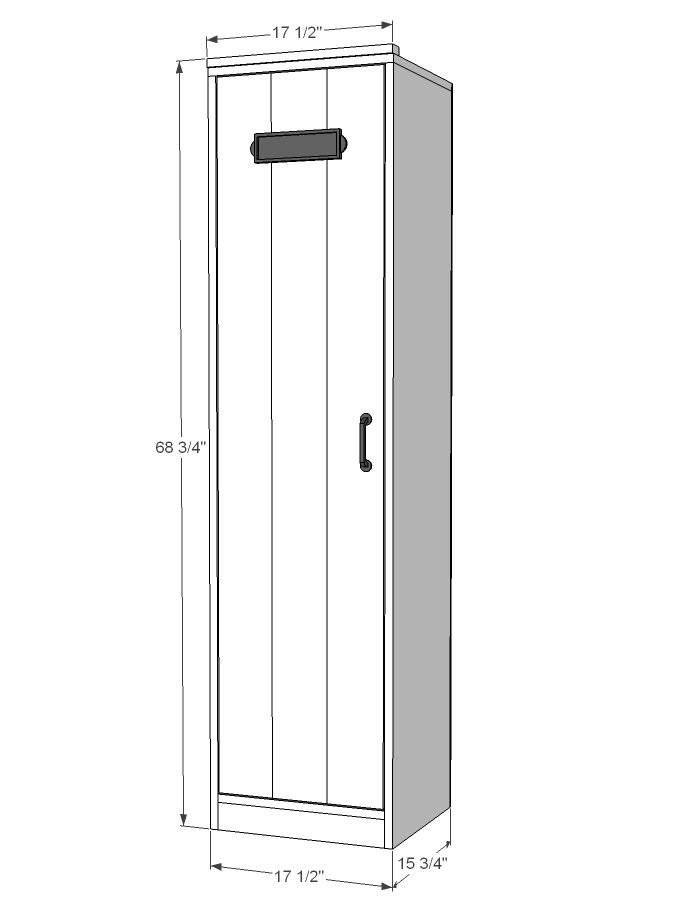

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
For each locker you will need:
- 1 sheet of 3/4" hardwood or cabinet grade plywood ripped into 15 3/4" wide strips
- 1/3 sheet of 1/4" plywood for back (you'll need to buy a whole sheet but one whole sheet will cover 3 lockers)
- 1 - 1x3 @ 4 feet long (more if adding shelf hooks)
- 1 - 1x2 @ 4 feet long (more if using as shelf supports)
- 1 set hinges
- 1 handle or knob
- shelf pins
- hooks if desired
- Can be built with pocket holes (use 1-1/4" pocket hole screws) or 2" self tapping star bit screws or 1-1/4" brad nails and wood glue.
Cut List
- 2 - 3/4" plywood @ 15 3/4" x 68"
- 1 - 3/4" plywood @ 15 3/4" x 17 1/2"
- 1 - 3/4" plywood @ 15 3/4" x 16"
- 2 - 1x3 @ 16"
- 2 - 1x2 @ 16"
- 1 - 1/4" plywood @ 68 3/4" x 17 1/2"

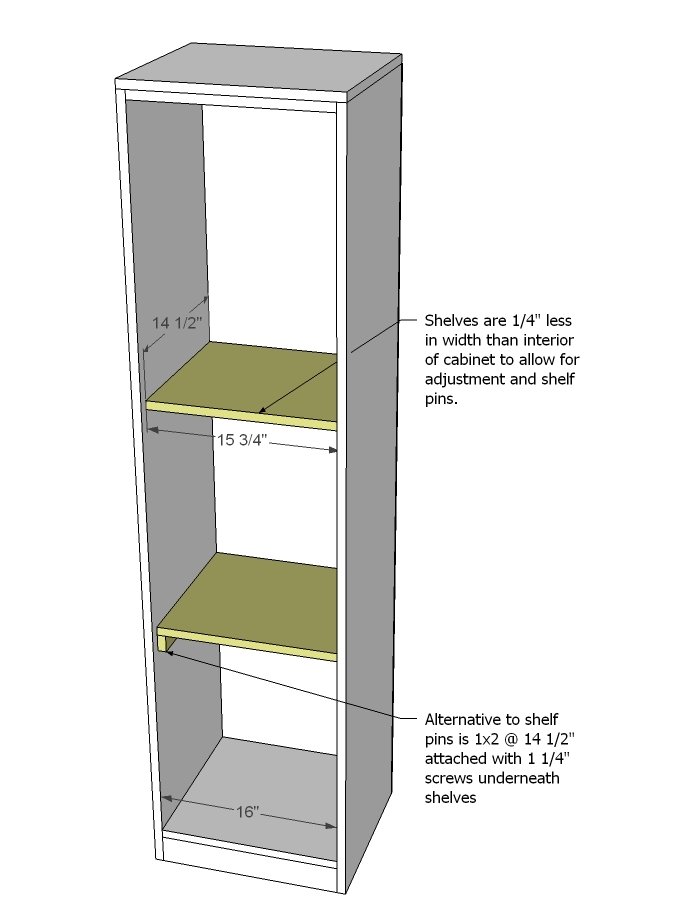

- Shelves are 15 3/4" x 14 1/2" (note shelves are 1/4" less in width than interior to enable easy placement at different heights with recommended shelf pins.
- You can also support shelves with 1x2 boards @ 14 1/2" long - see in plans)
- 1 - 3/4" plywood @ 15 3/4" x 63 3/4" (door)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
Step-by-step Instructions

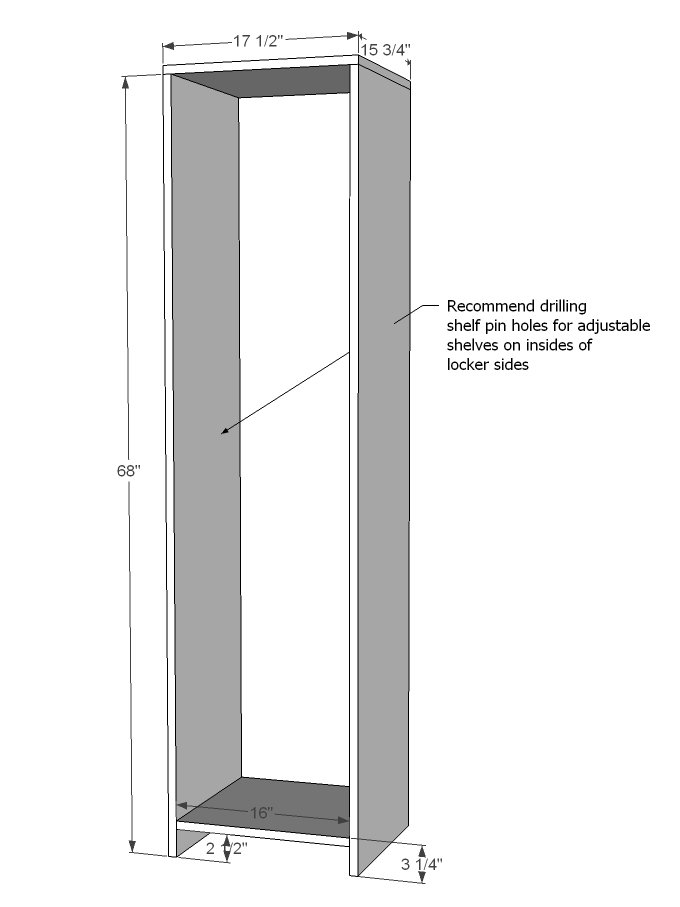

Step 1
Have your plywood ripped into 3 strips 15 3/4" wide by 8 feet long. It is very important that the rips are this width, as the door is set to this width and will not fit right if your rips are off. If you are building multiple units or this entire set, please read Gina's post for a cutting diagram and plan your cuts to conserve plywood. Once you have the pieces ripped and cut, if you are using shelf pins, drill them now. It's much easier than later on. Then attach top shelf and bottom shelf as shown in diagram above.

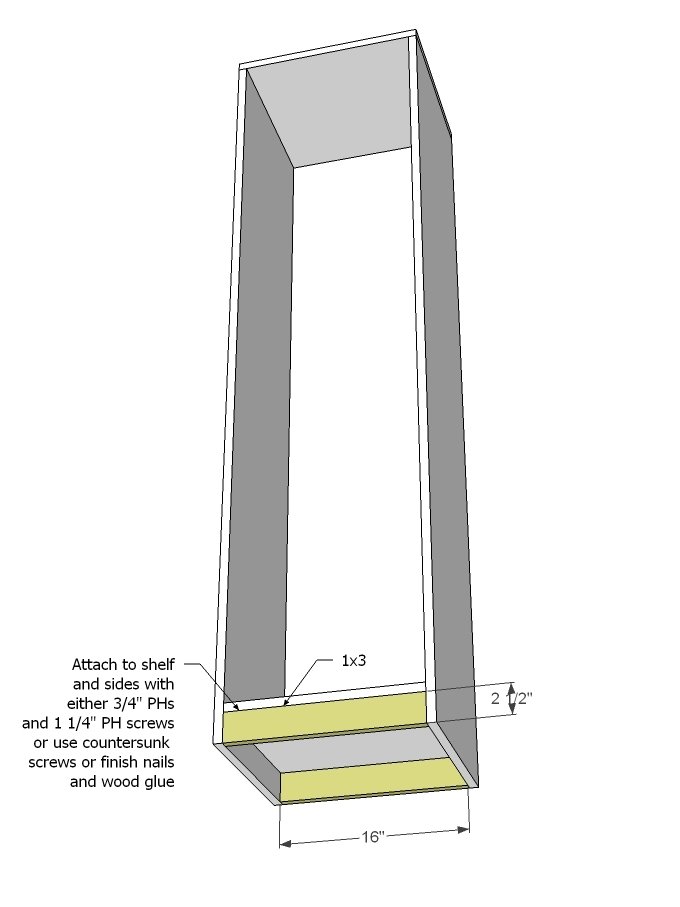

Step 2
Next add the bottom supports. This helps to square things up and just looks nice.

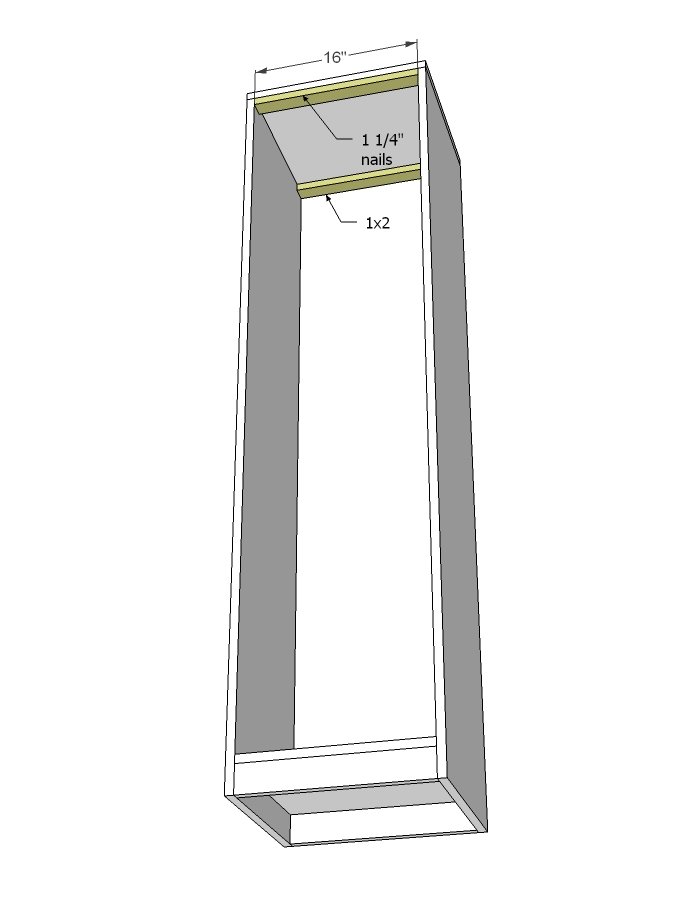

Step 3
Add top supports as well.

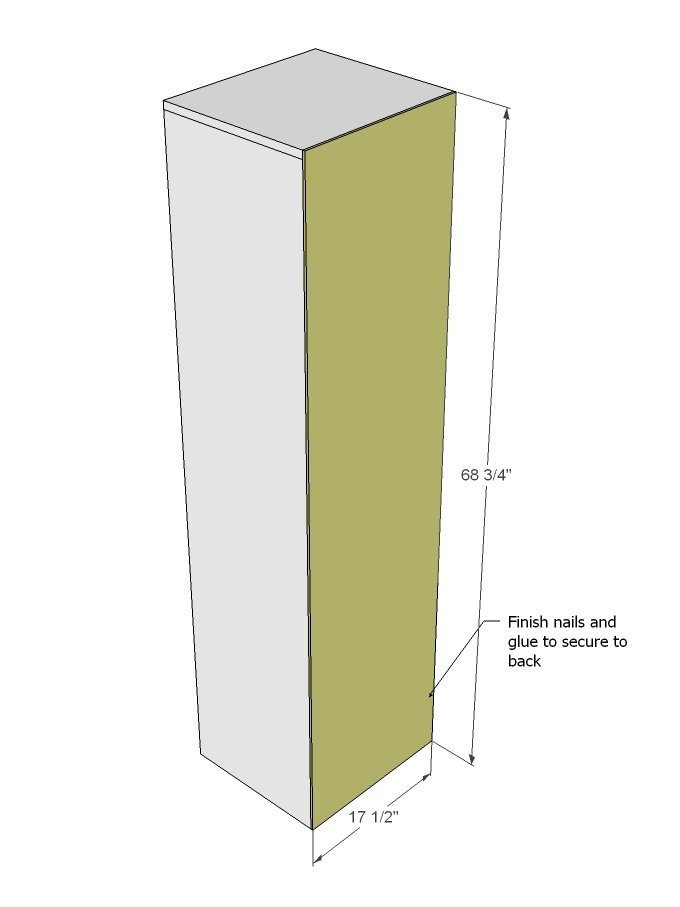

Step 4
Attach back with finish nails at least 1" long and glue. Nail to all plywood edges.
Step 5

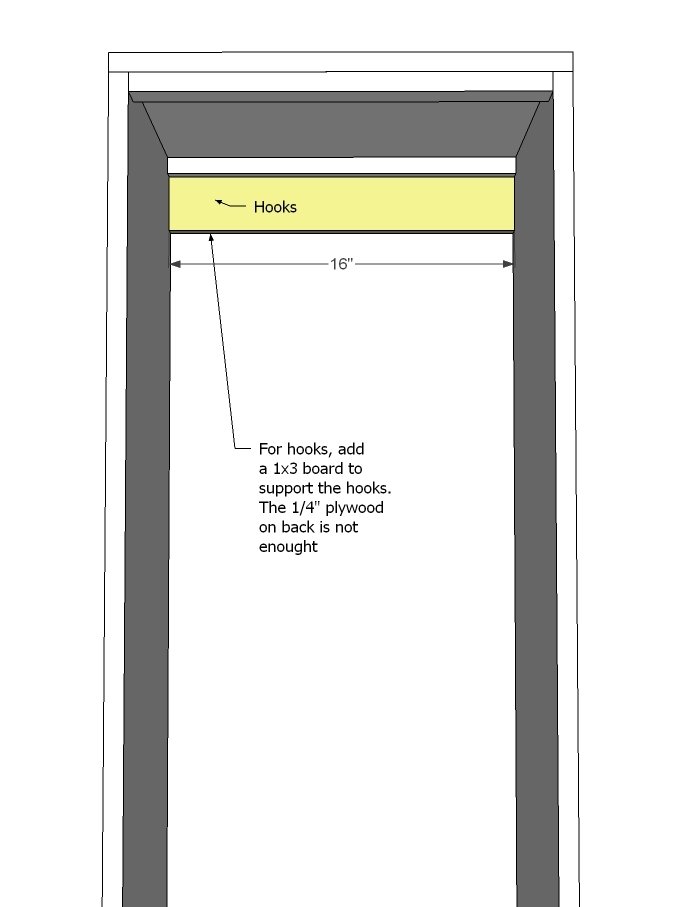

Step 6
For hooks, add a 1x3 board to support hooks on top inside.

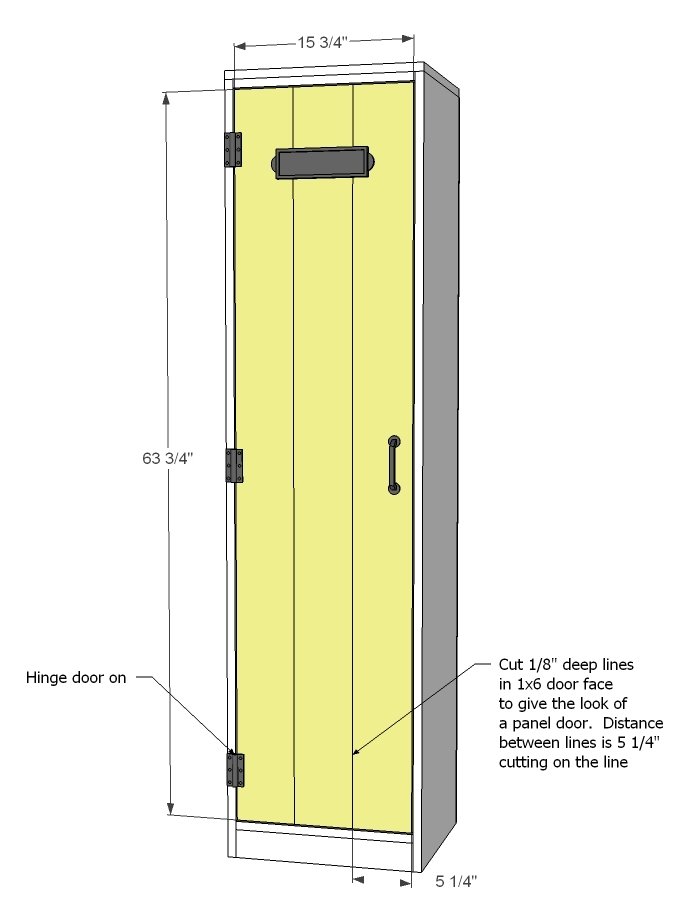

Step 7
Cut decorative lines in door face. Sand and fit in opening. Attach with hinges, leaving an even gap around all sides of the door.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
