Farmhouse Modular Locker System
Three Cubby Mudroom Shelf for Modular Farmhouse Locker System – Add functional, stylish storage to your mudroom or entryway with this simple three-cubby shelf! Designed to mount above coat hooks or a bench, this easy-to-build shelf helps keep everyday items organized and within reach. Each cubby is perfectly sized for baskets, hats, gloves, or decor — and the clean, timeless design complements any mudroom setup. Built from basic materials, it’s a quick weekend project that delivers custom-built results at a fraction of the cost. Pair it with the full farmhouse mudroom locker system or use it on its own to maximize vertical space and keep your entry neat and beautiful.
Specifications
| Project type | Lockers |
|---|---|
| Room | Entryway and Mudroom |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |

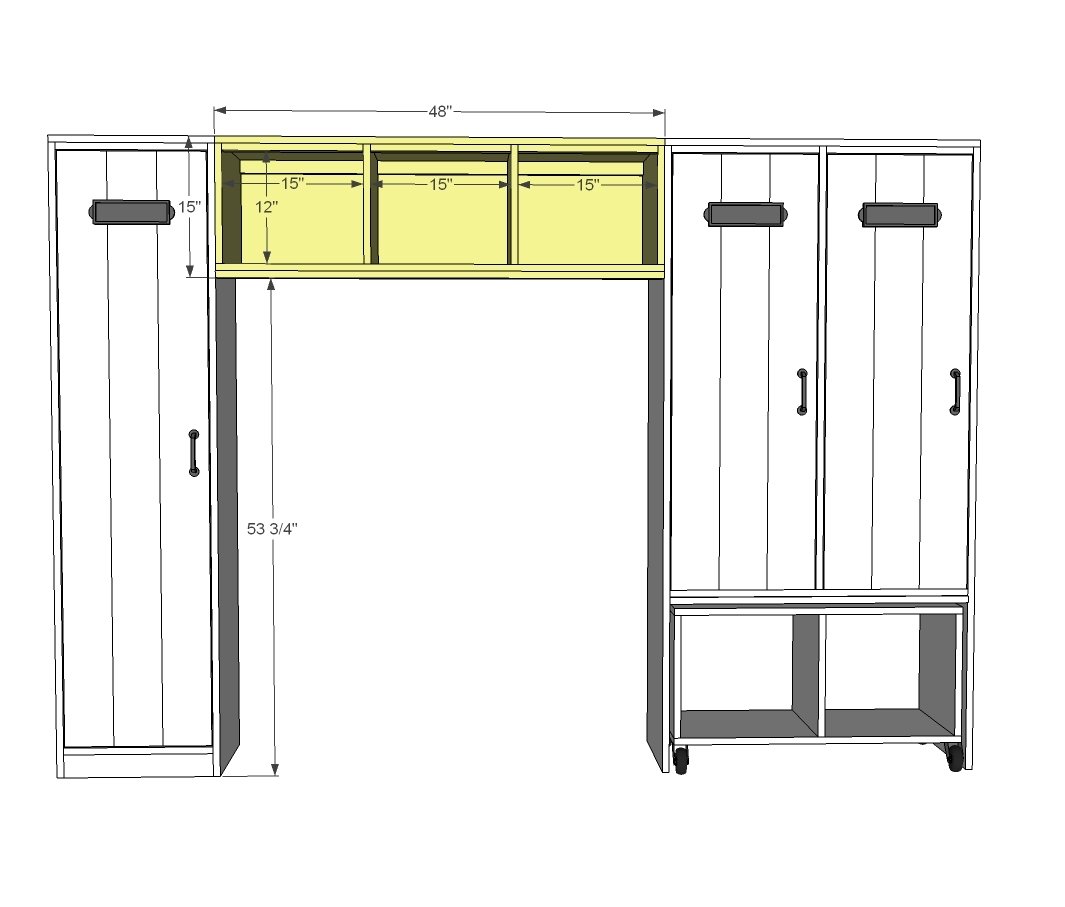

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1 - sheet of 3/4" hardwood plywood ripped into strips 15 3/4" wide (you'll have a full 8' strip and some left over, so consider using extra for other pieces in this collection)
- 1/4 sheet 1/4" plywood (for the back)
- 2 - 1x2 @ 8 feet long edge banding in matching veneer
- You can build with 1 1/4" pocket hole screws or 2" brad nails and glue or 2" self tapping wood screws
- To hang, you'll need 1 1/4" screws (cabinet to cabinet) and also 3" screws to attach to stud in wall behind bridge
Cut List
- 2 - 3/4" plywood @ 15 3/4" x 48"
- 4 - 3/4" plywood @ 15 3/4" x 12 3/4"
- 6 - 1x2 @ 15"
- 1 - 1/4" plywood @ 14 1/4" x 48" (width of plywood)
- 1 - 1x2 @ 48"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- countersink drill bit
Step-by-step Instructions

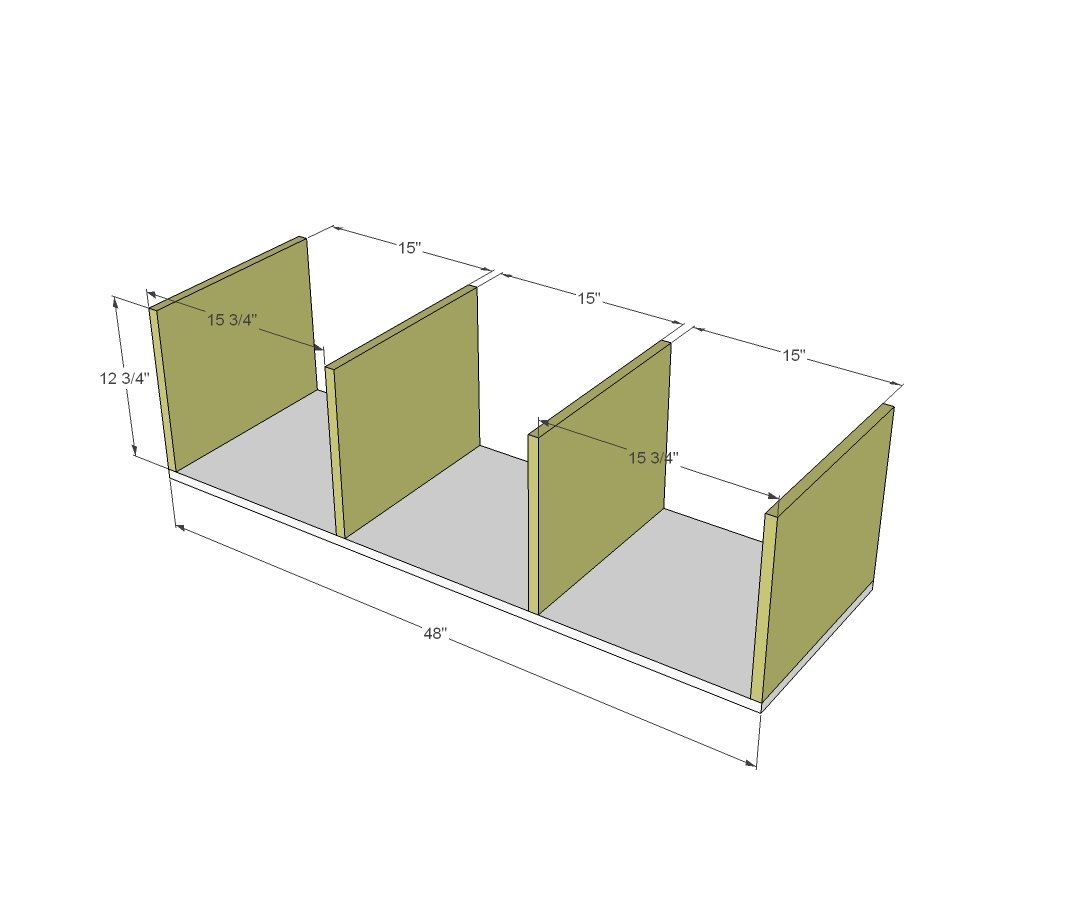

Step 1
Start by adding the dividers to the bottom shelf.

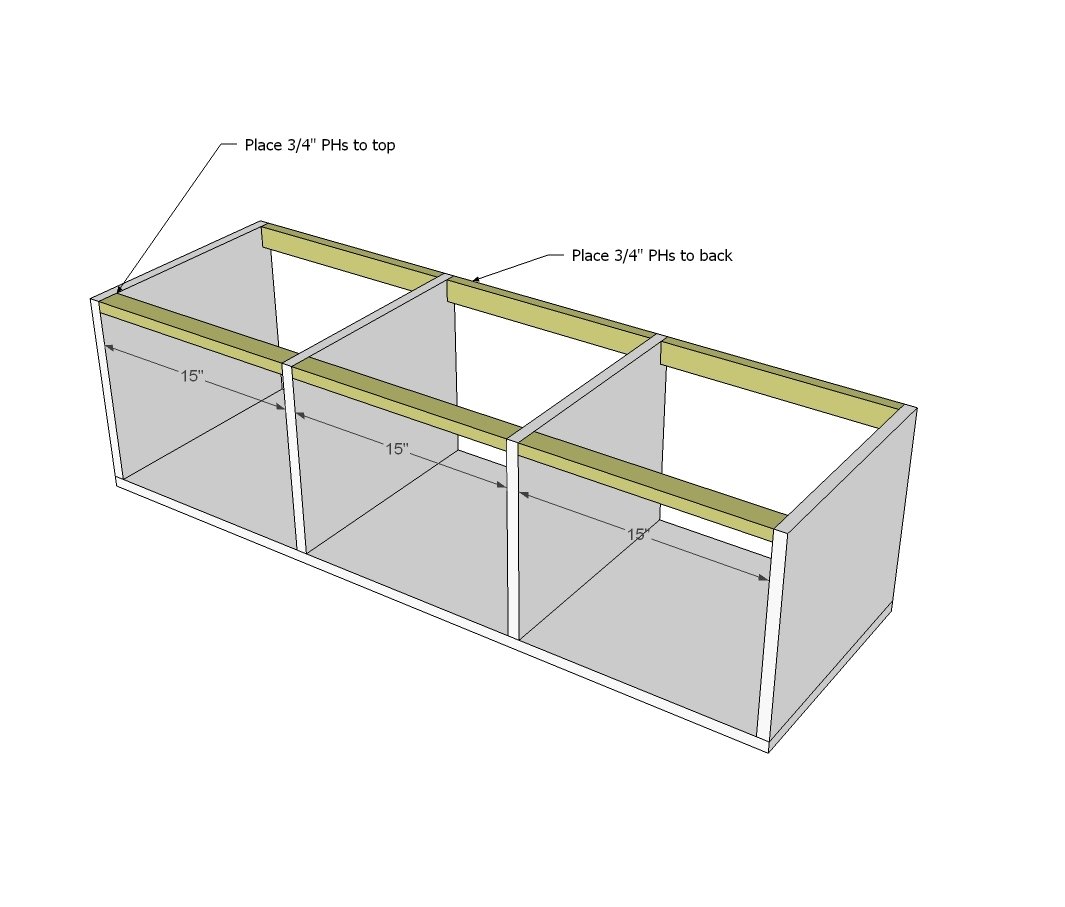

Step 2
Next, add the 1x2 supports. These just add a little extra something to the tops and help match up with the side lockers.

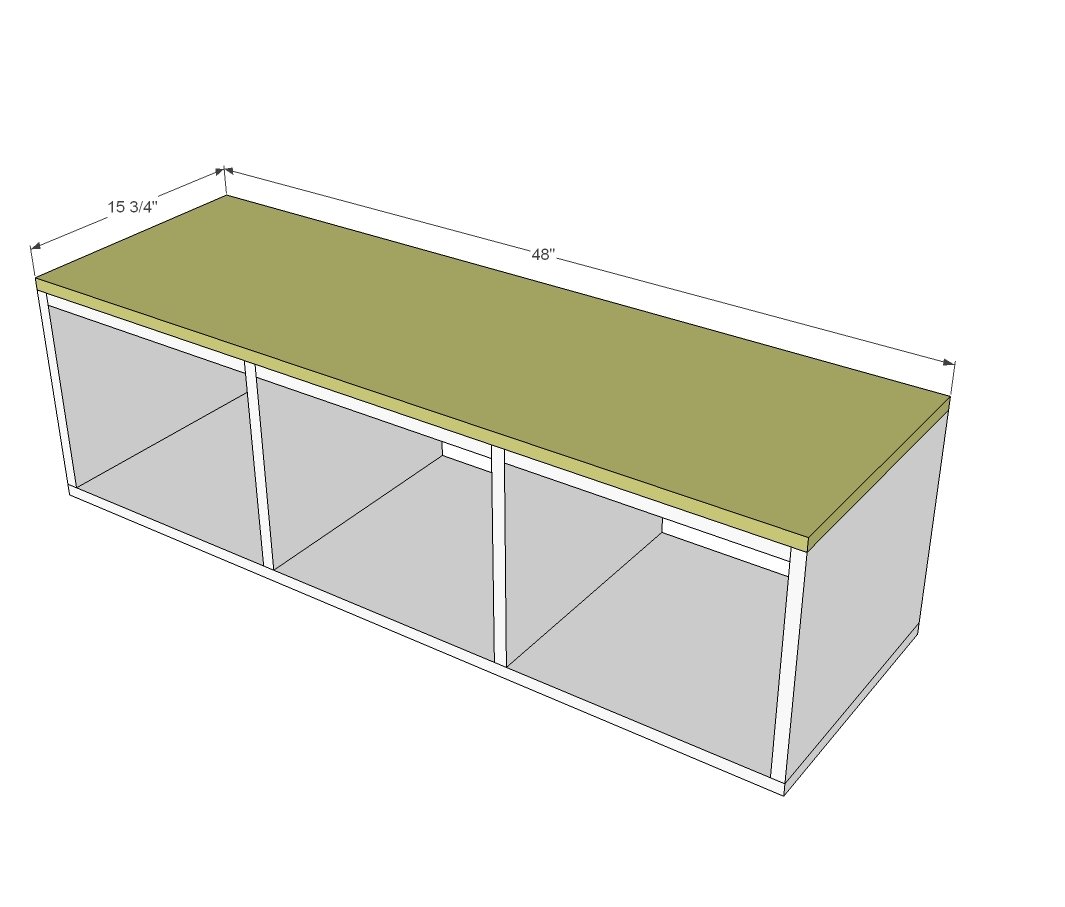

Step 3
Next, add the top. You can finish out the top front edge with edge banding or edge beading just to dress it up if desired.

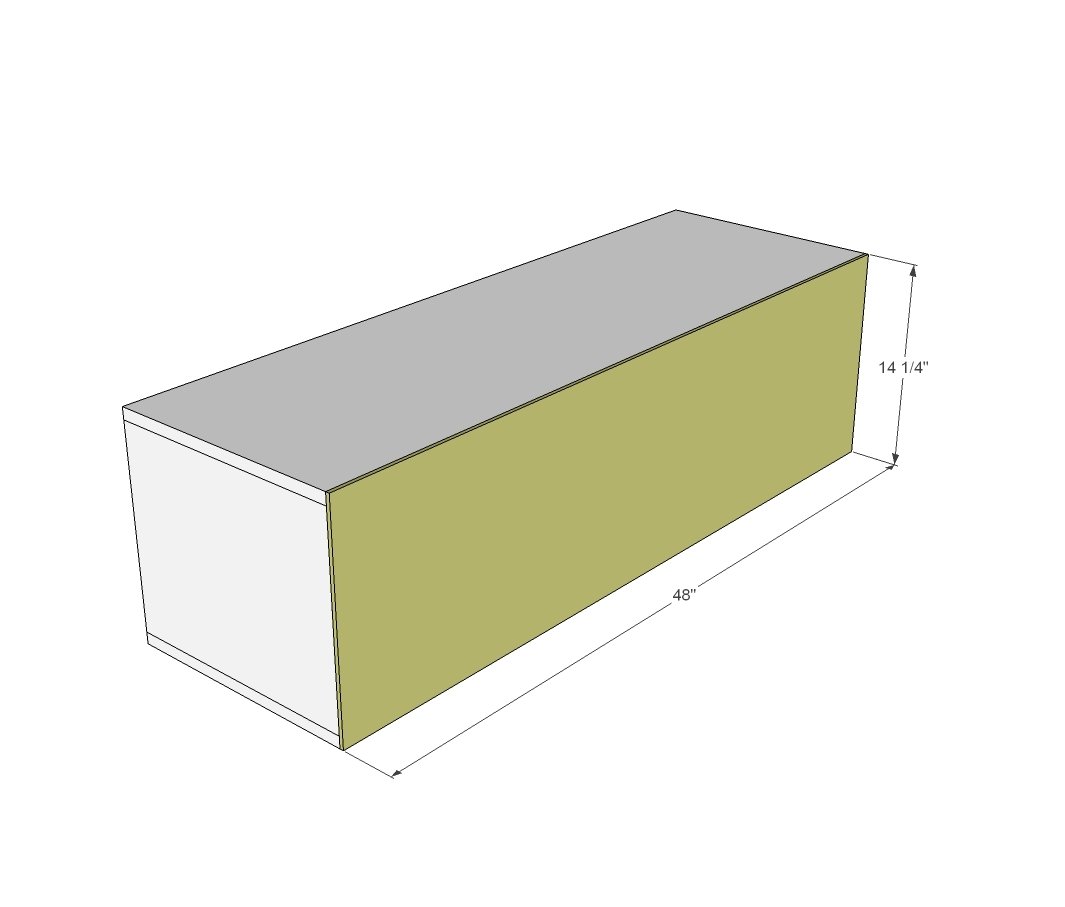

Step 4
Attach back to all fixed edges with glue and nails.

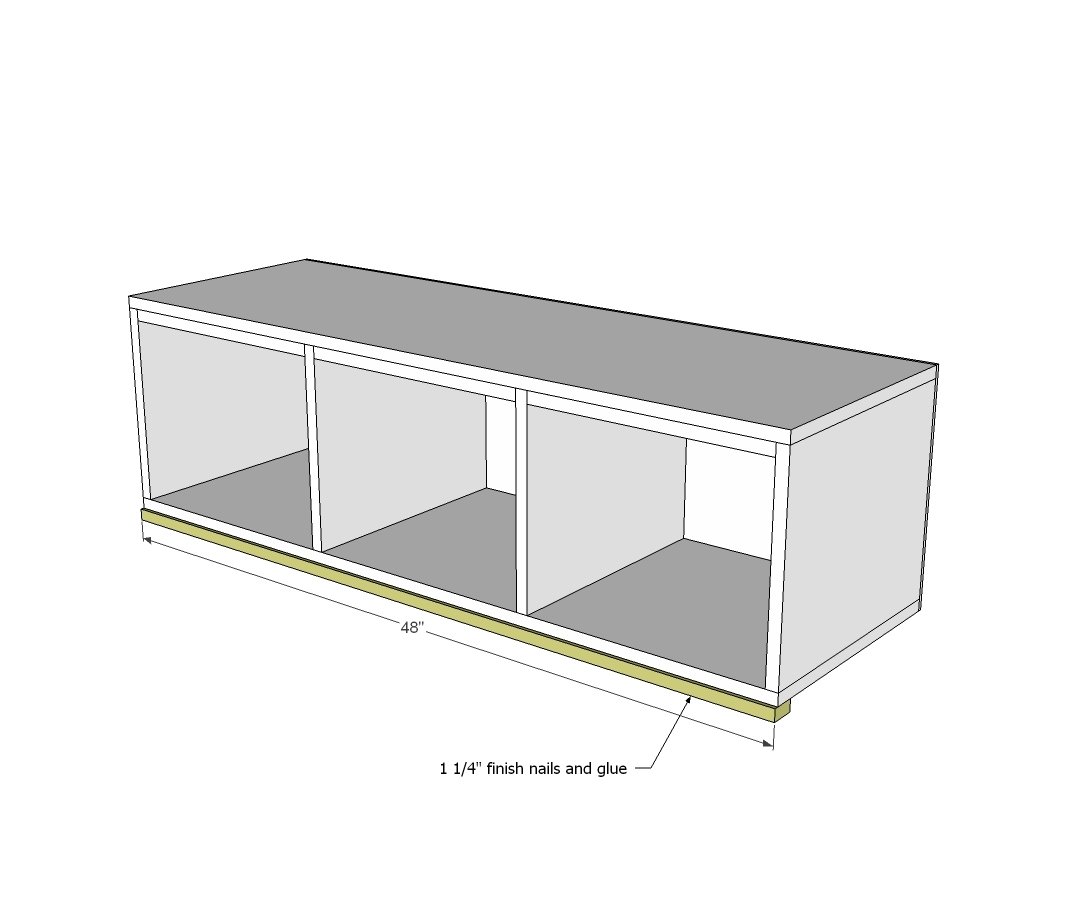

Step 5

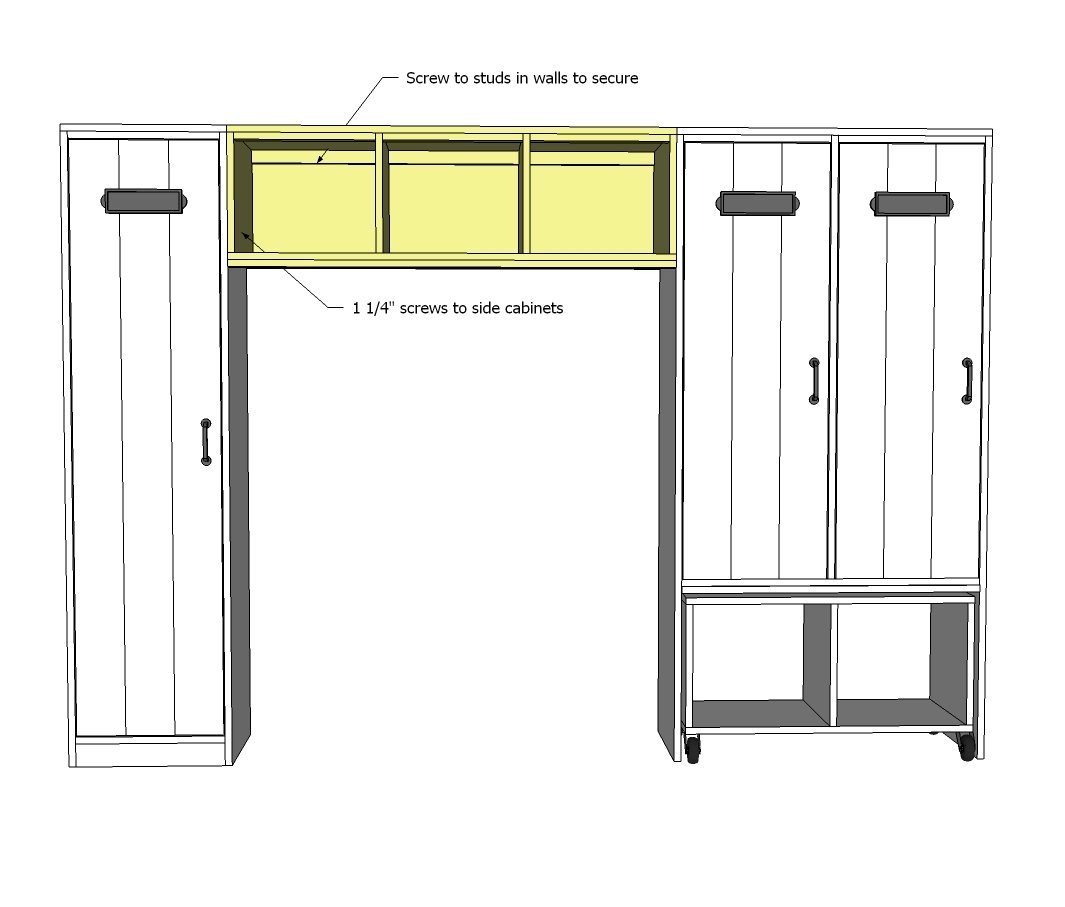

Step 6
Attach securely to wall studs and the side cabinets.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
