Flip Top Panel Bench

to build a flip top storage bench featuring lift top compartment. Made with 1x boards in panels, then jointed together, you'll love the detail, simplicity, and affordability of this beautiful DIY bench. Step by step plans include shopping list, cut list, diagrams, and instructions. Add the narrow hall tree hutch on top to create a full entryway storage solution.

Flip Top Panel Bench

Specifications

Project typeBench
RoomBathroom
StyleCottage Style Furniture Plans
DifficultyIntermediate
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

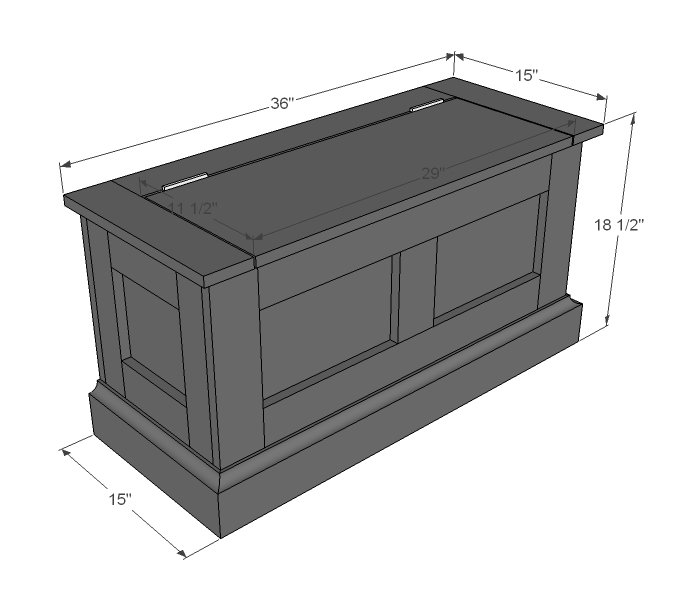

Flip Top Panel Bench dimension diagram 1

Shopping List

  • 3 - 1x4 @ 8 feet long
  • 1 - 1x8 @ 6 feet long
  • 1 - 1x3 @ 8 feet long
  • 1/4" plywood scraps or 1/2 sheet - If you are building the hall tree, consider using beadboard
  • 1 - 4 1/4" base moulding 7 feet long
  • 1 - 1x12 @ 28 3/4" long
  • 1 - set narrow profile hinges

Cut List

FRONT/BACK PANELS

  • 2 - 1x4 @ 27"
  • 2 - 1x8 @ 27"
  • 4 - 1x4 @ 17 3/4"
  • 2 - 1x4 @ 7"
  • 2 - 1/4" plywood @ 32" x 17 3/4"

SIDE PANELS

  • 4 - 1x3 @ 17 3/4"
  • 2 - 1x4 @ 7 1/2"
  • 2 - 1x8 @ 7 1/2"
  • 2 - 1/4" plywood @ 12 1/2" x 17 3/4"

TOP

  • 2 - 1x4 @ 15"
  • 1 - 1x4 @ 29"
  • 1 - 1x12 @ 28 3/4"
  • Optional moulding cut to fit at base

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

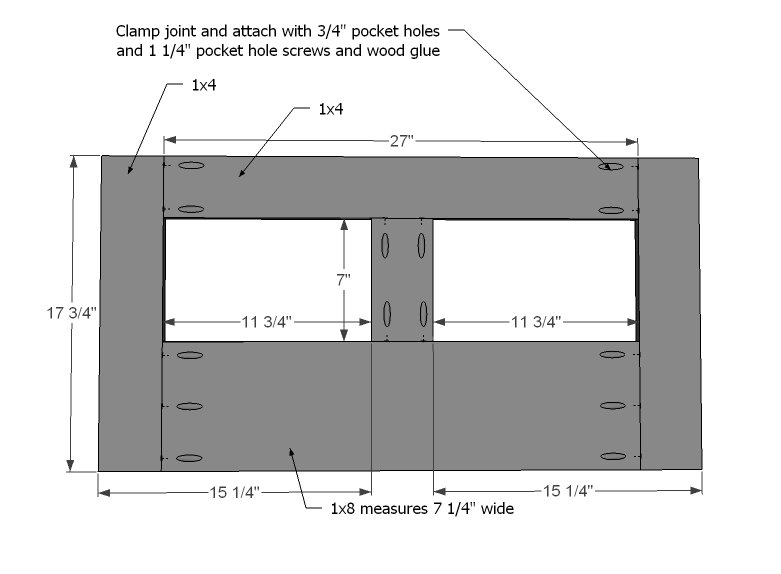

Step 1

You will need to build two - one for front and one for back.

Flip Top Panel Bench — step 1
2

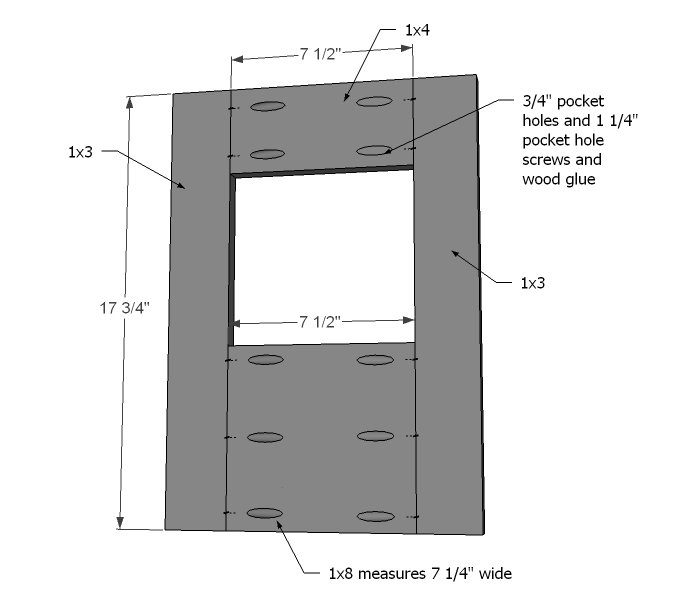

Step 2

Also build two sides.

Flip Top Panel Bench — step 2
3

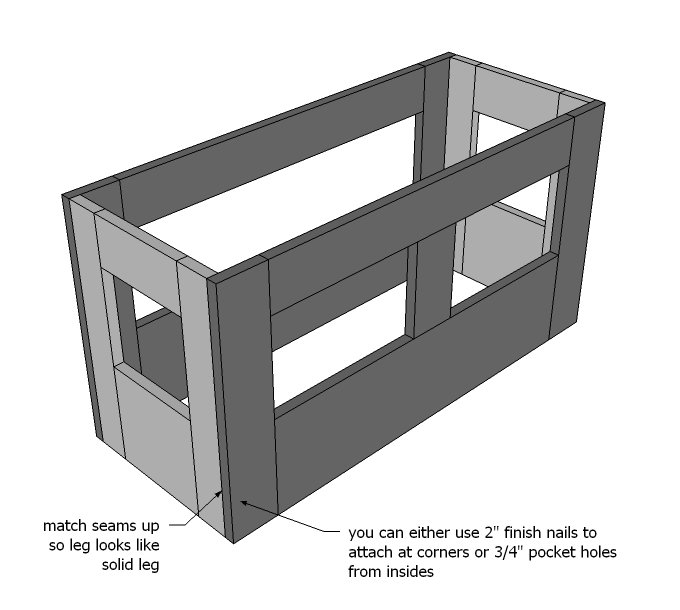

Step 3

Then attach all four panels to make a box. You can drill pocket holes to attach with pocket hole screws as well. NOTE: you may wish to attach plywood pieces (next step) before assembly - especially if you are using small scrap pieces.

Flip Top Panel Bench — step 3
4

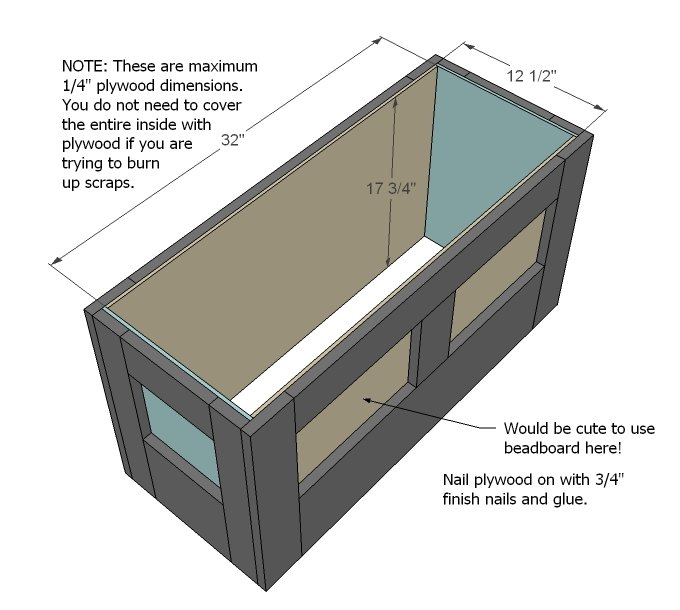

Step 4

Plywood the insides with 1/4" plywood or beadboard and attach with glue and nails.

Flip Top Panel Bench — step 4
5

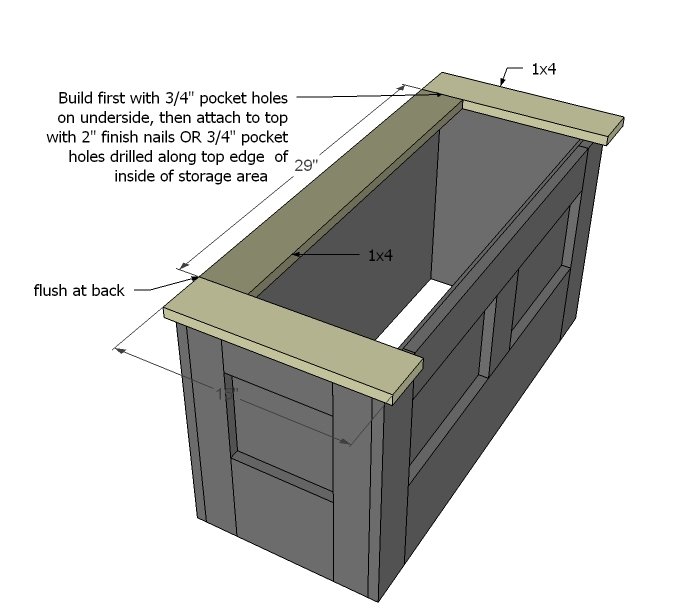

Step 5

Flip Top Panel Bench — step 5
6

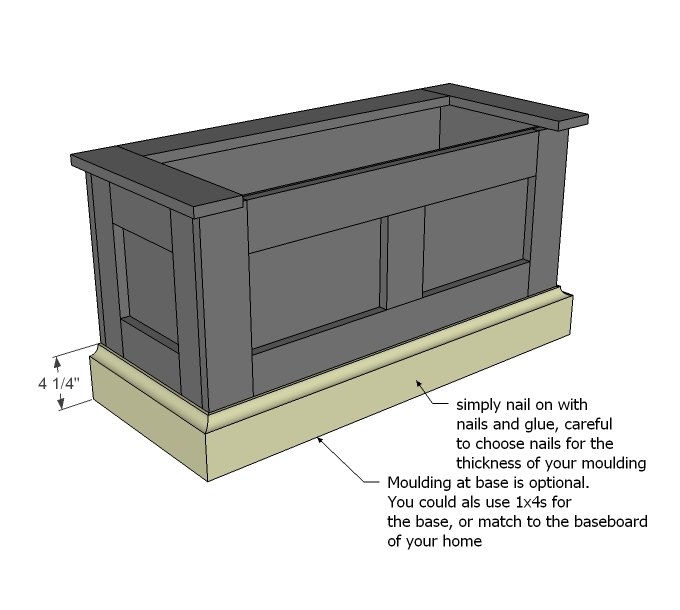

Step 6

I really like the added moulding. I recommend cutting to fit, mitering corners with a miter saw.

Flip Top Panel Bench — step 6
7

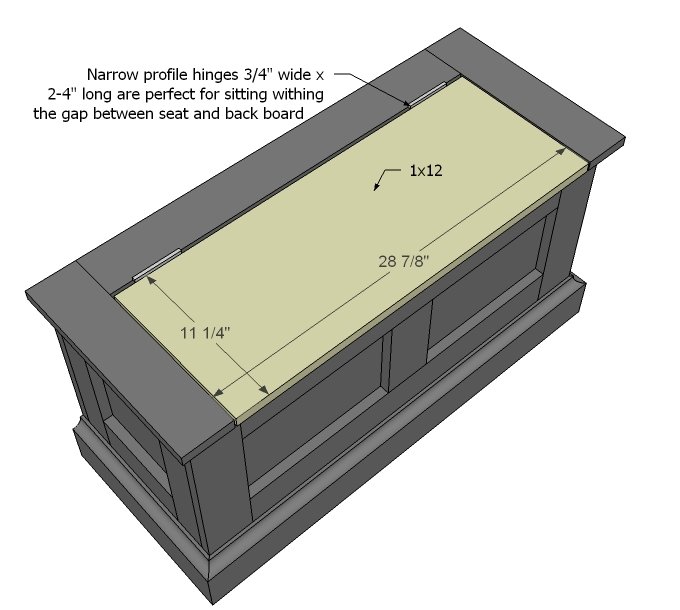

Step 7

You can attach hinges by setting on top (easiest method) or in the joint.

Flip Top Panel Bench — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
