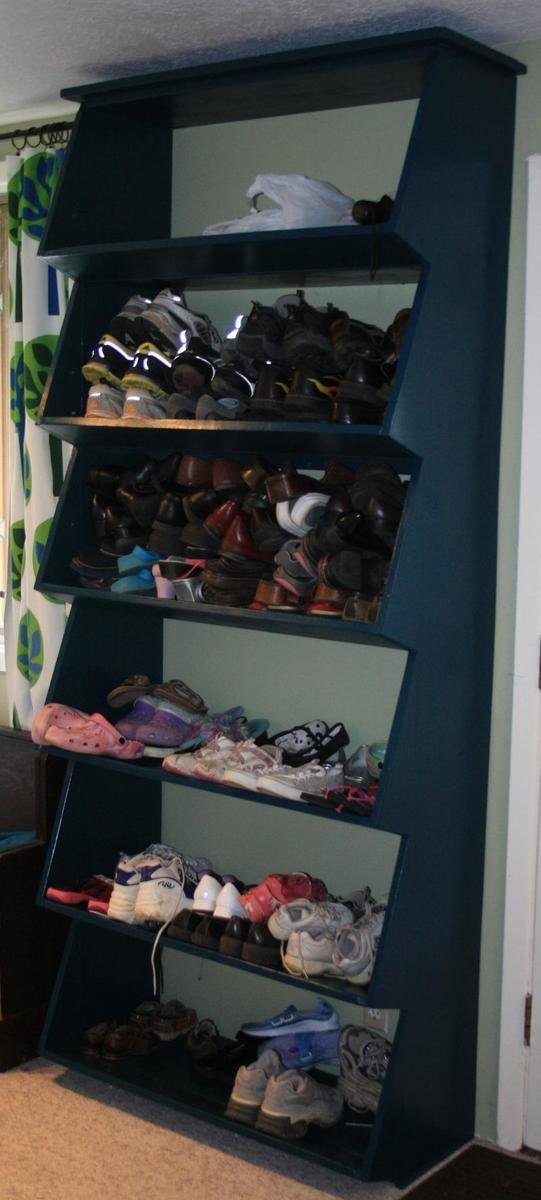

Floor-to-ceiling Shoe Shelf with Angled Front Shelf
*This project NEEDS to be secured to the wall b/c it is front heavy.* I made this shelf to fit the space in our porch but you could adjust and make it shorter/narrower to fit your needs. It could hold lots of different items, too. We have a spot for each member of the family and one to hold store returns/thrift store drop offs and misc. gear (umbrellas, flashlights, etc.). I chose to use pine boards and join the boards with a Kreg Jig which made a very sturdy shelf. It is based off of Ana's vegetable bin plan so if you have questions about my instructions, her pictures will probably help a lot.
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Entryway and Mudroom |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |
Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
I used all pine boards. I'm sure you could make it differently from mdf or plywood, but I like to use boards whenever possible to reduce the VOC's. It's also easier to make with boards since I use a chop saw. (3) 1x12" 8' sides and top of shelf moulding (3) 1x12" 6' shelves (3) 1x6" 6' fronts of shelves (1) 1x6" 8' sides of shelves (2) 1x2" 8' toe kick, board to screw to wall, top shelf moulding
Cut List
(7) 1x12" @ 36" shelves (cut in half the 6' boards and cut one from the 8' board) (2) 1x12" @ 89 1/4" sides(make short enough that you can stand it up in the room after assembly) (1) 1x12" @ 39 1/2" top moulding (6) 1x6" @ 36" fronts of shelves **(12) 1x6" @ 14 1/2 sides of shelf lip **don't cut these, yet. There are a couple of ways to do the sides of the lip, and I did two different ways! See step 4 & 5. (2) 1x2" @ 36" toe kick and board to screw to the wall (1) 1x2" @ 39 1/2" top shelf moulding Also, the shelf lip sticks out a little beyond the side so I shaved off each corner with the jig saw.
Tools
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- kreg-jig
- drill
- jigsaw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

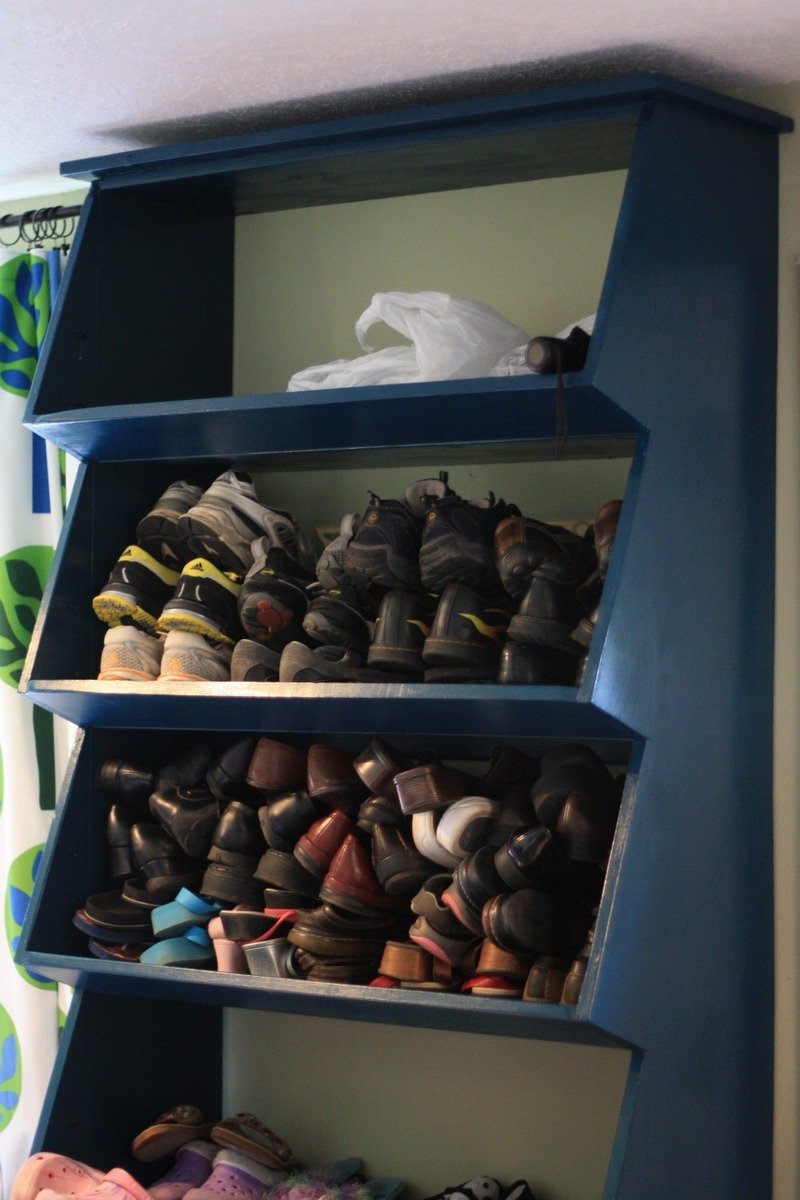

Step 1
Cut the boards and assemble the top, bottom and sides by kreg jig and wood glue. I used angle clamps to hold the corners while I screwed them together. Then space out the shelves evenly. I put the bottom shelf up a little to leave room for the toe kick (in a later photo).

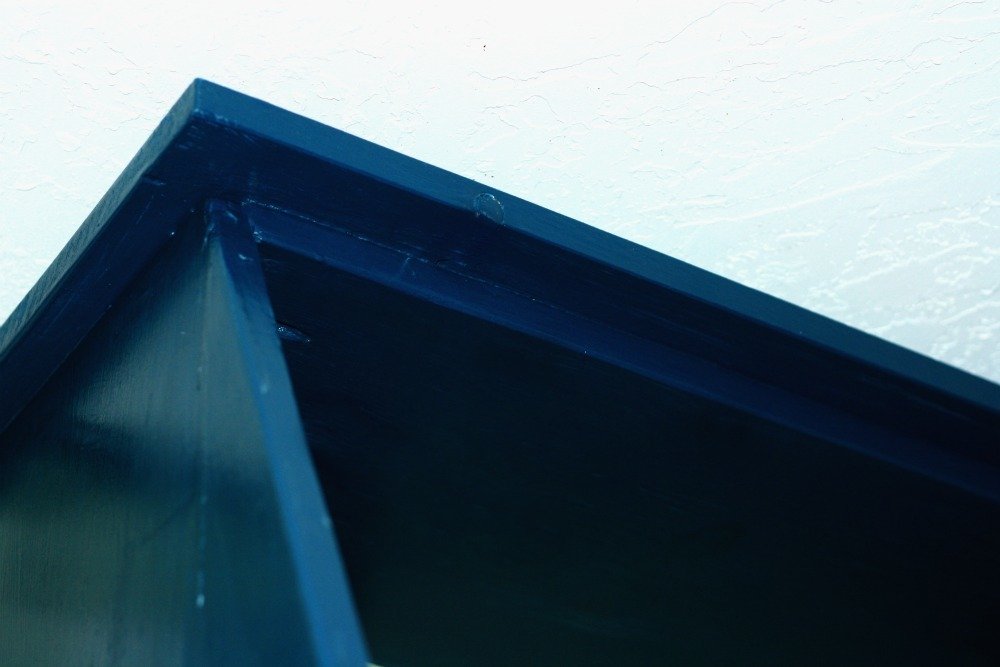

Step 2
The 1x12 is in the front, the 1x2 is in the back sitting flush with the back of the shelf.
Step 3

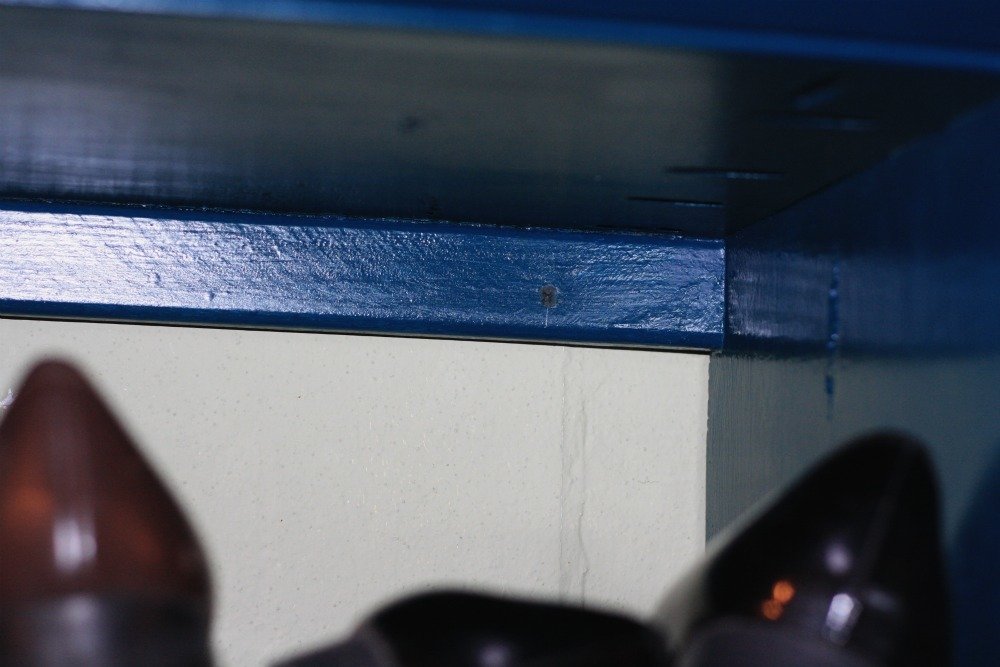

It is attached to the sides by a kreg jig and through the top of the shelf down into the brace. Then it is screwed into the wall.
Step 4

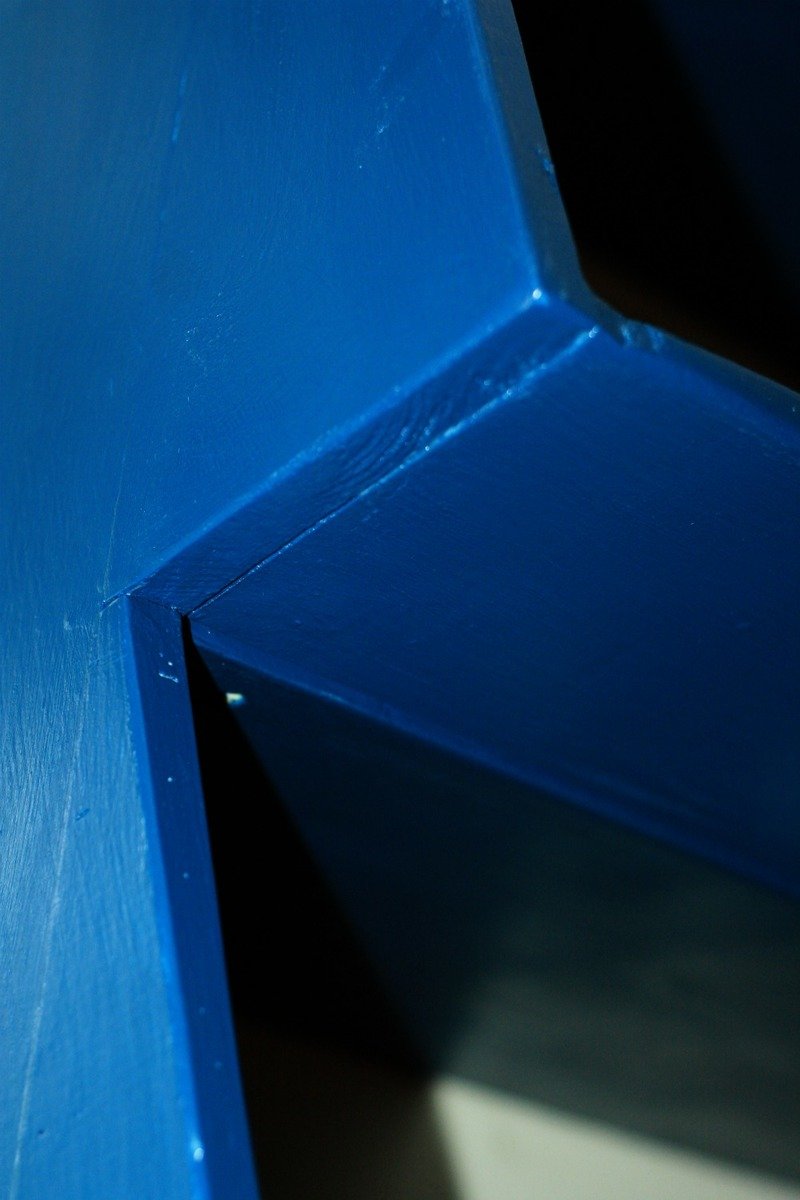

It is attached underneath by kreg jig and then sanded at the point where they meet (there is still a space since the board isn't cut at an angle, but it pulls close with the kreg jig and isn't noticeable from the top). I nailed at the top of the angled side shelf lip, though I don't know that it is necessary. This also shows where I shaved off the corner as it meets the shelf lip side.

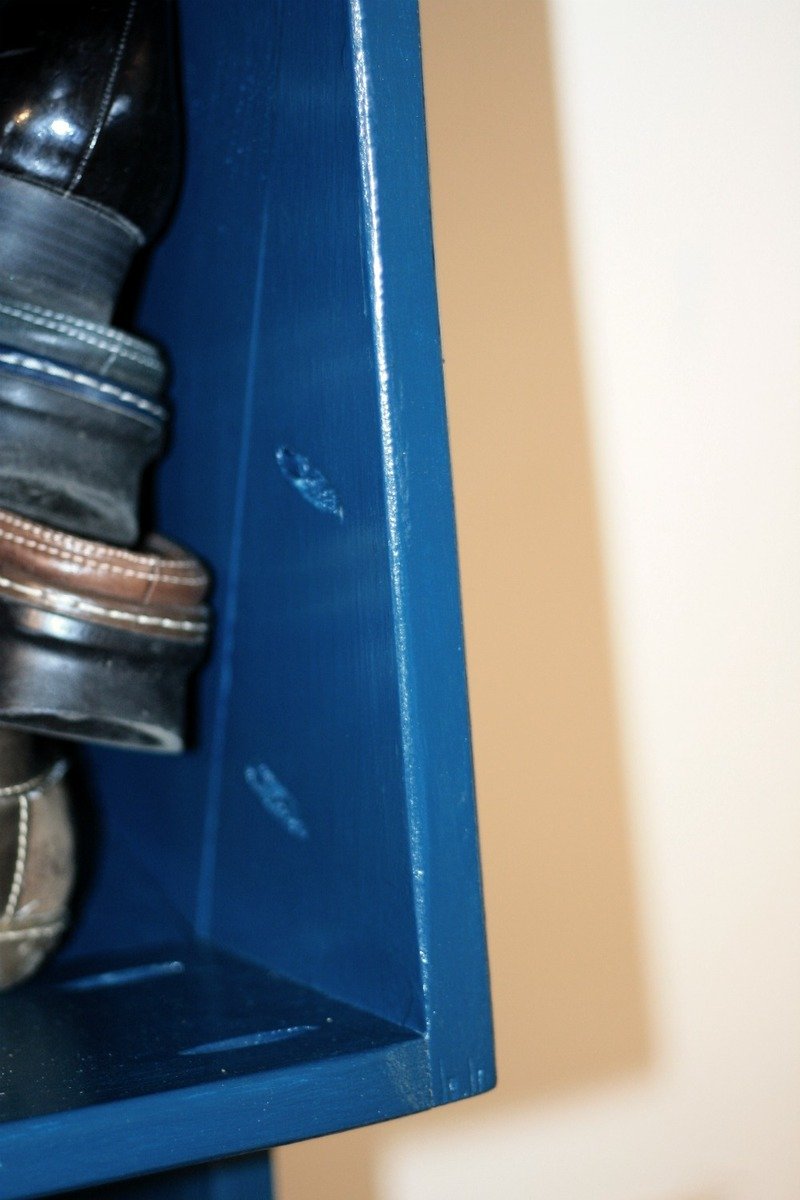

Step 5
Step 6

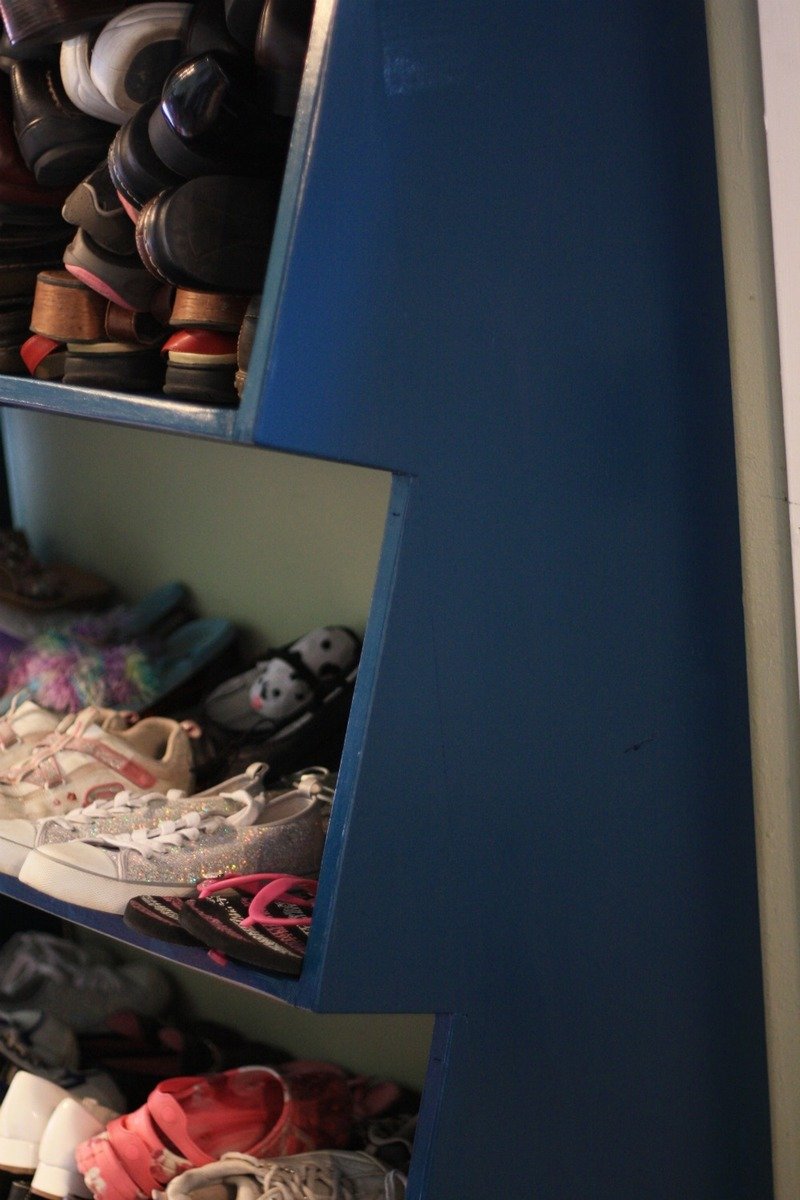

I didn't use wood filler, but the seam isn't that obvious. I mentioned earlier, I didn't fill the holes b/c I thought they added character (but mostly b/c I don't have patience for the finishing step). It also doesn't show that much with the dark paint.

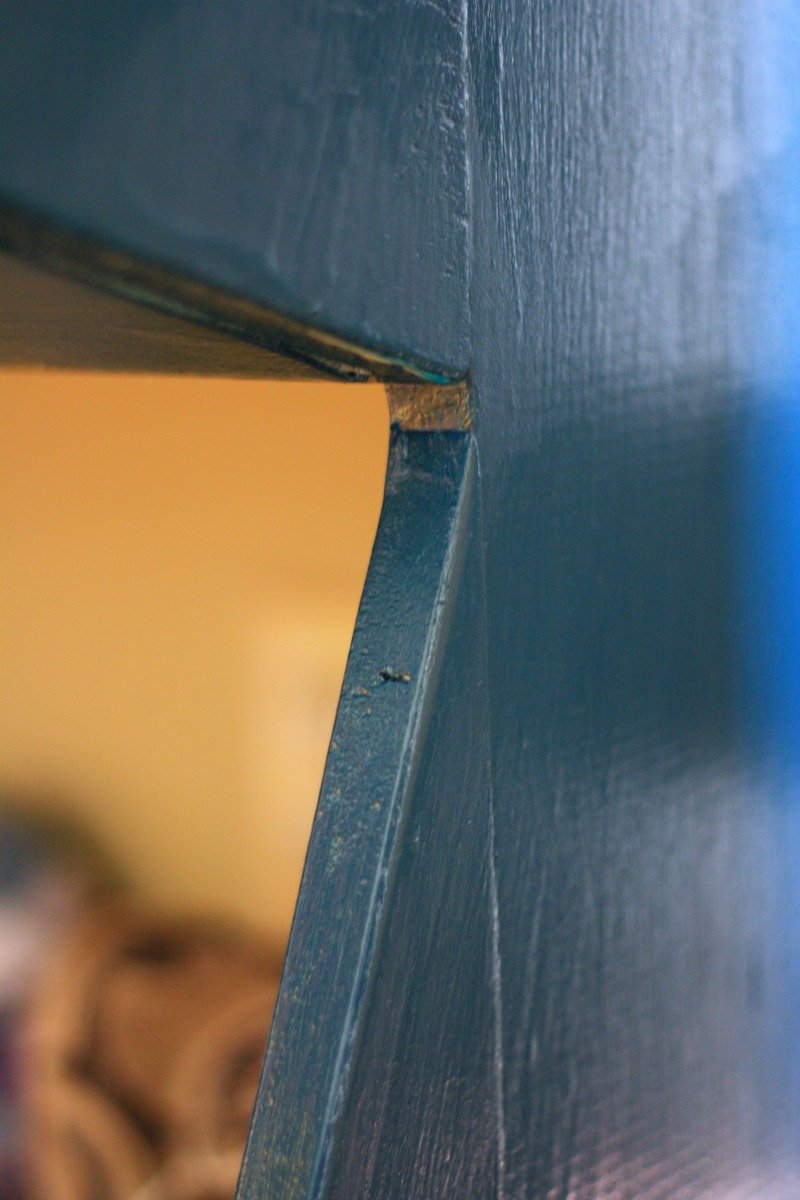

Step 7

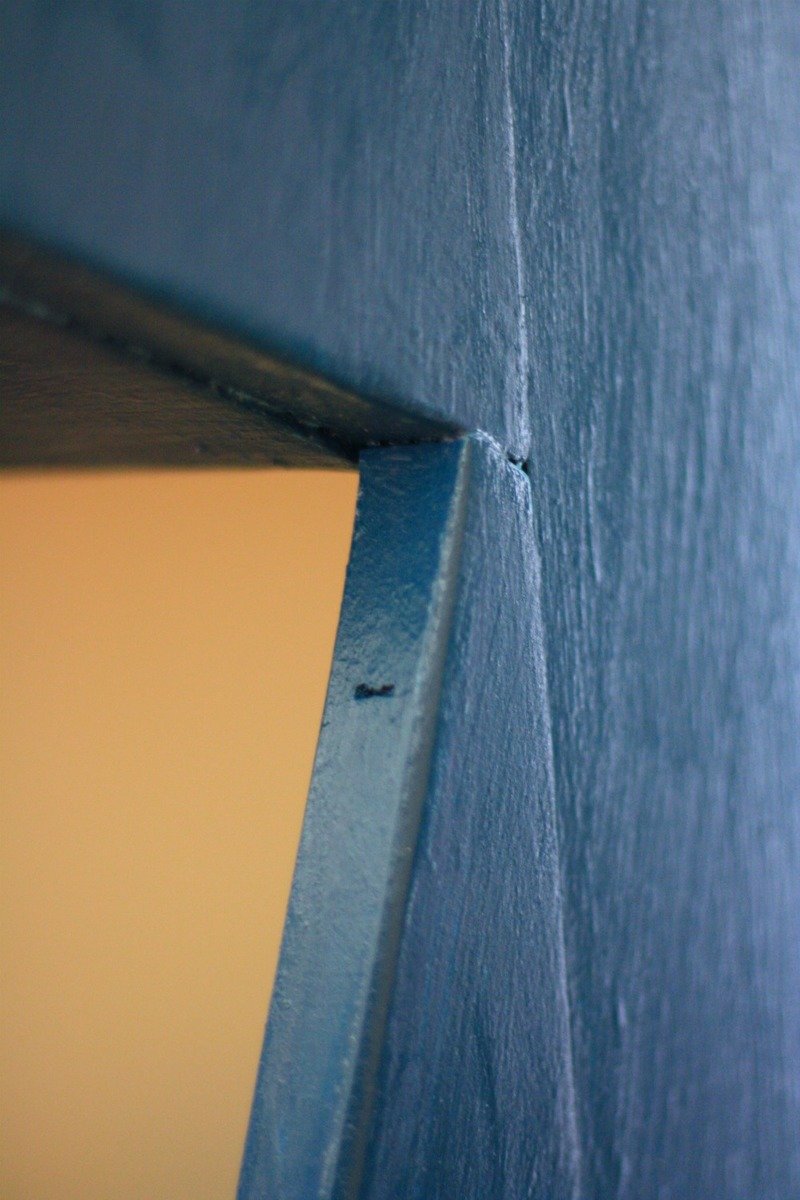

Step 8

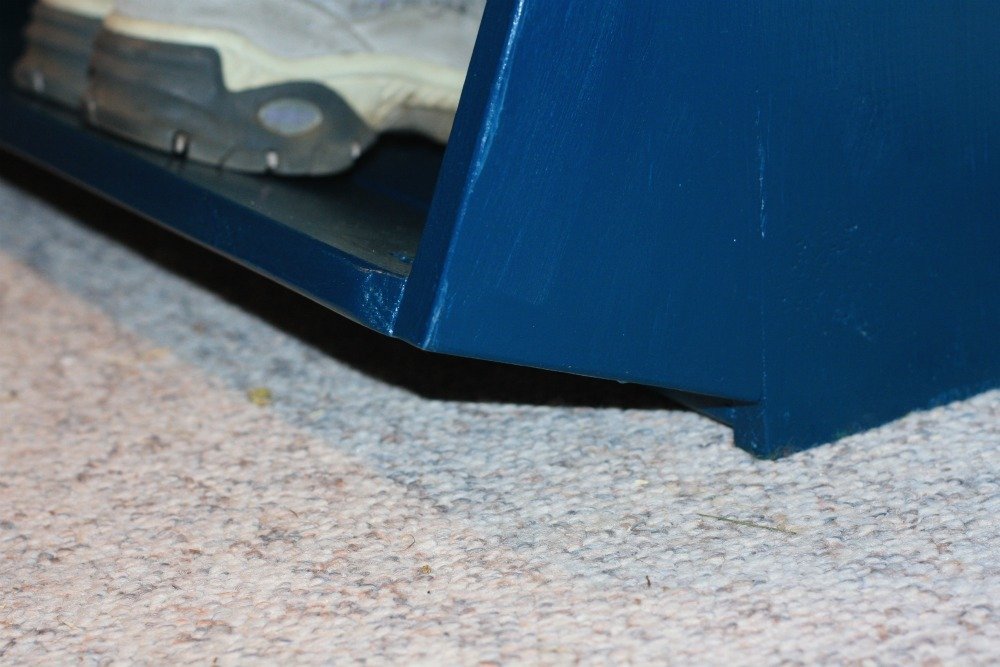

Step 9
Step 10

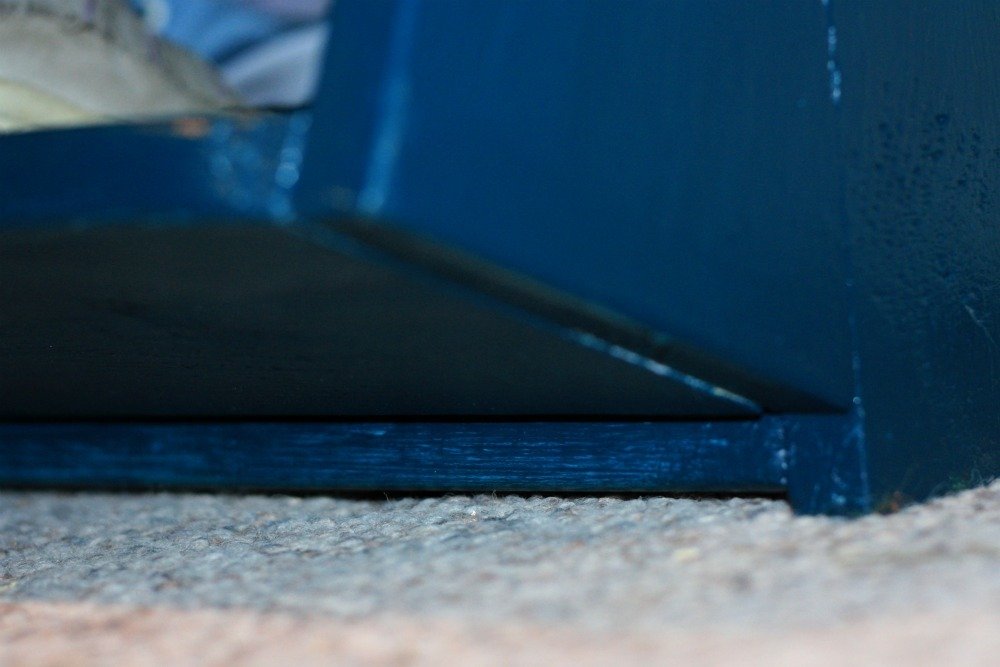

A closer look at the toe kick.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
