Folding Camp Stools
Make your own folding stools from wood boards! to build folding camp stools.
Specifications
| Project type | Stools |
|---|---|
| Room | Outdoor |
| Style | Cottage Style Furniture Plans |
| Difficulty | Starter Projects |
| Estimated cost | Under $20 |

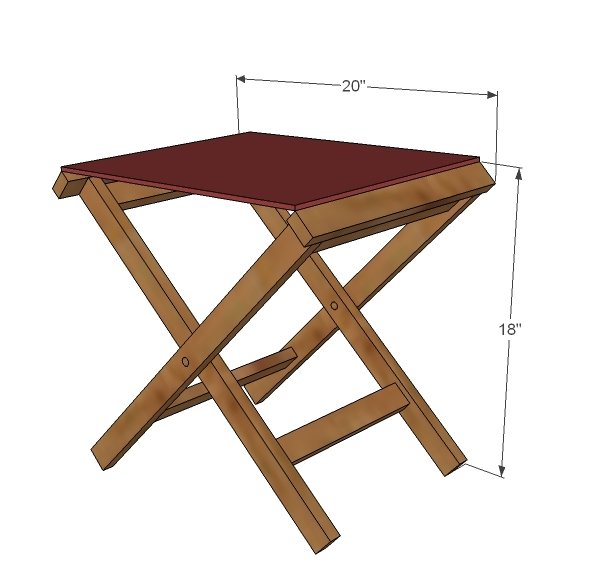

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x2 @ 8 feet long
1 - 5/16" dowel, 2 feet long
Fabric for sling (see last step)
Bolts: 2 - 1/4" x 2" long
Nuts: 2 - 1/4"
Washers: 6 - 1/4"
Assemble frames with either 2" screws or 1 1/4" pocket hole screws and glue
Cut List
4 - 1x2 @ 24" (legs)
2 - 1x2 @ 15" (top sides)
2 - 1x2 @ 12.25" (outer stretcher top and bottom supports)
2 - 1x2 @ 10.5" (inner stretcher top and bottom supports)
1 - 5/16" dowel @ 13.5" (outer side fabric insert)
1 - 5/16" dowel @ 11.25" (inner side fabric insert)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- countersink drill bit
Step-by-step Instructions

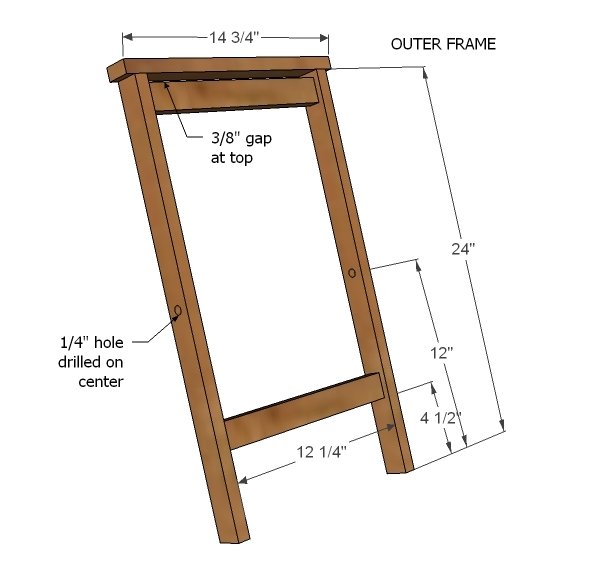

Step 1
Build the first frame as shown in diagram. You can use 1 1/4" pocket hole screws or 2" countersunk screws. Use glue. Top board overhangs 1/2" on each end. TIP: It's easier to drill the 1/4" holes before assembling:)

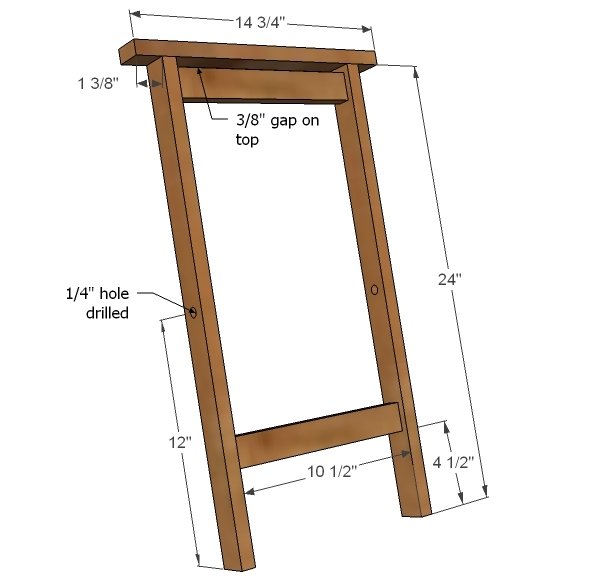

Step 2
The second frame is exactly the same as the first, just a little wider. Build as shown in diagram.

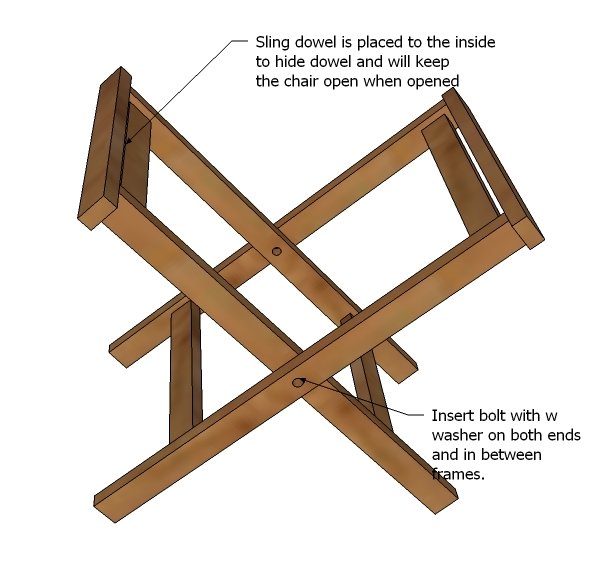

Step 3
Now assemble the two frames by laying the smaller frame inside the larger and lining up the predrilled 1/4" holes. Insert a bolt, with a washer at the start, between frames, and end with nut through the predrilled holes. This will create a folding frame for you. Next, you will need to make the sling, and then install with wood dowels.

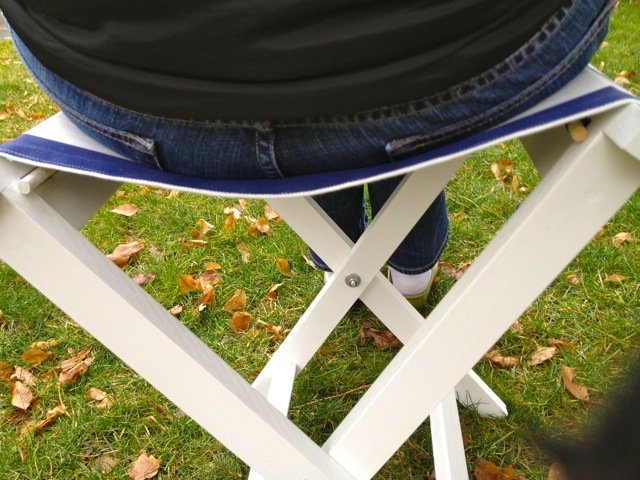

Step 4
When your sling is inserted properly in the seat, the dowels are hidden underneath. The seat sling also keeps the folding stool open when opened.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
