Folding Sewing Table

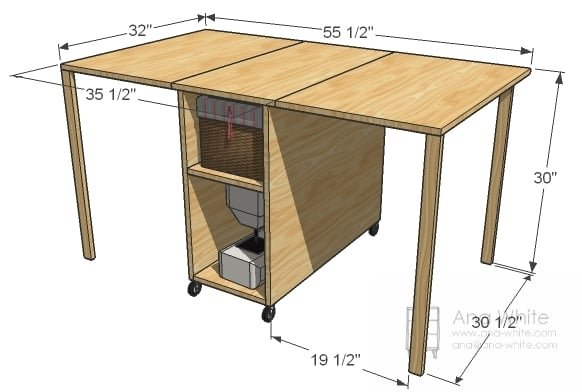

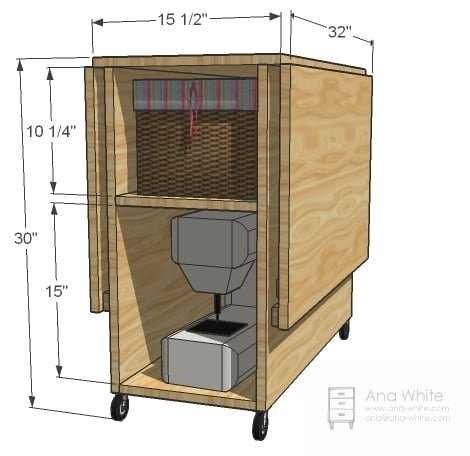

Build your own folding sewing table from one sheet of plywood! This is a free woodworking! Folds out to 32" x 55", and folds down to roll through doorways and tuck away as an end table.
Specifications
| Project type | Desk, Desk Systems and Project Table Plans |
|---|---|
| Room | Craftroom |
| Difficulty | Beginner Projects |
| Estimated cost | $20 - $50 |
Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 – Sheet of 3/4" thick sanded plywood or hardwood plywood
2 – 1x3 @ 8 feet long
4 – 2″ Caster Wheels (Overall clearance of 2 1/2″) and screws for attaching caster wheels to the base (3/4" length most likely with a larger head)
5 – Sets of simple hinges (2-1/2" to 3" length) - ten total hinges
2" self tapping wood screws (spax or similar, can use trim screws)
Cut List
- 2 - 3/4" plywood @ 32" x 20"
- 2 - 3/4" plywood @ 32" x 26-3/4"
- 1 - 3/4" plywood @ 32" x 15-1/2"
- 2 - 3/4" plywood @ 32" x 12"
- 4 – 1x3s @ 29 1/4″ (Legs – Measure these!)
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
- sander
- countersink drill bit
Step-by-step Instructions
Lay the plywood out on top of scrap 1x boards or styrofoam.

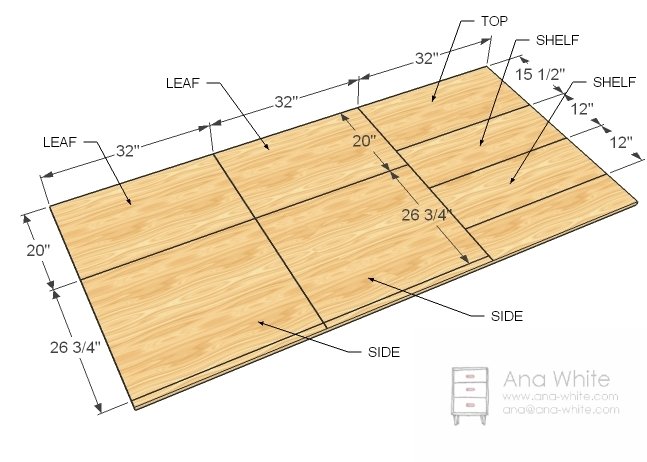

Mark the plywood every 32" width wise with pencil lines. Set circular saw to depth slightly greater than thickness of plywood. Cut on the pencil lines to create three equal sized pieces, each 32" x 48". From the 32" wide pieces, cut down as shown in the diagram and cut list.
Step 2

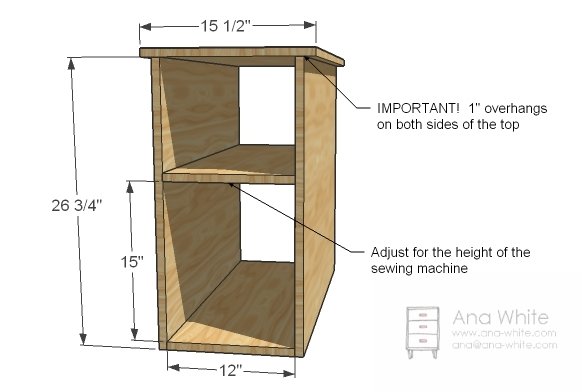

Assemble the main box as shown in the diagram, using the 2" screws.
Step 3

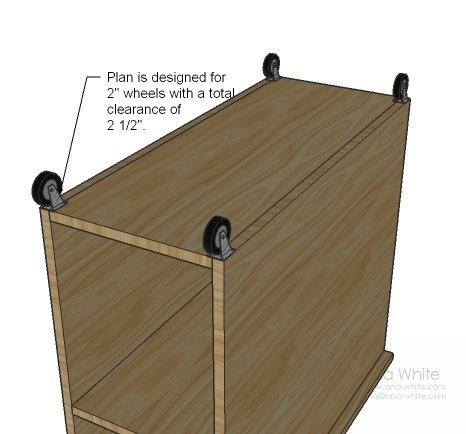

Attach wheels to base of the cabinet with the caster wheel screws.
Step 4

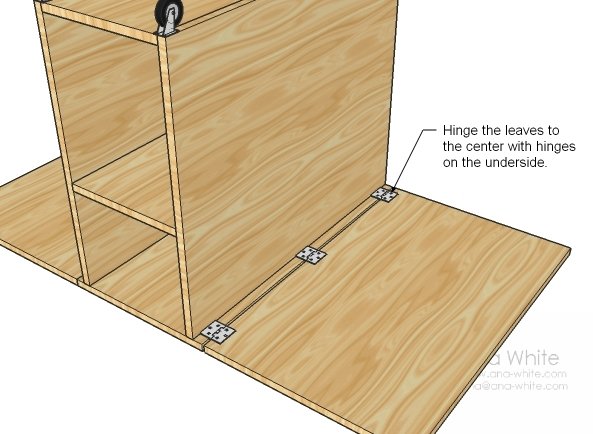

Position the cabinet face down on the floor and place the leaves next to the cabinet. Attach on underside with the simple hinges.
Step 5

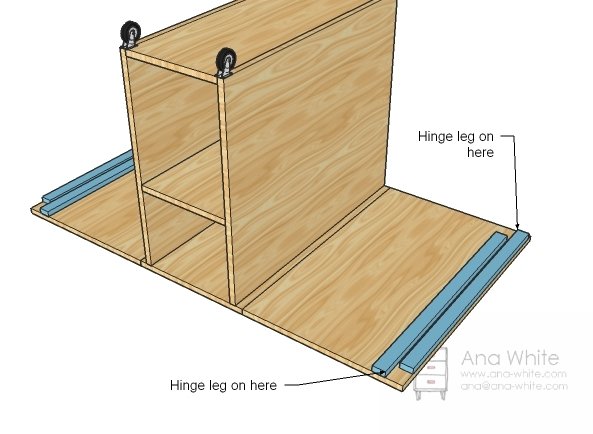

Measure the overall distance from the underside of the cabinet to the wheel bottom and cut the 1x3s to this length. Attach legs to hinges and to the underside of the leaves. You can also use a fold out hinge for added security.
Flip the table over and test the leg lengths. Cut down if necessary.
You want the legs to open slightly past 90 degrees in opposite angles, so the legs are slightly splayed out, to keep the project from collapsing. You can also use table leg hinges.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
