Footboard Bench

Step 1

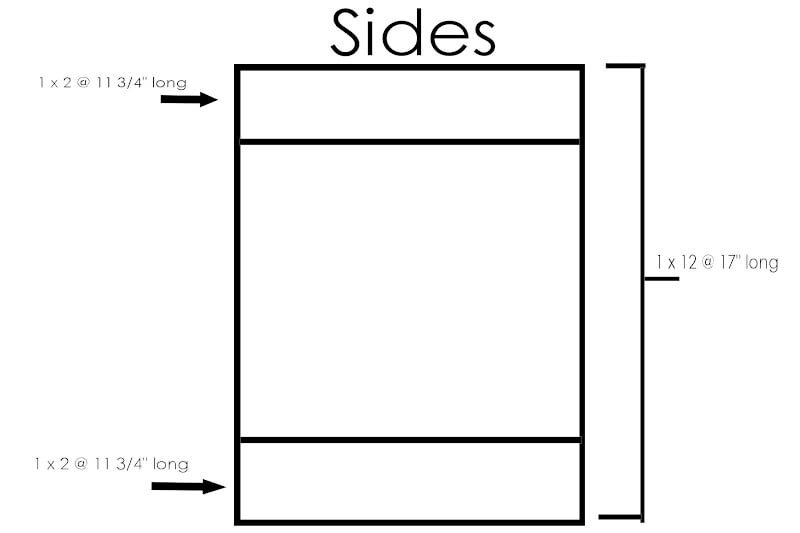

Nail two 11 1/4" 1x2's to the face of each of the 1x12's, one on the top and one on the bottom end. These will become the two sides of the bench.

Step 2

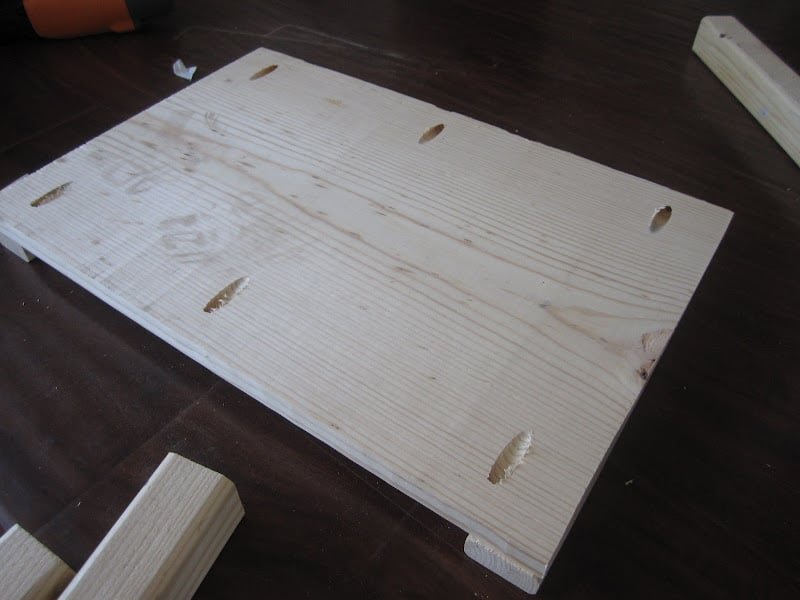

Using a Kreg Jig, create pocket holes in the back of the 1x12.

Step 3

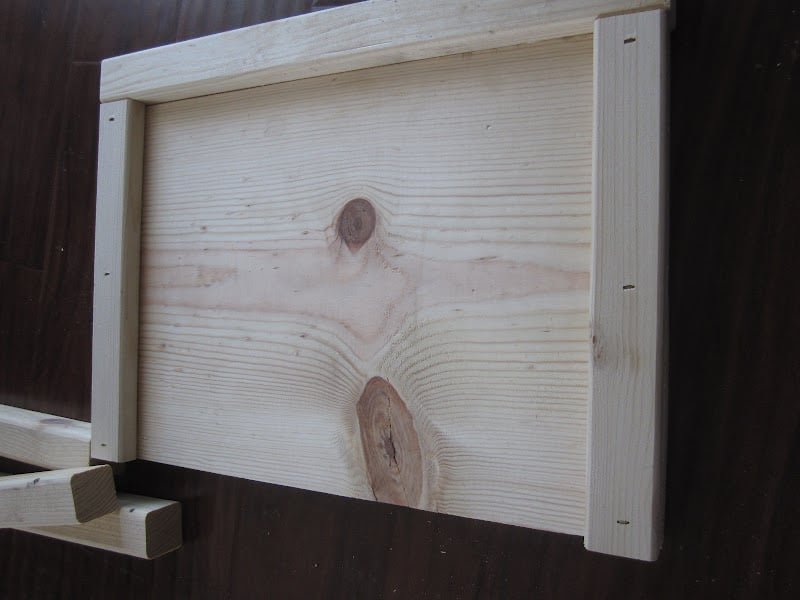

Attach two 17" 2x2's to the sides of each of the 1x12's using screws and the pocket holes. The 2x2's should be flush with the 1x2 trim as shown below.

Step 4

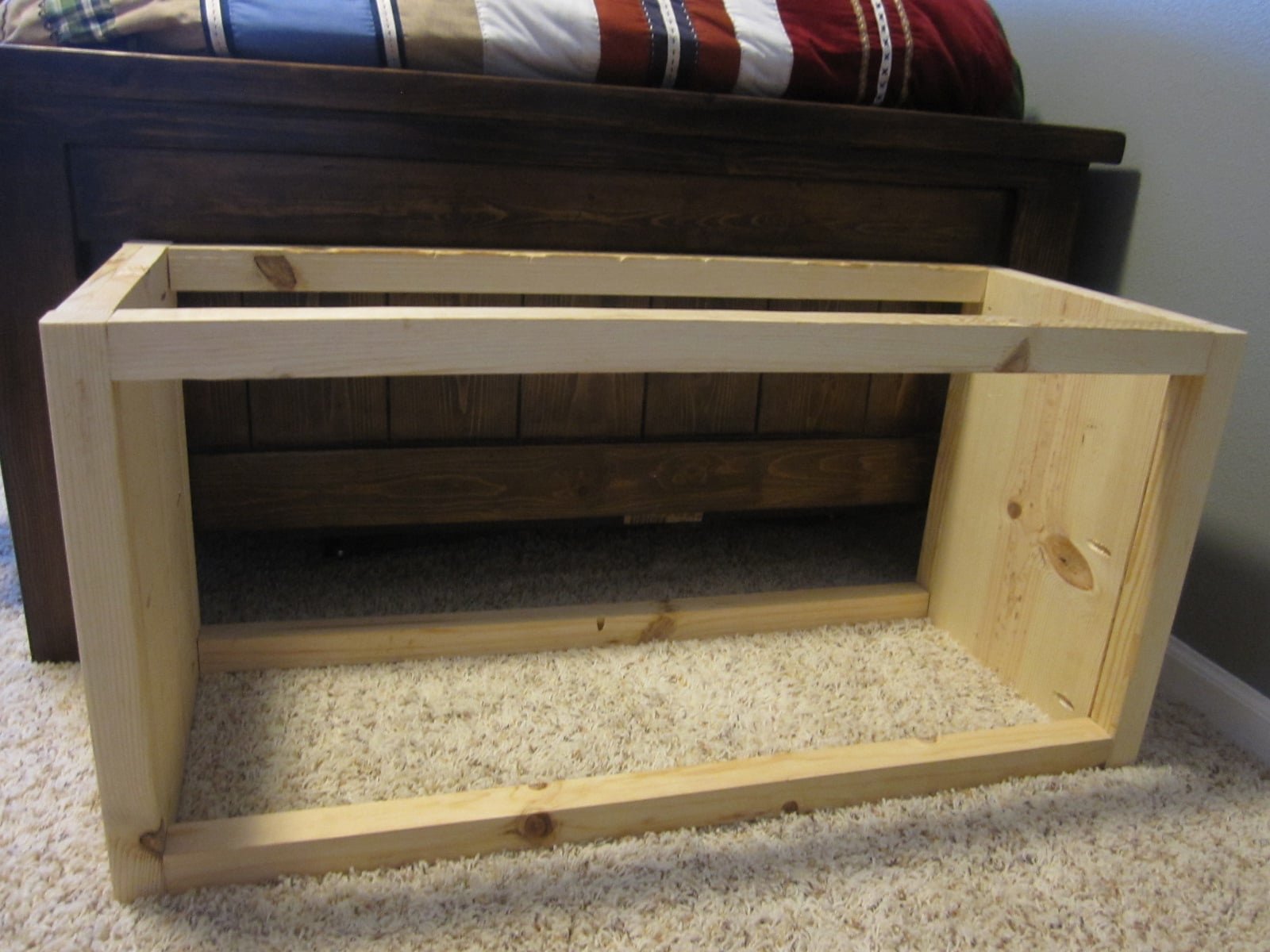

Attach your 32 3/4" 2x2 to each corner, creating the bones for the bench. I again used my Kreg Jig to create pocket holes on each end of the boards.

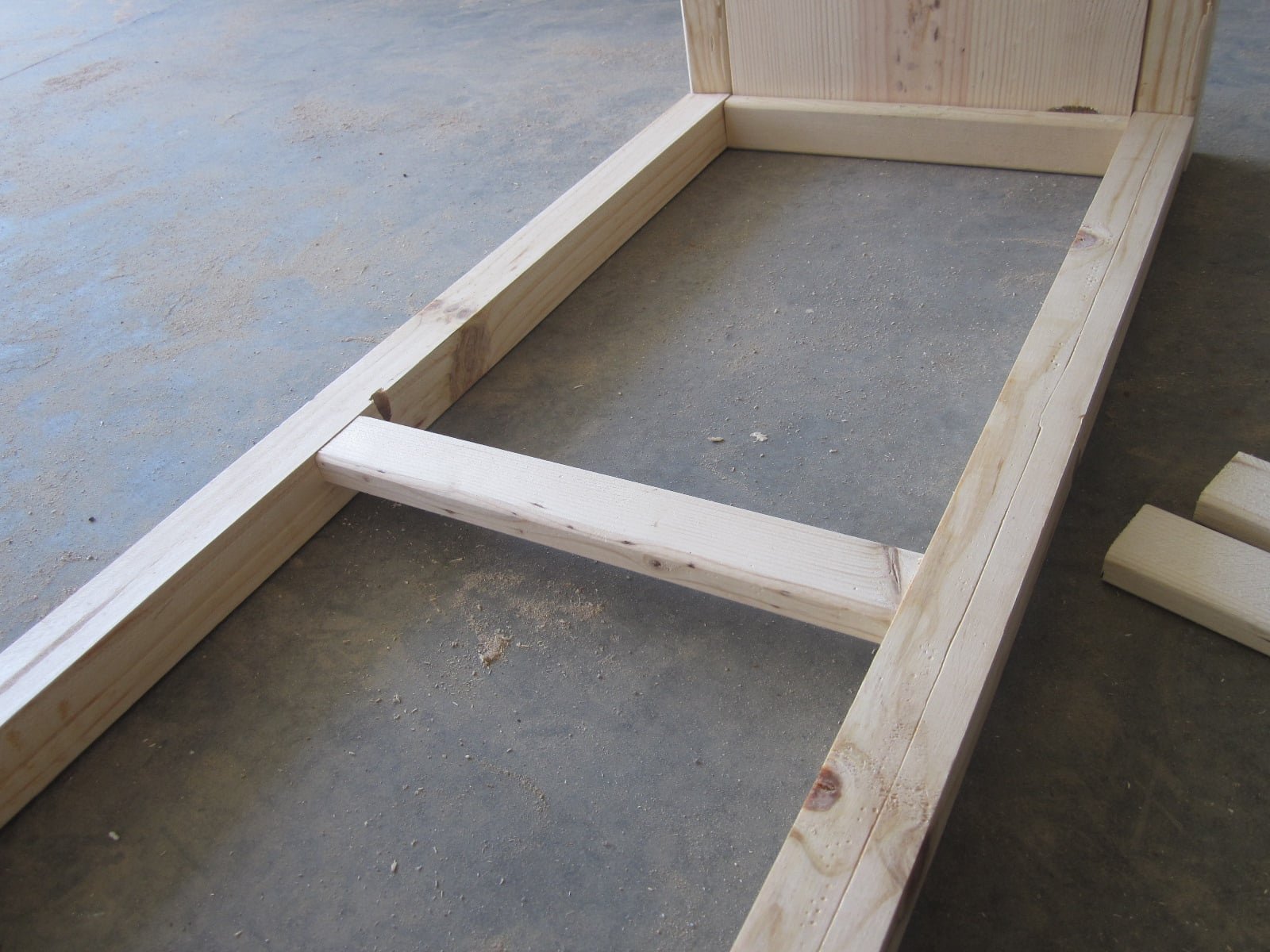

Step 5

Step 6

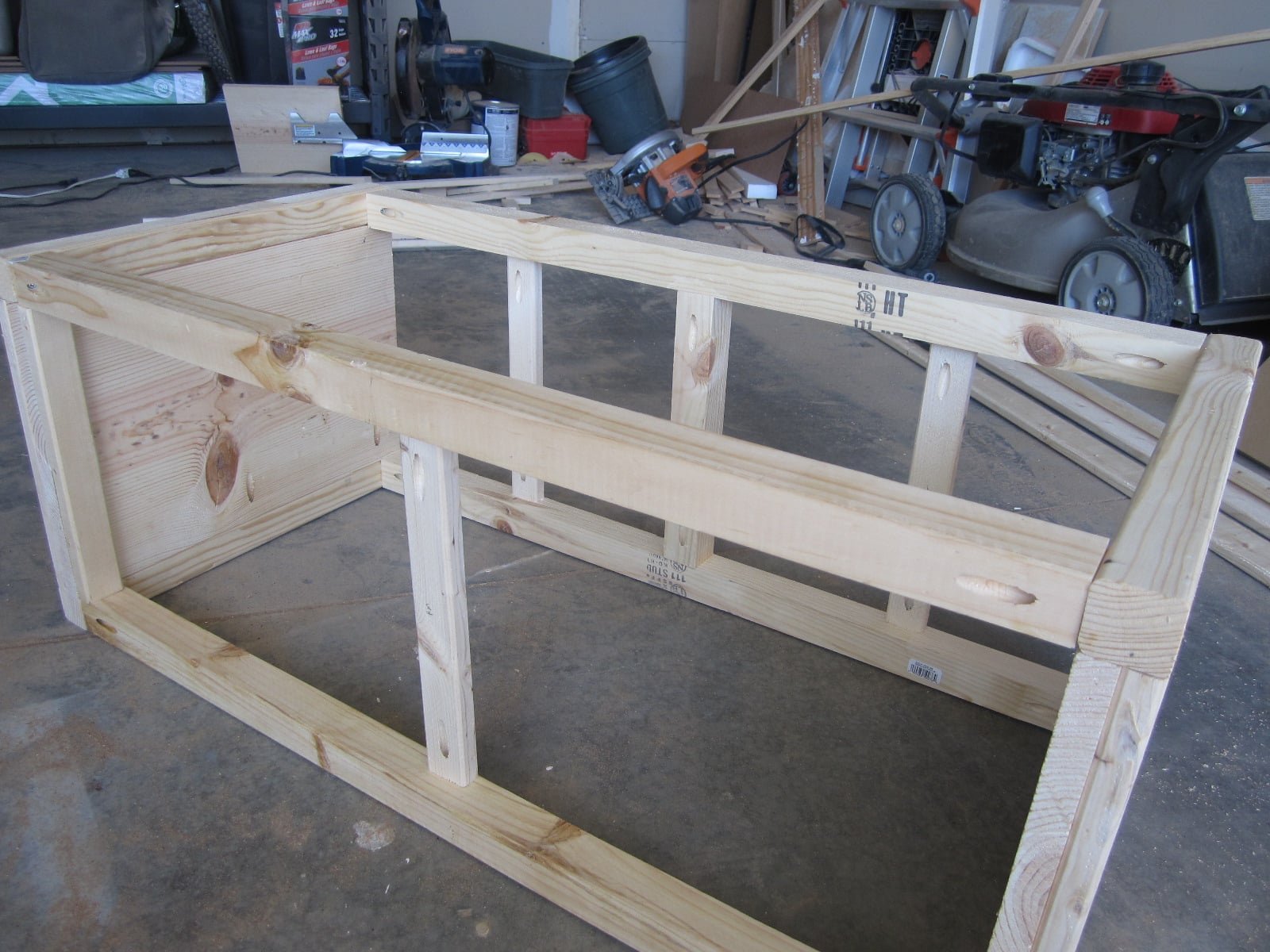

Attach the 11 1/4" 2x2 in between the top two 2x2's. Also attach two 11 1/4" 1x2's evenly spaced between the center 2x2 and either end of the bench (the bench is tilted forward in this picture).

Step 7

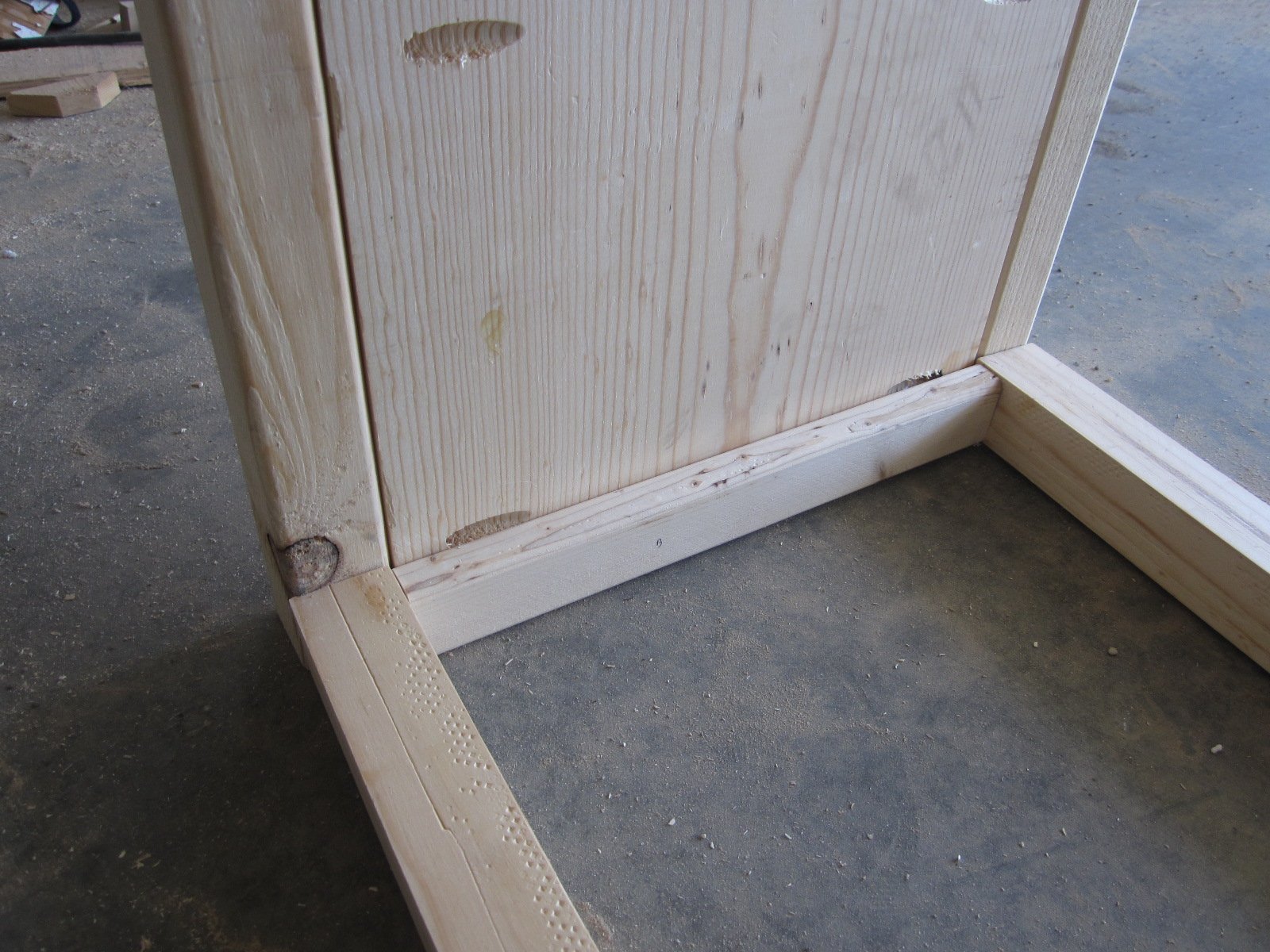

Attach two 11 1/4 1x2's to the inside bottom of the 1x12. This will help support the planks on the bottom shelf/base.

Step 8

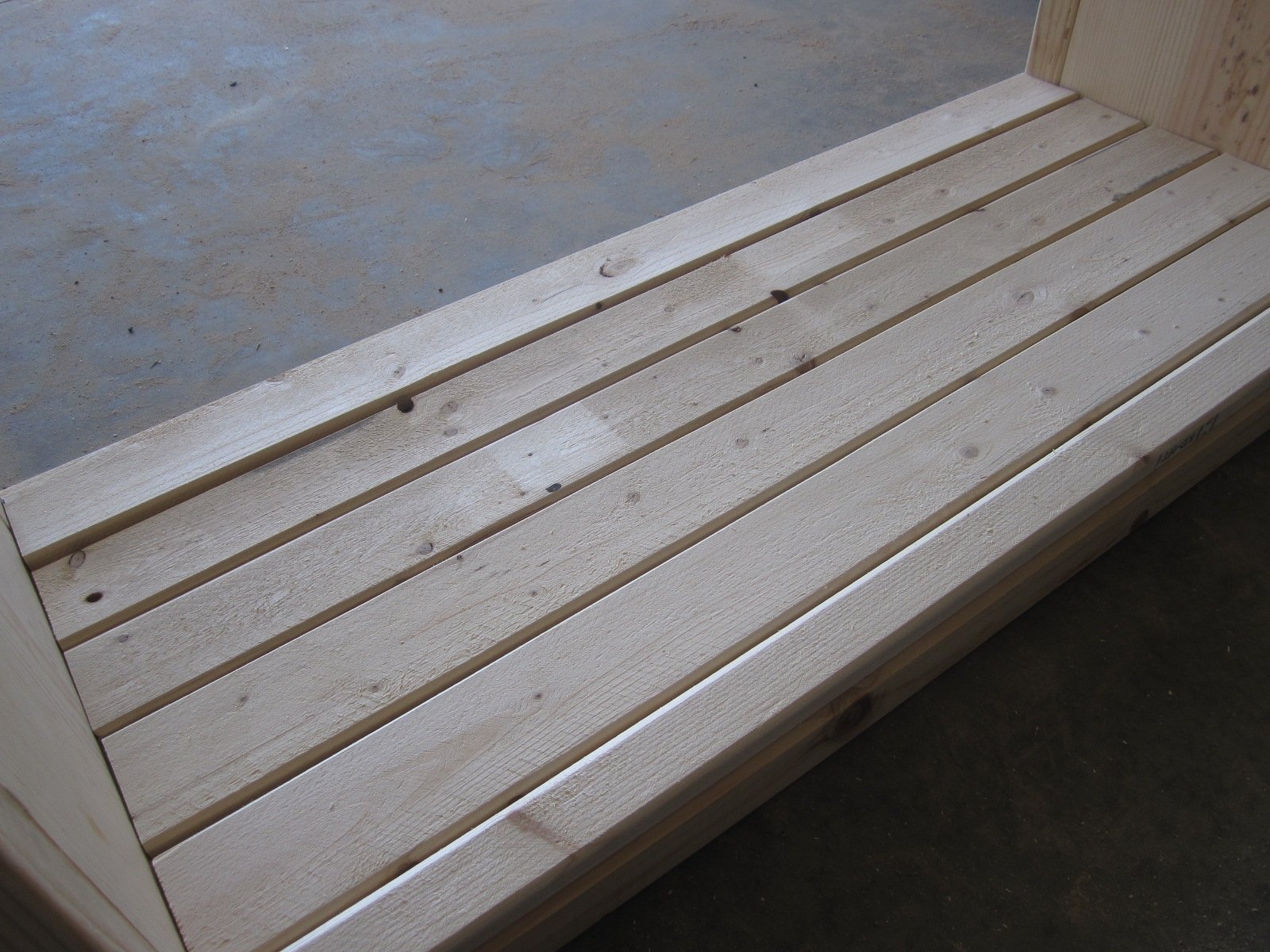

Attach five 32 3/4" 1x3's and one 32 3/4" 1x2 to the base of the bench. I put the 1x2 in the front.

Step 9

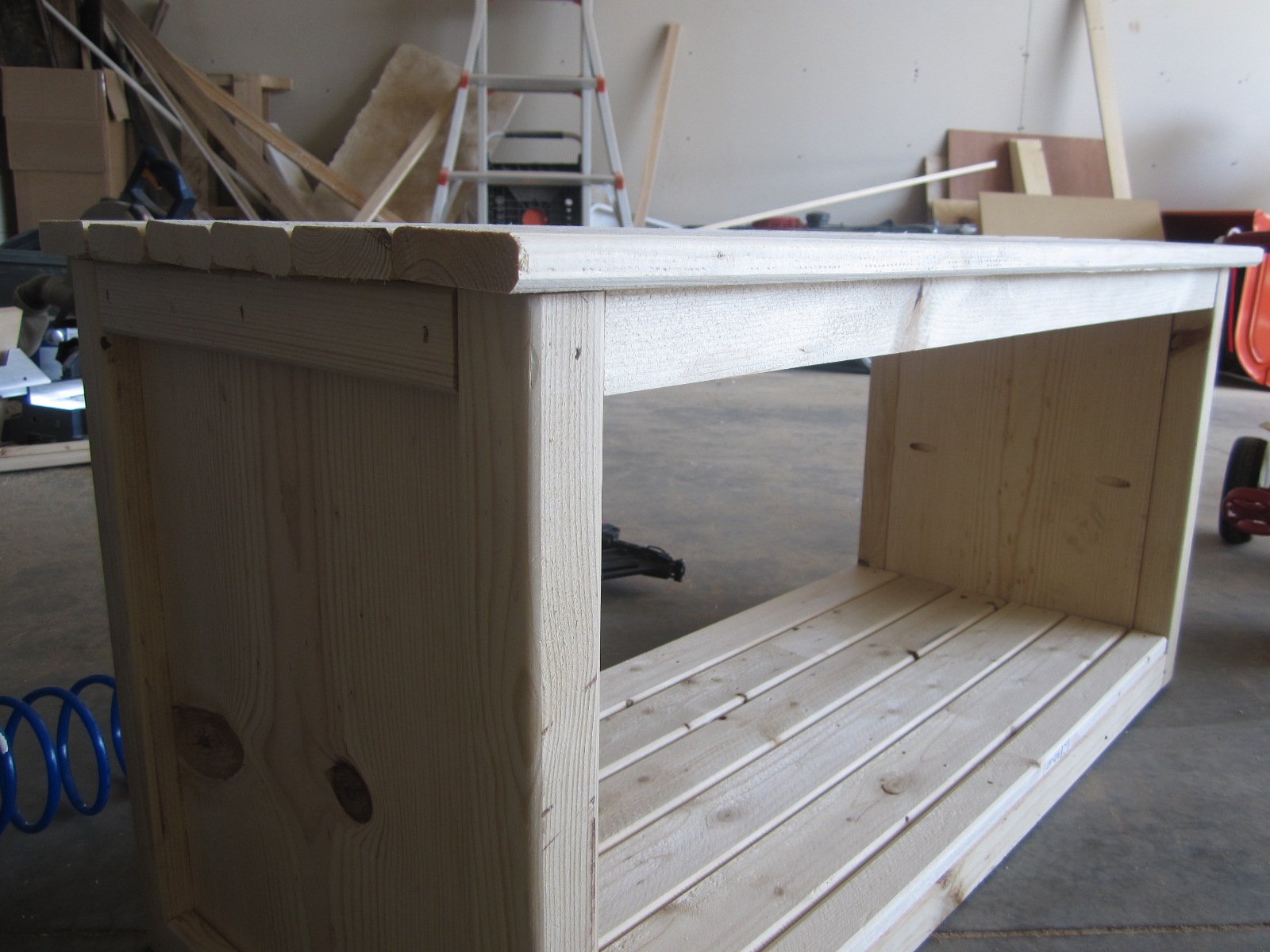

Attach six 37" 1x3's to the top. Start from the back and work your way to the front. The back board should be flush with the back of the bench. This will allow for a lip on the front of the bench.

Step 10

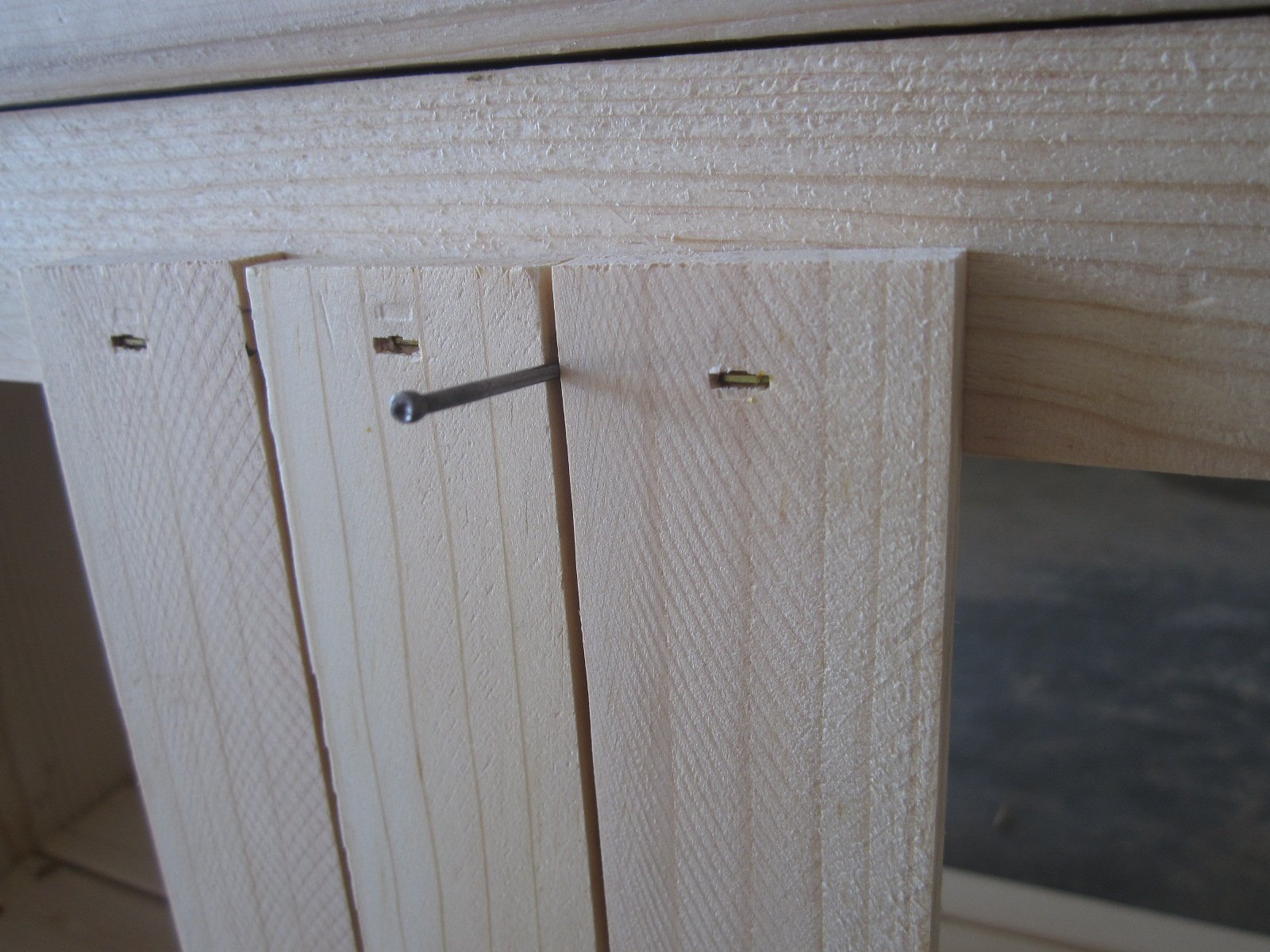

You could leave it as is; it is certainly sturdy enough, but I wanted to add a back. I still had some leftover 1 1/2" x 1/4" wood planks. In order to create an even spacing, I used a small finishing nail to hold the space as I fastened the planks.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
