Frameless Bookshelf
Build your own custom sized bookshelf! This plan includes a custom designer so you can build your bookshelf in any size. with step by step diagrams, video tutorial and more from
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | dining room |
| Difficulty | Intermediate |

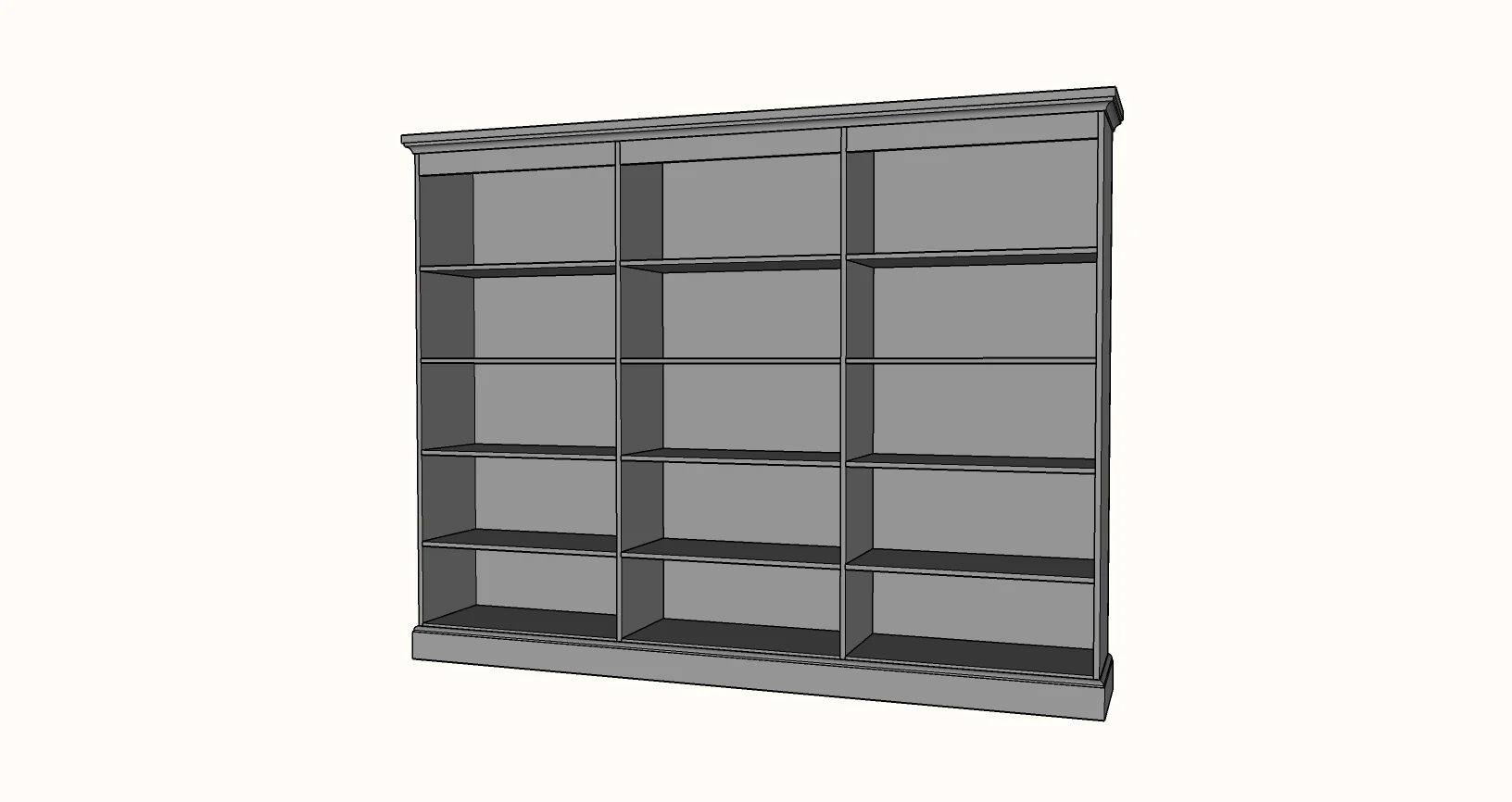

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 3/4" plywood ripped into strips for the desired width of shelving
- 3/4" edge banding in matching wood veneer
- 1x4 and 1x6 bay support material
- 1/4" plywood for back
- 5-1/4" baseboard moulding
- 1-1/4" Kreg Screws
- 1" brad nails
- wood glue
Cut List
Cut list is generated in Ana's Design App
Tools
- measuring tape
- square
- pencil
- safety glasses
- kreg-jig
- drill
- circular saw
- compound miter saw
- table saw
- nailer
- sander
- Iron
Step-by-step Instructions
Design Your Bookshelf Using Ana's Design App (Below)
• Depth: 12" depth recommended, 16" depth may be used for closets, deep baskets and bins, linens and blankets. • Height: Up to 96", recommend between 72"-84" • Length: Any length, if extra long, must be built in place or built in sections, as it will become too large and cumbersome to be moved. • Bays: To prevent shelves from sagging, bays should not be more than 36" wide • Shelf Spacing: most shelf spacing is minimum 12", middle shelves can be made adjustable. Leave more room at the top shelf since the header and crown moulding will be installed over the top. Click here to use this tool in a pop-up full page view Complete your design and download the drawings. Rip plywood into desired strips and cross cut to match the cut list provided in the custom plan. Apply edge banding to the front edges of the plywood to finish, using an iron and a trimming tool or razor. Lightly sand the edges of edge banding to round slightly.

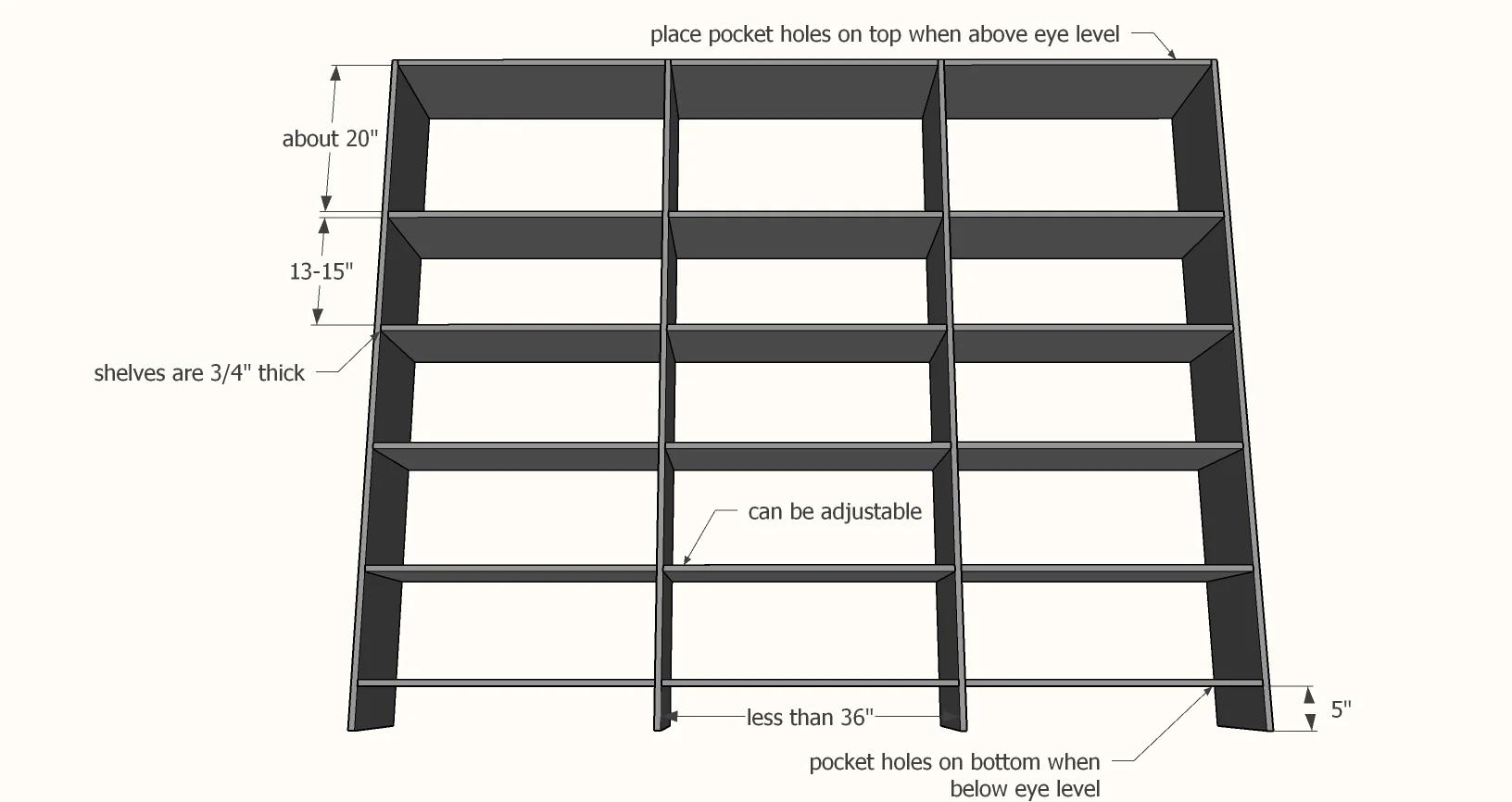

Assemble the Bookshelf

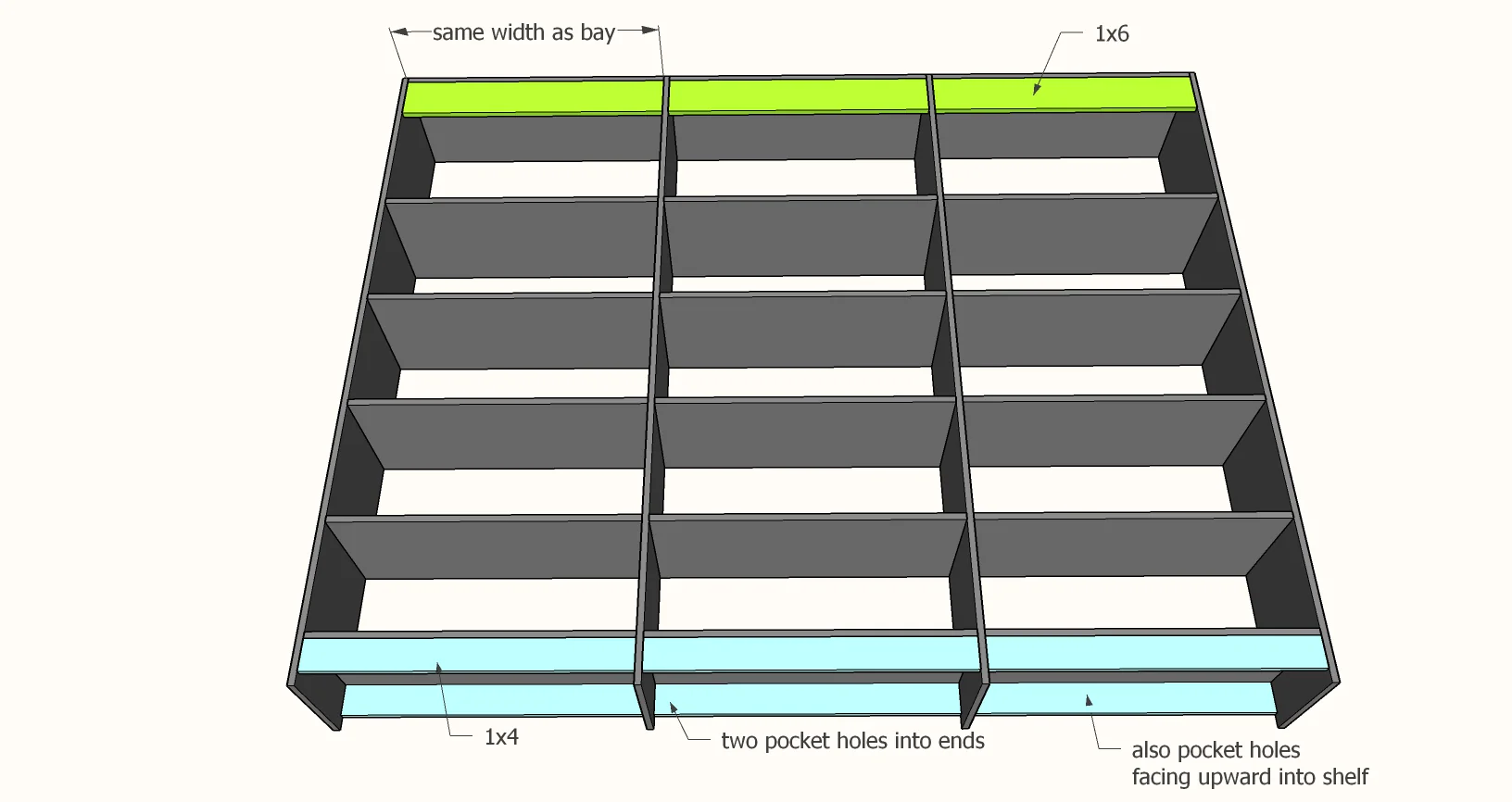

Assemble the pieces of plywood using 3/4" pocket holes and 1-1/4" pocket hole screws. Add Bay Supports To make the bookshelf strong and provide a backing for the crown and base mouldings, 1x boards are added. Cut to match the width of your shelf lengths. Attach with 3/4" pocket holes and 1-1/4" pocket hole screws on ends and top.

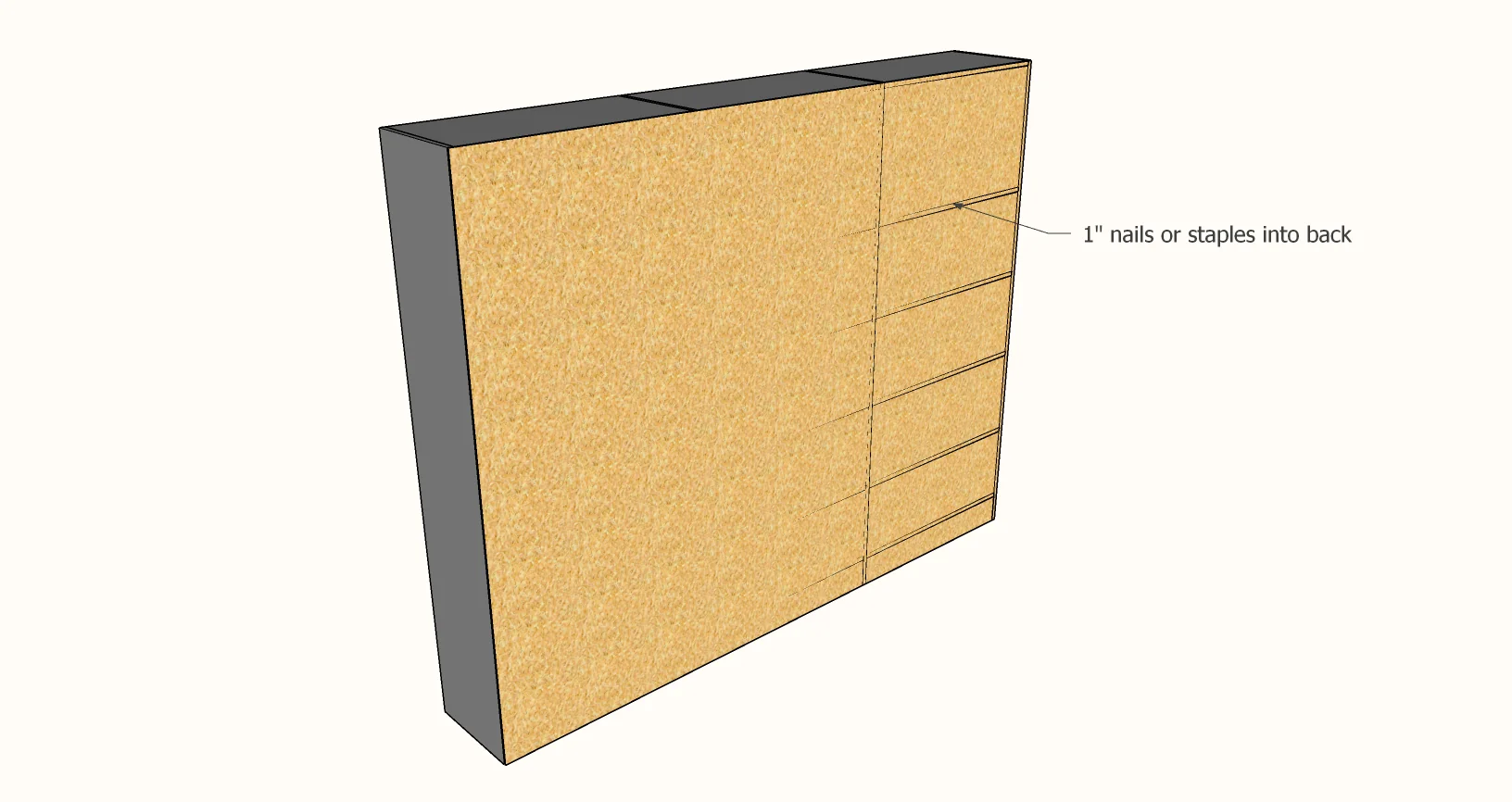

Adding the Back
1/4" plywood, beadboard, paneling, or shiplap and tongue and groove products can all be used. For plywood panels, if the project is too large for a single panel, cut so the plywood seams land on a wood joint. Use 1" nails for 1/4" material, 1-1/4" nails for 1x material. Attach to all fixed shelves and dividers with glue. TIP: Before laying the back on, mark with a pencil the location of the dividers and fixed shelves on the sides of the bookshelf. Then lay the back on, and draw lines on the back between your pencil marks on the sides.

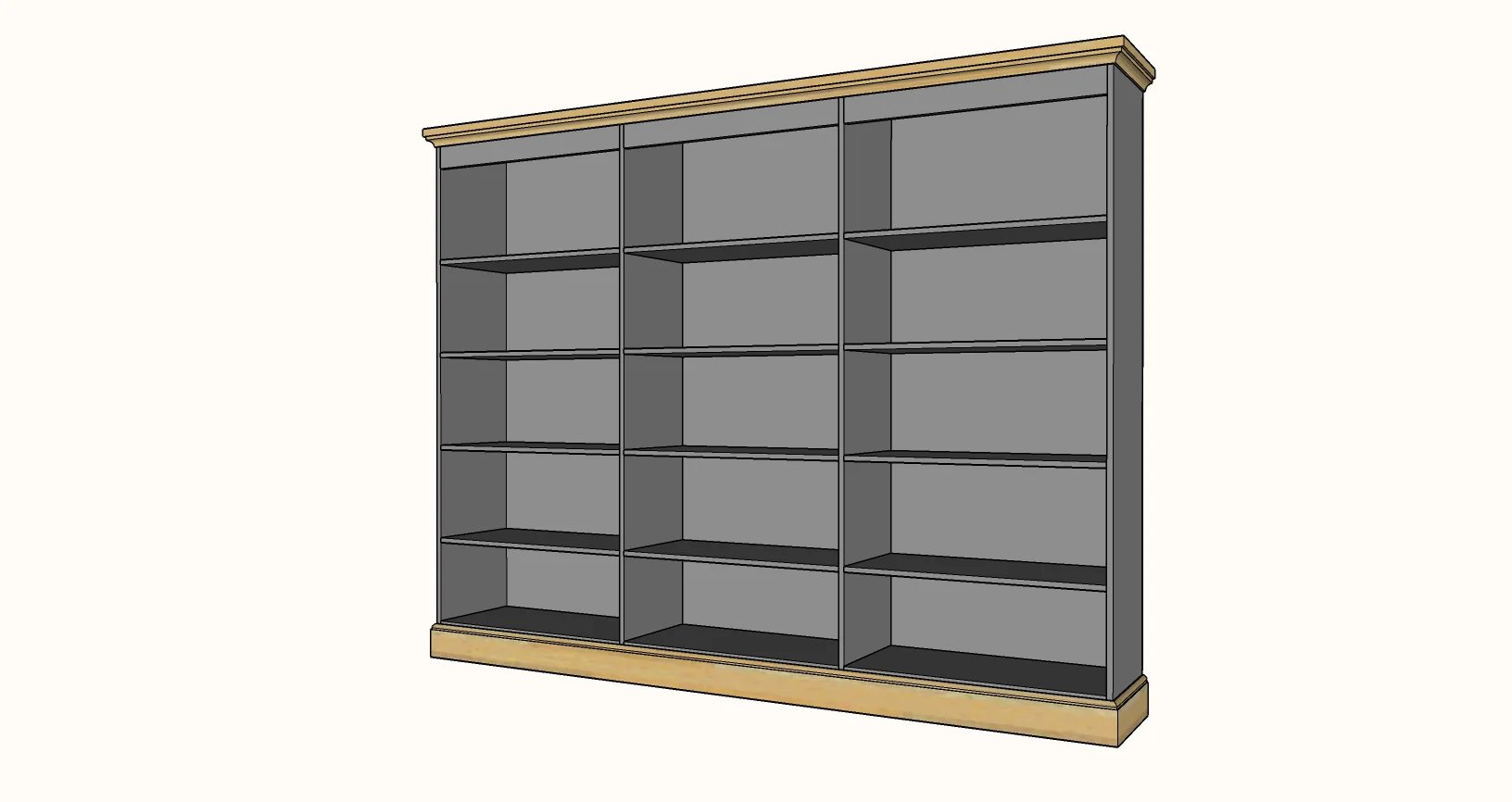

Base and Top Moulding
Crown and base moulding will give your bookshelf a finished, built-in look. It should be cut to fit, start with the front pieces and miter the ends at 45 degrees. Attach with 3/4" brad nails and wood glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
