Heavy-Duty Bunk Bed Plans (Twin, Full, or Queen Sizes)

Build your own solid, long-lasting bunk beds with. Designed for strength and versatility, these classic-style bunks can be built in twin, full, or queen sizes, with options to add a ladder or stairs to fit your space and needs. Perfect for kids, guest rooms, or bunk rooms, these beds are built with durability in mind—and there’s even room to add a trundle or drawers under the bottom bunk for extra storage. Plans include: • Detailed diagrams and cut lists • Clear step-by-step instructions • Real build photos and video tutorial • Customization options for stair storage or ladder access These are classic plans we go to for forever bunk systems! They can be painted or stained, repaired and refinished!

Specifications

Project type	Beds and Bed Frames
Room	Bedroom
Difficulty	Advanced

Dimensions

Use the size-specific shopping and cut lists below.

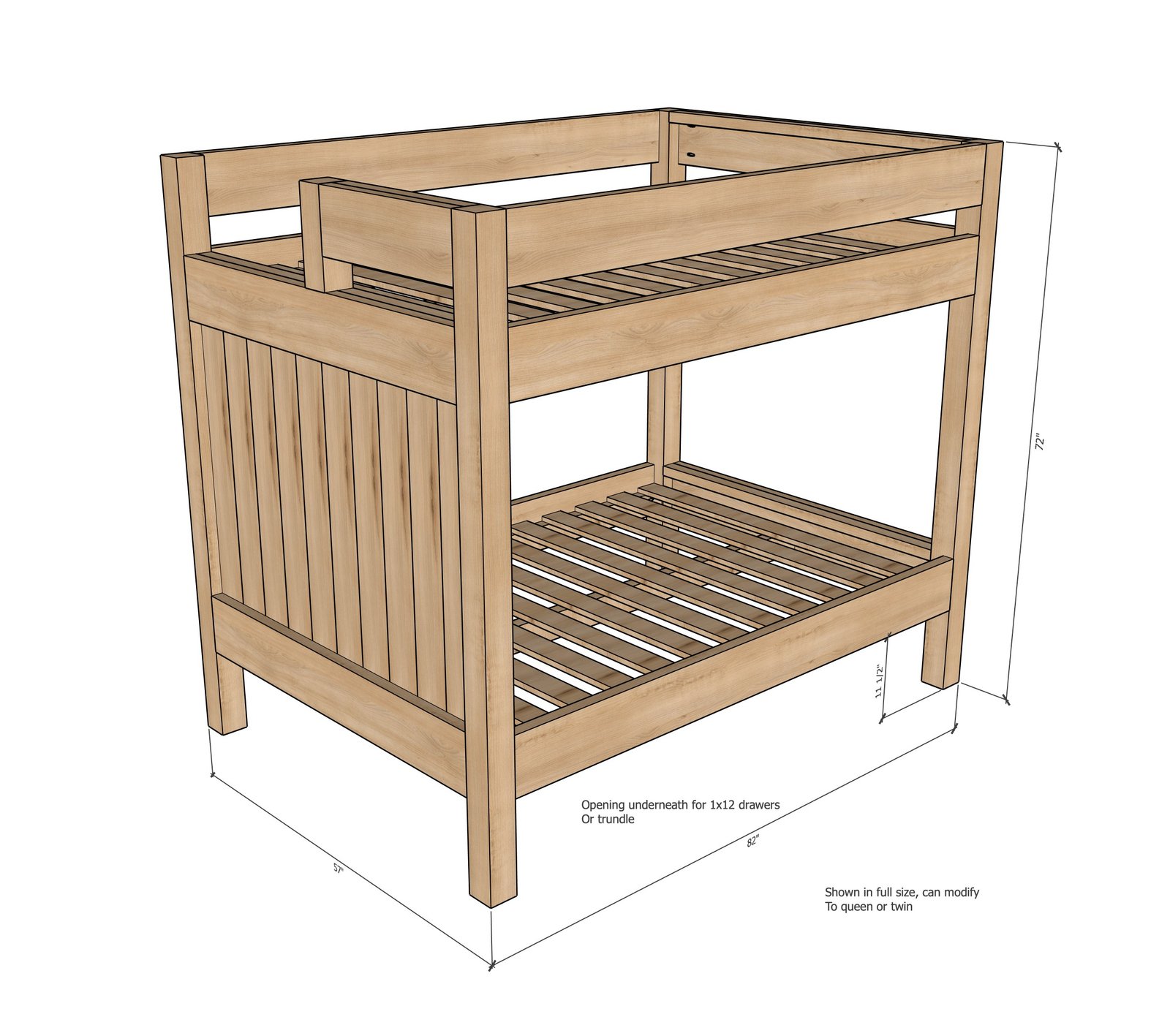

Heavy-Duty Bunk Bed Plans (Twin, Full, or Queen Sizes) dimension diagram 1

Shopping List

Twin Shopping List for One Bunk Bed

2 - 4x4 posts @ 12 feet long
6 - 2x8 @ 10 feet long (cut longest boards first to make sure all pieces fit)
4 - 2x4 @ 8 feet long
2 - 2x2 or boards 1-1/2" x 2" @ 8 feet long (best to cut a 2x6 into 2" width for this)
47-1/4" x 35" - tongue and groove, plywood or other paneling - headboard enclosure
12 - 1x3 furring strips slats @ 8 feet long
About 50 2-1/2" pocket hole screws
2-1/2" self tapping star bit screws (about 100)
1-1/4" brad nails (for attaching headboard panels)
wood glue
finishing supplies

Full Shopping List for One Bunk Bed

2 - 4x4 posts @ 12 feet long
6 - 2x8 @ 12 feet long
6 - 2x4 @ 8 feet long
170" - 2x2 (or ripped wood 1-1/2" x 2"), need three pieces 50" long
1 - 2x2 (or ripped wood 1-1/2" x 2") @ 19" - ladder end blocking filler piece
47-1/4" x 50" - tongue and groove, plywood or other paneling - headboard enclosure
24 - 1x3 furring strips slats @ 54" (can also overlap slats at least 27" long)
About 75 2-1/2" pocket hole screws
2-1/2" self tapping star bit screws (about 100)
1-1/4" brad nails (for attaching headboard panels)
wood glue
finishing supplies

Queen Shopping List for One Bunk Bed

2 - 4x4 posts @ 12 feet long
6 - 2x8 @ 12 feet long
6 - 2x4 @ 8 feet long
3 - 2x2 (or ripped wood 1-1/2" x 2") @ 8 feet long
47-1/4" x 56" - tongue and groove, plywood or other paneling - headboard enclosure
24 - 1x3 furring strips slats @ 60" (can also overlap slats at least 30" long)
About 75 2-1/2" pocket hole screws
2-1/2" self tapping star bit screws (about 100)
1-1/4" brad nails (for attaching headboard panels)
wood glue
finishing supplies

Cut List

Twin Cut List for One Bunk Bed

4 - 4x4 posts @ 71-3/4" (can cut at 72" if your wood allows considering saw blade kerf)
5 - 2x8 @ 35" - end and headboard rails
3 - 2x2 (or ripped wood 1-1/2" x 2") @ 35" - end blocking
1 - 2x8 @ 19" - ladder end opening slat filler piece
1 - 2x4 @ 11" - ladder end post (shown as 4x4 in plans, 2x4 in photos)
1 - 2x2 (or ripped wood 1-1/2" x 2") @ 19" - ladder end blocking filler piece
47-1/4" x 35" - tongue and groove, plywood or other paneling - headboard enclosure
6 - 2x8 @ 75" - side rails
4 - 2x4 @ 75" - inner cleats
24 - 1x3 furring strips slats @ 39"

Full Cut List for One Bunk Bed

4 - 4x4 posts @ 71-3/4" (can cut at 72" if your wood allows considering saw blade kerf)
5 - 2x8 @ 50" - end and headboard rails
3 - 2x2 (or ripped wood 1-1/2" x 2") @ 50" - end blocking
1 - 2x8 @ 19" - ladder end opening slat filler piece
1 - 2x4 @ 11" - ladder end post (shown as 4x4 in plans, 2x4 in photos)
1 - 2x2 (or ripped wood 1-1/2" x 2") @ 19" - ladder end blocking filler piece
47-1/4" x 50" - tongue and groove, plywood or other paneling - headboard enclosure
6 - 2x8 @ 75" - side rails
4 - 2x4 @ 75" - inner cleats
2 - 2x4 @ 78-1/2" - middle cleat (length assumes using 3/4" tongue and grove for headboard paneling)
24 - 1x3 furring strips slats @ 54" (can also overlap slats at least 27" long)

Queen Cut List for One Bunk Bed

4 - 4x4 posts @ 71-3/4" (can cut at 72" if your wood allows considering saw blade kerf)
5 - 2x8 @ 56" - end and headboard rails
3 - 2x2 (or ripped wood 1-1/2" x 2") @ 56" - end blocking
1 - 2x8 @ 19" - ladder end opening slat filler piece
1 - 2x4 @ 11" - ladder end post (shown as 4x4 in plans, 2x4 in photos)
1 - 2x2 (or ripped wood 1-1/2" x 2") @ 19" - ladder end blocking filler piece
47-1/4" x 56" - tongue and groove, plywood or other paneling - headboard enclosure
6 - 2x8 @ 80" - side rails
4 - 2x4 @ 80" - inner cleats
2 - 2x4 @ 83-1/2" - middle cleat (length assumes using 3/4" tongue and grove for headboard paneling)
24 - 1x3 furring strips slats @ 60" (can also overlap slats at least 30" long)

Tools

measuring tape
square
pencil
safety glasses
kreg-jig
drill
compound miter saw
nailer
sander

Step-by-step Instructions

Step 1

For the bunk bed, the first step is to build the end panels that are open, or "footboards". I used two 1-1/2" pocket holes with 2-1/2" pocket hole screws as shown, on each end of the slats. I built ONE of these per each bunk bed.

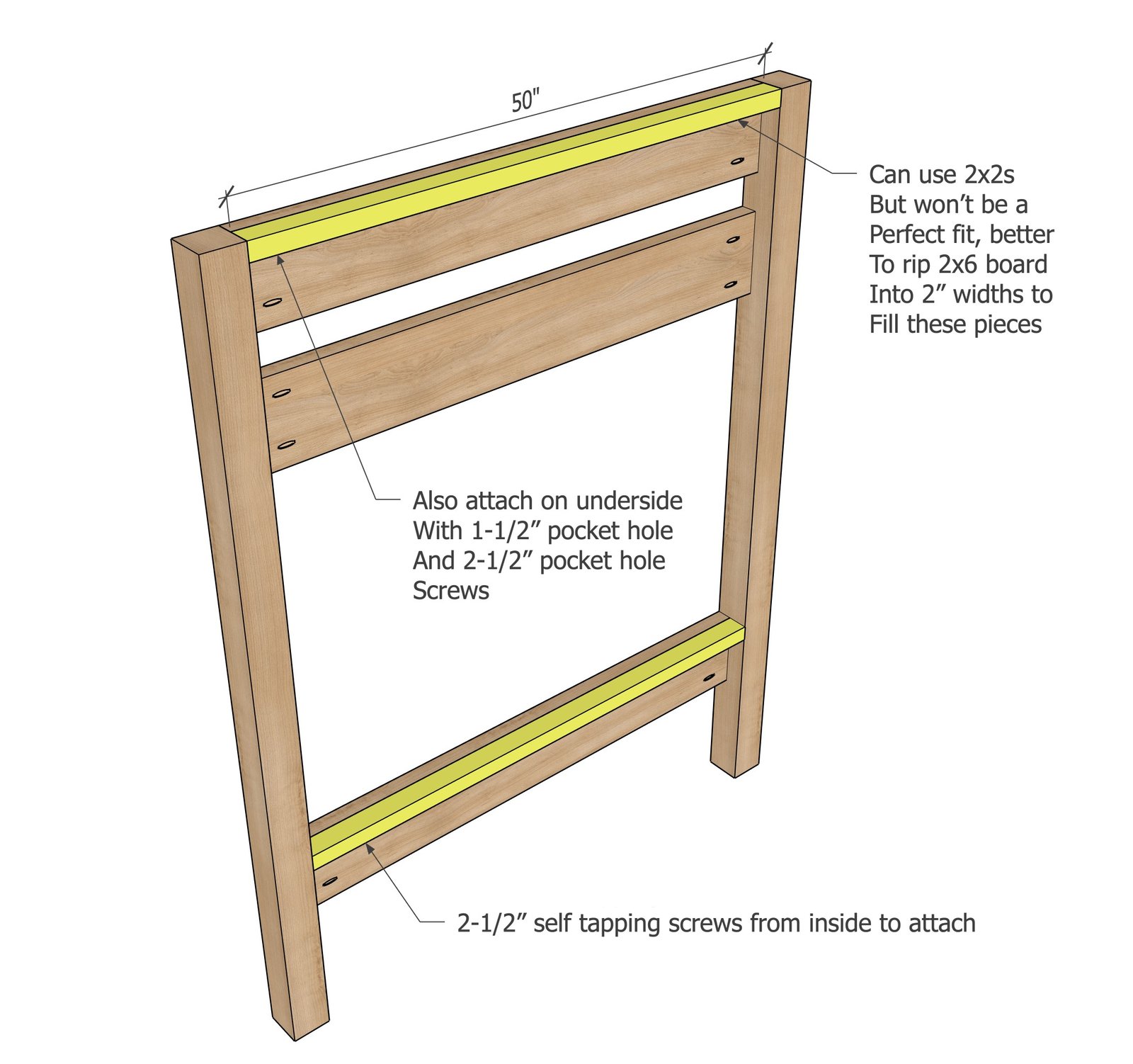

Step 2

Optional trim was added as shown to block in the end panels. We used wood ripped to 1-1/2" wide x 2" rip.

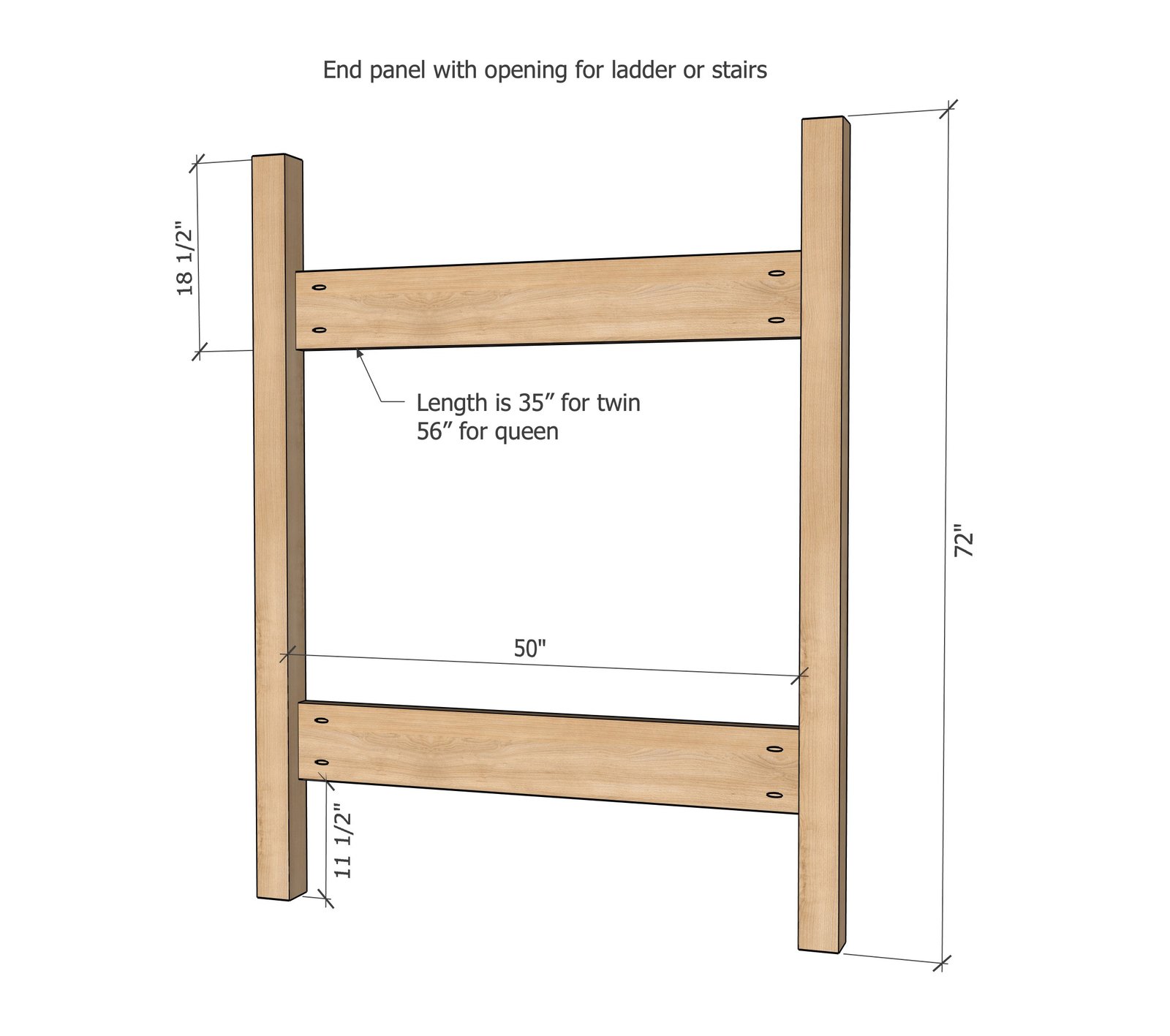

Step 3

Start the build of the headboard panel without the top slat as shown.

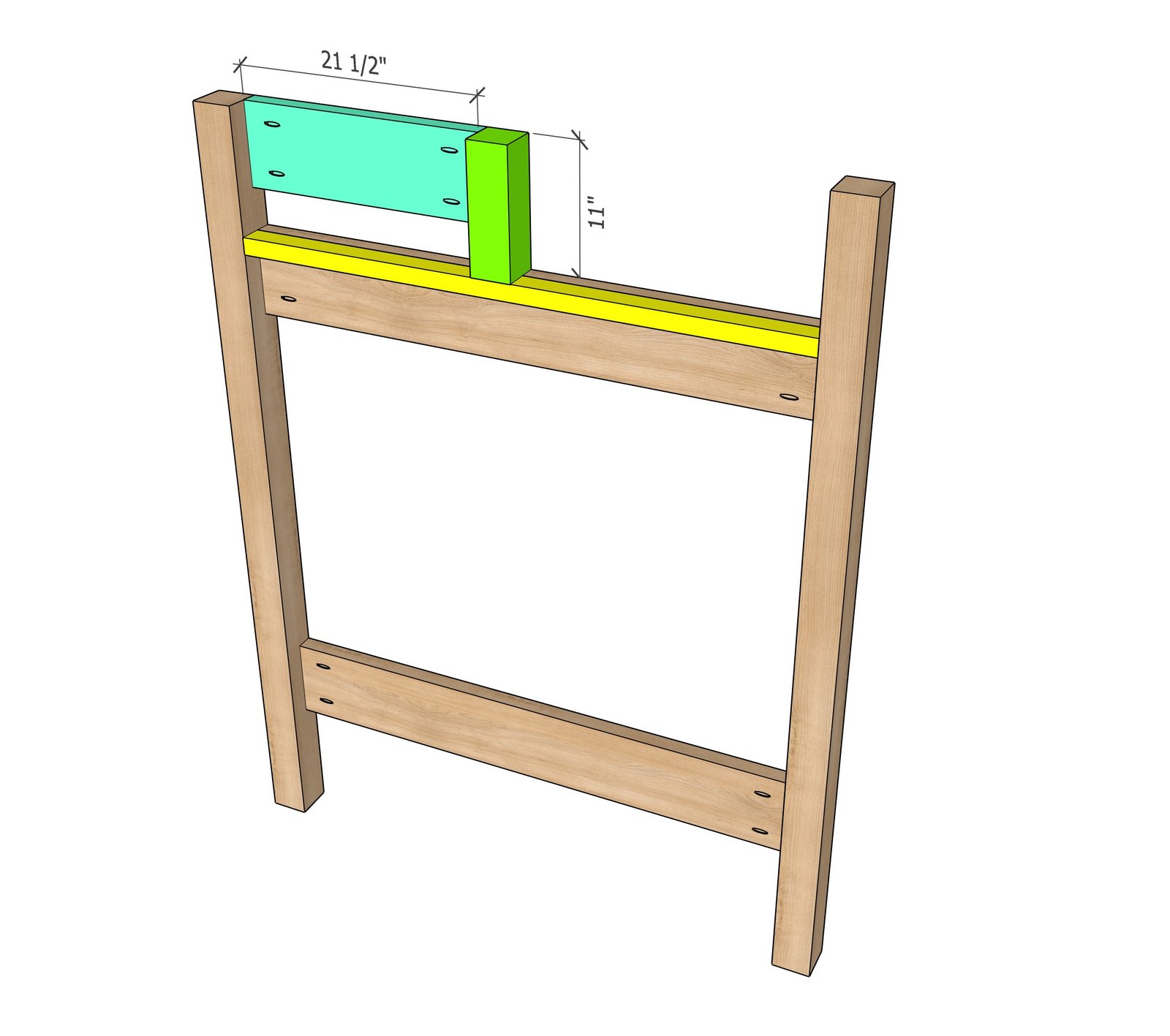

Add the blocking as shown.

Instead of the 4x4, we used a 2x4 piece, so we didn't have to go back and buy more 4x4 post. We attached with 1-1/2" pocket holes and 2-1/2" pocket hole screws where we could, and 2-1/2" self tapping screws in other areas. Note: the 19” length differs from diagrams as 19” was the scrap cut length when we built the full size bunks. This dimension only matters if you are planning a specific opening size for a ladder. For the stairs with the top platform the wider opening worked well.

Heavy-Duty Bunk Bed Plans (Twin, Full, or Queen Sizes) — step 4

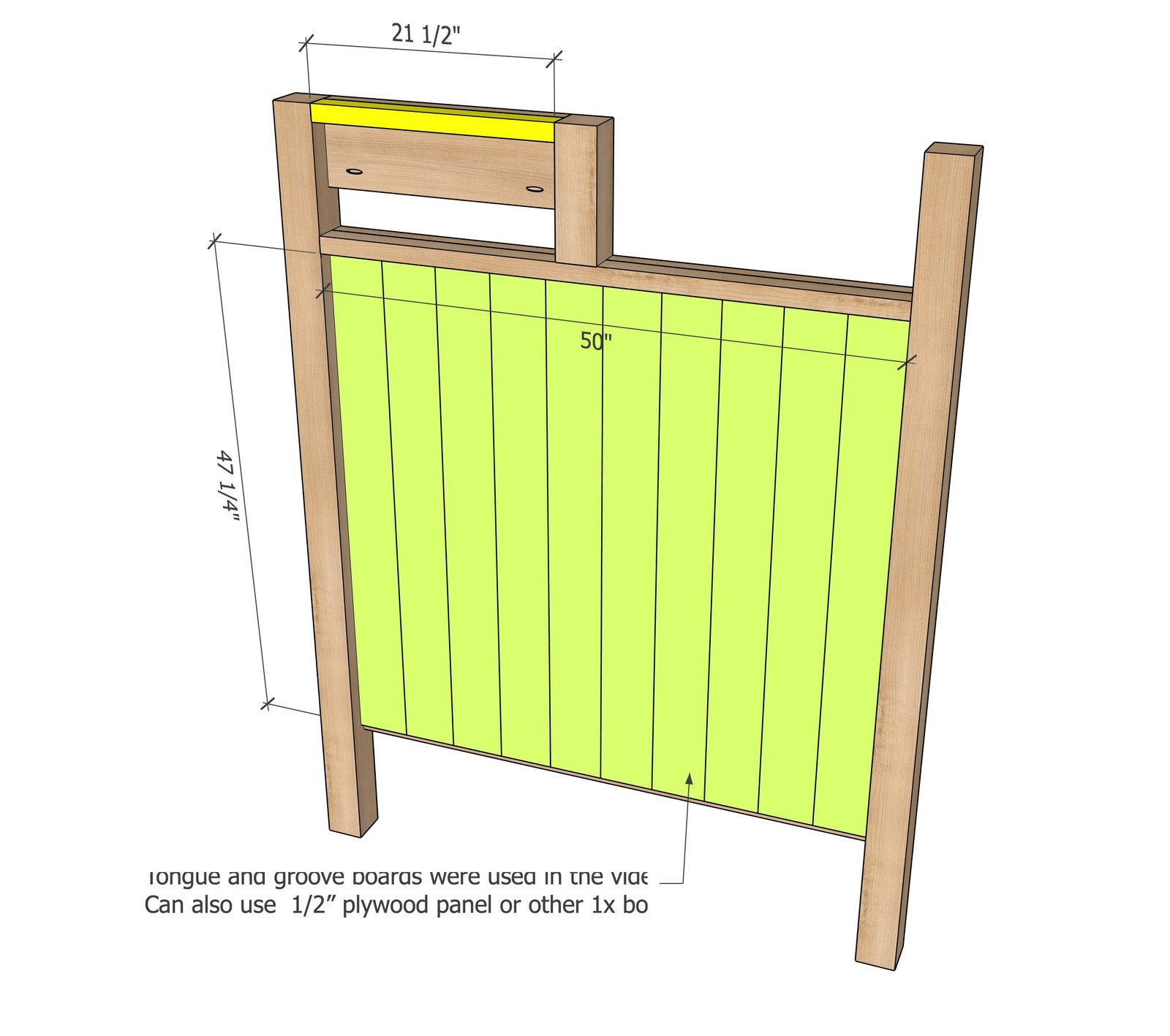

Step 5

Filling in the headboard is optional and you can use a variety of materials. We used tongue and groove pieces, layer out and nailed down. You can also use plywood.

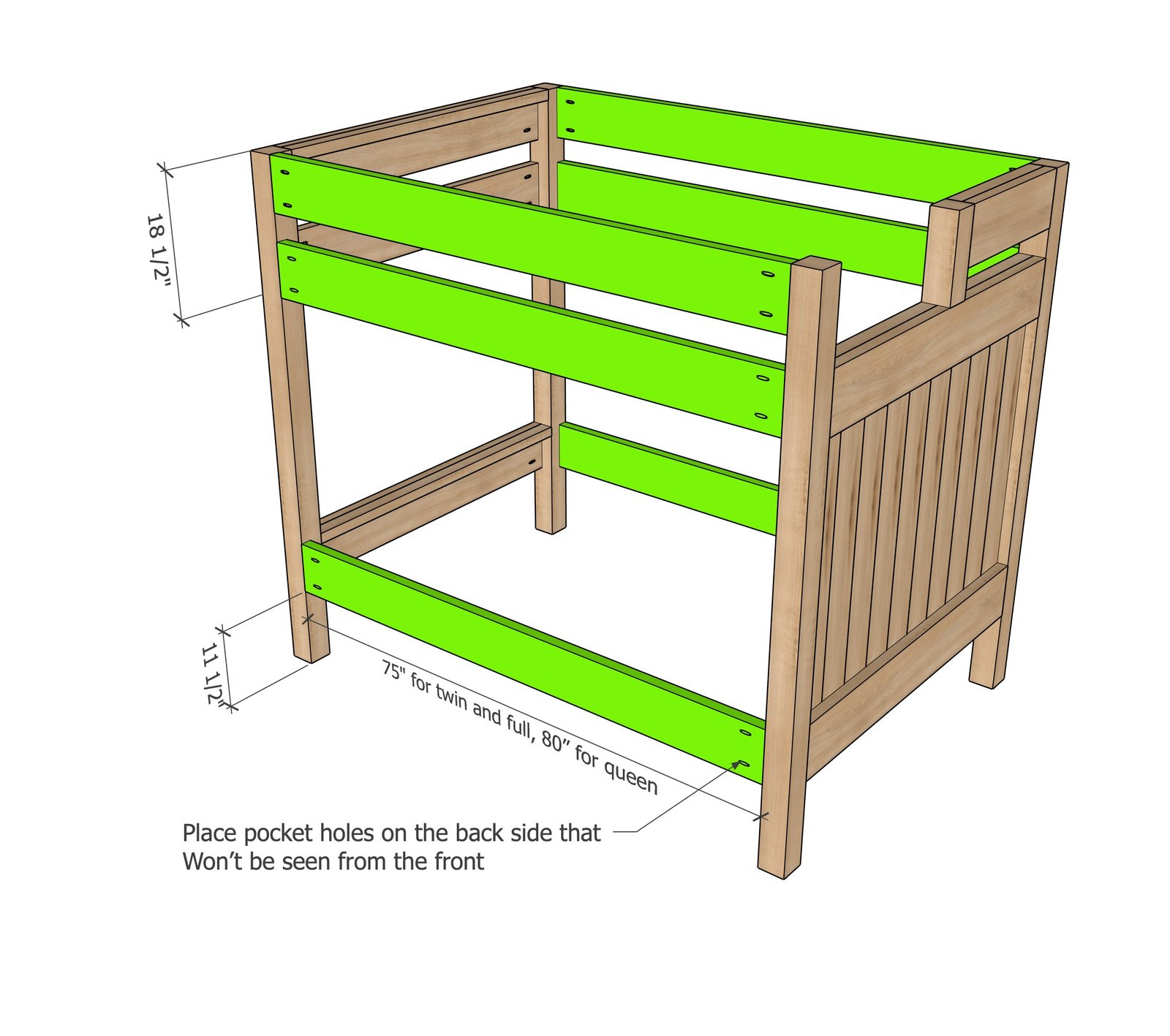

Step 6

On final assembly, we sanded and stained everything first. Then attached the side rails to the end panels with THREE 1-1/2" pocket holes and 2-1/2" pocket hole screws. We hid the pocket holes on the wall facing side so would not be visible from the front.

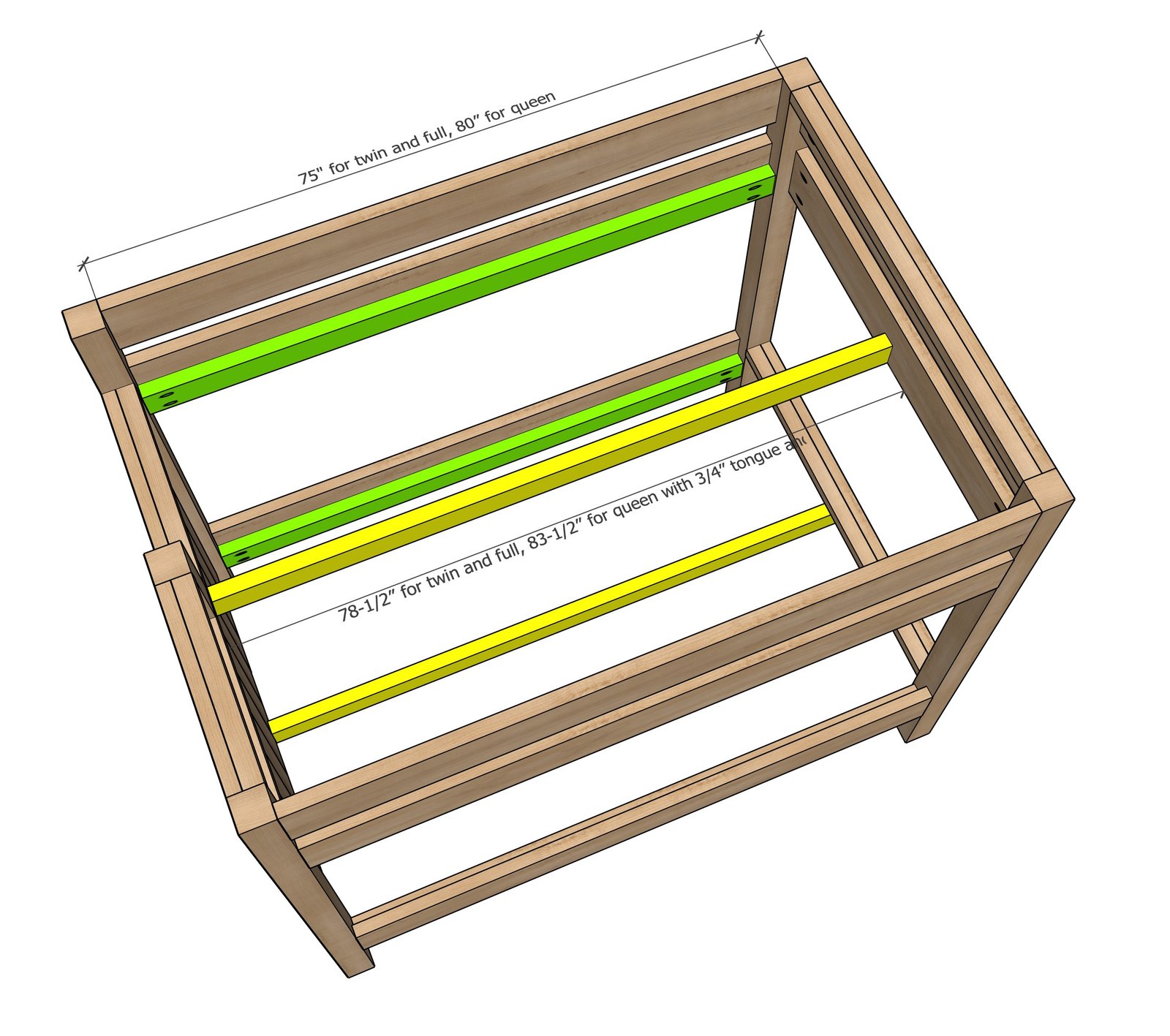

Step 7

After attaching the rails, we attached the inner cleats with both pocket holes into the posts, and to the rails with 2-1/2" self tapping screws. The middle cleat is not needed on the twin. For full and queen, attach so the top edge matches the top edge of the side cleats, with pocket hole screws into the end panels.

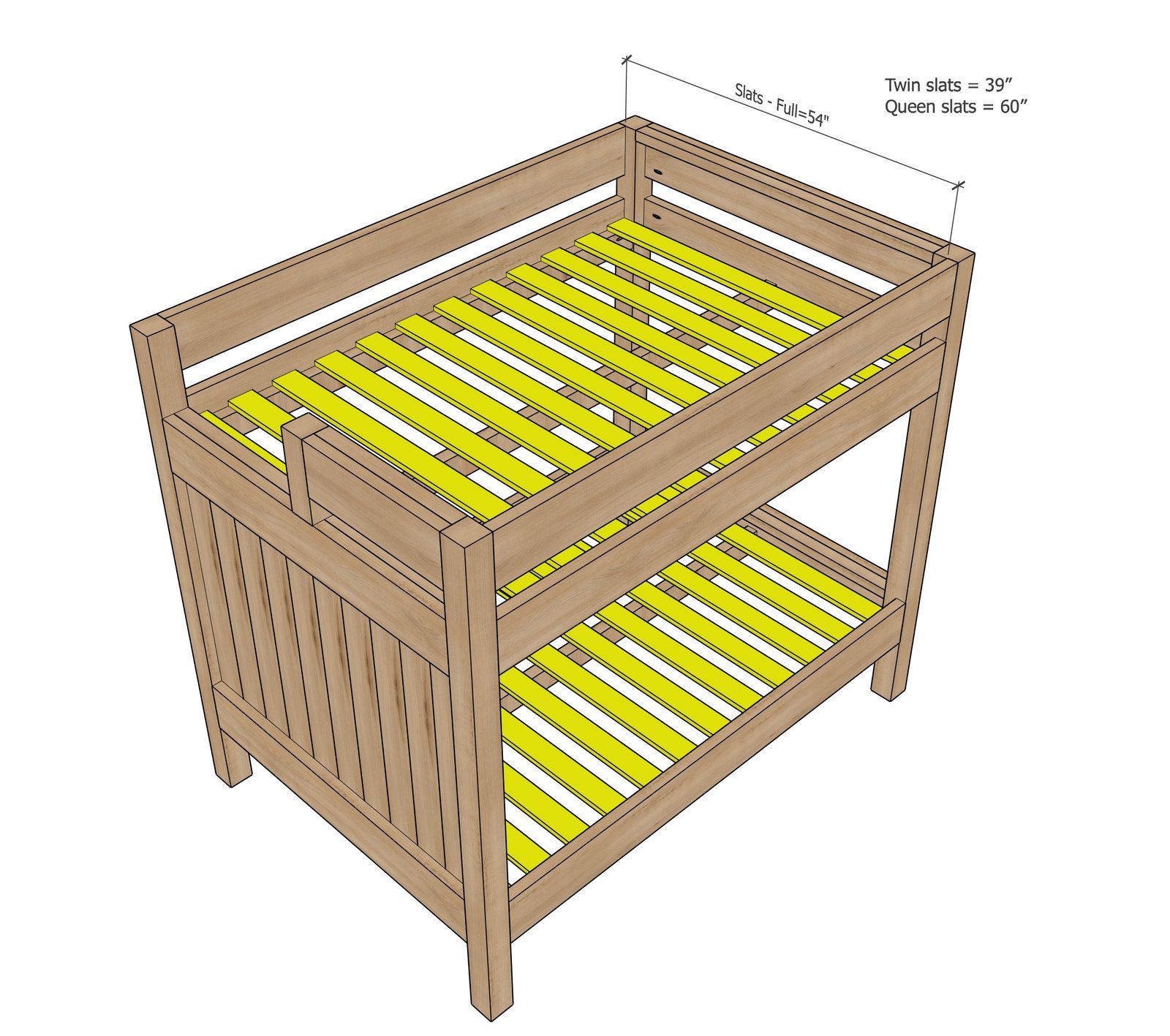

Step 8

Cut and lay slats out on top of the cleats. Screw down. You can use a shorter screw, and you only need one screw per joint. You can nail slats down (much faster and easier) but the nails could potentially poke out and damage your mattress (not likely but needs to be considered).

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
