Hailey Hutch for Twin and Full Beds

The hutch for the Hailey Storage Bed Collection. Plans show both full and twin sizes. Please note that this hutch is designed for a very tight fit around the bed, and you should measure your headboard and bed width before building to ensure enough space around the bed.

Hailey Hutch for Twin and Full Beds

Specifications

Project typeHeadboard
RoomBedroom
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

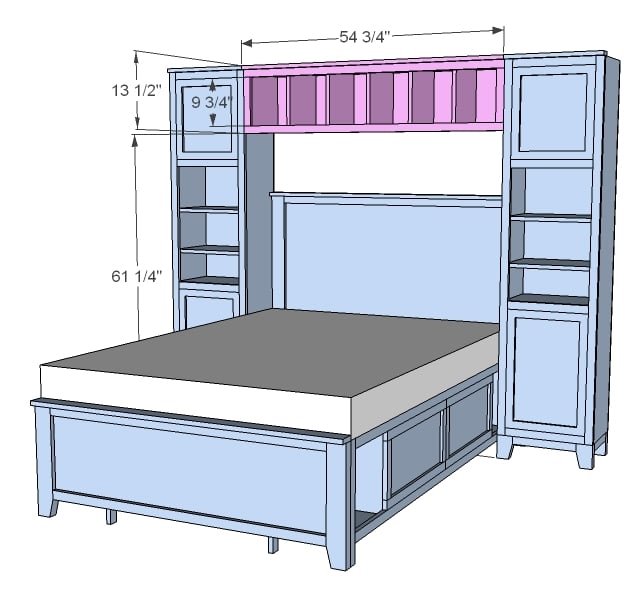

Hailey Hutch for Twin and Full Beds dimension diagram 1

Shopping List

2 - 1x12 @ 8 feet long 1 - sheet 1/4" plywood, hardboard, beadboard or other backing material

2 - 1x2 @ 8 feet long

1 - 1x3 @ 8 feet long

Cut List

Full Size Cut List 2 - 1x12 @ 54 3/4"

7 - 1x12 @ 10 1/2"

1 - 1/4" plywood @ 54 3/4" x 12"

2 - 1x2 @ 54 3/4"

2 - 1x2 @ 9 3/4"

1 - 1x3 @ 54 3/4"

Twin Size Cut List

2 - 1x12 @ 39 1/4"

5 - 1x12 @ 10 1/2"

1 - 1/4" Plywood @ 39 1/4" x 12"

2 - 1x2 @ 39 1/4"

2 - 1x2 @ 9 3/4"

1 - 1x3 @ 54 3/4"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • circular saw
  • nailer
  • sander
  • level
  • countersink drill bit

Step-by-step Instructions

1

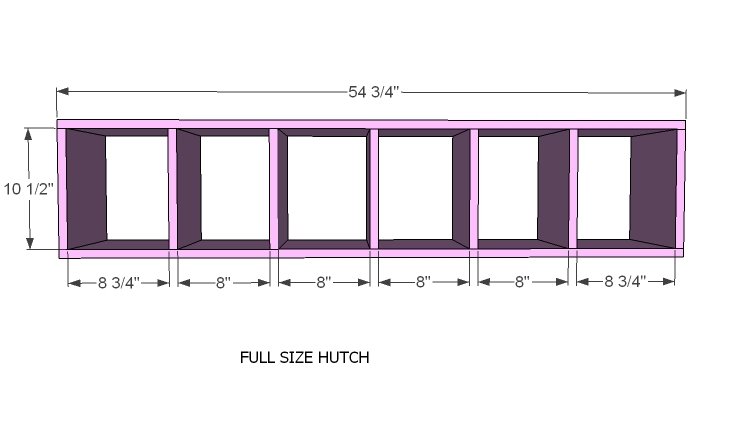

Step 1

As with most storage, start by building a simple box. As this is fully framed with plywood on the back, if you have a nailer handy, go ahead and nail this one (with glue of course and 2" finish nails). You can also use screws. Adjust for square.

Hailey Hutch for Twin and Full Beds — step 1
2

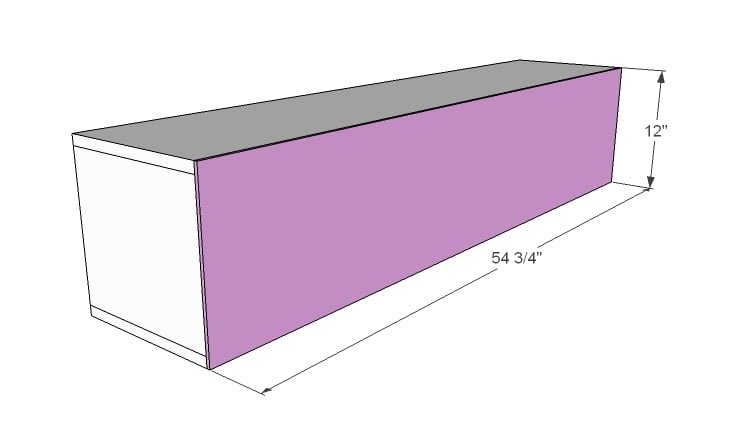

Step 2

Now add the plywood back with 1 1/4" finish nails and glue.

Hailey Hutch for Twin and Full Beds — step 2
3

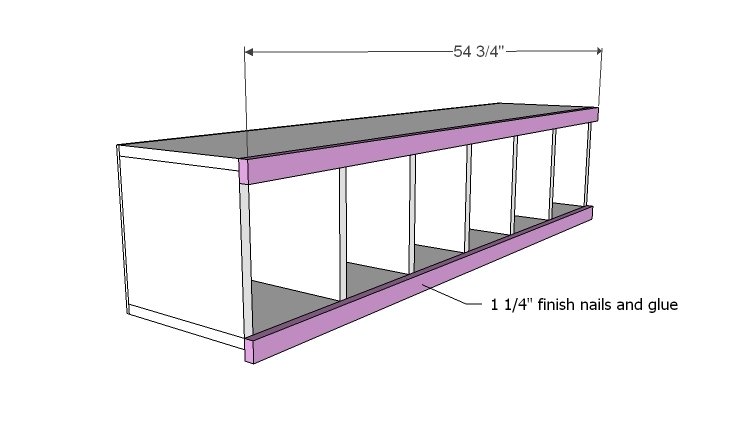

Step 3

Trim the front out as shown above with 1 1/4" finish nails and glue.

Hailey Hutch for Twin and Full Beds — step 3
4

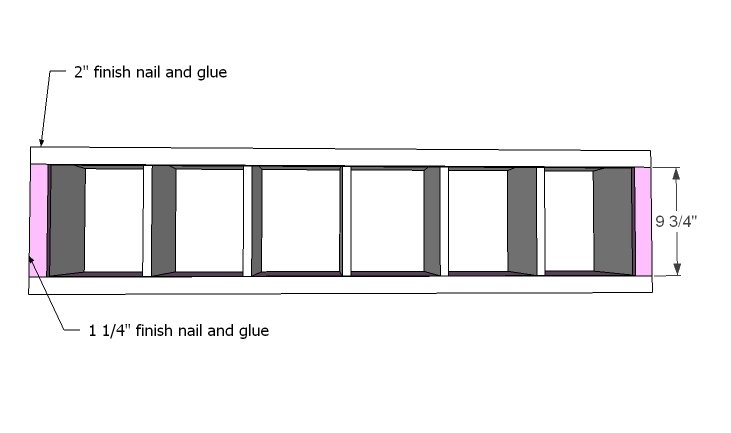

Step 4

And now the sides.

Hailey Hutch for Twin and Full Beds — step 4
5

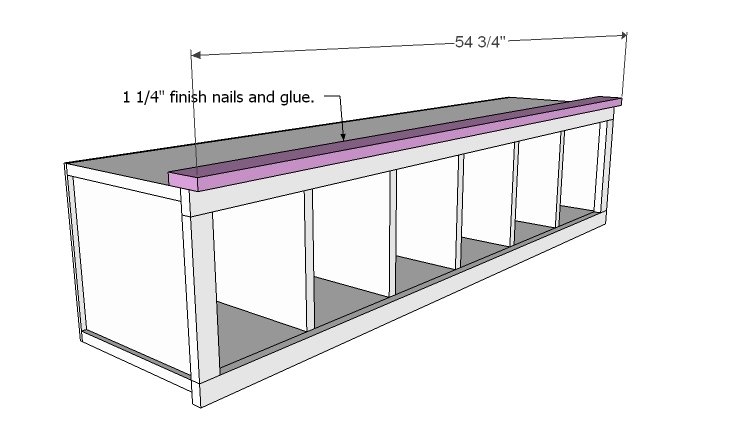

Step 5

Hailey Hutch for Twin and Full Beds — step 5
6

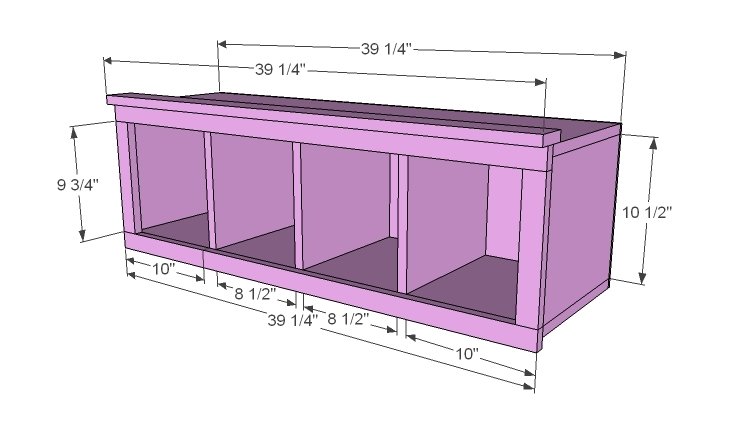

Step 6

If you are building a twin size, here are the dimensions. Make sure you measure your bed - as this is a very tight fit.

Hailey Hutch for Twin and Full Beds — step 6
7

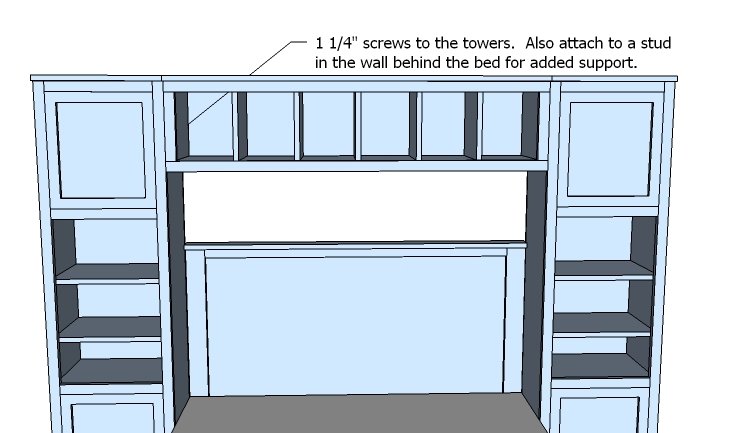

Step 7

Hailey Hutch for Twin and Full Beds — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
