Hutch for the Open Shelf Dresser

A hutch is a simple easy to build project that can transform a blank wall into a storage masterpiece. Hutches keep handy all your favorite belongings, anything from dishes to photos to even shoes or entertaiment essentials. This hutch fits over the Dresser with Open Bottom Shelf.

Hutch for the Open Shelf Dresser

Specifications

Project typeHutch Plans
RoomStorage Solutions
StyleFarmhouse Furniture
DifficultyBeginner Projects
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

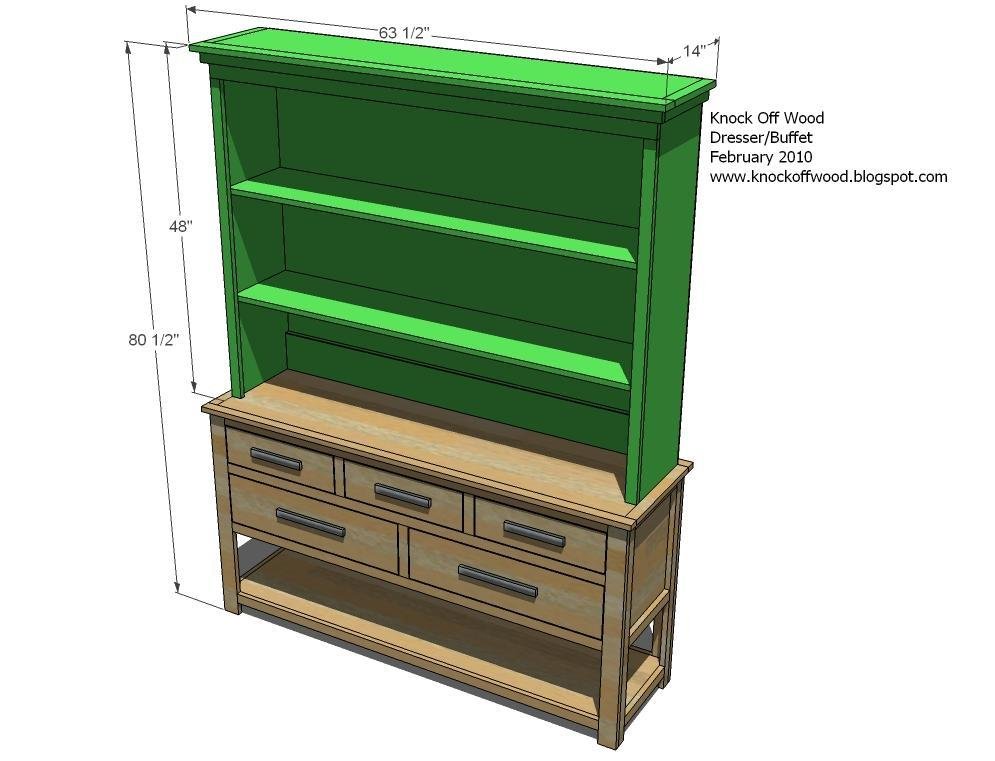

Hutch for the Open Shelf Dresser dimension diagram 1

Shopping List

1 – 10′ 1×12 Board 1 – 8′ 1×12 Board 1 – 6′ 1×12 Board 1 – Sheet 1/4″ Plywood 1 – 6′ 1×4 Board 1 – 6′ 1×6 Board 3 – 1×2 boards, 8′ Long

Cut List

  • 2 – 1×12 @ 47 1/4″ (Sides) (cut from the 8′ board)
  • 2 – 1×12 @ 59″ (Shelves) (cut from the 10′ board)
  • 1 – 1×12 @ 60 1/2″ (Top) (cut from the 6′ board)
  • 1 – 1×6 @ 59″ (Bottom Support)
  • 1 – 1/4″ Plywood @ 48″ x 60 1/2″ (Back)
  • 1 – 1×4 @ 60 1/2″ (Header)
  • 2 – 1×2 @ 44 1/2″ (Side Trim)
  • 4 – 1×2 @ 12 1/4″ (Top Side Trim)
  • 1 – 1×2 @ 62″ (Top, Bottom Trim)
  • 1 – 1×2 @ 63 1/2″ (Top, Top Trim)

Tools

  • measuring tape
  • square
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • sander

Step-by-step Instructions

1

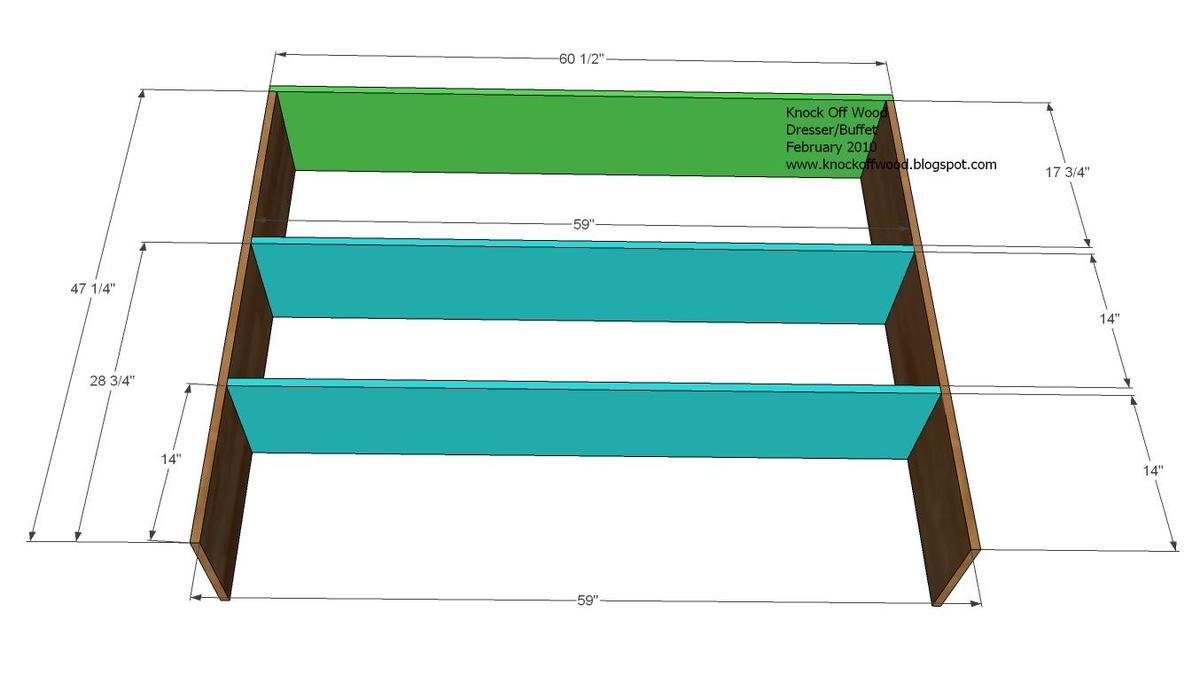

Step 1

Build the box. Fasten the sides to the shelves with the 2″ nails and glue. Then fasten the top to the sides. Use the dimensions above to guide you.

Hutch for the Open Shelf Dresser — step 1
2

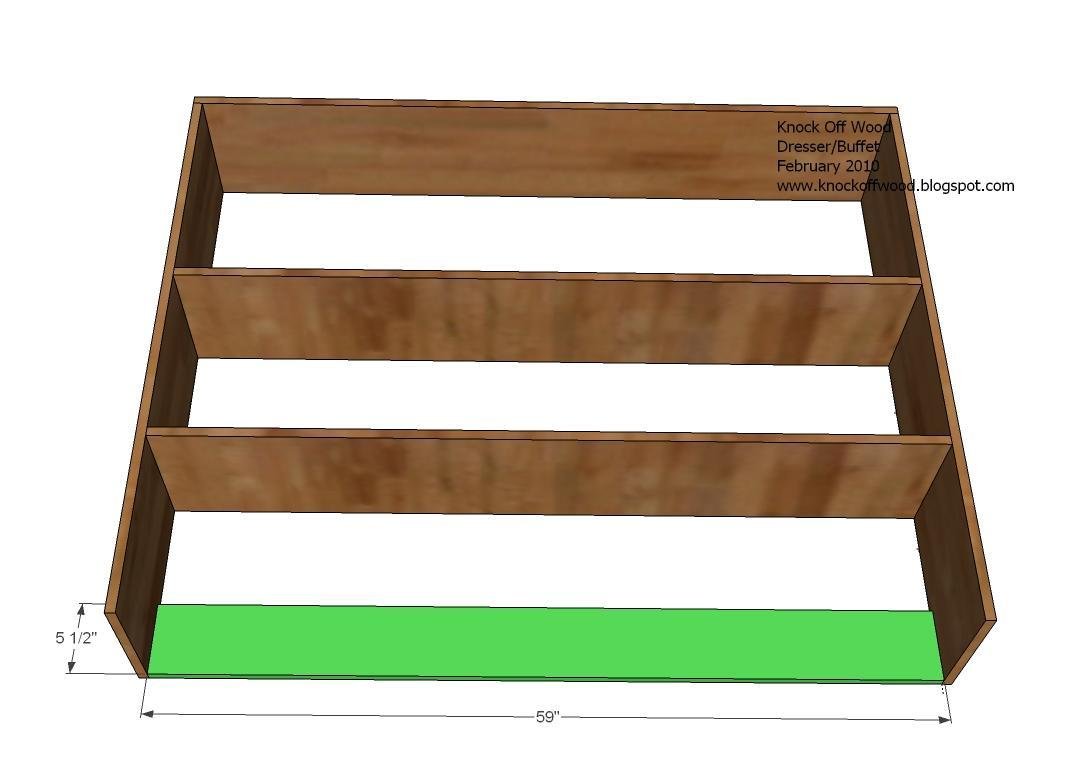

Step 2

Bottom Support. Fasten through the sides into the bottom support, as shown above, using the 2″ nails and glue.

Hutch for the Open Shelf Dresser — step 2
3

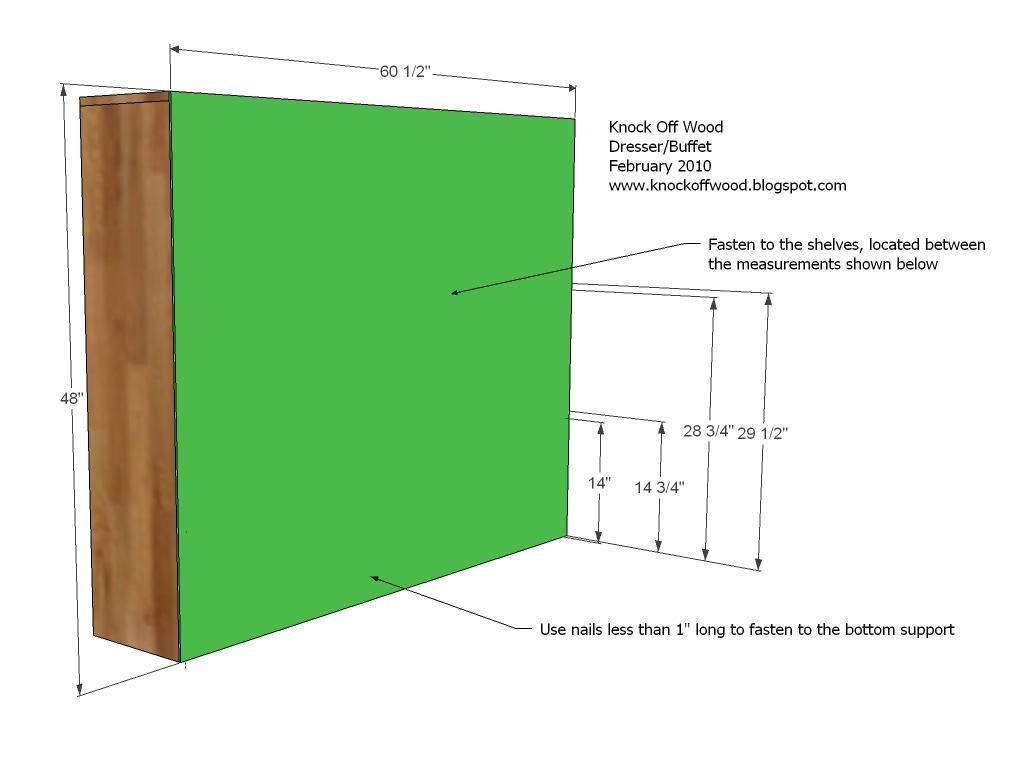

Step 3

Back. Fasten the back in place, using the 2″ nails and glue. You must fasten the back to the shelves – the shelves are going to need the extra support. When fastening to the bottom support, use the 3/4″ nails and glue.

Hutch for the Open Shelf Dresser — step 3
4

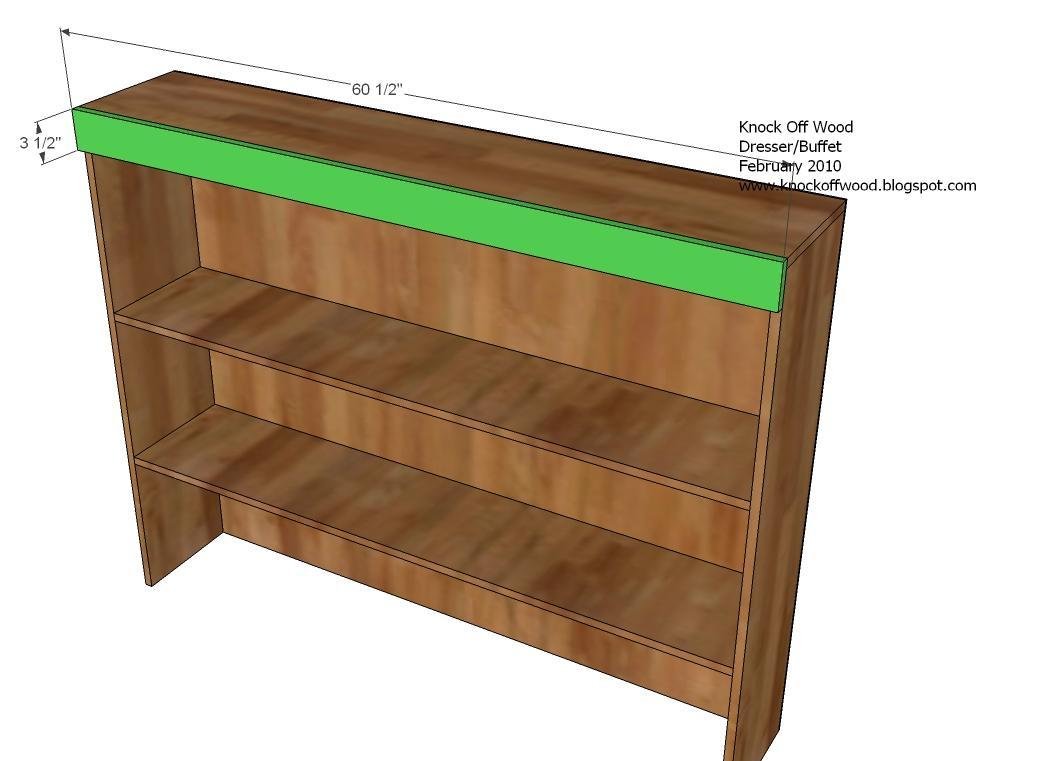

Step 4

Header. Fasten the header in place as shown above.

Hutch for the Open Shelf Dresser — step 4
5

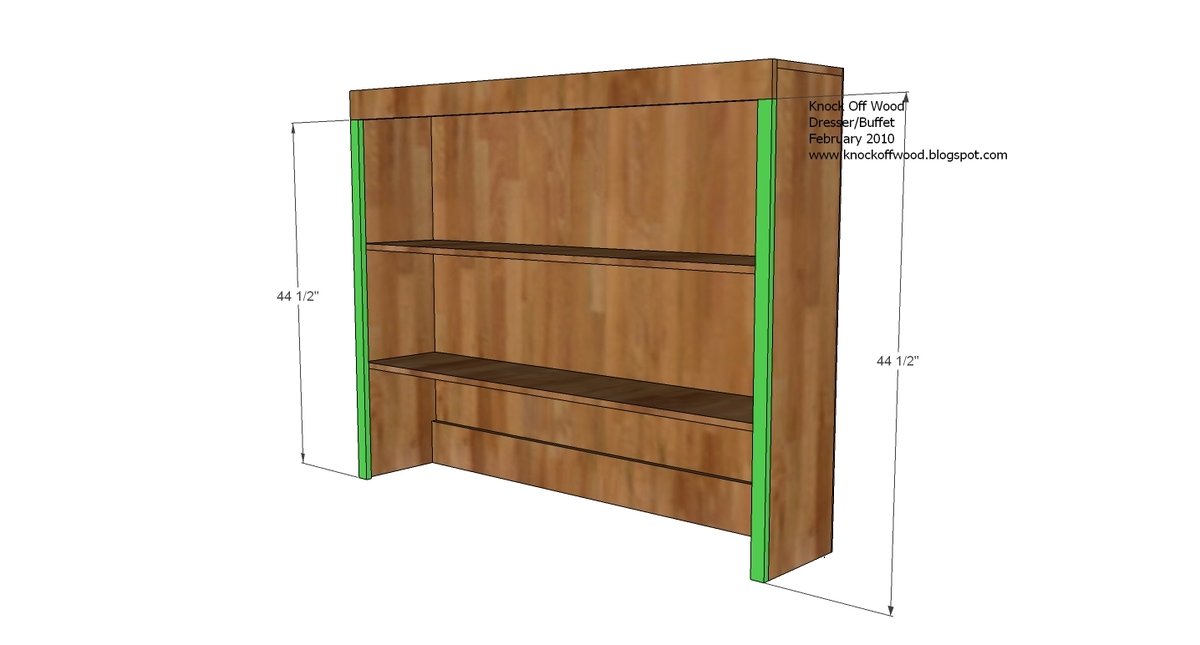

Step 5

Hutch for the Open Shelf Dresser — step 5
6

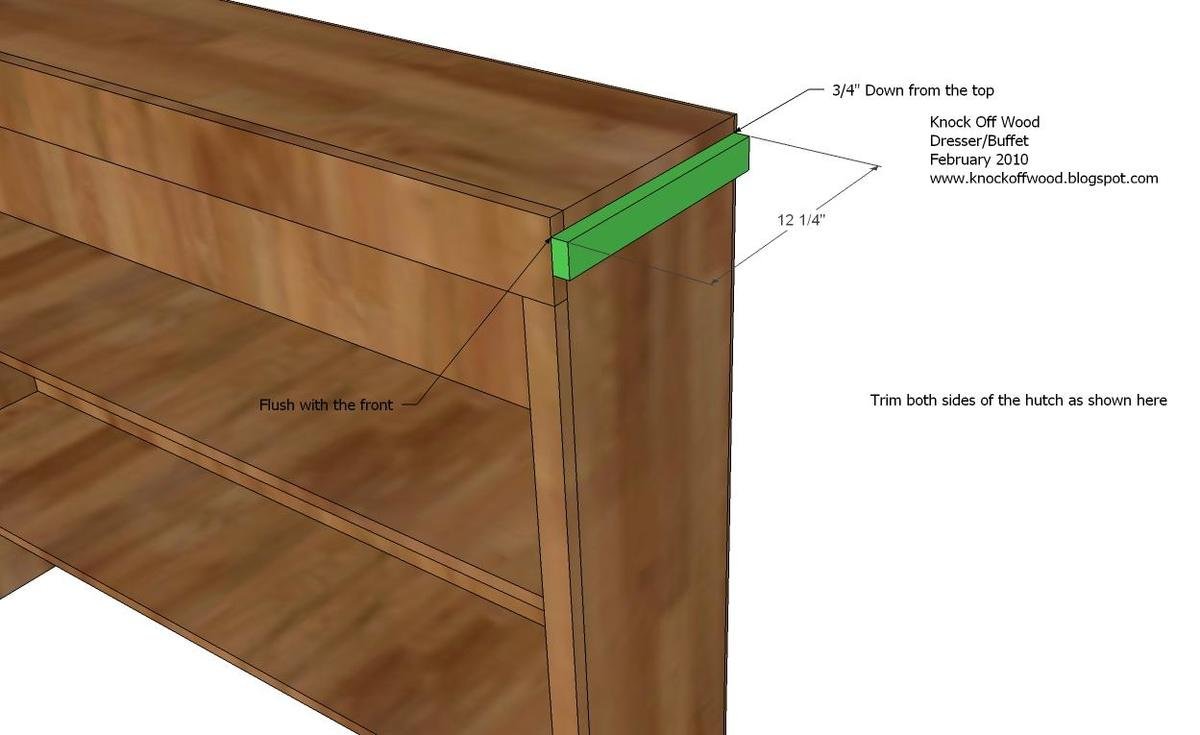

Step 6

Bottom Top Side Trim. As directed above, use 2 of the boards H to begin building your crown. Use 1 1/4″ nails and glue.

Hutch for the Open Shelf Dresser — step 6
7

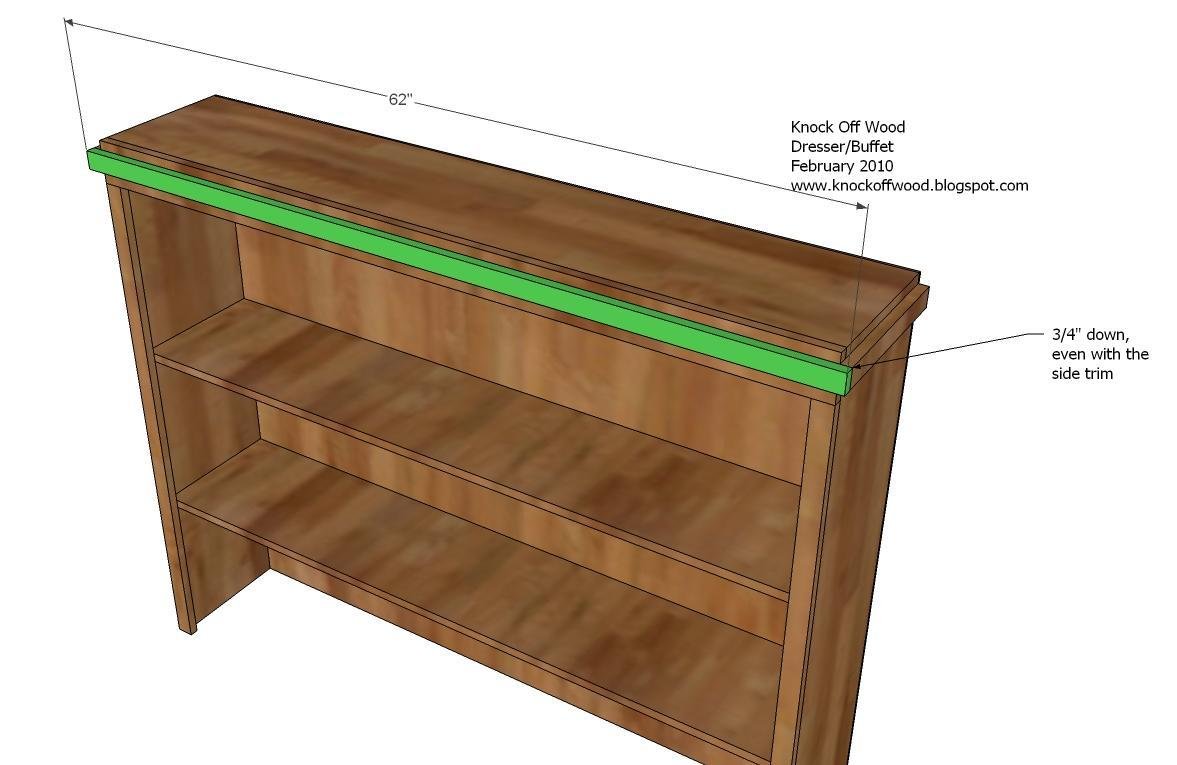

Step 7

Front Bottom of the Crown. Fasten board I, as shown above. Use 1 1/4″ nails and glue.

Hutch for the Open Shelf Dresser — step 7
8

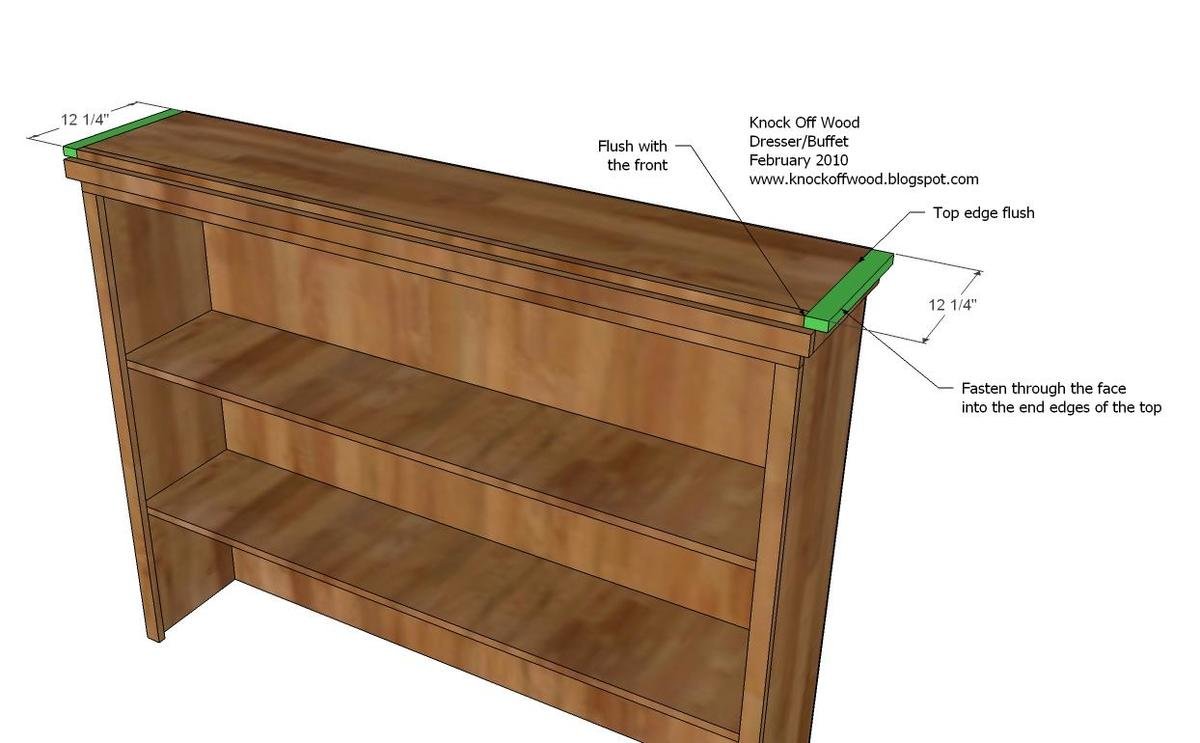

Step 8

Top Sides of the Crown. Fasten the remaining boards H above the boards H from step 6. Make sure you use the 2″nails and glue, and fasten through the face into the end edges of the top.

Hutch for the Open Shelf Dresser — step 8
9

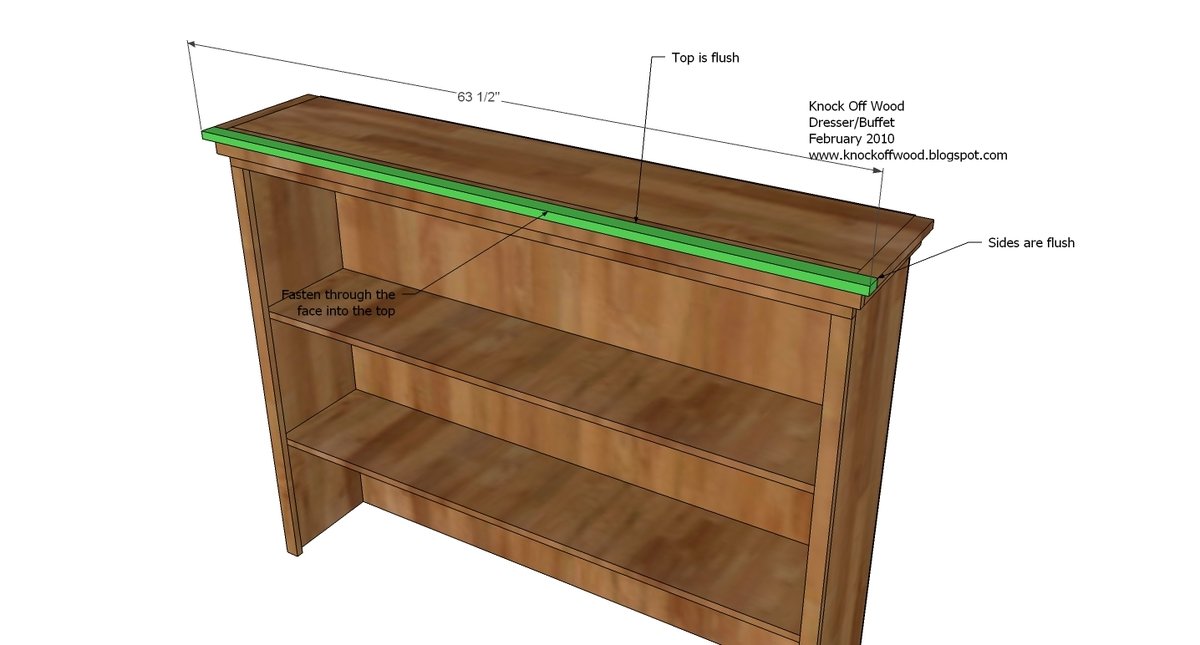

Step 9

Front, Top fo Crown. As directed in step 8, add the final crown piece.

Hutch for the Open Shelf Dresser — step 9
10

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
