Ice Cream Parlour

DIY Ice Cream parlour free

Ice Cream Parlour

Specifications

Project typeToys
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyStarter Projects

Dimensions

Use the size-specific shopping and cut lists below.

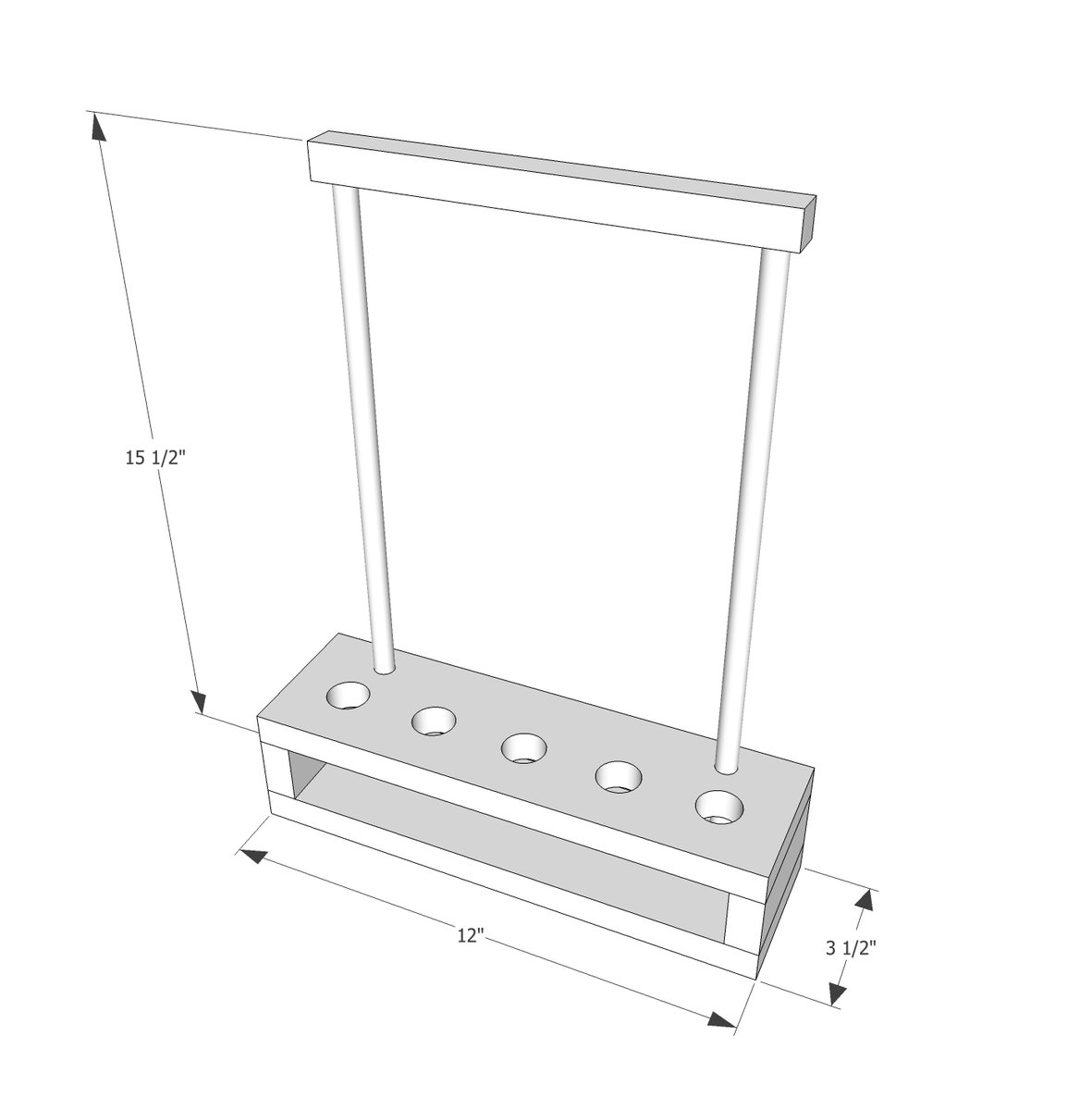

Ice Cream Parlour dimension diagram 1

Shopping List

1x4 scraps

3' of 1/2" diameter dowels

wood cones and balls (doll parts at craft stores)

Cut List

2 - 1x4 @ 12"

2 - 1x4 @ 1-1/2" or 2 - 1x2 @ 3-1/2"

The tall dowels are 1/2” diameter x 14” long

The top bar is 3/4” square x 10 1/2” long

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • compound miter saw
  • sander
  • countersink drill bit

Step-by-step Instructions

1

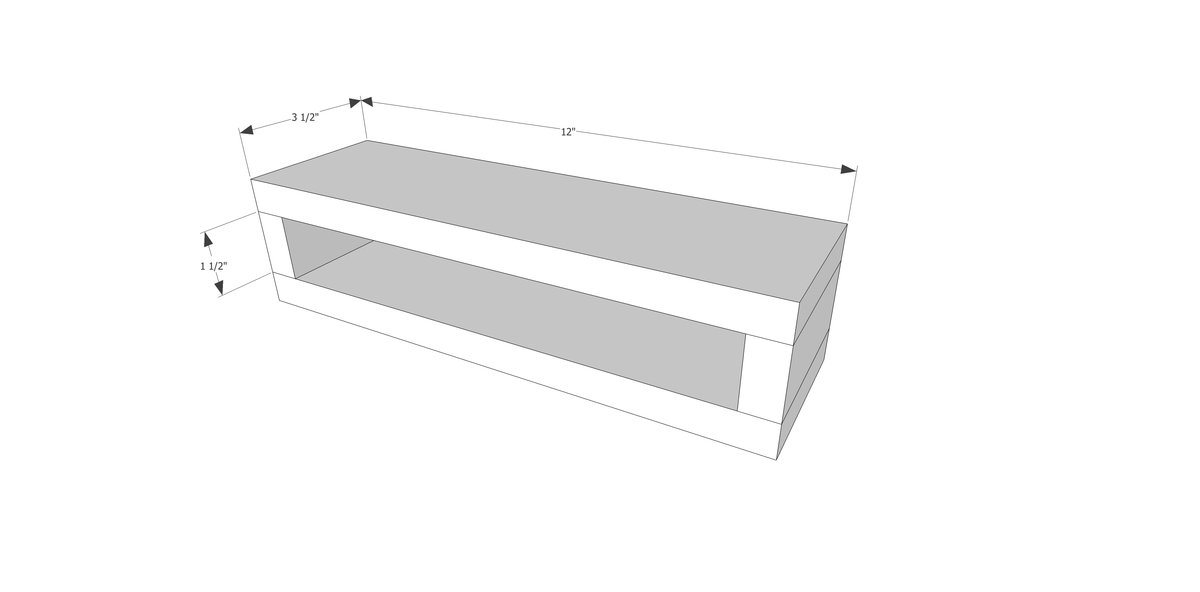

Step 1

Build the base, we recommend using 2" wood screws and wood glue.

Ice Cream Parlour — step 1
2

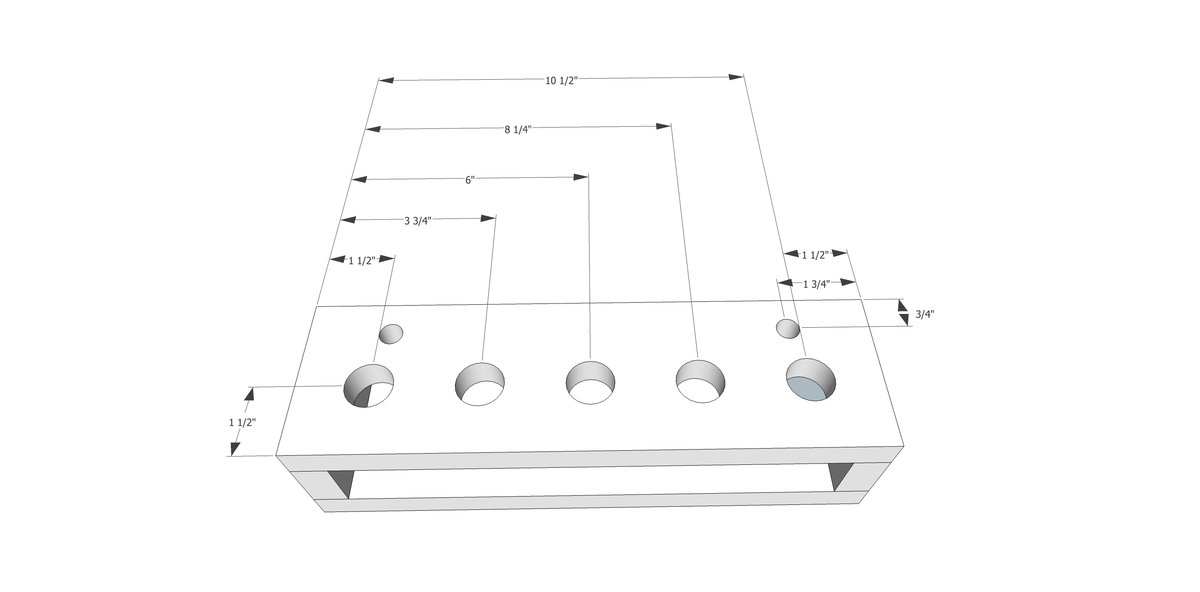

Step 2

Drill holes for the cones and dowels in top of project.

Ice Cream Parlour — step 2
3

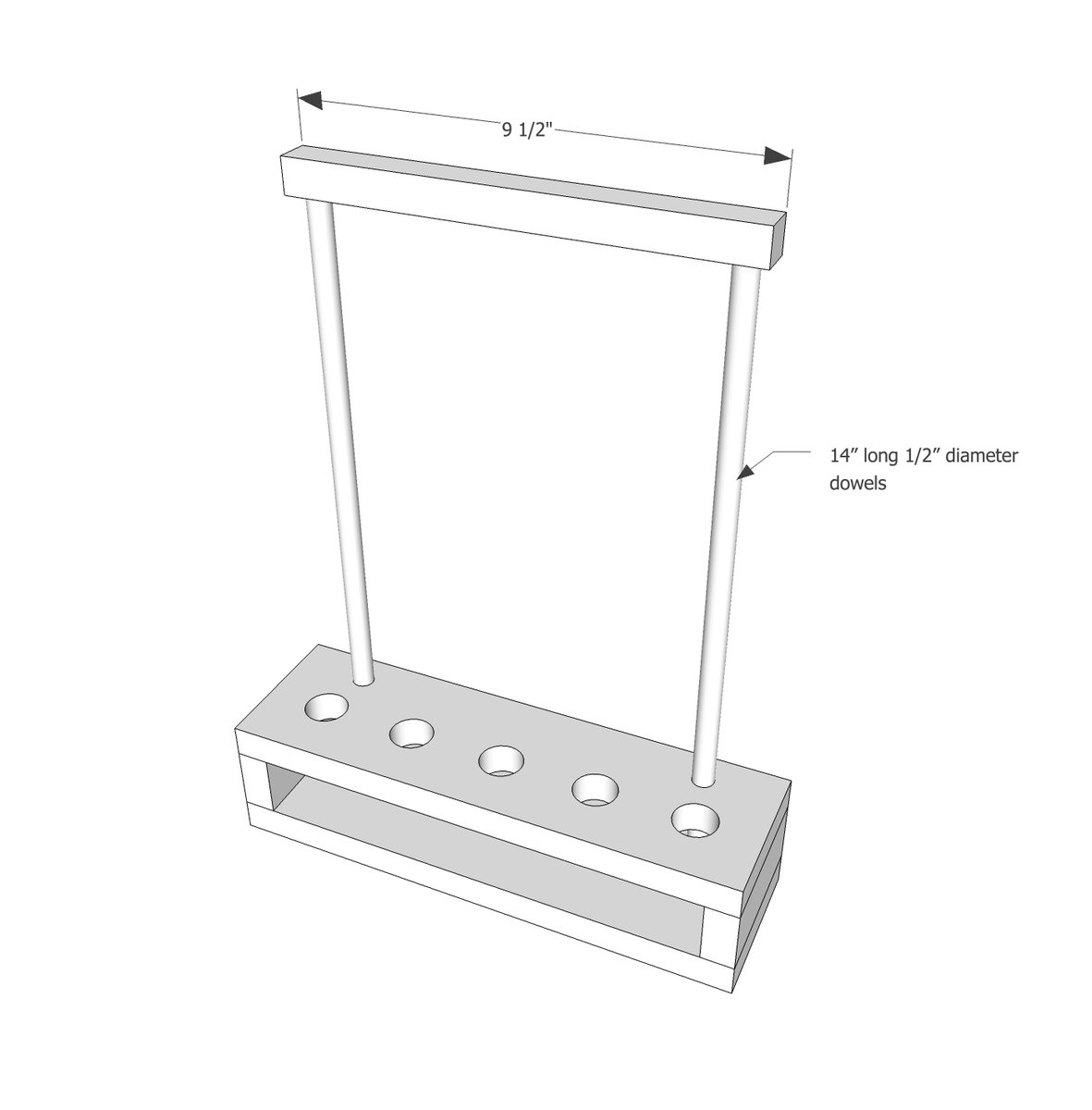

Step 3

Cut dowels and attach top with screws.

Ice Cream Parlour — step 3
4

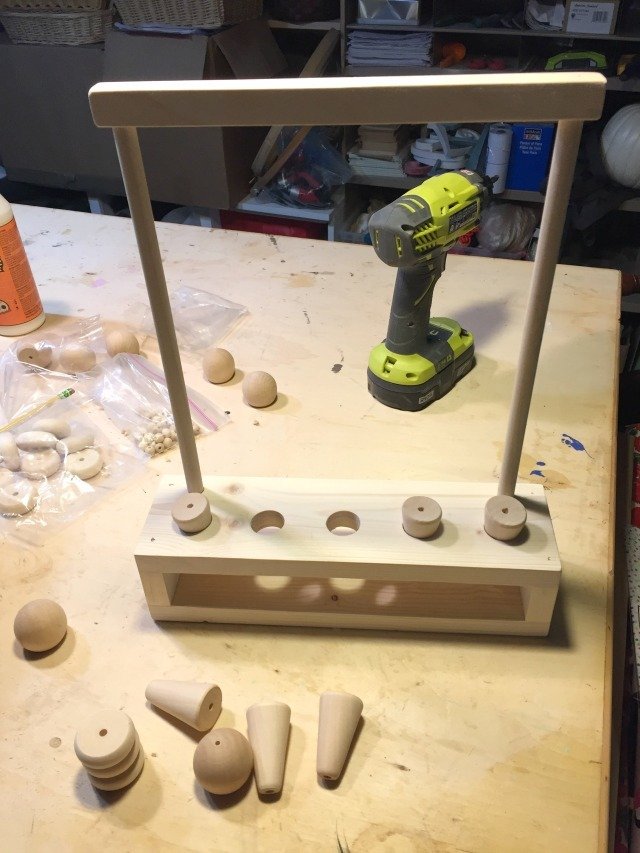

Step 4

Head on over to That's My Letter for more details on the finish and the cones.

Ice Cream Parlour — step 4
5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
