IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1!

I got this idea to turn my den into a playroom and get all the toys out of my living room. So this was my first project tackled. I love the idea of the IKEA Trofast storage bins and was ready to just buy them outright (Ikea not too expensive ya know) until I drew up the plans and decided that I could STILL build it for cheaper, like three times cheaper. So these are the exact same measurements to fit the trofast bins bought from their store. I built three of these for $30! YEA!! This is basically the same idea as Ana's laundry dresser, just with grooves routed in to the wood instead of a tract. The awesome thing is too, that it is such a simple design, that when I am done using it like this, I can throw shelves in there and it is an automatic bookcase.

IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1!

Specifications

Project typeBookshelf and Bookcase Plans
RoomStorage Solutions
StyleModern Style Furniture Plans
DifficultyBeginner Projects
Estimated cost$20 - $50

Shopping List

1 sheet 3/4" plywood, MDF, or melomine

1 sheet 1/4" plywood

1 1x2

Cut List

1 sheet 3/4" plywood into 4 11 3/4" strips

1 sheet1/4" plywood into 17 3/8 strips

2 1x2 @ 15 7/8"

Tools

  • measuring tape
  • pencil
  • hammer
  • safety glasses
  • hearing protection
  • kreg-jig
  • circular saw

Step-by-step Instructions

1

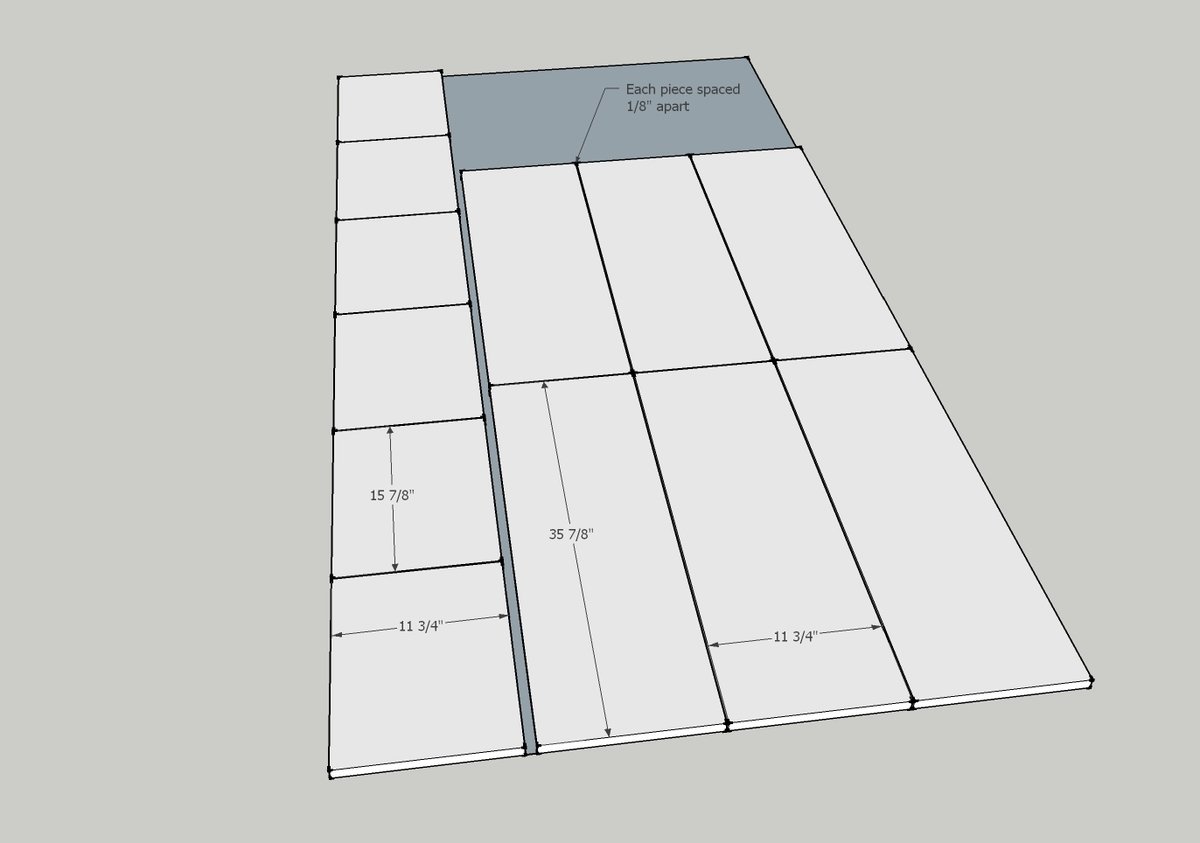

Step 1

Here is your cut list for your 3/4" plywood

IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1! — step 1
2

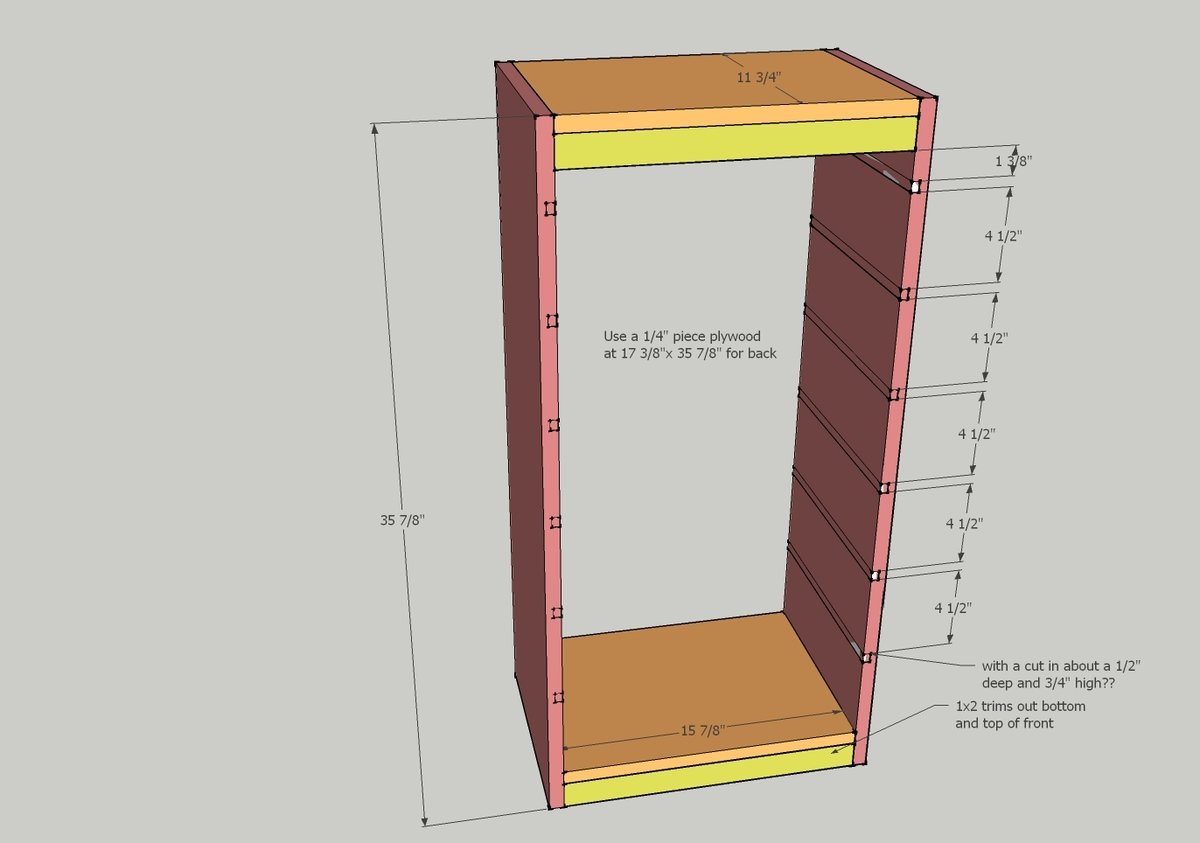

Step 2

I used a router to cut in the groves to a 1/2" depth with a 1/2" flat bottom bit.

IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1! — step 2
3

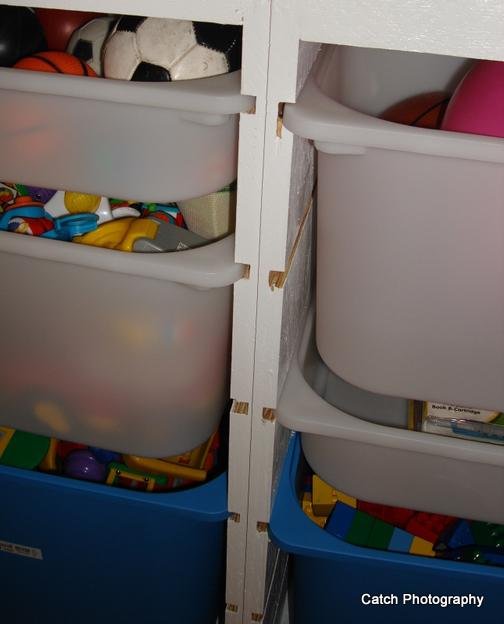

Step 3

IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1! — step 3
4

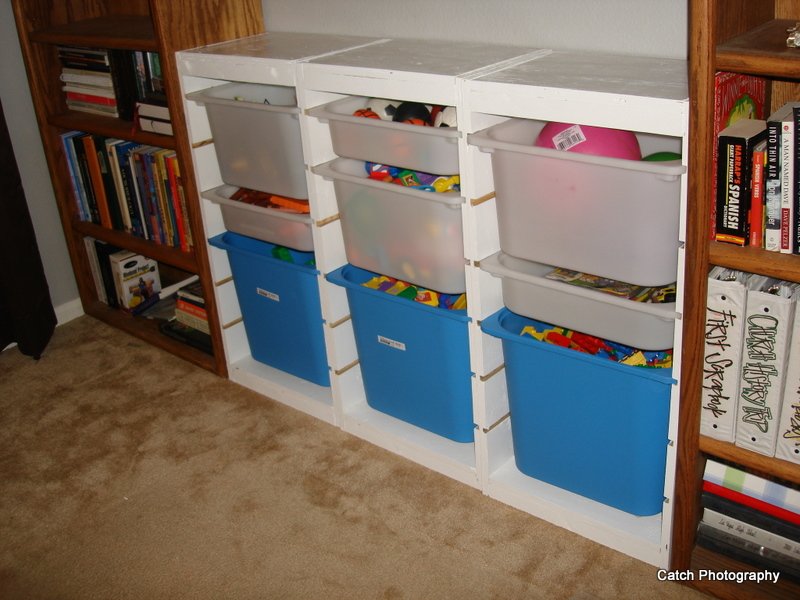

Step 4

Next up, repaint those bookshelves!

IKEA Trofast Toy Bin Storage Hacked- Playroom Project 1! — step 4
5

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
