Industrial Adjustable Height Bolt Bar Stool
DIY industrial style adjustable height bar stools -
Specifications
| Project type | Stools |
|---|---|
| Room | kitchen |
| Style | Farmhouse Furniture |
| Difficulty | Advanced |
| Estimated cost | Under $20 |

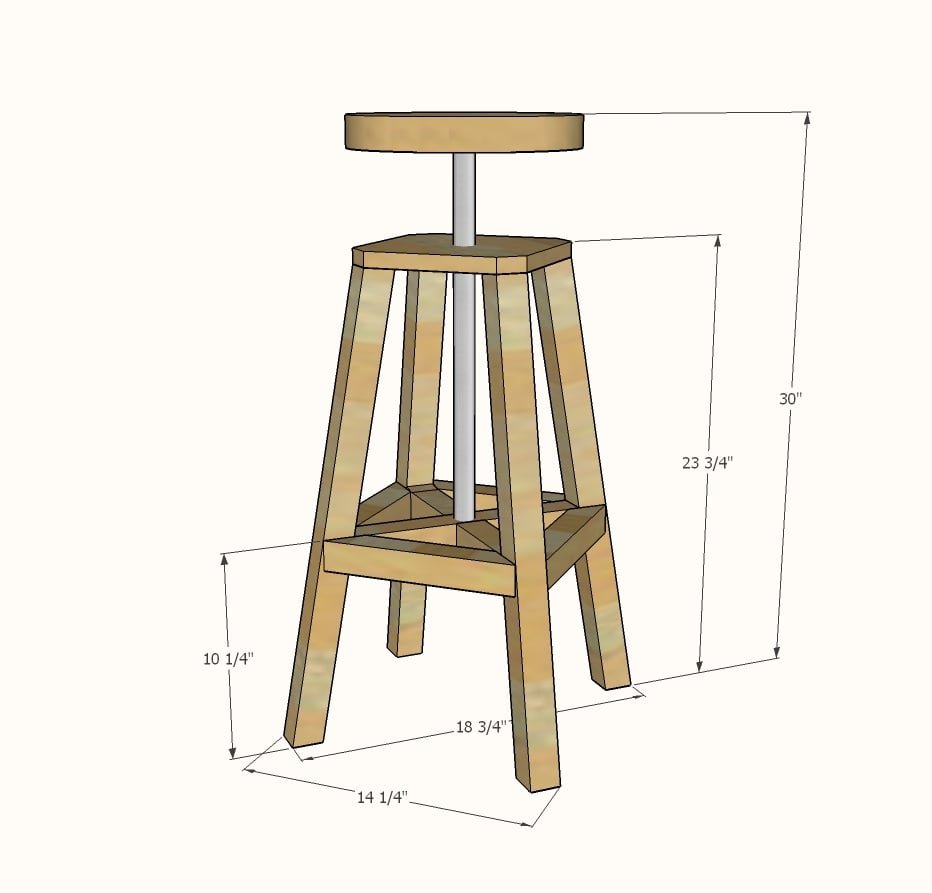

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 2x2 @ 8 feet long 3/4" plywood scraps for the top plate
12" round or 2x12 for the seat
18" - 5/8" all thread

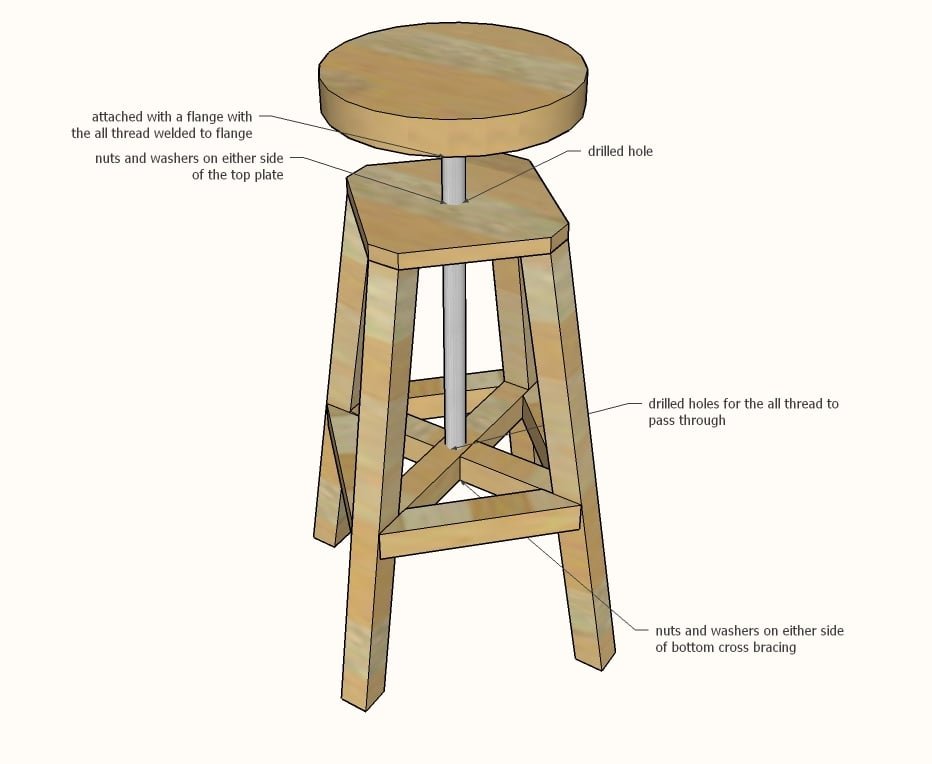

5/8" flange or top plate (we diyed ours with scrap metal and nuts welded together)
4 - 5/8" nuts and washers
Cut List
2 - 2x2 @ 12-1/2" - both ends are cut at 10 degrees off square, ends NOT parallel, longest point to longest point measurement 1 - 3/4" plywood @ 8-1/2" x 8-1/2" 4 - 2x2 @ 23-1/2" - both ends cut at 10 degrees off square, long point to short point measurement, ends ARE parallel 4 - 2x2 @ 9-5/8" - both ends cut at 45 degrees, ends NOT parallel, longest point to longest point measurement 1 - 12" round (we cut ours from 1x12s and 3/4" plywood scraps glued together to get the 1-1/2" thickness - these are also available off the shelf
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- compound miter saw
- countersink drill bit
Step-by-step Instructions
Step 1

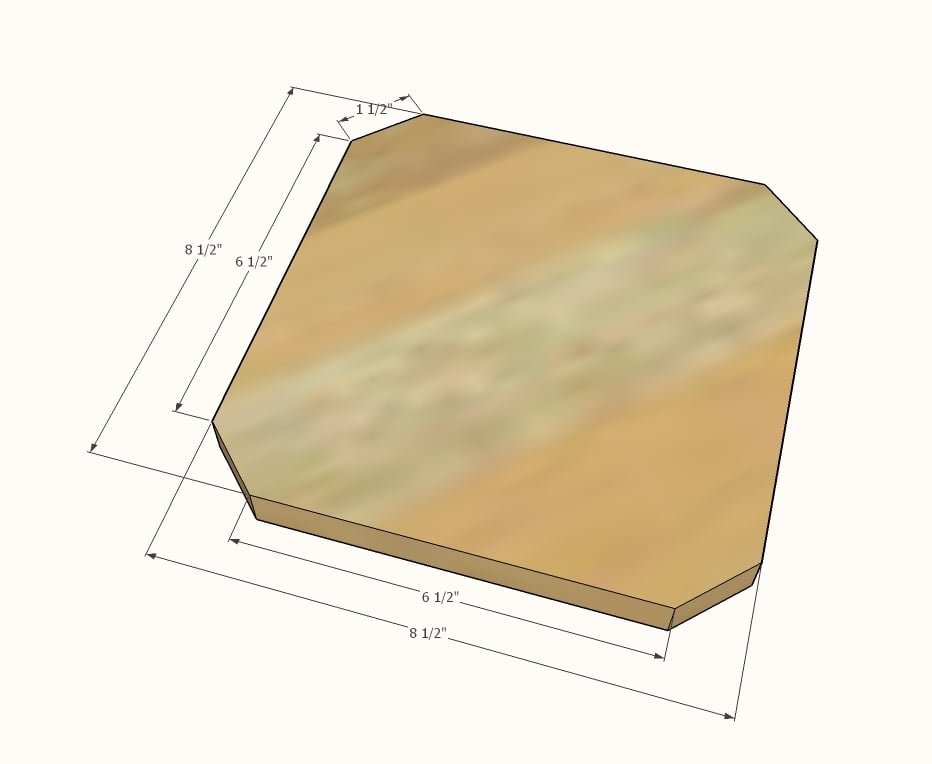

Cut the 3/4" plywood to an 8-1/2" x 8-1/2" square, then cut corners off at 45 degrees.
Step 2

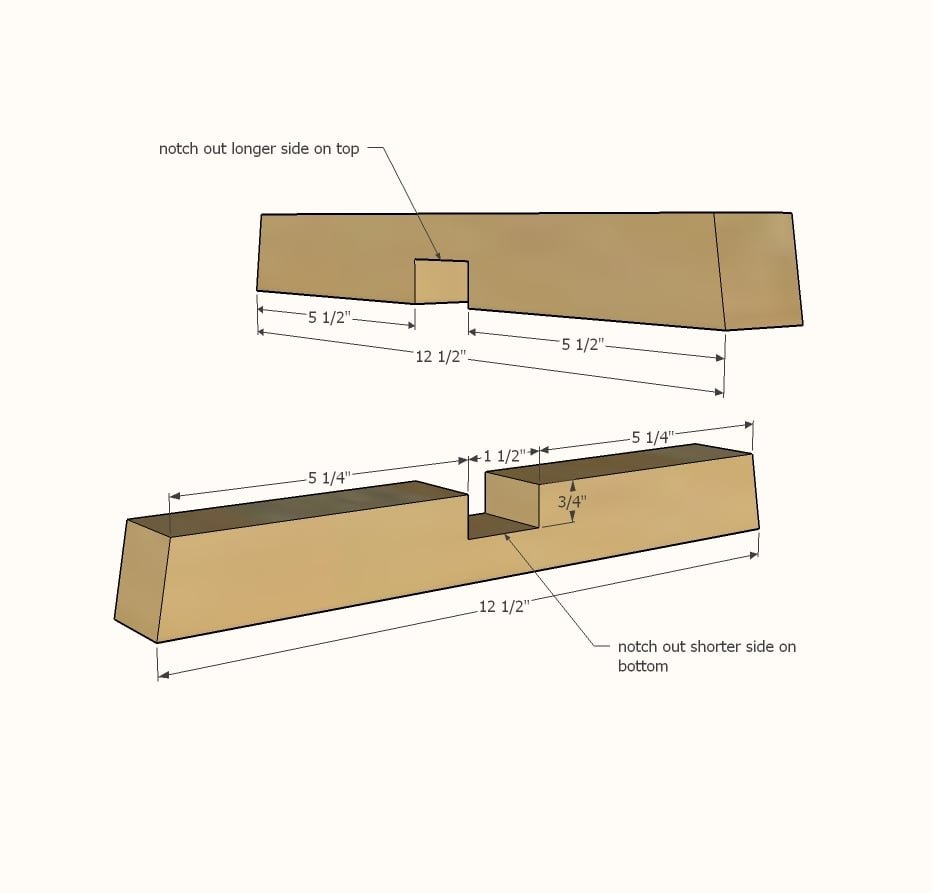

Set a circular saw blade to 3/4" depth and notch out the 2x2 cross supports as shown above, cutting the long side on one and the short side on the other. Glue (don't screw or nail) the two pieces together.
Step 3

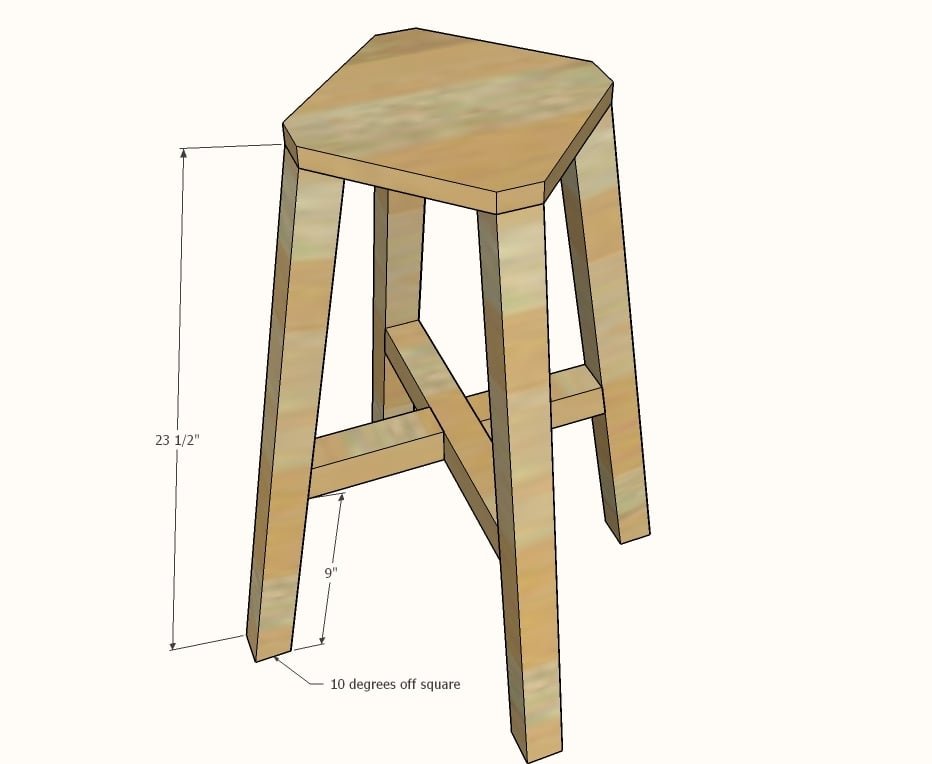

Build the stool using either 1-1/2" pocket holes and 2-1/2" pocket hole screws or countersinking wood screws (2-1/2" long would work).
Step 4

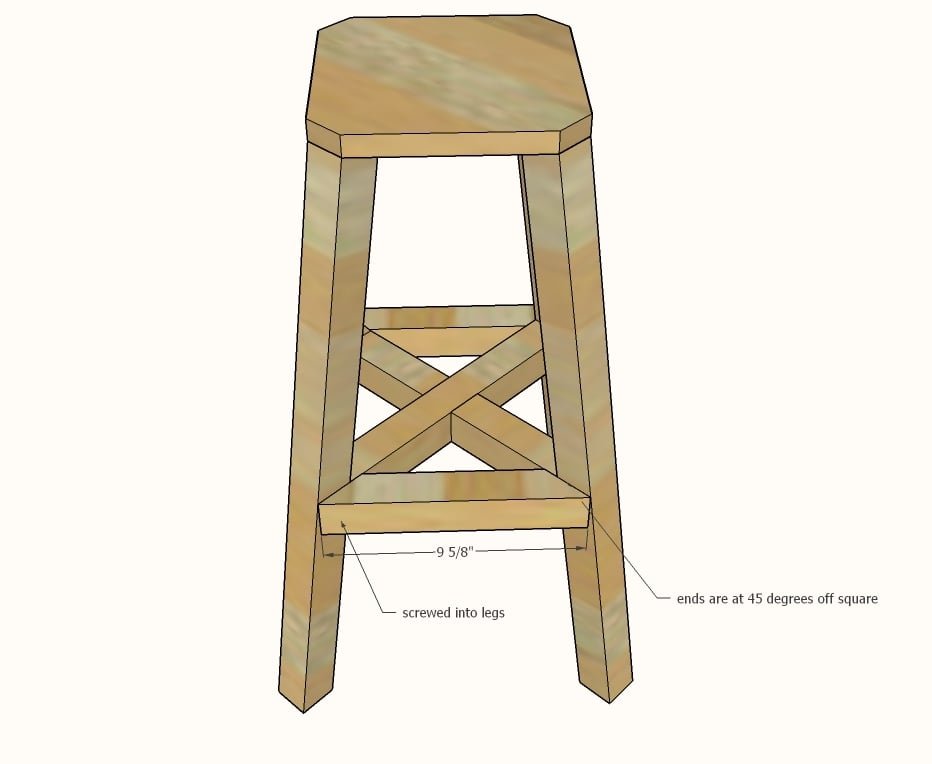

Attach the outer foot rest with 2-1/2" screws countersunk from outside. You'll only need one screw per joint. Use glue.
Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
