Iron Board Holder
How to build an iron board holder. Free tutorial by
Specifications
| Project type | shelves |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |

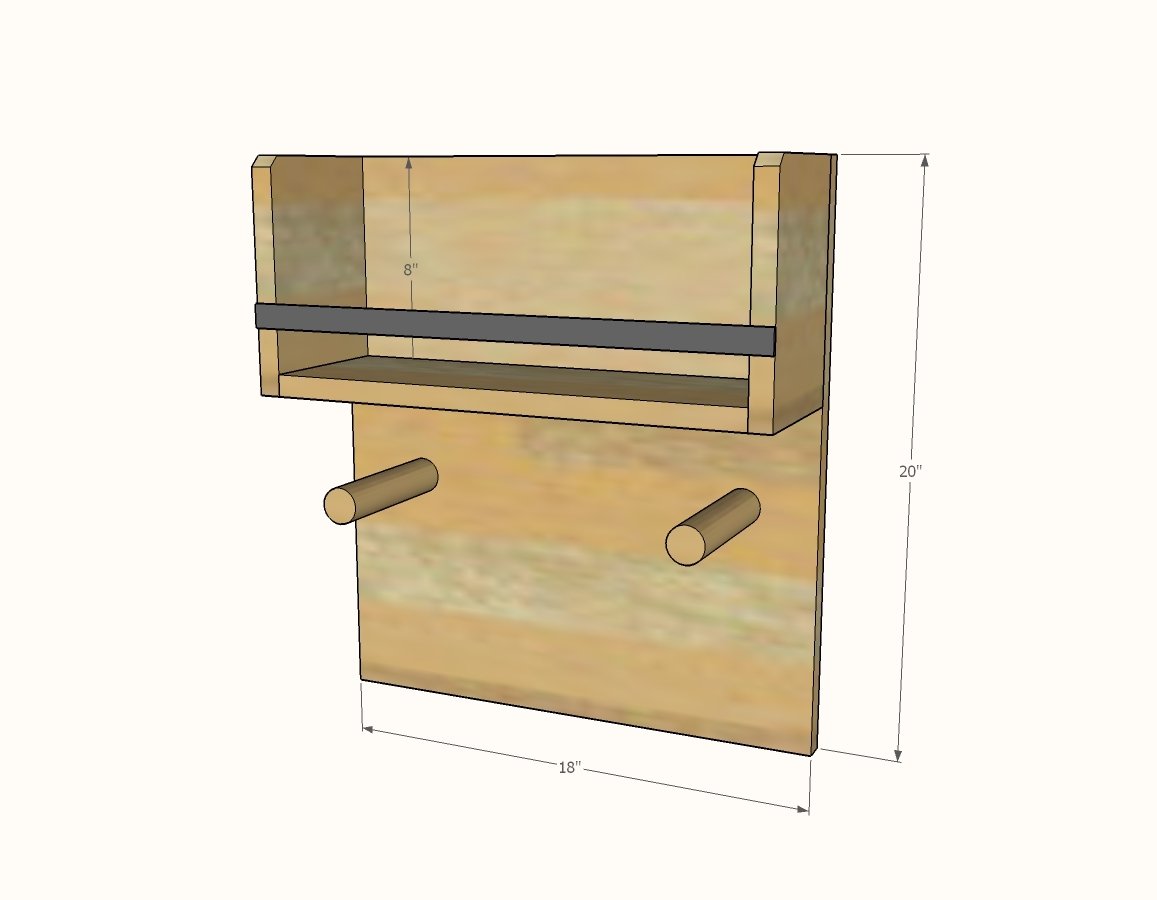

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 3/4" plywood @ 18" x 20"
1 - 1x6 @ 36" long
1 - 1-1/4" closet rod dowel @ 8" (could also use hooks or 2x2s)
1 - 3/4" flat metal piece @ 18" OR 1 - 1x2 @ 16-1/2"
Can be assembled with either 1-1/4" brad nails (with a brad nailer) and wood glue, or with 2" self tapping wood screws, or 1-1/4" pocket hole screws and Kreg Jig, or a combination. Least amount of tools and supplies is drill with 2" screws.
Cut List
1 - 3/4" plywood @ 18" x 20"
1 - 1x6 @ 16-1/2"
2 - 1x6 @ 8"
2 - 1-1/4" wood dowels @ 4"
1 - 3/4" flat metal piece @ 18" OR 1 - 1x2 @ 16-1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- countersink drill bit
Step-by-step Instructions

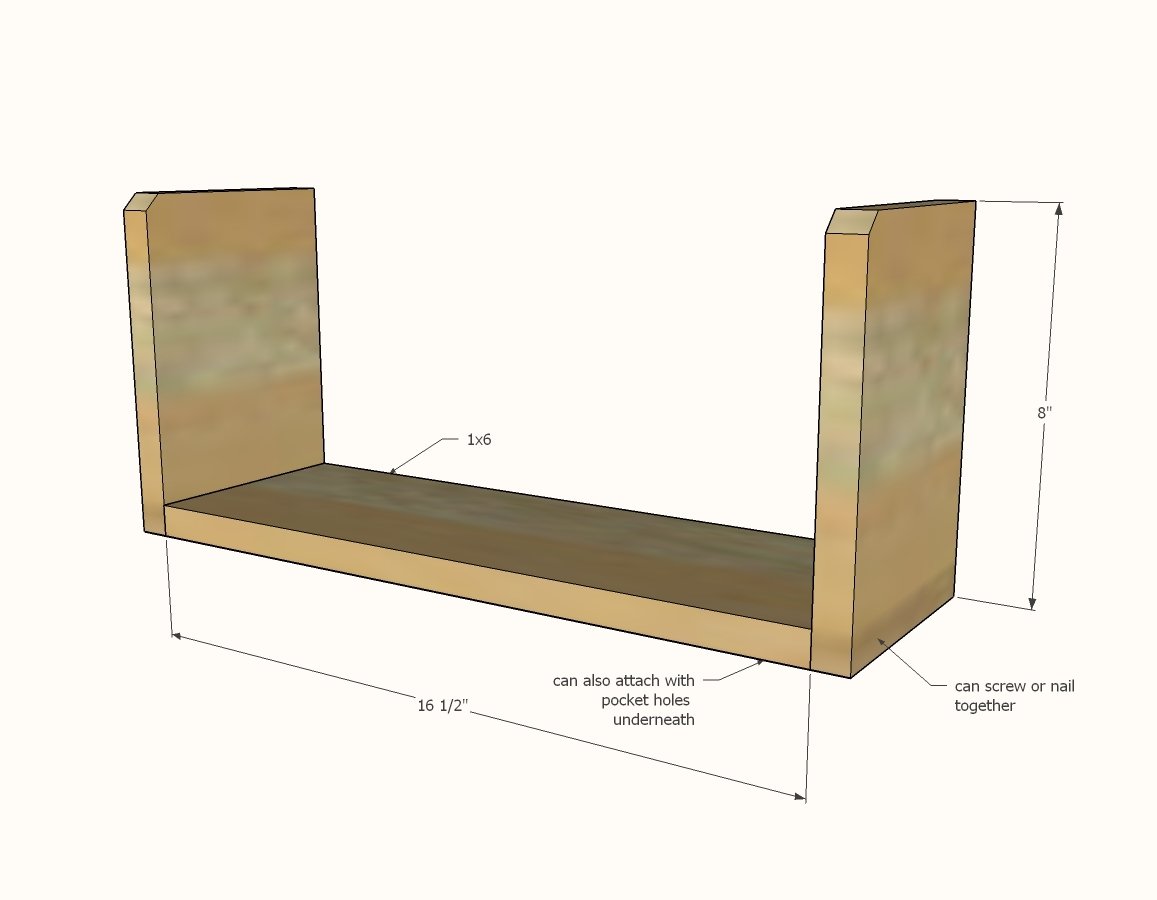

Step 1
Nail, screw or pocket hole the sides of the shelf to the bottom.

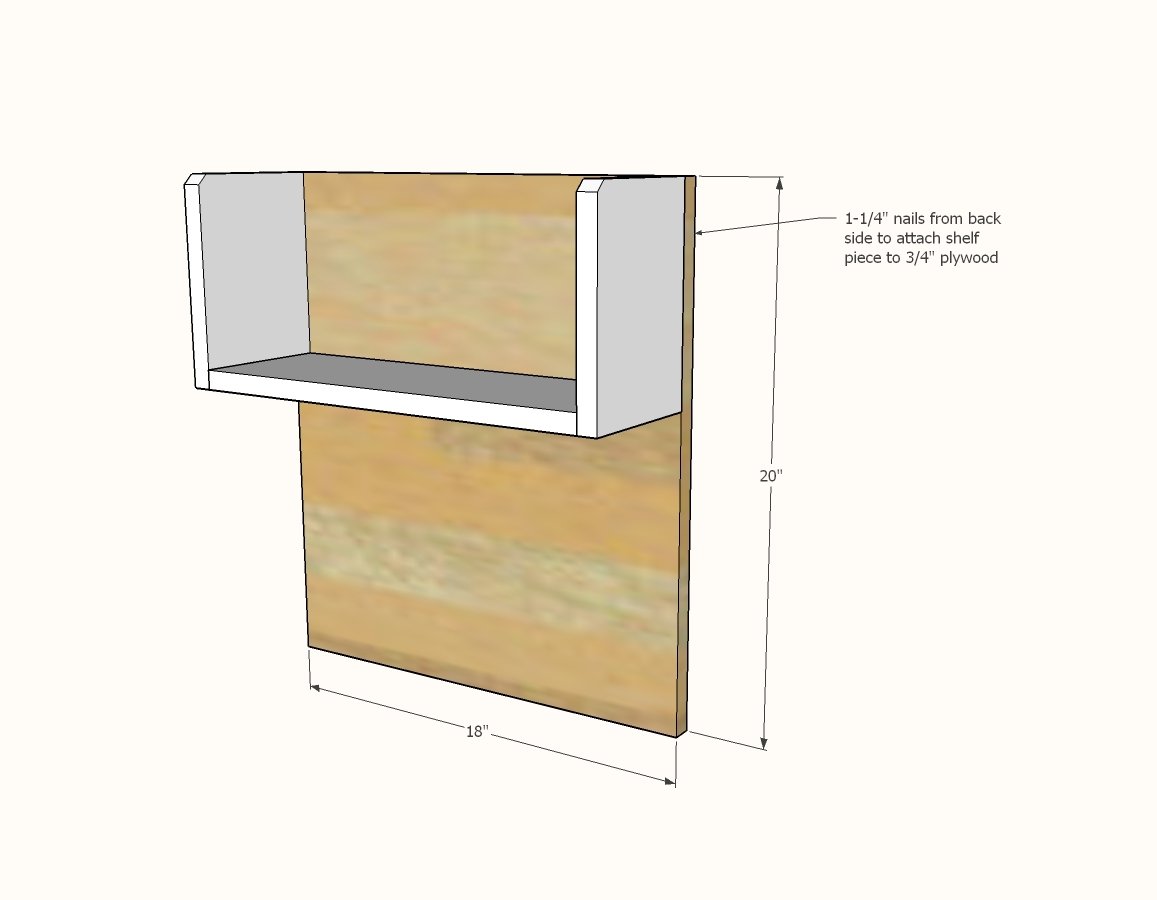

Step 2
From back, attach shelf pieces to back with glue and nails or screws. All outside edges should be flush.

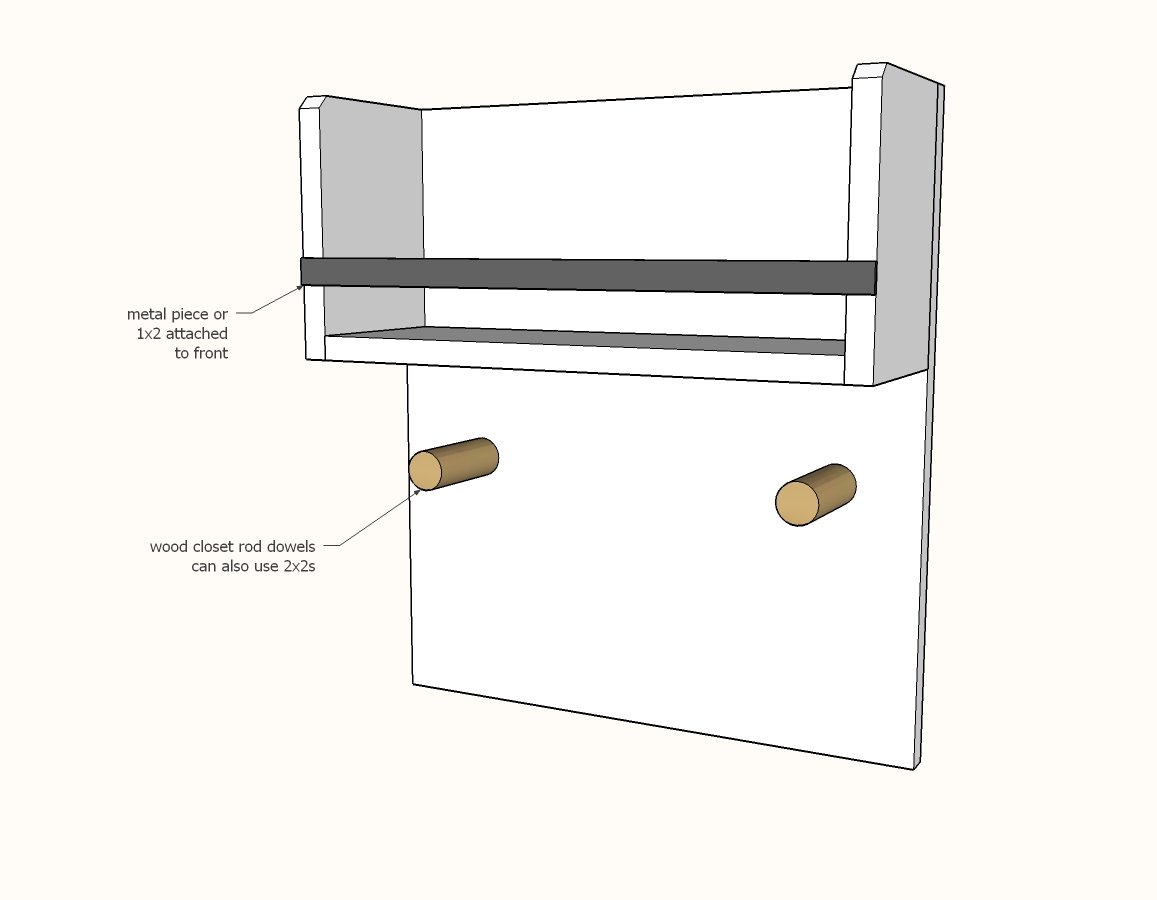

Step 3
Use 2" screws from back to attach dowels. TIP: First predrill holes all the way through the 3/4" plywood from the front where you want the dowels placed. Then flip over, insert screws, line up dowels centered on screws, and attach.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
