Katie Nightstand Open Shelf
to build a Pottery Barn Kids Catalina inspired nightstand. Features two open shelves and bun feet.
Specifications
| Project type | Nightstands |
|---|---|
| Room | Bedroom |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |

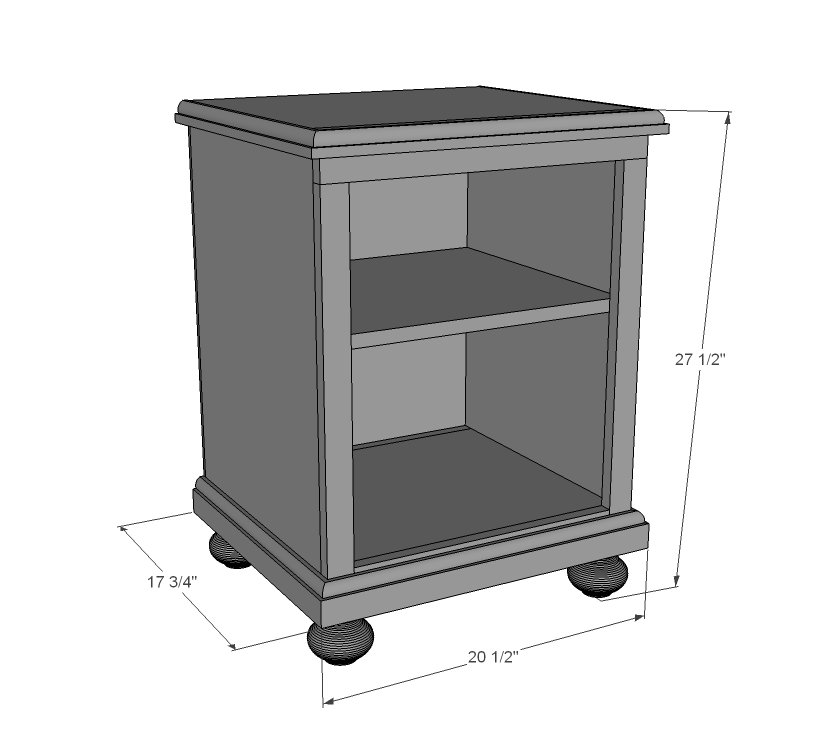

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
½ sheet of ¾” hardwood plywood cut into strips 15 ½” wide x 4 feet long
Scrap ¼” plywood measuring 19” x 22”
1 – 1x2 @ 8 feet long
1 – 1x3 @ 3 feet long
4 bun feet
1 – 6’ stick edge moulding
1 – 6’ stick 2 ½” base moulding
1 ¼” PH screws
1 ¼” finish nails
Cut List
1 – ¾” plywood @ 15 ½” x 19”
2 – ¾” plywood @ 15 ½” 23 ¾”
2 – ¾” plywood @ 15 ½” x 17 ½”
2 – 1x2 @ 17 ½”
2 – 1x2 @ 22”
1 – 1x3 @ 19”
1 – 1x3 @ 16”
Edge moulding and base moulding mitered to fit
¼” plywood @ 19” x 22” (back)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
Step-by-step Instructions

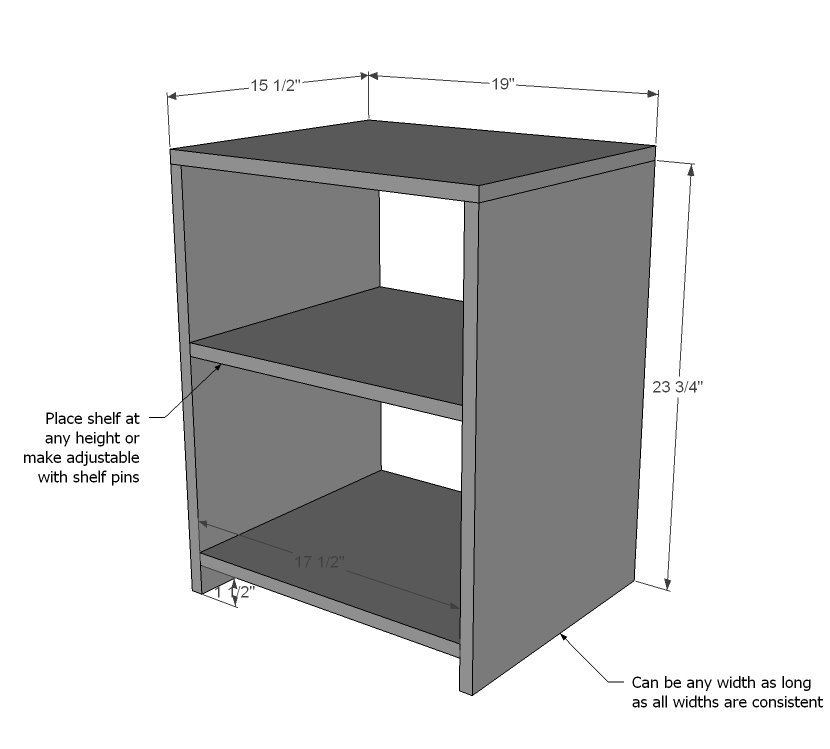

Step 1
First build your box as shown here. I recommend using ¾” PHs and 1 ¼” PH screws and glue. The shelf can be made adjustable using shelf pins.

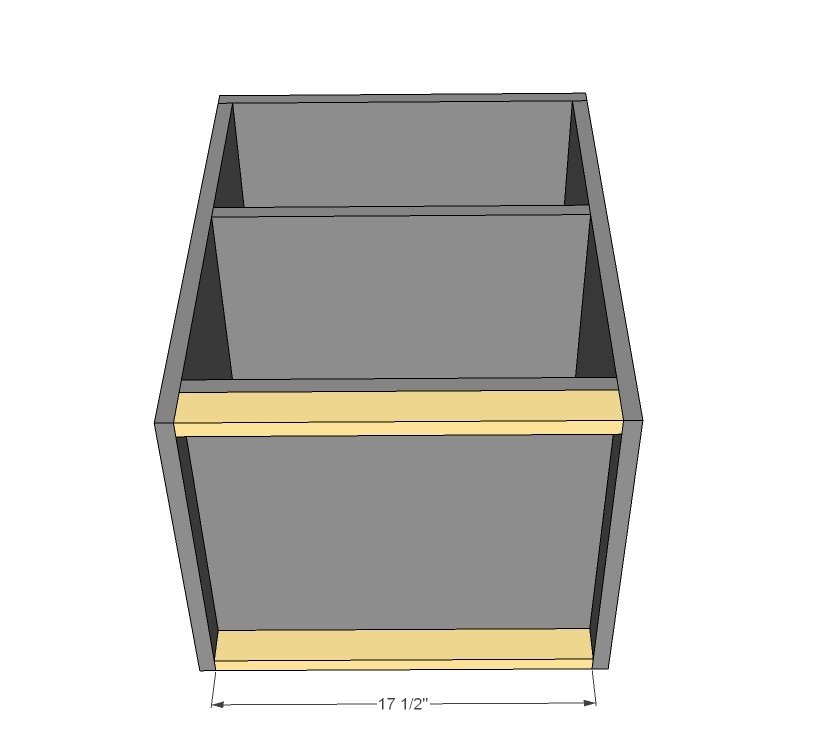

Step 2
Add bottom supports. This also gives you a little extra something to screw the legs into.

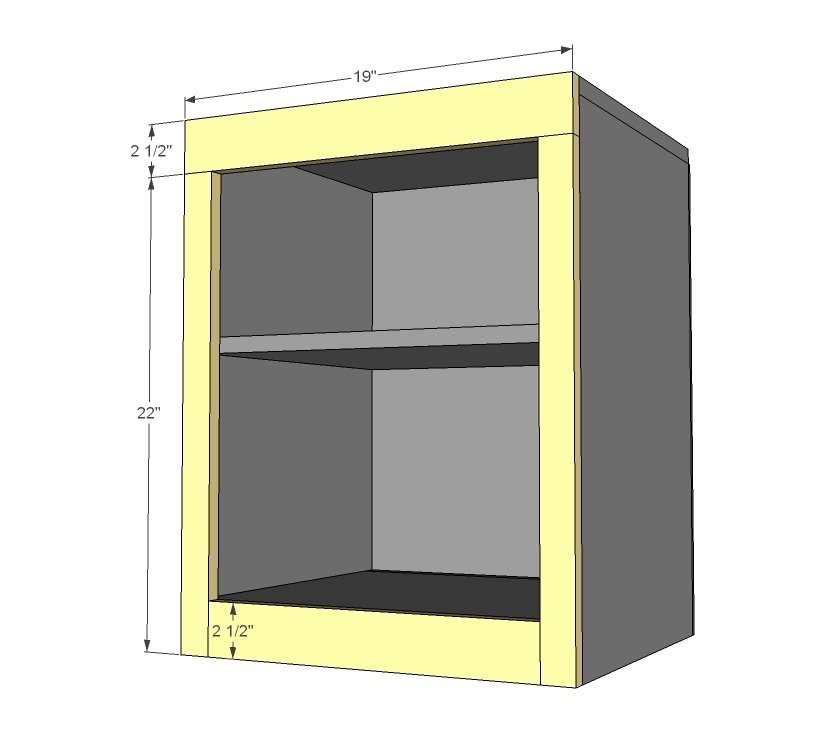

Step 3
Build face frame first with ¾” PHs and 1 ¼” PH screws. Attach to face of storage box with 1 ¼” finish nails. While you have your nailer loaded, attach back plywood as well.

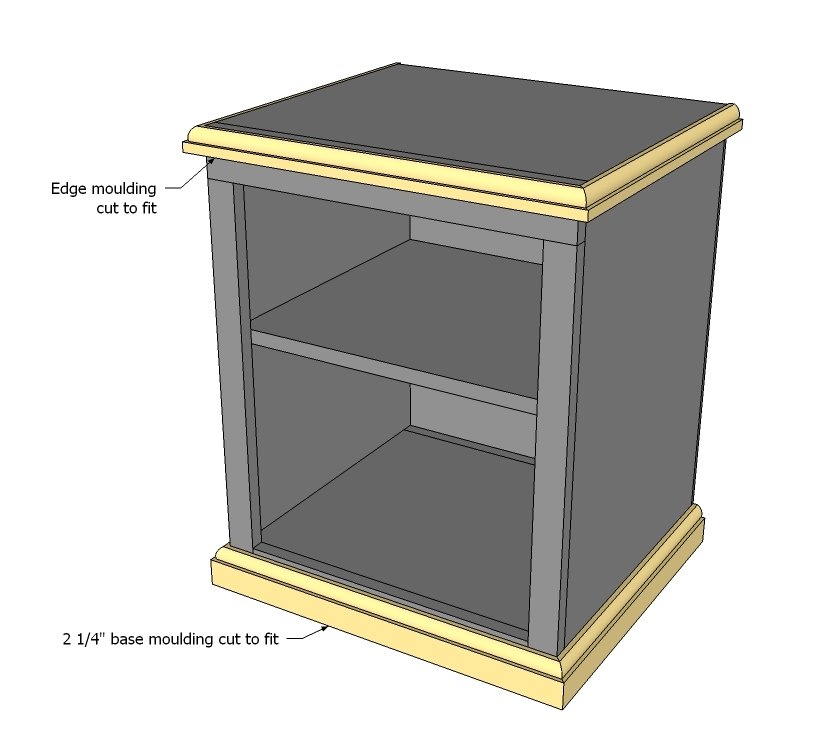

Step 4
For the mouldings, it is best to cut to fit. Cut the first mouldings, with outsides mitered. Nail on with 1 ¼” finish nails. Then cut the side mouldings to fit and nail on.

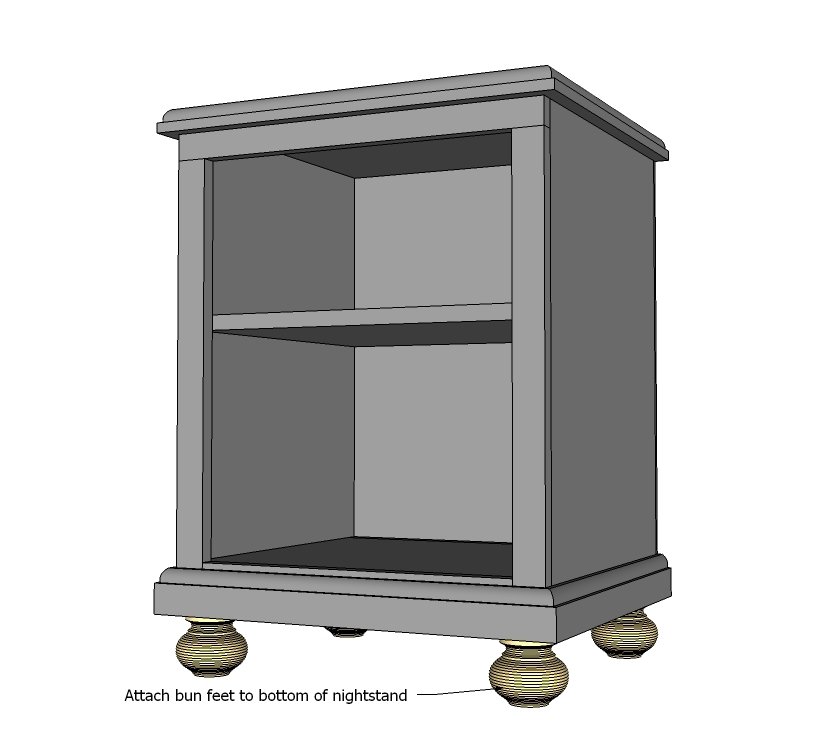

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
