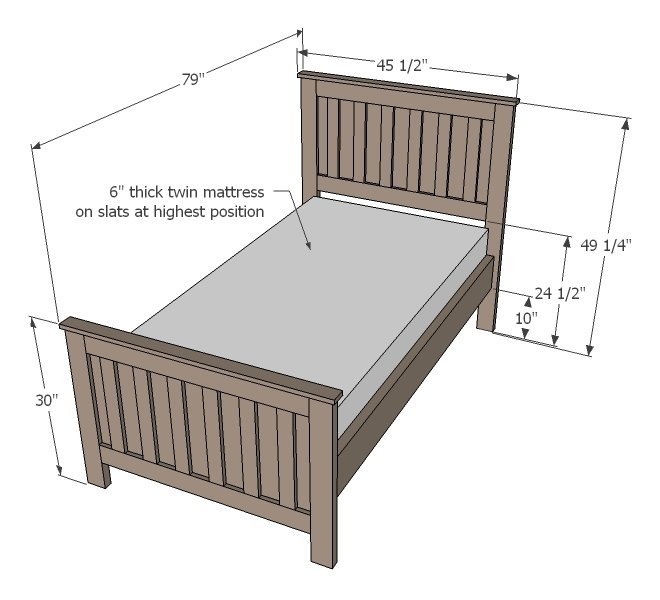

Kentwood Bed

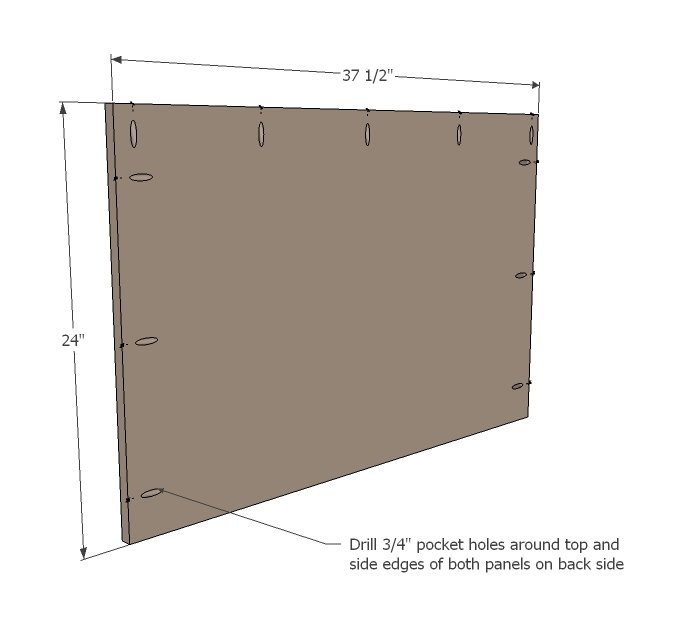

Step 1

Go ahead and drill 3/4" pocket holes around side and top edges of both plywood panels. These holes are for attaching legs and top in later steps.

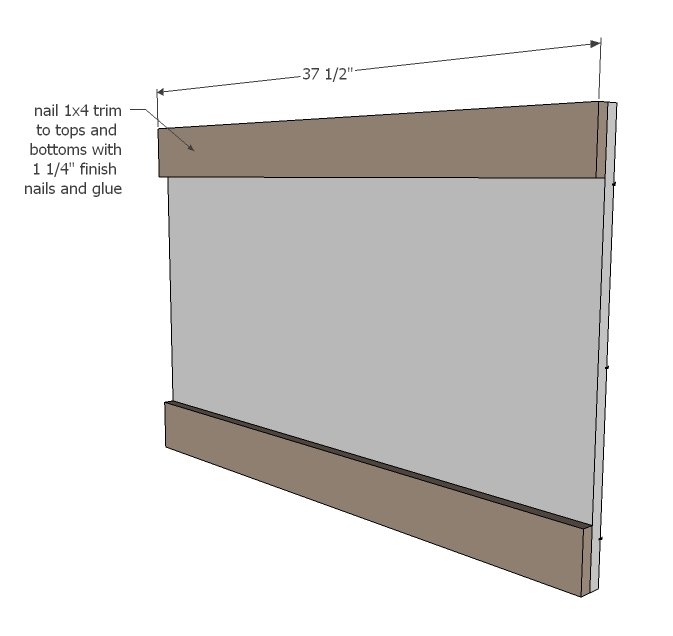

Step 2

Then add the top and bottom trim to fronts. TIP: you can also Kreg Jig the slats (next step) to top and bottom trim before attaching.

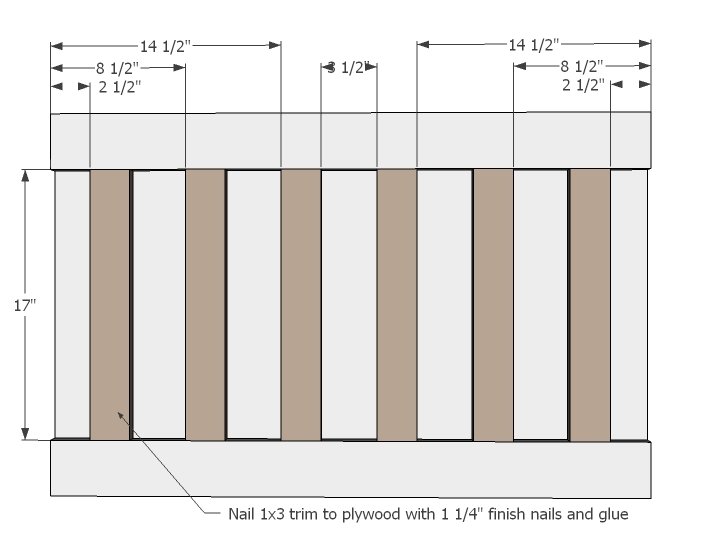

Step 3

Attach slats, spaced as shown in diagram.

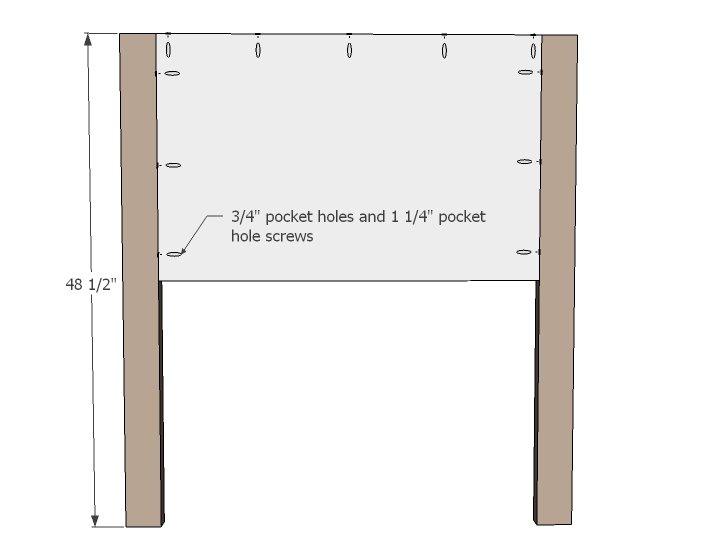

Step 4

Now for the headboard, attach longer legs.

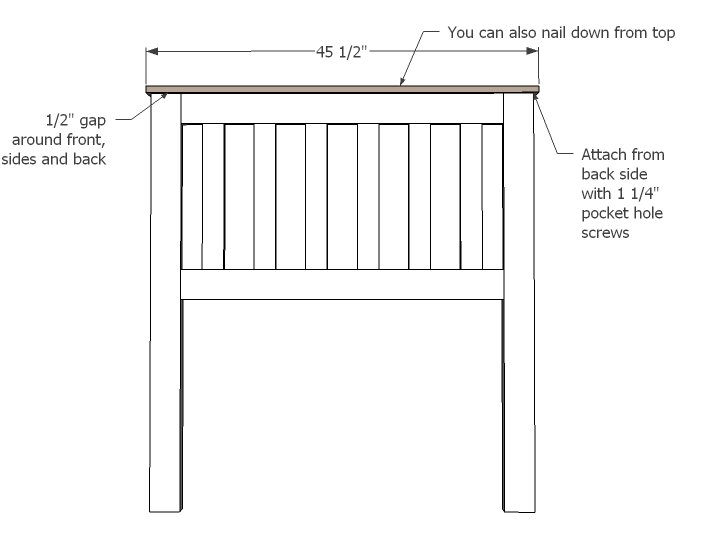

Step 5

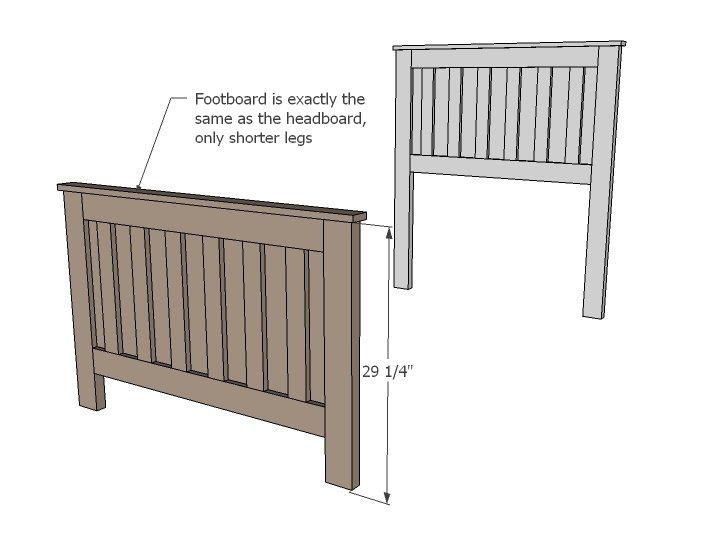

Step 6

Footboard is same as headboard, only uses shorter legs. I like simple:)

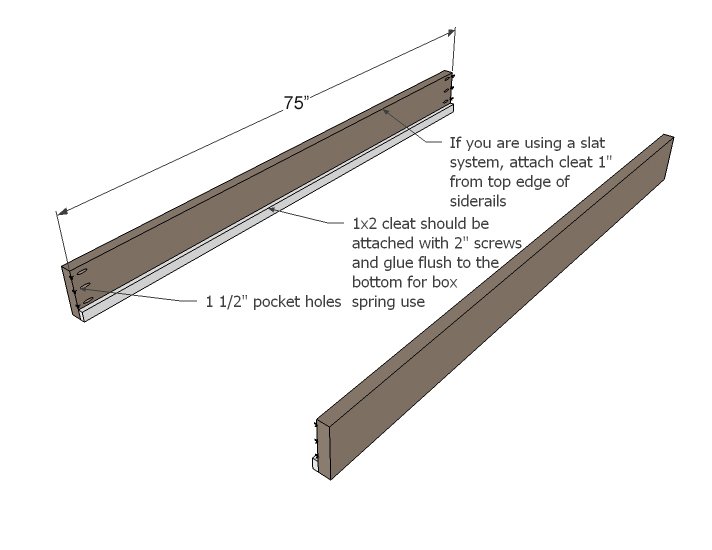

Step 7

Now let's build those siderails! If you have a boxspring, you probably want the cleat attached at lowest possible position. Without a boxspring - using a slat system - you might wish to attach cleat at highest possible position - 1" down from top edge.

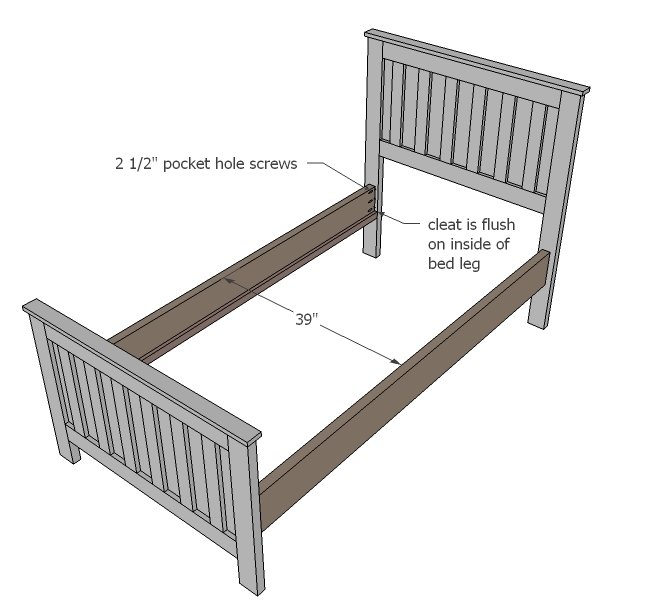

Attach siderails to headboard and footboard.

NOTE: For easier assembly/disassembly you can buy special bed hardware for attaching siderails.

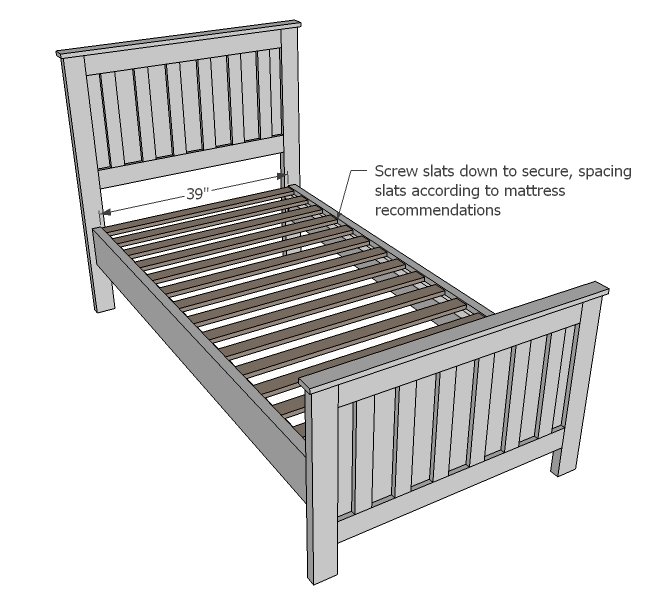

Step 9

And finally, add slats or bunkie board or box spring.

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
