Kids Art Center

DIY Kid's art center plans from

Kids Art Center

Specifications

Project typeKids Tables and Chairs
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyIntermediate
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

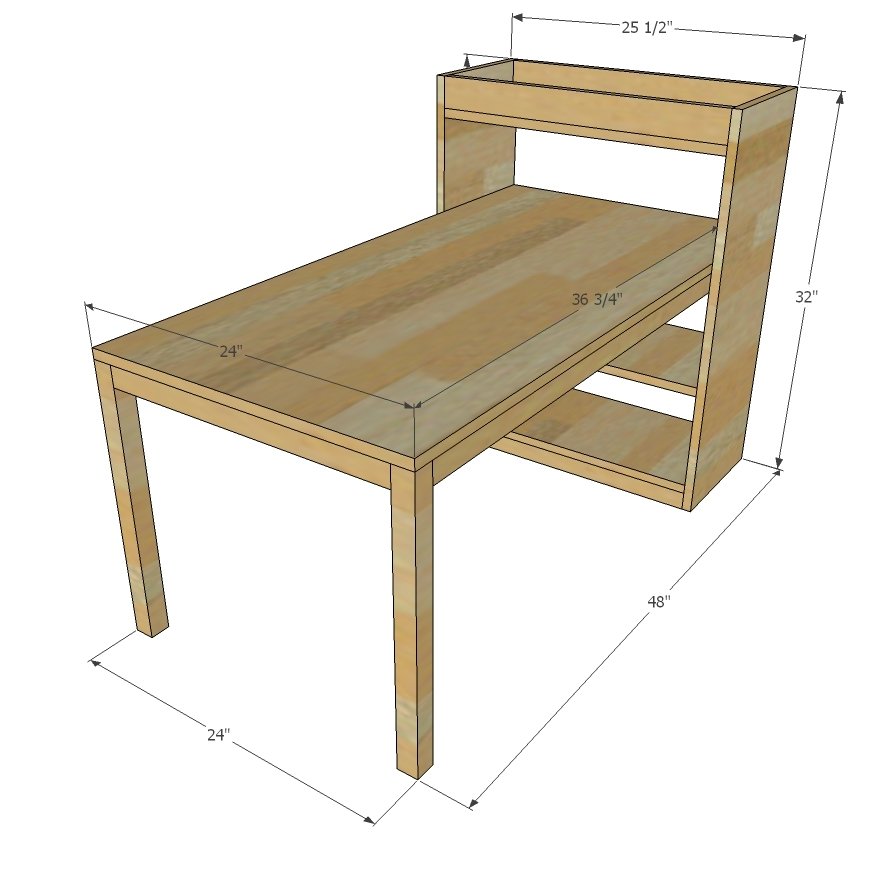

Kids Art Center dimension diagram 1

Shopping List

12 feet of 1x12 boards

4 feet of 1x3 boards

2 - 1x2 @ 8 feet long

1 - 2x2 @ 4 feet long

1 - 3/4" plywood or project panel 48" x 24" (available off the shelf)

Cut List

BOOKSHELF

2 - 1x12 @ 32" (Sides)

2 - 1x3 @ 24" (Top)

2 - 1x2 @ 24" (Bottoms)

3 - 1x12 @ 24" (Shelves)

2 - 1x2 @ 11-1/4" (Cleats)

TABLE

2 - 2x2 @ 20-1/4" (Legs)

2 - 1x2 @ 46-1/2" (Side Aprons)

1 - 1x2 @ 21" (Front Apron)

1 - 3/4" plywood or other tabletop @ 24" x 48" (tabletop)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

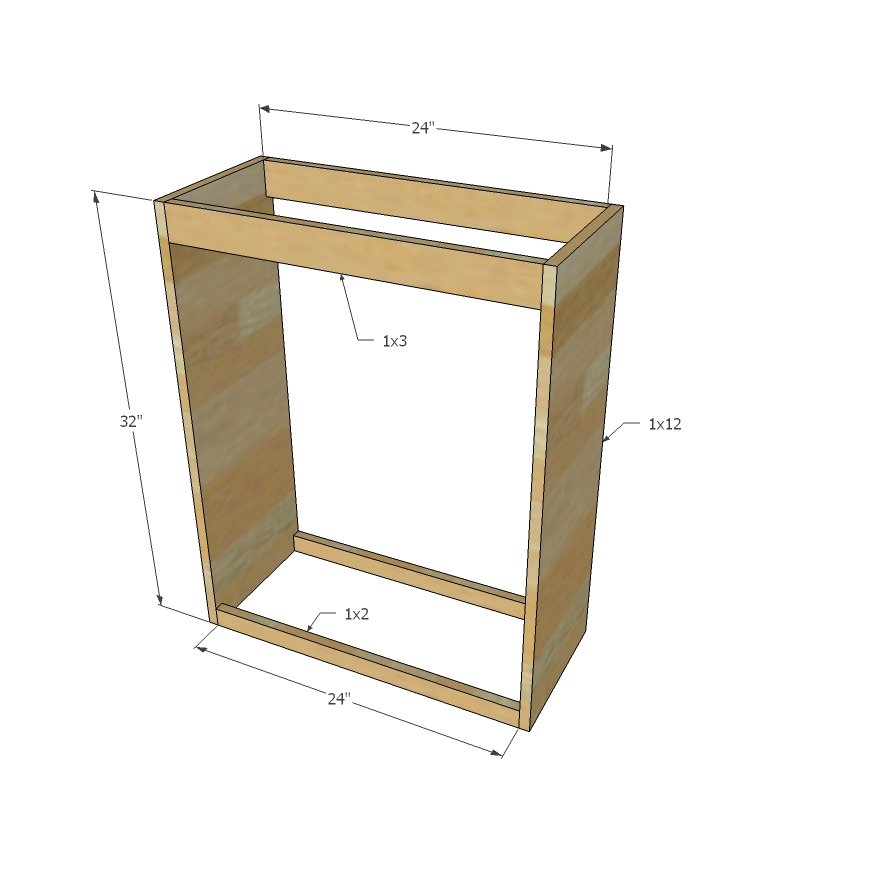

Attach bottom and top boards to the two side 1x12s. 3/4" pocket holes and 1-1/4" pocket hole screws and glue are preferred but you could also attach with 2" countersunk screws from outsides of 1x12s with glue.

Kids Art Center — step 1
2

Step 2

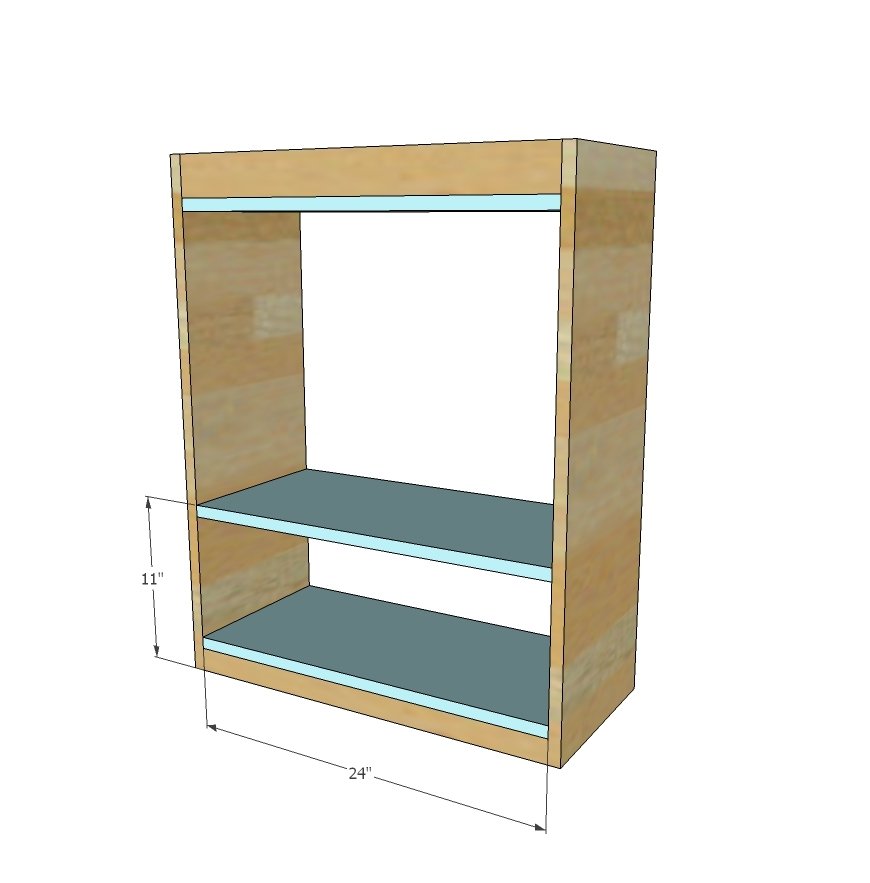

Attach shelves next, with the top and bottom shelves on top/bottom of boards from step 1. Recommend attaching first with pocket holes, than glue and nailing into the 1x2s/1x3s.

Kids Art Center — step 2
3

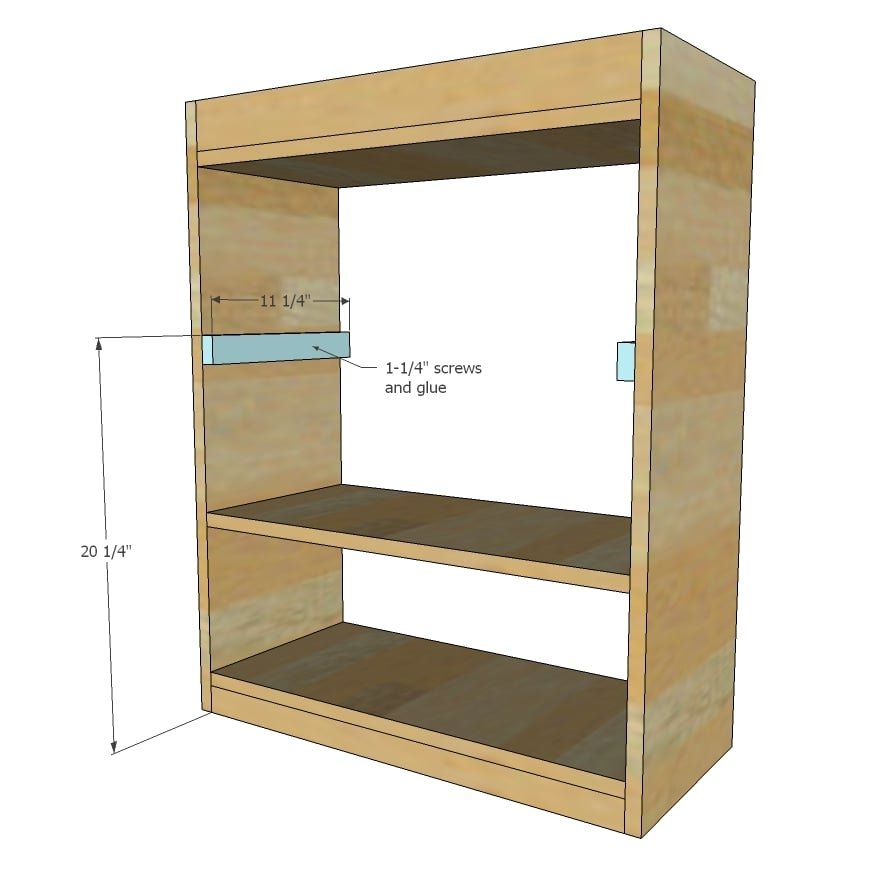

Attach cleats to inside of bookshelf with 1-1/4" screws or nails and glue.

This completes the bookshelf.

Kids Art Center — step 3
4

Step 4

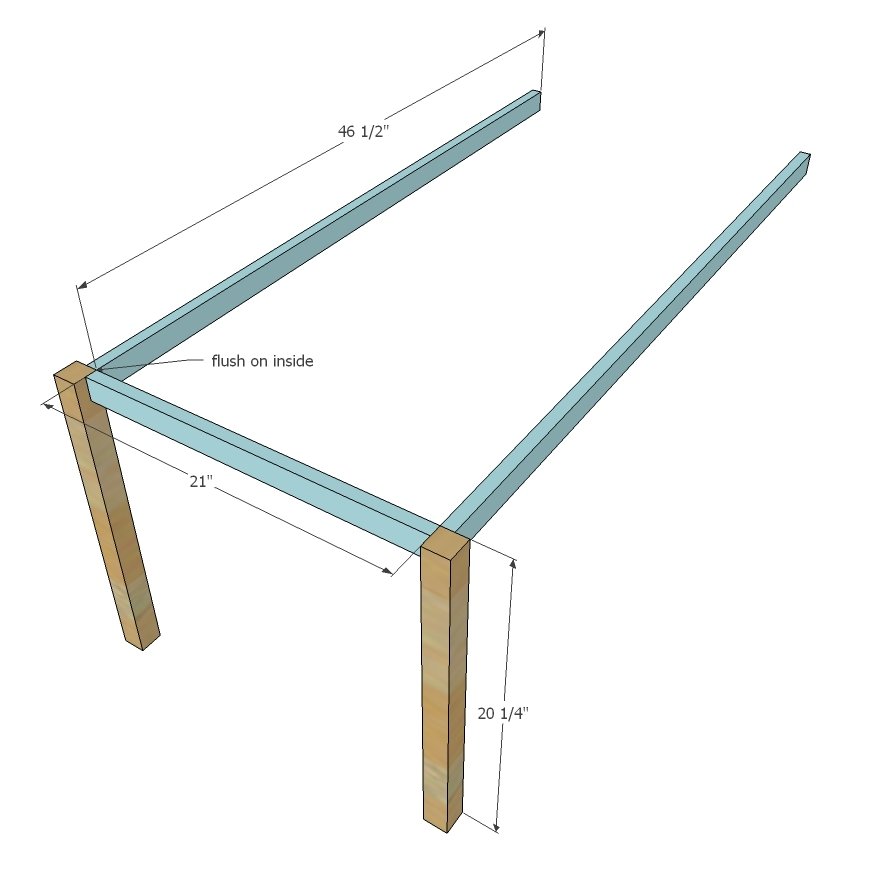

Now, the table. Drill 3/4" pocket holes on ends of end apron, and one end of side aprons. Attach to legs, flush to inside, with 1-1/4" pocket hole screws and glue. TIP: Also drill 3/4" pocket holes facing upward in aprons for attaching tabletop in next step.

Kids Art Center — step 4
5

Step 5

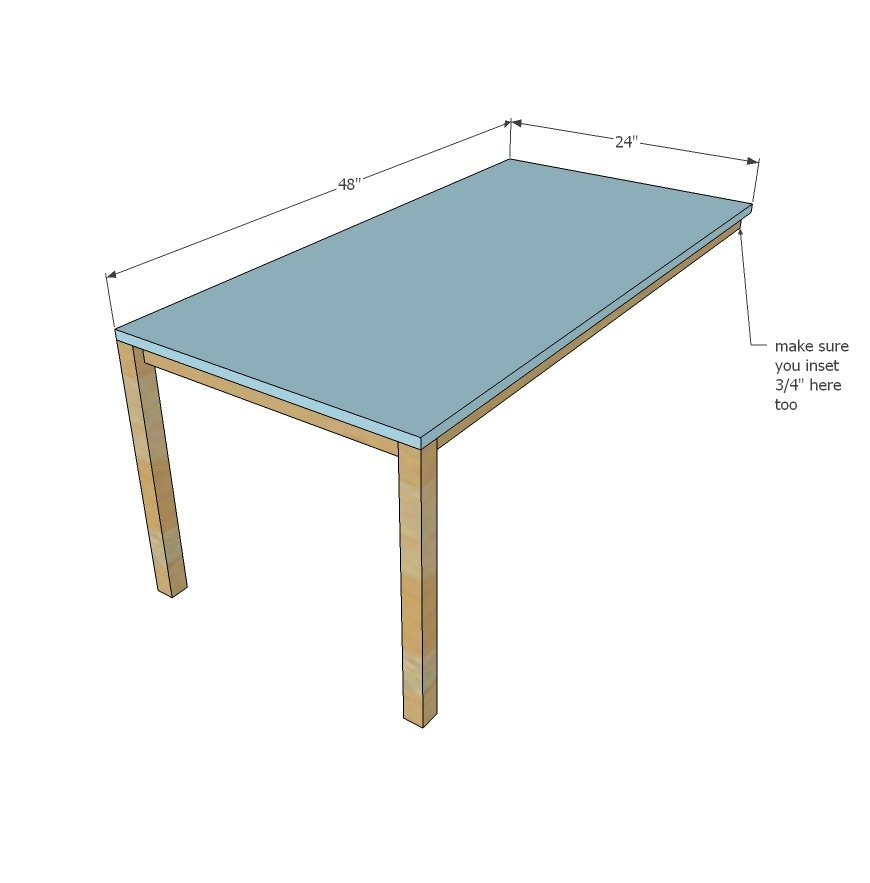

Kids Art Center — step 5
6

Step 6

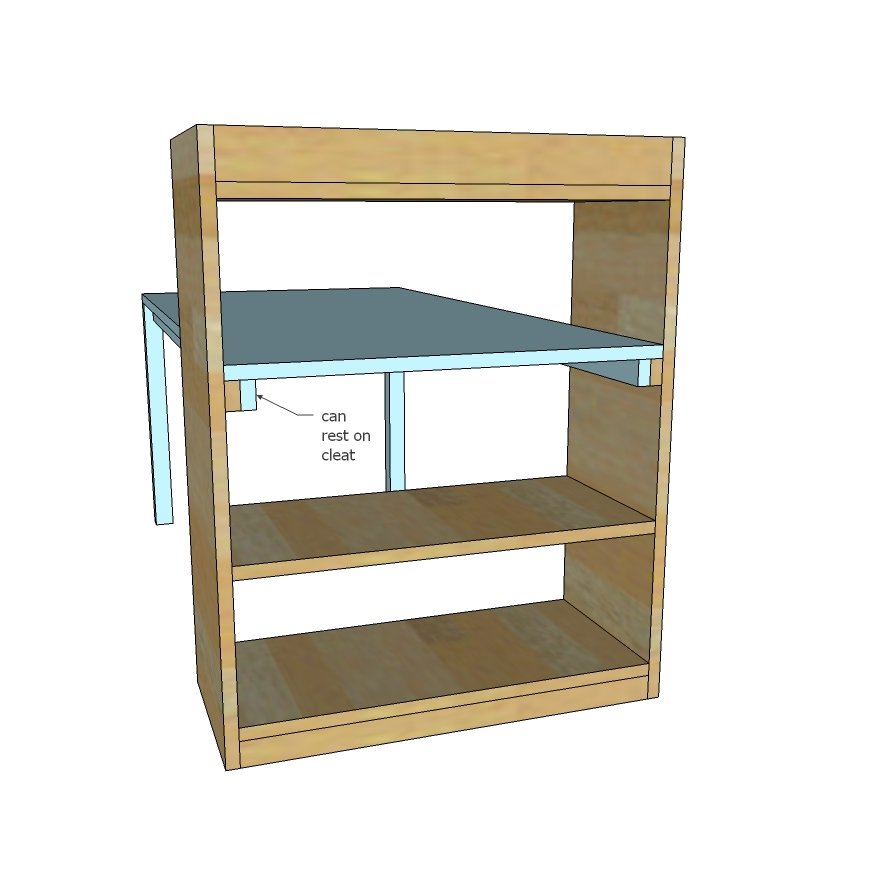

Table then can just rest on the cleats. You can also secure table aprons to cleats with screws.

Kids Art Center — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
