King Panel Headboard
Build a headboard out of 2x4s and baseboard moulding - step by step king size plans from
Specifications
| Project type | Headboard |
|---|---|
| Room | Bedroom |
| Difficulty | Intermediate |

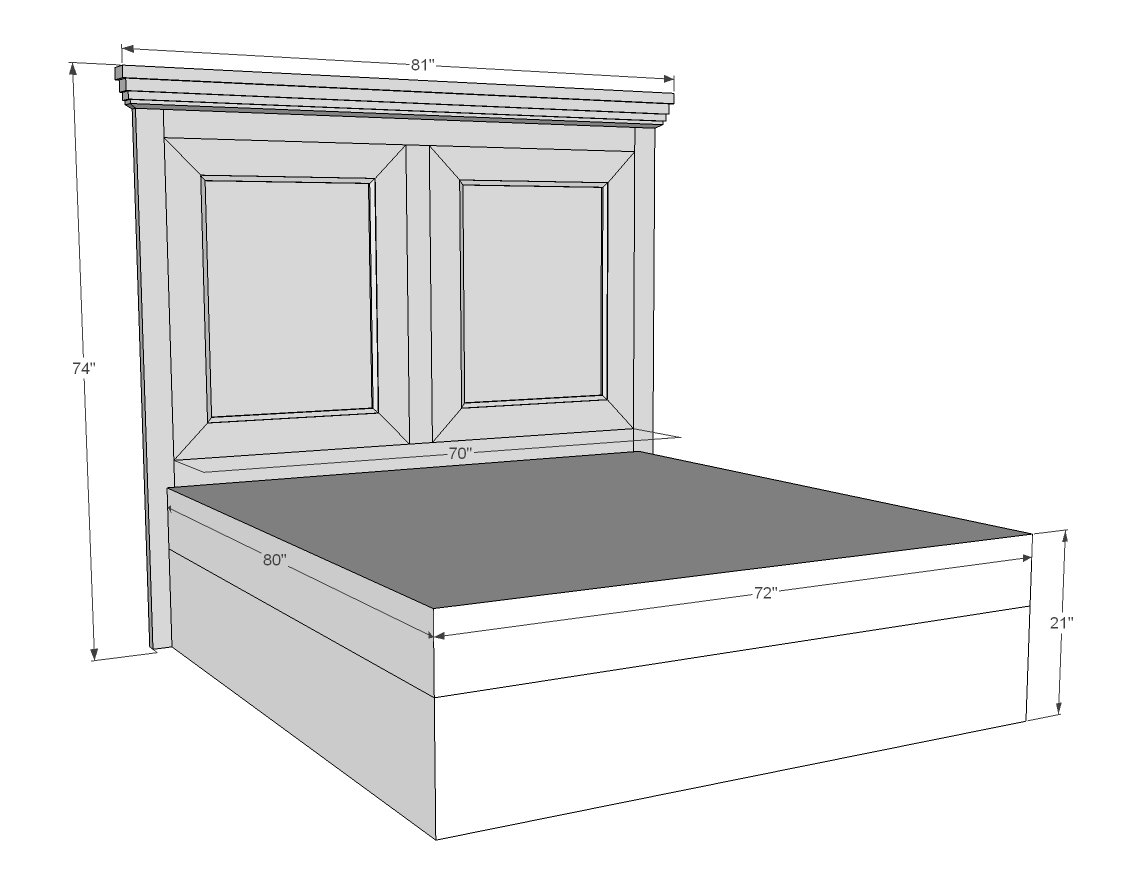

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
4 - 2x4 @ 8 feet or stud length
3 - 1x4 @ 6 feet long
1 - 3/4" or 1/2" plywood or other sheet goods (can use MDF for paint grade) full sheet
4 - 8' sticks of 5-1/4" base moulding
8' of crown moulding, no taller than 3-1/2" and no wider than 2" installed
1-1/4" and 2-1/2" pocket hole screws
1" finish nails
1-1/4" screws (can use pocket hole screws here)
L bracket or other hardware for attaching headboard to wall to prevent forward tipping
Cut List
2 - 2x4 @ 72-1/2" (legs)
1 - 2x4 @ 70" (header)
1 - 2x4 @ 81" (top)
2 - 1x4 @ 70" (panel trim)
1 - 1x4 @ 41" (panel trim)
1 - 3/4" plywood @ 48" x 70" (panel)
5-1/4" base moulding cut to fit
crown moulding cut to fit
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- compound miter saw
- nailer
- sander
Step-by-step Instructions

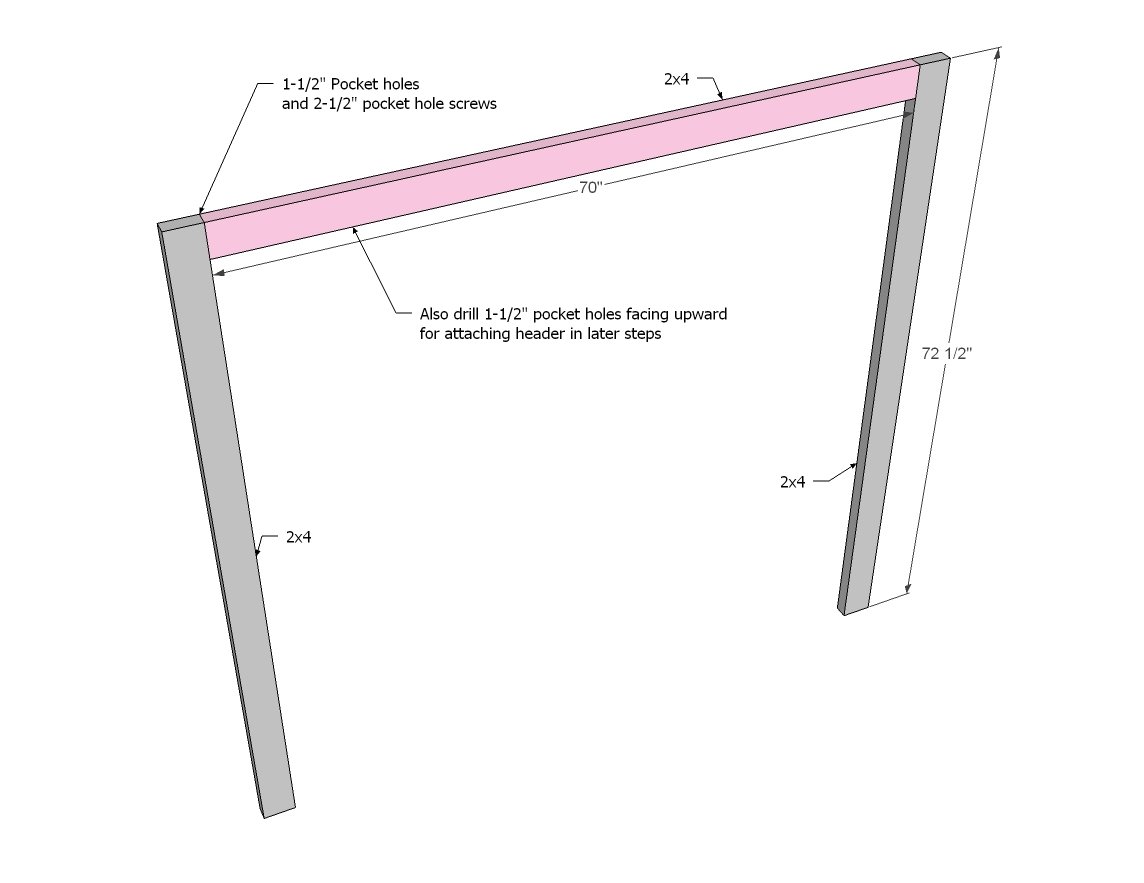

Attach the header to the two legs, flush on all outsides.
NOTE: Drill 1-1/4" pocket holes facing upward on the top of legs and the header for attaching top in next step.
Step 2

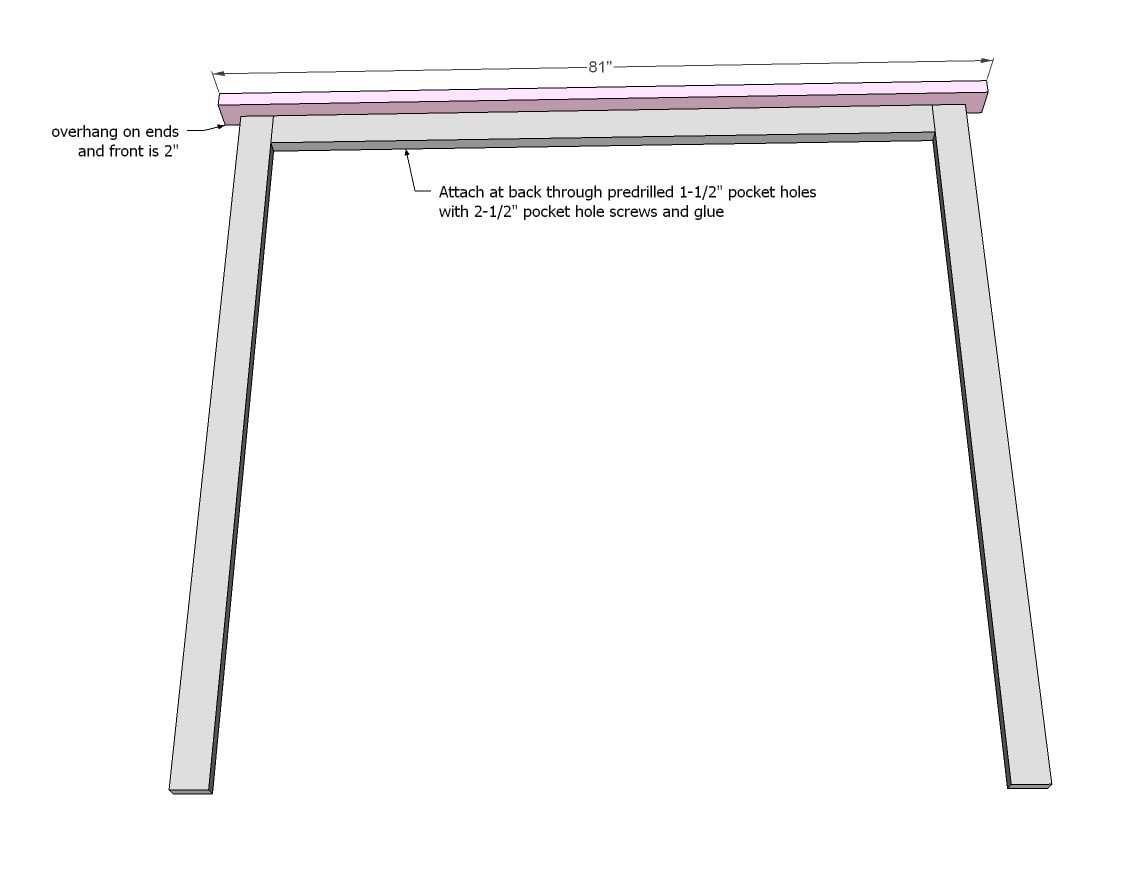

Attach top to the top and top of legs.
Step 3

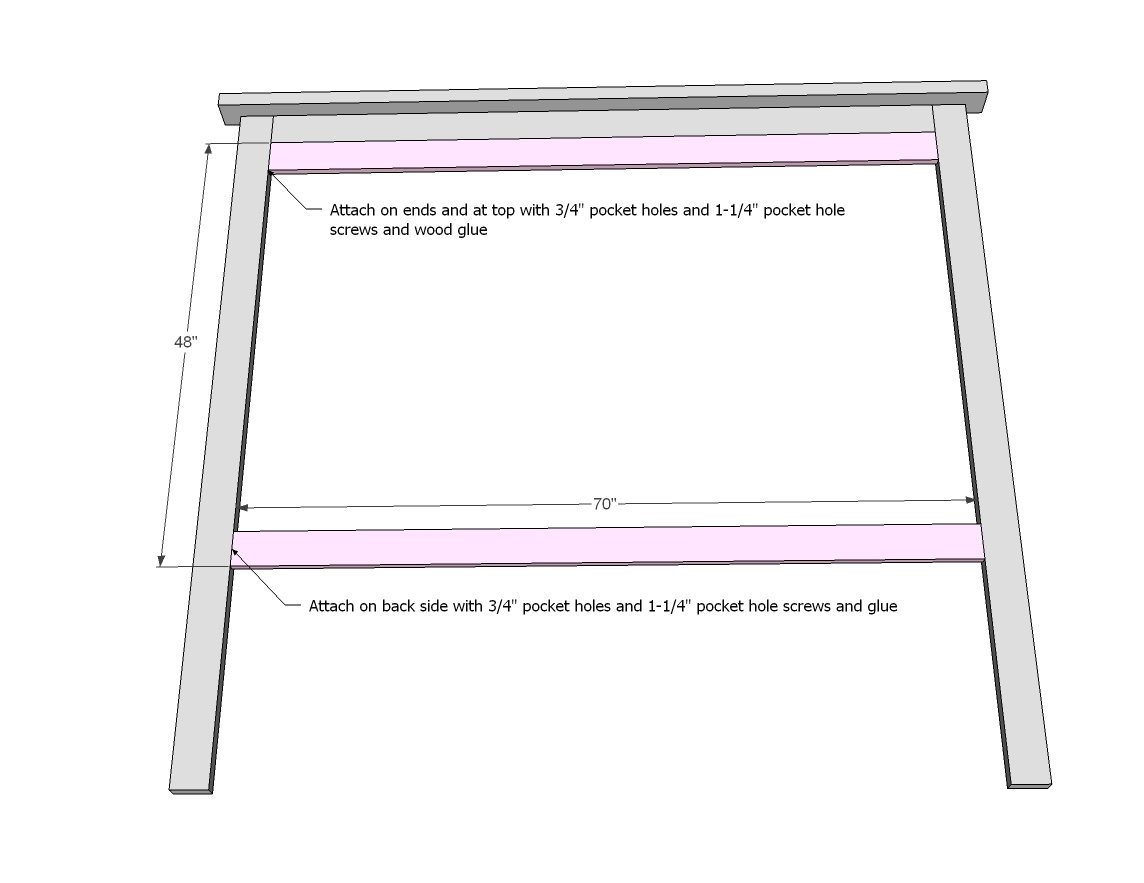

Attach the two longer 1x4 panel trim boards to the legs. Use 3/4" pocket holes and 1-1/4" pocket hole screws.
Step 4

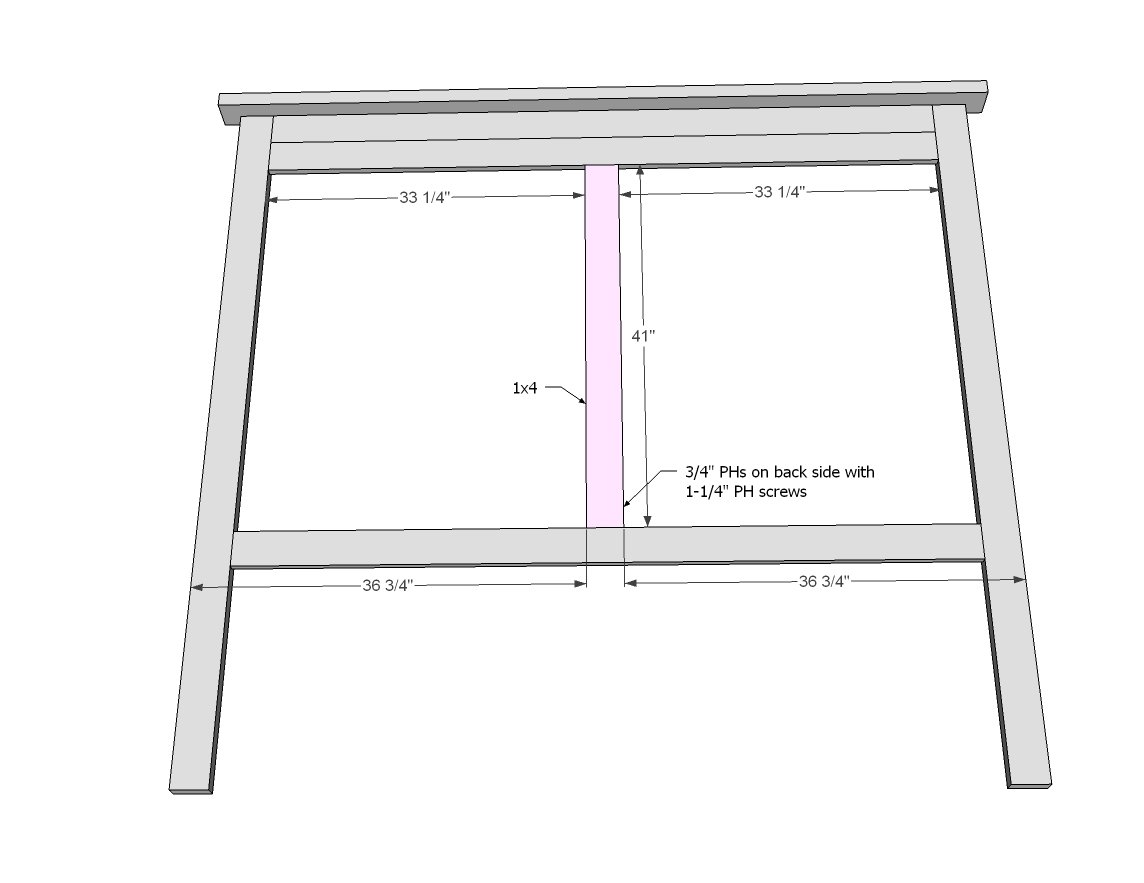

Add the center stile 1x4 down the middle, centered on the longer 1x4s. Use 3/4" pocket holes and 1-1/4" pocket hole screws.
Step 5

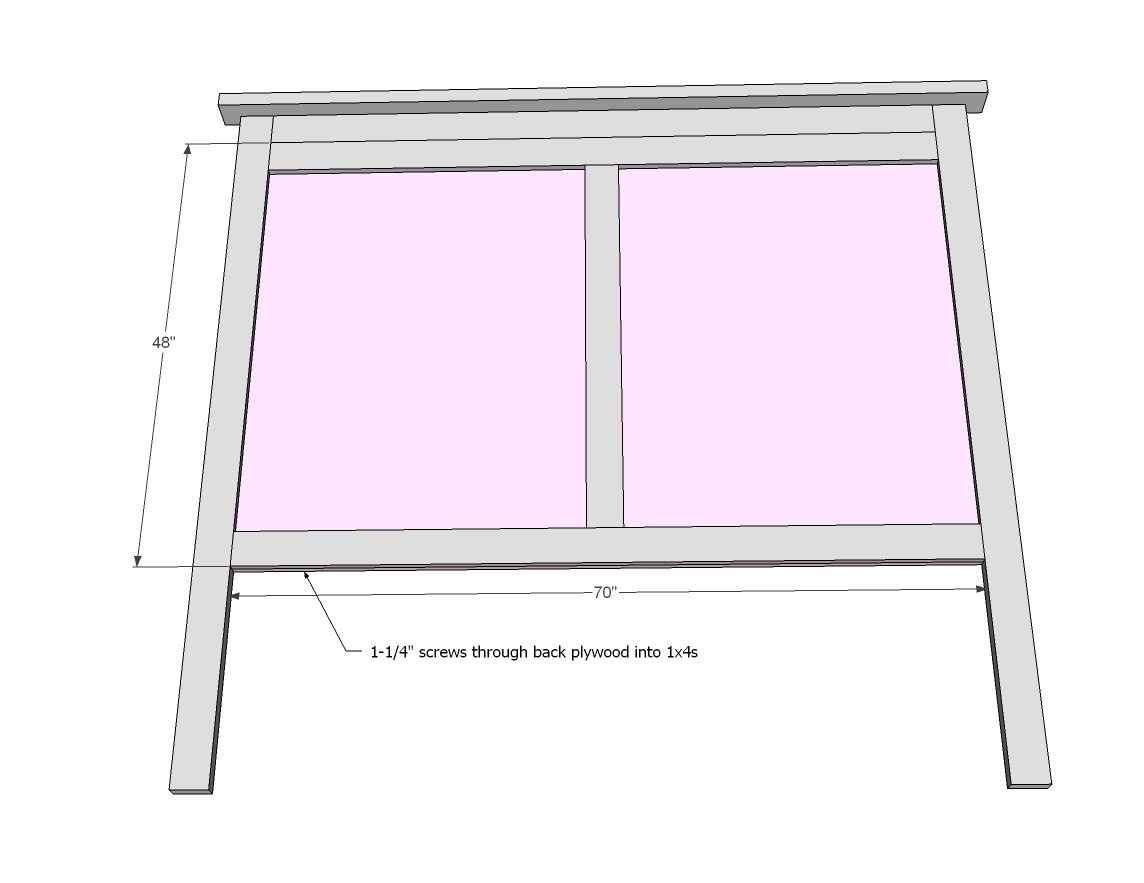

Step 6

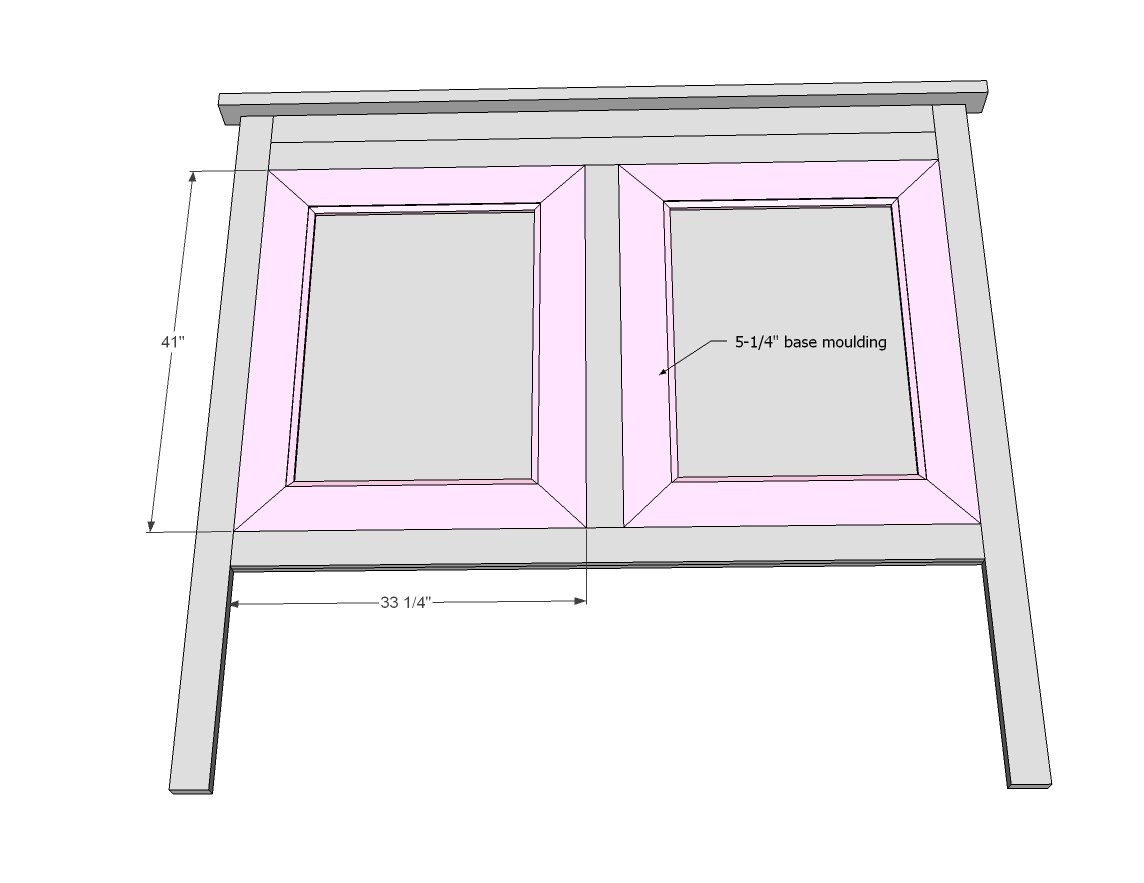

Cut your baseboard moulding to fit - longest pieces first, and attach with 1" finish nails and glue to insides of 1x4 frames.
Step 7

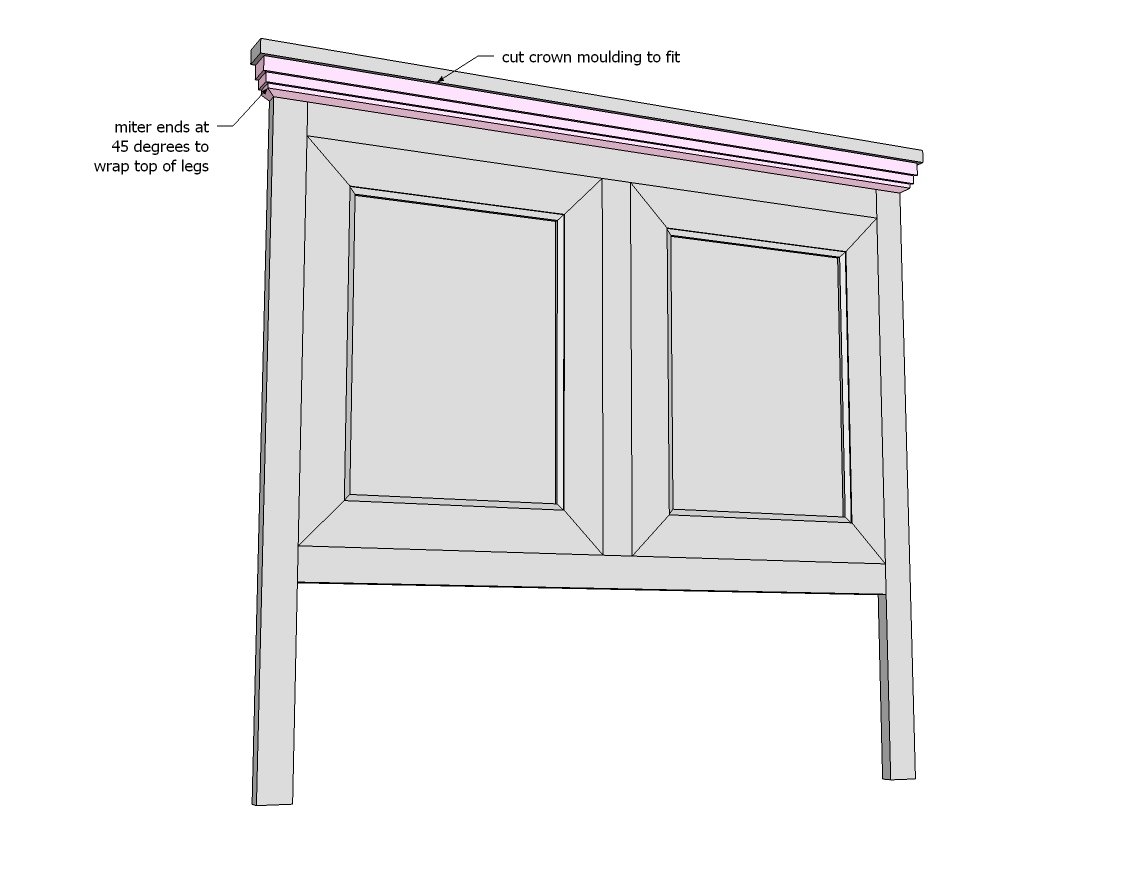

Attach crown moulding with finish nails and glue around top, mitering corners.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
