Large Henry Desk

build a pottery barn hendrix inspired desk - from

Large Henry Desk

Specifications

Project typeDesk, Desk Systems and Project Table Plans
RoomCraftroom
StyleFarmhouse Furniture
DifficultyIntermediate
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

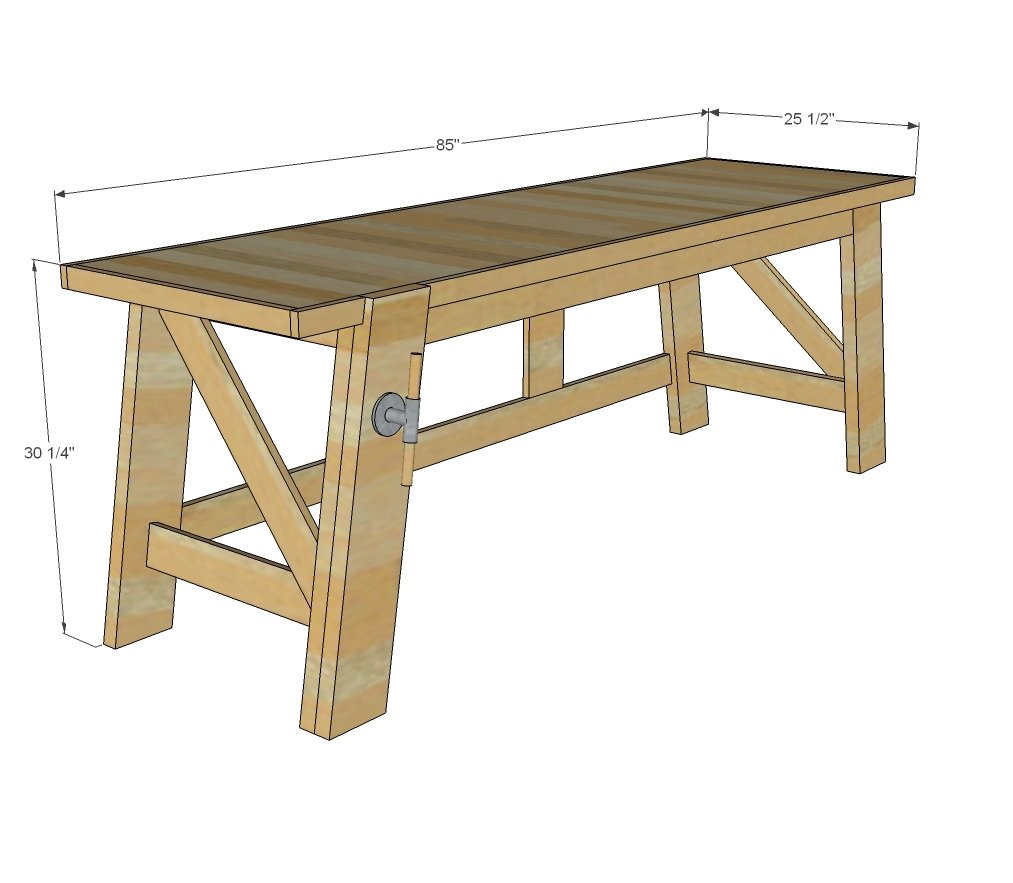

Large Henry Desk dimension diagram 1

Shopping List

3 - 1x4 pine or whitewood boards 8 feet long

3 - 1x2 pine or whitewood boards 8 feet long

1- 1x6 @ 3 feet long

2- 2x4 @ 8 feet long

2 - 2x6 pine or whitewood boards 8 feet long

24"x96" pine project panel

1-1/4” and 2-1/2” pocket hole screws

1-1/4” staples

Wood glue

Handle or knob

Optional decorative vise

Cut List

2 - 2x4 @ 63-1/4” - both ends cut at 10 degrees off square, NOT parallel, long point to long point measurement (top aprons, front and back)

1 - 1x4 @ 70-1/4” - both ends cut at 10 degrees off square, NOT parallel, long point to long point measurement (back base support)

2 - 1x6 @ 16-1/4” - (back vertical supports)

4 - 2x6 @ 29-3/4” - both ends cut at 10 degrees off square, ends ARE parallel, long point to short point measurement (legs)

4 - 1x4 @ 21” (side aprons and base supports)

2 - 1x4 @ 28-7/8” - both ends cut at 45 degrees, ends ARE parallel, long point to short point measurement (side cross supports)

1 - 2x6 @ 30-3/4” - both ends cut at 10 degrees off square, ends ARE parallel, long point to short point measurement (decorative front leg)

3/4" thick tabletop or pine project panel @ 24" x 83-1/2"

2 - 1x2 @ 24” (side top trim)

Cut front top trim to fit - angle will be 10 degrees

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw
  • nailer

Step-by-step Instructions

1

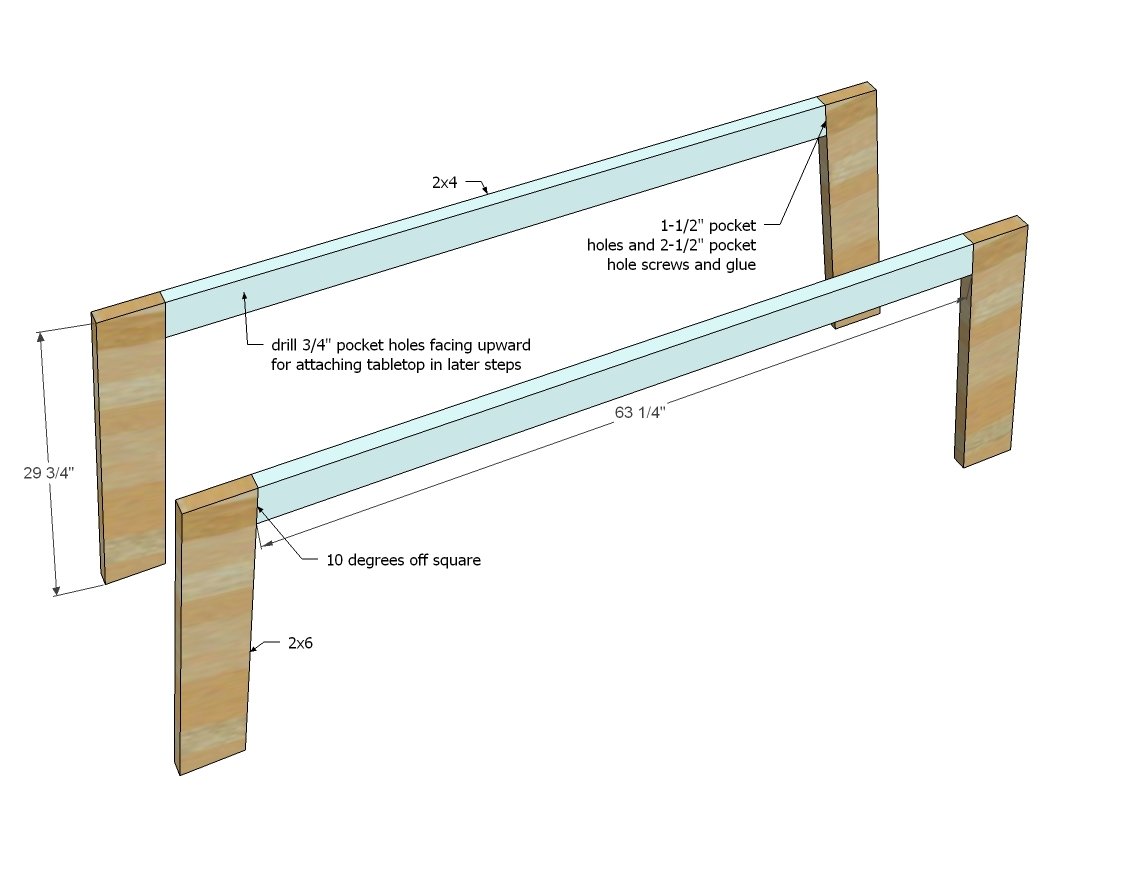

Step 1

Attach front / back aprons to legs, flush on top and legs, with 1-1/2" pocket holes and 2-1/2" pocket hole screws. The two should match perfectly. Make sure you also drill 3/4" pocket holes facing upward for attaching the tabletop in later steps on the apron insides.

Large Henry Desk — step 1
2

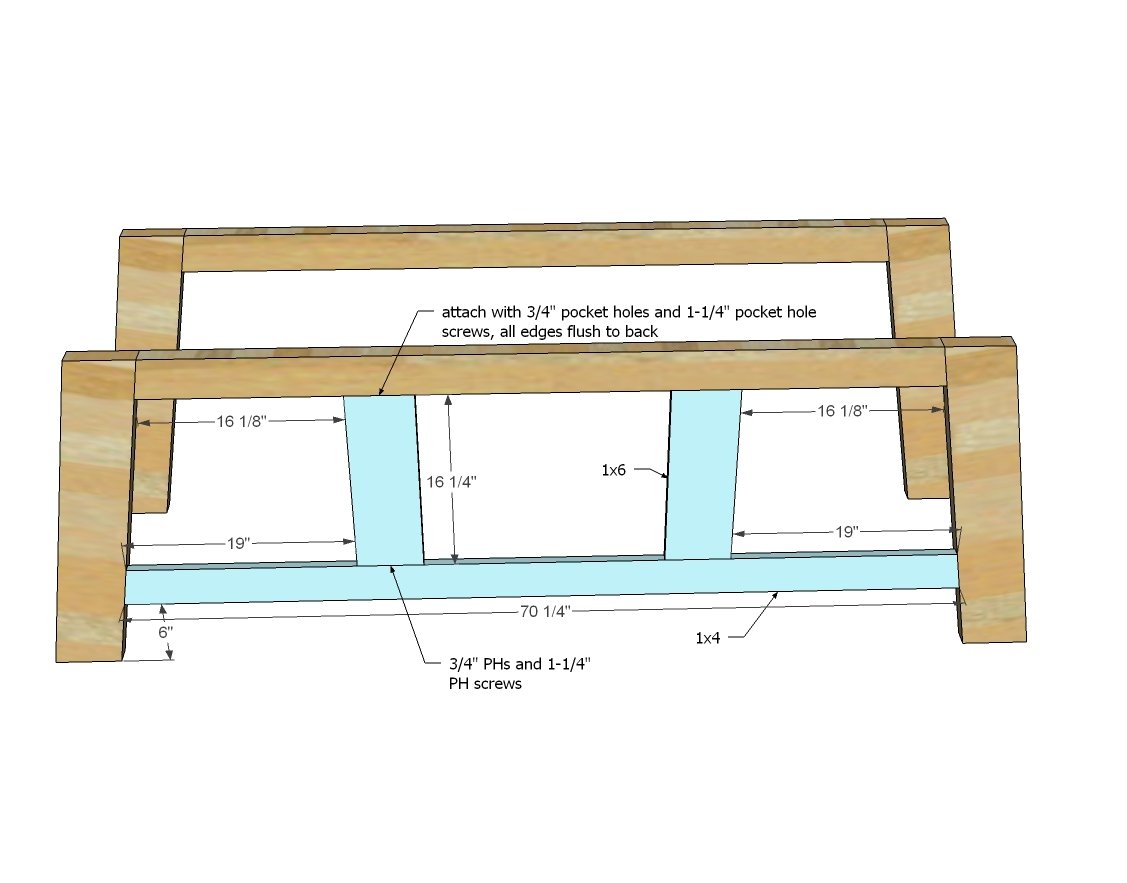

Step 2

On the back, attach the back supports, this time use 3/4" pocket holes and 1-1/4" pocket hole screws since these boards are 1x stock.

Large Henry Desk — step 2
3

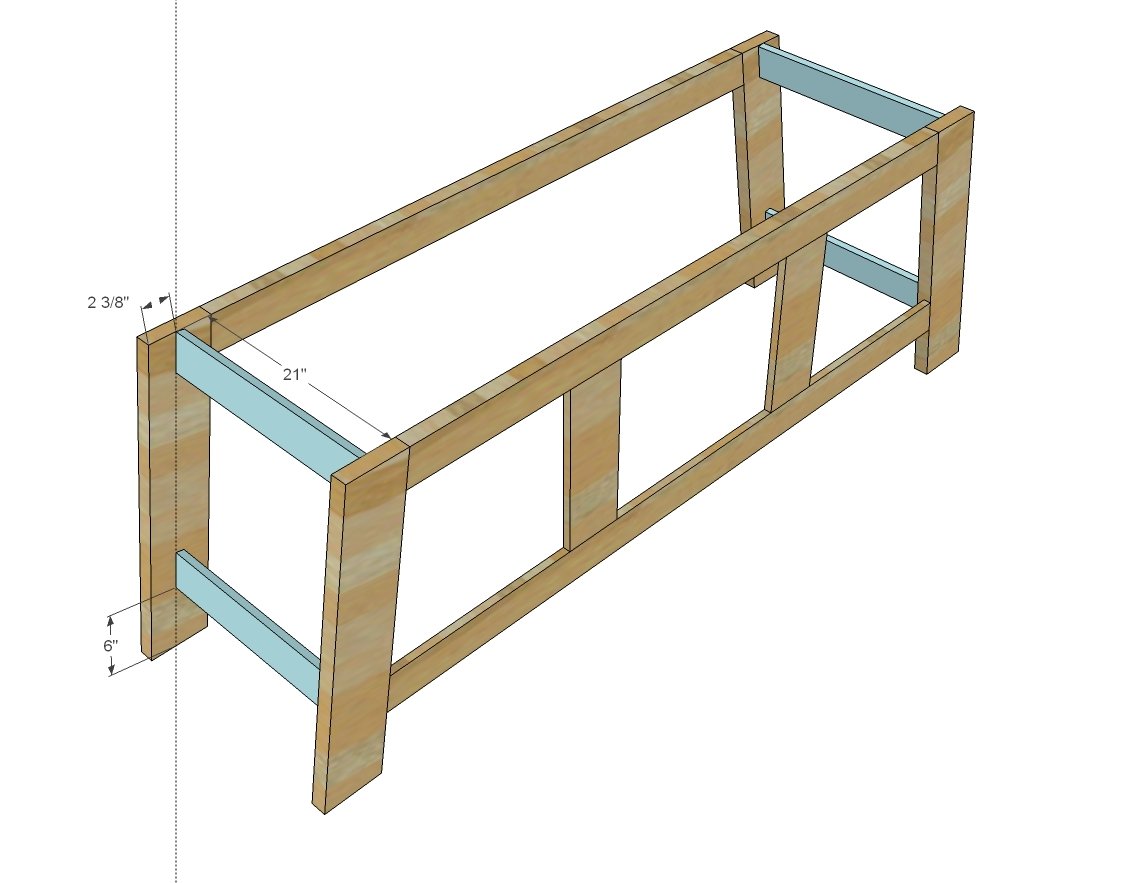

Step 3

Attach the front and back panels together with the 1x4 boards using 3/4" pocket holes and 1-1/4" pocket hole screws.

Large Henry Desk — step 3
4

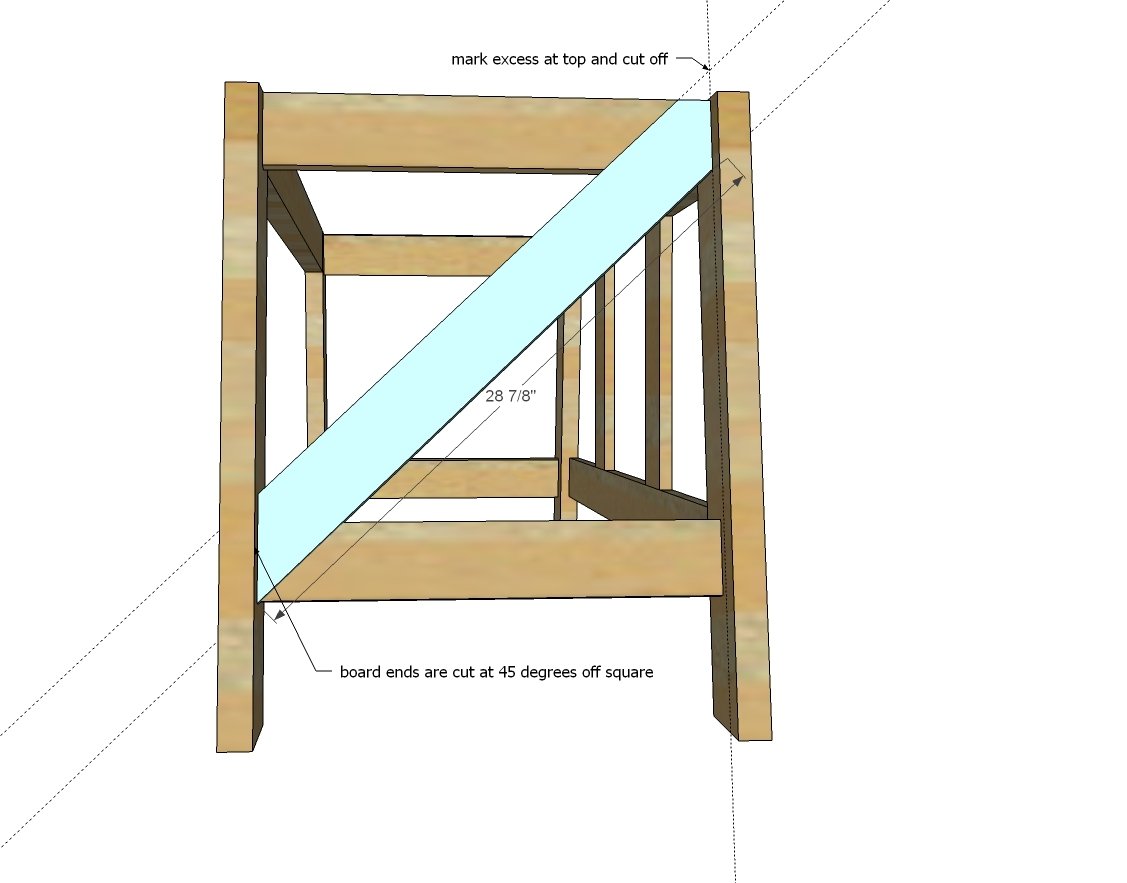

Step 4

Trim top off the cross supports and glue and nail to the side supports with 1-1/4" fastners (I used staples).

Large Henry Desk — step 4
5

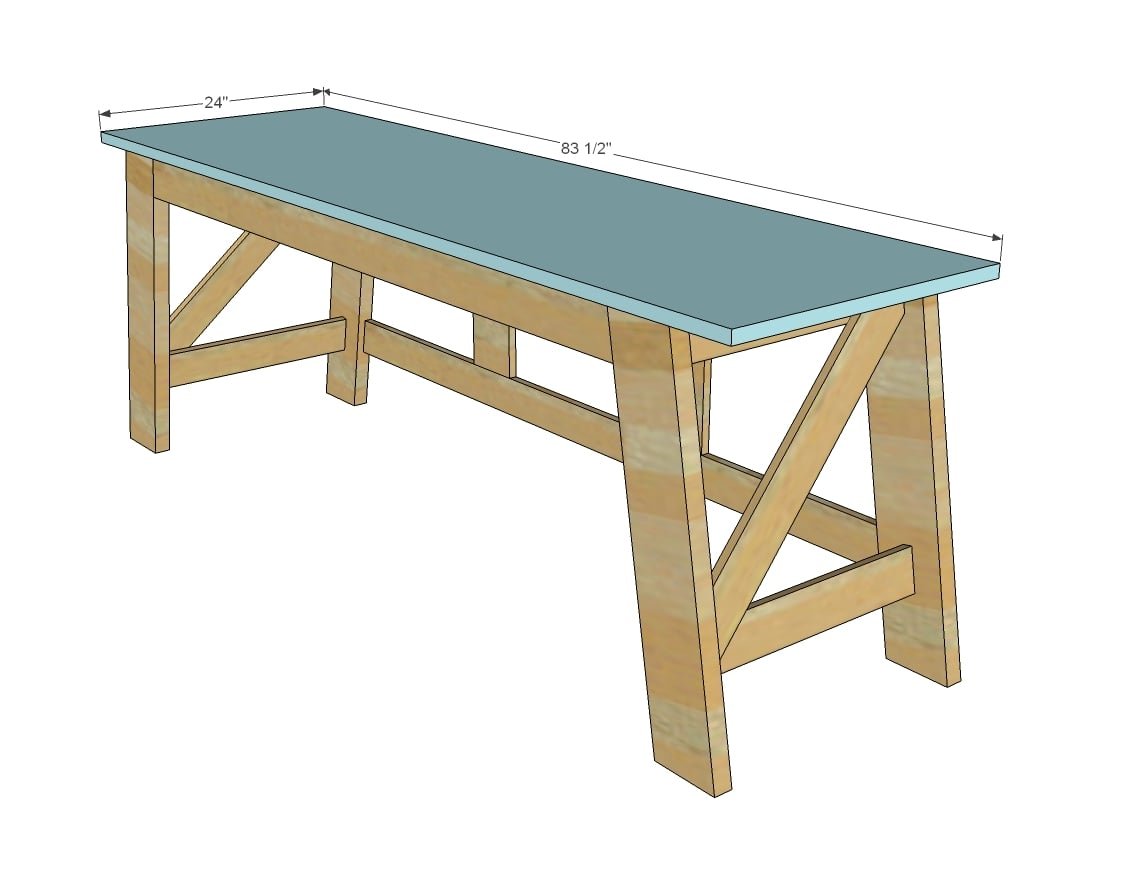

Step 5

Large Henry Desk — step 5
6

Step 6

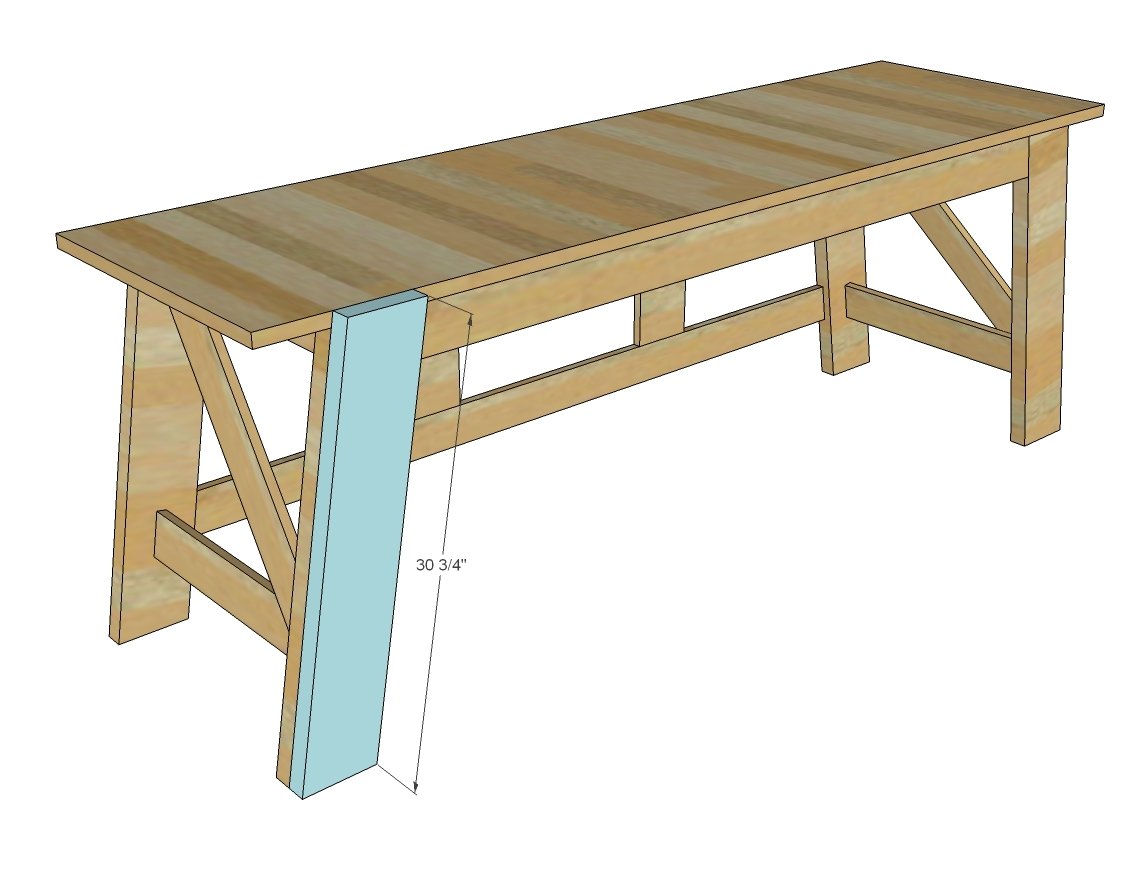

Attach false front leg with glue (I just clampled and glued but you could also throw a few 2-1/2" screws in from the back side).

Large Henry Desk — step 6
7

Step 7

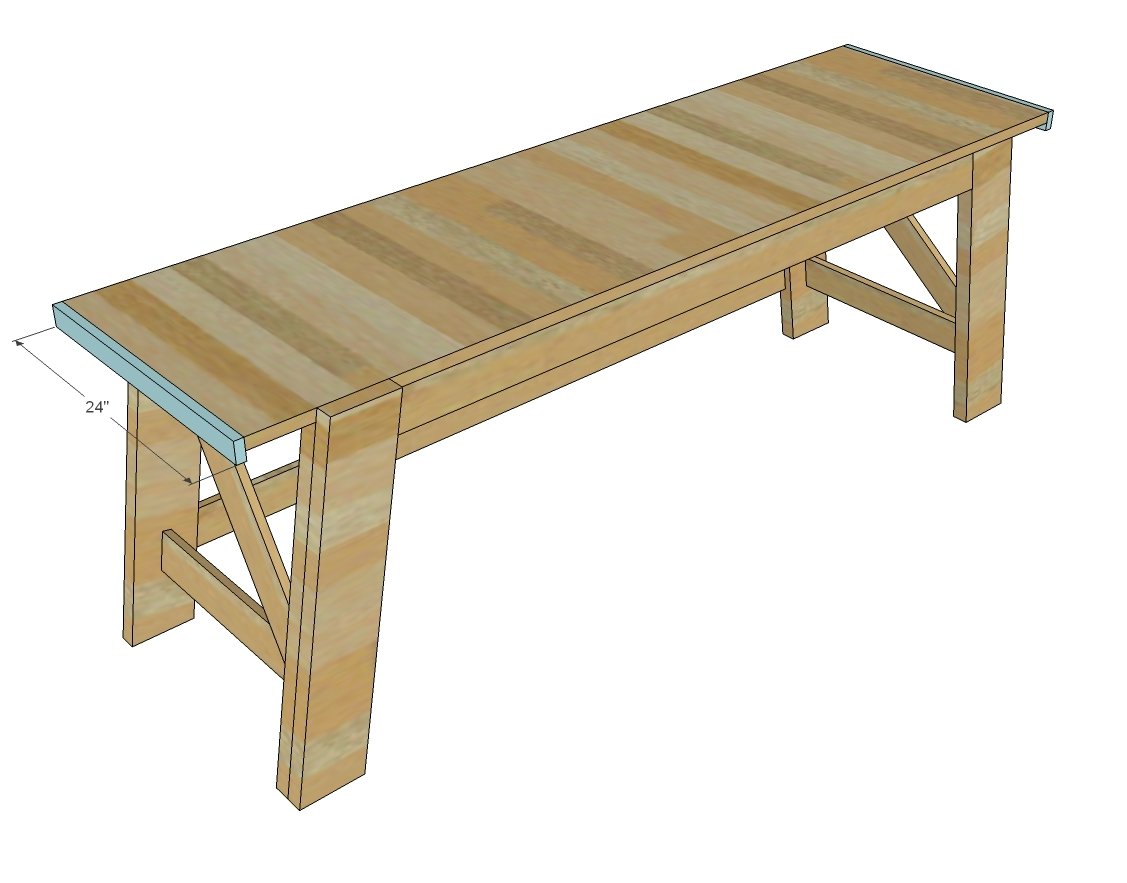

Trim out ends with 1x2s, flush to top.

Large Henry Desk — step 7
8

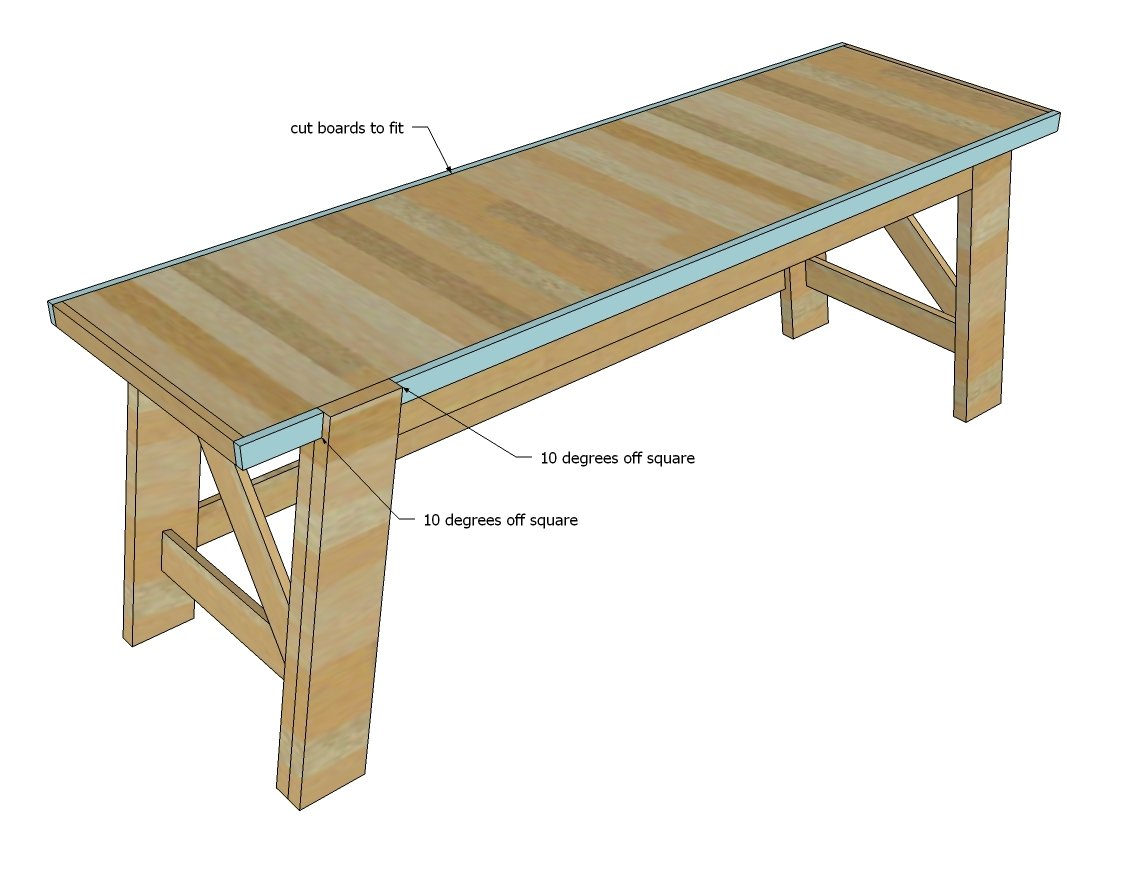

Step 8

Trim front and back out with 1x2s.

Large Henry Desk — step 8
9

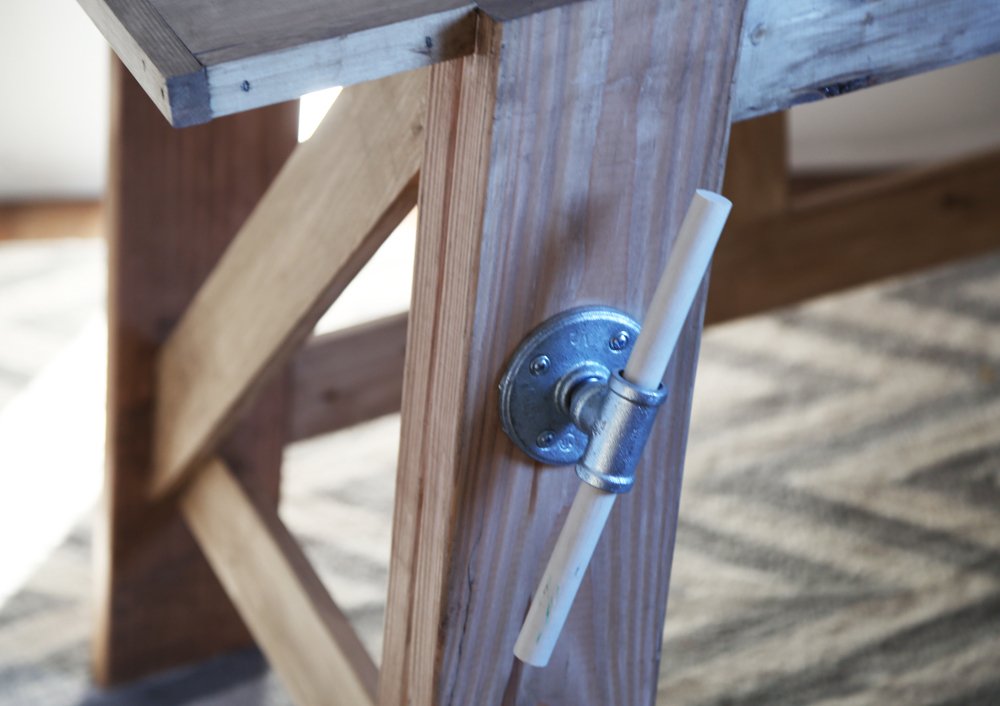

Step 9

For the vise, I used pipe fittings and screwed a wood dowel in. Those are all 3/4" pipe fittings.

Large Henry Desk — step 9
10

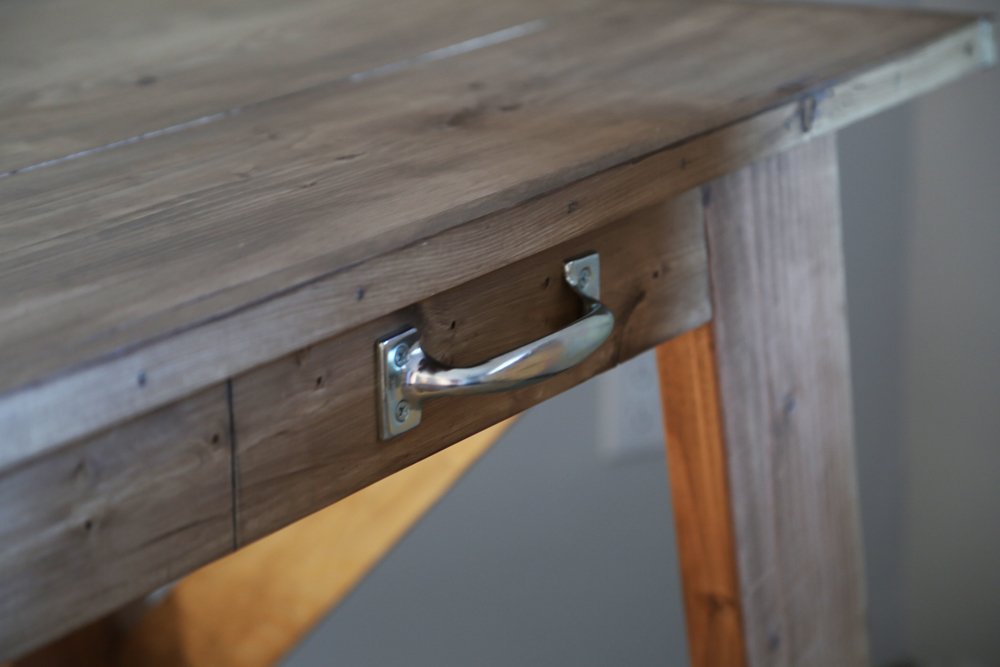

Step 10

I did not do the drawer so instead just put a handle on to get the look.

Large Henry Desk — step 10
11

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
