Leaning Fishing Rod Rack
DIY Leaning Fishing Rod Rack Here’s a great way to store LOTS of fishing rods with reels — even different rod lengths — while protecting the reels safely on the inside, without mounting anything to the wall! Built with just two 2x4 boards and one 1x8 board, this compact leaning fishing rod holder can store up to 30 fishing rods in about a one-square-foot footprint. Perfect for garages, cabins, shops, mudrooms, and fishing camps. Fishermen will love how easy it is to organize rods, keep reels protected, and quickly grab the right setup before heading out on the water. This exclusive brand-new design from is: • Beginner friendly • Fast and easy to build • Budget friendly • Freestanding (no wall mounting required) • Customizable for different rod collections Build it in an afternoon with basic tools and inexpensive lumber! Free
Specifications
| Project type | Workshop and Garage Plans |
|---|---|
| Room | Garage and Workshop |
| Difficulty | Beginner Projects |

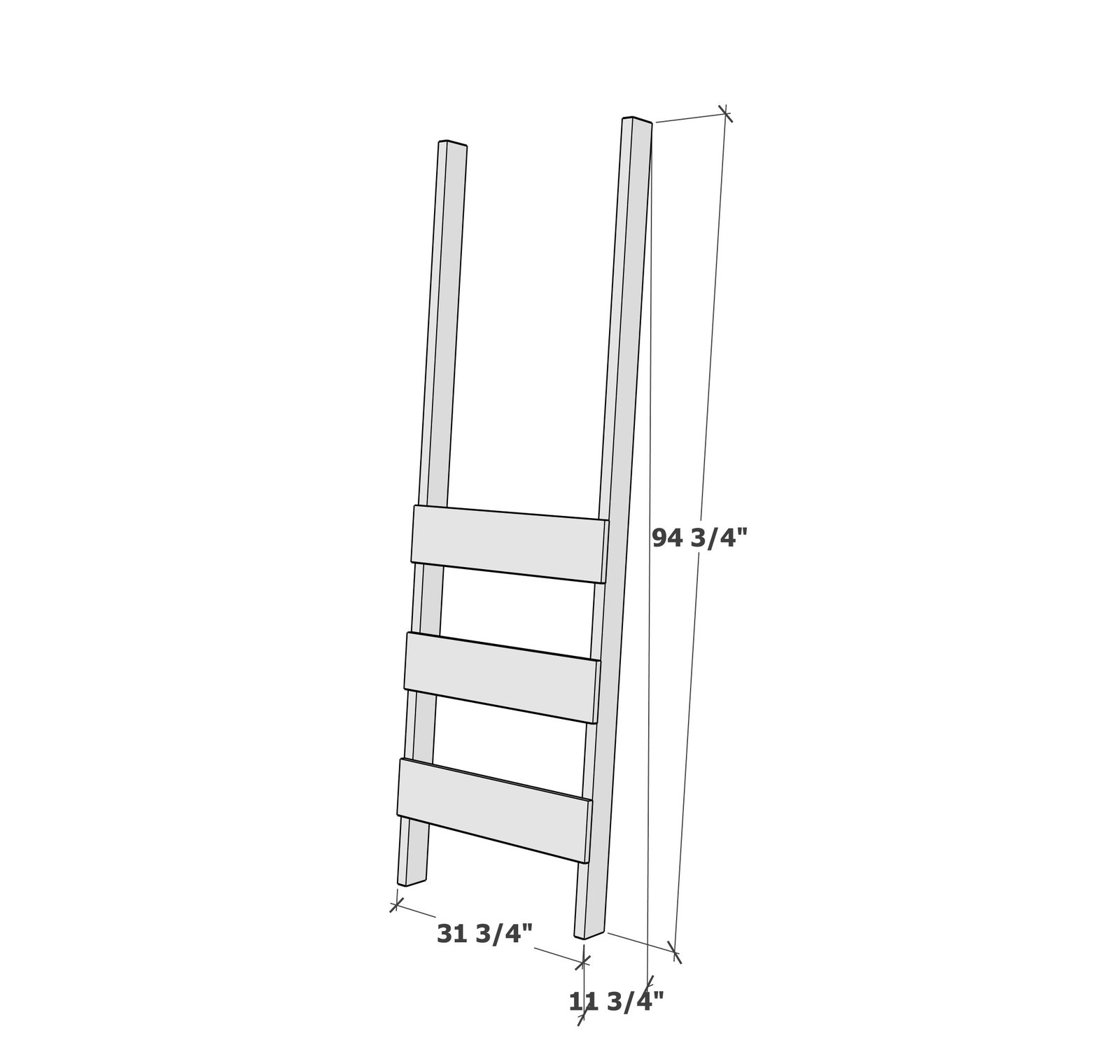

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 2 - 2x4 @ 8 feet long
- 1 - 1x8 @ 8 feet long
- 12 - 1-3/4" self tapping star bit screws
Cut List
- 2 - 2x4 @ 95" - long point measurement, one end cut at 5 degree off square (this is the bottom end)
- 3 - 1x8 @ 31-3/4"
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- compound miter saw
Step-by-step Instructions

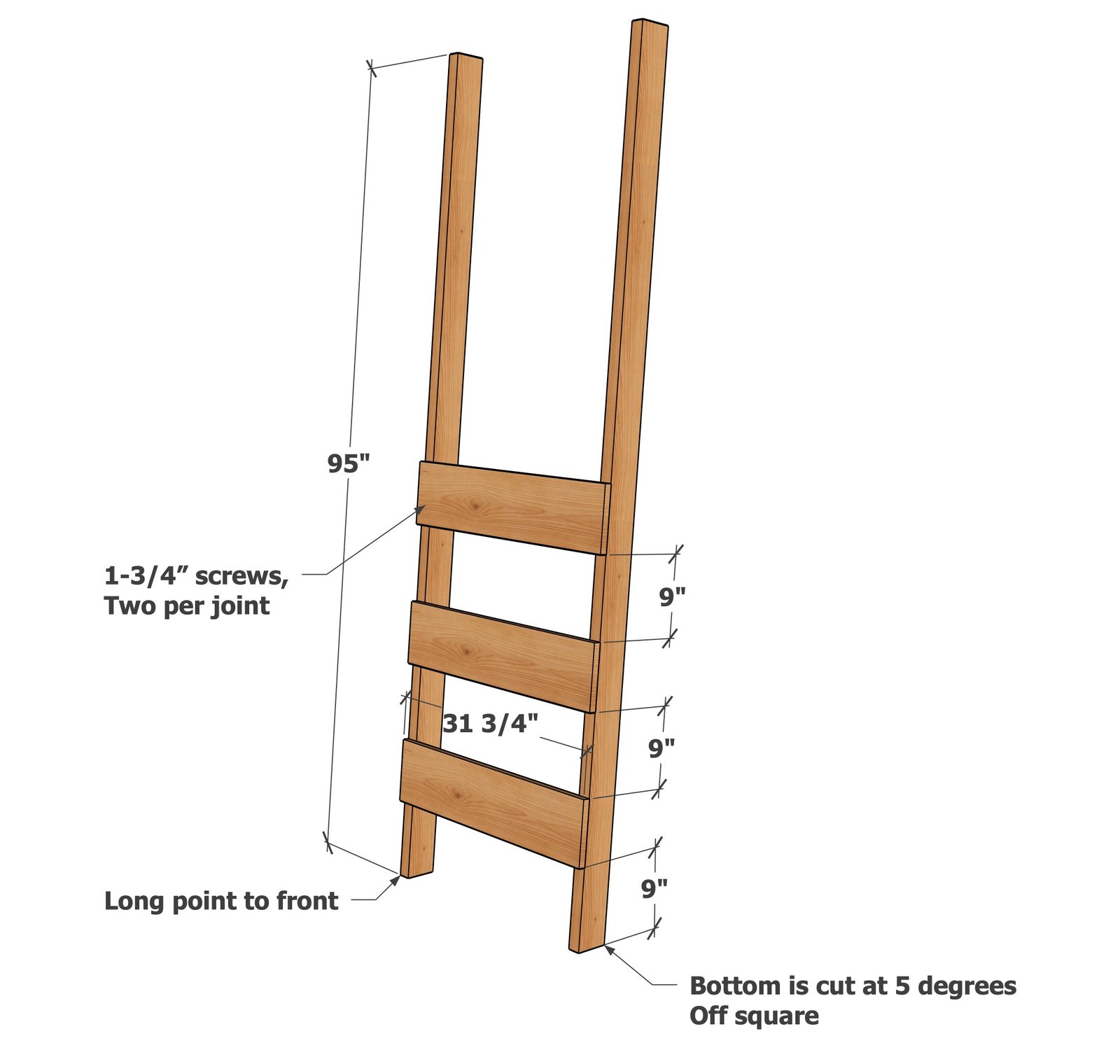

Cut the legs so they are at an angle at the bottom so the rack leans against the wall
Lay out on a flat surface and attach the bottom rung, 9" space below it. Attach upper rungs with 9" space between.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
