Leaning Standing Desk

How to build a standing desk, leaning desk style. Free

Leaning Standing Desk

Specifications

Project typeDesk, Desk Systems and Project Table Plans
RoomBedroom
StyleCottage Style Furniture Plans
DifficultyIntermediate
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

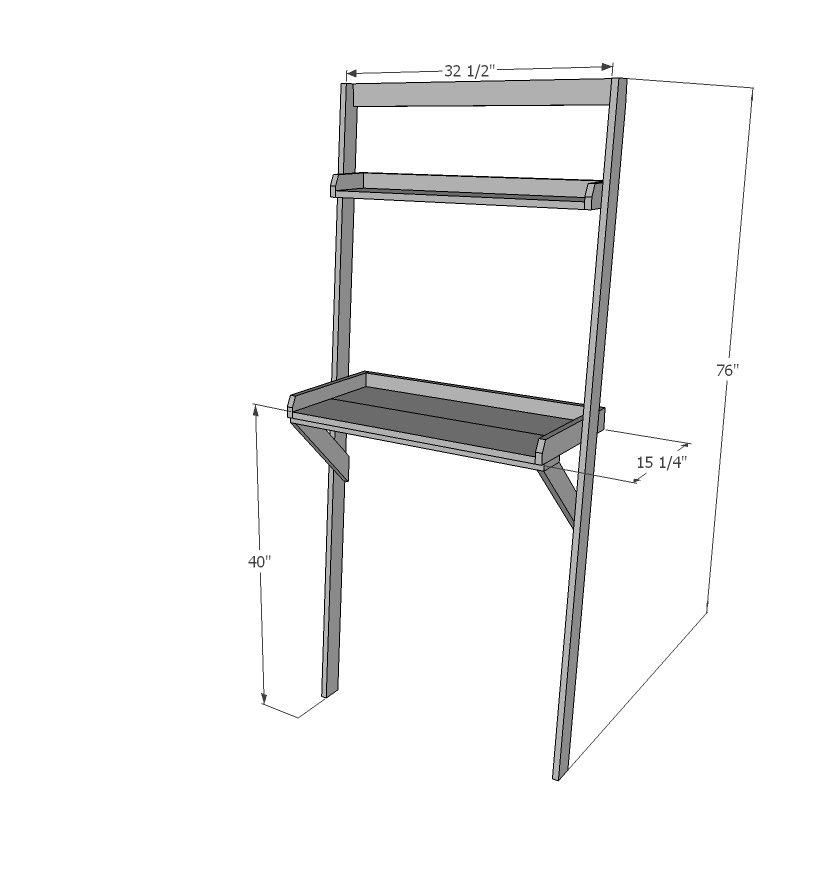

Leaning Standing Desk dimension diagram 1

Shopping List

4 - 1x3 @ 8 feet long

1 - 1x8 @ 6 feet long

1 - 1x4 @ 3 feet long

Cut List

2 - 1x3 @ 76-1/4" both ends cut at 5 degrees off square, ends are parallel to each other

2 - 1x3 @ 32-1/2" (top and desktop support)

2 - 1x3 @ 14-1/8" - long point to long point, one end cut at 45 degrees and the other at 40 off square (see diagrams)

1- 1x4 @ 32-1/2" (desktop support) SHELVES/DESKTOP

2 - 1x8 @ 31"

1 - 1x6 @ 31"

2 - 1x3 @ 31"

2 - 1x3 @ 6-1/4"

2 - 1x3 @ 15-1/4"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • compound miter saw
  • nailer
  • sander
  • level

Step-by-step Instructions

1

Step 1

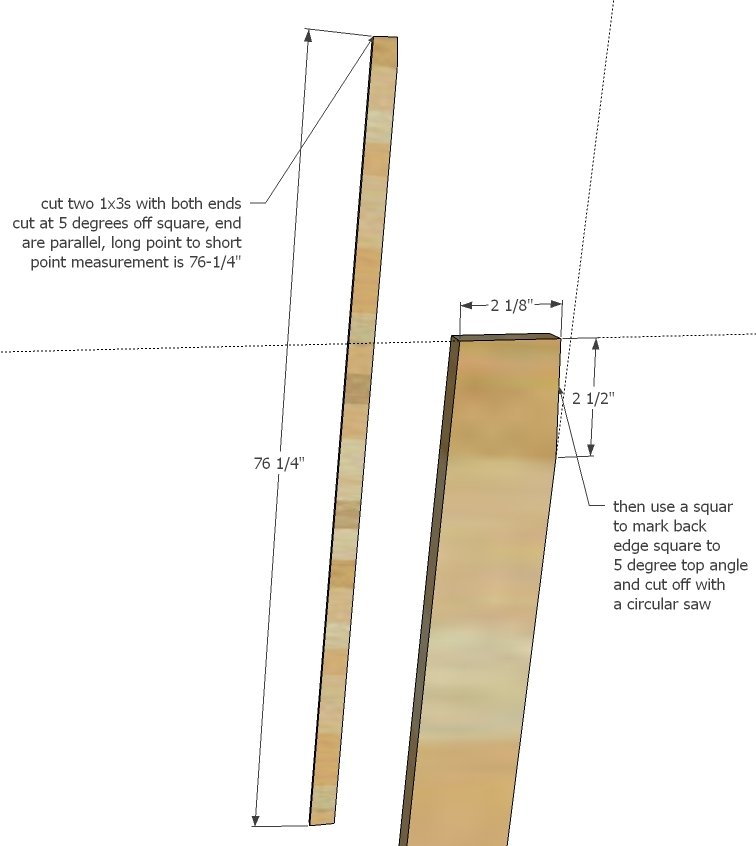

Cut the top backs of the legs off at a 90 degree angle from the top cut to create a flat space at the backs of the tops of the legs for the desk to lean against the wall. Tool of choice here for me would be a circular saw, but a jigsaw could do the trick too.

Leaning Standing Desk — step 1
2

Step 2

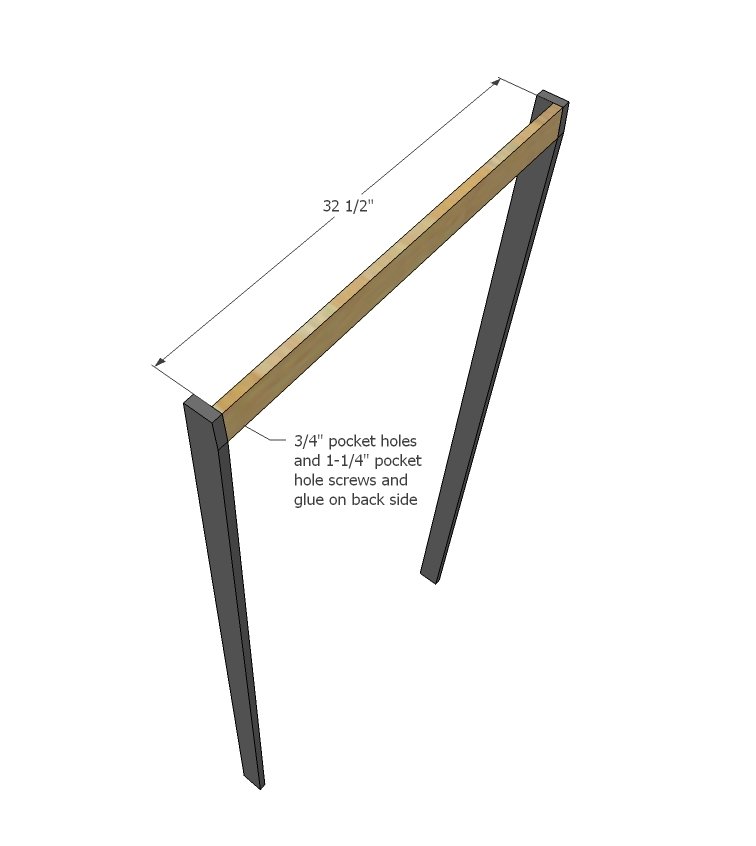

Drill two 3/4" pocket hole screws on each end of the top back support board and attach to the legs, with pocket holes on the back side, using 1-1/4" pocket hole screws and wood glue.

Leaning Standing Desk — step 2
3

Step 3

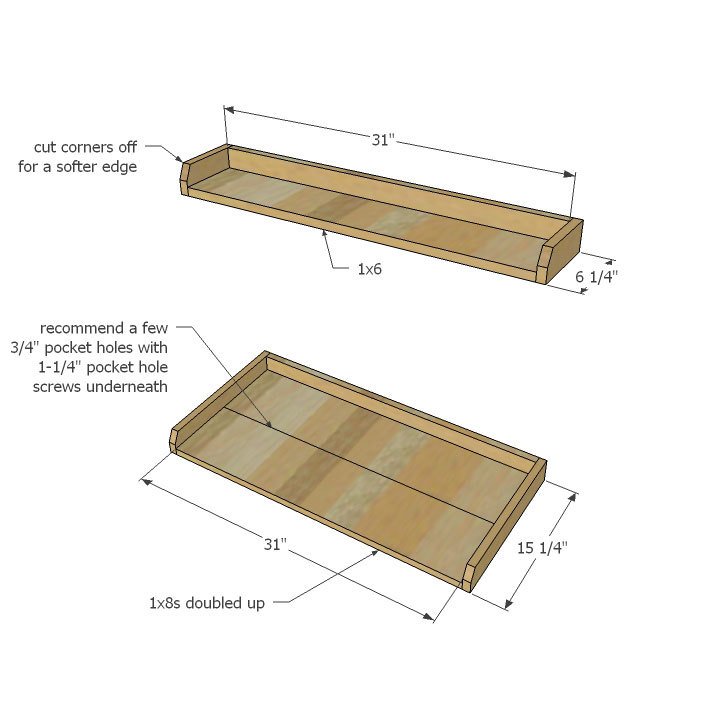

Build the desk and shelf. For the desk, I recommend a couple of pocket holes on the joint of the 1x8 boards. For heavier loads on shelves and desktop, consider attaching sides with pocket holes as well.

Leaning Standing Desk — step 3
4

Step 4

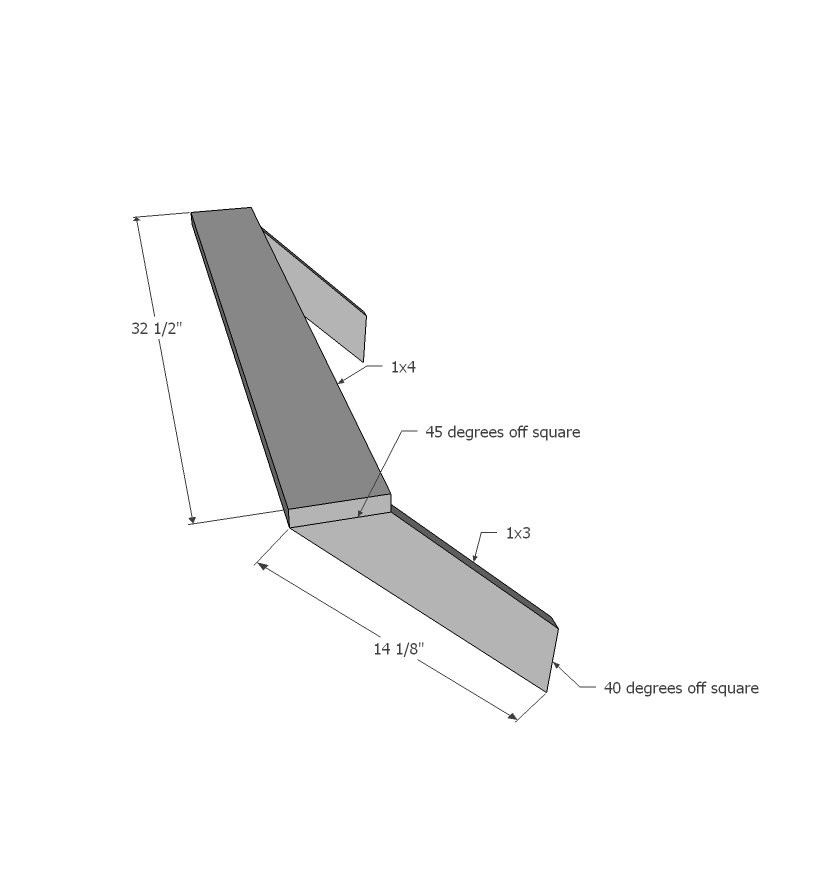

Build the shelf support. Use a 3/4" pocket hole and 1-1/4" pocket hole screw on the underside. This will be a little tricky with the angle of the cross support piece, just adjust the location of the hole to fit. You could also nail and glue this joint as structurally the weight will be pressing down on it.

Leaning Standing Desk — step 4
5

Step 5

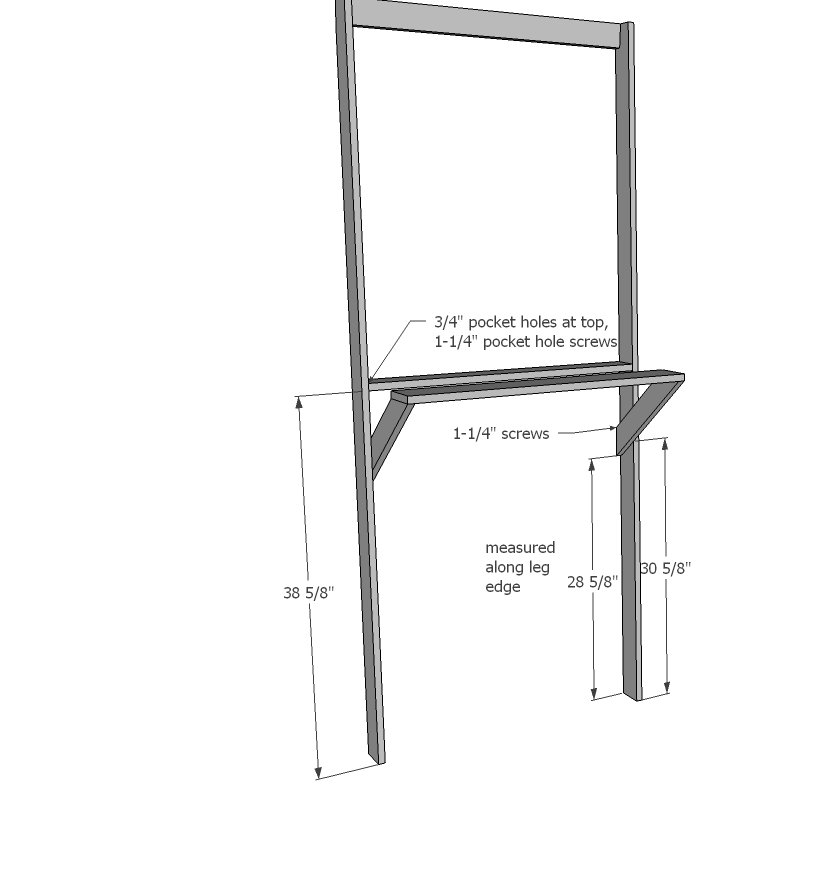

Leaning Standing Desk — step 5
6

Step 6

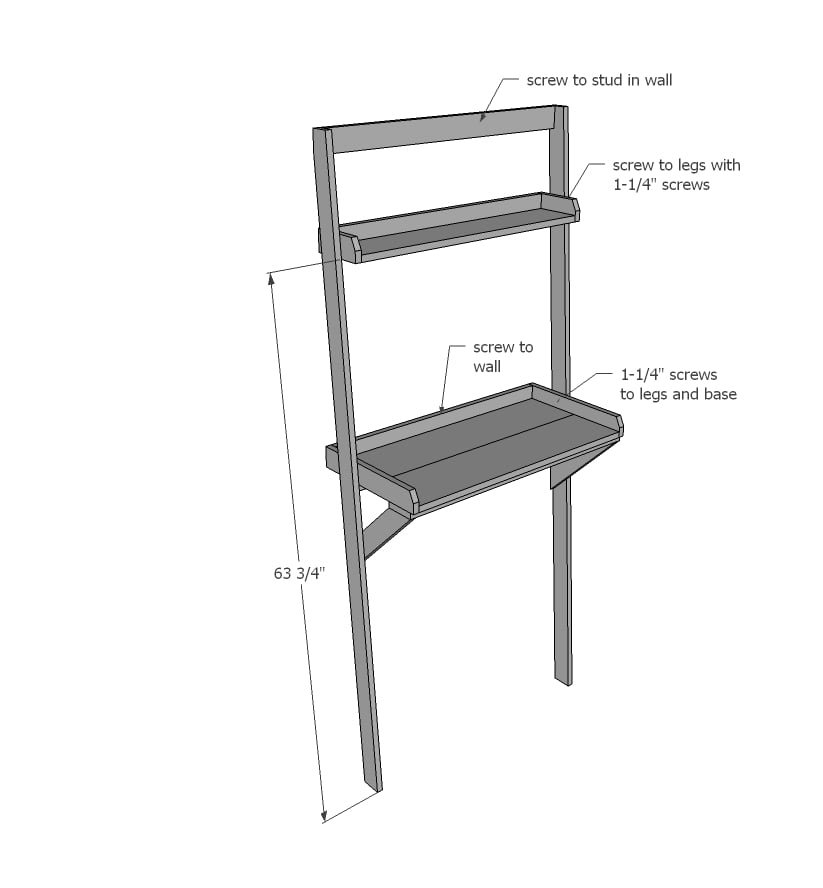

Place shelves in frame and attach with 1-1/4" screws. Also locate studs in wall and attach to studs.

Leaning Standing Desk — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
