Library Base for Grace's Town Collection

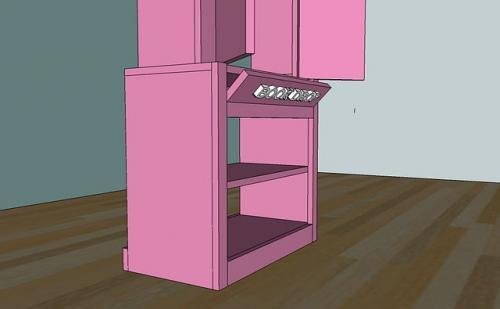

Plans for the Grace’s Town Collection are put together so that you can pick your bases and hutch pieces separately to customize for your child’s preferences. Here is the base for the Library.
Specifications
| Project type | Grace's Town |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Intermediate |
| Estimated cost | Under $20 |
Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 1x12 @ 6 feet
1 - 1x2 @ 8 feet
1 - 1x3 @ 8 feet
1 - 1x4 @ 2 feet
Cut List
A) 2 – 1×12 @ 21 1/2″ (Sides)
B) 3 – 1×12 @ 22 1/2″ (Shelves)
C) 1 – 1×12 @ 24″ (Top)
D) 2 – 1×2 @ 22 1/4″ (Front Side Trim)
E) 1 – 1×3 @ 21″ (Bottom Footer)
F) 1 – 1×2 @ 21″ (Trim for the bottom of the Book Drop)
G) 1 – 1×3 @ 24″ (Bottom Trim for the back)
H) 1 – 1×4 @ 21″ (Book Drop Door)
Tools
- measuring tape
- square
- safety glasses
- hearing protection
- drill
- circular saw
- nailer
- sander
Step-by-step Instructions
Step 1

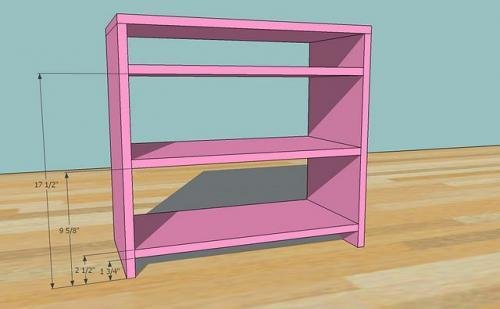

Start by marking the sides as shown above. Then attach the sides to the shelves. Then attach the top to the sides. Use 2″ nails and glue.
Step 2

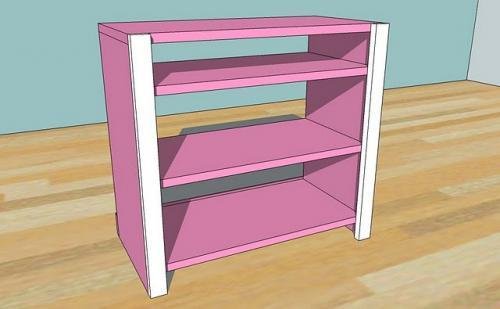

Then attach both of the front trim pieces, D, as shown above, using 2″ nails and glue. Nail into both the sides and the shelves and the top.
Step 3

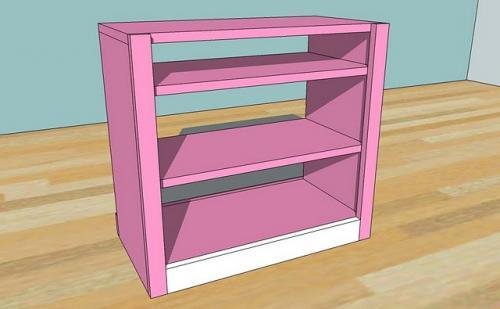

Now add E, using 2″ nails and glue. Nail through the face of E into the bottom shelf, and nail through the sides of D into the end edges of E to secure.
Step 4

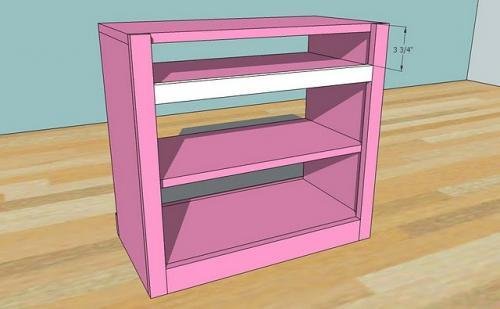

Add F, as shown above, using the measurement above to guide you. As in step 3, nail through the face of F into the shelf, and also through the side trim, D, into the end edge of F. Use 2″ nails and glue.

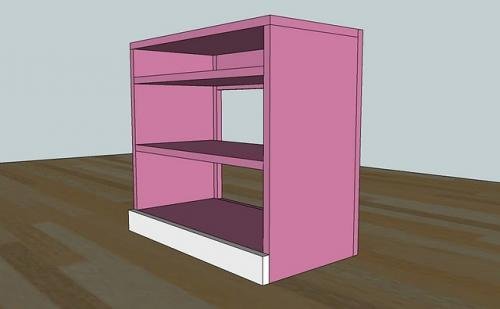

Step 5
Step 6

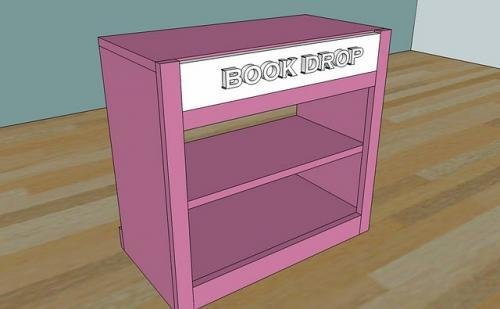

Attach the book drop door as shown above, with hinges on the bottom. Use a clasp to hold the book drop up when not in the open position.
Step 7
Decorate and finish as desired.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
