Little Sloan Leaning Bookshelf
from to build a little leaning bookshelf inspired by Land of Nod Little Sloan Leaning bookshelf. Make your own!
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Kids and Toys |
| Style | Children's and Kid's Room Furniture and Toy Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

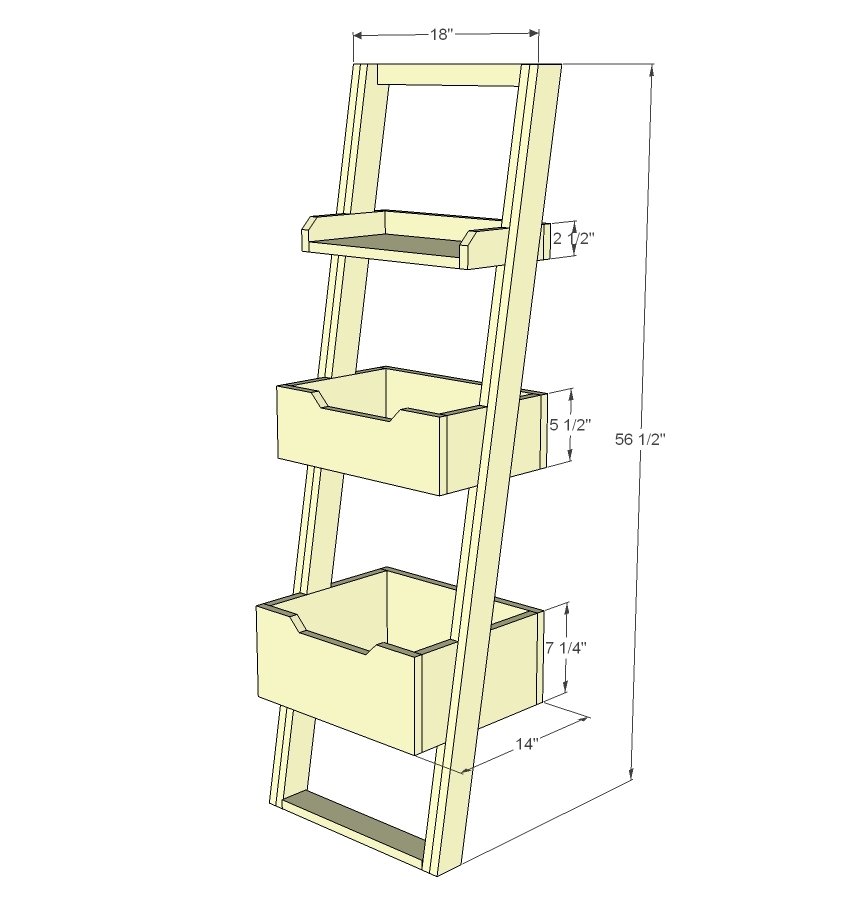

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
3 - 1x3 @ 8 feet long
1 - 1x8 @ 6 feet long
1 - 1x6 @ 6 feet long
1 - 2x2@ 15" long
3/4" plywood piece at least 15 1/2" x 31"
(can use MDF, project panel etc)
3" or longer screws (2 or more) for attaching frame to wall
1 1/4" finish nails
Recommend 1 1/4" pocket hole screws
Cut List
FRAME
2 - 1x3 @ 57 3/8" (both ends are cut at 10 degrees off square, ends ARE parallel, long point to short point measurement)
2 - 1x3 @ 29 3/4 (both ends are cut at 10 degrees off square, ends ARE parallel, long point to short point measurement)
2 - 1x3 @ 11 3/8" (both ends are cut at 10 degrees off square, ends ARE parallel, long point to short point measurement)
2 - 1x3 @ 11 1/8" (both ends are cut at 10 degrees off square, ends ARE parallel, long point to short point measurement)
1 - 2x2 @ 15" top
1 - 1x3 @ 15" bottom
TOP SHELF
1 - 3/4" plywood @ 15" x 8"
1 - 1x3 @ 16 1/2"
2 - 1x3 @ 8"
MEDIUM BOX
1 - 3/4" plywood @ 15" x 10"
2 - 1x6 @ 10"
2 - 1x6 @ 16 1/2"
LARGE BOX
1 - 3/4" plywood @ 15" x 12 1/2"
2 - 1x8 @ 12 1/2"
2 - 1x8 @ 16 1/2"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- nailer
- sander
- countersink drill bit
Step-by-step Instructions

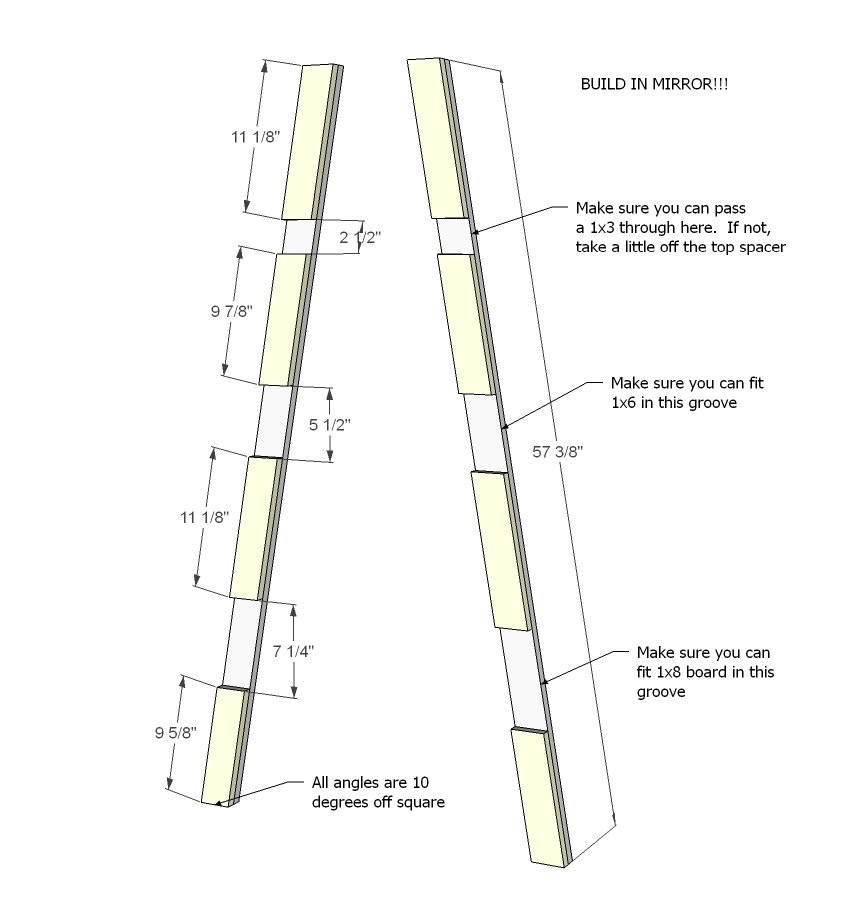

Step 1
Start by building the two leg sets IN MIRROR by attaching the spacers to the full leg boards. Make sure the gaps are wide enough to fit your boards easily in between - it will be easier to adjust now instead of later on.

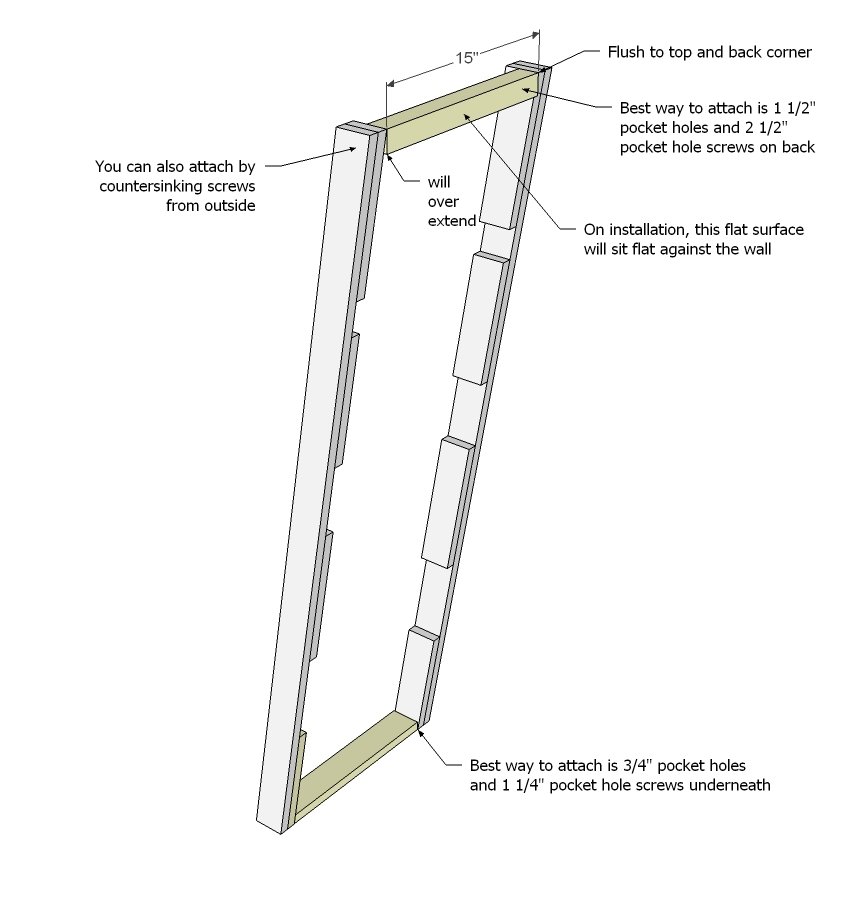

Step 2
Then attach top and bottom to sides as shown above.

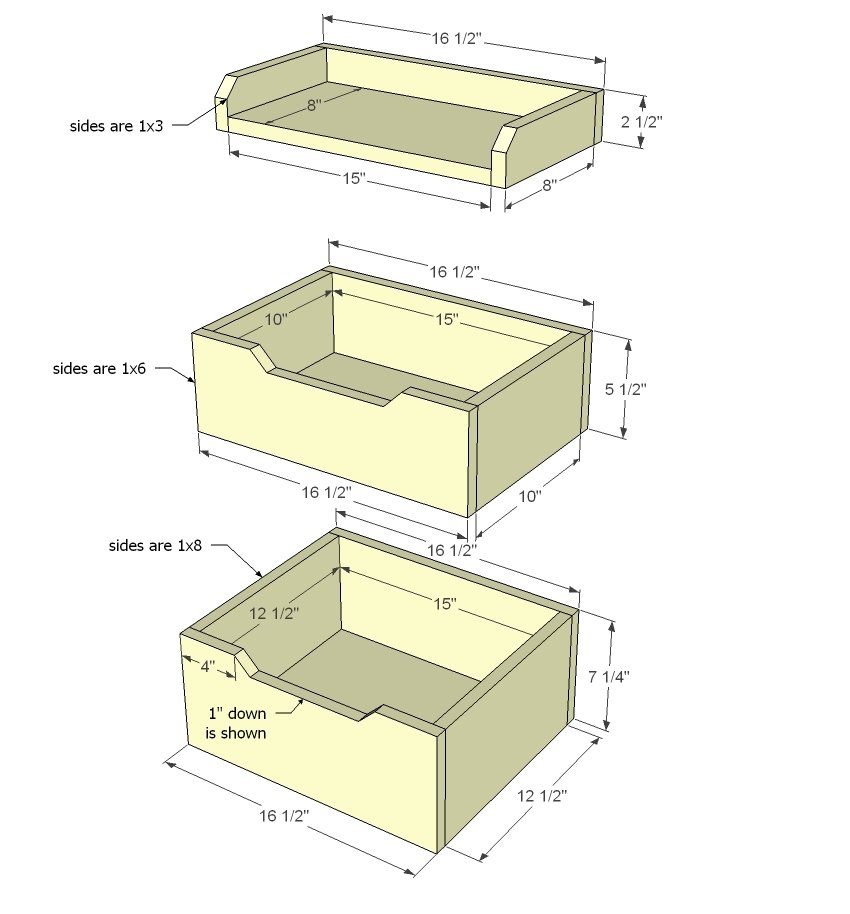

Step 3
Build your shelf and boxes either with 2" nails or 3/4" pocket holes/ 1 1/4" pocket hole screws and glue.

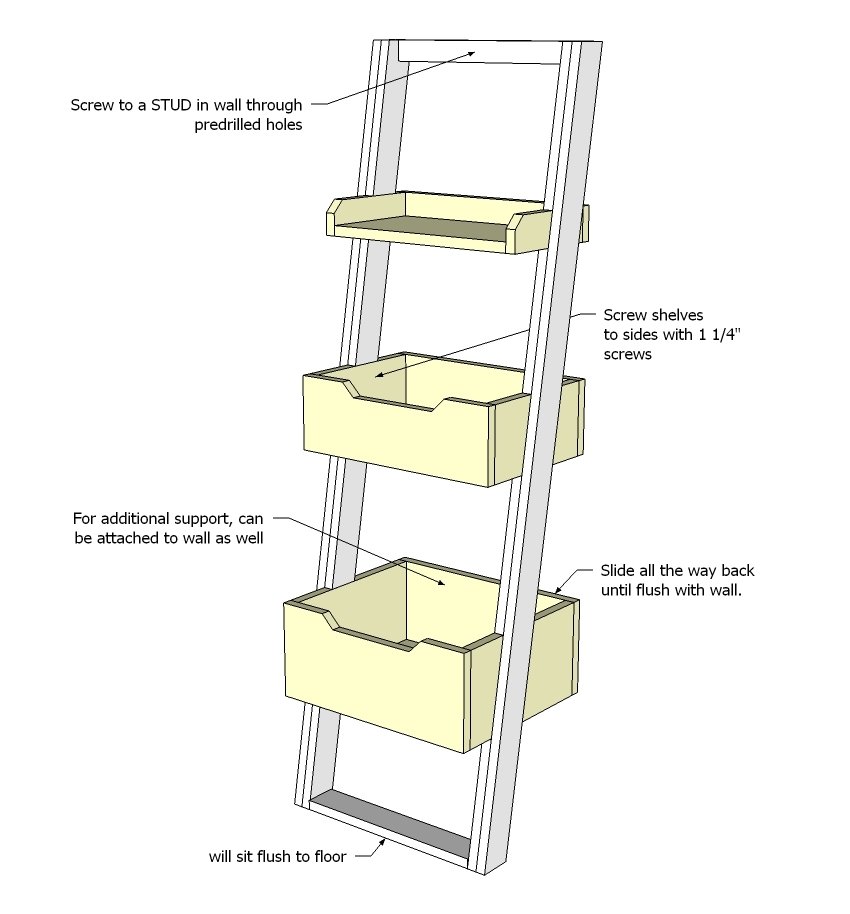

Step 4
Mount the frame to the wall attaching to studs in the wall. Then slide the boxes and shelf in place, screwing to sides.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
