Loft bed for american girl or 18" doll

Here are the plans for the Loft bed for 18" dolls. This is my first time to share plans. I hope I don't confuse any of you;) If you would like the plans for the chair, they are now posted on my blog.

Loft bed for american girl or 18" doll

Specifications

Project typeDoll Furniture
RoomKids and Toys
StyleChildren's and Kid's Room Furniture and Toy Plans
DifficultyBeginner Projects
Estimated costUnder $20

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • compound miter saw

Step-by-step Instructions

1

Step 1

Attach two of the legs to the 1x4 foot board. You can either use pocket holes or pre drill and use 3” screws through the outside of the legs.

Loft bed for american girl or 18" doll — step 1
2

Attach the other two legs to the solid

Ladder wall. If using ph, make sure you drill the holes where your shelves and bench will go. This way they can be hidden.

Loft bed for american girl or 18" doll — step 2
3

Step 3

Attach the side rails to the legs on either side.

Loft bed for american girl or 18" doll — step 3
4

Step 4

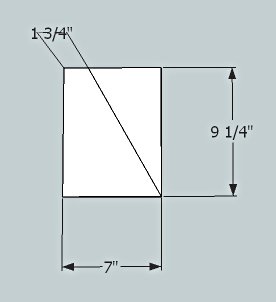

Cut your desk top. For this step, take the 1x10 that you cut for your desk top and measure 1 3/4" on the long side (this will be the same measurement as the width of your 2x2 leg) Draw an angle from this mark to the opposite corner on the short side. I know this is confusing, so I included a photo of it.

Loft bed for american girl or 18" doll — step 4
5

Step 5

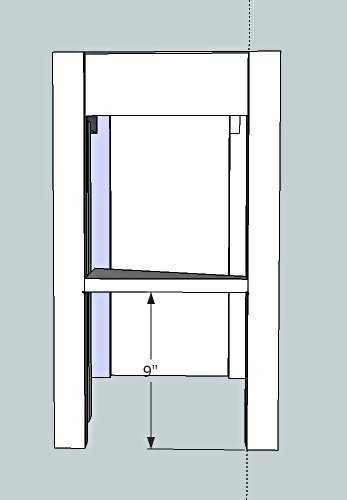

Loft bed for american girl or 18" doll — step 5
6

Step 6

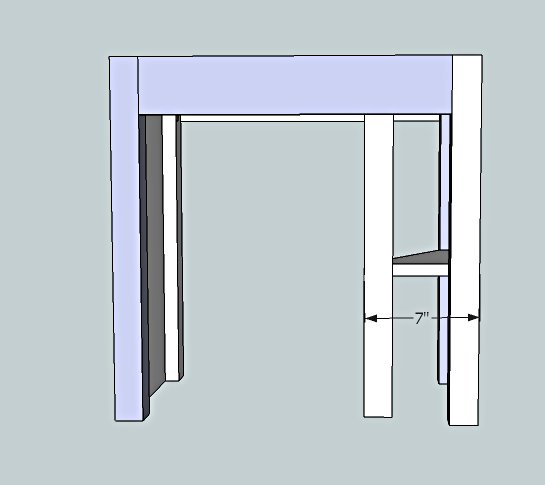

Measure from the base of the back rail to the bottom of the leg. Cut a 2x2 to fit. I attached mine with ph from the top rail into the leg, and then from the under side of the desk.

Loft bed for american girl or 18" doll — step 6
7

Step 7

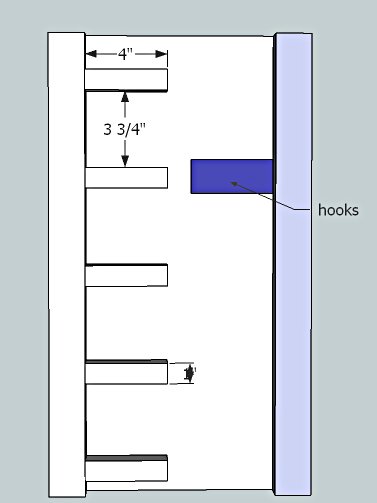

Using glue and nails or hot glue, attach your steps to the ladder wall. I used a 1x4, between the steps, for a spacer. I also mod podged a piece of fabric to a scrap piece of ¼” plywood for the back of the coat hanger. Then, I took 3 small cup hooks and attached them to it.

Loft bed for american girl or 18" doll — step 7
8

Step 8

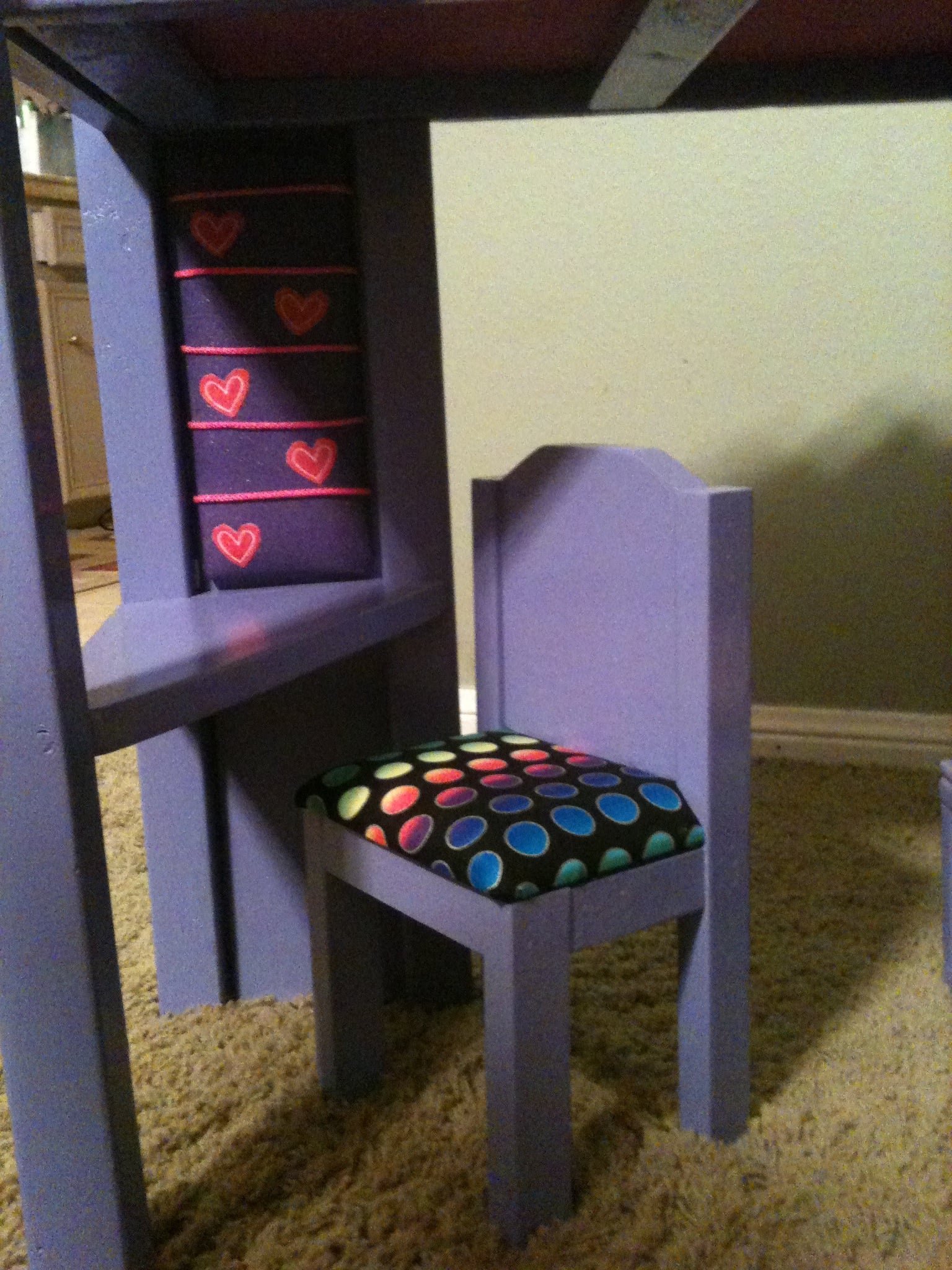

Then, attach your shelves to the inside of the ladder wall. Put your bench together with nails and glue and attach it to the ladder wall with ph screws from the top of the bench. Then, nail your slats to the side rails and cut a piece of 1/4" plywood or strong cardboard to fit under the mattress.Take the scrap plywood you cut for the desk wall and attach it to the back legs with glue and nails. I also cut a scrap piece of plywood and glued a piece of foam to it. Then, I covered it with fabric and some yarn to create a bulletin board for the desk.

Loft bed for american girl or 18" doll — step 8
9

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
