Lucy Coffee Table
to build your own coffee table with drawer. Solid wood design, simple construction techniques, these plans are suitable for beginning builders and DIYers. Special thanks to Kelly for sharing her beautiful photos with us.
Specifications
| Project type | Coffee Tables |
|---|---|
| Room | living room |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |
| Estimated cost | $50 - $100 |

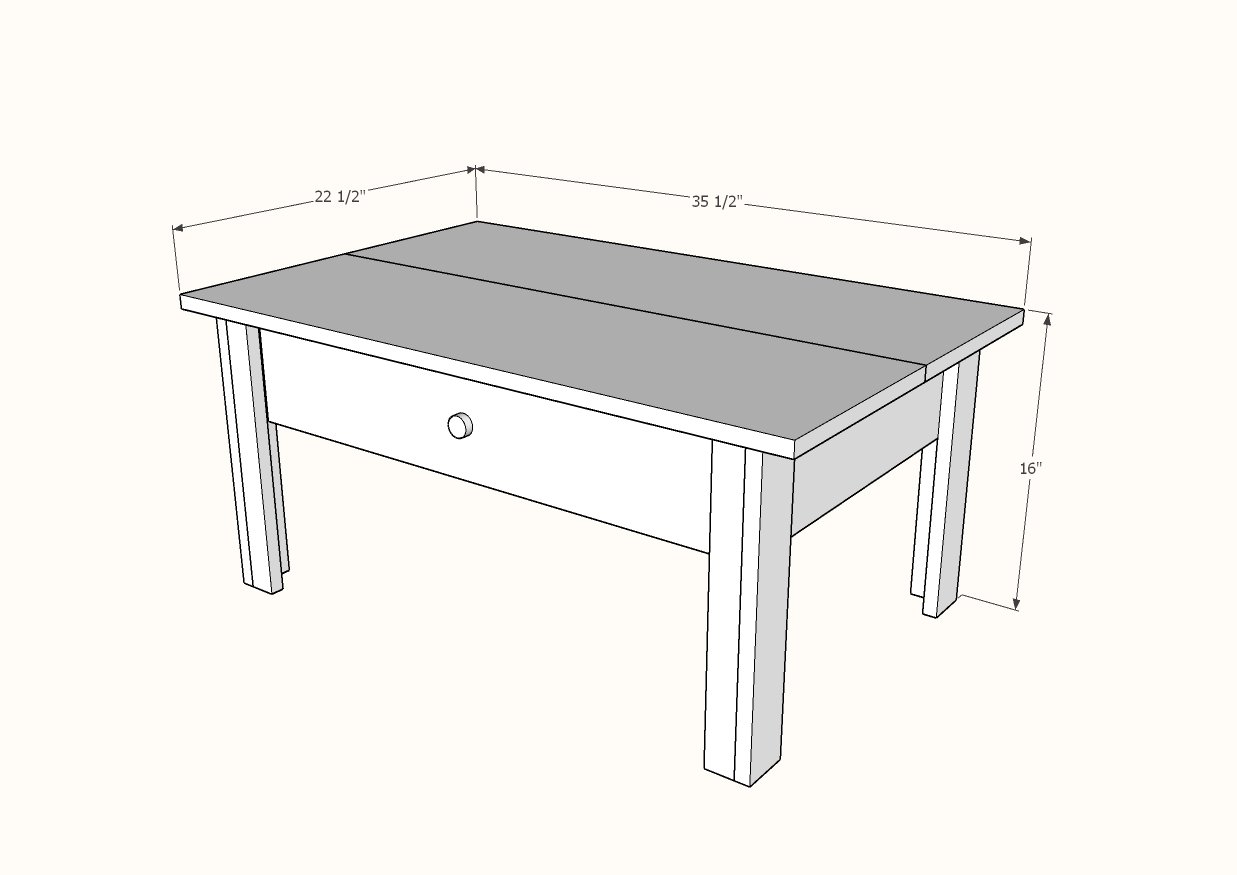

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 1x12 @ 6 feet long
1 - 1x6 @ 8 feet long
2 - 1x3 @ 8' long
1 - 1x2 @ 8 feet long
1 - 1x2 @ 8 feet long PLUS 4" of scrap 1x2 (or can substitute a 1x3)
1 - 1/4" plywood @ 18" x 25"
18" drawer slide
1-1/4" brad nails
wood glue
1-1/4" pocket hole screws recommended, but can also use 2" self tapping construction screws
Cut List
- 1 - 1x6 @ 29" - back
- 2 - 1x6 @ 19-1/2" - sides
- 2 - 1x2 @ 29" - drawer framing
- 2 - 1x2 @ 4" - drawer framing
- 2 - 1x3 @ 5-1/2" - drawer spacer
- 4 - 1x2 @ 15-1/4" - legs
- 4 - 1x3 @ 15-1/4" - legs
- 2 - 1x3 @ 18" - drawer sides
- 2 - 1x3 @ ~25" - cut to fit - drawer front and back
- 1 - 1/4" plywood @ 18" x 25" - bottom of drawer
- 2 - 1x12 @ 35-1/2" - top
- 1 - 1x6 @ 27-1/4" - drawer front
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- compound miter saw
- nailer
- sander
Step-by-step Instructions

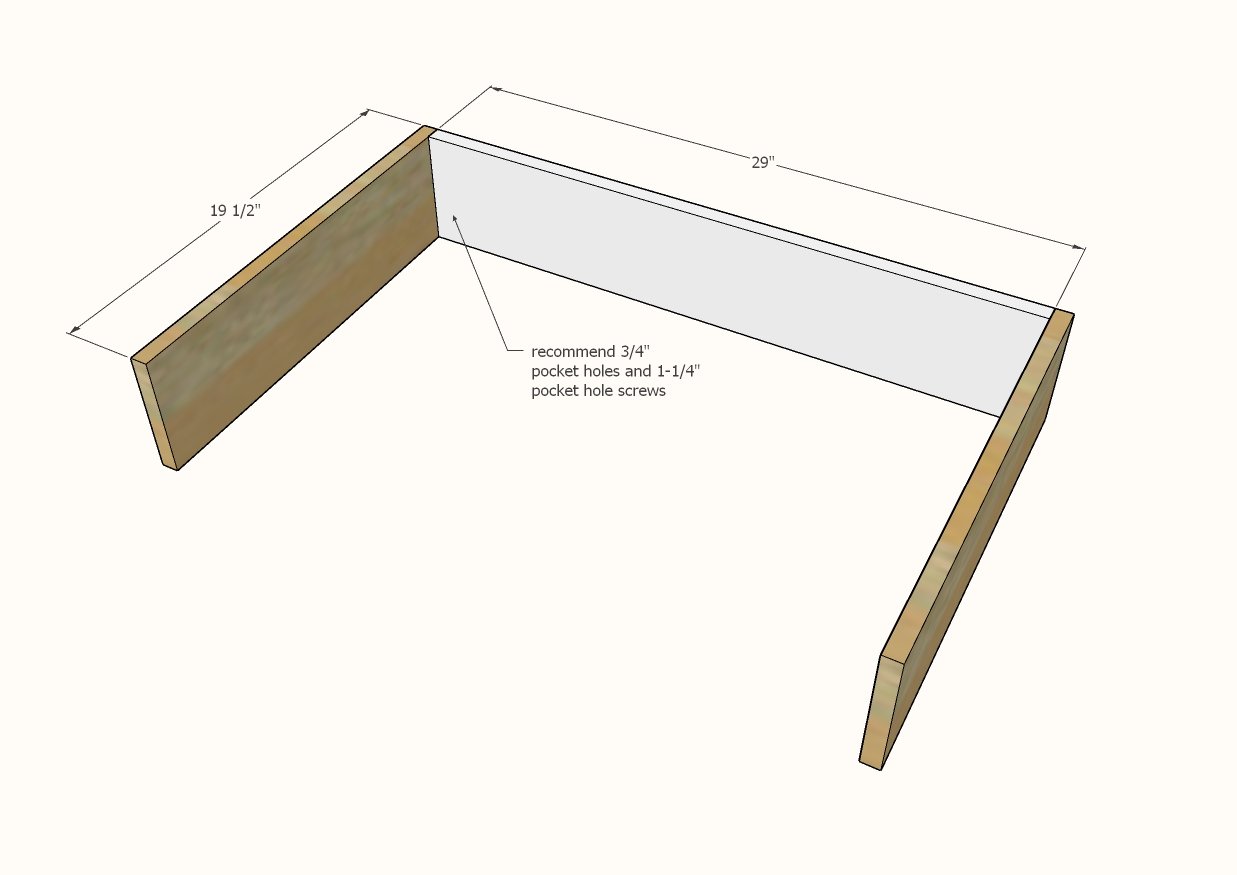

Step 1
Attach the back to the sides.

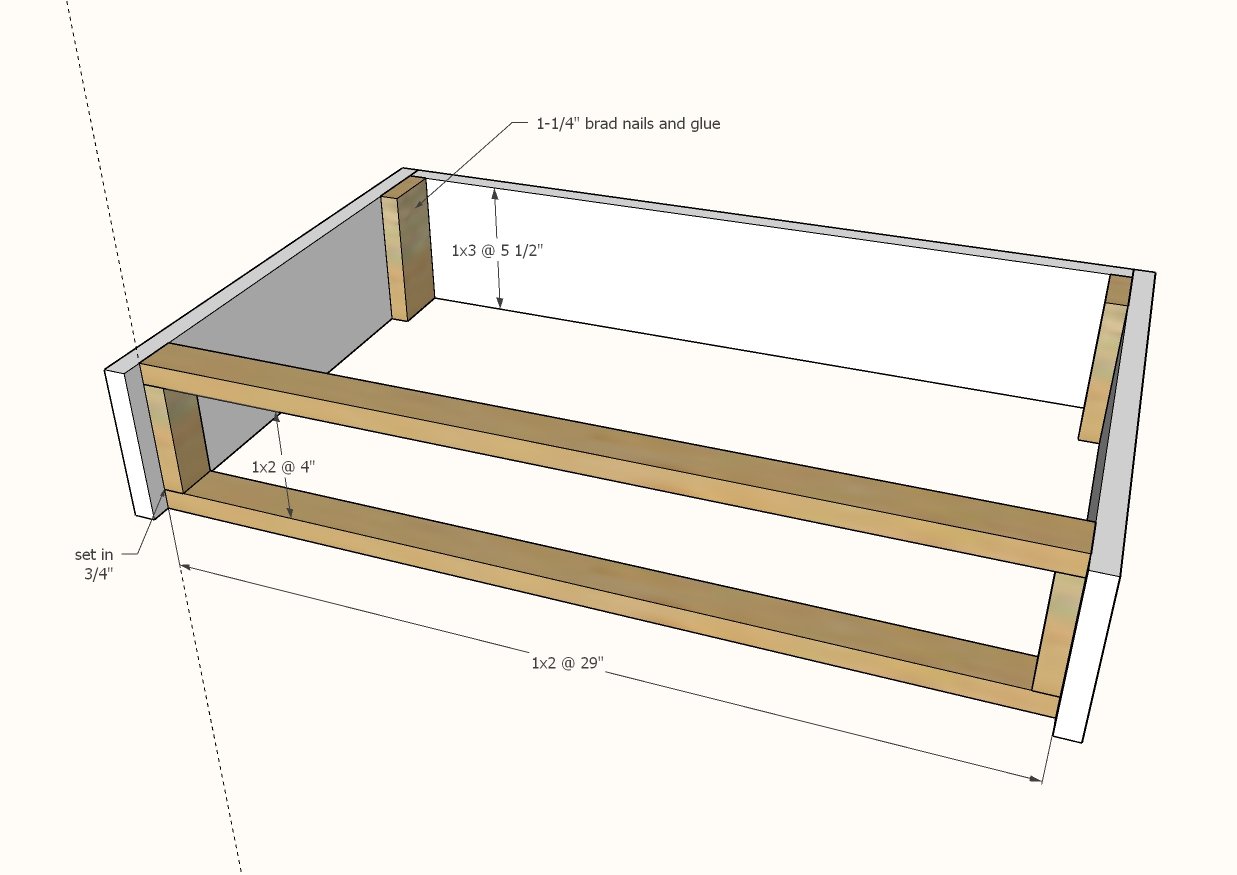

Step 2
Build the front drawer framing. If you keep all edges flush to the front. Attach to the sides inset 3/4" from front edge with 1-1/4" brad nails and glue. Attach back piece with 1-1/4" brad nails and glue.

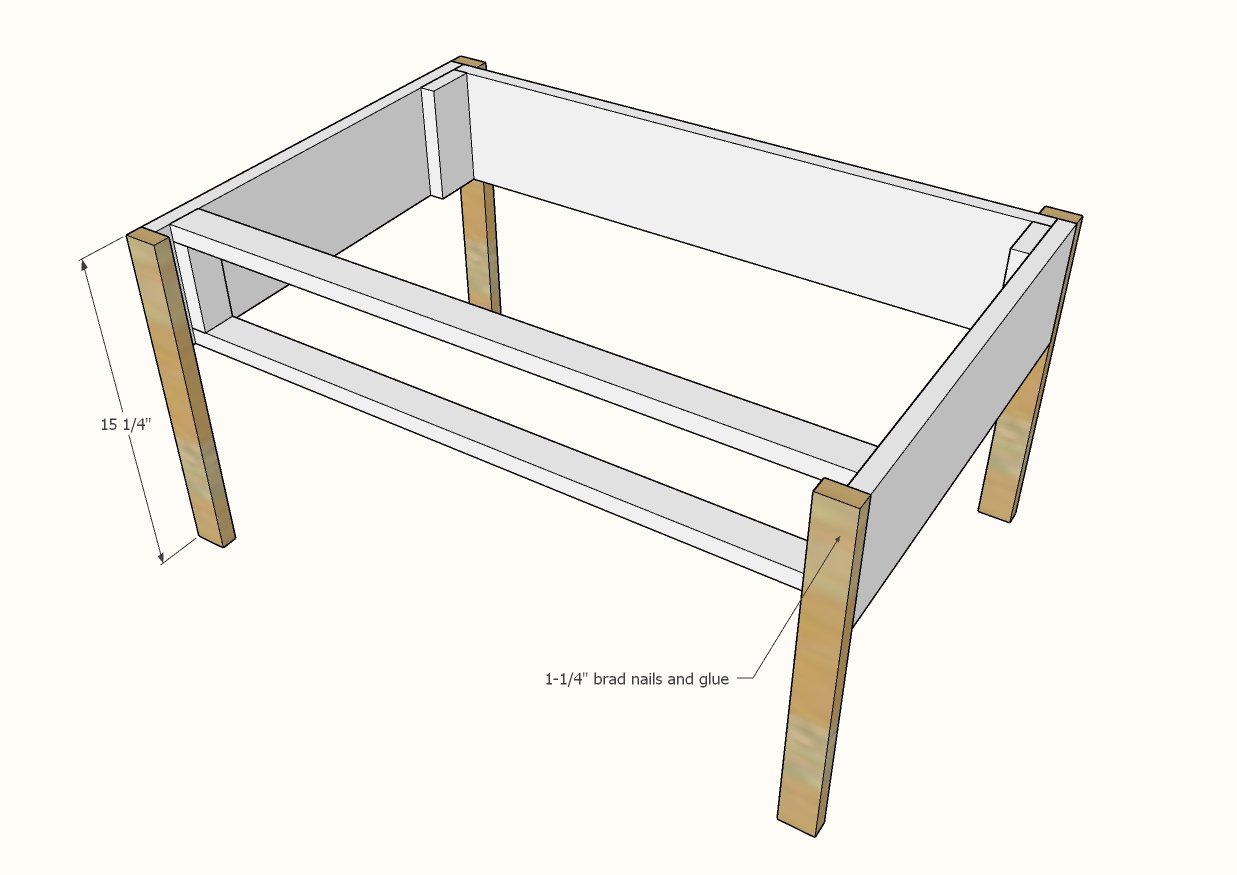

Step 3
Attach legs to front and back with 1-1/4" brad nails and glue, outside edges are flush.

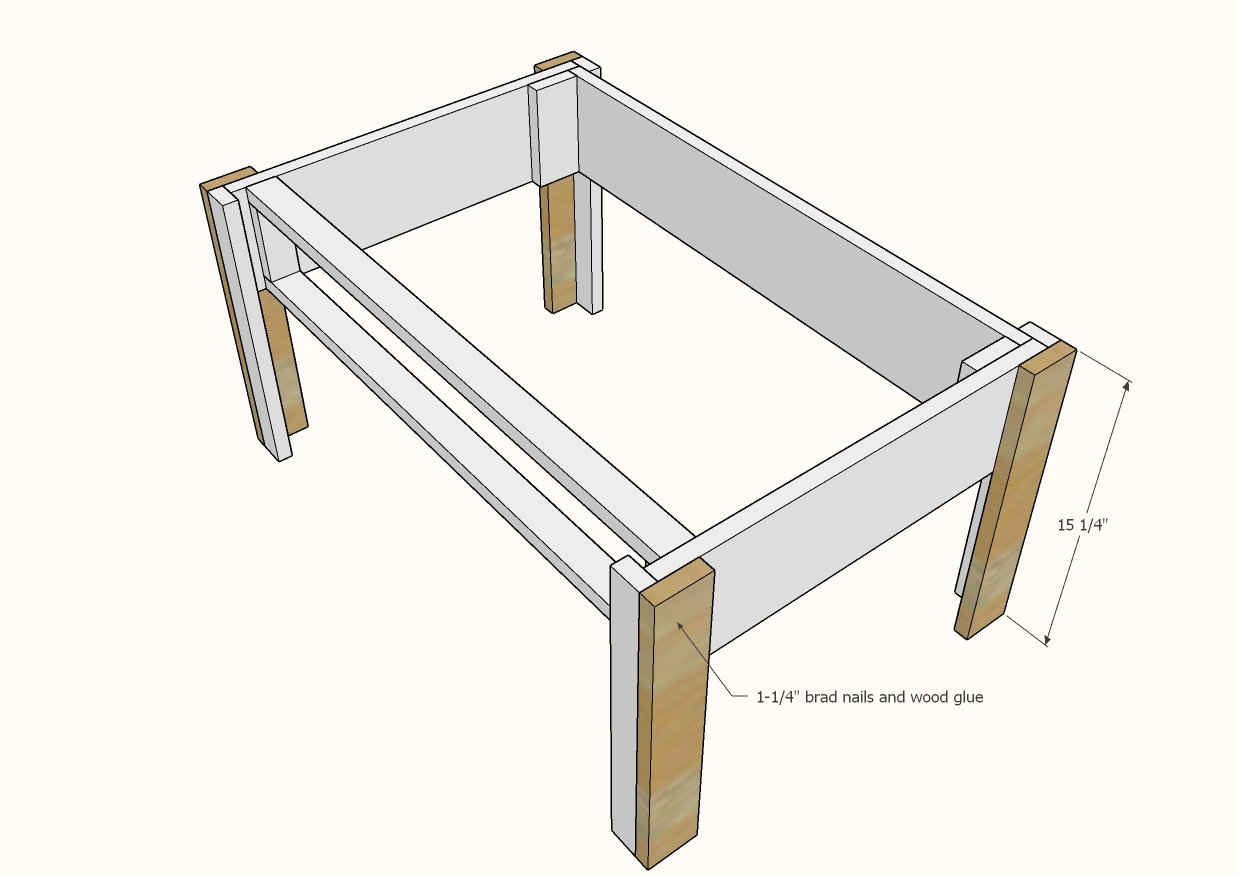

Step 4
Attach 1x3s with edge flush on 1x2 with 1-1/4" brad nails and glue.

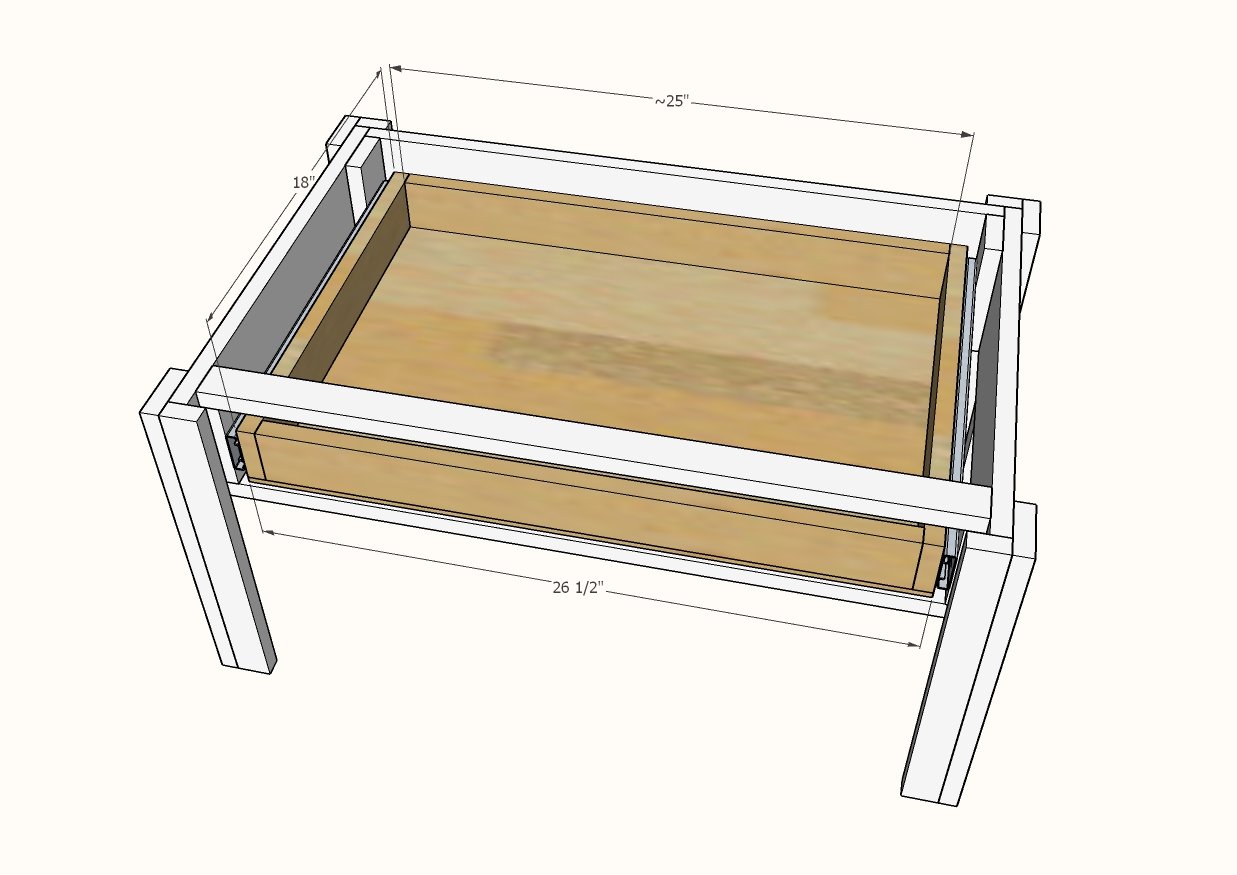

Step 5
Build the drawer box using these instructions to fit inside the coffee table.

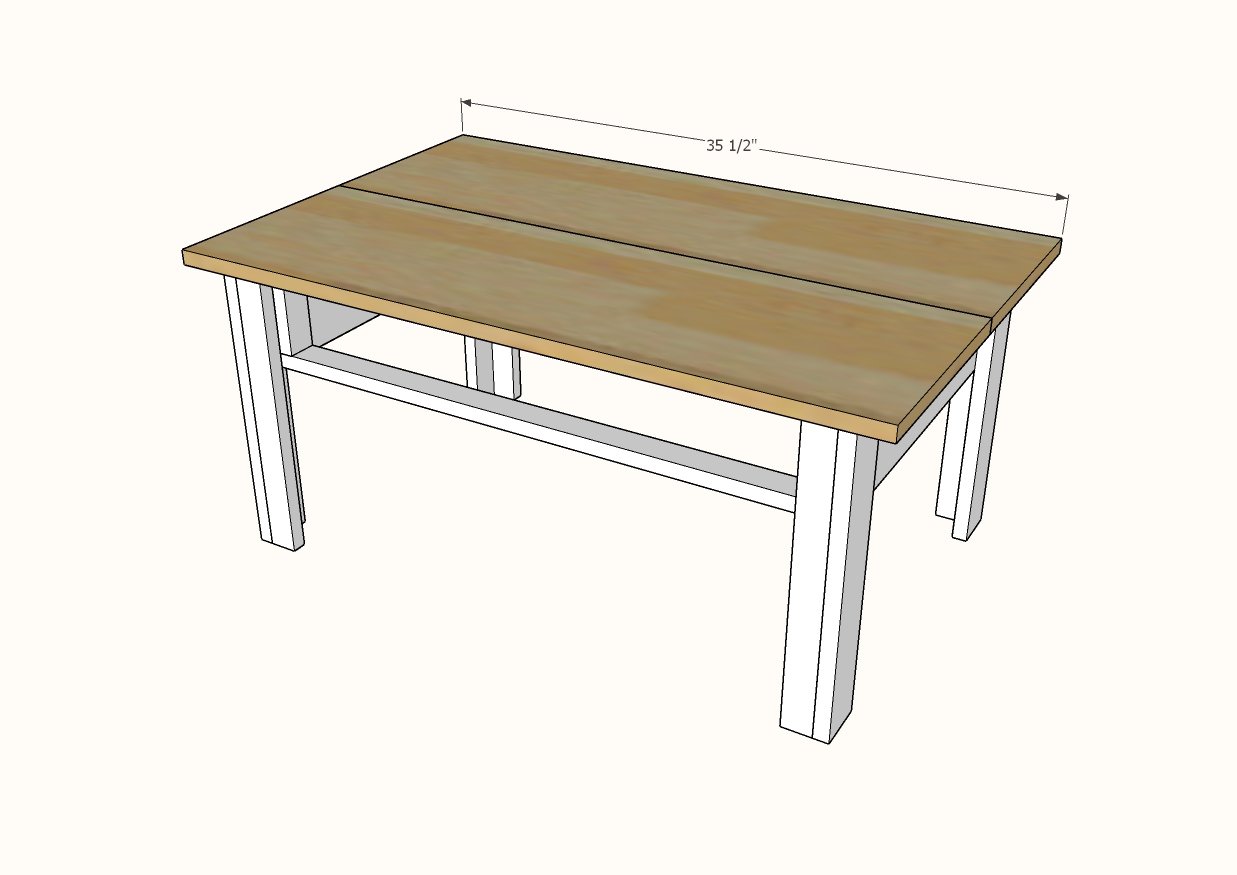

Step 6
Attach top with 1-1/4" brad nails and glue, equal overhangs on front and back, and side to side.

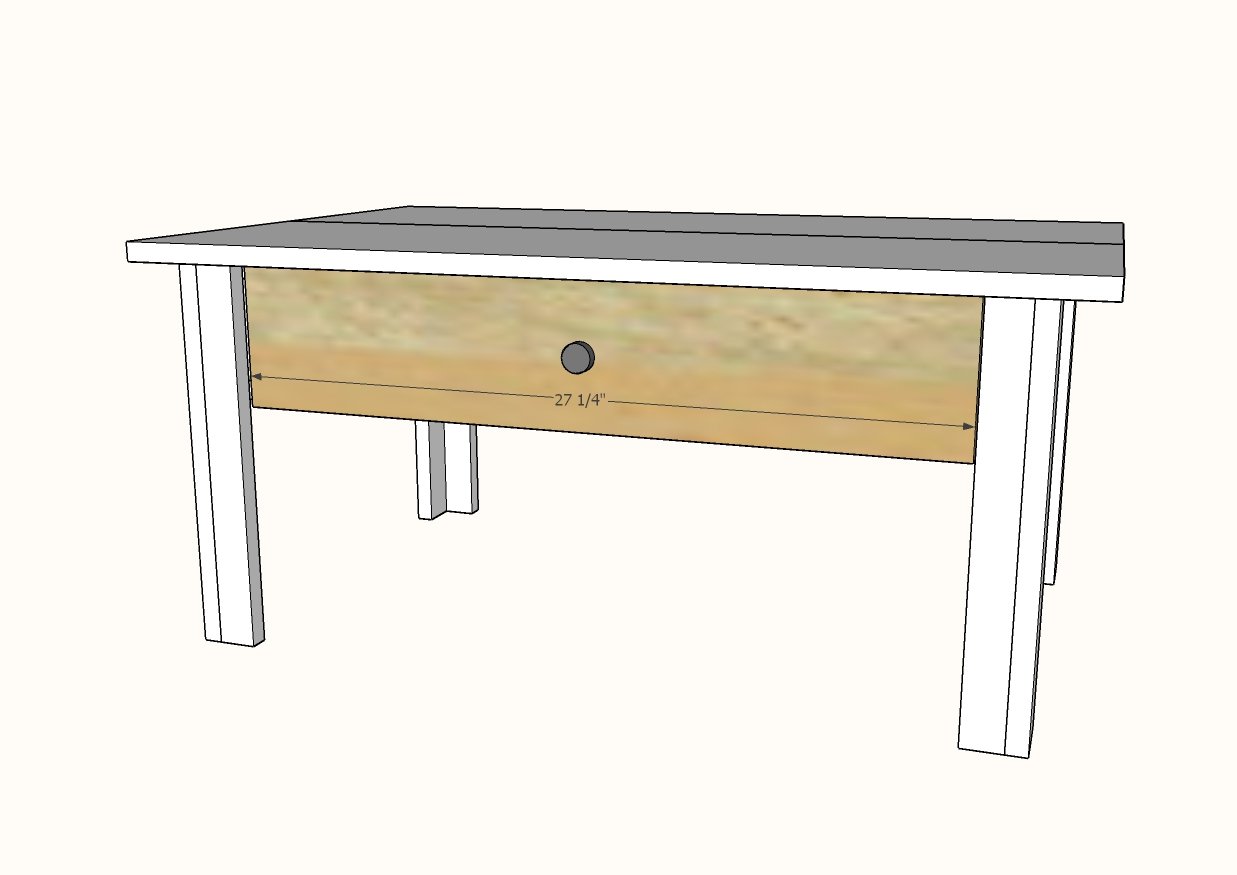

Step 7
Attach drawer face with 1/8" gap on top and sides with 1-1/4" brad nails and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
