Mimi's Narrow Hall Tree Hutch

This hall tree is perfect for smaller spaces with it's narrow width. to build a narrow hall tree. Simple step by step plans include detailed diagrams, cut list and shopping list, and photos.

Mimi's Narrow Hall Tree Hutch

Specifications

Project typeHutch Plans
RoomEntryway and Mudroom
StyleCottage Style Furniture Plans
DifficultyIntermediate
Estimated cost$50 - $100

Dimensions

Use the size-specific shopping and cut lists below.

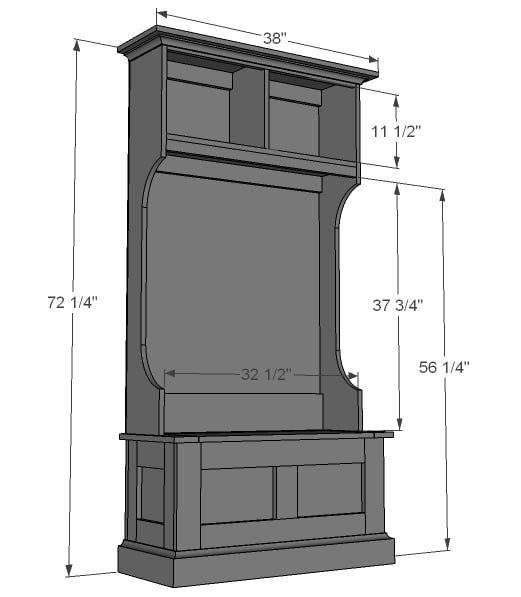

Mimi's Narrow Hall Tree Hutch dimension diagram 1

Shopping List

  • 1 - 1x10 @ 8 feet long
  • 1 - 1x10 @ 6 feet long
  • 1 - 1x12 @ 4 feet long
  • 1 - 1x6 @ 4 feet long
  • 1 - 1x2 @ 8 feet long
  • 1 - 1x3 @ 8 feet long
  • 1 - sheet 1/4" plywood or beadboard
  • 1 - stick 6 feet small crown moulding
  • Use either 2" screws or 1 1/4" pocket hole screws to build

Cut List

  • 2 - 1x10 @ 53" (Sides)
  • 1 - 1x10 @ 32 1/2" (Shelf)
  • 1 - 1x10 @ 13" (Divider)
  • 2 - 1x2 @ 32 1/2" (Front Trim)
  • 2 - 1x3 @ 32 1/2" (Back Trim)
  • 1 - 1x6 @ 32 1/2" (Base)
  • 1 - 1x12 @ 38" (Top)
  • 1 - beadboard or 1/4" plywood @ 34" x 53" (Back)

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • jigsaw
  • compound miter saw
  • nailer
  • countersink drill bit

Step-by-step Instructions

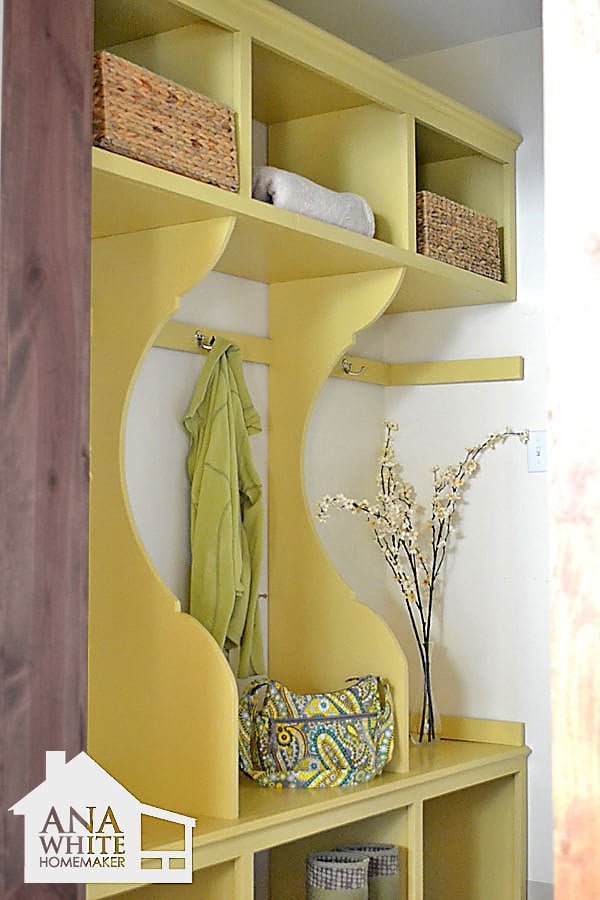

1

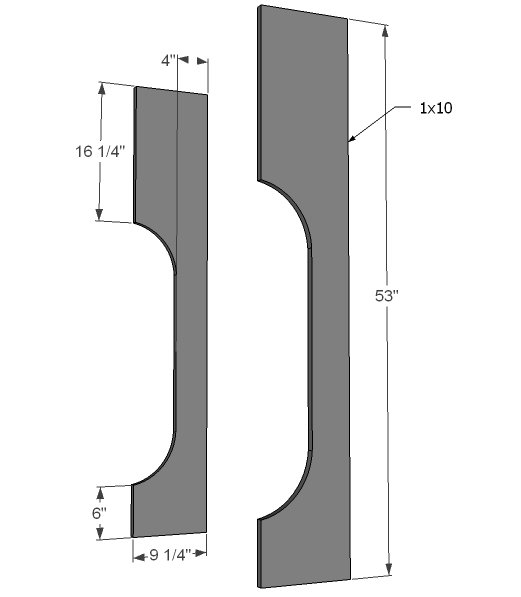

Notch out hutch sides as desired.

You can also check out how I did my smiling mudroom sides for different ideas.

Mimi's Narrow Hall Tree Hutch — step 1Mimi's Narrow Hall Tree Hutch — step 1
2

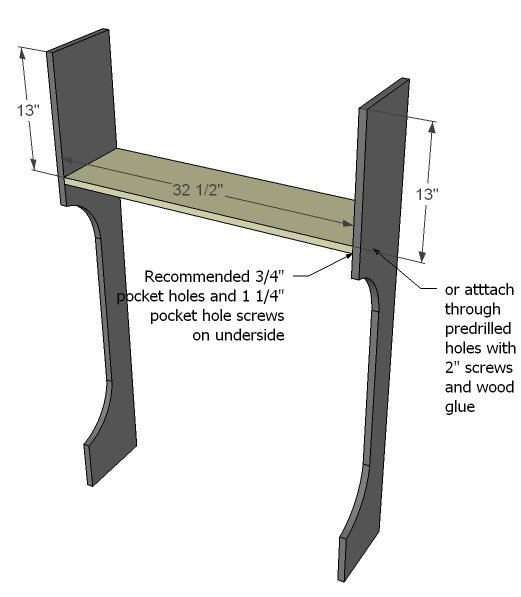

Step 2

Next, add the shelf.

Mimi's Narrow Hall Tree Hutch — step 2
3

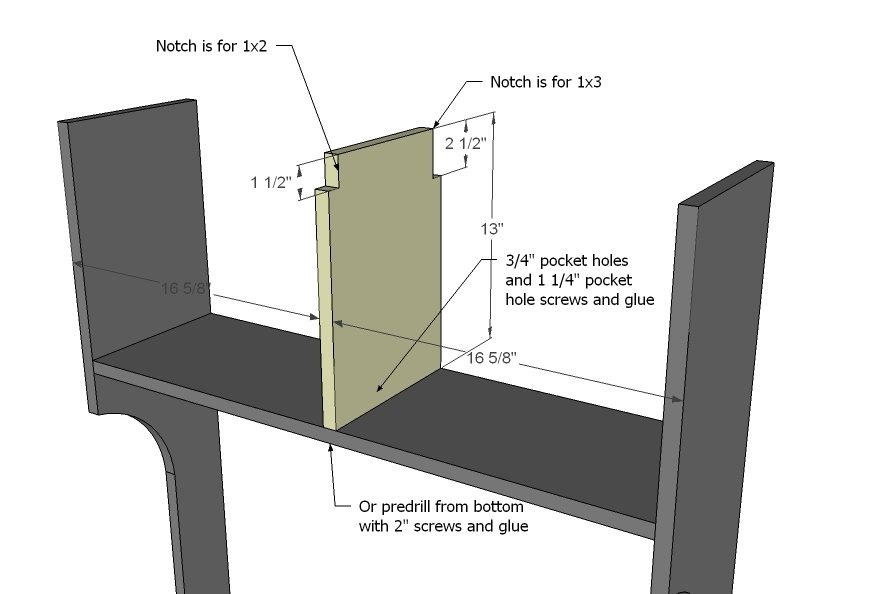

Step 3

Notch out the tops of divider to fit a 1x2 on front and 1x3 on back. Use a jigsaw to make square cuts. Attach divider to shelf.

Mimi's Narrow Hall Tree Hutch — step 3
4

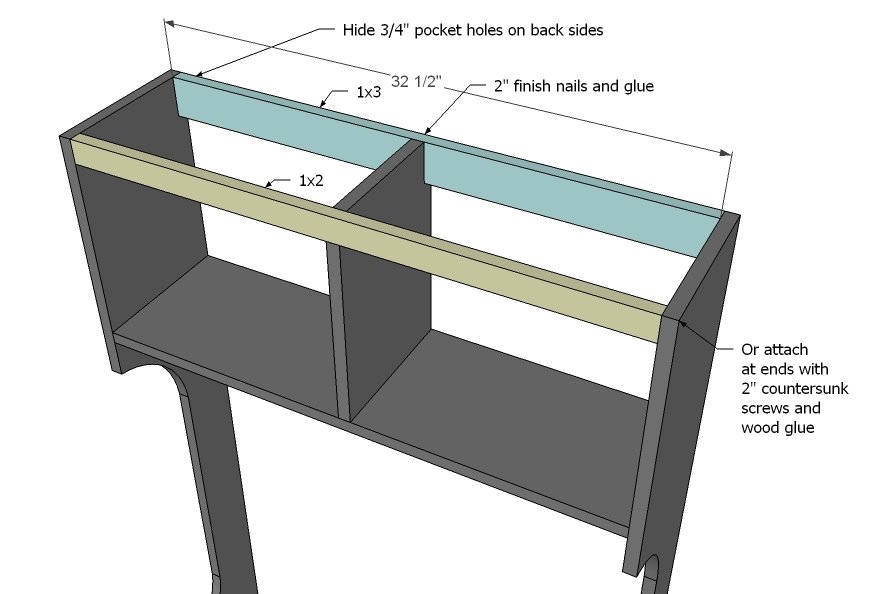

Step 4

Next, add the front and back trim, making sure the divider is centered on the 1x2 and 1x3.

Mimi's Narrow Hall Tree Hutch — step 4
5

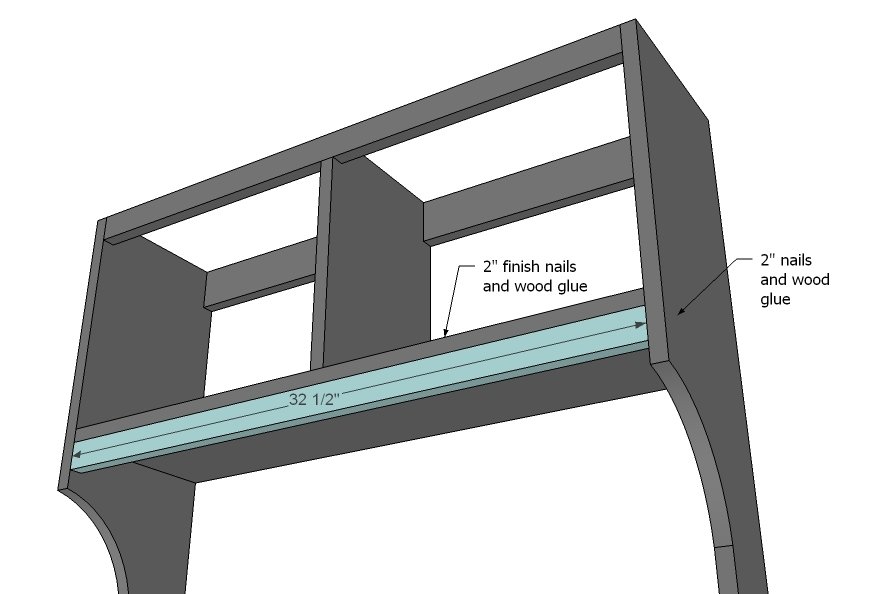

Step 5

Mimi's Narrow Hall Tree Hutch — step 5
6

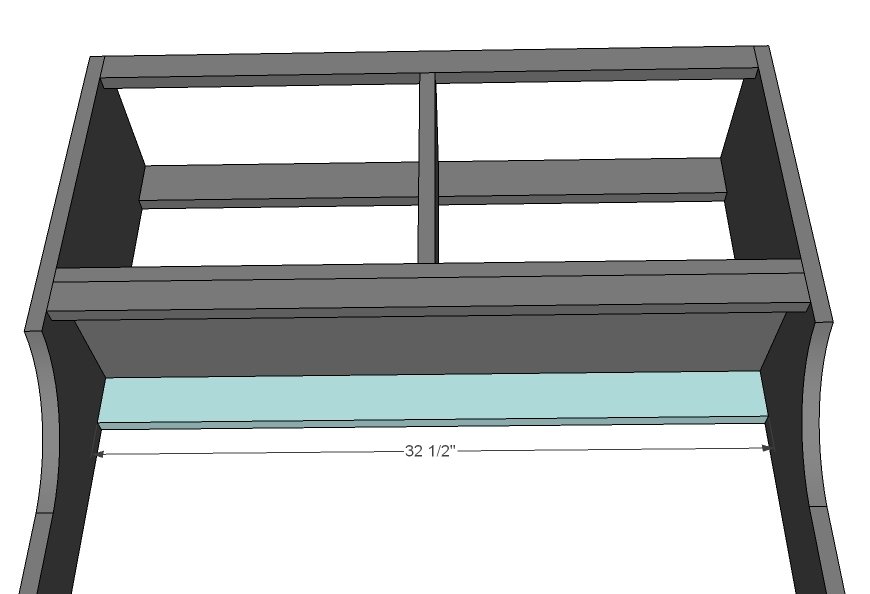

And the back trim.

Also, not pictured, add the base trim flush to bottom back of hutch with 3/4" pocket holes and 1 1/4" pocket hole screws on back side, or 2" countersunk screws and wood glue.

Mimi's Narrow Hall Tree Hutch — step 6
7

Step 7

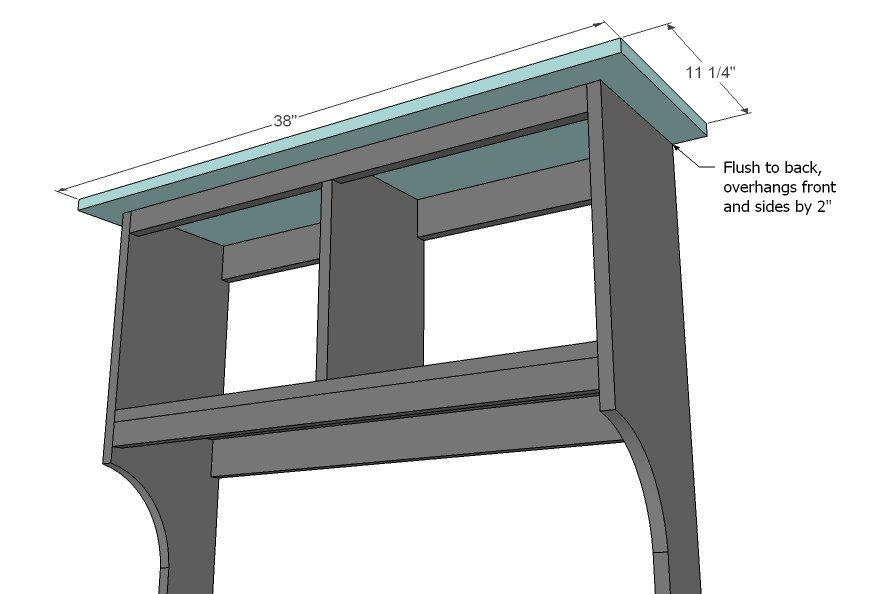

Next, add the top. Notice the 2" overhang on sides and front.

Mimi's Narrow Hall Tree Hutch — step 7
8

Step 8

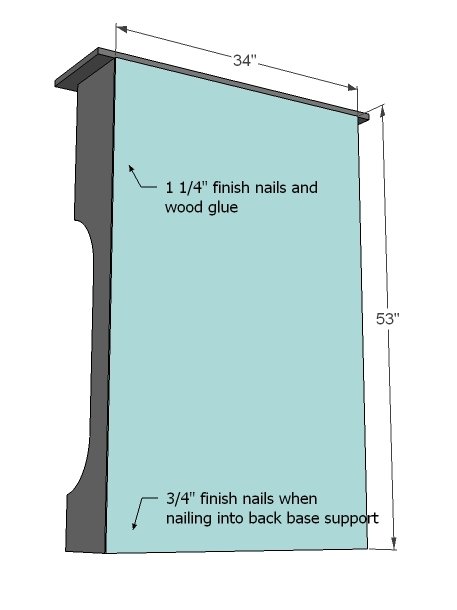

Attach beadboard or plywood to back.

Mimi's Narrow Hall Tree Hutch — step 8
9

Step 9

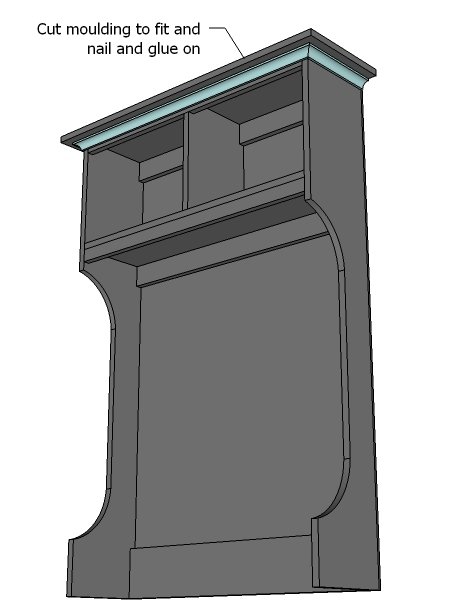

Apply moulding as desired, mitering corners to fit.

Mimi's Narrow Hall Tree Hutch — step 9
10

Step 10

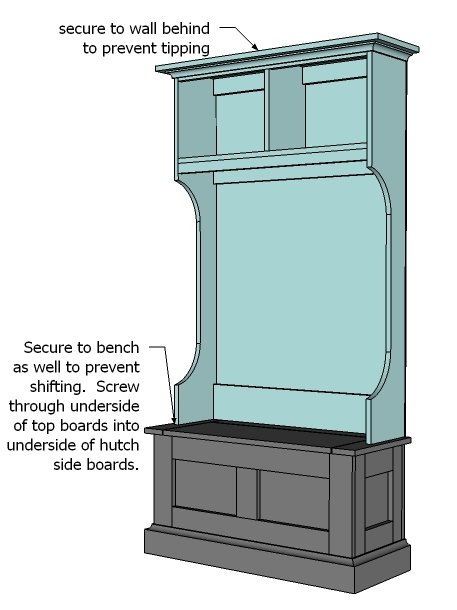

Finally, secure to bench and wall to prevent forward tipping.

Mimi's Narrow Hall Tree Hutch — step 10
11

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
