Mod Modular Office
Modern bookcases that display and store. Works with our Mod Modular Collection.
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | office |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $50 - $100 |

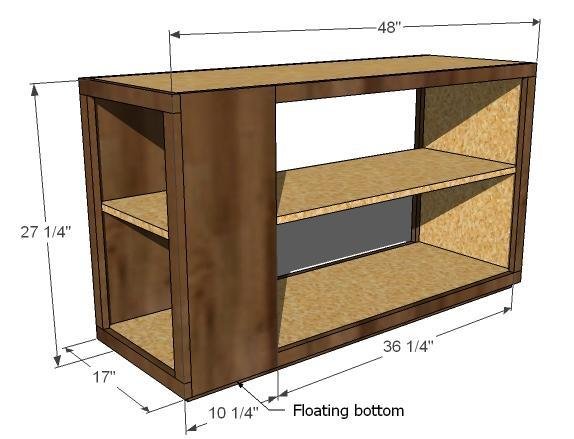

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
5 feet of 1×10 boards
1 Sheet of 3/4″ Plywood (for Staining) or 3/4″ MDF (for painting), cut into 15 1/2″ wide strips, 8′ long
2 – 2×2 Boards, 8′ Long
4 – 1×2 Board, 8′ Long
2″ Screws or 1 1/4″ Pocket Hole Screws
2″ Finish nails Wood Glue Finishing Supplies Edge banding for staining
Cut List
1 – 1×16 @ 47 1/4″ (Top) 1 – 1×16 @ 46 1/2″ (Bottom) 1 – 1×16 @ 24 1/4″ (Middle Divider) 1 – 1×16 @ 25 3/4″ (Closed End) 1 – 1×16 @ 37″ (Long Shelf) 2 – 1×10 @ 26 1/2″ (Small Shelf Sides) 1 – 1×16 @ 8 3/4″ (Small Shelf) 4 – 1×2 @ 37 3/4″ (Side Trim) 4 – 1×2 @ 23 1/2″ (Closed End Trim) 2 – 1×2 @ 17″ (Small Shelf Trim) 2 – 2×2 @ 46 1/2″ (Floating Base Sides) 2 – 2×2 @ 12 1/2″ (Floating Base Ends)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- circular saw
- table saw
- sander
- level
- countersink drill bit
Step-by-step Instructions
Build the Box

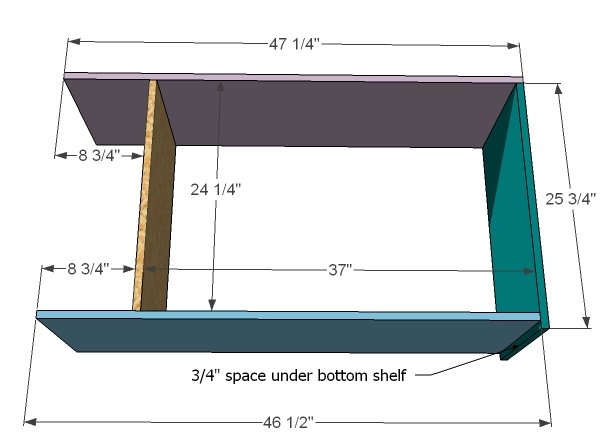

Measure the joints and mark out on all boards. If you are using a Kreg Jig™, drill pocket holes (you will need 1 1/4″ pocket holes screws). If you are using 2″ wood screws, predrill screw holes. Add glue and screw together.

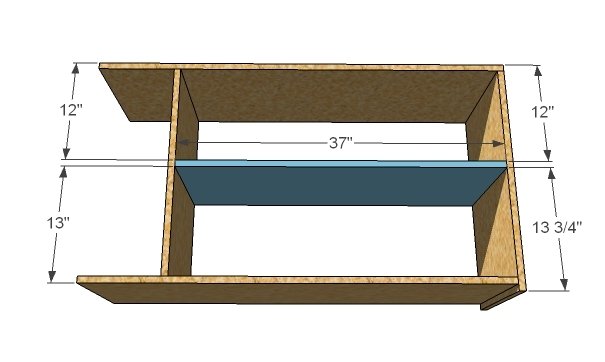

Large Shelf
The large shelf can be either held in place with shelf pins for an adjustable shelf or you can create a fixed shelf. For shelf pins, drill holes that match your shelf pins. For fixed shelves, attach the shelf with glue and screws as you did the box.
Small Shelf Sides

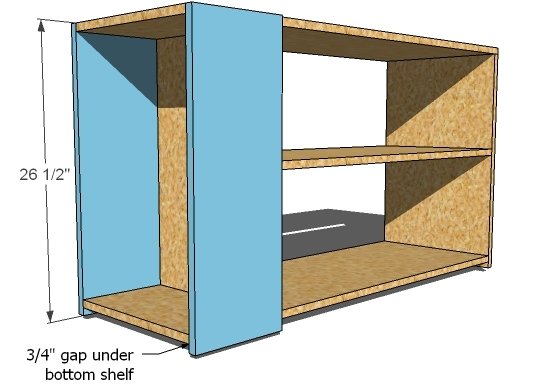

Use 2″ finish nails and glue to attach the small shelf sides to the open end of the bookshelf. Leave 3/4″ under the bottom shelf, as shown in the diagram.

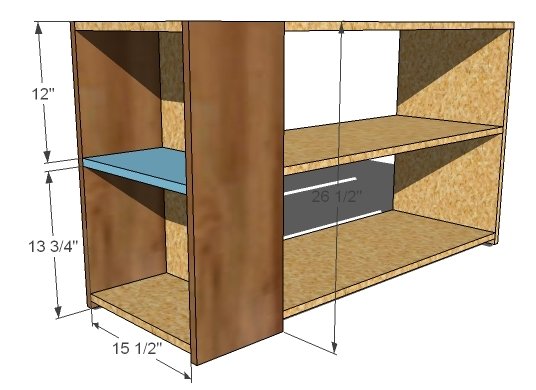

Small Shelf
Add the small shelf with either screws and glue or drill shelf pin holes for an adjustable height shelf.
Step 5

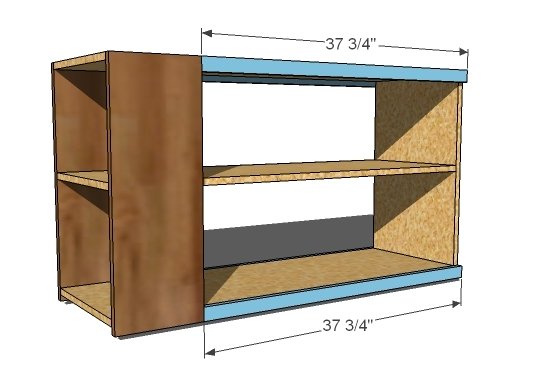

Closed End Trim
Attach the closed end trim to the closed end. Also, if the shelf is not fixed, attach to the shelf. Use 2″ finish nails and glue. If you are using a Kreg Jig™, build your face frames separately, then nail the entire face frame on as a whole.

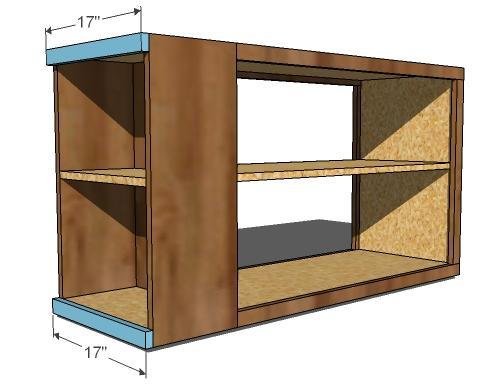

Small Bookshelf Trim

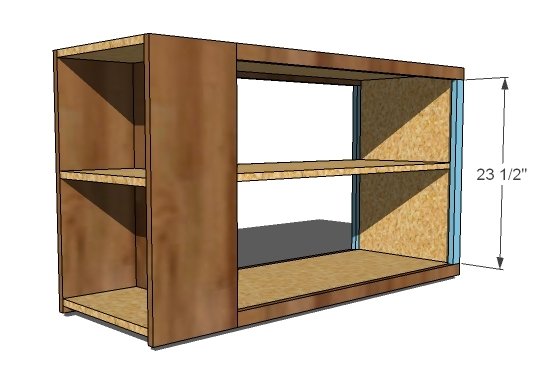

Attach the bottom and top trim to the small bookshelf. Use 2″ finish nails and glue. If you are using a Kreg Jig™, build the face frame first, then attach the entire face frame using 2″ finish nails and glue.

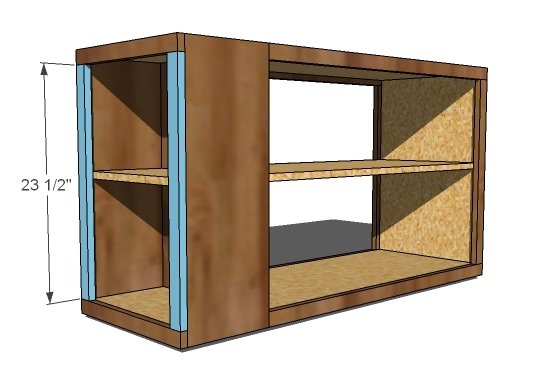

Small Shelf Side Trim
Attach the small shelf side trim with 2″ finish nails and glue. If you choose to use fixed shelves, also nail into the fixed shelves for added support.

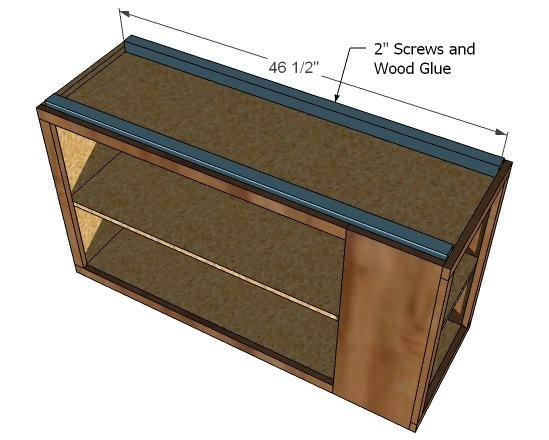

Floating Base Sides
Use 2″ screws and glue to attach the floating base sides to the bottom.

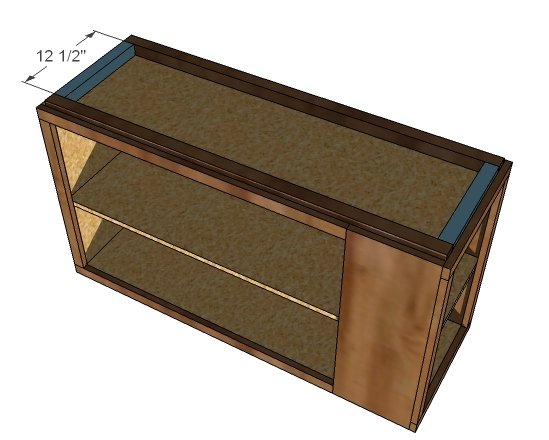

Floating Base Ends
Finish the floating base by attaching the final pieces to the bottom with 2″ screws and glue.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
