Modern Farm Table
Chunky legs on this dining table give it a modern edge. for table and matching bench from Related: Matching bench plans are available here.
Specifications
| Project type | Dining Table Plans |
|---|---|
| Room | dining room |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $50 - $100 |

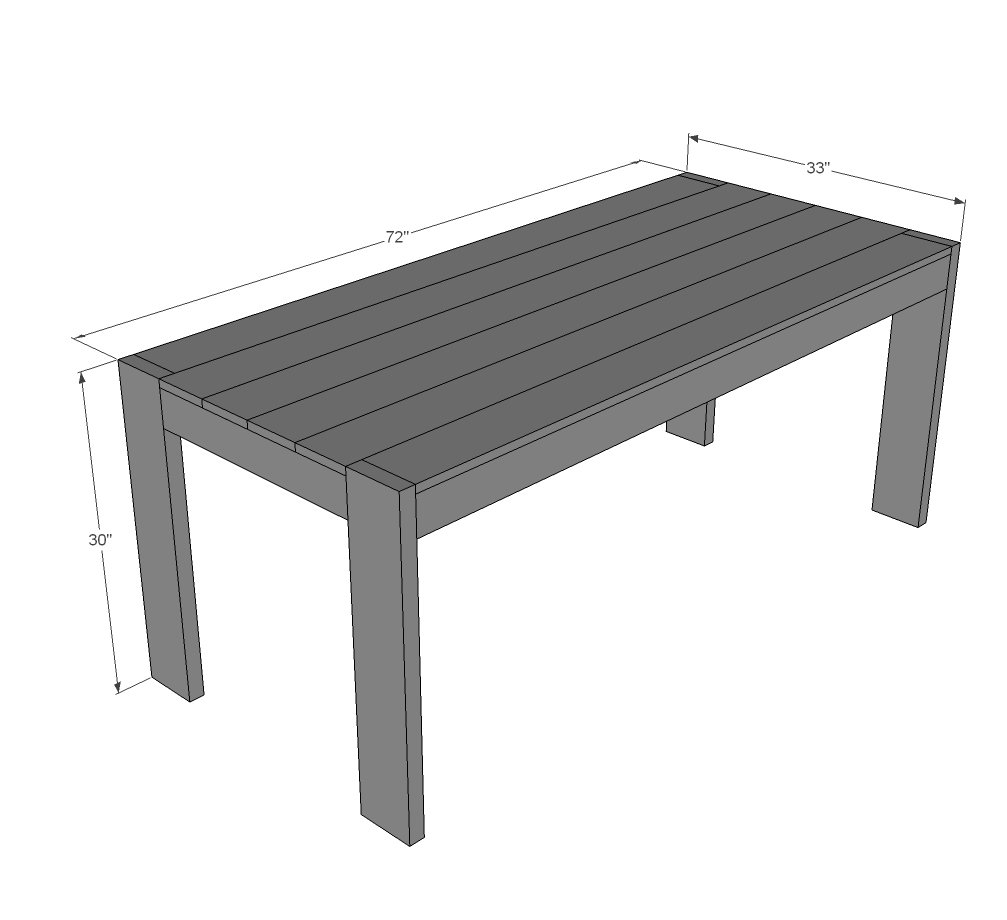

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 6 - 1x6 @ 6 feet long
- 3 - 2x4 @ 8 feet long
- 1 - 2x6 @ 12 feet long (or you can buy 2 8 footers)
- 1-1/4" and 2-1/2" pocket hole screws
Cut List
TABLETOP
- 4 - 1x6 @ 72" long
- 2 - 1x6 @ 69" long
FRAME
- 2 - 2x4 @ 69" long
- 3 - 2x4 @ 30" long (cut to fit!!!)
LEGS
- 4 - 2x6 @ 30" long
- 2 - 2x4 @ 22" long (cut to fit!!!!)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
Step-by-step Instructions

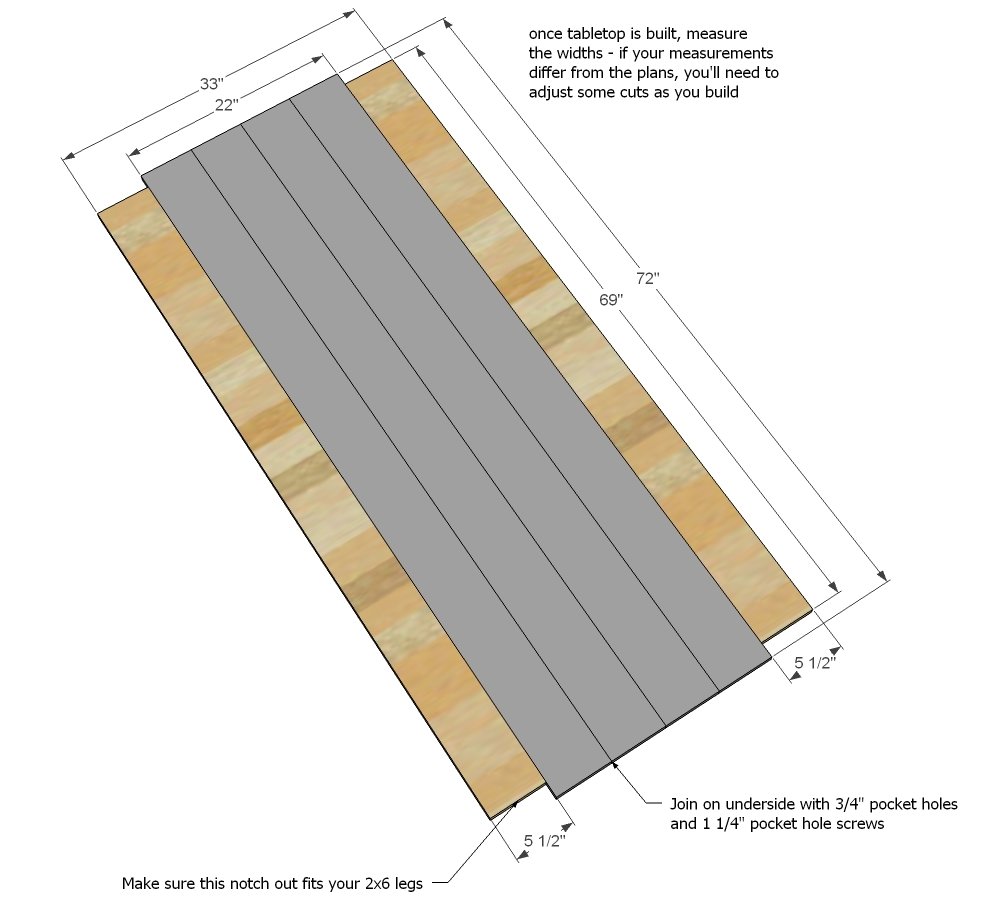

Step 1
Drill 3/4" pocket holes along one edge of all but one short 1x6, about every 6-8". Clamp and join 1x6s carefully, working to create the smoothest possible tabletop. You'll need to make sure the 2x6 legs will fit in the notched out areas. NOTE: If your 1x6s are exactly 72" long, but have rough ends, you can make the entire table 1/2" less to be able to cut the ends of the 1x6s.

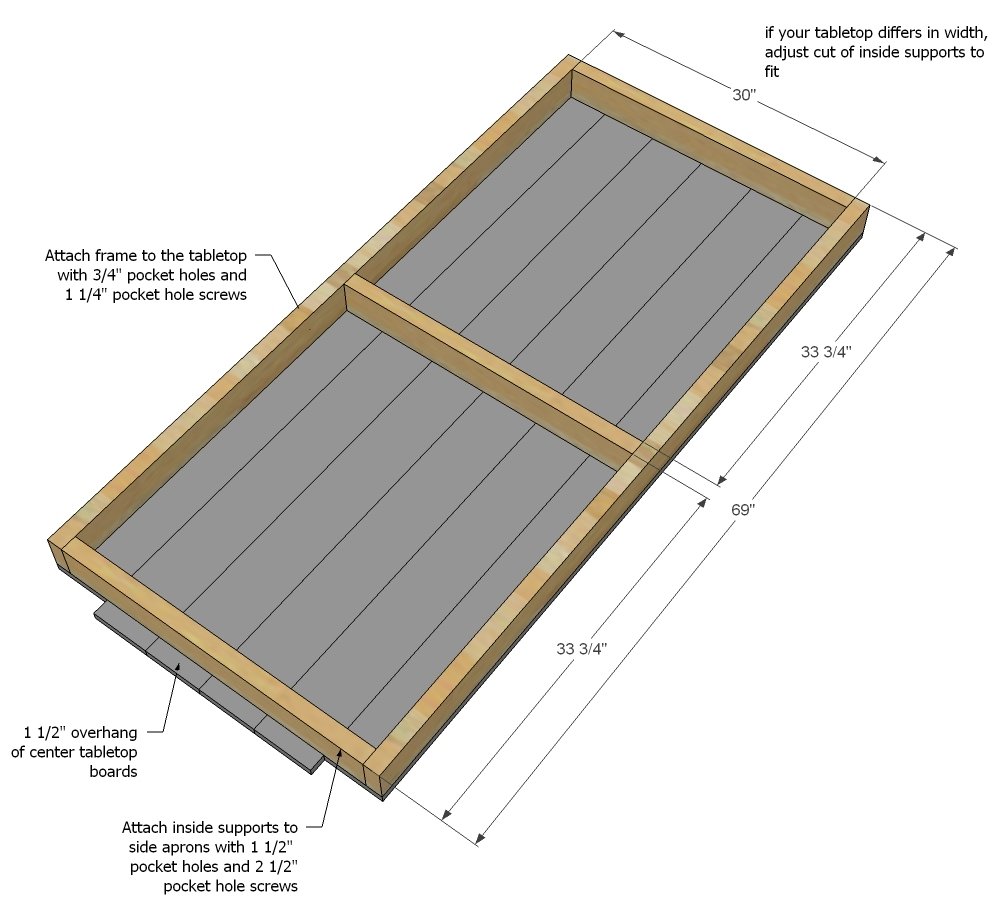

Step 2
Test the fit of the boards first, making sure the base will be the width of the tabletop. You may need to adjust the length of your inside aprons. For the side aprons and inside supports, drill 3/4" pocket holes along one long edge, about every 6-8 inches, for attaching to the tabletop in later steps. Then drill (2) 1-1/2" pocket holes on each end of the inside supports (the shorter 2x4s) and attach to the side aprons with 2-1/2" pocket hole screws, making sure your 3/4" pocket holes are all facing upward and hidden on inside. Then attach the entire base to the tabletop through the 3/4" pocket holes with 1-1/4" pocket hole screws.

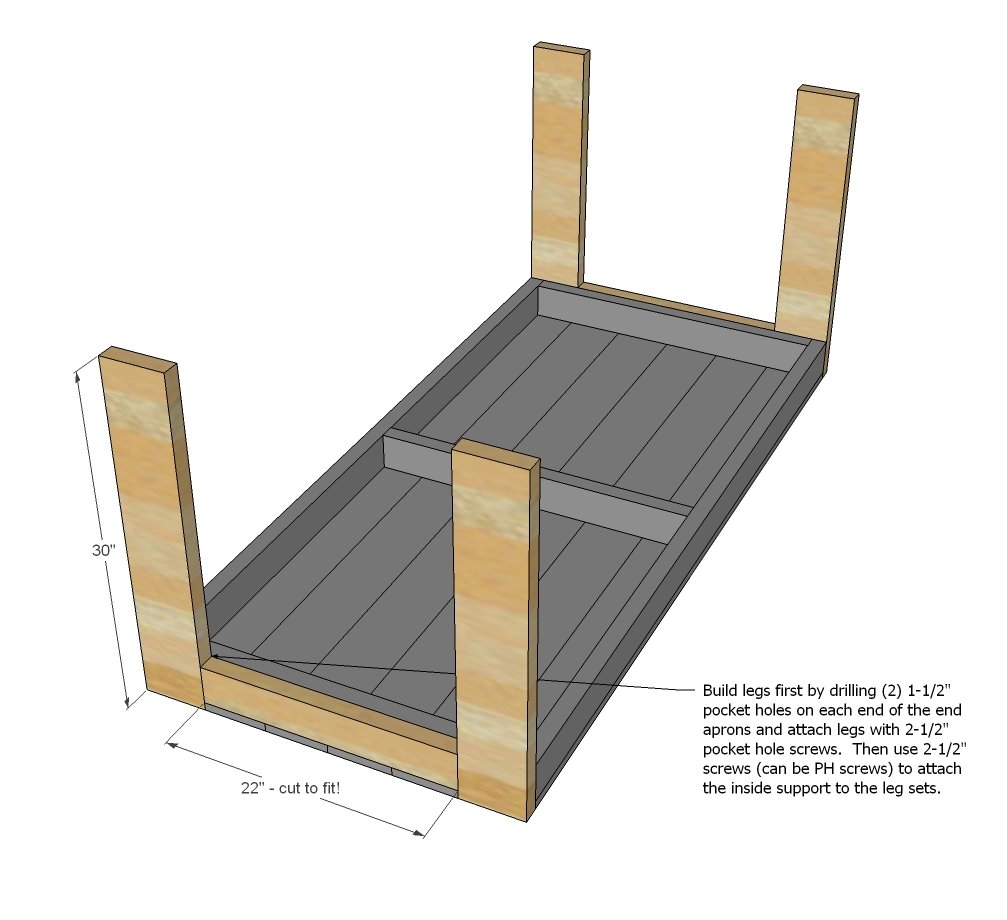

Step 3
Build your leg sets first, then glue and screw from inside to the frame.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
