Modern A-Frame Bookshelf
Modern A-Frame Bookshelf Build your own stunning A-frame ladder bookshelf with! Featuring a sleek farmhouse-modern design, this project uses budget-friendly 1x4s for the angled frame and offers four spacious shelves perfect for displaying books, plants, and decor. With clean lines, a compact footprint, and an eye-catching silhouette, this piece fits beautifully in living rooms, offices, or entryways. What’s Included: • Easy-to-follow step-by-step instructions • Detailed cut list and material breakdown • 3D diagrams with measurements • Beginner-friendly tips for clean joinery and assembly Whether you're just starting out or refining your woodworking skills, this project makes a functional and stylish addition to any home. Download your today and start building!
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Style | Modern Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $20 - $50 |

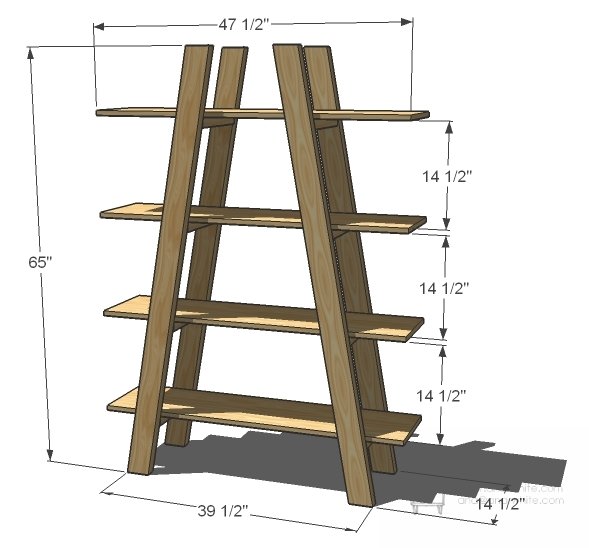

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 4 – 2×4 Boards, 8′ or Stud Length
- 2 – 1×12 Boards, 8′ Long OR 4 – 4′ Shelves OR 2 – 8′ Shelves (12″ wide)
- 16 - 3″ Self tapping wood screws
- 24 = 2″ self tapping wood screws
- Wood Glue and Finishing Supplies
Cut List
- 4 – 2×4 @ 66″ (Legs, ends cut at 10 degrees off square parallel to each other)
- 8 – 2×4 @ 11 1/2″ (Shelf Supports)
Tools
- measuring tape
- square
- pencil
- hammer
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions

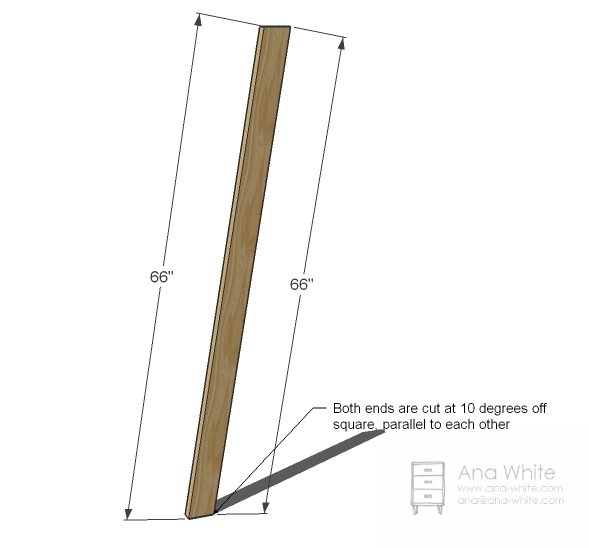

Cut Legs
Cut the legs as shown above, with the legs cut at 10 degrees off square, parallel to each other. If you do not have miter saw, you can use a protractor and a jigsaw or circular saw. Cut four legs.

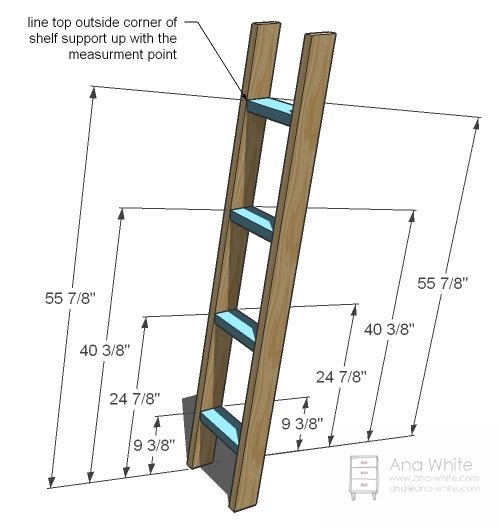

Supports
The supports are all 2x4s, 11 1/2″ long. Make sure you shelves are 11 1/2″ wide first and cut the supports to match (for example, you buy 12″ wide shelving, then you would cut the supports at 12″ long). Then measure each of the legs and mark as shown above. These marks are to the tops of the supports. Screw the supports to the legs. Supports will NOT be parallel to the leg sides, but rather, parallel to the leg tops and bottoms. You can additionally use your protractor to mark the angle – it will be 80 degrees from the top of the shelf to the leg. Use either 3″ screws and glue or 2″ pocket hole screws (for pocket holes) and glue.

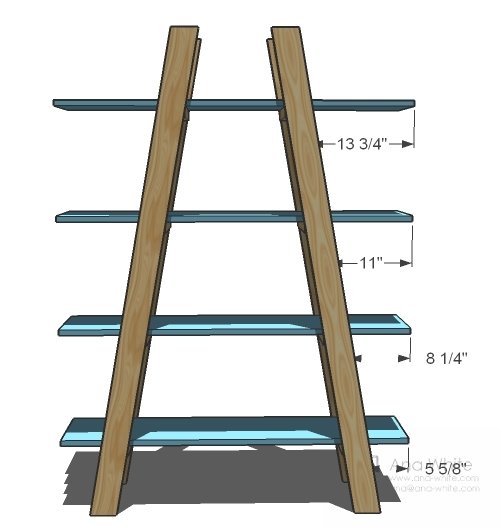

Shelves
If you survived step 2, this bookshelf is built! Now simply mark each of the shelves from the ends as shown above. These marks will line up with the shelf supports. Screw the shelves to the shelf supports with 2″ screws. And that’s it, your done!
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
