Modern Kids Bookrack
Want to add a farmhouse style modern bookrack to your child's room or nursery? This modern style bookrack is stylish and functional at the same time.
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

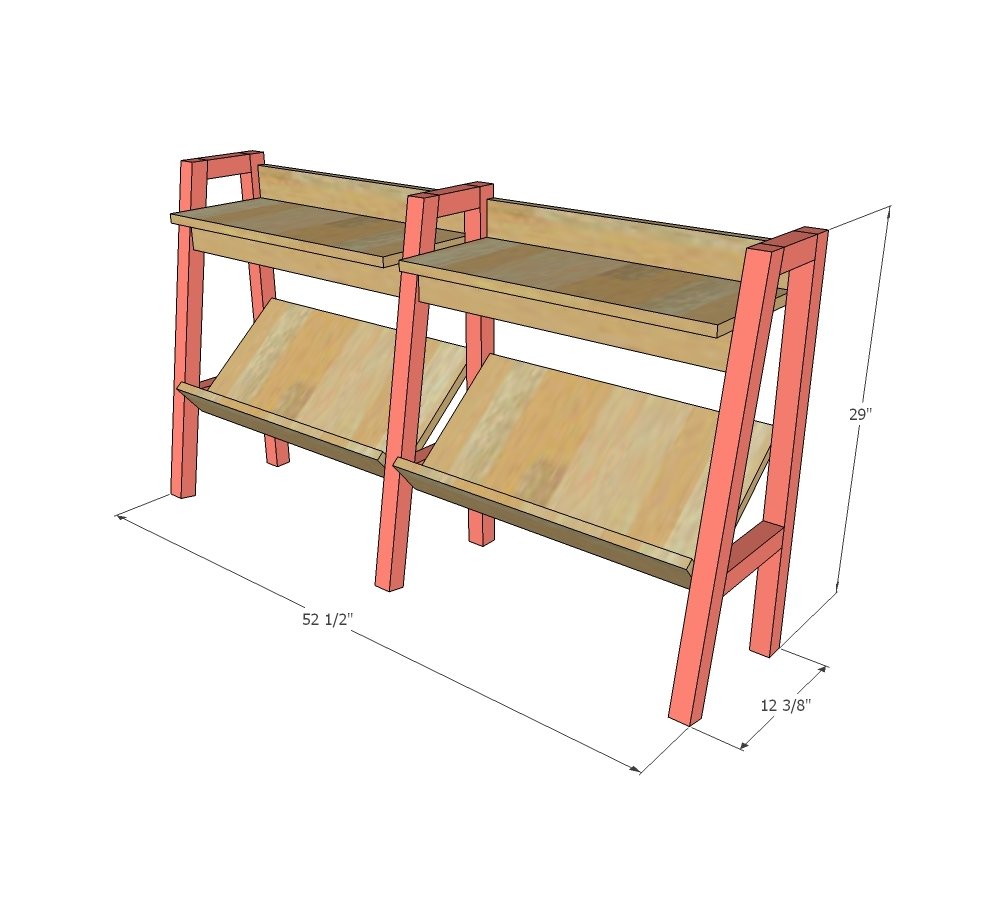

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
3 - 2x2 @ 8 feet long
1 - 1x10 @ 4 feet long
1 - 1x12 @ 4 feet long
1 - 1x4 @ 12 feet lont
Cut List
3 - 2x2 @ 30"
3 - 2x2 @ 30-1/2" - both ends cut parallel at 10 degrees off square, long point to short point measurment
3 - 2x2 @ 4-5/8" - one end cut at 10 degrees off square, longest point measurement
3 - 2x2 @ 8" - one end cut at 10 degrees off square, longest point measurement
2 - 1x10 @ 24"
2 - 1x12 @ 24"
6 - 1x4 @ 24"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
Step-by-step Instructions

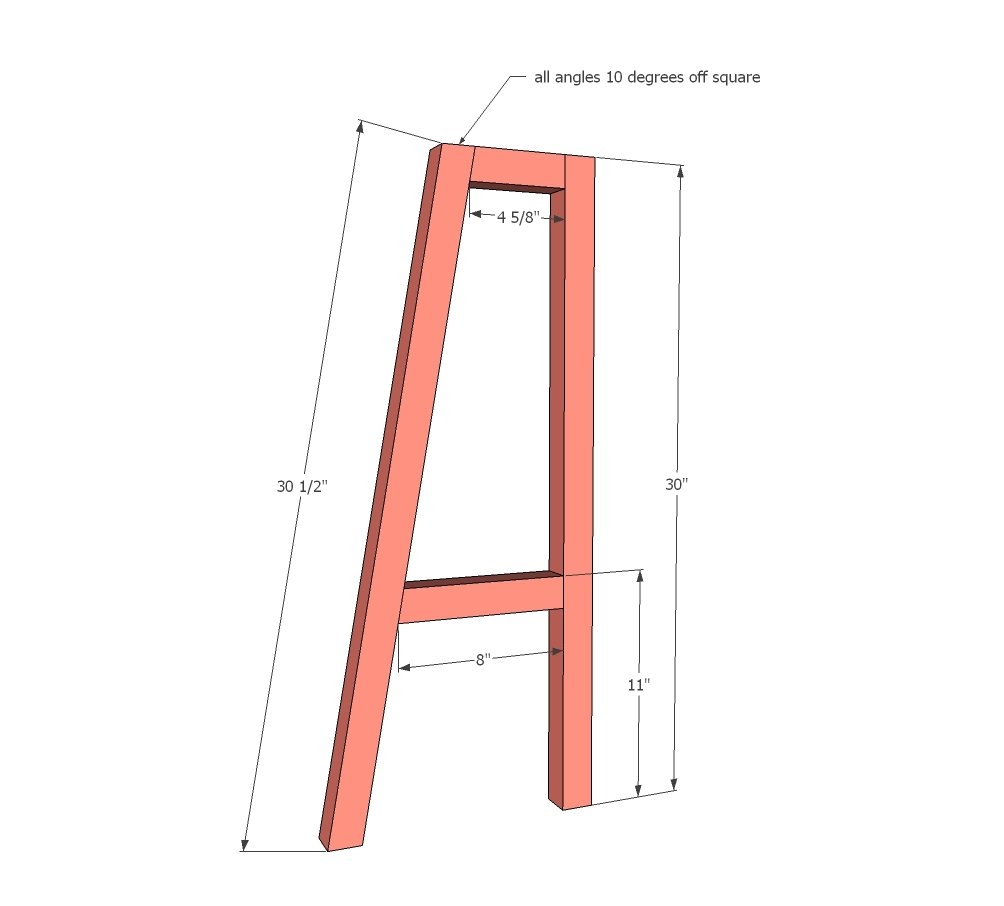

Step 1
Build three of the leg sets. On the bottom horizontal piece, it may be easier to place pocket holes on sides instead of top/bottom if you don't have a right angle drill. If you want to finish your legs different than the rest of the piece, paint or stain the legs now - it will be much more difficult after further assembly.

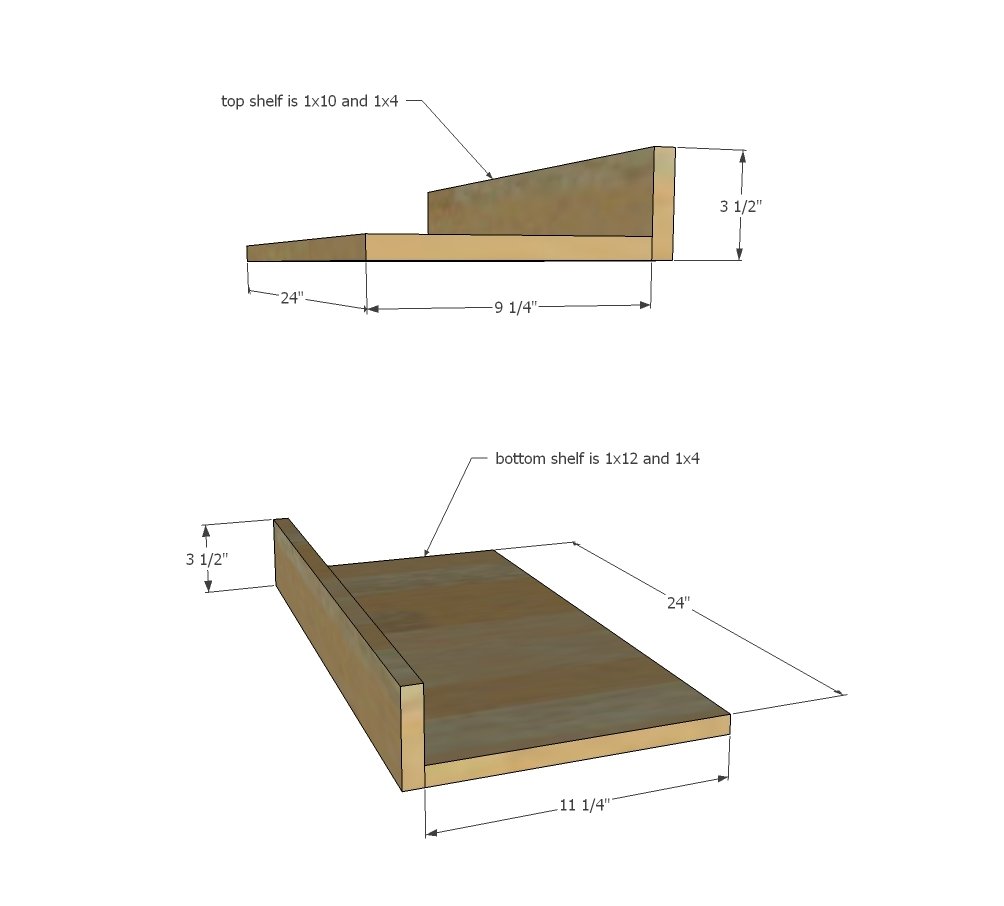

Step 2
Build the four shelves as shown above.

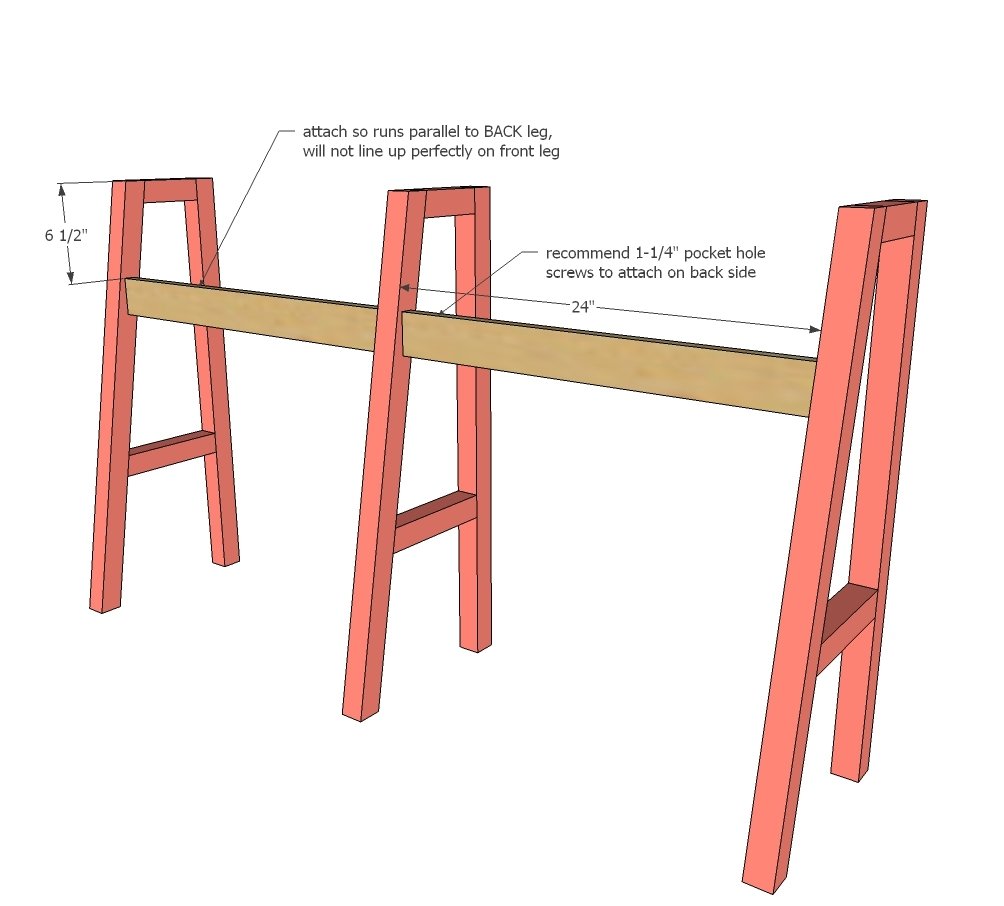

Step 3
Attach aprons between legs.

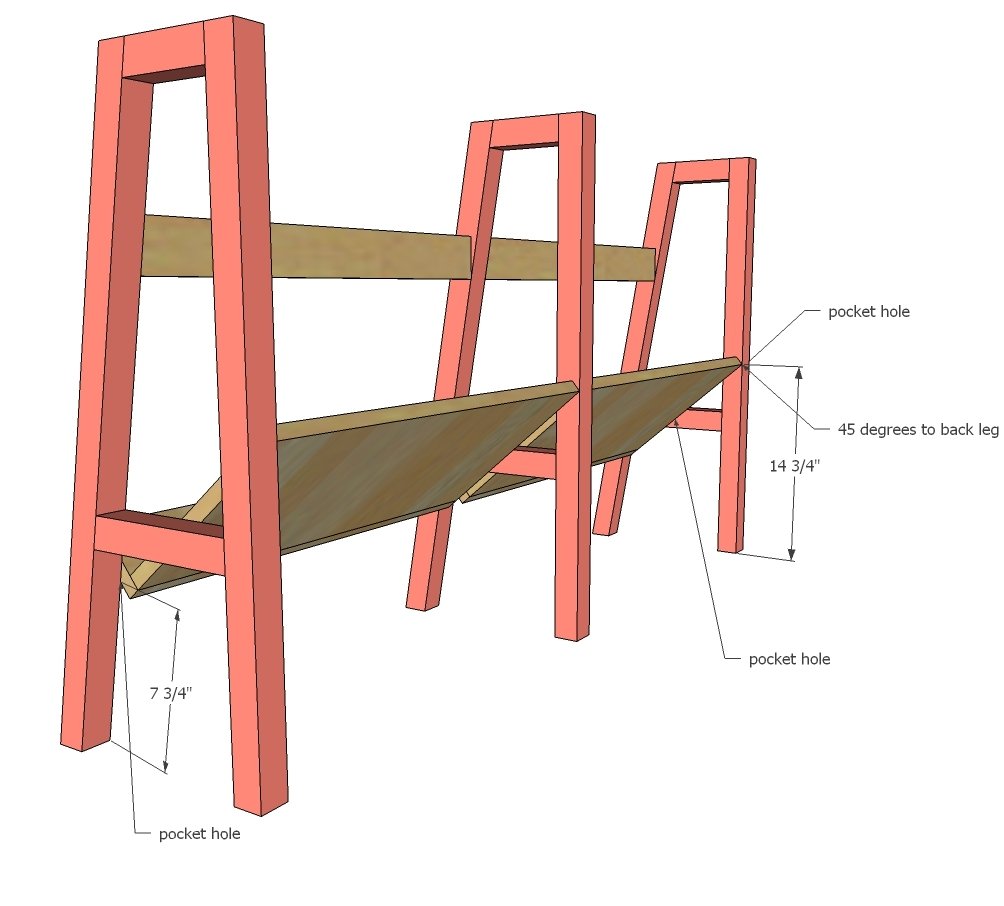

Step 4
Mark back legs at a 45 degree angle and attach bottom shelf inside.

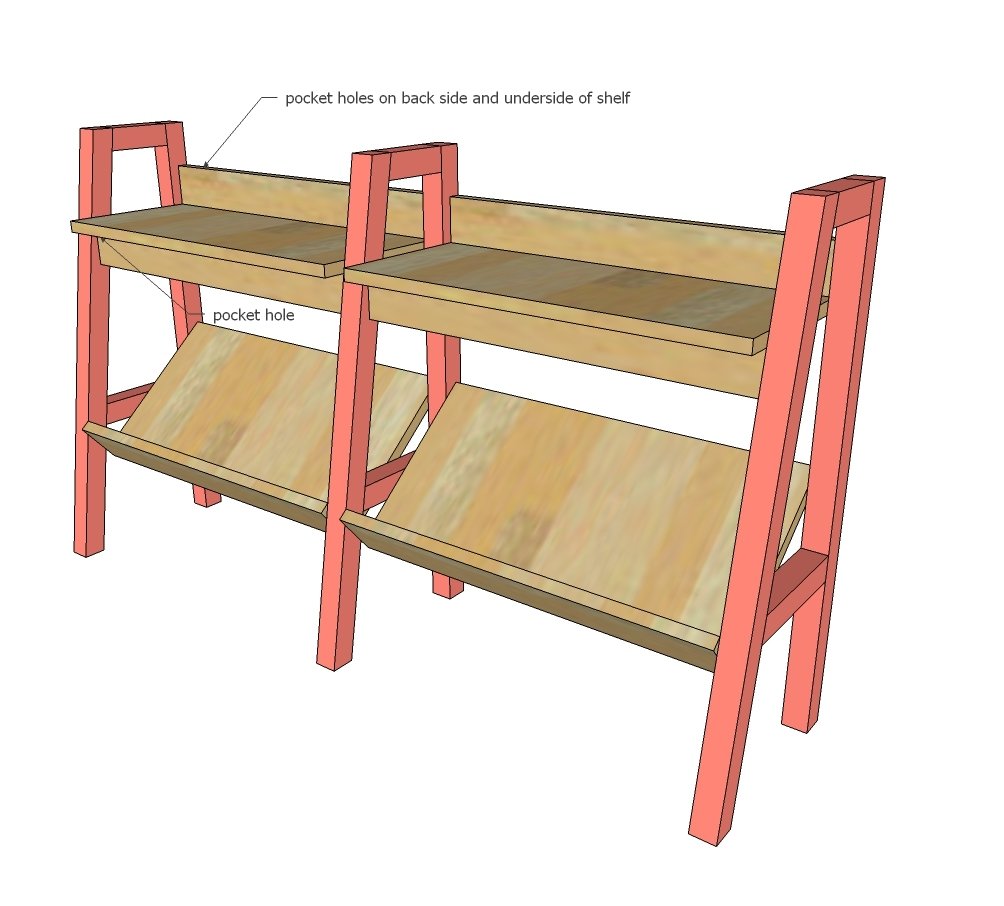

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
