Modern Park Bench

Build your own modern style park bench. Sturdy 2x4 frame, easy to build design using off the shelf materials and basic tools. from UPDATE: I built this bench about 15 years ago and we are still using it today!!

Modern Park Bench

Specifications

Project typeBench
RoomOutdoor
StyleModern Style Furniture Plans
DifficultyBeginner Projects
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

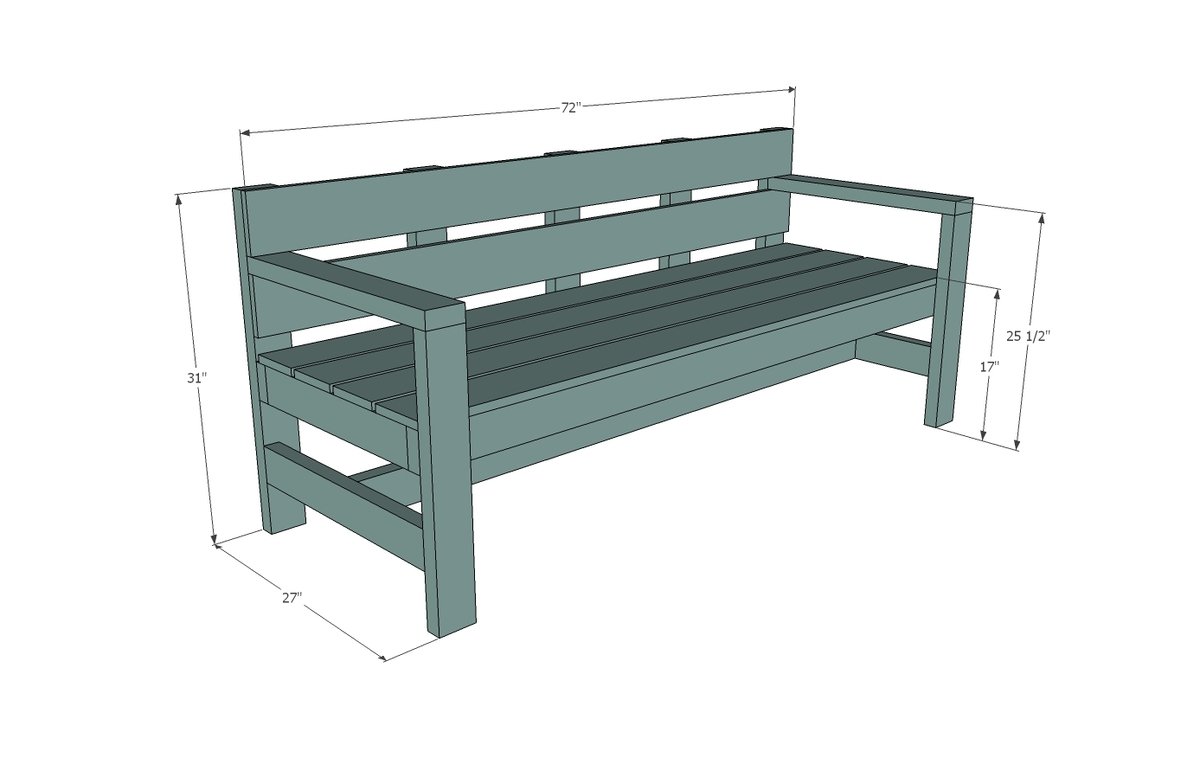

Modern Park Bench dimension diagram 1

Shopping List

  • 6 - 1x6 @ 6 feet long
  • 7 - 2x4 @ 8 feet long
  • 60 - 2-1/2" to 3" long exterior self tapping screws (look for the star bit ones)
  • 60 - 1-1/2" to 2" long exterior self tapping screws (look for the star bit ones)

Cut List

  • 2 - 2x4 @ 72"
  • 5 - 2x4 @ 21"
  • 2 - 2x4 @ 31"
  • 4 - 2x4 @ 24"
  • 2 - 2x4 @ 25-1/2"
  • 1 - 2x4 @ 69"
  • 3 - 2x4 @ 18-1/4"
  • 6 - 1x6 @ 72"

Tools

  • measuring tape
  • square
  • pencil
  • safety glasses
  • hearing protection
  • drill
  • circular saw
  • sander

Step-by-step Instructions

1

Wood glue is recommended at all joints.

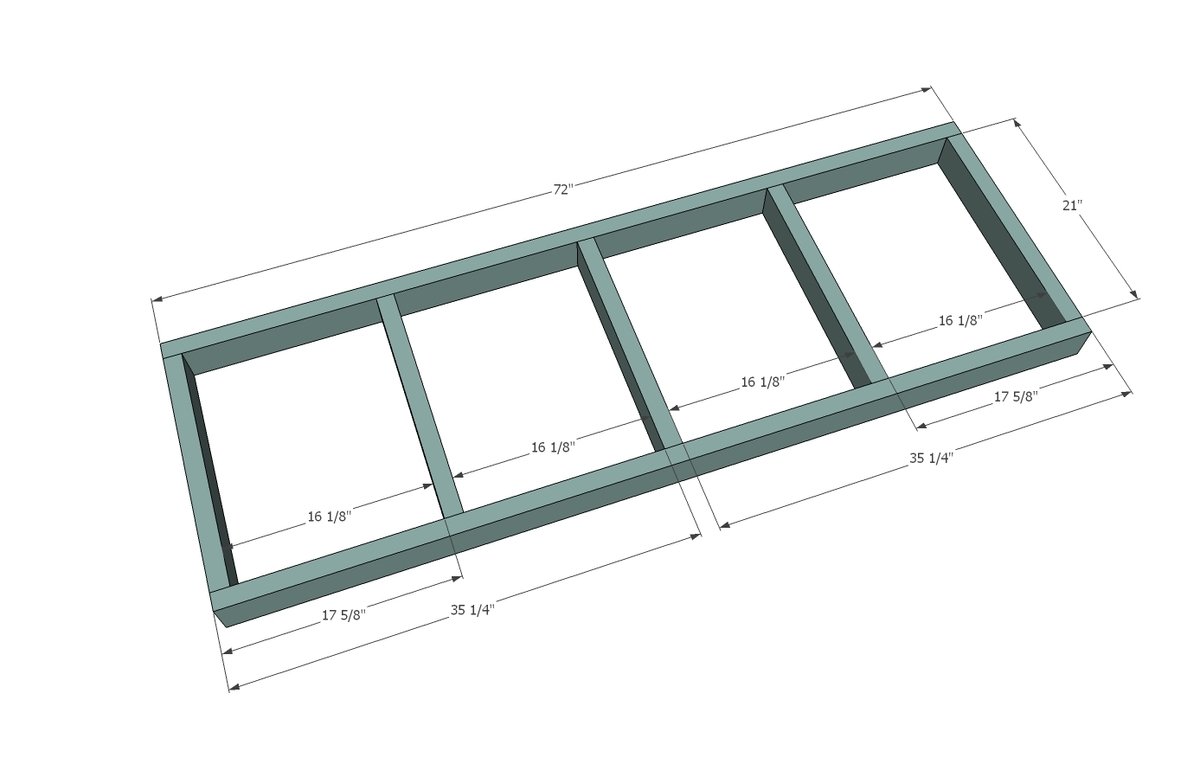

Build the basic seat frame of the swing first, using the longer screws, two screws per joint.

Modern Park Bench — step 1
2

Step 2

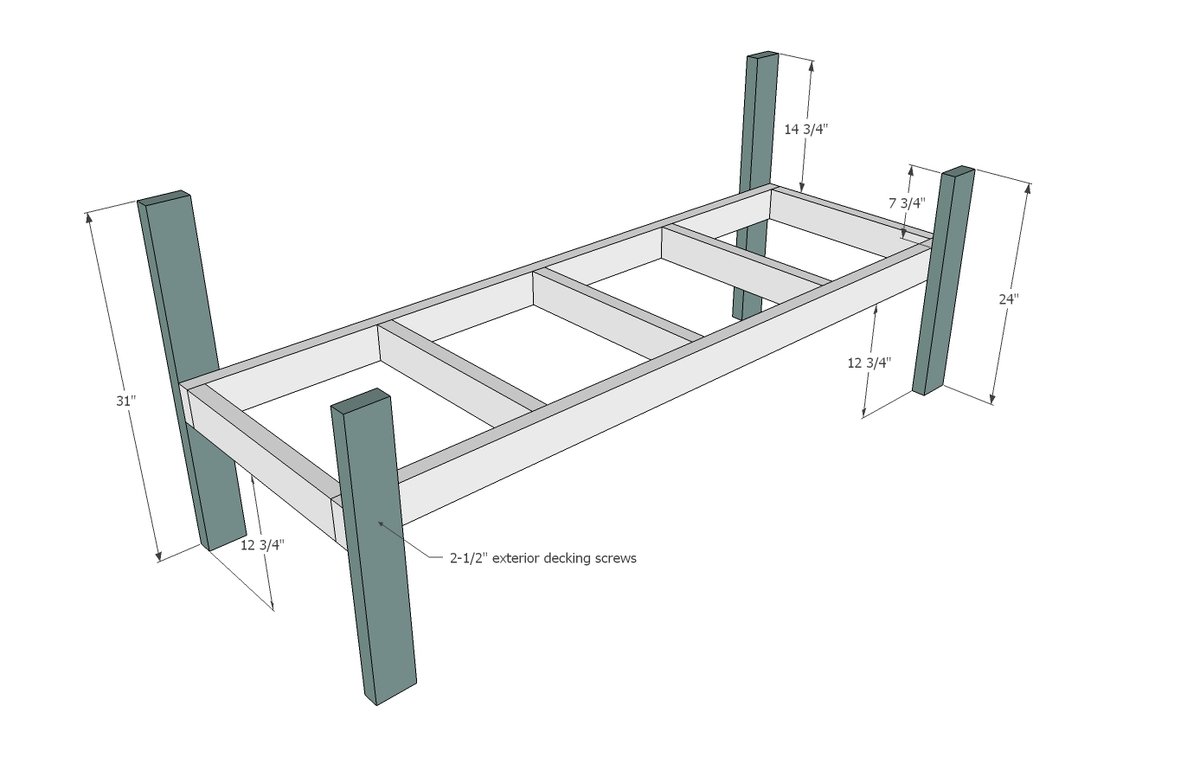

Next, add the legs to the seat frame using the longer screws, three screws per joint.

Modern Park Bench — step 2
3

Step 3

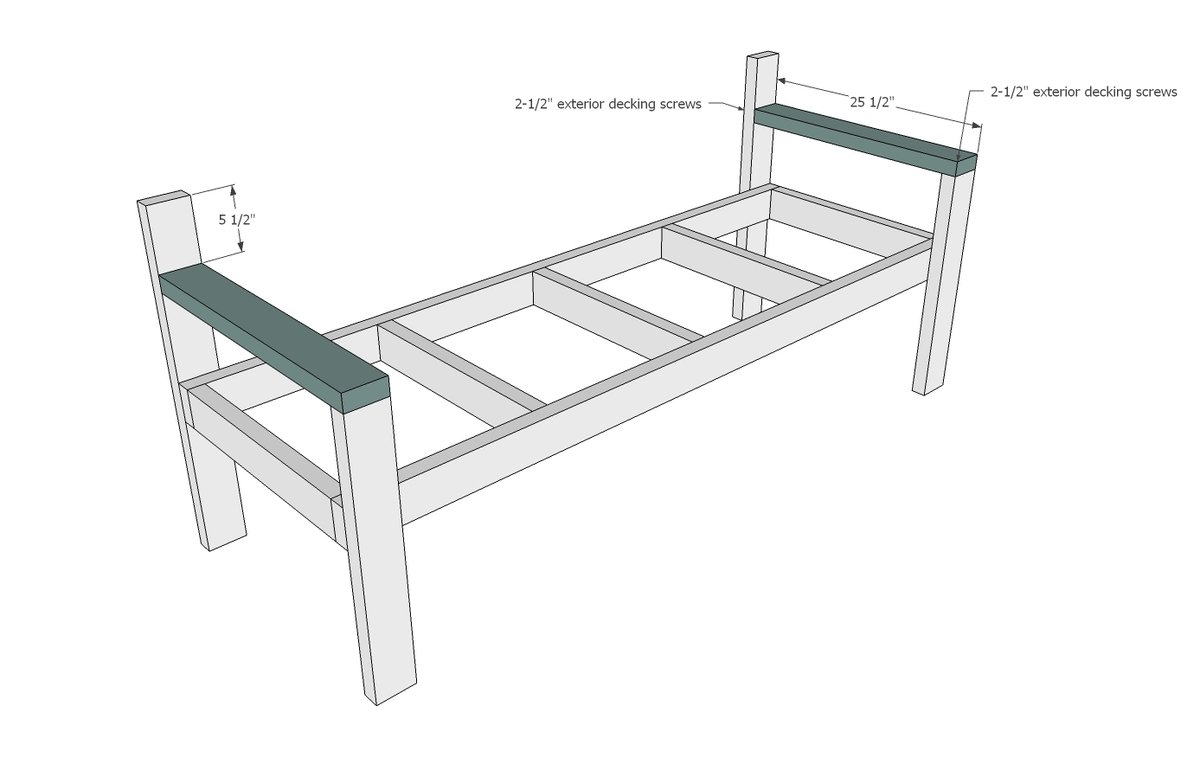

Then add the arms on top of the shorter legs, and then tie into longer back legs, using the longer screws, two screws per joint.

Modern Park Bench — step 3
4

Step 4

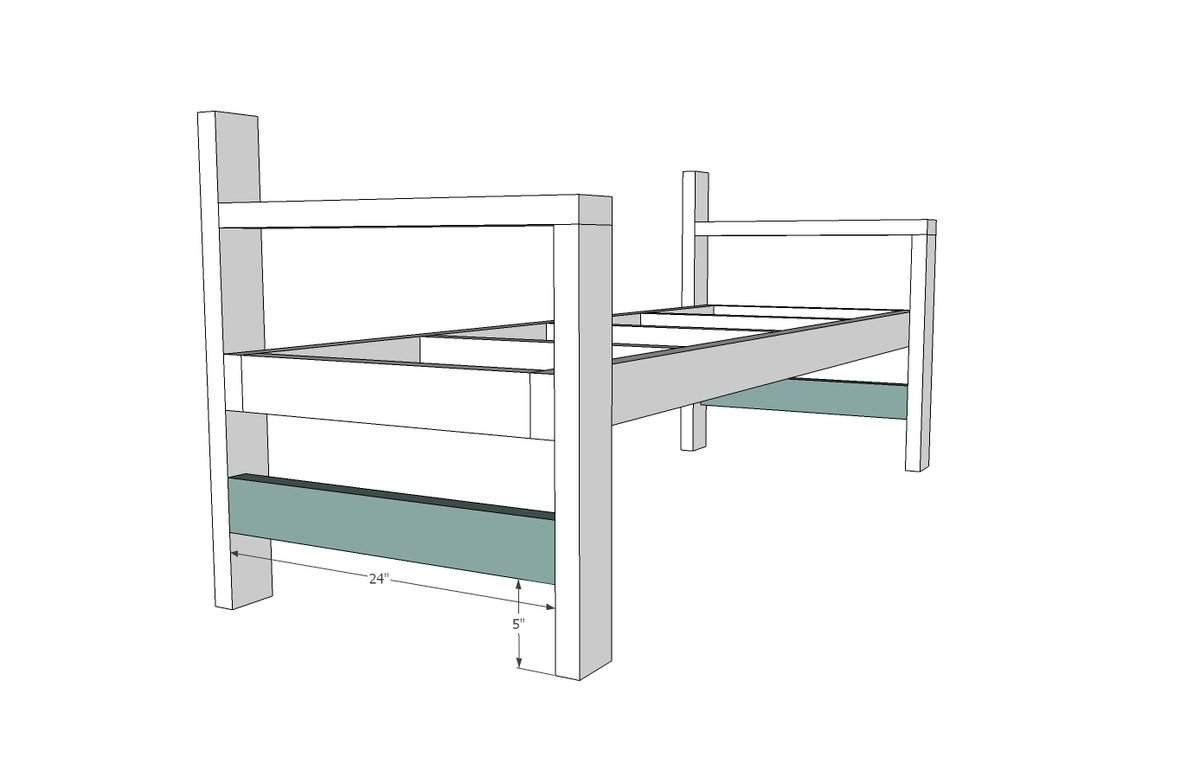

Add the shorter stretchers between the bottom legs - this will help keep the legs from splaying out. Use the longer screws, two screws per joint.

Modern Park Bench — step 4
5

Step 5

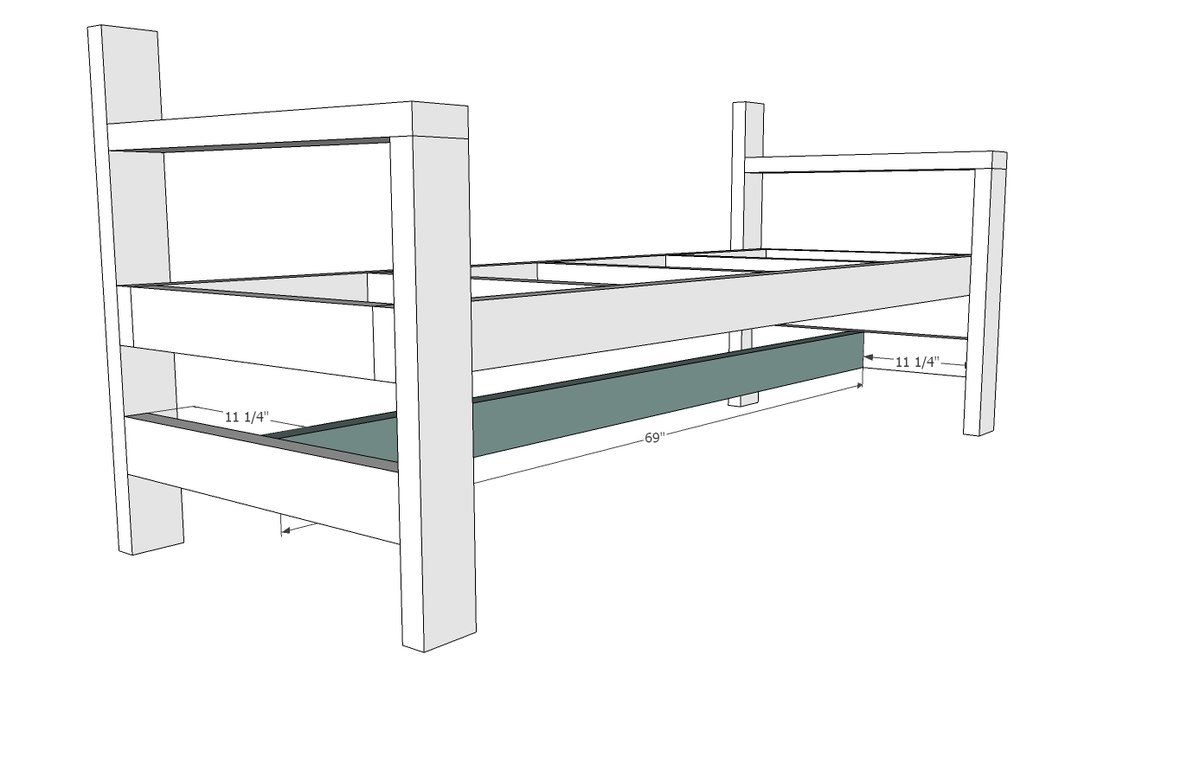

Attach bottom stretcher between legs, centered, and attach with two screws per end, using the longer screws.

Modern Park Bench — step 5
6

Step 6

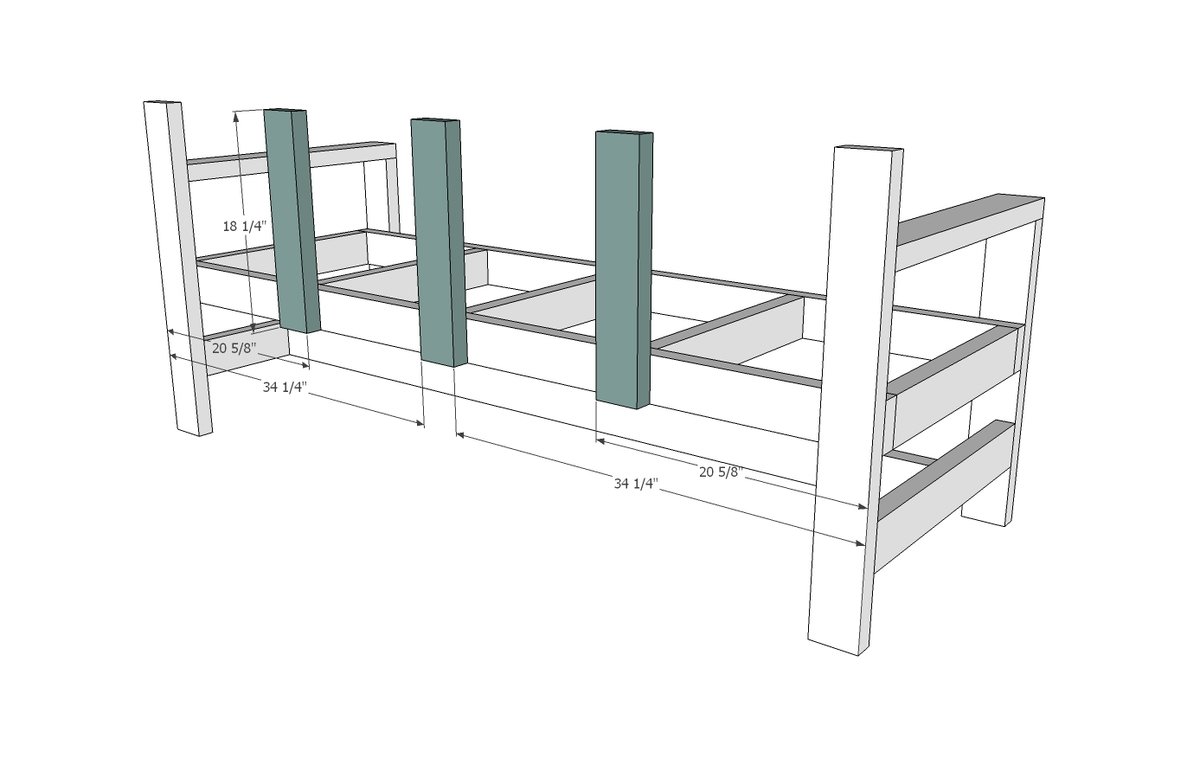

Attach backrest supports with the longer screws, two screws per joint.

Modern Park Bench — step 6
7

Step 7

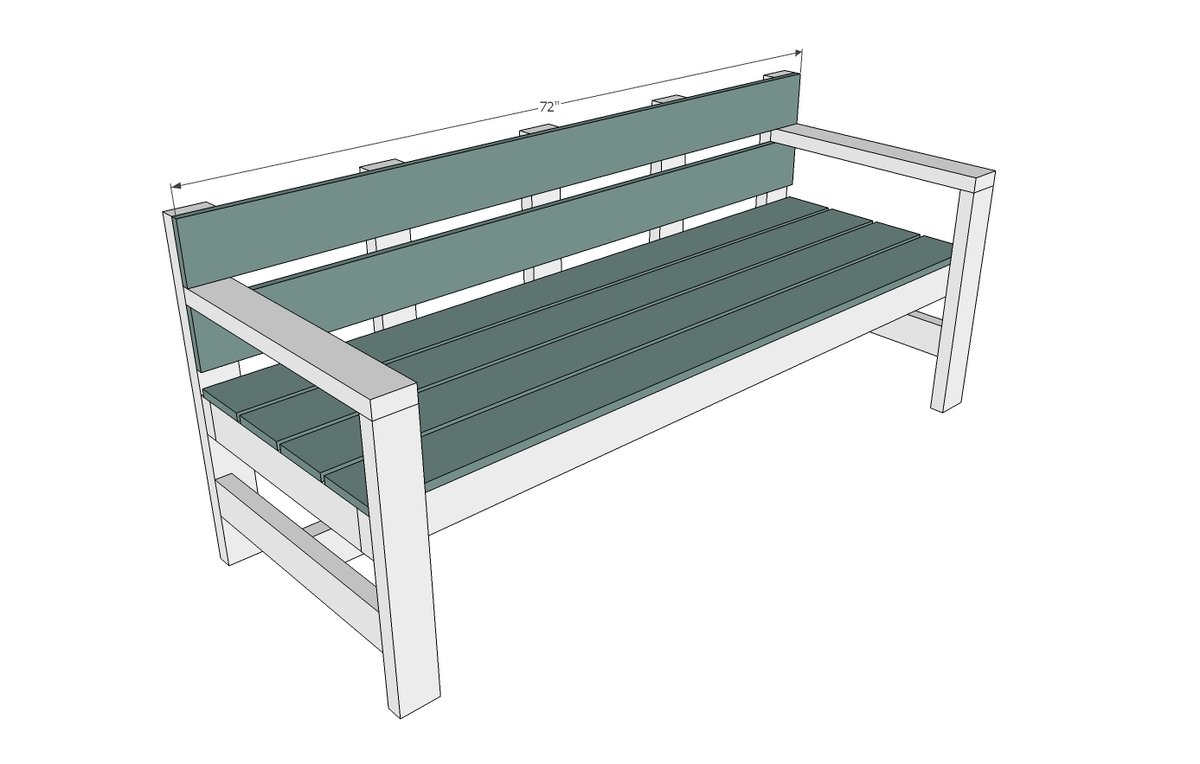

Lay out the seat boards on top of the bench and attach with the shorter screws, two screws per joint.

Modern Park Bench — step 7
8

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
