Modern Platform Bed Frame with Chunky Legs
For about the price of a box spring you can build your own modern platform bed frame. You'll just need a few basic power tools and off the shelf lumber to build - and with diagrams and shopping list.
Specifications
| Project type | Beds and Bed Frames |
|---|---|
| Room | Bedroom |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | $50 - $100 |

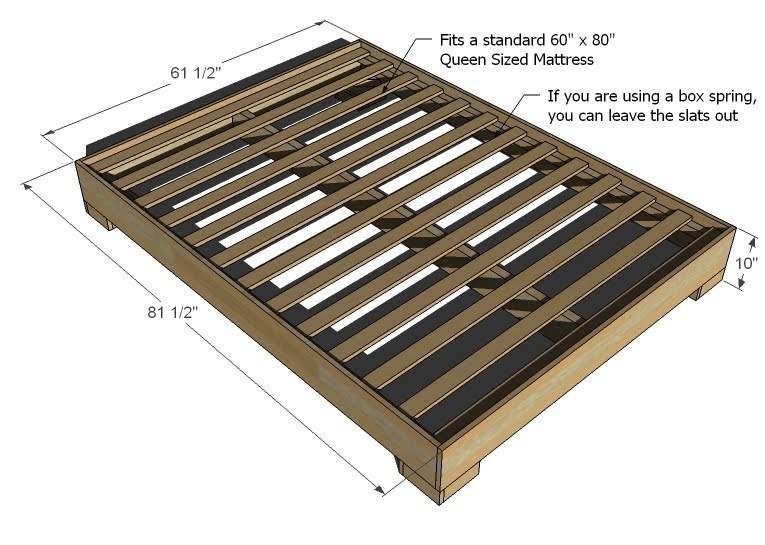

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 – 1×8 Boards, 8′ Long
1 – 1×8 Board, 12′ Long
2 – 2×2 Boards, 8′ Long
2 – 2×6 Board, 8′ Long or Stud Length
13 – 1×3 Boards 2″ Screws Wood Glue Wood Filler Sand Paper Finishing Supplies
Cut List
2 – 1×8 @ 60″ (End Rails)
2 – 1×8 @ 81 1/2″ (Side Rails)
4 – 2×6 @ 5 1/2″ cut at 45 degree angles (Corner Supports)
1 – 2×6 @ 80″ (Center Support)
2 – 2×2 @ 80″ (Cleats)
4 – 2×6 @ 5 1/2″ (Leg Bases)
16 – 1×3 @ 6 1/4″ (Leg Trim)
13 – 1×3 @ 60″ (Slats)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- drill
- circular saw
- sander
Step-by-step Instructions

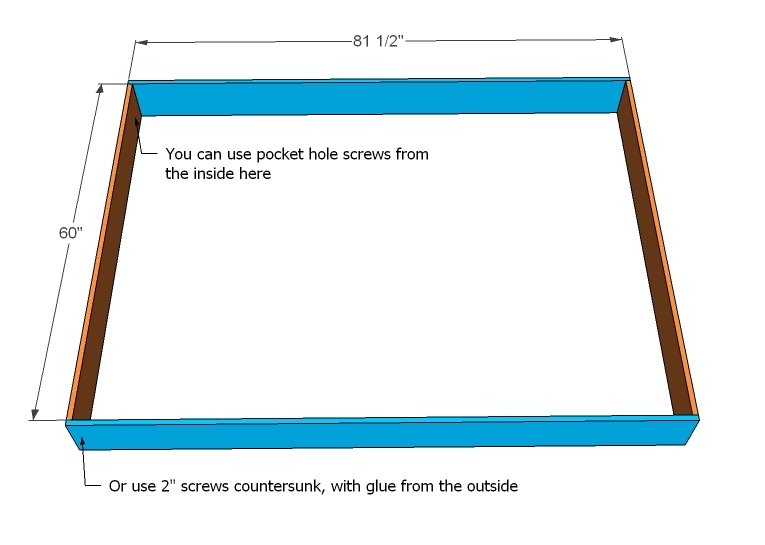

BOX
Build the box out of the 1x8s as shown above.

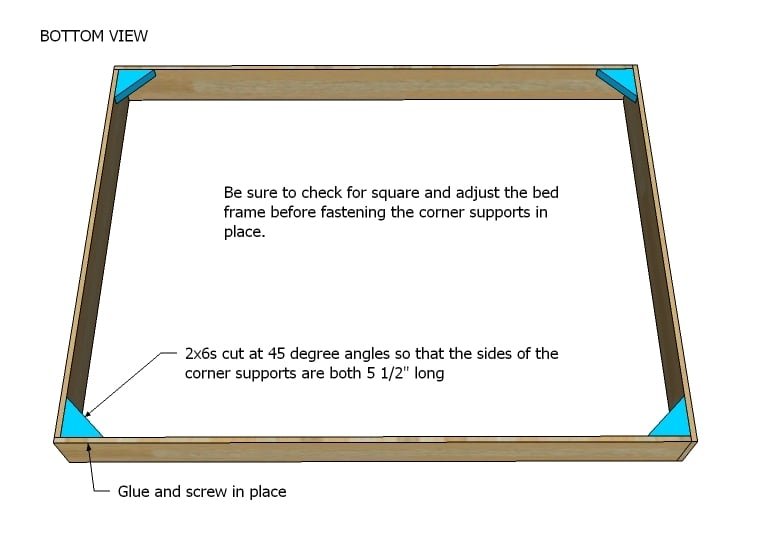

CORNER SUPPORTS
Adjust the bed frame for square and fasten the corner supports in the corners as shown above. Keep the top edges flush. This will be the bottom of your bed frame.

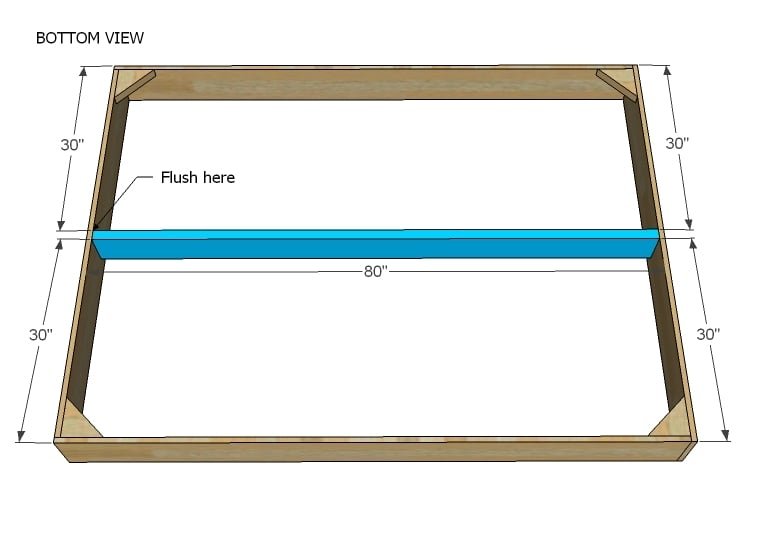

CENTER SUPPORT
Mark the end rails 30″ in and fasten the center support to the end rails using 2″ screws and glue or pocket holes from the inside. Keep top edges flush. This will be the bottom of the bed.

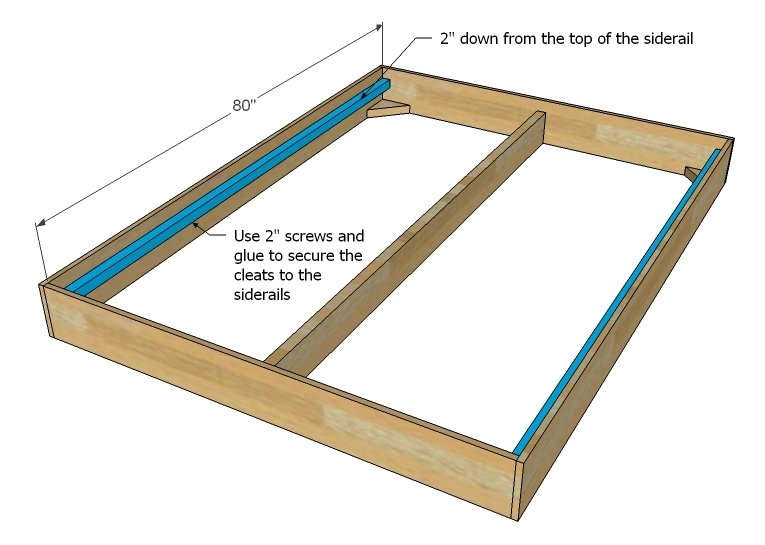

CLEATS
Flip the bed frame over and mark the side rails down 2 inches on both sides. Attach the cleats with 2″ screws and glue, screwing every 6 to 8 inches.
Step 5

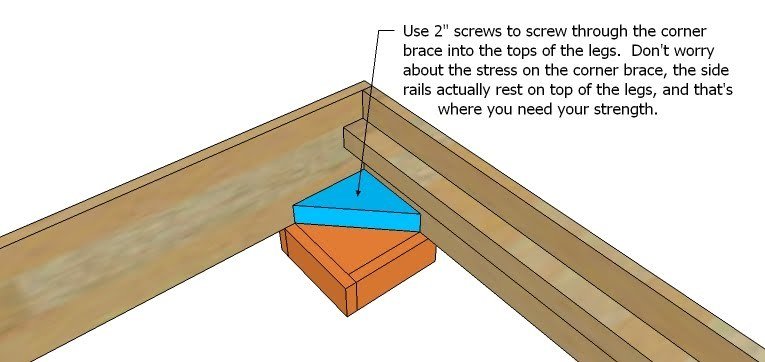

ATTACHING THE LEGS
Attaching the legs is easy. Simply line up the legs with the outside corners of the bed frame and screw through the corner supports into the top of the leg blocks. Use at least 2 screws. You could easily attach a different type of foot to the bed in the same manner.

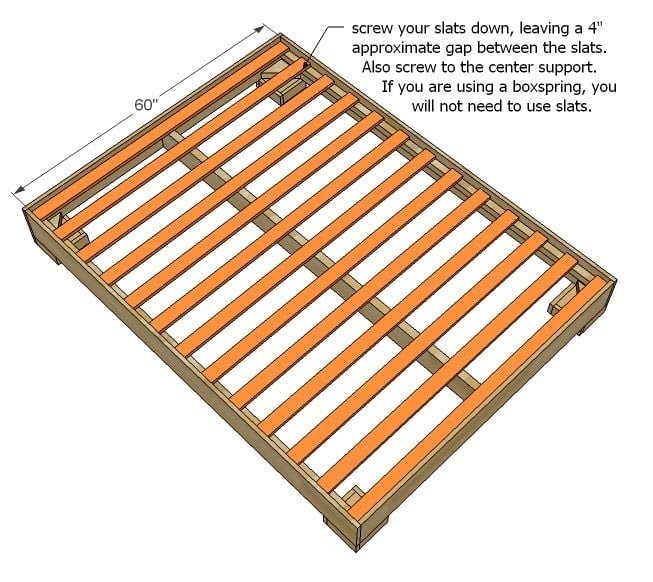

SLATS
Lay your slats on top of the cleats and screw down. Also screw to the center support. Space slats approximately 4″ apart.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
