Modern Rustic X End Table

Build your own end table with this! This end table features a square design with x detailing and a slatted bottom shelf. It's sturdy and lightweight, and the perfect size for between sofas. Related Plan: Modern X Console Table

Modern Rustic X End Table

Specifications

Project typeSide and End Table Plans
Roomliving room
StyleFarmhouse Furniture
DifficultyIntermediate
Estimated cost$20 - $50

Dimensions

Use the size-specific shopping and cut lists below.

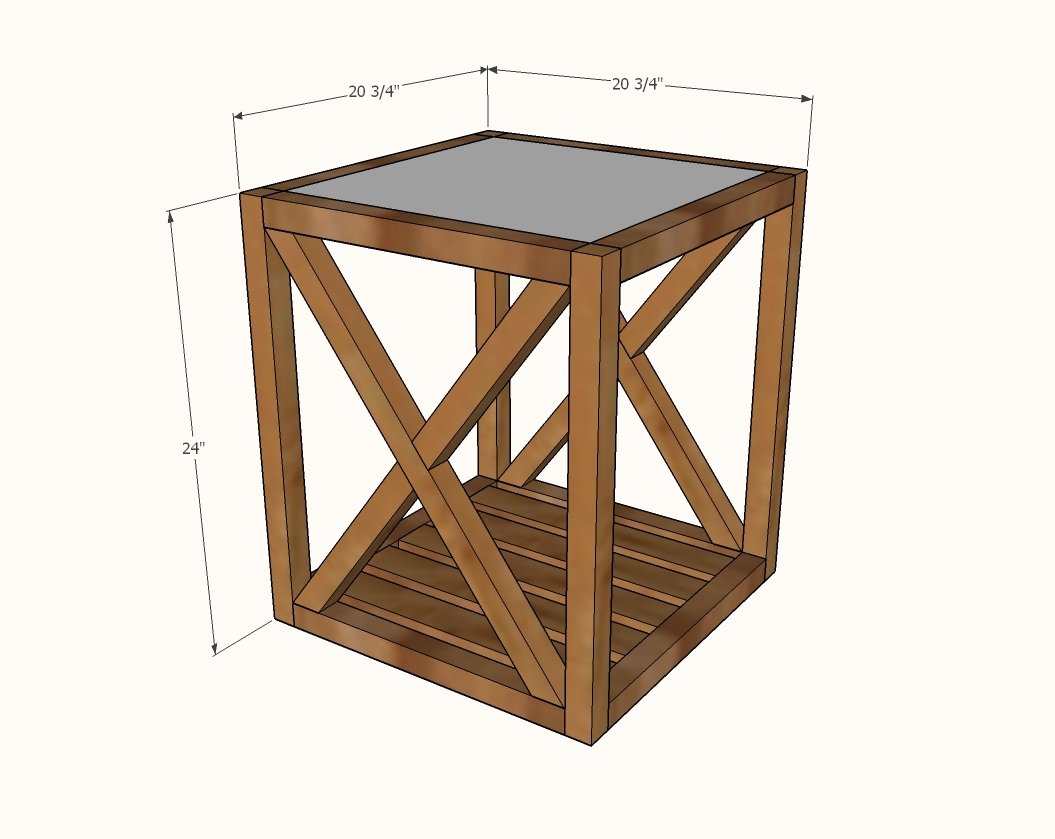

Modern Rustic X End Table dimension diagram 1

Shopping List

  • 4 - 2x2 @ 8 feet long
  • 1 - 1x3 @ 8 feet long
  • 1 - 3/4" plywood scrap or similar @ 17-3/4" x 17-3/4"
  • 1-1/4" brad nails or pocket hole screws - depends on how the bottom slat boards are attached, see plans below

Cut List

  • 4 - 2x2 @ 24" - legs
  • 8 - 2x2 @ 17-3/4" - horizontal supports
  • 5 - 1x3 @ 17-3/4" - slats
  • 1 - 3/4" plywood @ 17-3/4" x 17-3/4" - top
  • Cut to fit the X pieces

Tools

  • measuring tape
  • pencil
  • safety glasses
  • hearing protection
  • kreg-jig
  • drill
  • circular saw
  • compound miter saw
  • nailer
  • sander

Step-by-step Instructions

1

Step 1

Drill one 1-1/2" pocket hole on each end of all of the 2x2s @ 17-3/4". Attach to the legs with a single 2-1/2" pocket hole screw, hiding pocket holes on underside.

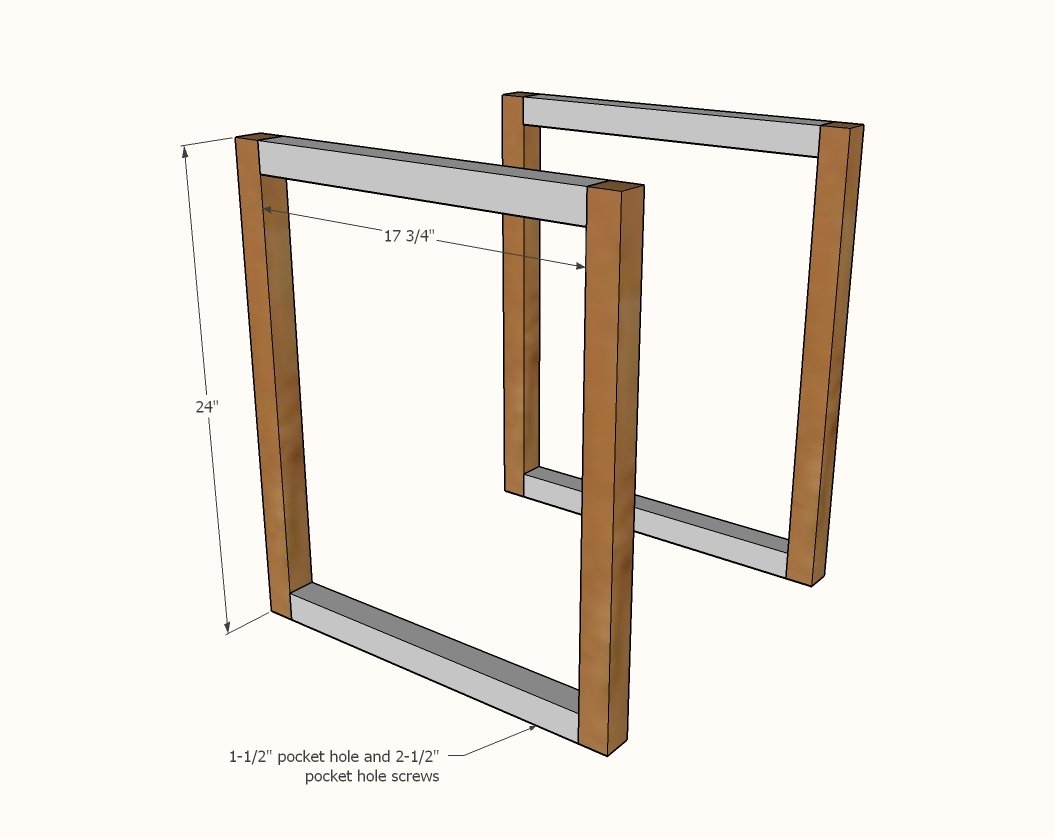

Modern Rustic X End Table — step 1
2

Step 2

Attach the remaining 2x2s together to form the frame.

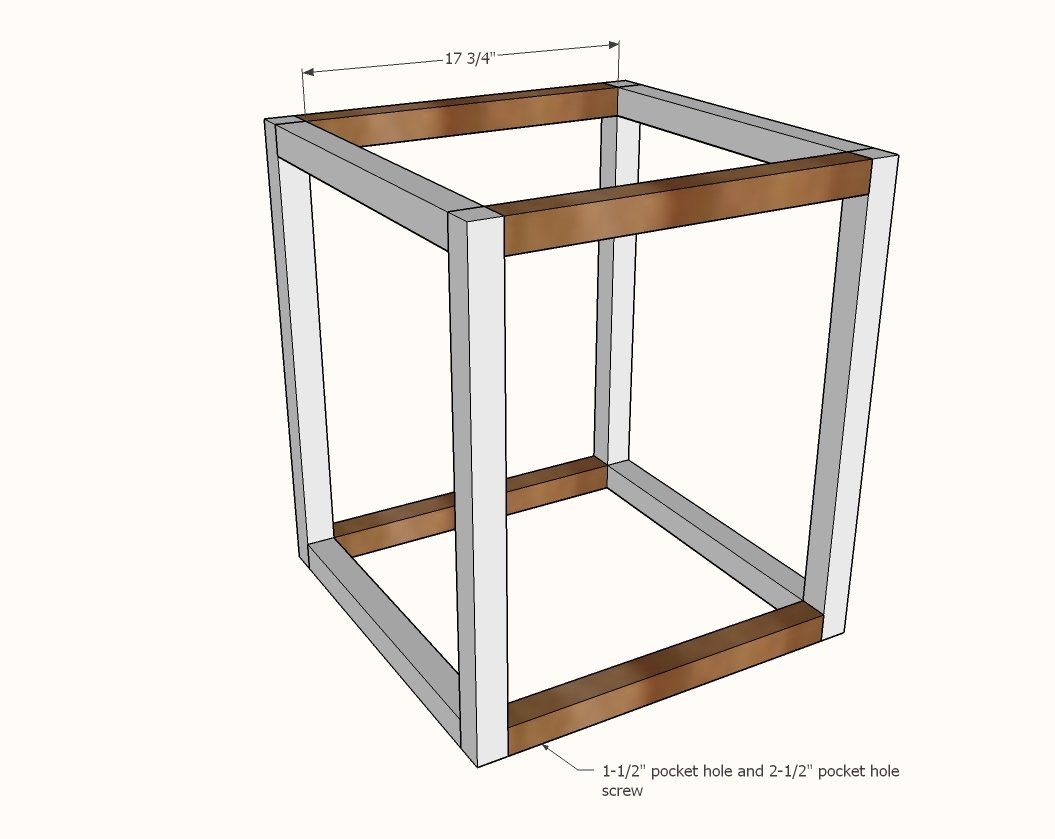

Modern Rustic X End Table — step 2
3

Drill two 3/4" pocket holes on each end of the 1x3s and attach with 1-1/4" pocket hole screws.

ALTERNATIVE: Nail 1x1 material to the inside of the 2x2s as a cleat and lay 1x3s on top and attach with 1-1/4" brad nails as done in the video tutorial.

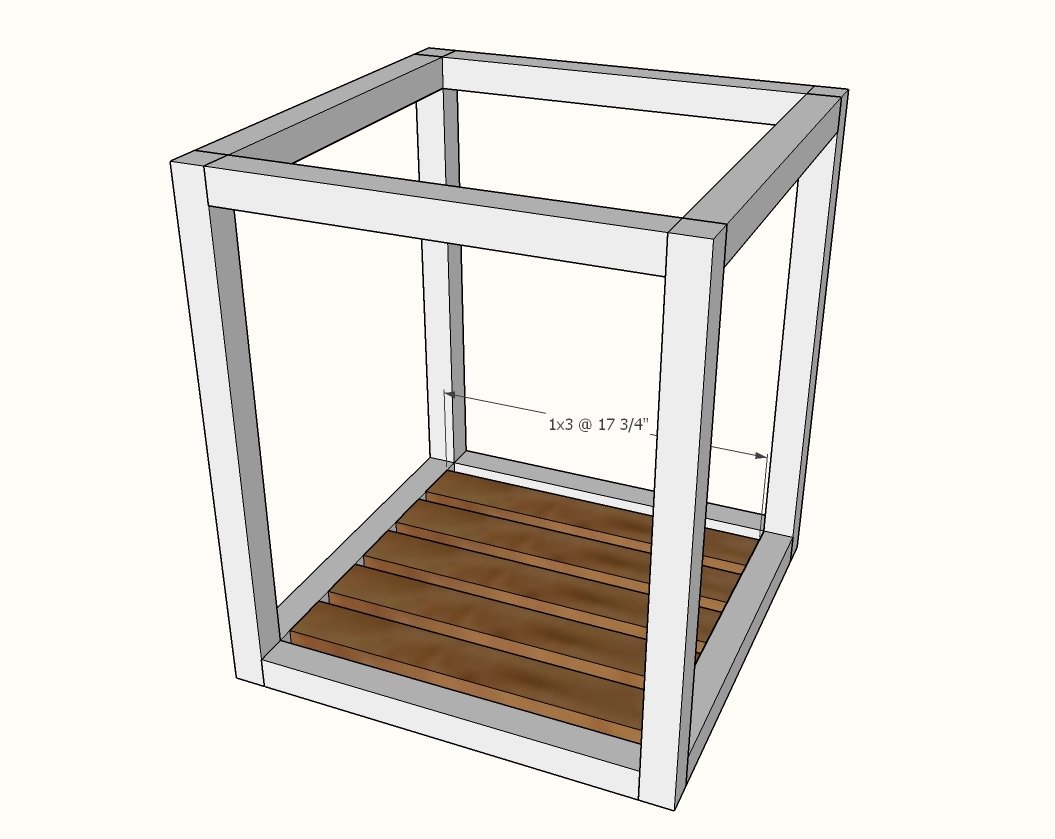

Modern Rustic X End Table — step 3
4

Cut and fit the plywood into the frame.

Drill 3/4" pocket holes, three per side, on all four sides of the top plywood. Attach with 1-1/4" pocket hole screws to the 2x2 frame.

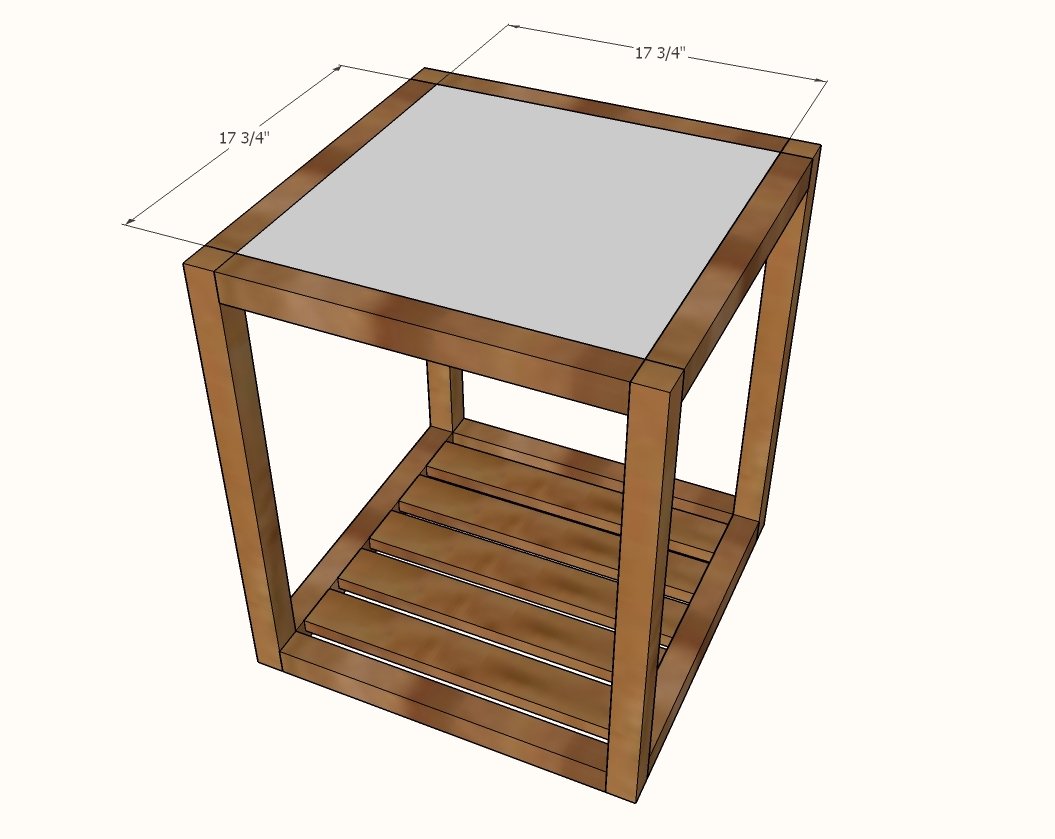

Modern Rustic X End Table — step 4
5

Step 5

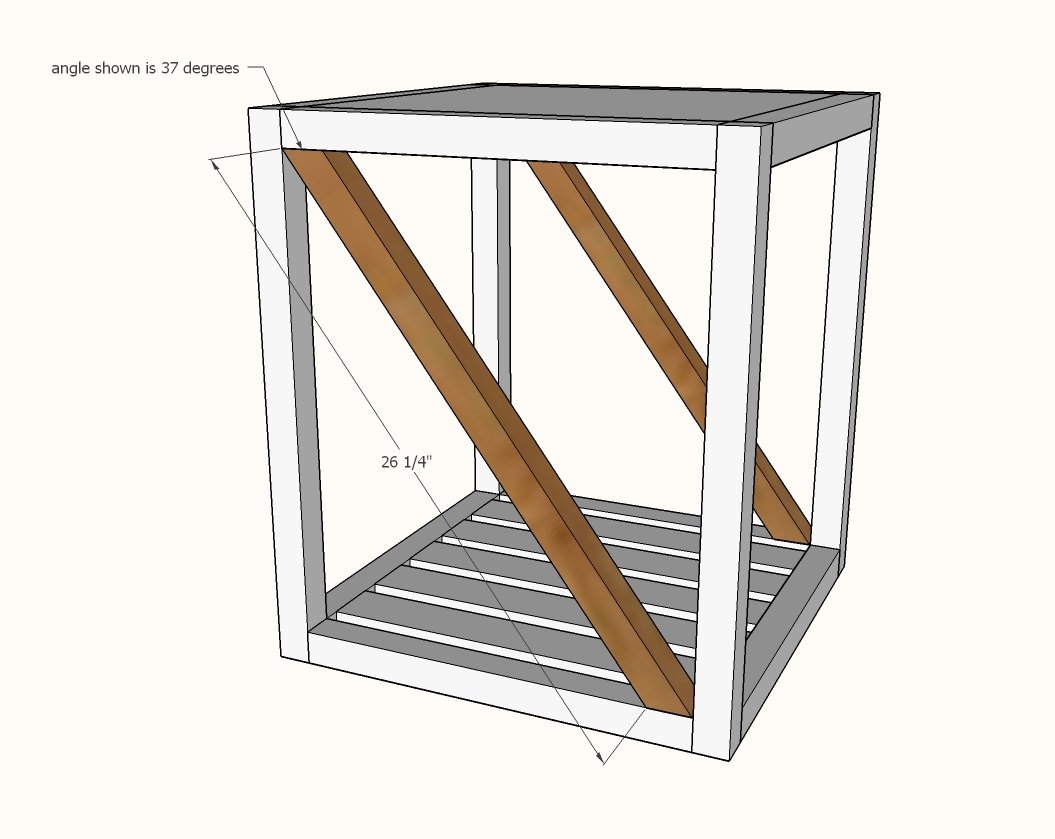

Modern Rustic X End Table — step 5
6

Step 6

Scribe the smaller X pieces as you did in step 5. Cut to fit, and attach with 2" nails and glue.

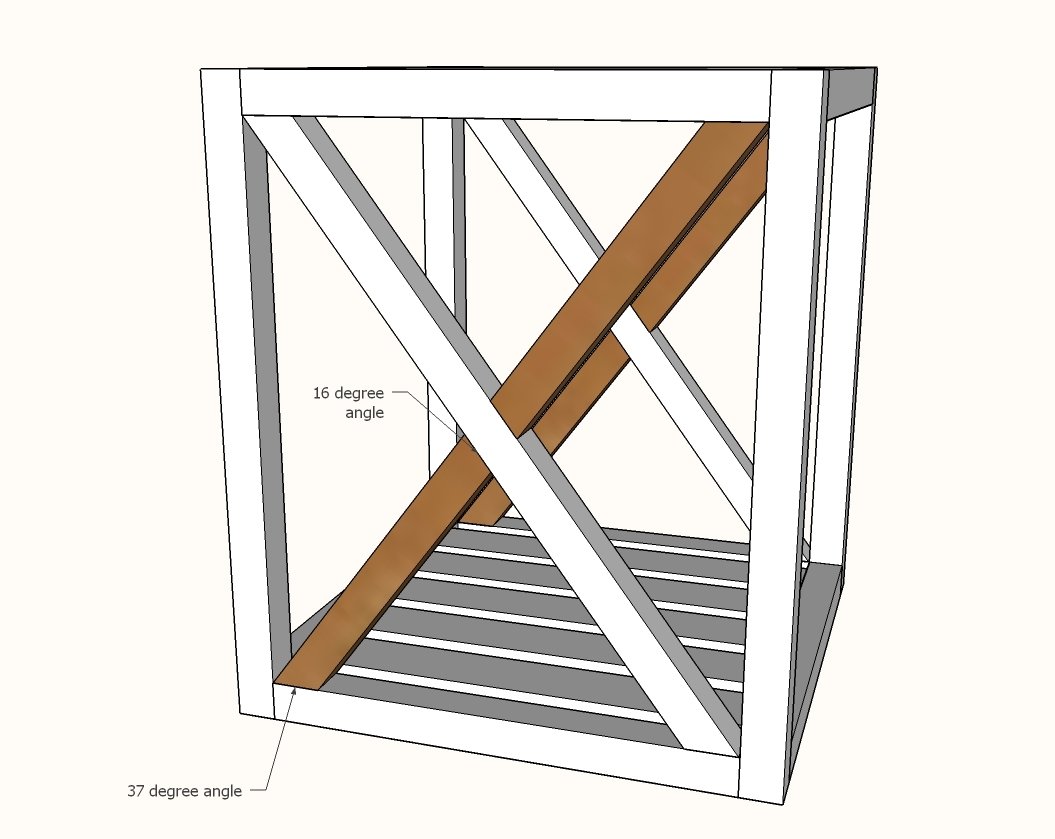

Modern Rustic X End Table — step 6
7

Finishing

Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
