Modular Family Entryway Mudroom System
to build a pullout rolling entryway mudroom bench. Tucks away neatly when not in use, rolls out for sitting down to pull boots off! from
Specifications
| Project type | Bench |
|---|---|
| Room | Entryway and Mudroom |
| Style | Farmhouse Furniture |
| Difficulty | Beginner Projects |

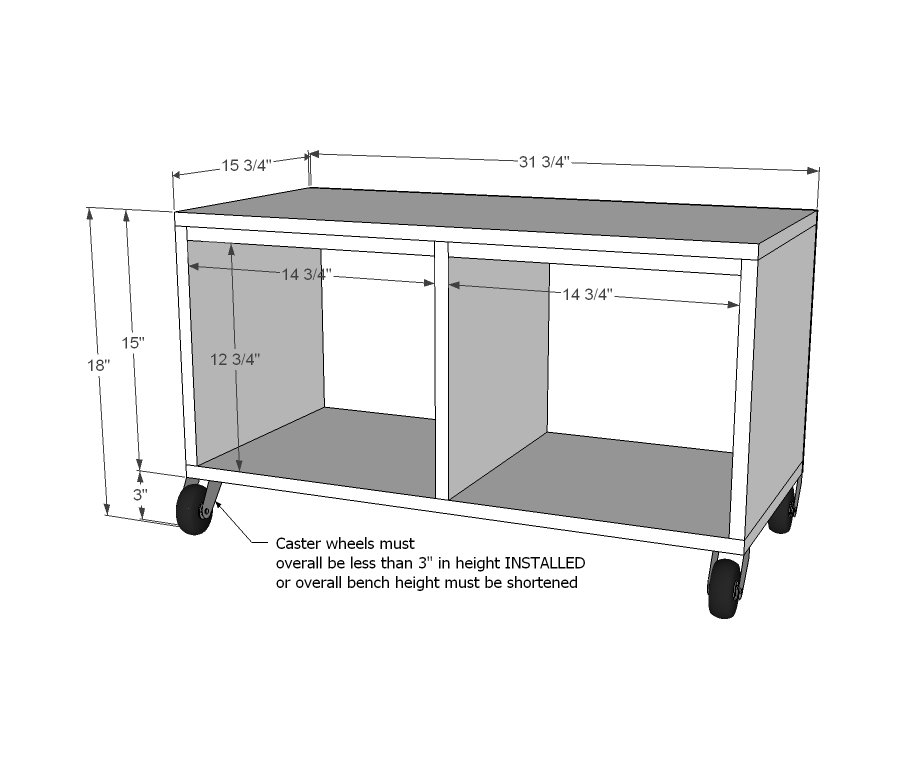

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 1/2 sheet of 3/4" plywood ripped into strips 15 3/4" wide
- 1 - 1x2 @ 8 feet long
- 1/4" plywood scrap for back is 31 3/4" x 15" 4
- Caster wheels 2 3/4" clearance overall
- Recommended 1 1/4" pocket hole screws - you could also use 2" countersunk screws and glue
Cut List
- 3 - 3/4" plywood @ 15 3/4" x 13 1/2"
- 2 - 3/4" plywood @ 15 3/4" x 31 3/4"
- 4 - 1x2 @ 14 3/4"
- 1 - 1/4" plywood @ 31 3/4" x 15"
- 4 Caster Wheels - Overall Clearance is 2 3/4"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- countersink drill bit
Step-by-step Instructions

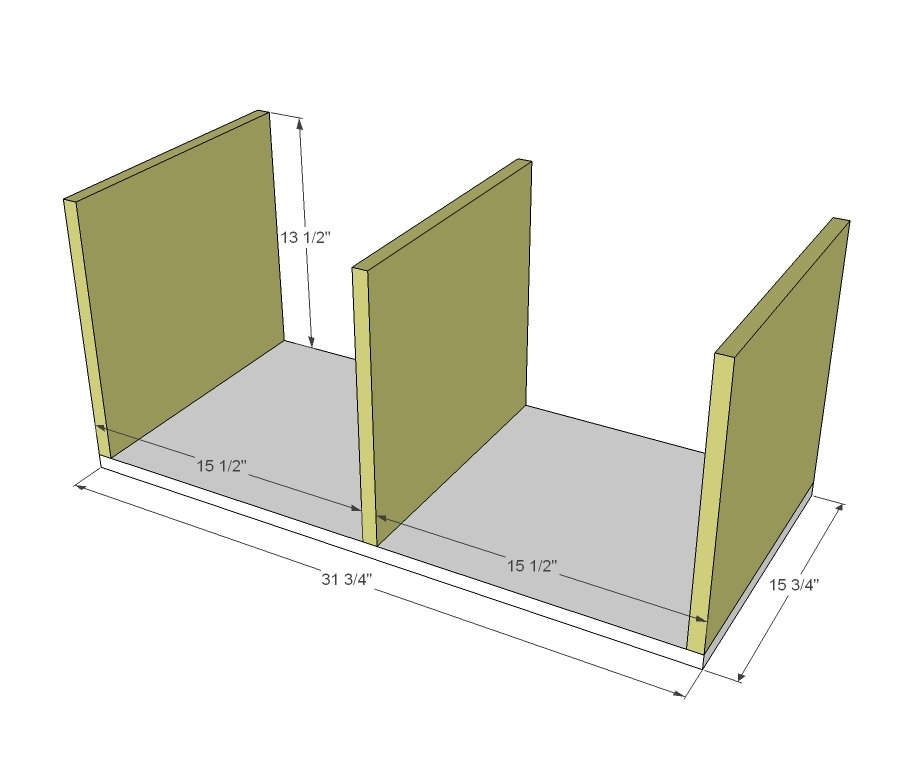

Step 1
Start by attaching dividers to bottom shelf.

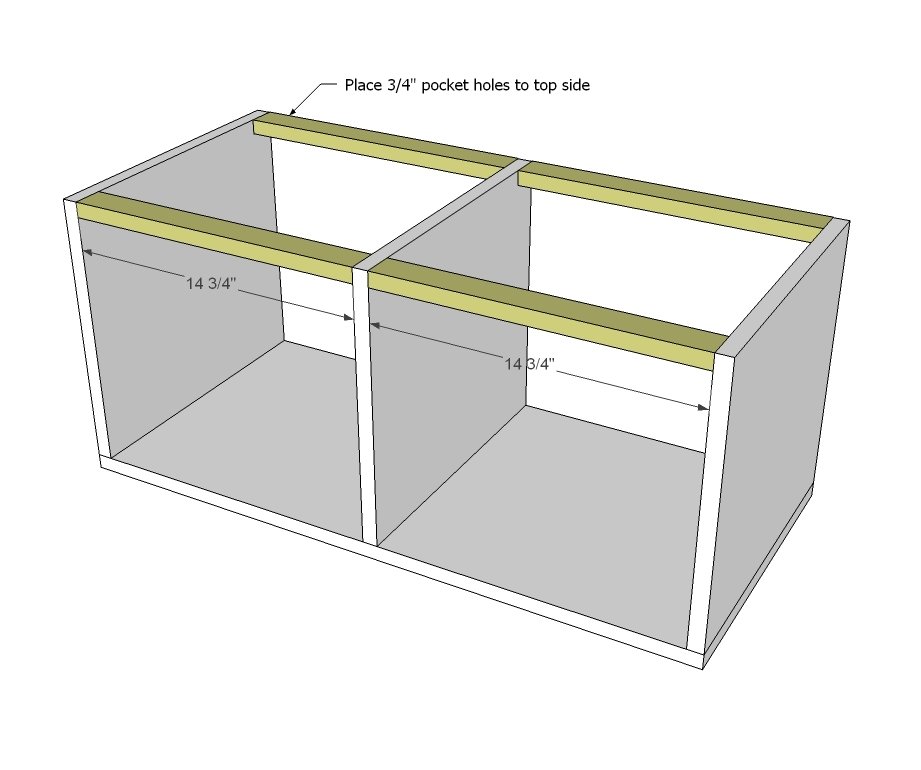

Step 2
Then attach 1x2s inside the dividers to strengthen and keep the look consistent. If you don' t have a pocket hole jig, you can actually do step 2 after step 3, attaching 1x2s with 1 1/4" finish nails and glue to top seat.

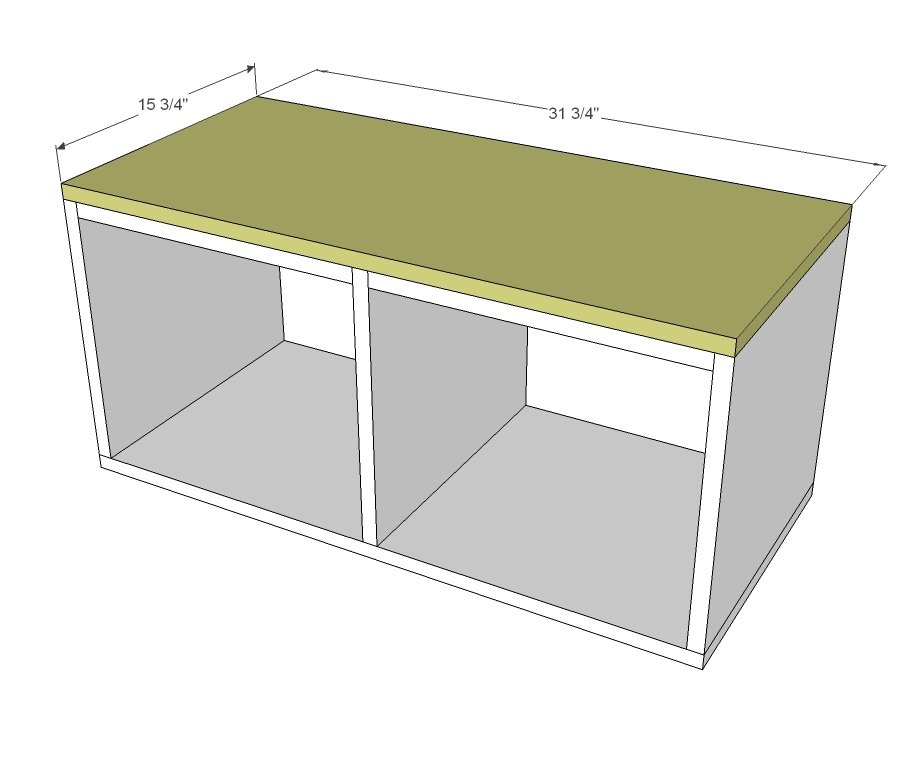

Step 3
Attach top to dividers and to 1x2s. Use 1 1/4" finish nails and glue to attach to 1x2s.

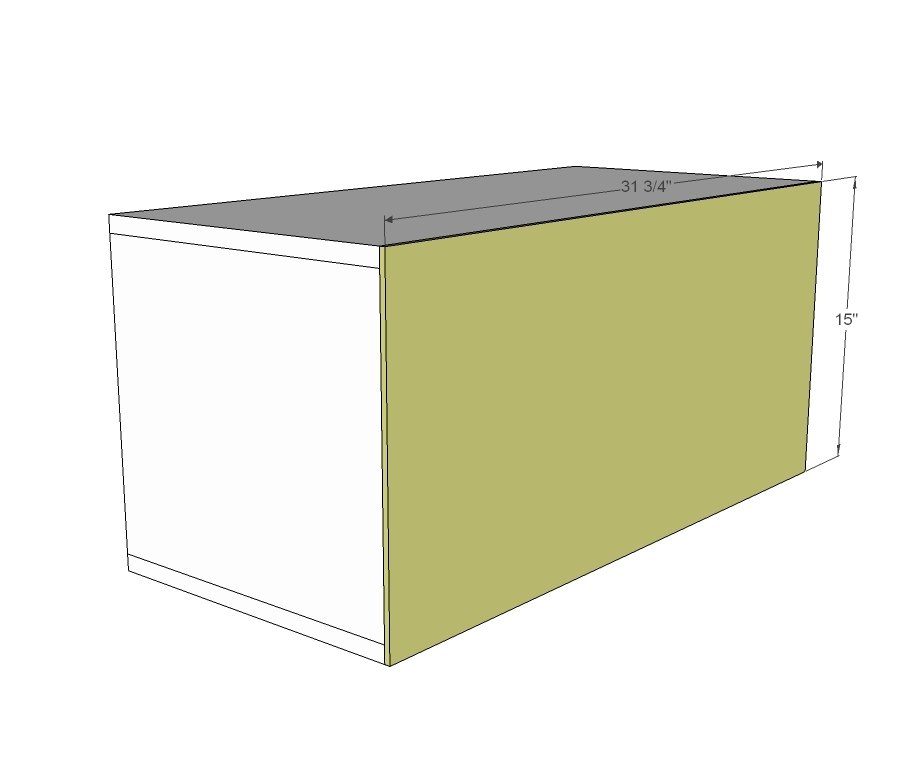

Step 4
Attach back with 1 1/4" finish nails.

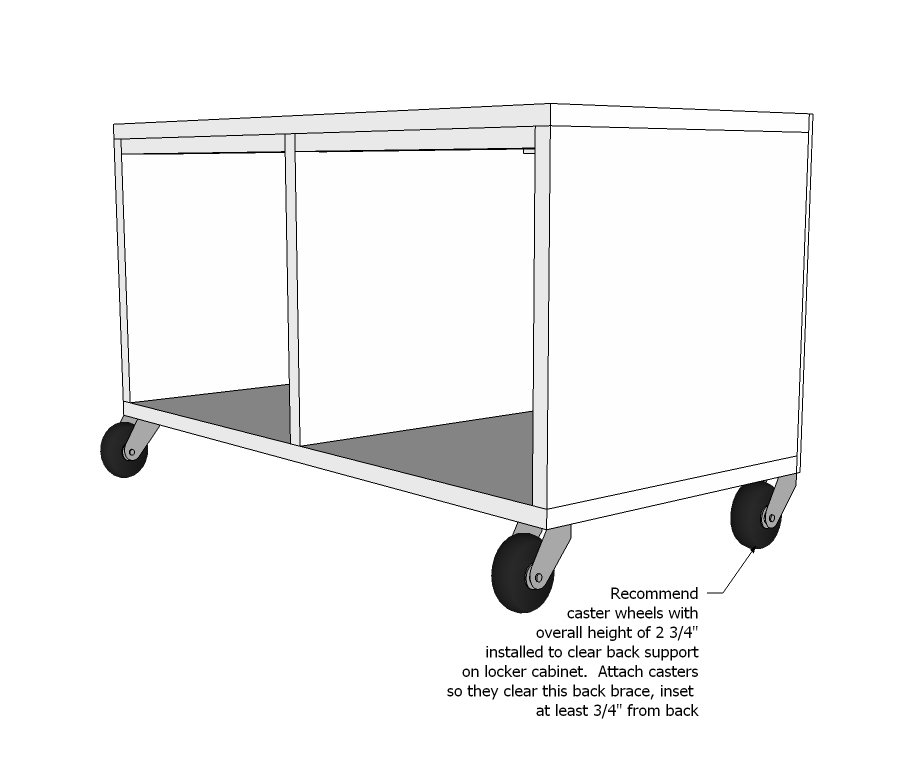

Step 5

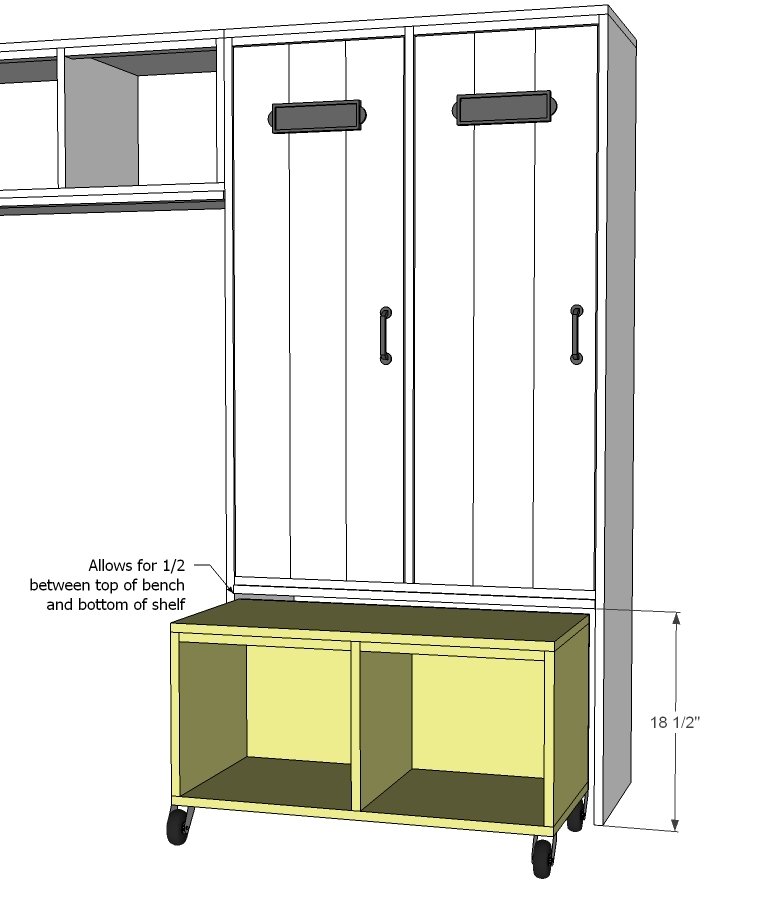

Step 6
Test fit in hutch and you are done!
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
