Modular Office
Turn a simple bookcase into a drawer! With this simple plan, you can modify the Modular System Wide Base to become a file storage (or anything else) system. Acutal reader photo built from this plan
Specifications
| Project type | Bookshelf and Bookcase Plans |
|---|---|
| Room | Storage Solutions |
| Difficulty | Intermediate |
| Estimated cost | scraps |

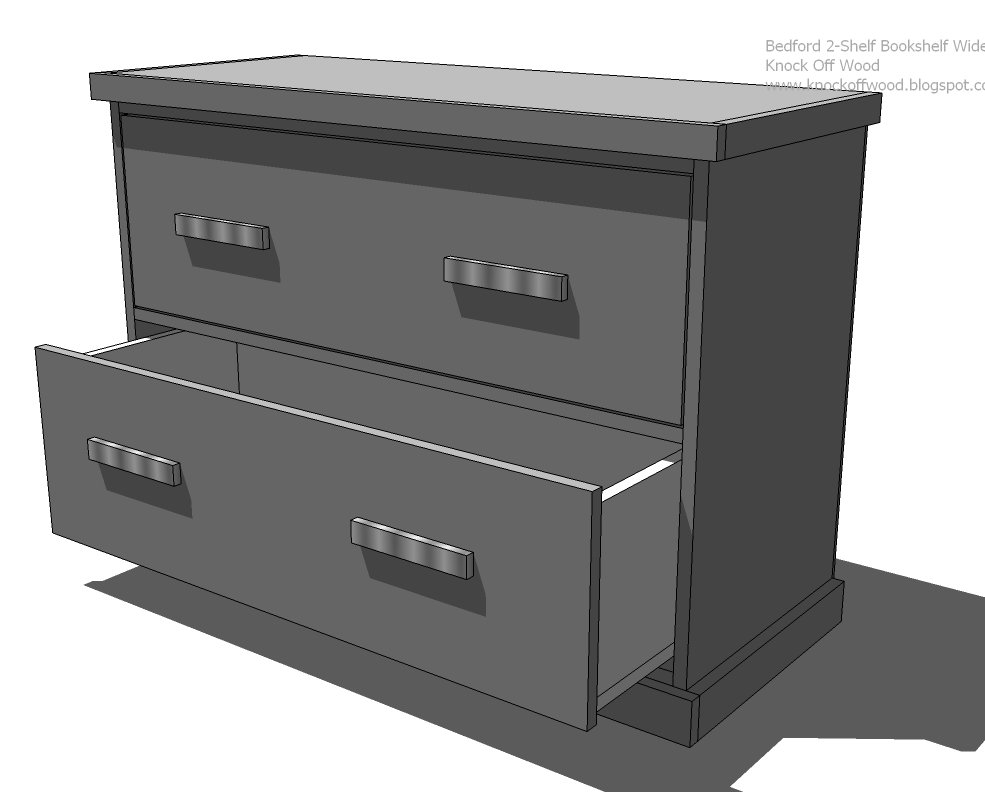

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
Shopping List for ONE Drawer
1 – Set of 12″ Undermount Drawer Slides
6′ – 1×10 Board
4′ – 1×12 Board
1 – 1×16, 4′ Length
2″ Screws
Glue
Wood Filler
Sandpaper
Finishing Supplies
Optional – Lateral File Hanging System
Cut List
Cut List for ONE Drawer
Bottom) 1 – 1×16 @ 37 1/2″ (You will need to trim the long edge 1″)
Sides) 2 – 1×10 @ 14 1/2″
Back) 1- 1×10 @ 36″
Face) 1 – 1×10 @ 38 1/4″ (Measure to fit)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- circular saw
- nailer
Step-by-step Instructions
Step 1

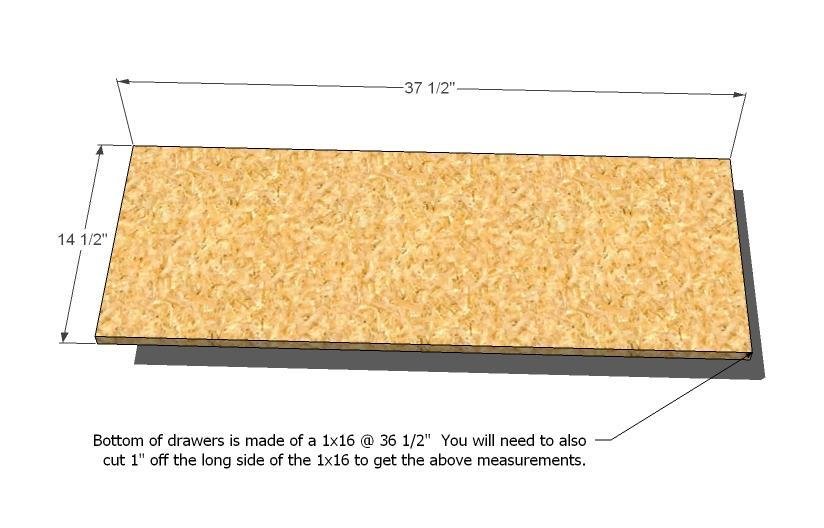

Bottom. Cut your bottom out of a 1×16 leftover from the bookcases. Then you will need to trim the long edge 1″ to get the above measurements.
Step 2

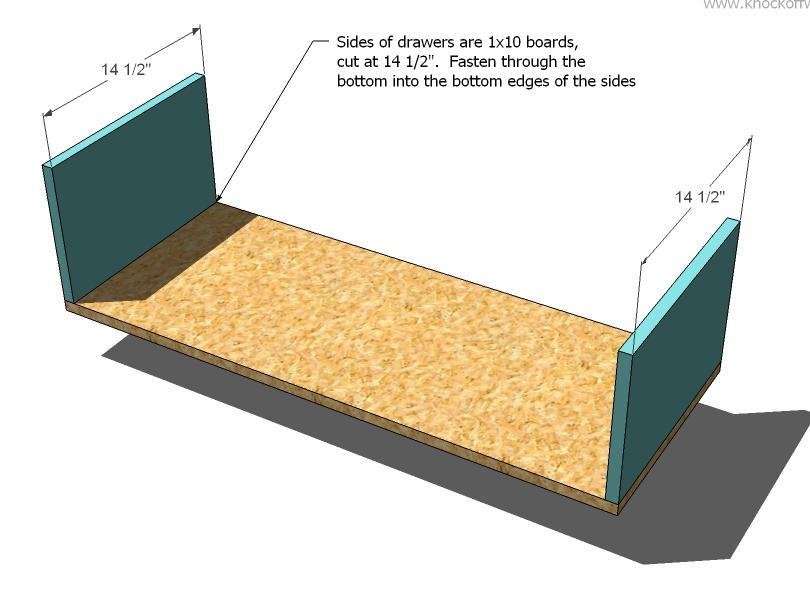

Sides. Fasten the sides as shown above, using 2″ screws and glue.
Step 3

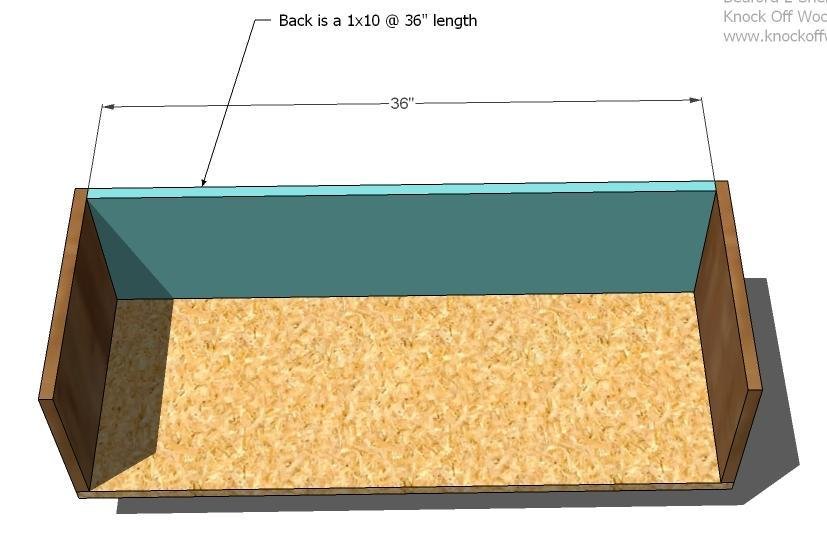

Back. Fasten the back to the sides. Also fasten through the bottom into the back. Use 2″ screws and glue. Slides. Install the drawer into the bookcase using the undermount slides. The drawer will be inset from the front of the bookcase 3/4″.
Step 4

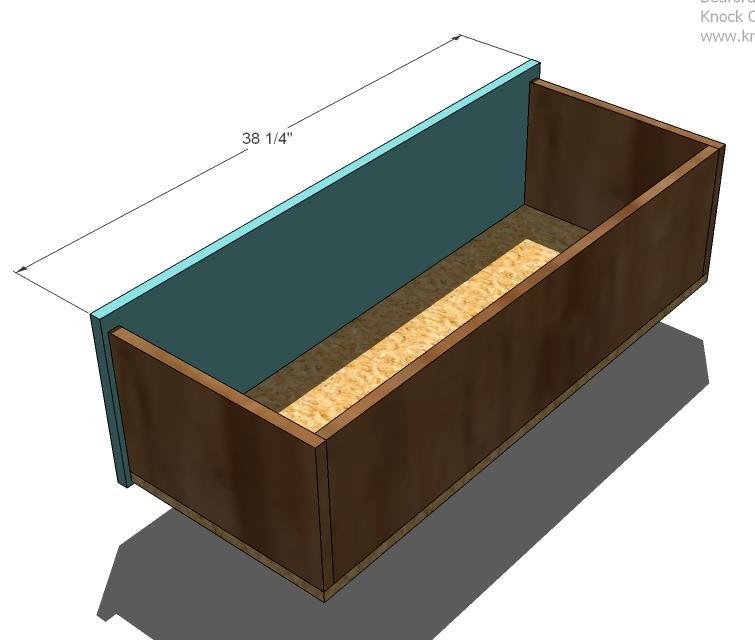

Slides. Install the drawer into the bookcase using the undermount slides. The drawer will be inset from the front of the bookcase 3/4″.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
