Mountain Wall Hooks
Easy DIY tutorial to make your own mountain range wall hooks. Free tutorial by
Specifications
| Project type | shelves |
|---|---|
| Room | Entryway and Mudroom |
| Style | Rustic Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

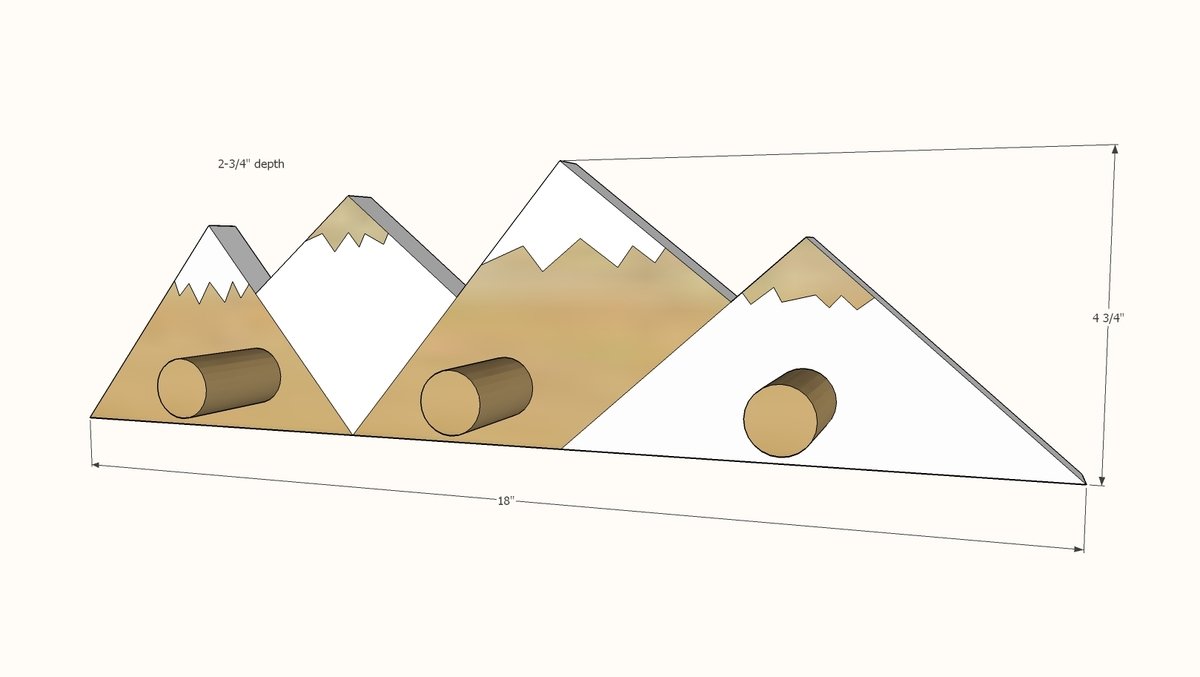

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 3/4" plywood scrap @ 4-3/4" x 18"
1 - 1" diameter dowel @10" long (can also use 3/4" dowel)
Drill bit to match the dowel diamenter, recommend forstner bit
3 - wood screws at least 1-1/4" long (can use pocket hole screws)
picture hanging kit
Tools
- measuring tape
- square
- safety glasses
- hearing protection
- drill
- circular saw
- jigsaw
- sander
- countersink drill bit
Step-by-step Instructions
Step 1

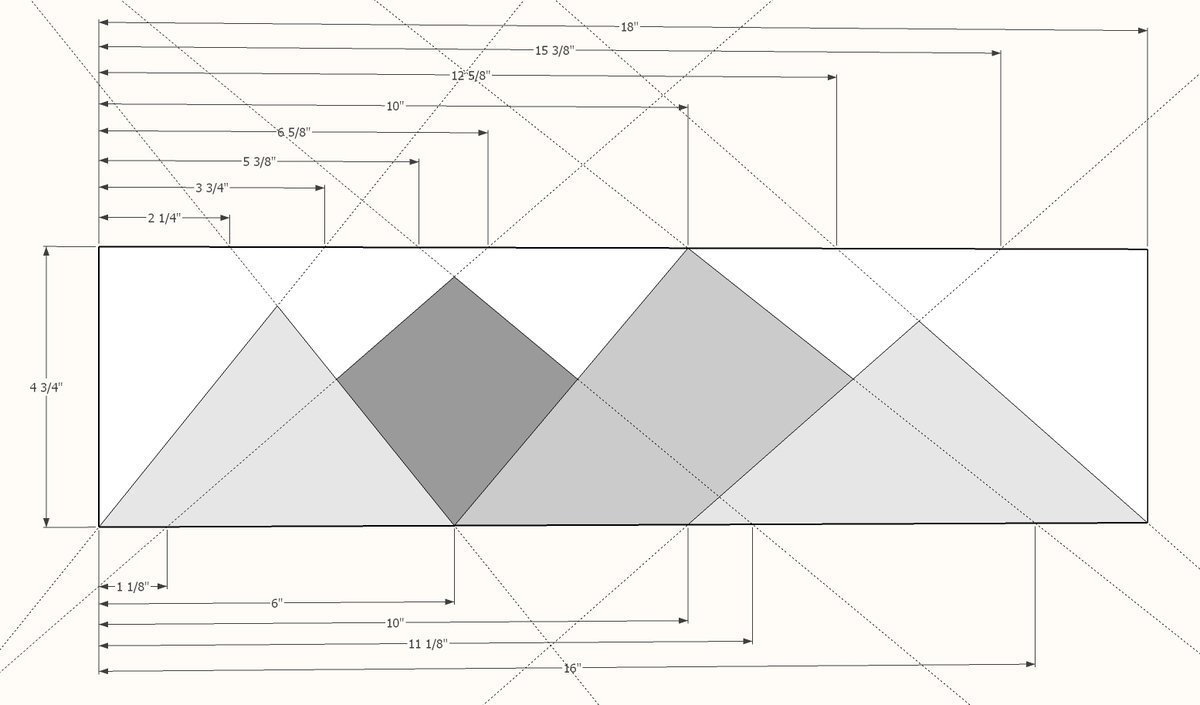

Cut the 3/4" plywood piece to size using the circular saw. Measure and mark the points on the top and bottom of the plywood. Draw lines between the points as shown in the diagram. Use a jigsaw to cut out the mountain shape using the lines as guides.
Step 2

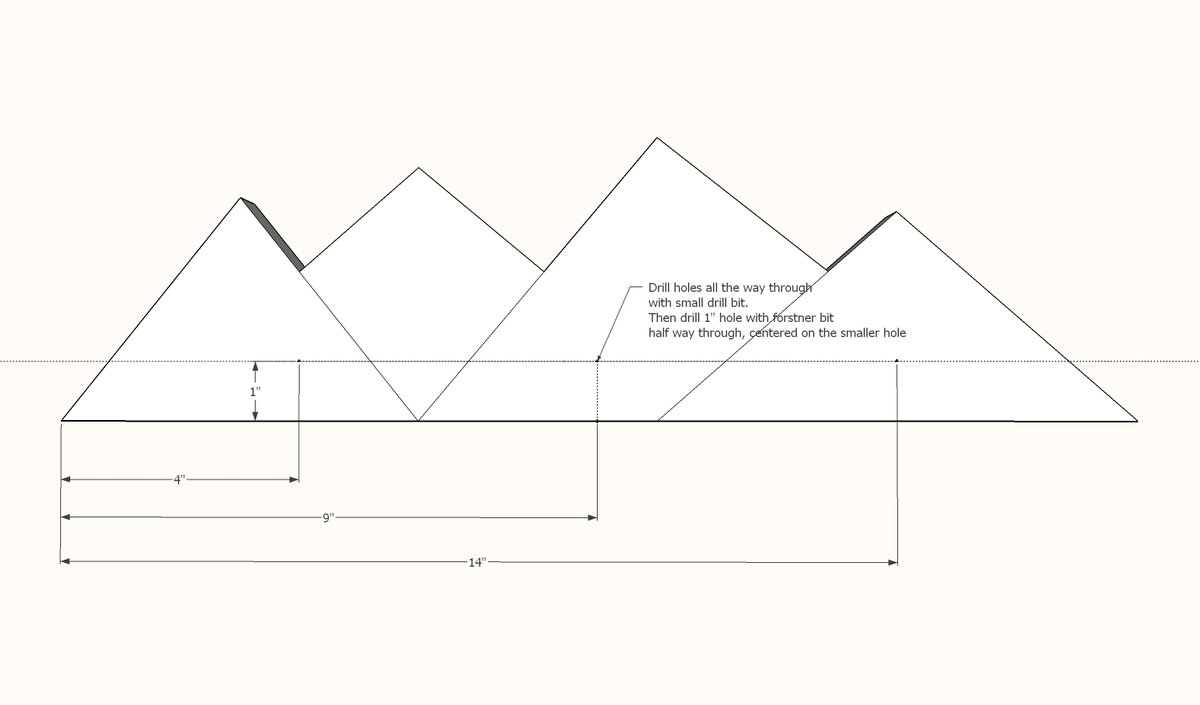

Mark the location of the dowels. Drill a small pilot hole all the way through the plywood. Then use the forstner bit to drill a hole the same diameter 3/8" into the plywood, with the drill bit centered on the small pilot hole.
Step 3

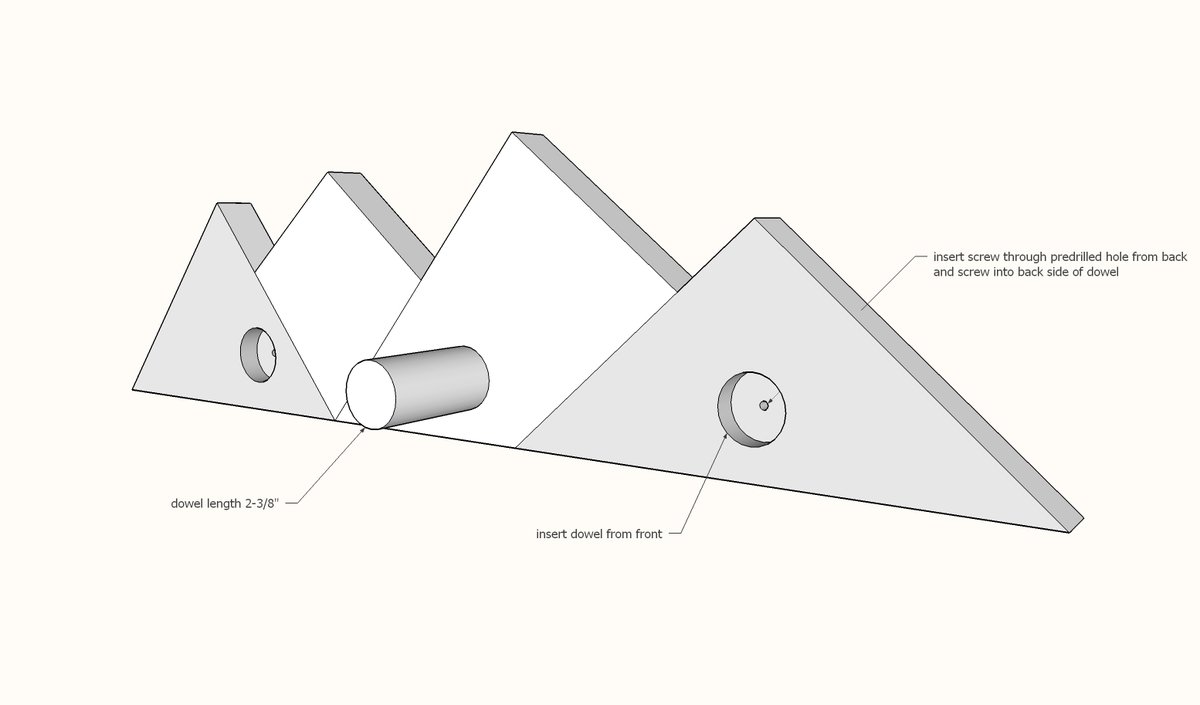

Cut the dowels (preferably with a compound miter saw but you can also cut with a jigsaw or circular saw - just clamp to a table first. Apply glue inside the forstner bit hole. Insert the dowels. Flip over and use the 2" self tapping screws to secure the dowels through the small pilot hole.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
