One Arm 2x4 Outdoor Sofa
This free one-arm sofa plan is part of our wildly popular 2x4 outdoor collection— built thousands of times and loved all over the world! Designed to work with standard 24"x24" cushions and our free sofa plans, it's the perfect piece to start or expand your custom backyard sectional. Build one, build them all, and create the outdoor lounge of your dreams—on a DIY budget!
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Style | Farmhouse Furniture |
| Difficulty | Intermediate |

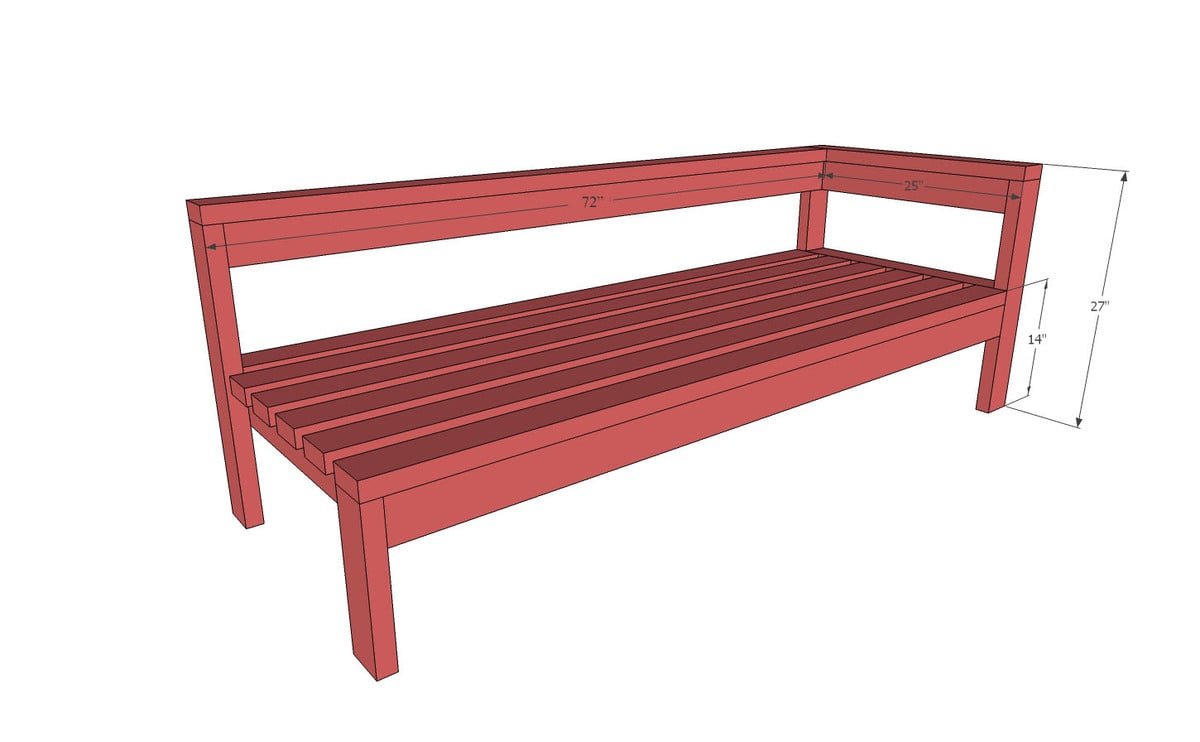

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
- 11 - 2X4 @ 104-5/8" Feet long
- 2-1/2" to 3" long exterior self tapping wood screws
- Wood filler
- Medium grit sandpaper
- Exterior wood glue
- 24" x 24" deep seat cushions
Cut List
This cut list is for 24" x 24" cushions.
- (3) 2x4 @ 70-1/2" ((Or cushion width x 3) - 1-1/2")
- (10) 2x4 @ 25-1/2" (includes back support) (or cushion depth + 1-1/2")
- (1) 2x4 @ 12-1/2"
- (6) 2x4 @ 72" (or cushion width x 3)
- (1) 2x4 @ 70-3/4" (back support--cut to fit) ((Or cushion width x 3) - 1-1/4")
- (1) 2x4 @ 28-1/2" (top arm piece)
Tools
- measuring tape
- square
- pencil
- safety glasses
- drill
- circular saw
Step-by-step Instructions
Cut boards using a compound miter saw (preferred) but you can also use a circular saw.

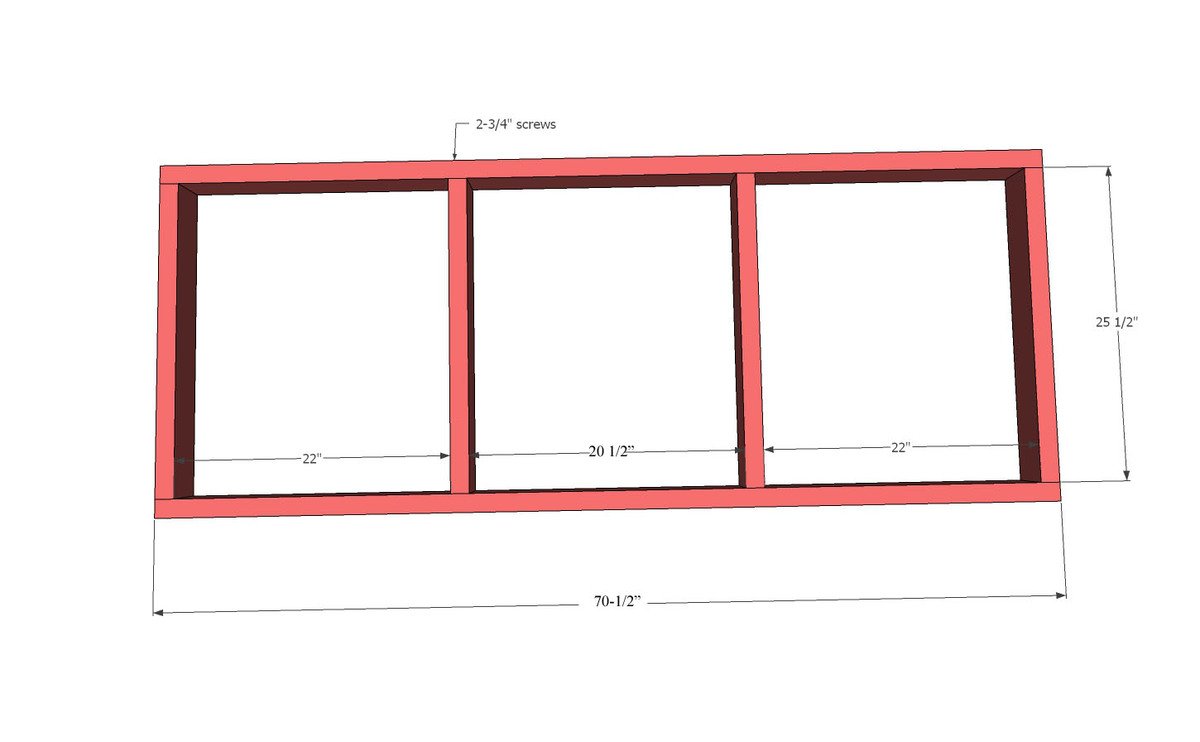

Build the seat frame using the self tapping screws.
Step 2

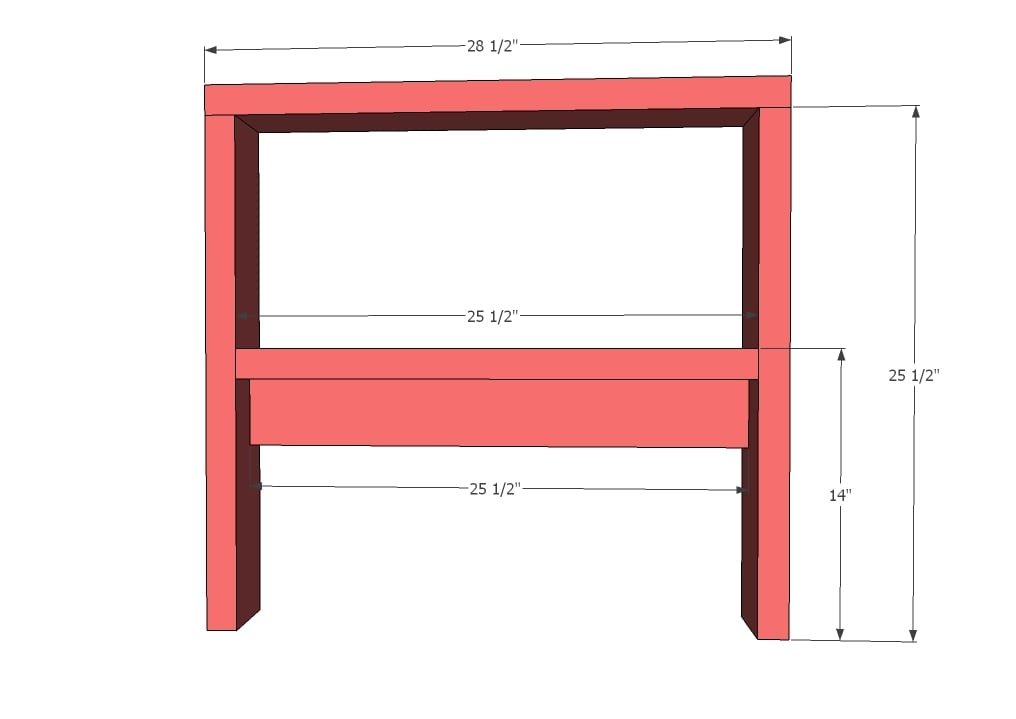

Build one of the arms with the screws.
Step 3

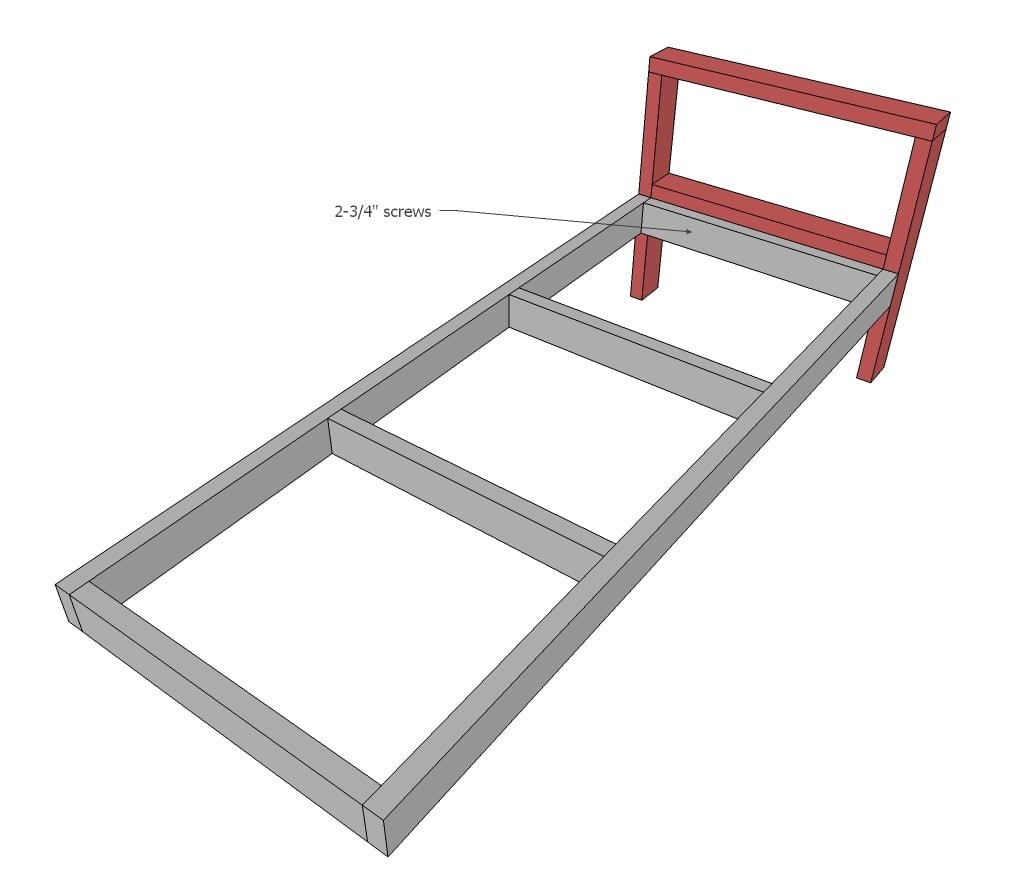

Attach seat frame to the arm with screws. Recommend screwing at an angle into the legs if possible for maximum strength.
Step 4

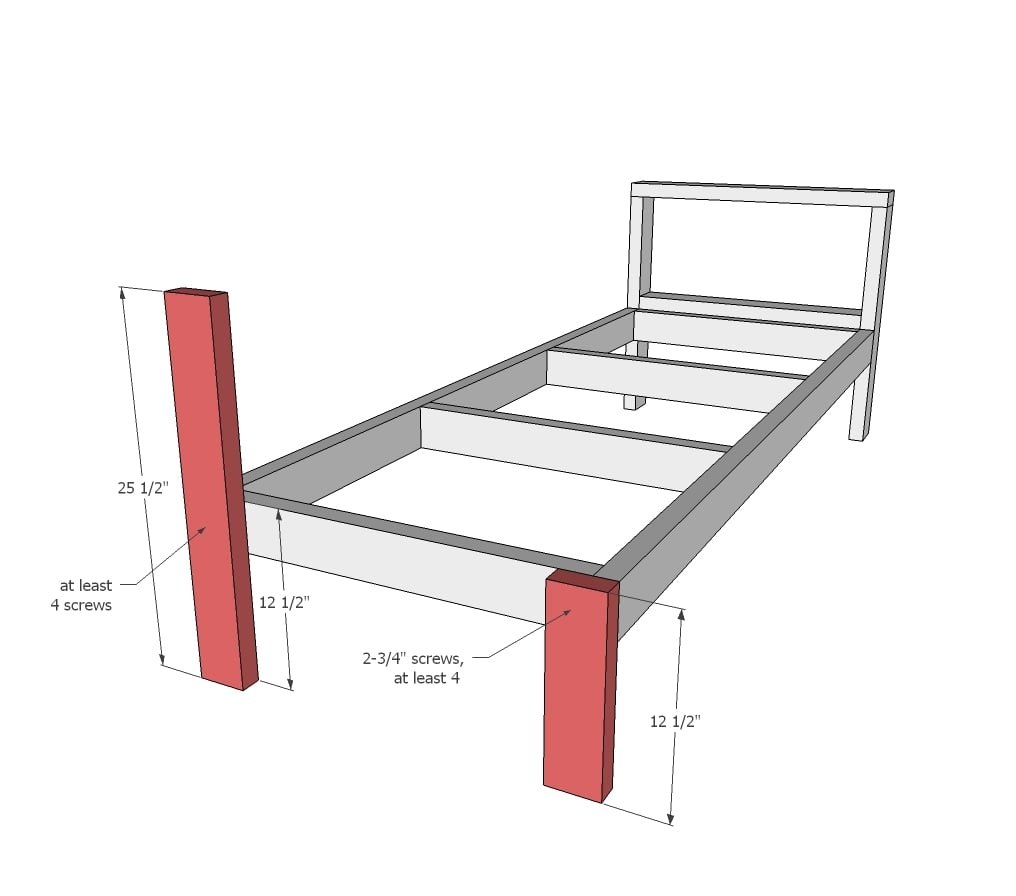

Attach legs to armless ends with screws.

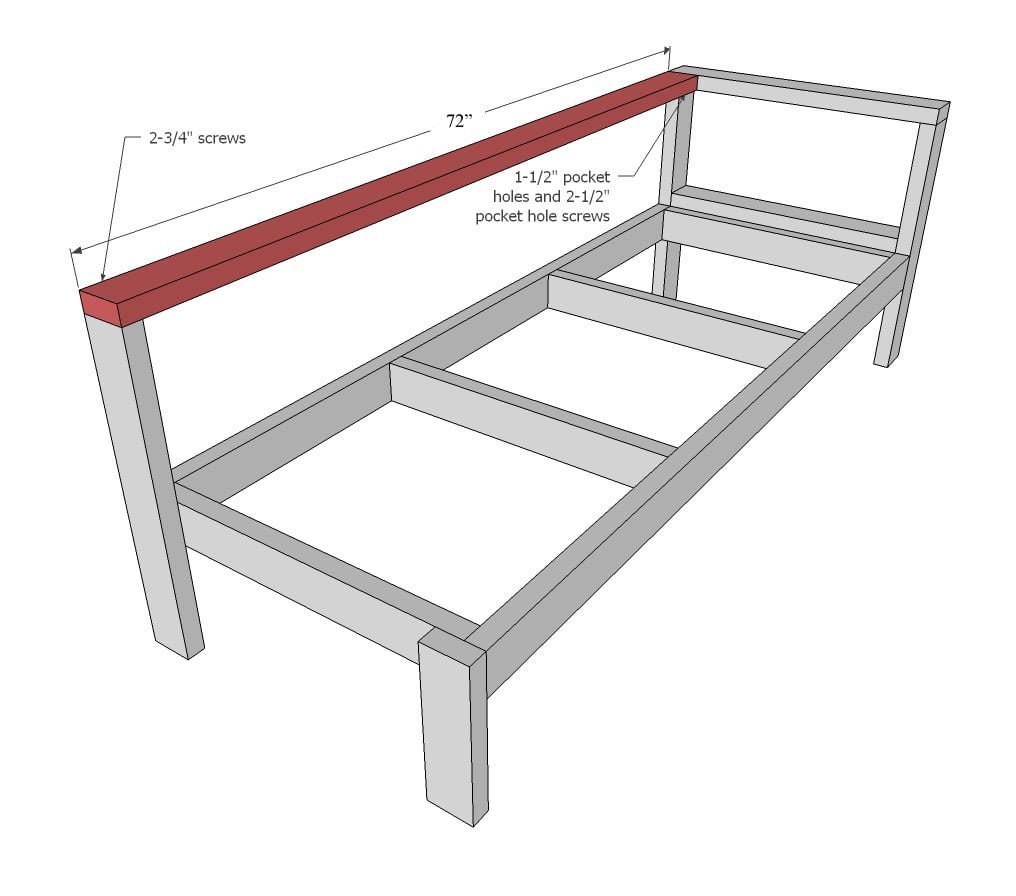

Step 5
Step 6

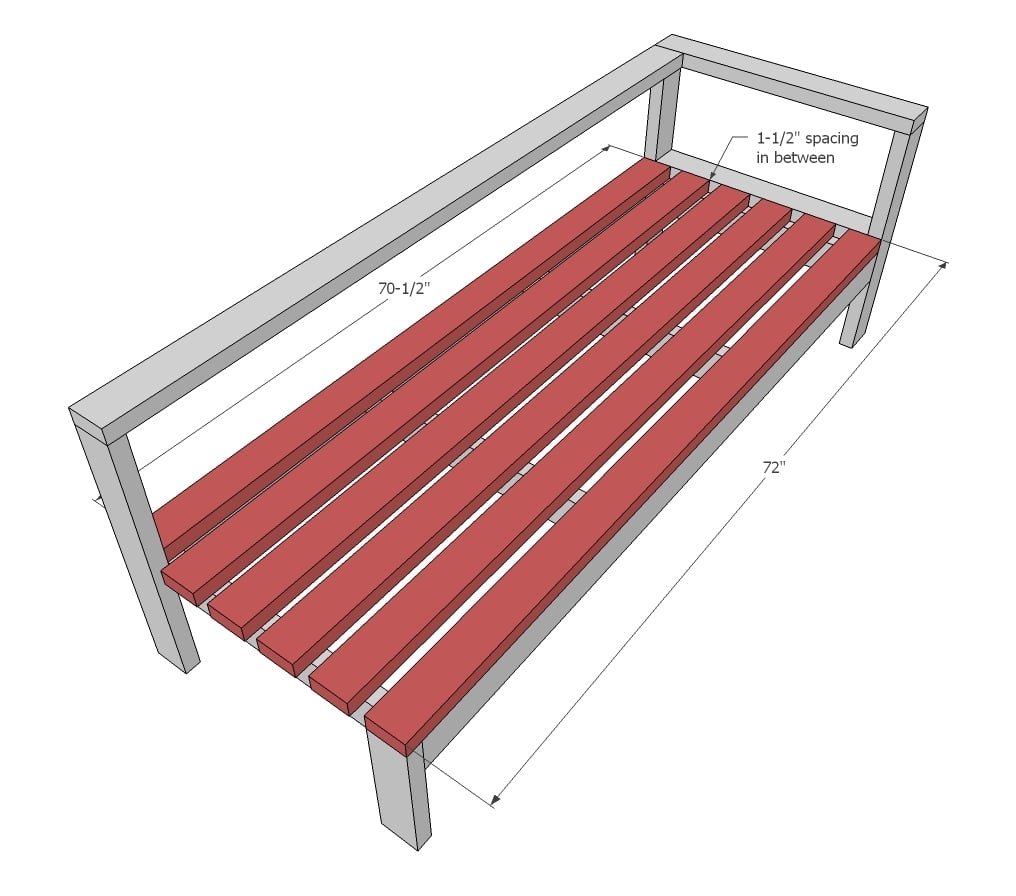

Place decking on top, evenly spacing, and screw down, two screws per joint (recommended).
Step 7

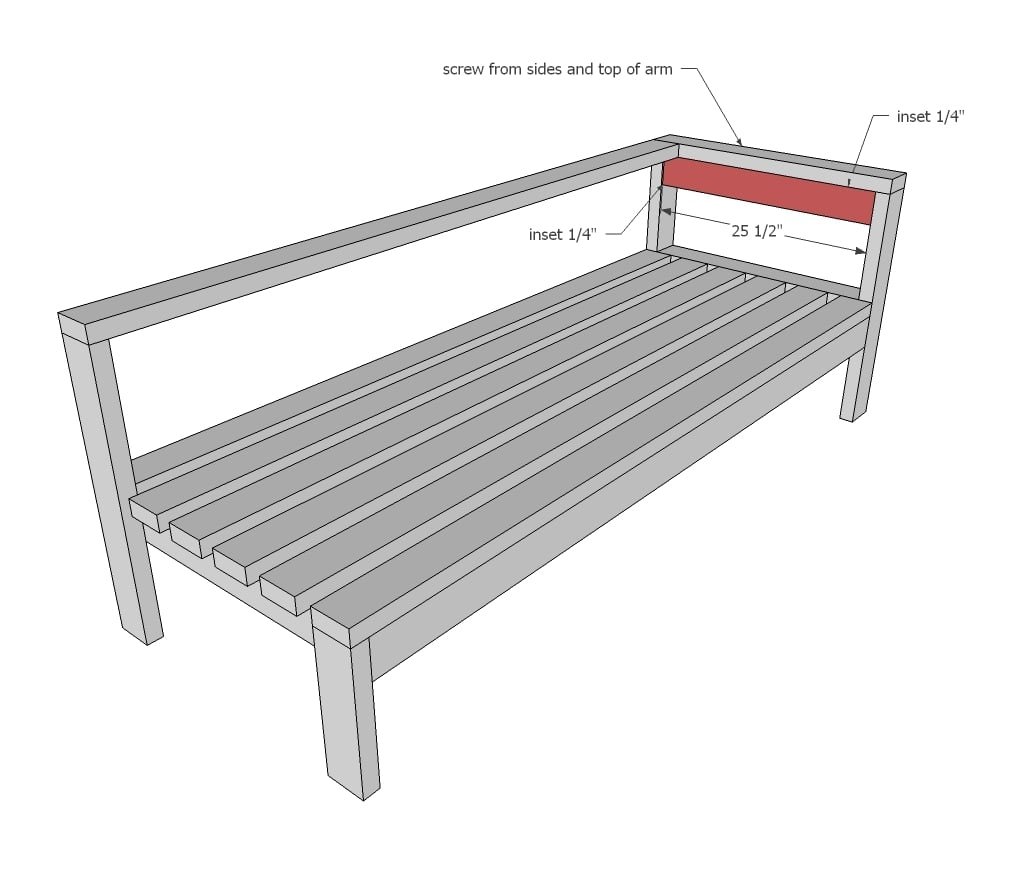

Optional: Additional back support can be added as shown.

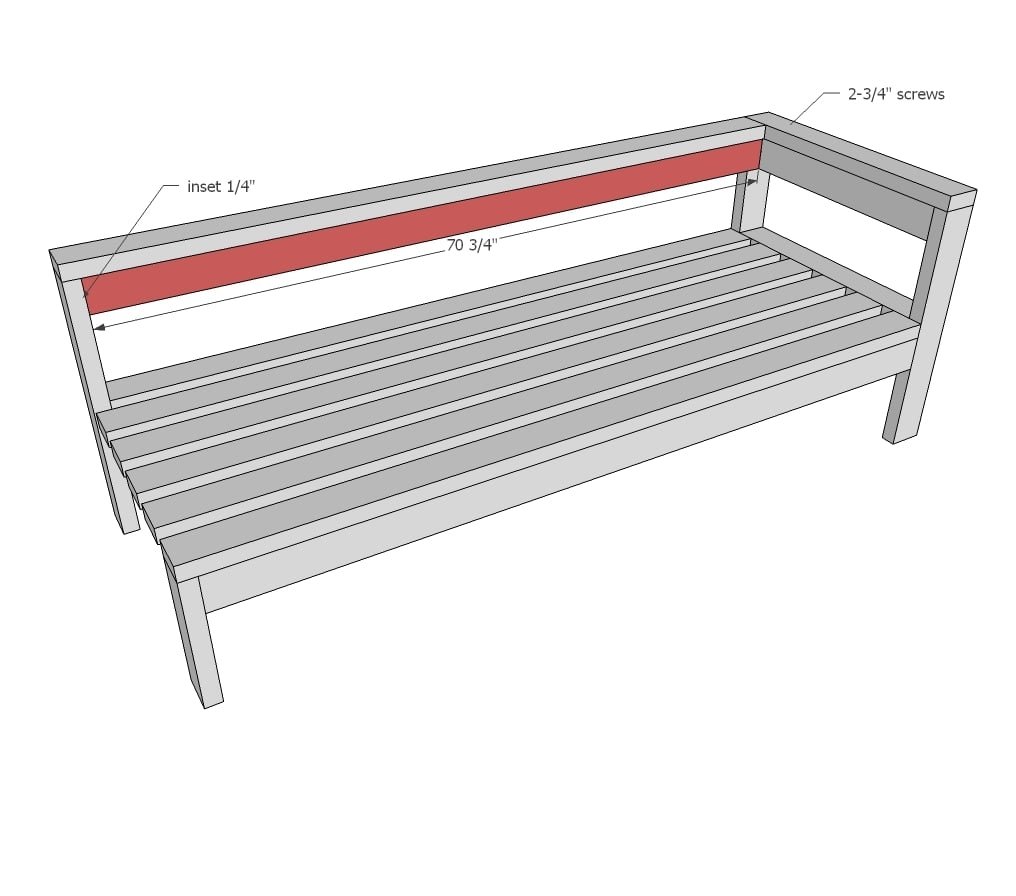

Step 8
Optional: Additional back support can be added as shown.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
