Open Wall Cabinet
DIY Kitchen wall cabinet
Specifications
| Project type | Hutch Plans |
|---|---|
| Room | kitchen |
| Difficulty | Intermediate |

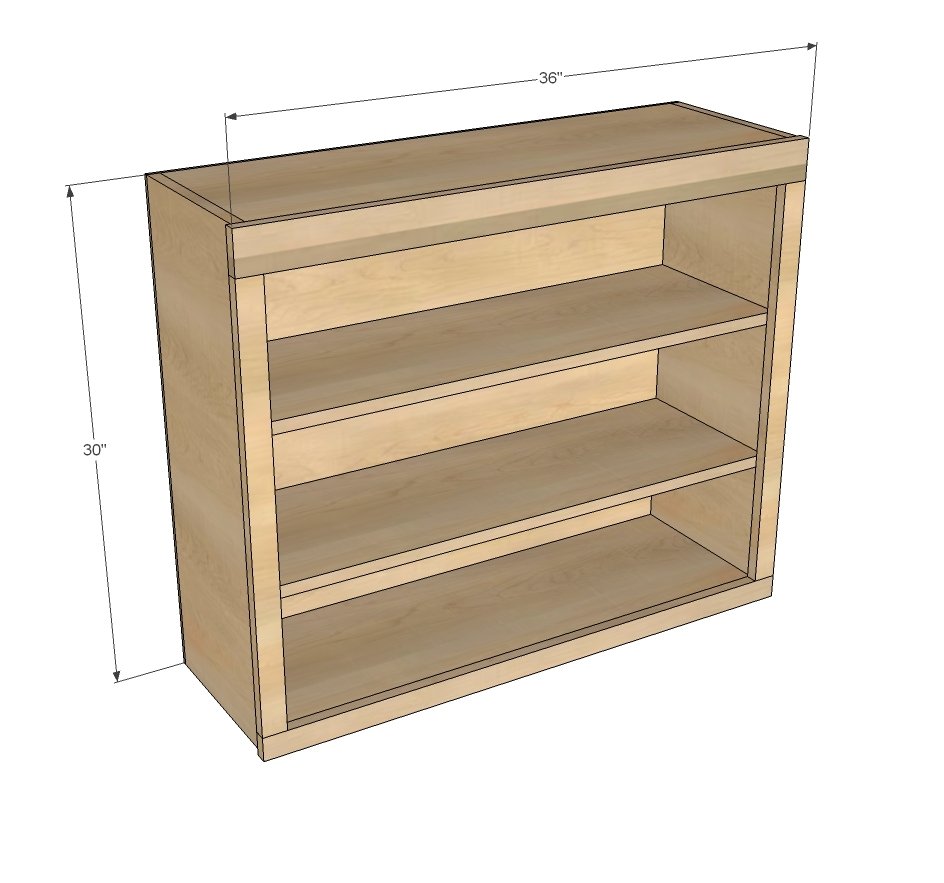

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
3/4" plywood (18 linear feet) ripped into depth of cabinet (we did 10-1/4" but you can choose any width just make sure the width is consistent from cabinet to cabinet)
1/2 sheet of 1/4" plywood
scrap plywood piece for top support/hanging cabinet
3 feet of 1x3s
8 feet of 1x2s
1-1/4" nails for attaching face frame (unless you use pocket holes) or fixed shelves
3/4" nails for attaching back
Glue
1-1/4" pocket holes for building and attaching frame
shelf pins if you use adjustable shelves
edge banding for front edges of shelves
Cut List
2 - 3/4" plywood @ 10-1/4" (or your rip width) x 30" (sides)
2 - 3/4" plywood @ 10-1/4" (or your rip width) x 34" (top and bottom)
1 - 3/4" plywood or 1x4 @ 34" (can be different width, this piece is just used for hanging on wall)
1 - 1/4" plywood 30" x 35-1/2" (back)
FACE FRAME
1 - 1x3 @ 36"
1- 1x2 @ 36"
2 - 1x2 @ 26"
SHELVES
Fixed with front edgebanding - cut 36" long and trim front edge back 1/8" for edge banding
Adjustable with front edgebanding - cut 35-3/4" long and trim front edge back 1/8" for edge banding
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- table saw
- nailer
Step-by-step Instructions

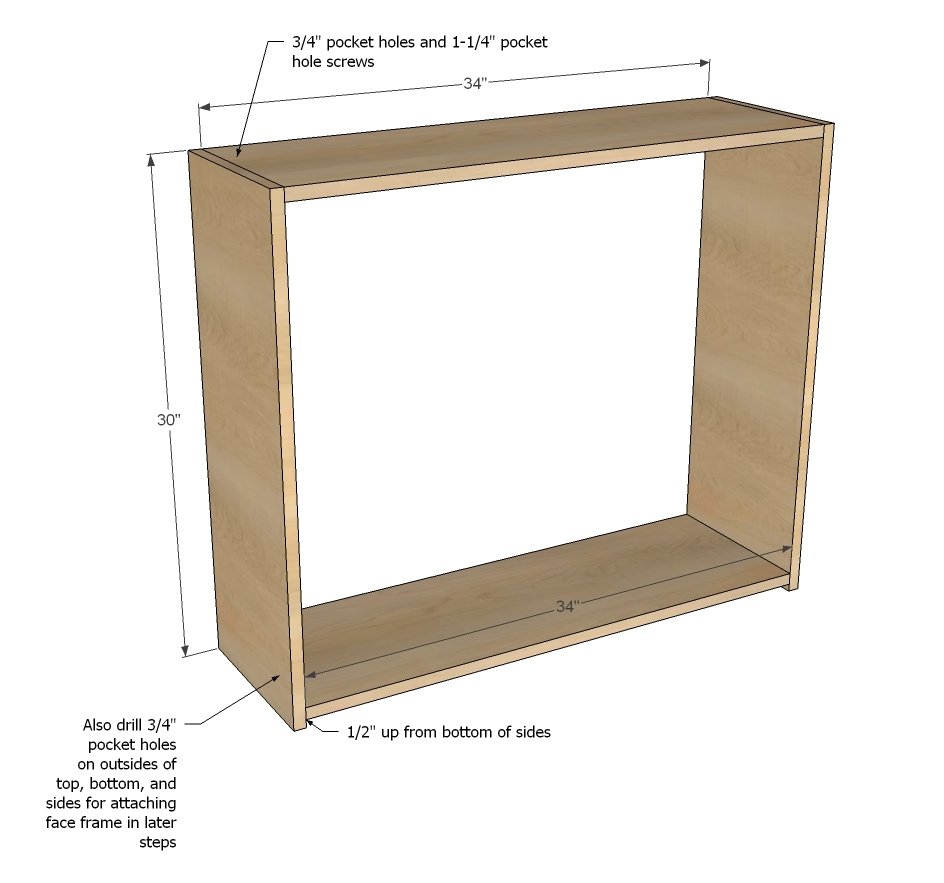

Step 1
Build your carcass by attaching top and bottom to sides. Remember to keep all pocket holes on outsides - the neighboring cabinets or end panels will finish out outsides when you install your kitchen. TIP: Drill 3/4" pocket holes facing forward along all top, bottom and side edges for attaching face frame in later steps.

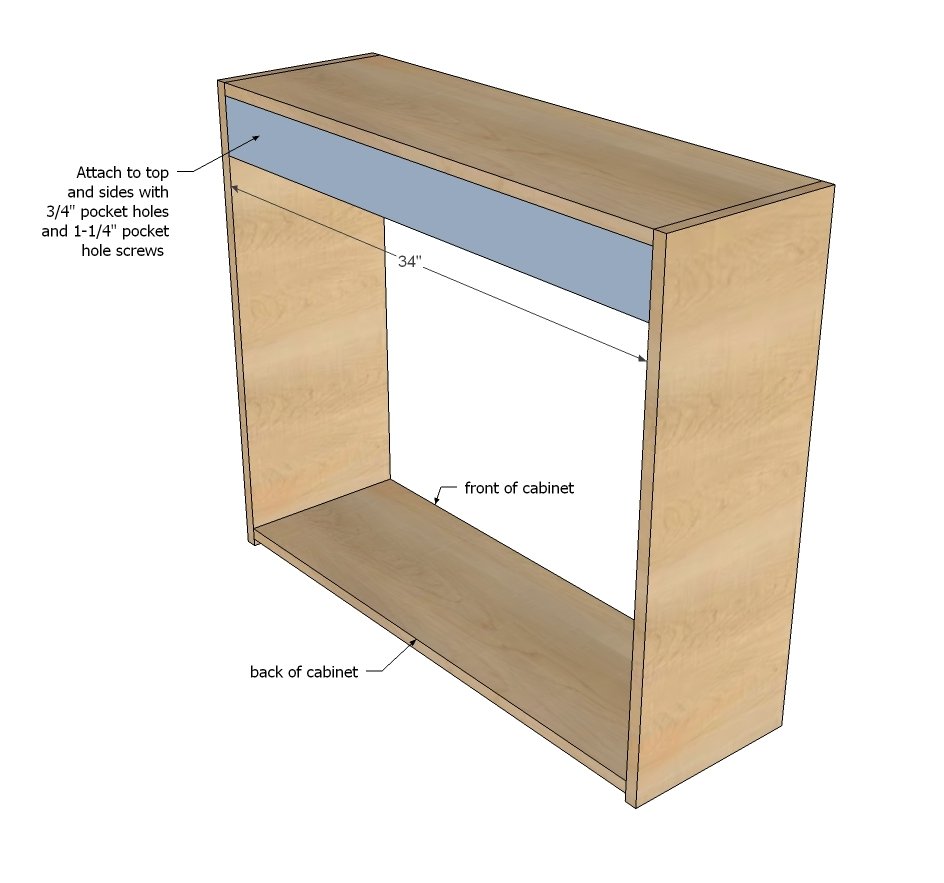

Step 2
You'll need something for hanging the cabinet on the wall. We use scraps from the carcass plywood (but you could use a 1x4 here too) attached from the back with pocket holes.

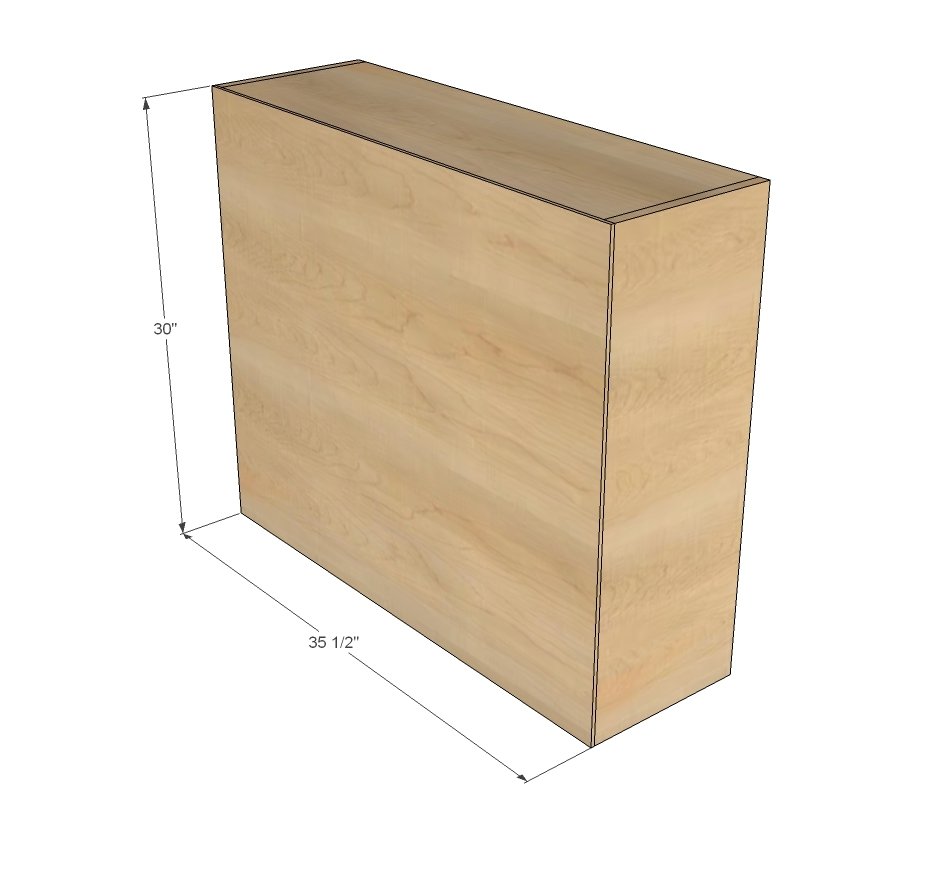

Step 3
Attach back with nails and glue. We use 3/4" nails.

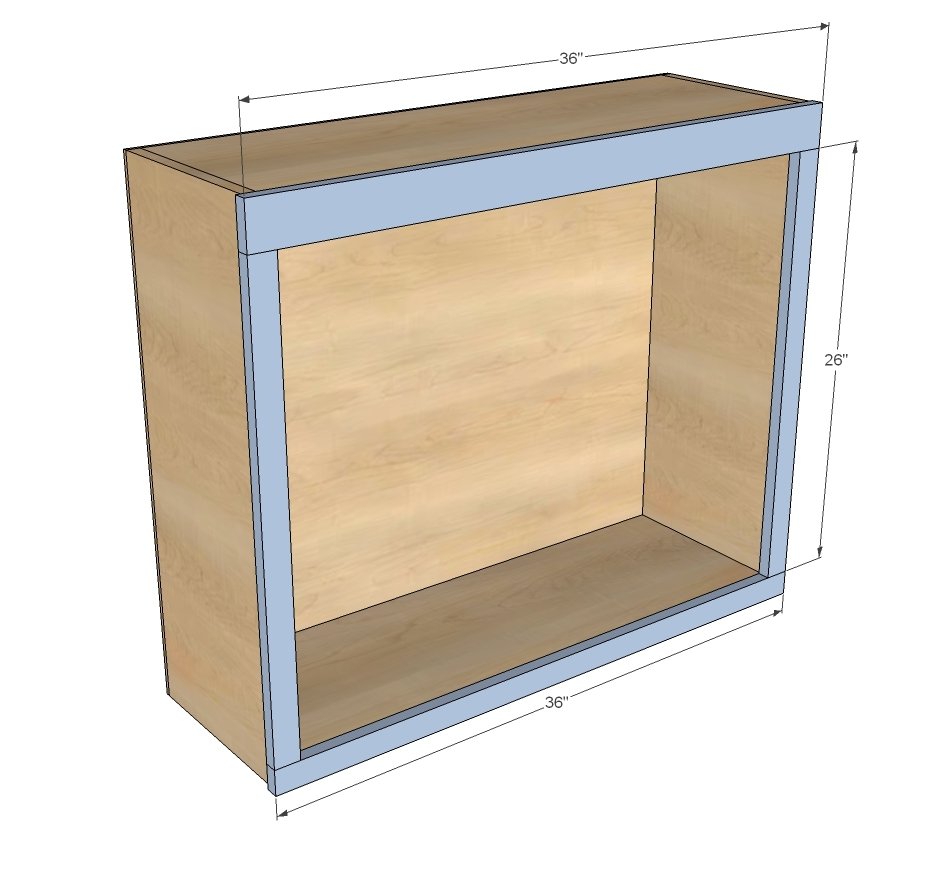

Step 4
Build the face frame first with 3/4" pocket holes and 1-1/4" pocket hole screws, then attach through the pocket holes you drilled in step 1 with 1-1/4" pocket hole screws. The face frame will overhang the sides by 1/4", but is flush to top and bottom of sides.

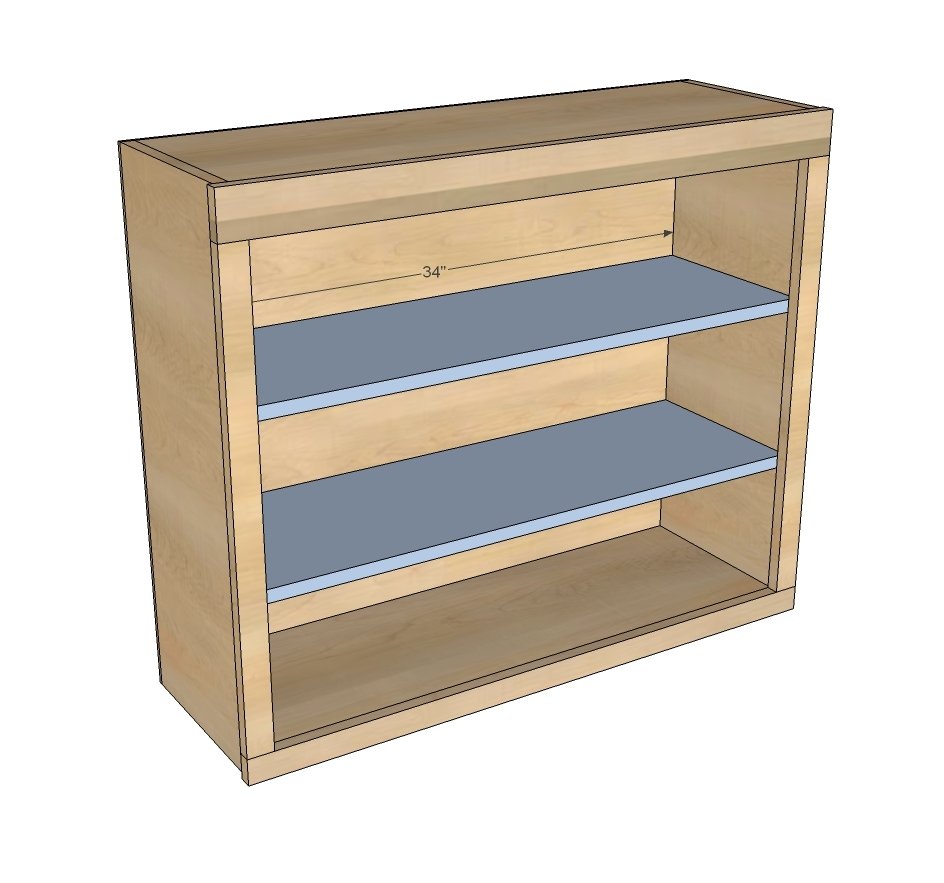

Step 5

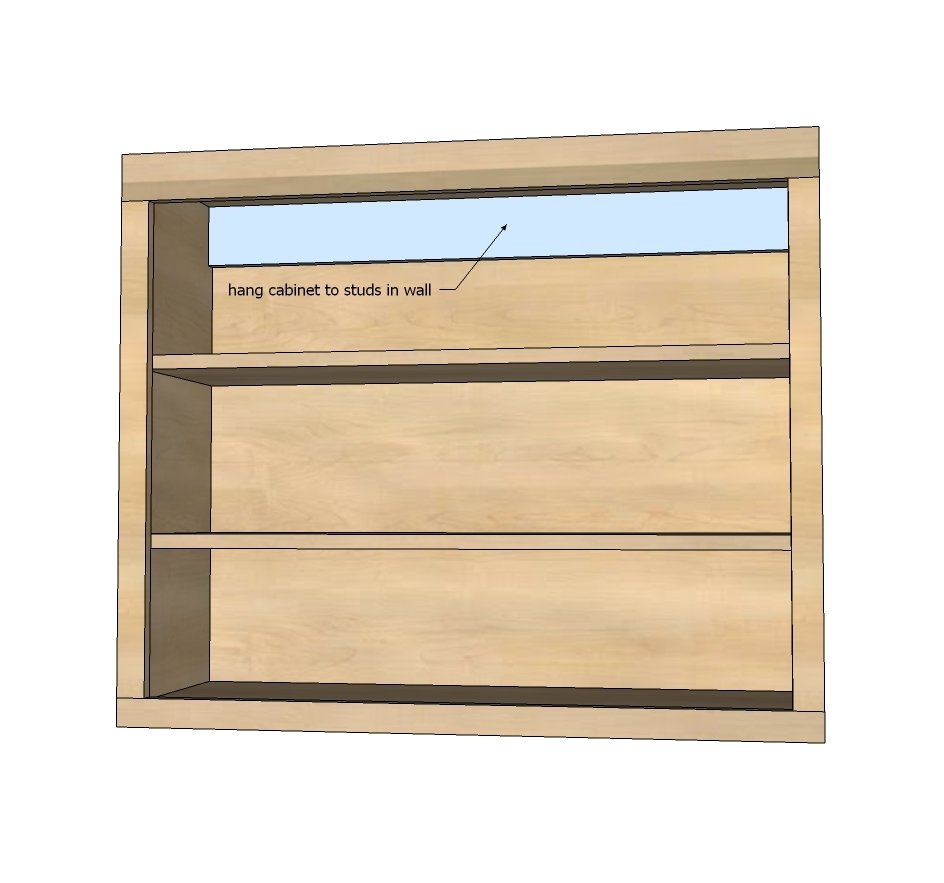

Step 6
Hang cabinet through top back support to studs in walls.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
