Ottoman or Accent Table for Simple Modern Outdoor Sectional
This simple woodworking plan is an ottoman for our modern outdoor sectional collection, and can also be used as a coffee table or accent table. You'll just need a drill and a saw to build. Step by step plans with diagrams, cut list and materials. Check out the matching sectional plans and learn how to finish wood for outdoor use.
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Style | Modern Style Furniture Plans |
| Difficulty | Beginner Projects |
| Estimated cost | Under $20 |

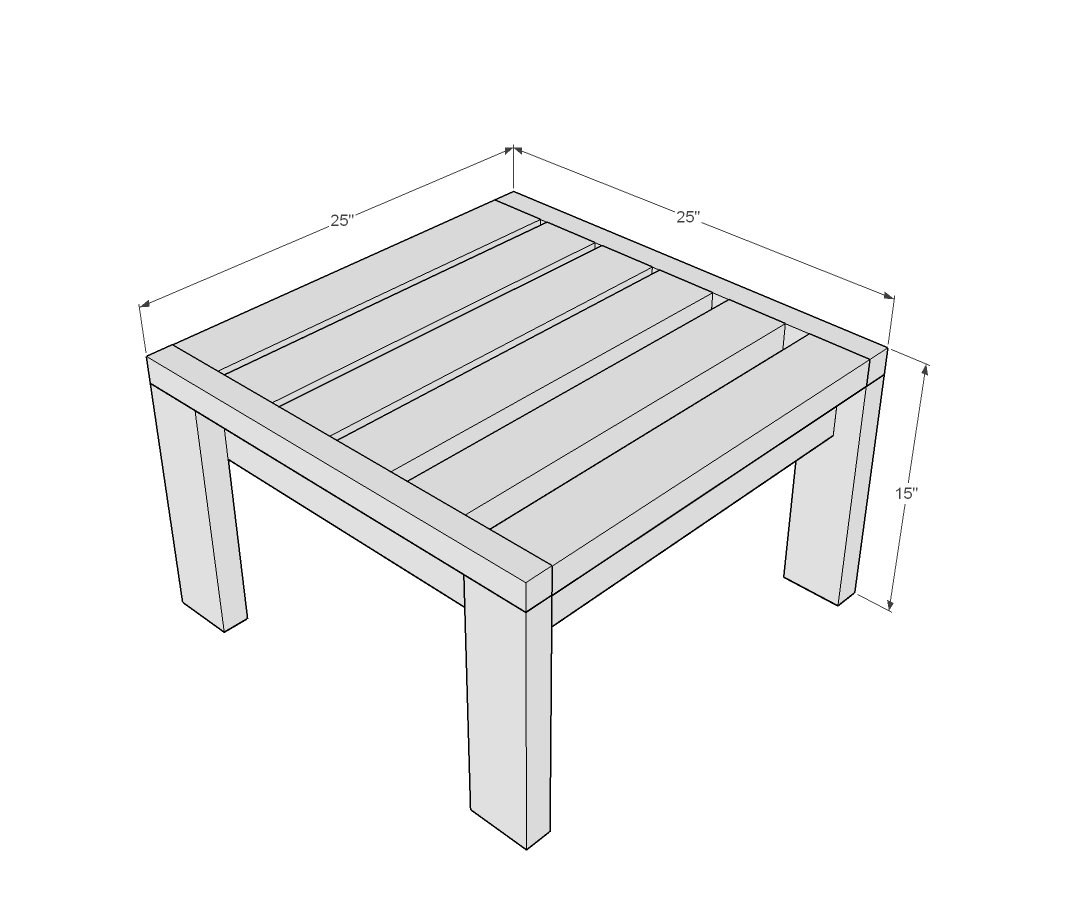

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
1 - 2x2 @ 50"
3 - 2x4 @ 8 feet long (recommend cedar or outdoor appropriate)
60 - 2-1/2" long exterior self tapping wood screws (deck screws or similar)
Cut List
2 - 2x4 @ 22" - seat frame
2 - 2x4 @ 19" - seat frame
4 - 2x4 @ 13-1/2" - legs
6 - 2x4 @ 22" - tabletop boards
2 - 2x2 @ 25" - end trim
Tools
- measuring tape
- square
- safety glasses
- hearing protection
- drill
- circular saw
Step-by-step Instructions

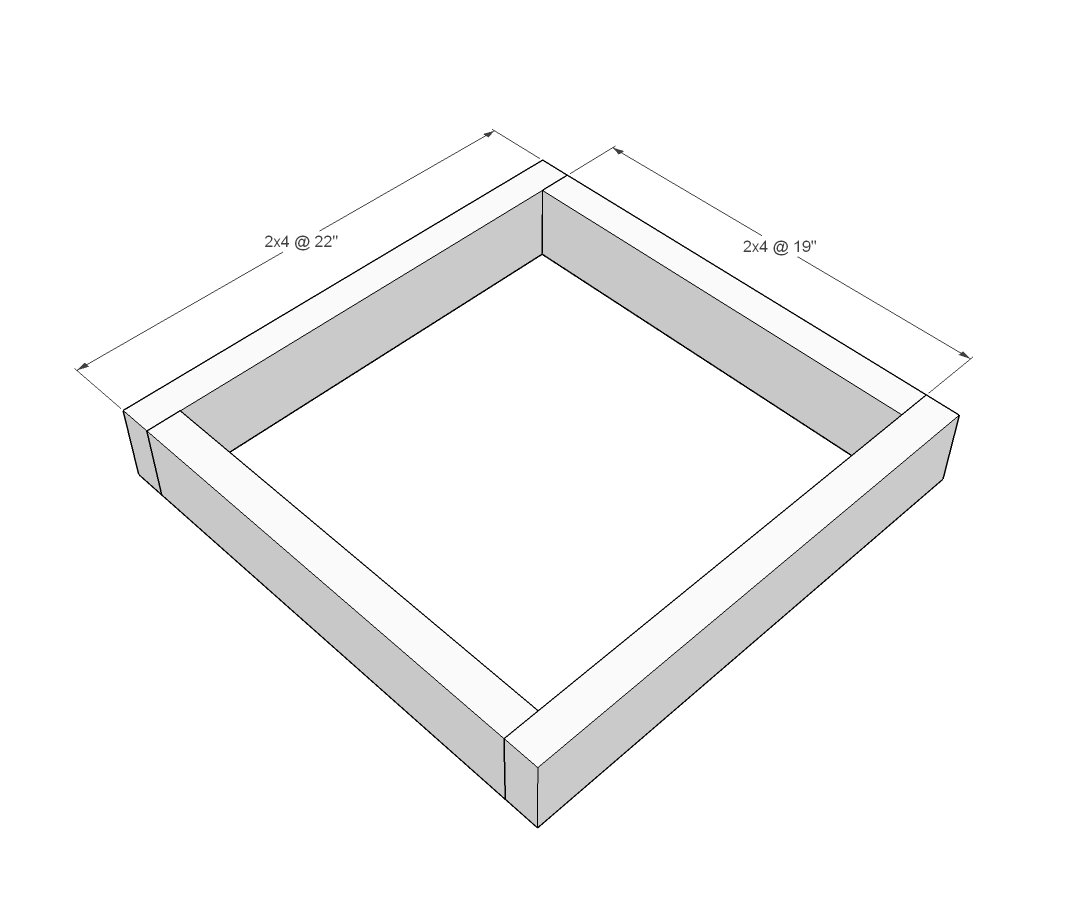

Step 1
Build the seat frame by attaching the seat boards together with 2-1/2" self tapping wood screws, two per joint.

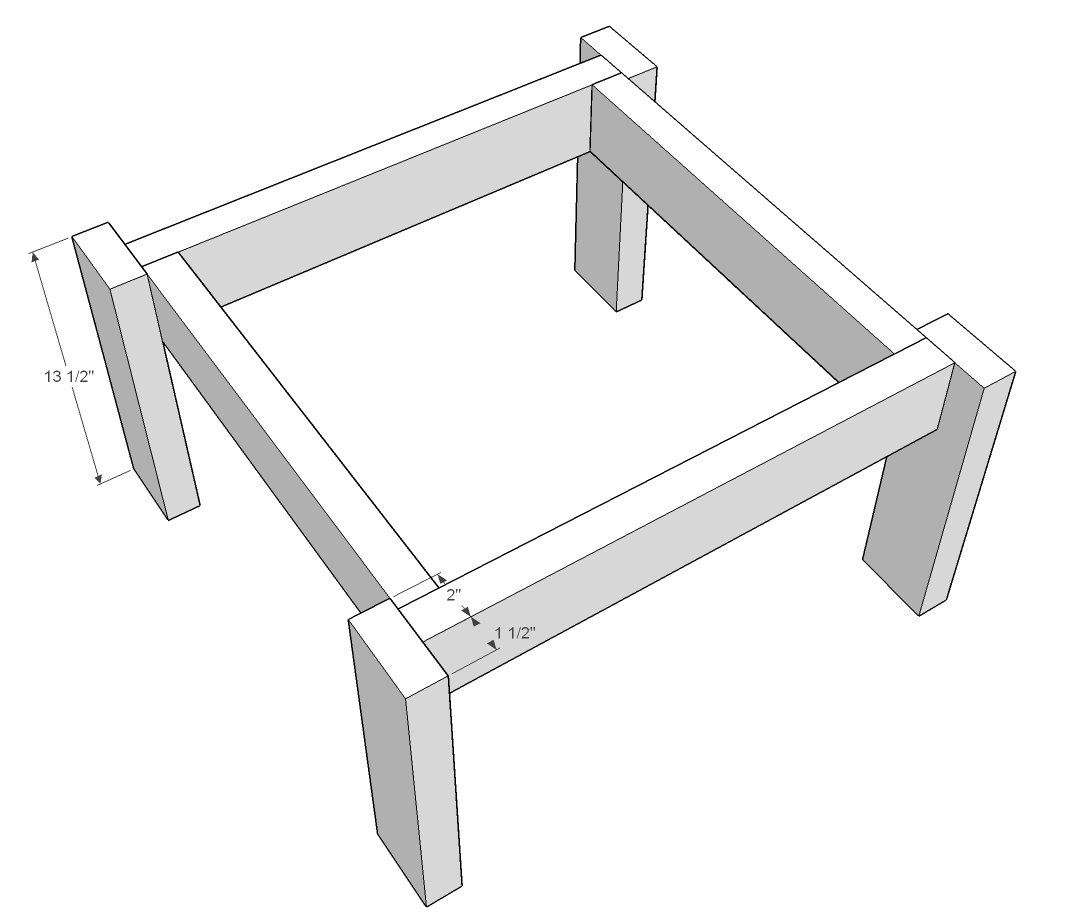

Step 2
Attach legs with 2-1/2" self tapping wood screws, two per joint,from the inside of the seat frame into the back side of the legs (it's good to screw at a slight angle - this will help prevent any wobbles

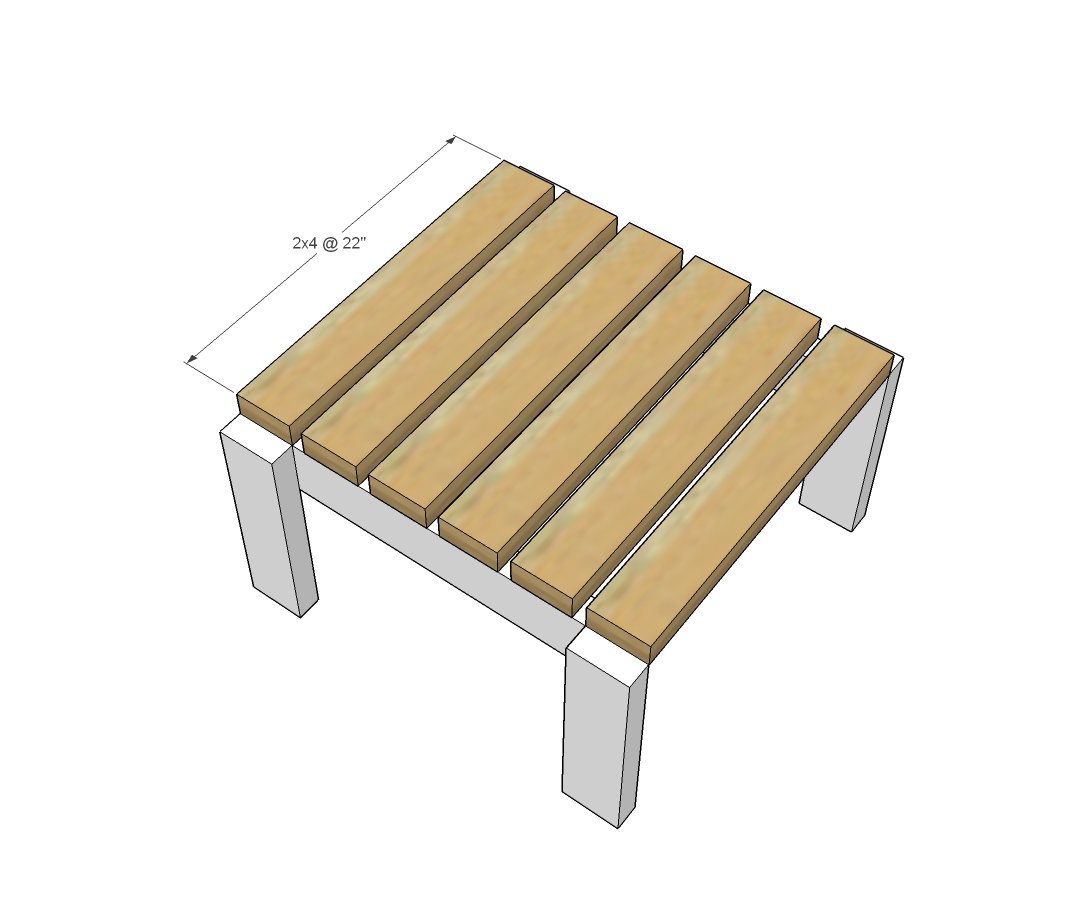

Layout tabletop slat boards, evenly spacing. Screw down.
TIP: You can measure and mark out the screw holes for a neater final finish.

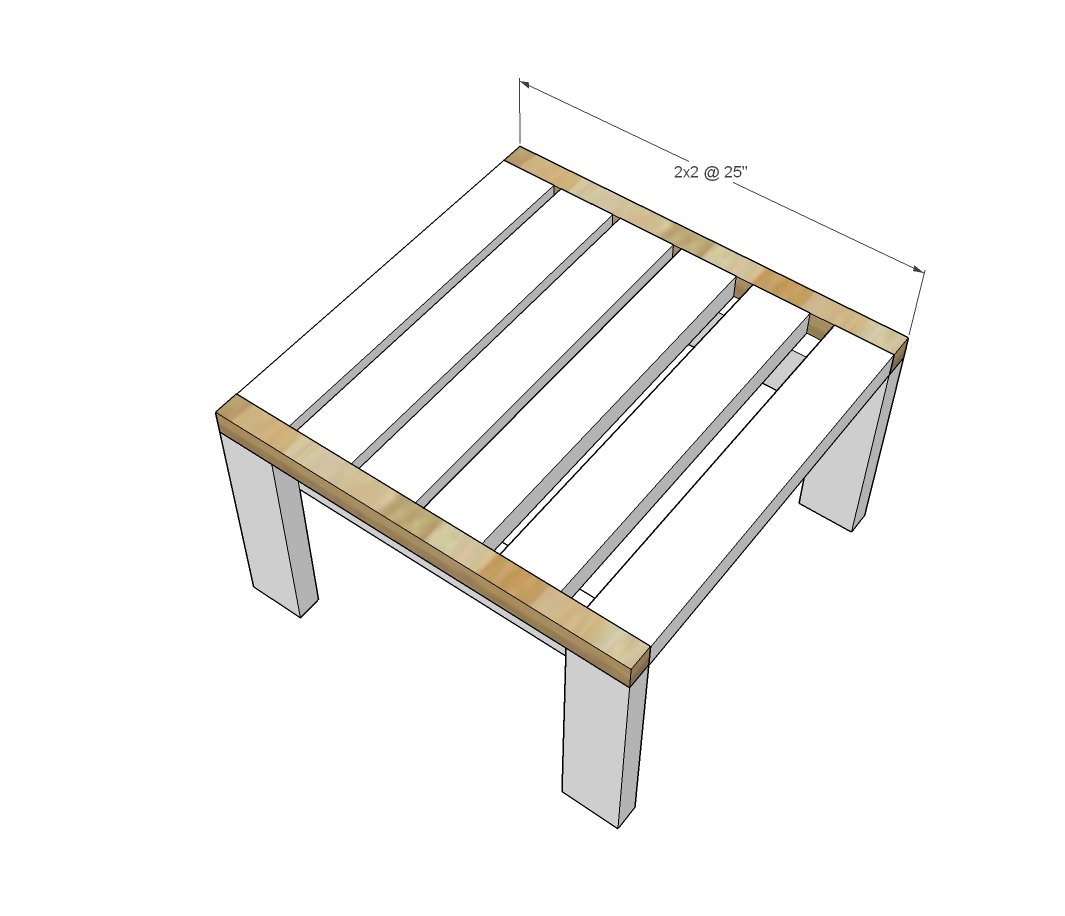

Step 4
Attach 2x2 trim to the ends of the tabletop slats and also to the tops of the legs.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
