Outdoor Bar Height Truss Beam Table
Free Bar Height Outdoor Table Plans Build your own modern bar-height outdoor table with these free, step-by-step plans. This sturdy design features clean lines, a solid wood frame, and a simple X-brace detail that adds both strength and style. Perfect for patios, decks, or outdoor entertaining spaces, this table is designed to pair with standard bar stools and create a casual, elevated dining or gathering area. ✔ Bar-height for stools and entertaining ✔ Strong and durable construction ✔ Built with basic lumber and simple tools ✔ Step-by-step instructions with diagrams ✔ Beginner-friendly build This is a great weekend project that looks high-end but is easy to build — and customize with your favorite finish.
Specifications
| Project type | Kitchen Island Plans |
|---|---|
| Room | Outdoor |
| Difficulty | Intermediate |

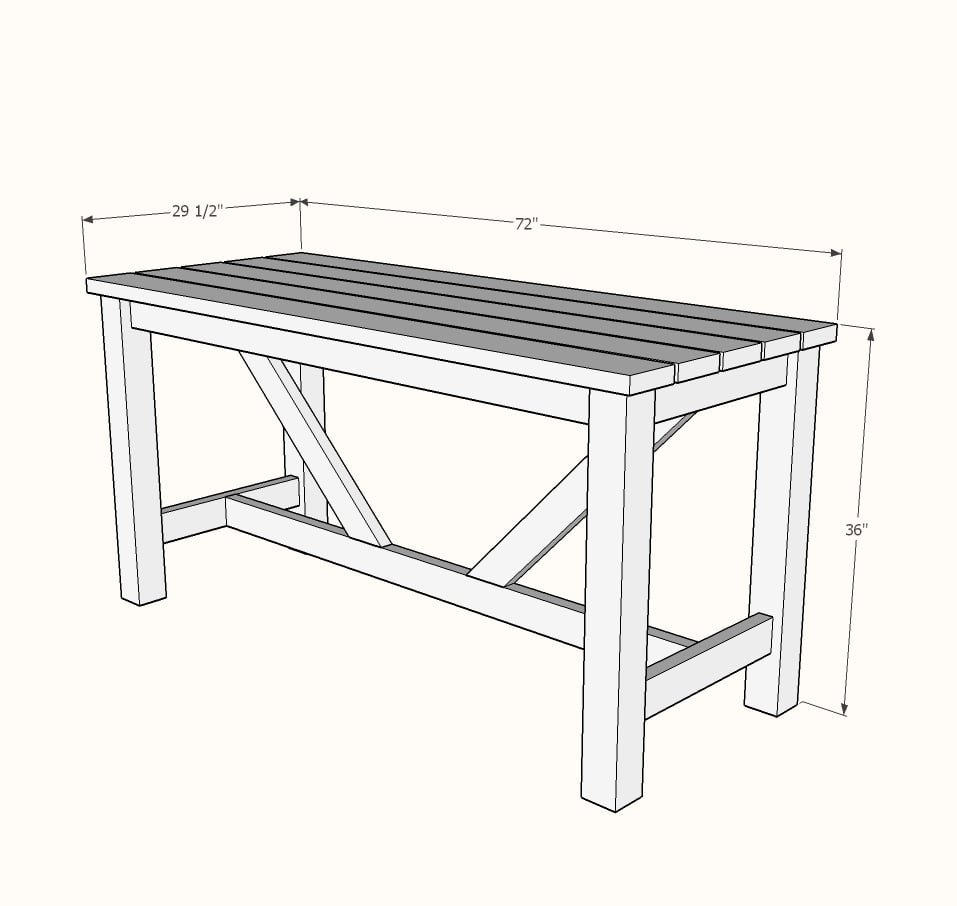

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
2 - 4x4 @6 feet long
5 - 2x6 @ 6 feet long
4 - 2x4 @ 8 feet long
Cut List
4 - 4x4 @ 34-1/2" - Legs
4 - 2x4 @ 20-1/2" - End Aprons
2 - 2x4 @ 63" - Side Aprons
Cut center support and stretcher to fit from 2x4s
2 - 2x4 @ 30-3/8" - both ends cut at 45 degrees, short point to short point measurement, ends are NOT parallel
5 - 2x6 @ 72"
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- compound miter saw
- sander
Step-by-step Instructions

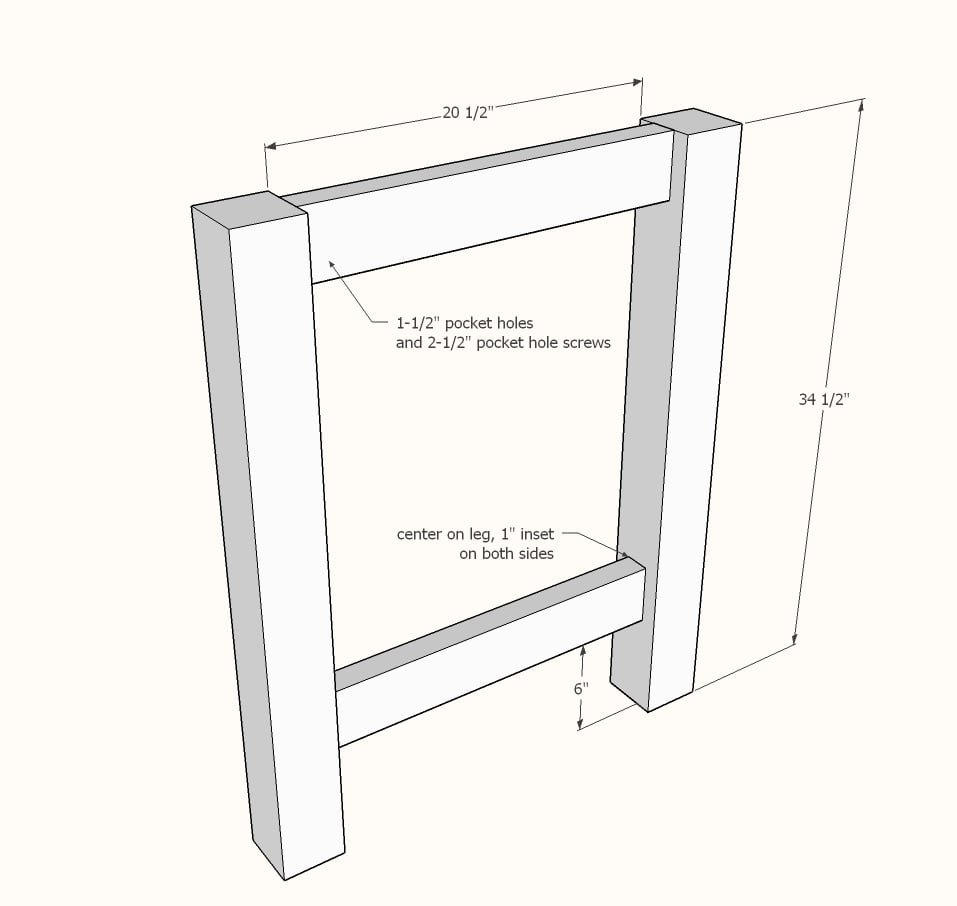

Step 1
Drill two 1-1/2" pocket holes on each end of the apron boards. Attach to the 4x4s, centered on the 4x4 posts (about 1" on each side of the 2x4). Use 2-1/2" pocket hole screws. Build two.

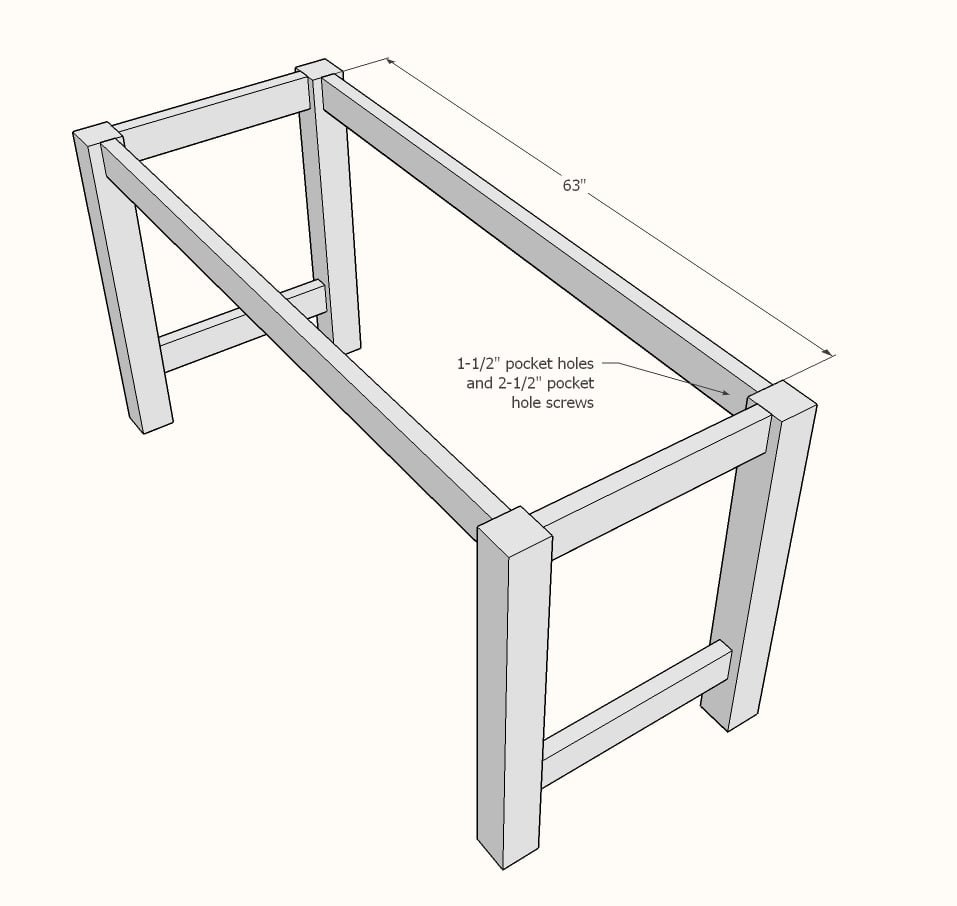

Step 2
Repeat for the longer side aprons.

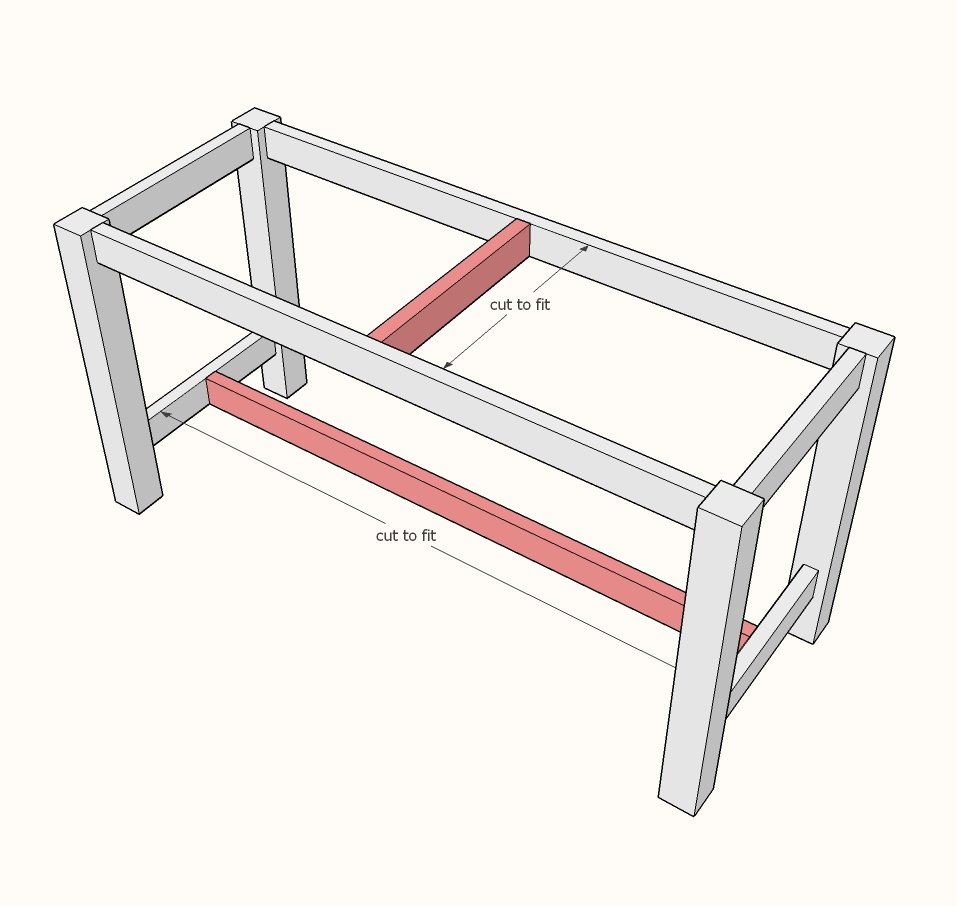

Step 3
Measure and cut the bottom stretcher and center support. Attach with either pocket holes or 3" deck screws.

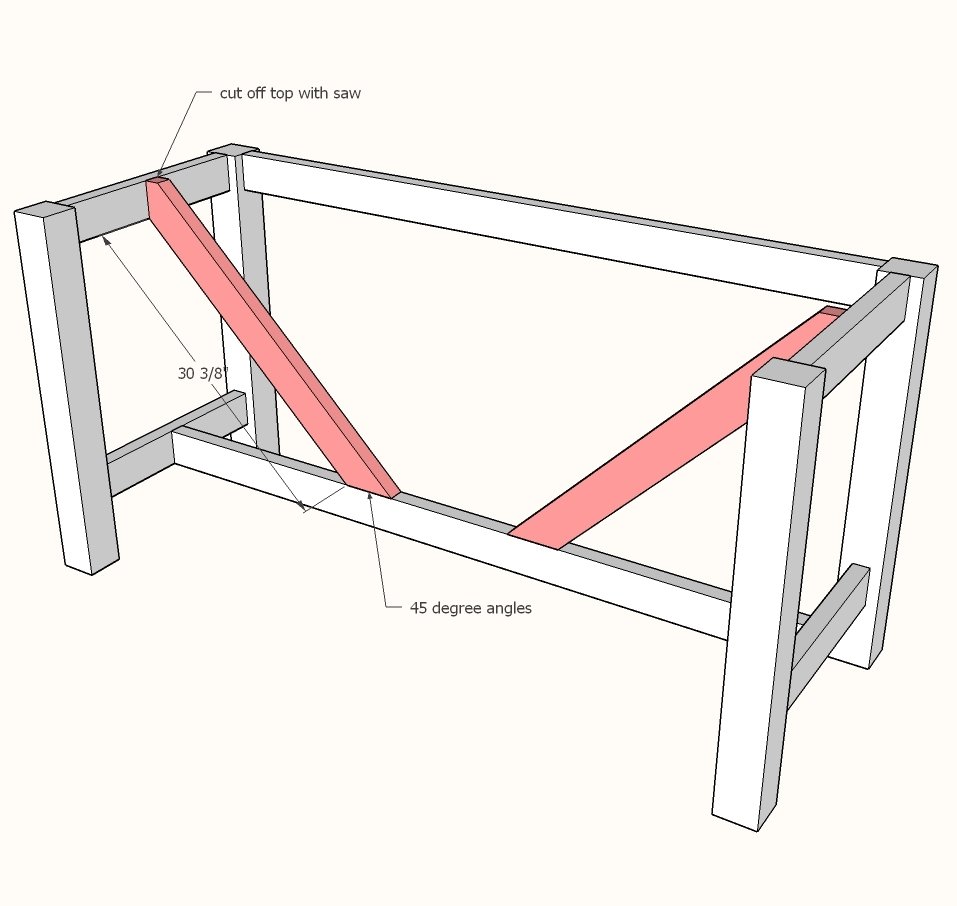

Step 4
Place the cross supports inside the table. Mark top that overhangs and cut off with saw. Drill pocket holes and attach.

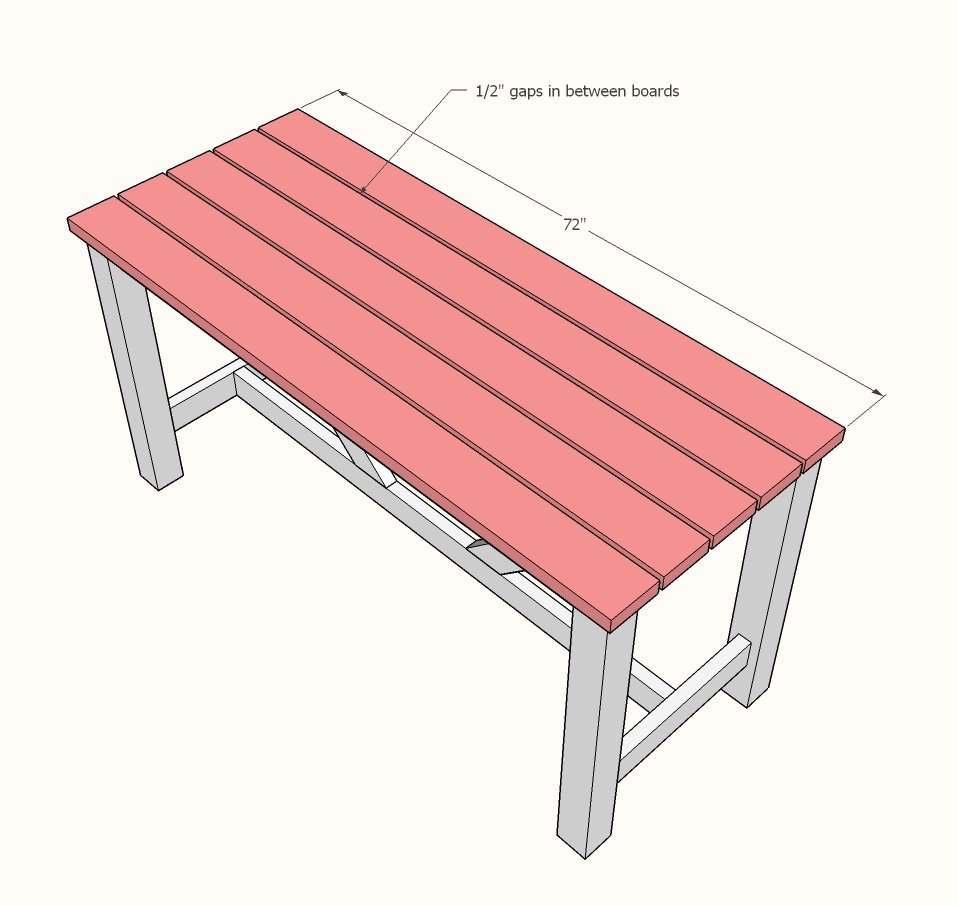

Step 5
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
