Outdoor Daybed with Canopy
Create a backyard retreat by building your own outdoor daybed with canopy designed to fit a standard twin mattress. This plan uses standard off the shelf lumber and basic tools to construct. Check out the step by step diagrams and materials list from
Specifications
| Project type | Outdoor Seating, Lounging and Accents |
|---|---|
| Room | Outdoor |
| Style | Cottage Style Furniture Plans |
| Difficulty | Intermediate |
| Estimated cost | $100-$150 |

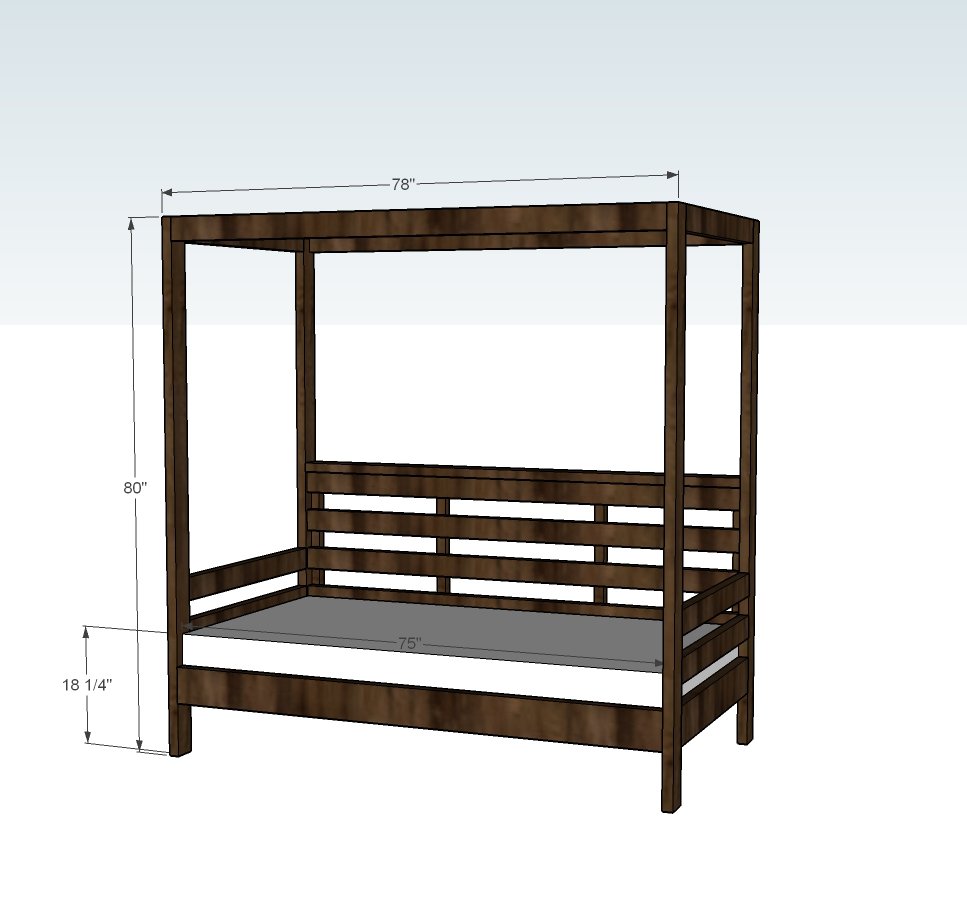

Dimensions
Use the size-specific shopping and cut lists below.
Shopping List
13 - 2x4 @ 10 feet long
2 - 2x6 @ 10 feet long
2 - 2x2 @ 8 feet long
Use leftover 2x4s, 2x2s and 2x6s for the mattress slats @ 39" (cut to fit)
Cut List
4 - 2x4 @ 80" - legs
6 - 2x4 @ 36-1/2" - ends
2 - 2x6 @ 36-1/2" - ends
2 - 2x6 @ 75" - front/back
9 - 2x4 @ 75" - front/back and cleats
4 - 2x2 @ 31-1/2" - back trim
Use leftover 2x4s, 2x2s and 2x6s for the mattress slats @ 39" (cut to fit)
Tools
- measuring tape
- square
- pencil
- safety glasses
- hearing protection
- kreg-jig
- drill
- circular saw
- sander
Step-by-step Instructions

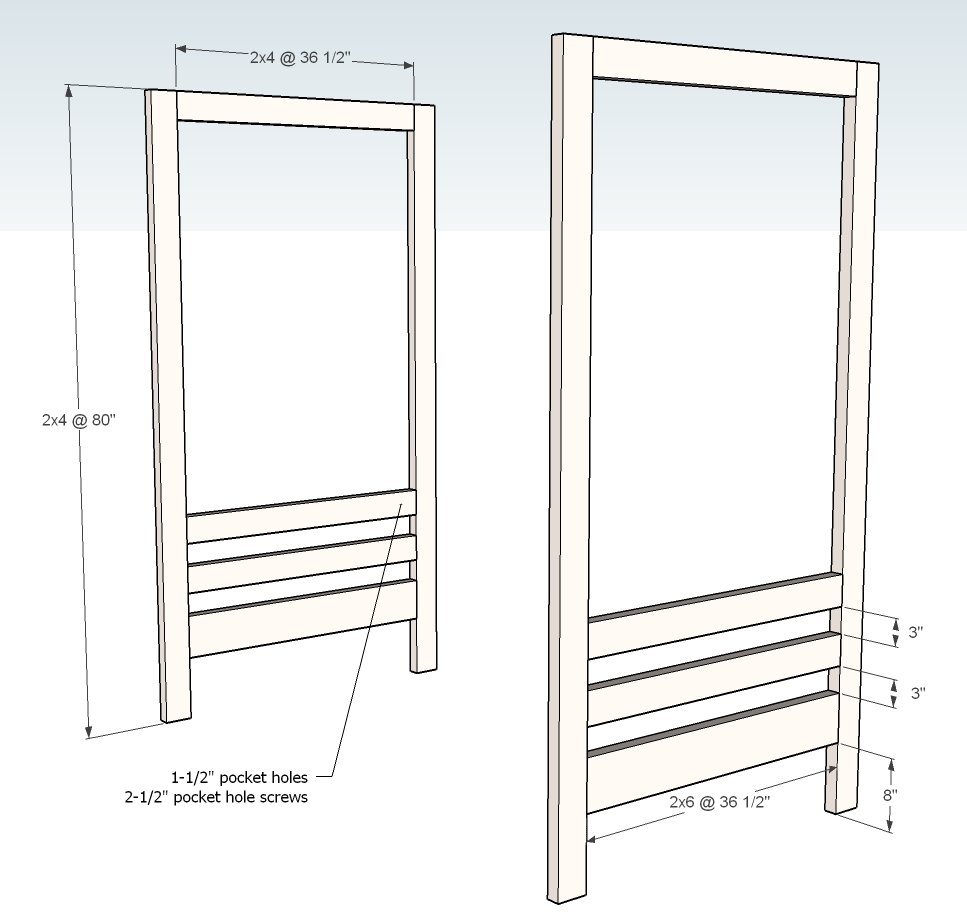

SIDE PANELS
Build your side panels as shown above. Drill two 1-1/2" pocket holes on both ends of all horizontal boards shown. Attach to the legs with 2-1/2" pocket hole screws. Build 2 side panels. Pocket holes can be filled with plugs or exterior appropriate wood filler.

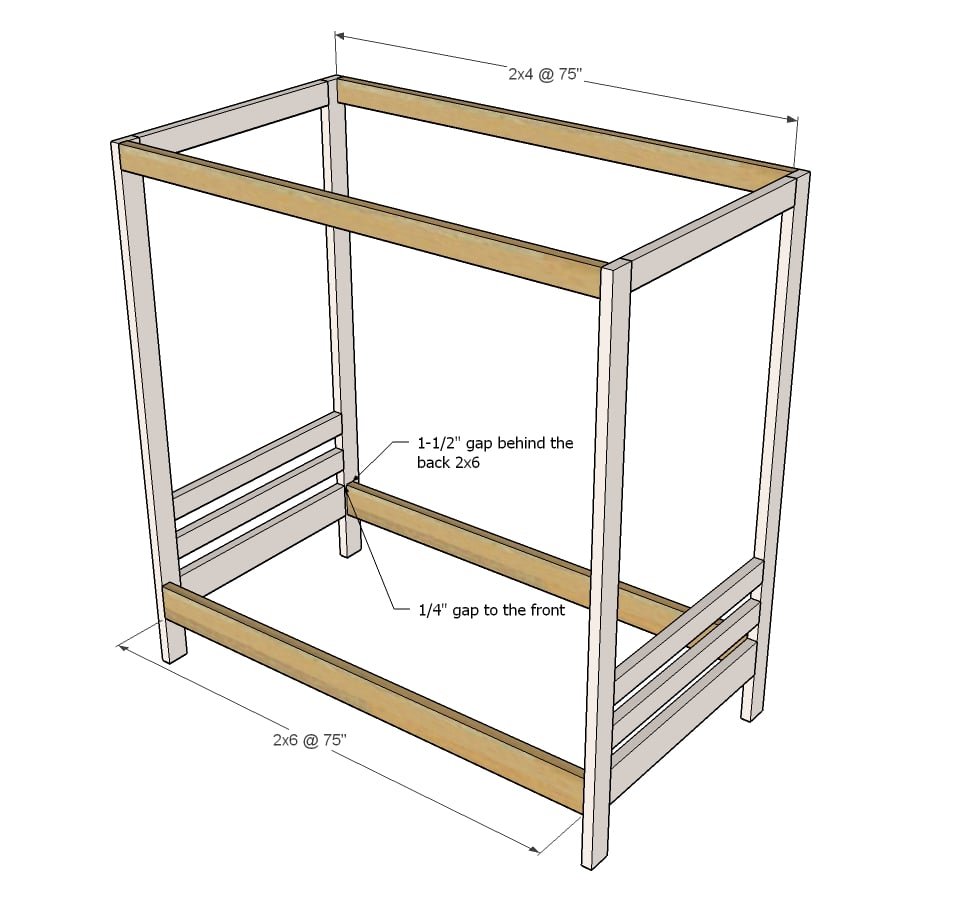

Step 2
Drill two pocket holes on each end of all the horizontal boards shown. Drill three per end for 2x6 boards. Attach to the legs with 2-1/2" pocket hole screws. Keep pocket holes on insides to keep hidden.

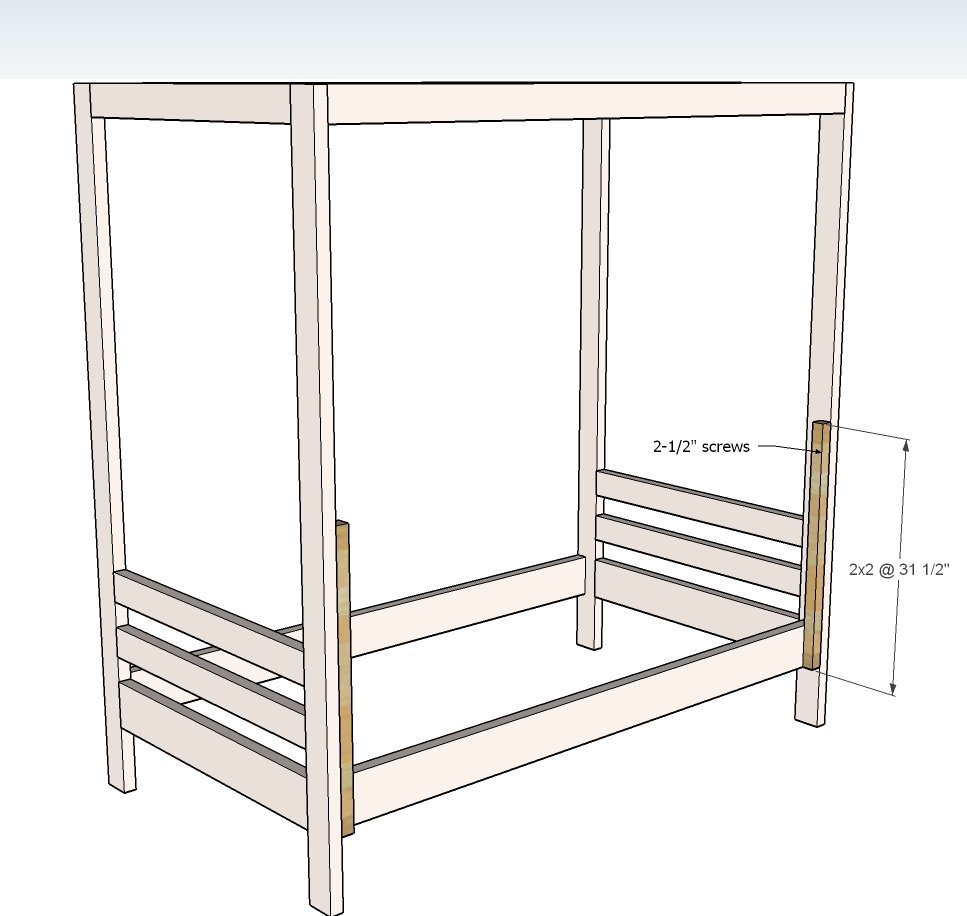

Step 3
Attach 2x2s to back side of daybed with 2-1/2" self tapping exterior screws, flush to back edge.

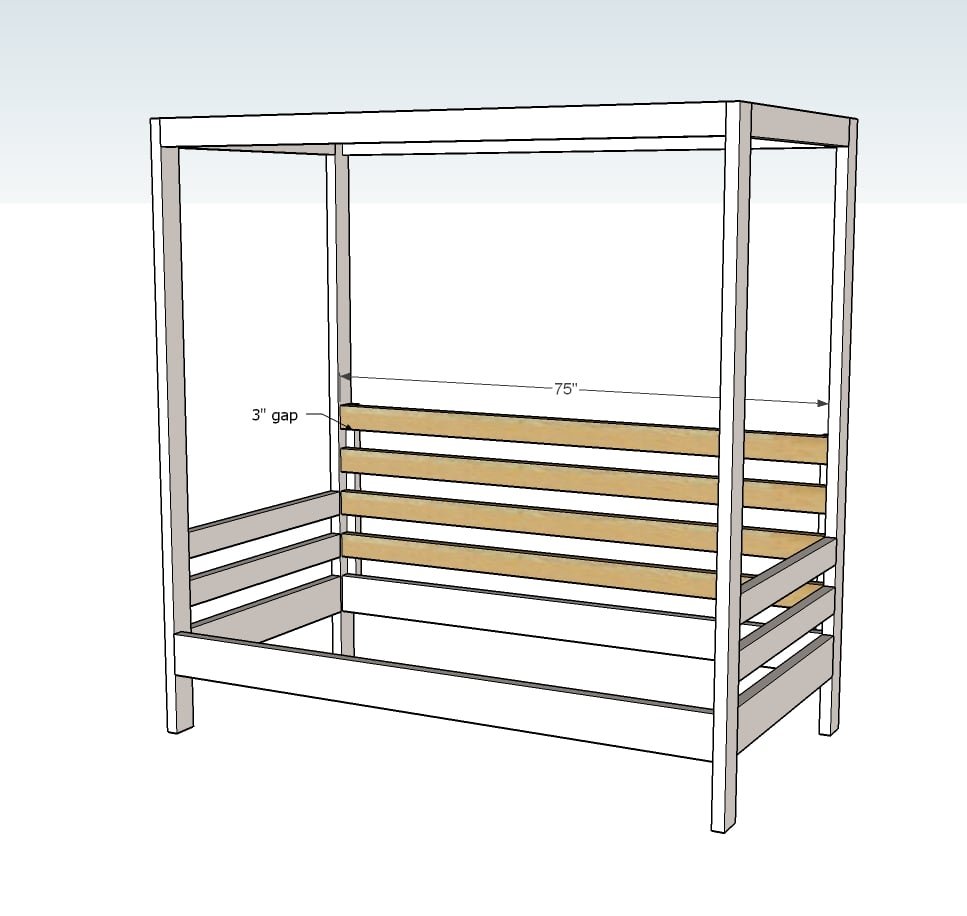

Attach back slats to the 2x2 with 2-1/2" screws.
You can also attach from outside of leg with 2-1/2" screws.

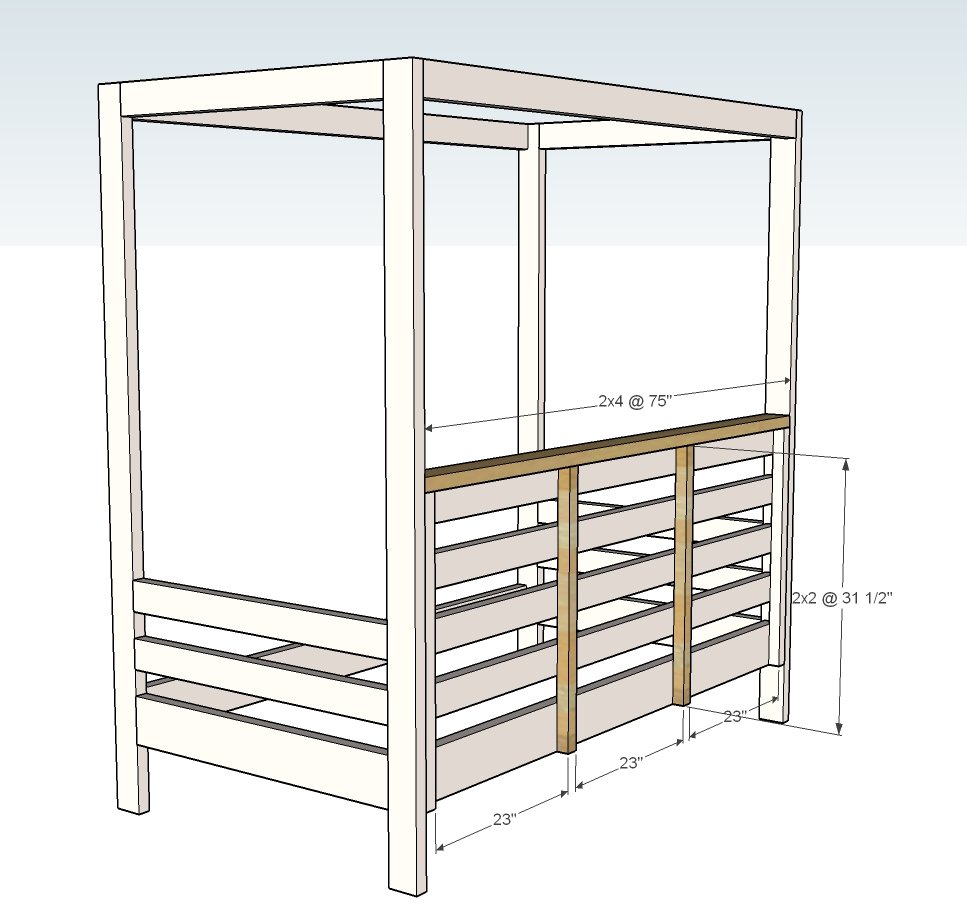

Step 5
Complete the trim out of the back by adding 2x2s and 2x4 cap with the 2-1/2" screws.

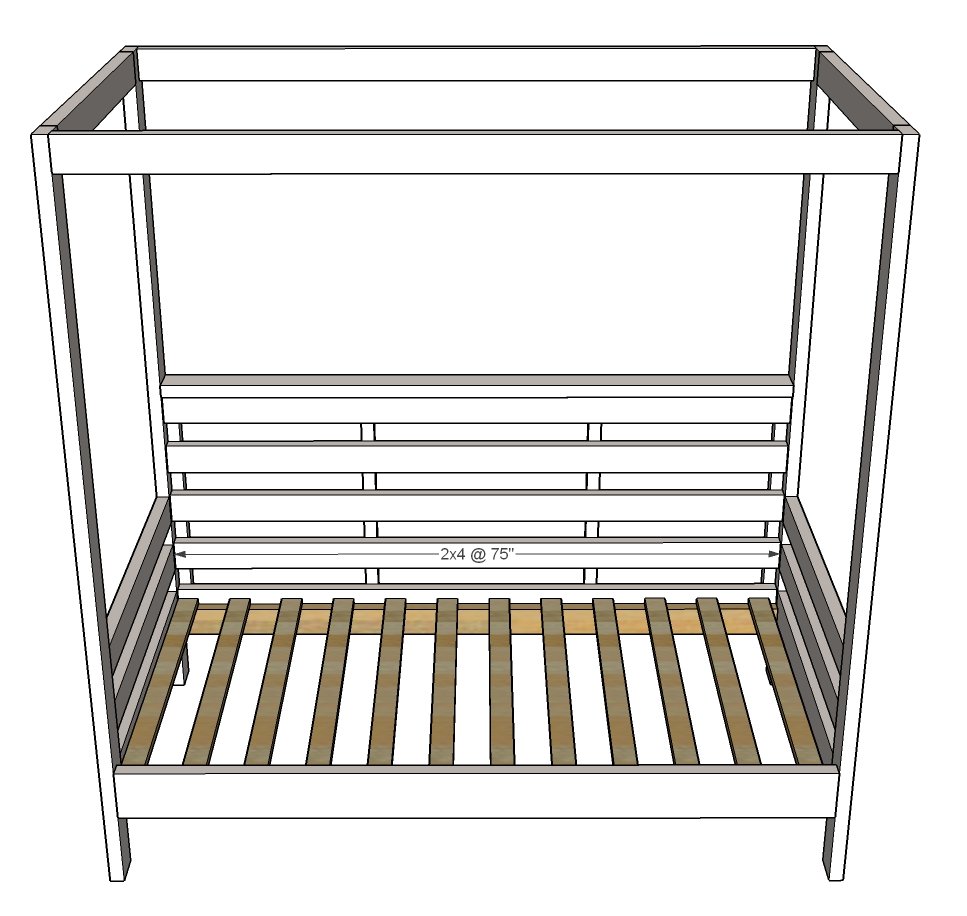

Attach 2x4 cleats inside the 2x6 bed aprons with 2-1/2" screws every 8" approximately.
Measure and cut the slats to fit. Lay on the cleats and screw down with 2-1/2" screws.
Finishing
Sand all surfaces, starting with a medium grit and finishing with fine. Wipe off the dust, fill any holes or gaps with wood filler, and sand smooth once dry. Apply primer if you're painting, then finish with your choice of paint or stain and seal with a durable clear topcoat. For outdoor projects, use exterior-rated primer, paint or stain, and sealer so the piece stands up to the weather.
